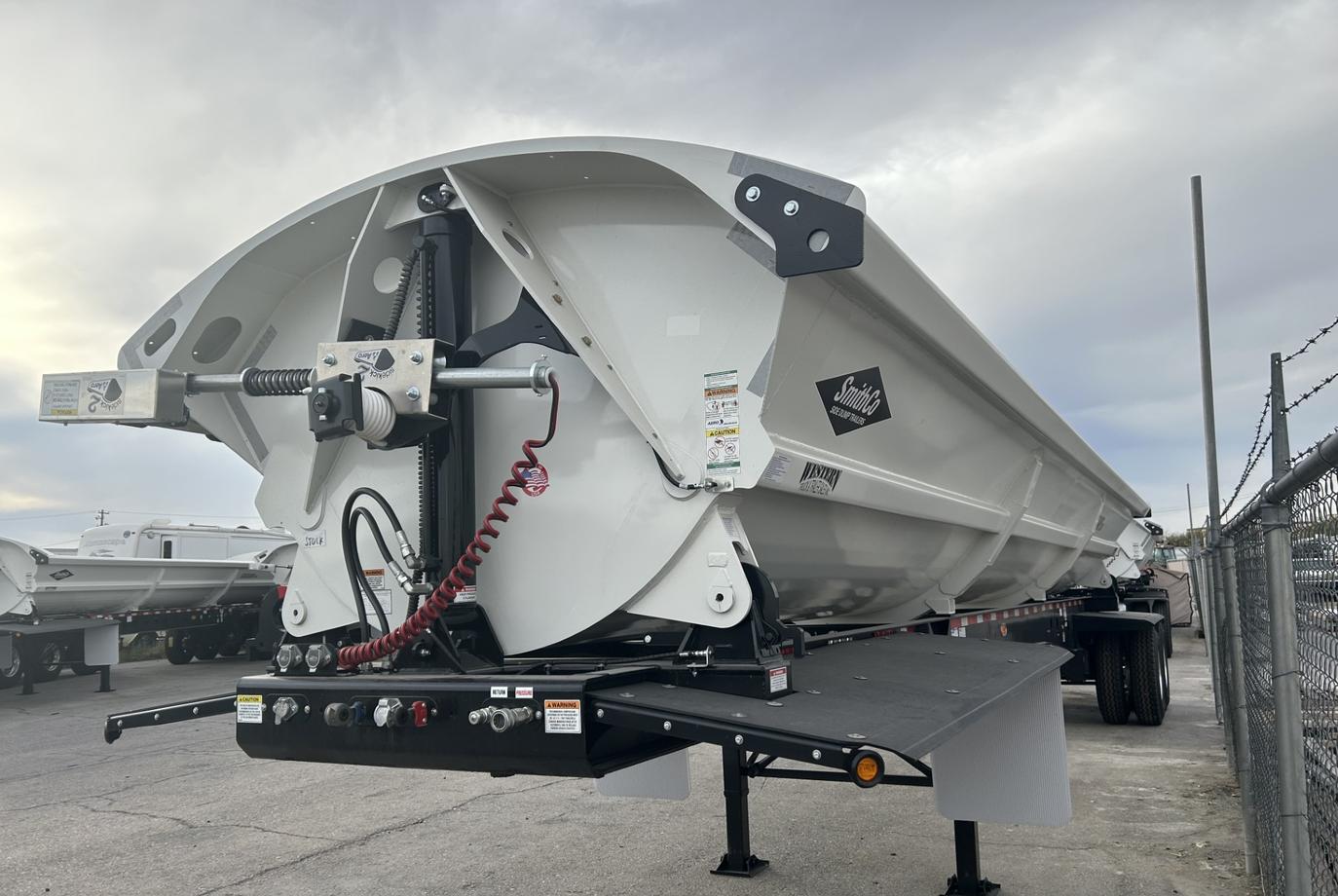

SmithCo SXL2-40-34 Trailer

SmithCo SXL2-40-34 – Side Dump, 34' tub, 1/4" AR450

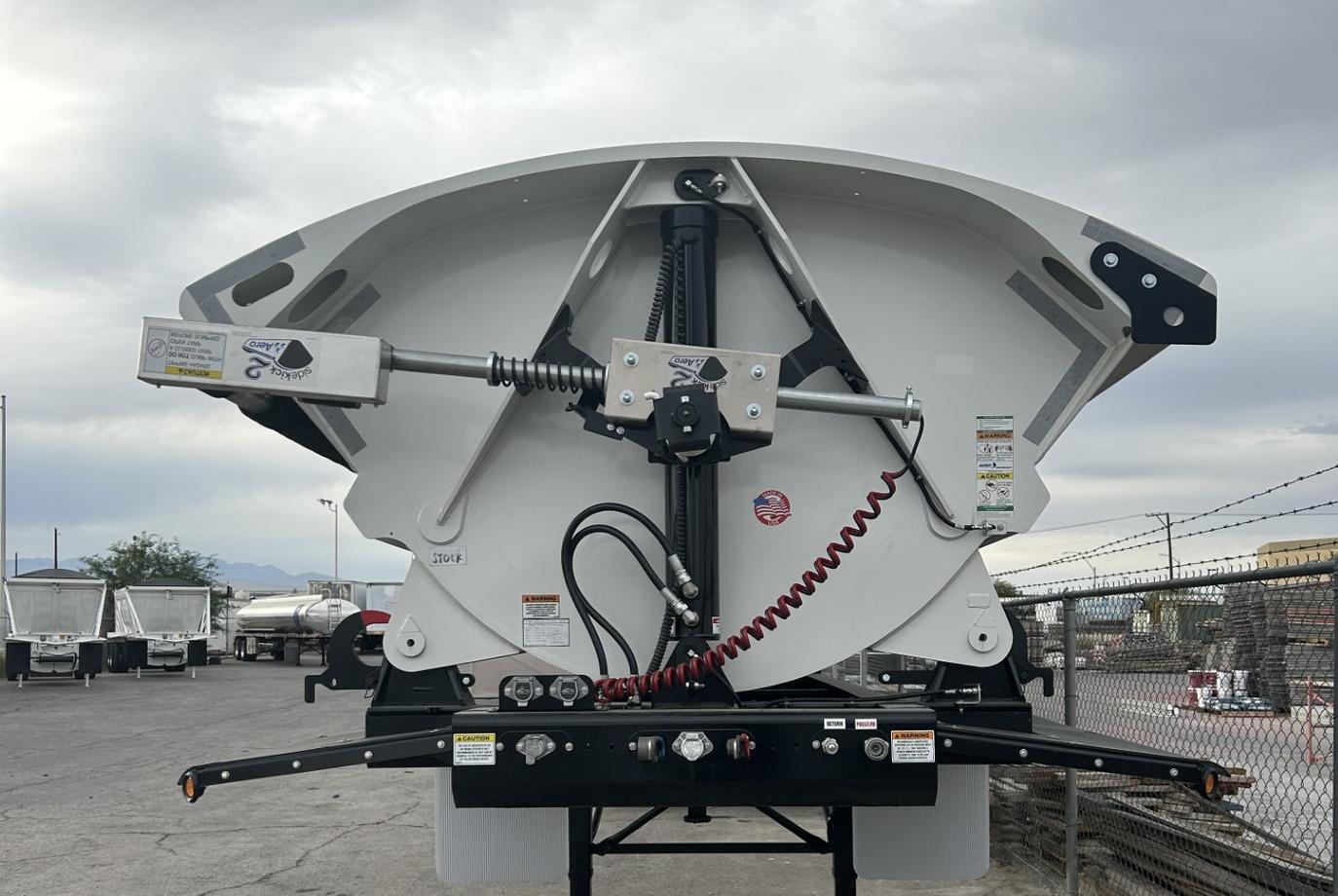

SmithCo SXL2-40-34 Side Dump with SX-ROUND BOTTOM tub and 1/4" AR450 sides and floor.

Key Specs

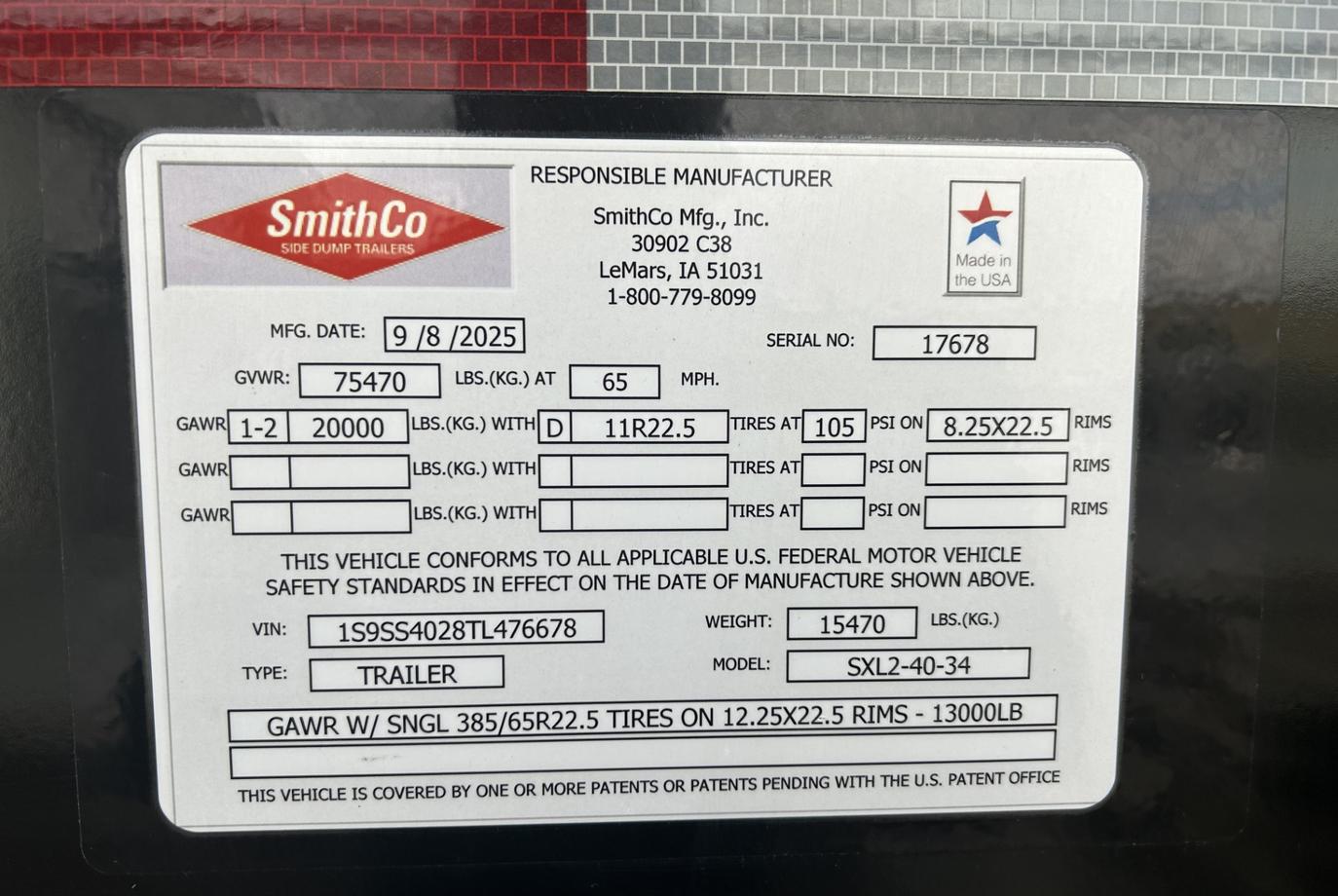

• Model: SXL2-40-34
• Width: 102"
• Frame Length: 40'
• Tub Length: 34'
• Tub Volume (water level): 34' SX - 23 CUBIC YARDS
• Tub Volume (heaped): 34' SX - 30.3 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR450
• Tub Floor: 1/4" AR450
• Tub Dividers: 0
• Fenders: ALL PLASTIC
• Tub Paint #: DV-19088 (WHITE)
• Frame Paint #: DV-19040-DTM (BLACK)

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER WITH POWER BEYOND
• Grease bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Lock out switch: TARP LOCKOUT
• Air gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD

Axles & Suspension

• Suspension: RIDEWELL RW260 AIR RIDE
• Axle Spacing: 49"
• Lift Axle: NONE
• ABS Axles: 25K 1
• Non-ABS Axles: 25K 1
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL 8.25x22.5 8 ALUMINUM
• Tires: DOUBLE COIN RR99 11R22.5 8

Additional Features

• Dolly Legs: BINKLEY
• LEAD OPTION WITH EVOT WITH POWER BEYOND
• Pintle Hitch: 4' EXTENDED PINTLE HITCH
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
