SmithCo SX6-53-40 Trailer

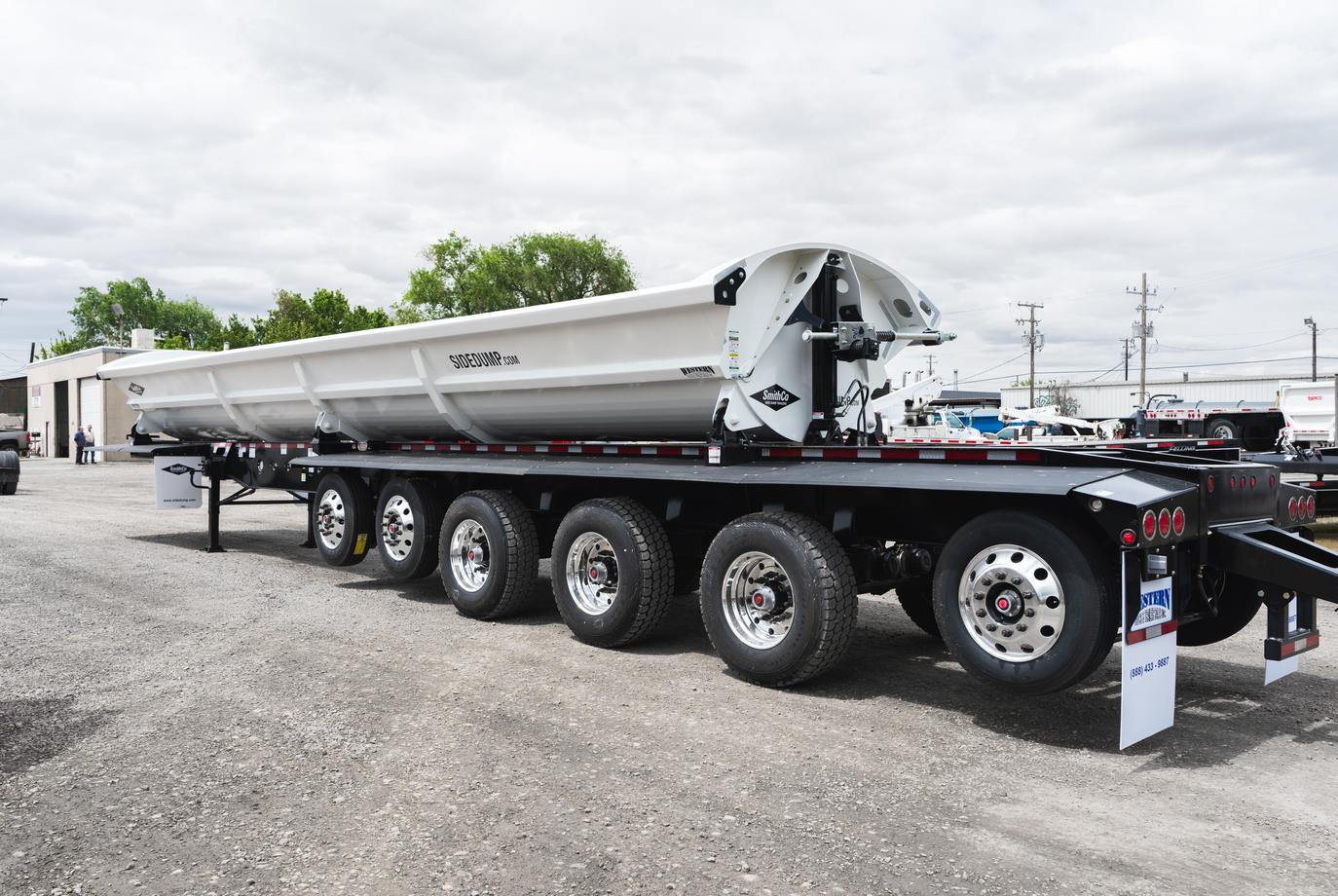

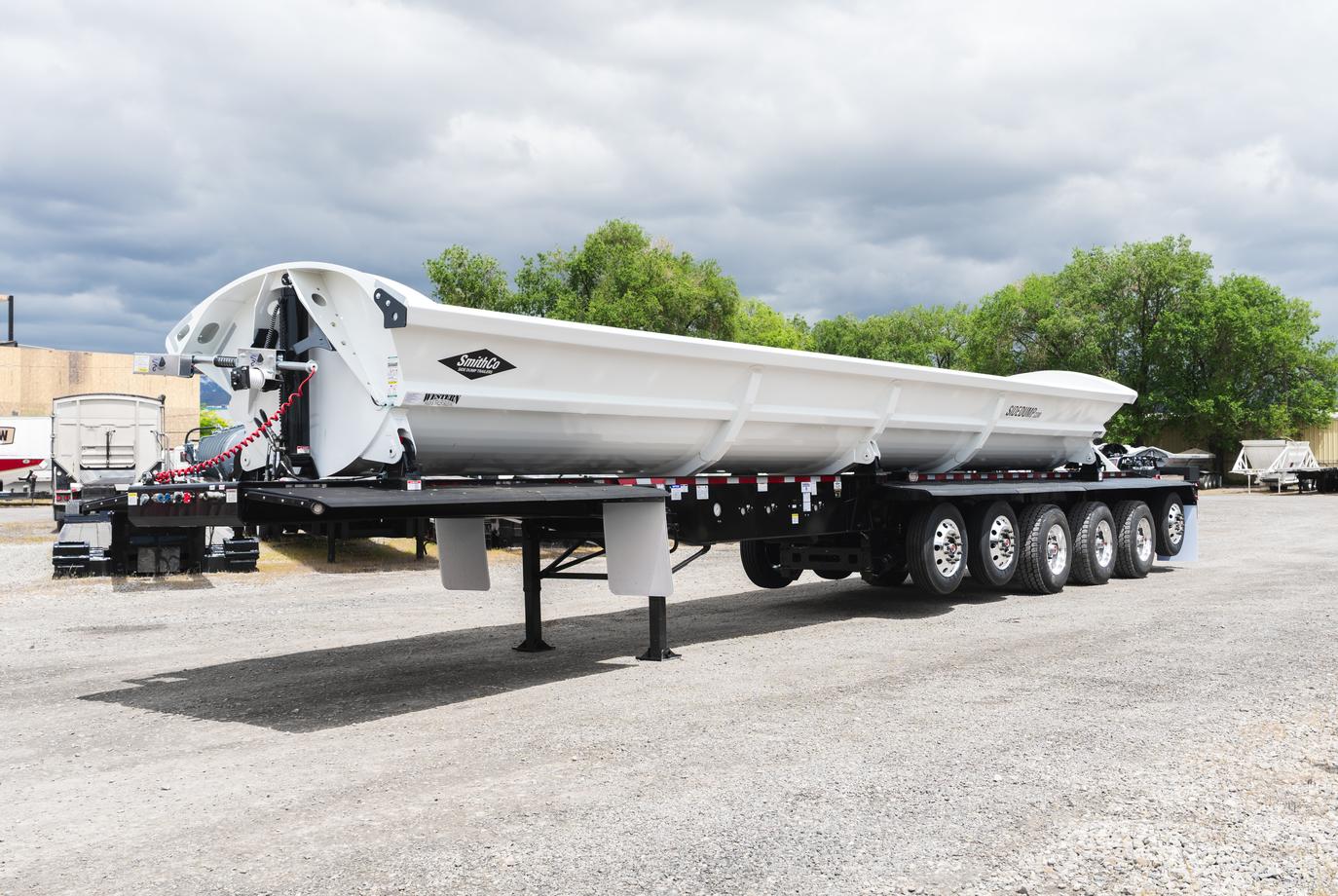

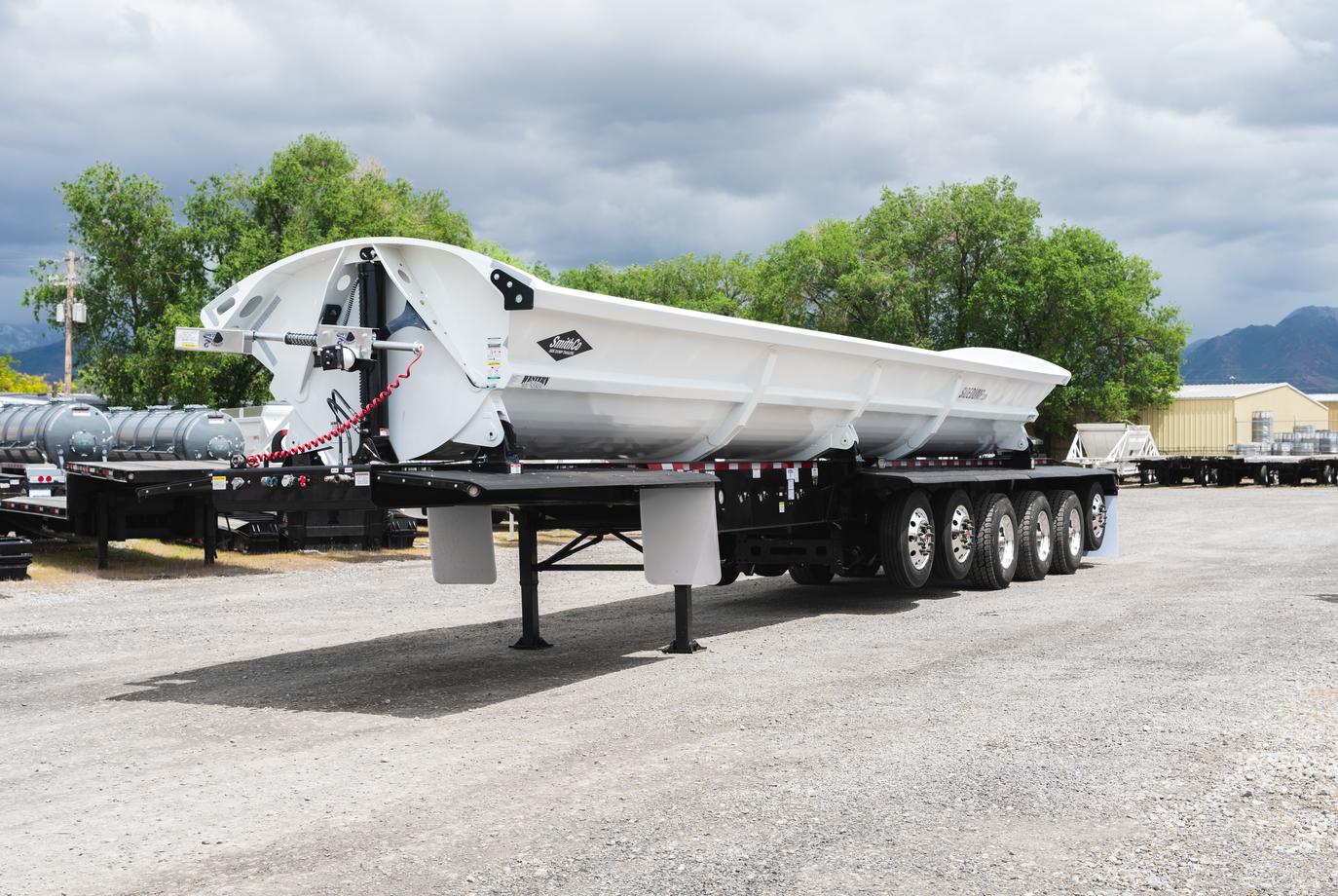

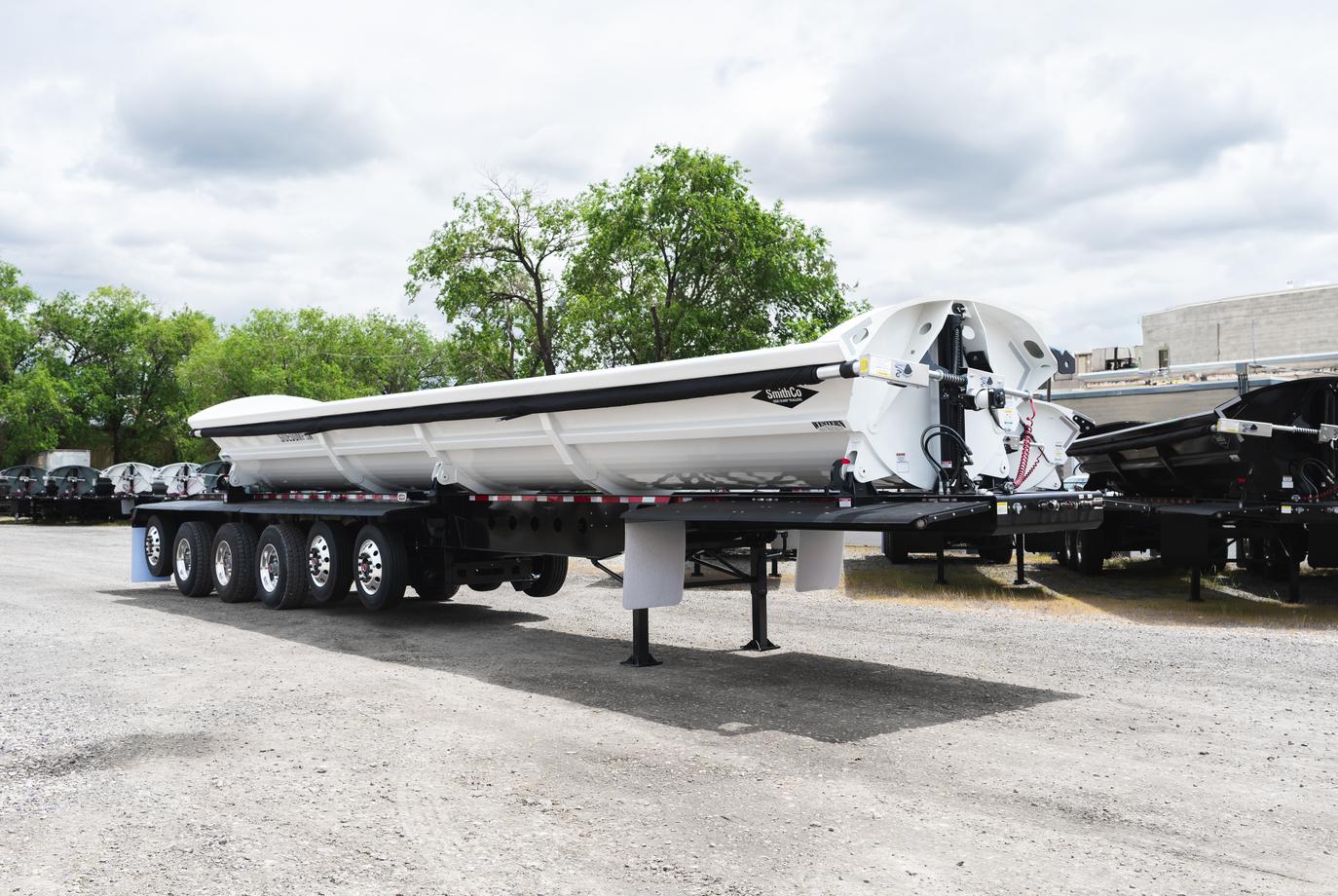

SmithCo SX6-53-40 – Side Dump, 53' frame, 40' tub

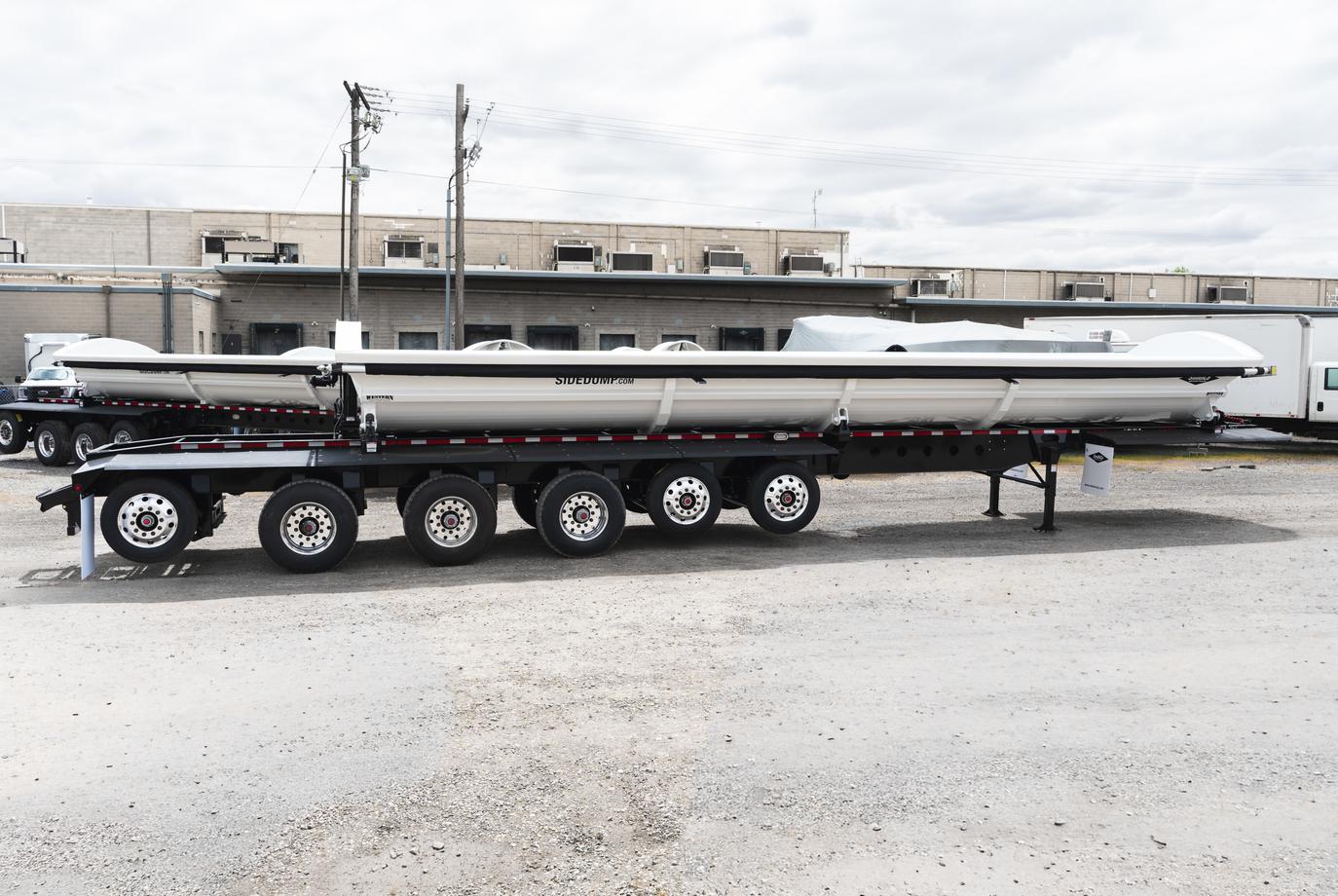

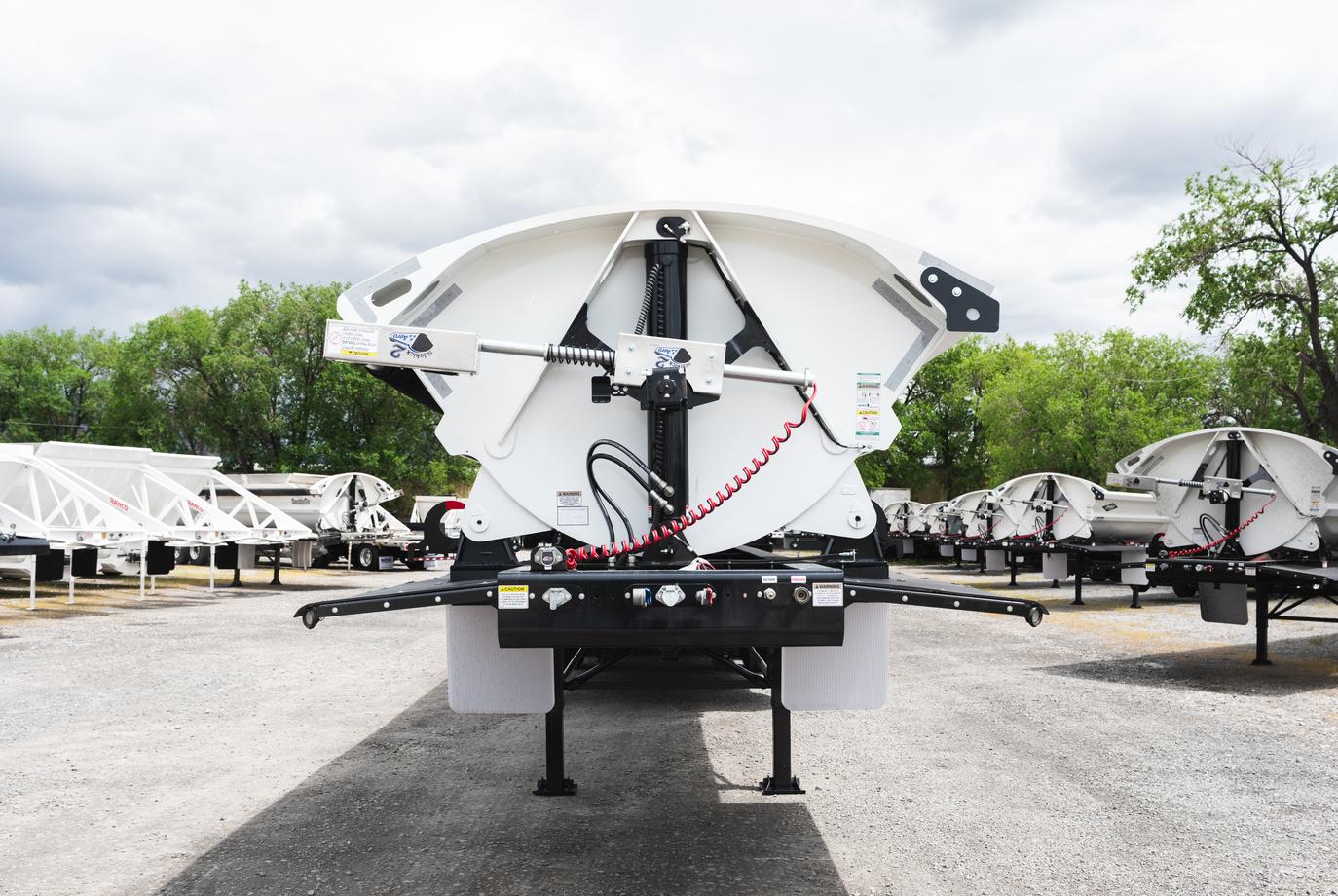

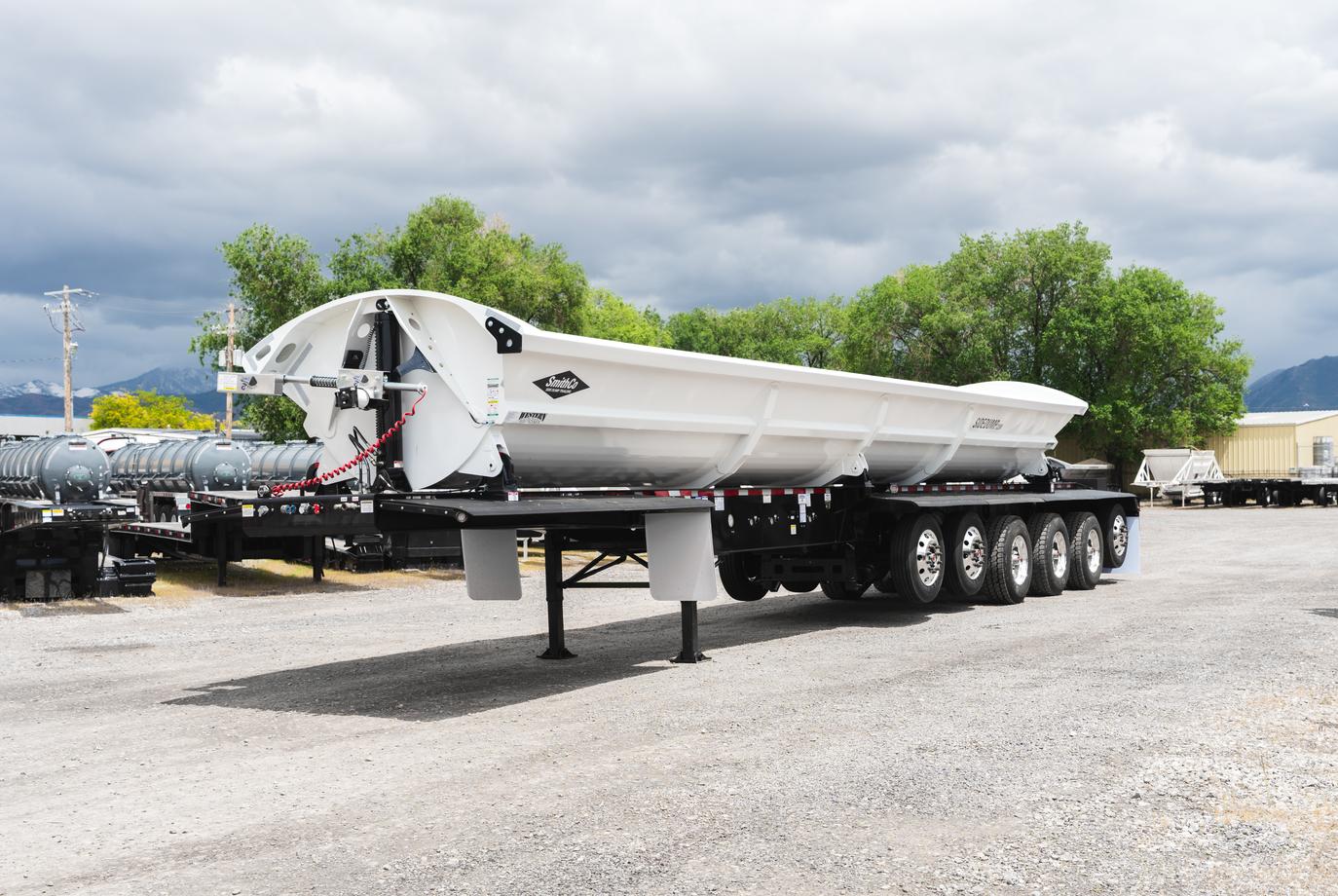

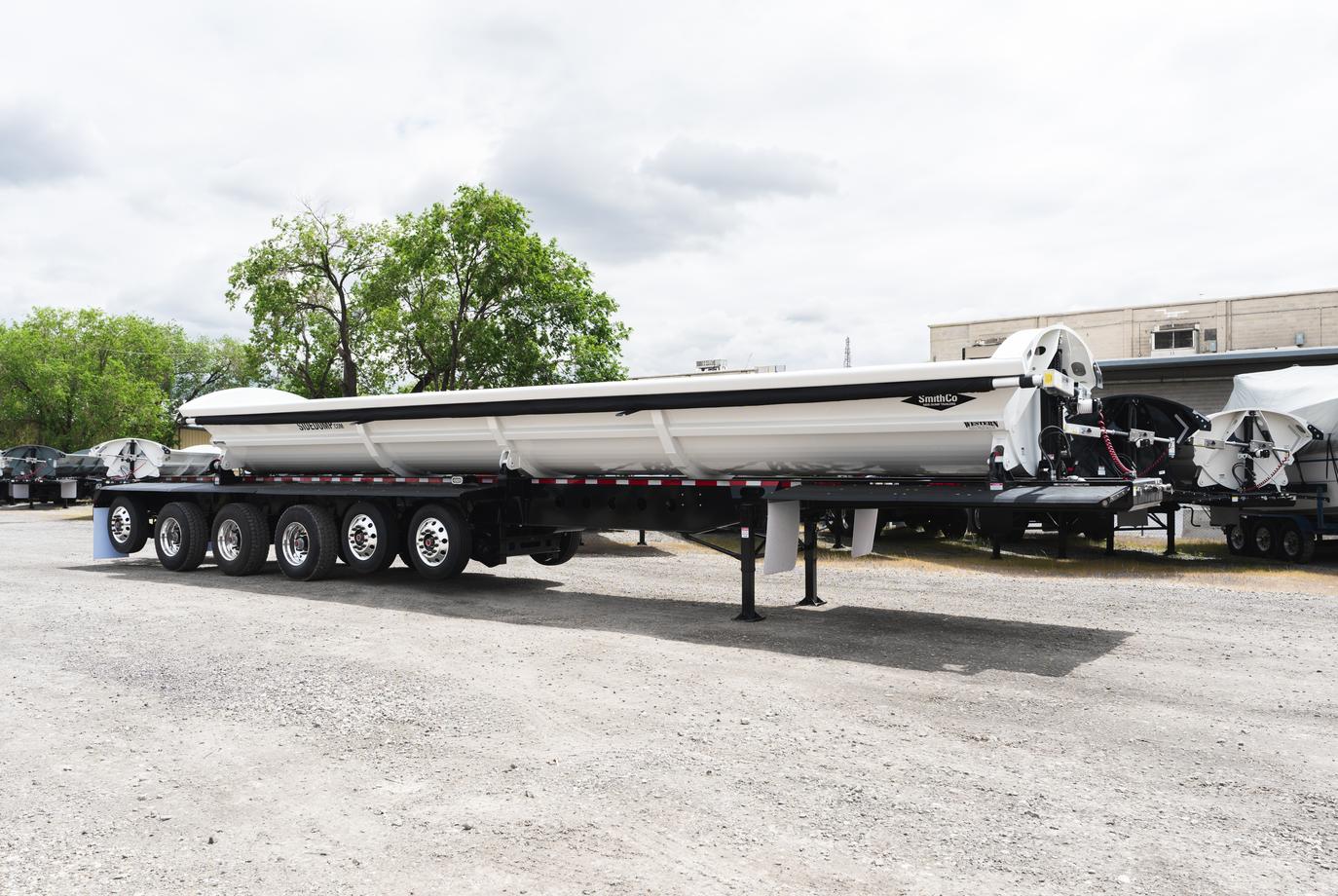

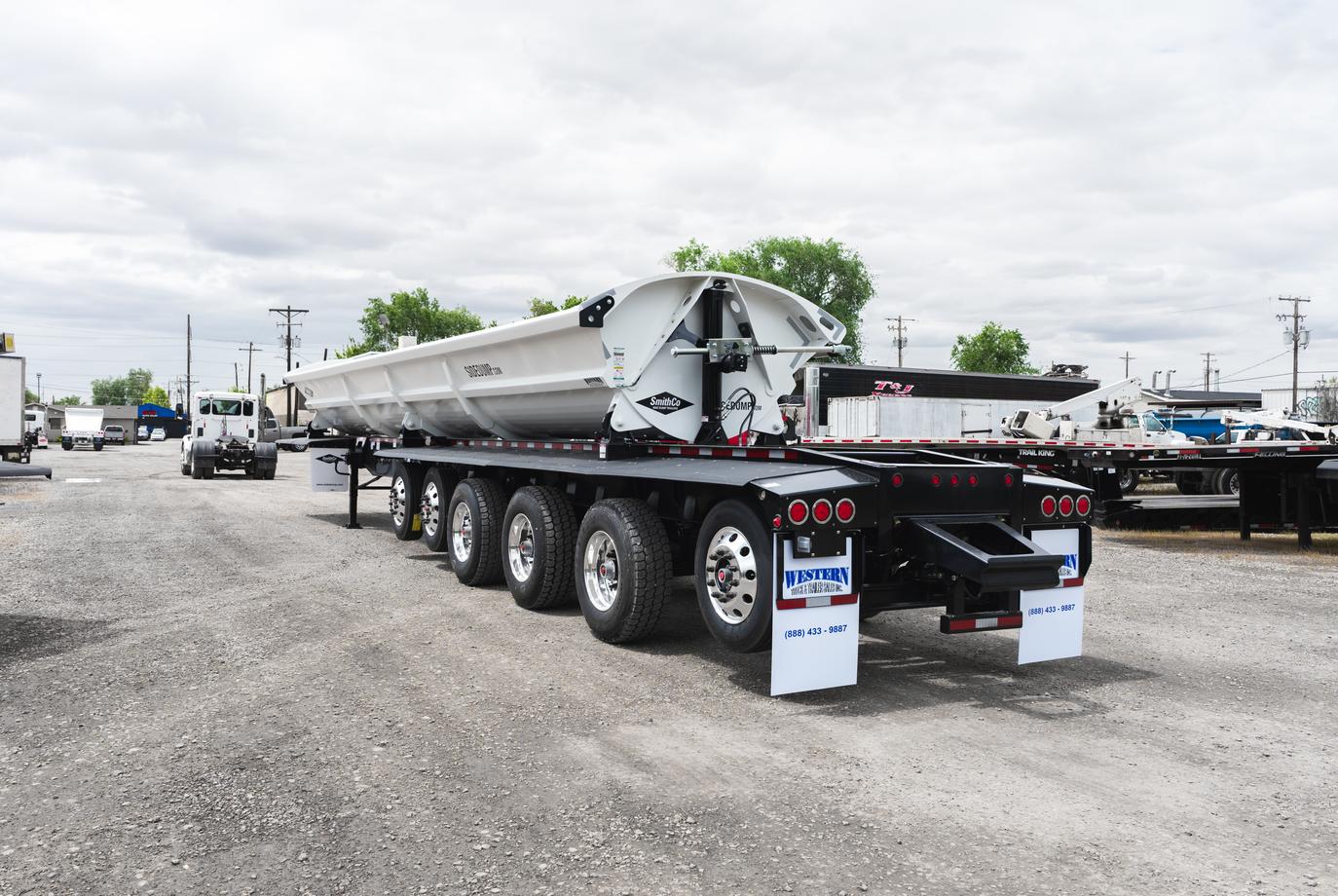

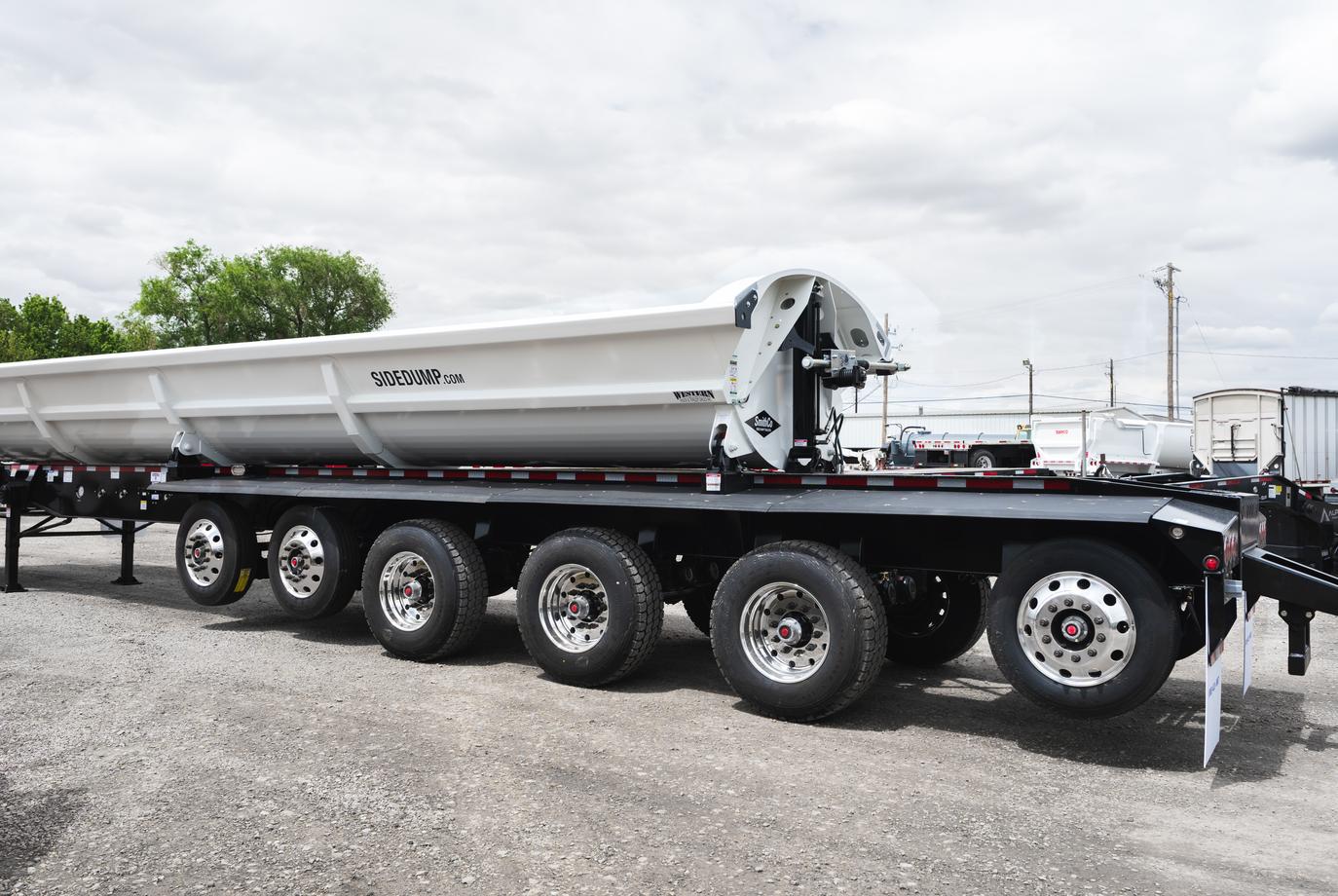

SmithCo SX6-53-40 side dump with 40' tub and SX-ROUND BOTTOM tub style.

Key Specs

• Manufacturer: SmithCo
• Model: SX6U
• Width: 102" WIDE
• Frame length: 53'
• Tub length: 40'
• Tub style: SX-ROUND BOTTOM

Tub Construction

• Tub sides: 3/16" AR450
• Tub floor: 3/16" AR450
• Tub dividers: 0
• Tub volume (water level): 26.8 CUBIC YARDS
• Tub volume (heaped): 35.6 CUBIC YARDS

Hydraulics & Control

• Dolly legs: MARK V
• Hydraulics: 6" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Lock out switch: TARP LOCKOUT

Axles & Suspension

• Suspension: RIDEWELL RW260AIR RIDE
• Axle spacing: 52"-52"-62"-62"-64"
• Lift axle: 1ST, 2ND & 6TH (13.2HD) ALL STEERABLE LIFTS ON SEPARATE SWITCHES
• ABS axles: 25K 1
• Non-ABS axles: 25K 5
• Axle track: 83.5"

Wheels & Tires

• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL ZERO OFFSET WHEELS ON SUPER SINGLES
• Wheel style: HUB-PILOTED U/M
• Wheel type: AL SS 12.25x22.56 SUPER SINGLE ALUM ON 3-5, (6) STD ALUM ON 1, 2 & 6
• Tires: DC RLB980 385/65R22.56 385/65R22.5 ON 3-5, (6) 275/70R22.5 ON 1, 2 & 6

Paint & Finish

• Tub paint #: DV-19088 (WHITE)
• Frame paint #: DV-19040-DTM (BLACK)
• Fenders: ALL PLASTIC

Additional Features

• W STYLE PUSHBLOCK - STD

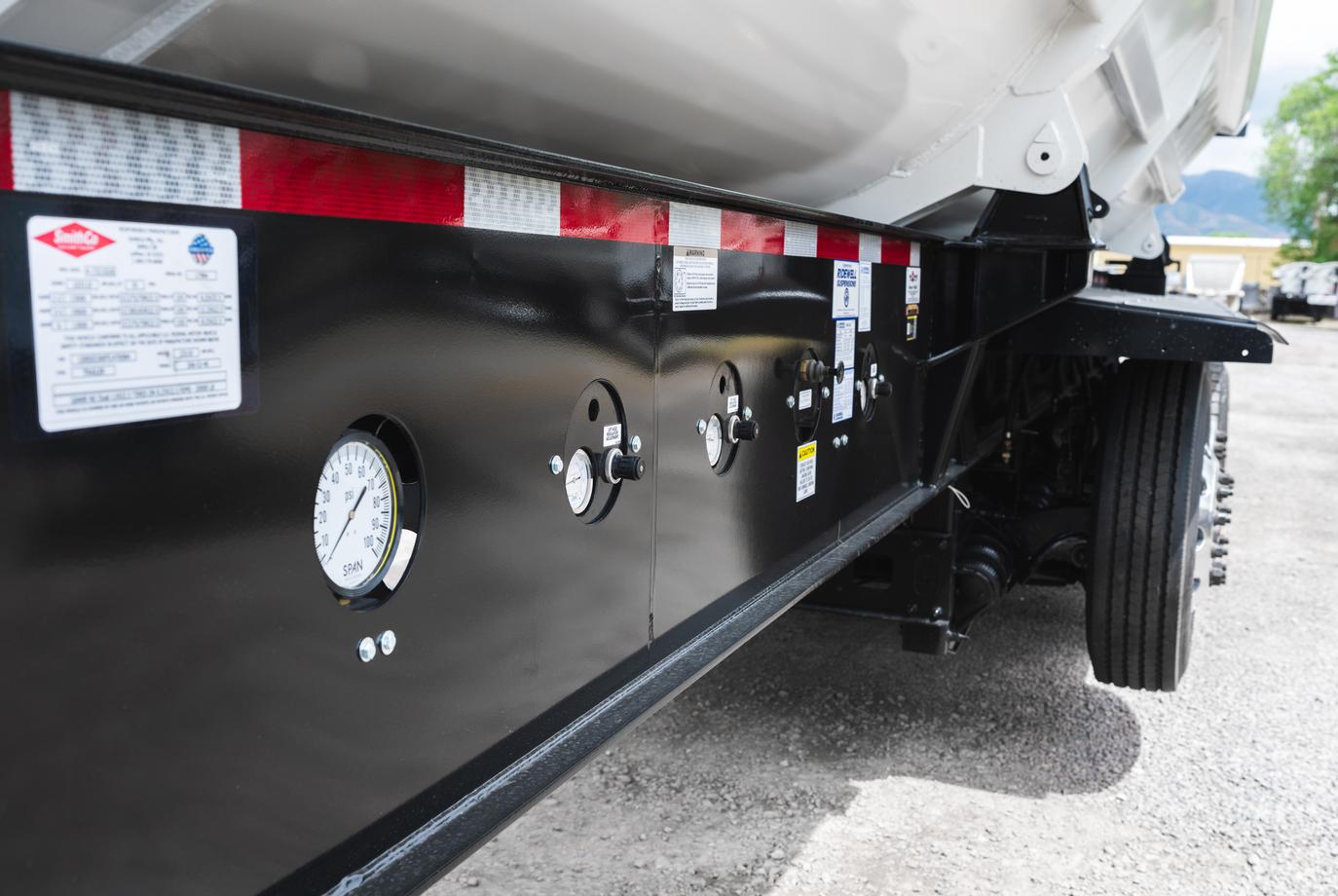

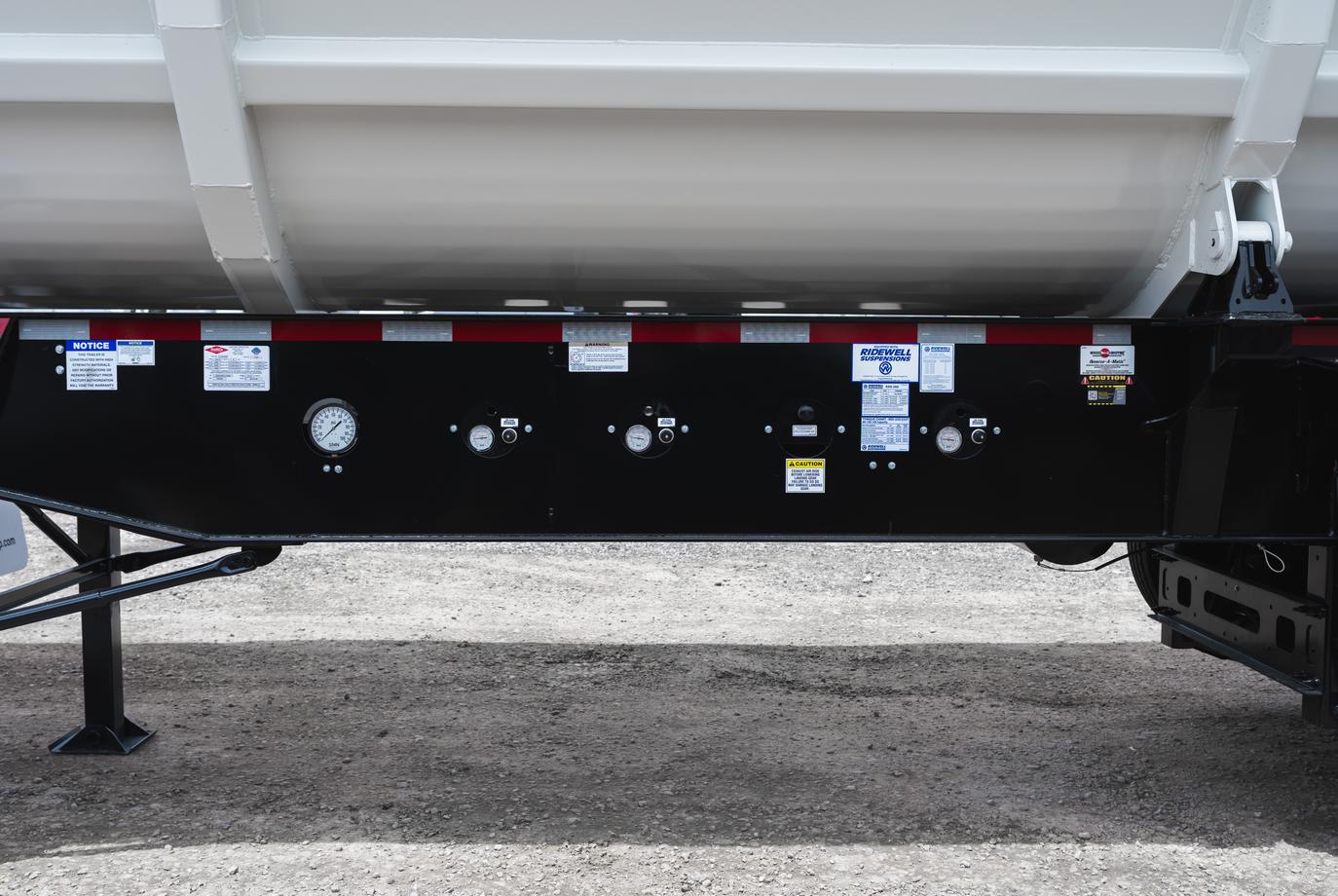

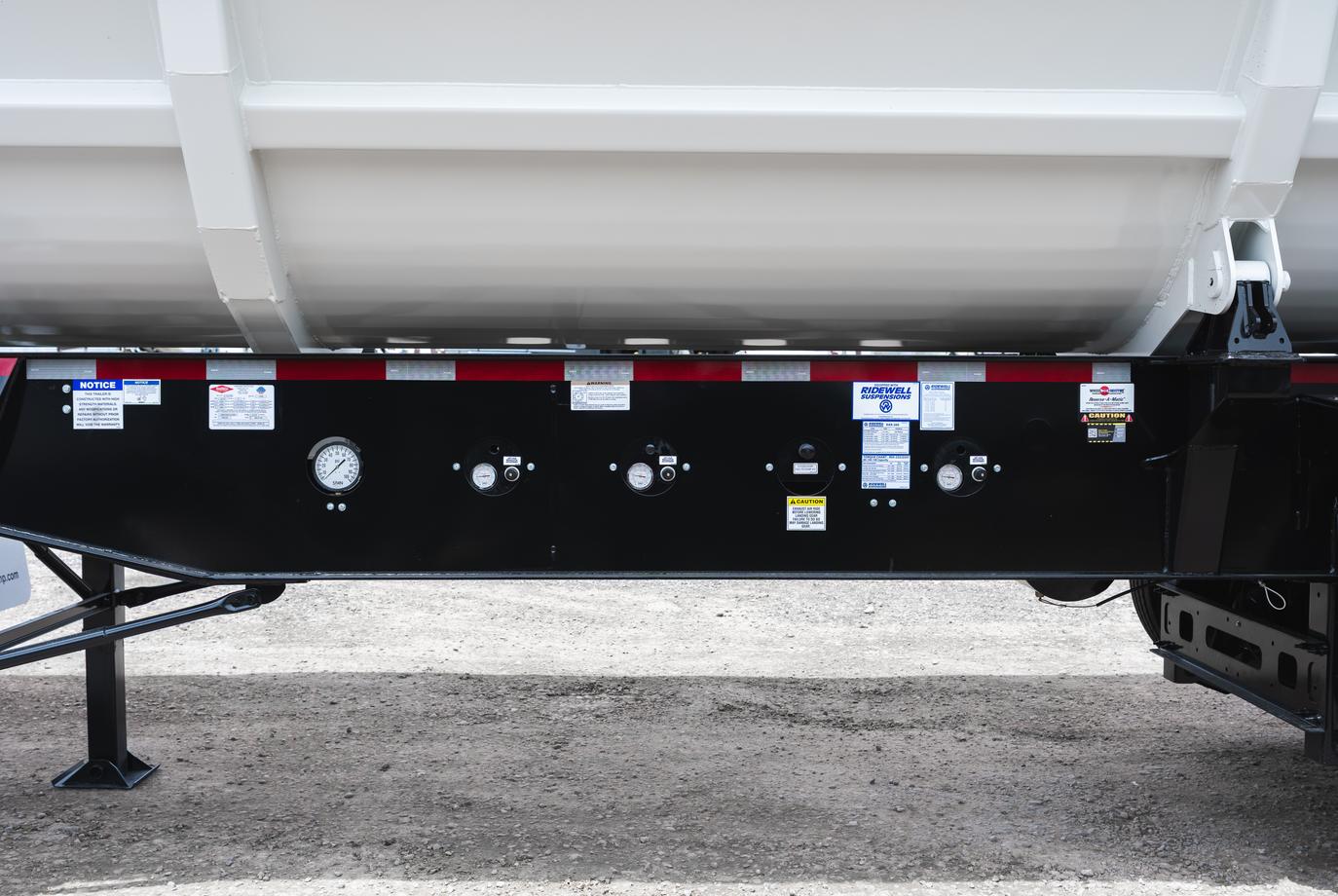

• LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD
• Grease bank for hydraulic cylinders: FRONT AND REAR - STD
• Tarp brand: AERO
• Tarp type: MESH-NON SEALED

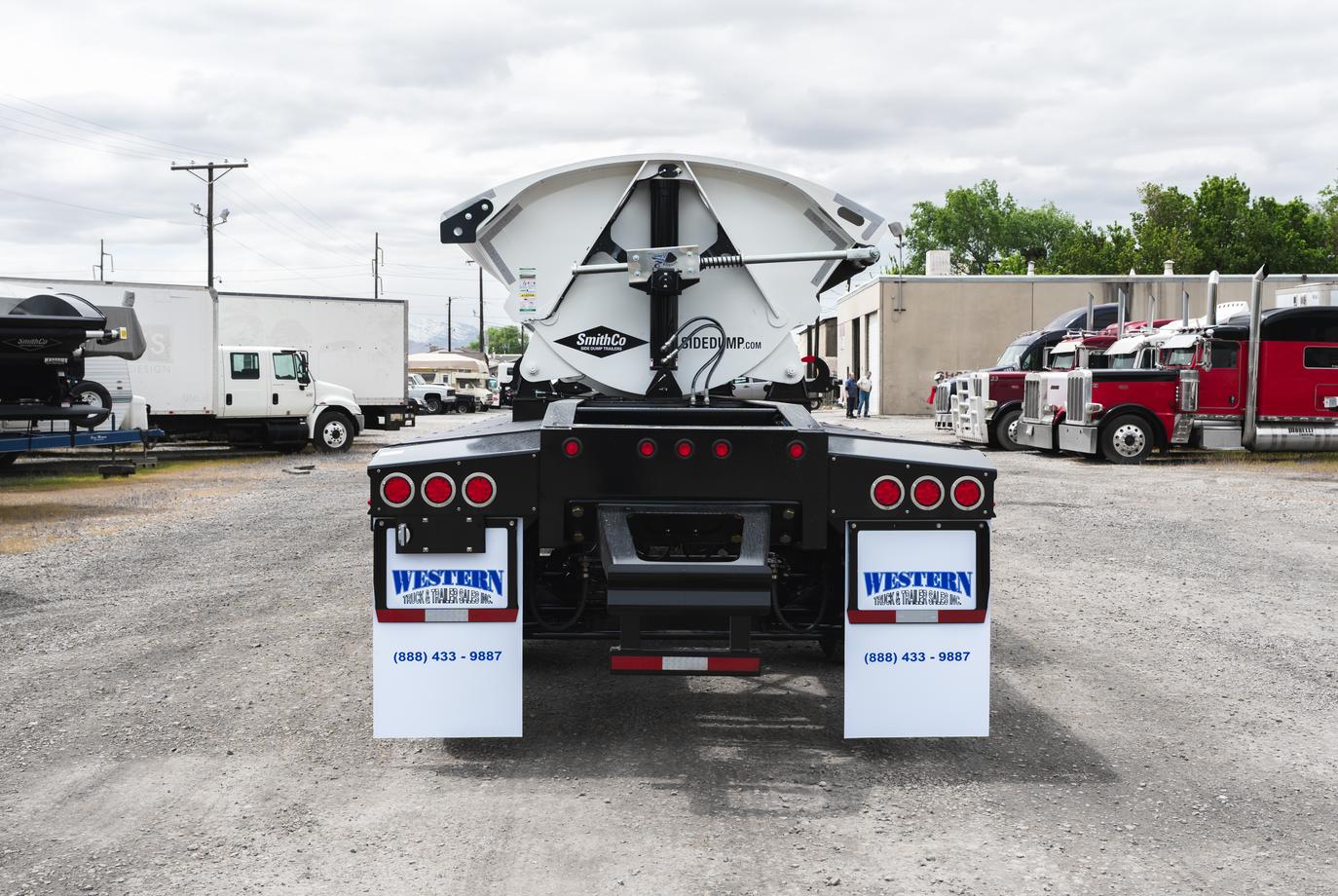

• 3 TAILLIGHTS - RED
• 5 ID LIGHTS AT REAR
