SmithCo SX5-49-38 Trailer

SmithCo SX5-49-38 – Side Dump, 49' frame, 38' tub

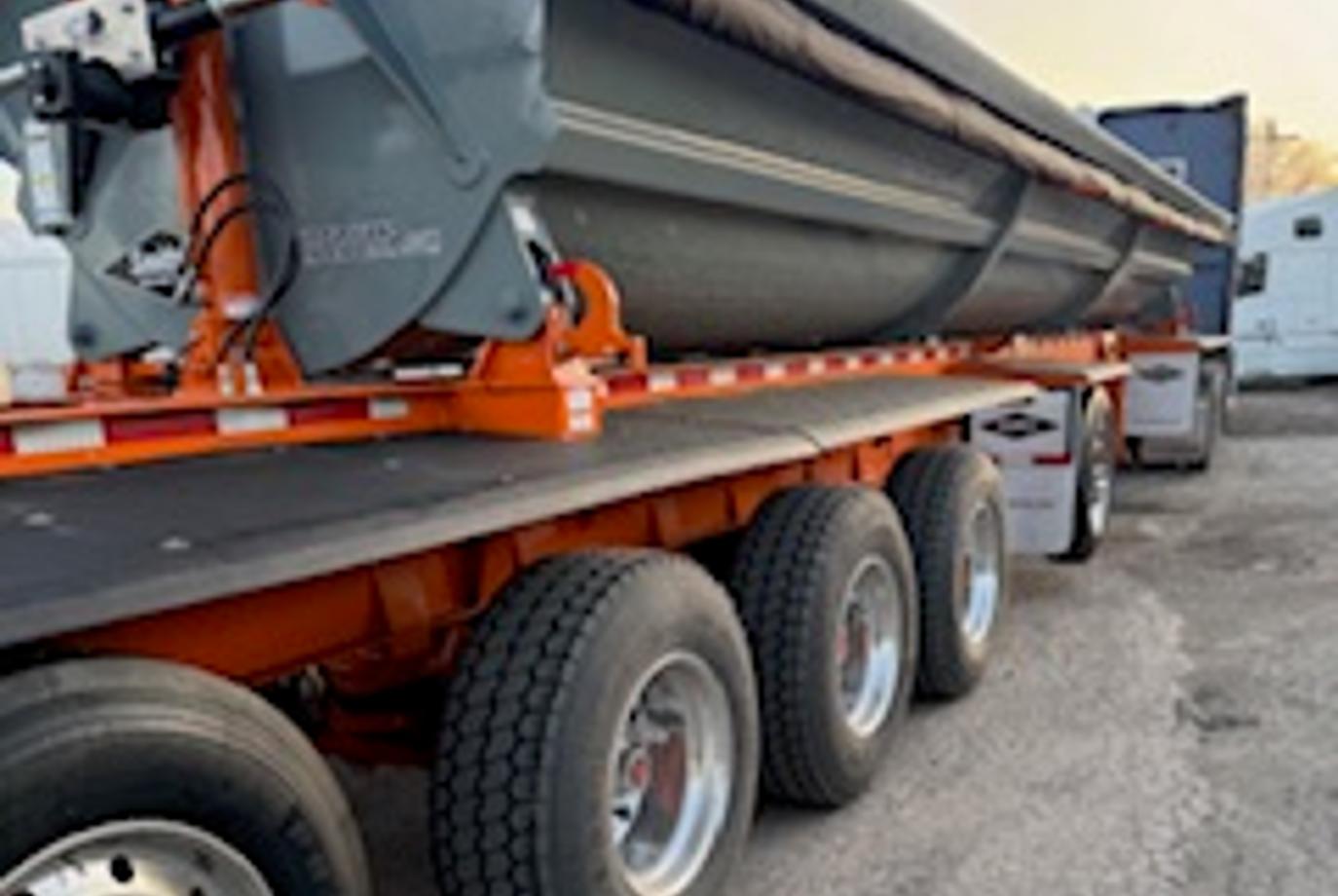

SmithCo SX5-49-38 side dump with SX-ROUND BOTTOM tub, 1/4" AR400 sides and floor.

Key Specs

• Frame Width: 102"
• Frame Length: 49'
• Tub Length: 38'
• Tub Volume (water level): 25.5 CUBIC YARDS
• Tub Volume (heaped): 33.8 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR400
• Tub Floor: 1/4" AR400
• Tub Dividers: 0

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (AIR/HYDRAULIC)
• Grease bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Lock out switch: TARP LOCKOUT

Axles & Suspension

• Suspension: RIDEWELL RW260
• Axle spacing: 97"-54"-54"-60"
• Lift axle: 1ST & 5TH (16.6K RW L/S)
• ABS-AXLES: 25K 1
• NON-ABS AXLES: 25K 4
• Axle track: 77.5"-STD

Wheels & Tires

• Hubs: DURALITE-STD
• Brakes: 16-1/2" X 7"
• Drums: CAST STEEL
• Wheel style: HUB-PILOTED U/M
• Wheel type: AL SS 12.25x22.5(6) 12.25 SS ALUMINUM, (4) 9x22.5 ALUMINUM
• Tires: 385/65R22.5 "J" PLY SUPER SINGLE(6) 385/65R22.5, (4) 295/75R22.5
• Fenders: ALL PLASTIC

Paint & Finish

• Tub paint #: DV-19050 (GRAY)
• Frame paint #: SPECIAL - SEE MISC MCCUNE ORANGE, DV-15103

Additional Features

• Dolly legs: BINKLEY
• Tarp brand: AERO
• Tarp type: MESH-NON SEALED
• W style pushblock: W STYLE PUSHBLOCK - STD
• Air gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD

Lighting & Safety

• Taillights: 3 TAILLIGHTS - RED
• ID lights: 5 ID LIGHTS AT REAR
