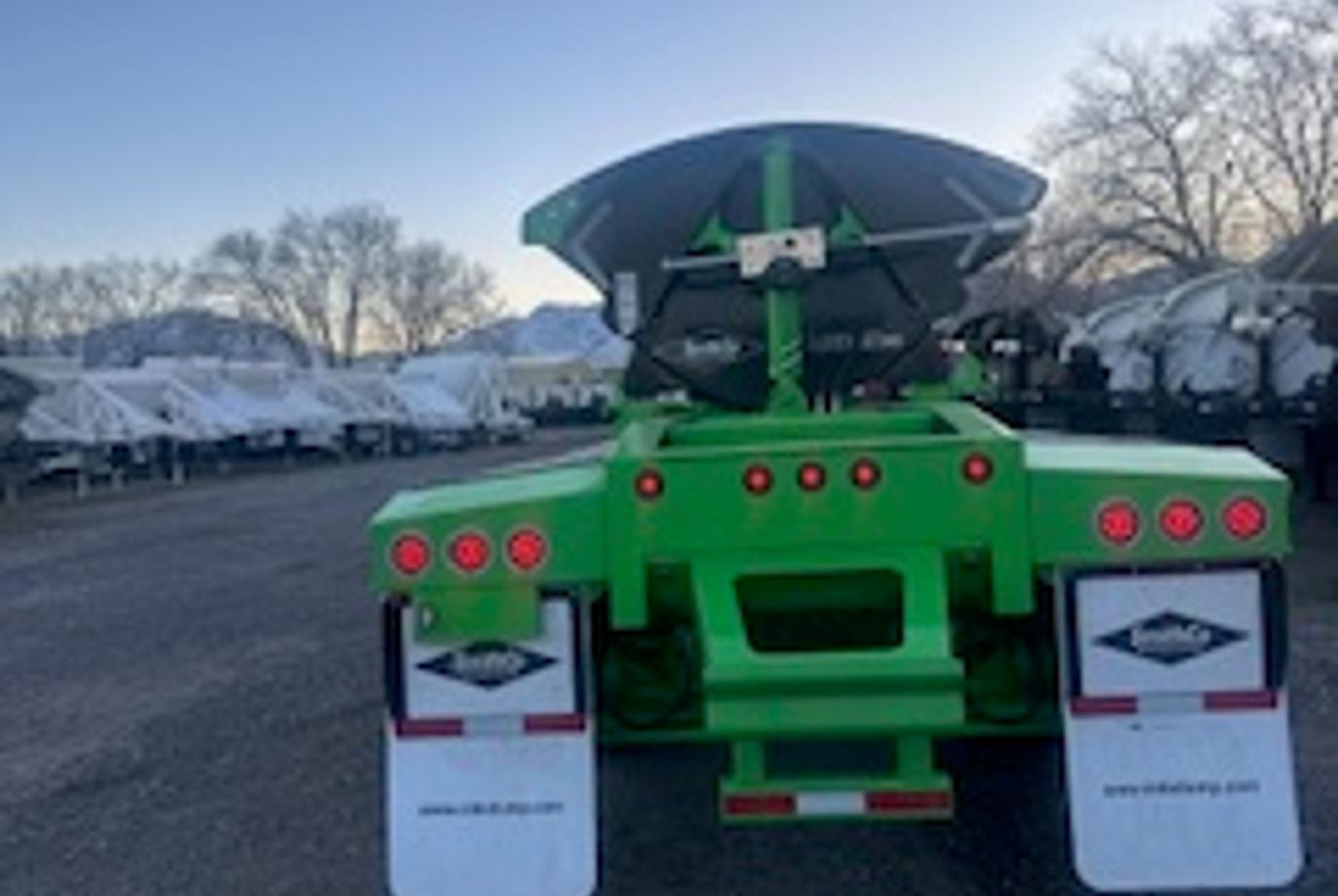

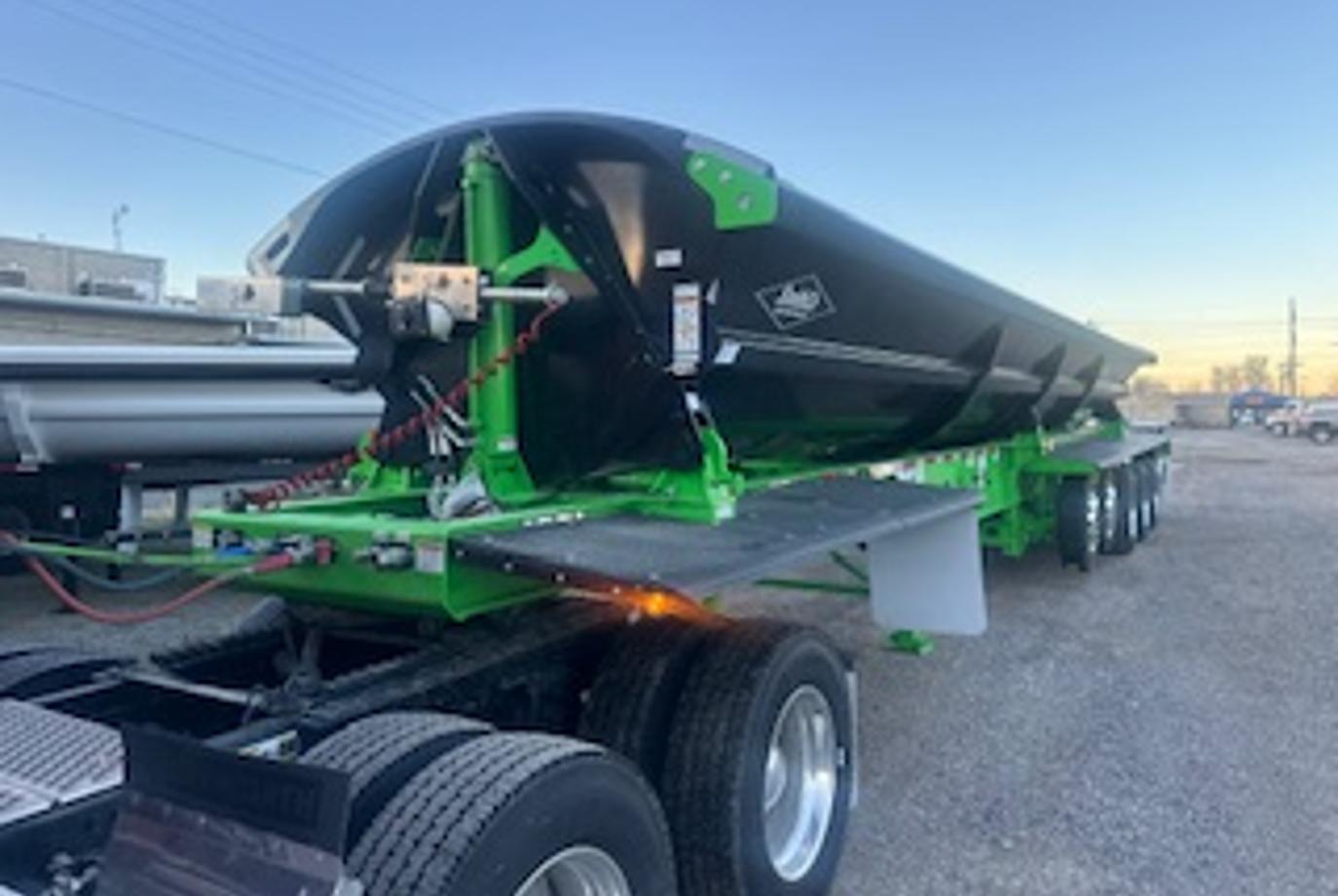

SmithCo SX6-53-40 Trailer

SmithCo SX6-53-40 – Side Dump, 102" wide, 40' tub

SmithCo SX6-53-40 side dump with 102" width and 40' tub.

Key Specs

• Category: Side Dump
• Frame length: 53'
• Width: 102"
• Tub length: 40'
• Tub style: SX-ROUND BOTTOM
• Tub dividers: 0
• Dolly legs: BINKLEY

Tub Construction

• Tub sides: 3/16" AR450
• Tub floor: 3/16" AR450
• Tub paint #: DV-19040 (BLACK)
• Tub volume (water level): 26.8 CUBIC YARDS
• Tub volume (heaped): 35.6 CUBIC YARDS

Hydraulics & Control

• Hydraulics: 6" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Grease bank: FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD

Axles & Suspension

• Suspension: RIDEWELL RW260 AIR RIDE
• Axle spacing: 52"-52"-62"-62"-64"
• Lift axle: 1ST, 2ND & 6TH(13.2HD); ALL STEERABLE LIFTS ON SEPARATE SWITCHES
• ABS axles: 25K 1
• Non-ABS axles: 25K 5
• Axle track: 83.5"
• Brakes: 16-1/2" X 7"
• Drums: CAST STEEL

Wheels & Tires

• Hubs: DURALITE-STD
• Wheel style: HUB-PILOTED U/M
• Wheel type: AL SS 12.25x22.5; 6 SUPER SINGLE ALUM ON 3-5, (6) STD ALUM ON 1, 2 & 6
• Tires: DC RLB980 385/65R22.5; 6 385/65R22.5 ON 3-5, (6) 275/70R22.5 ON 1, 2 & 6
• Zero offset wheels: ON SUPER SINGLES

Additional Features

• Fenders: ALL PLASTIC
• Frame paint #: SPECIAL - SEE MISC GREEN
• Tarp brand: AERO
• Tarp type: MESH-NON SEALED
• Lock out switch: TARP LOCKOUT
• W style pushblock: STD
• Large air gauge: LIQUID FILLED ON DRIVER'S SIDE - STD

Lighting & Safety

• Taillights: 3 - RED
• ID lights at rear: 5
