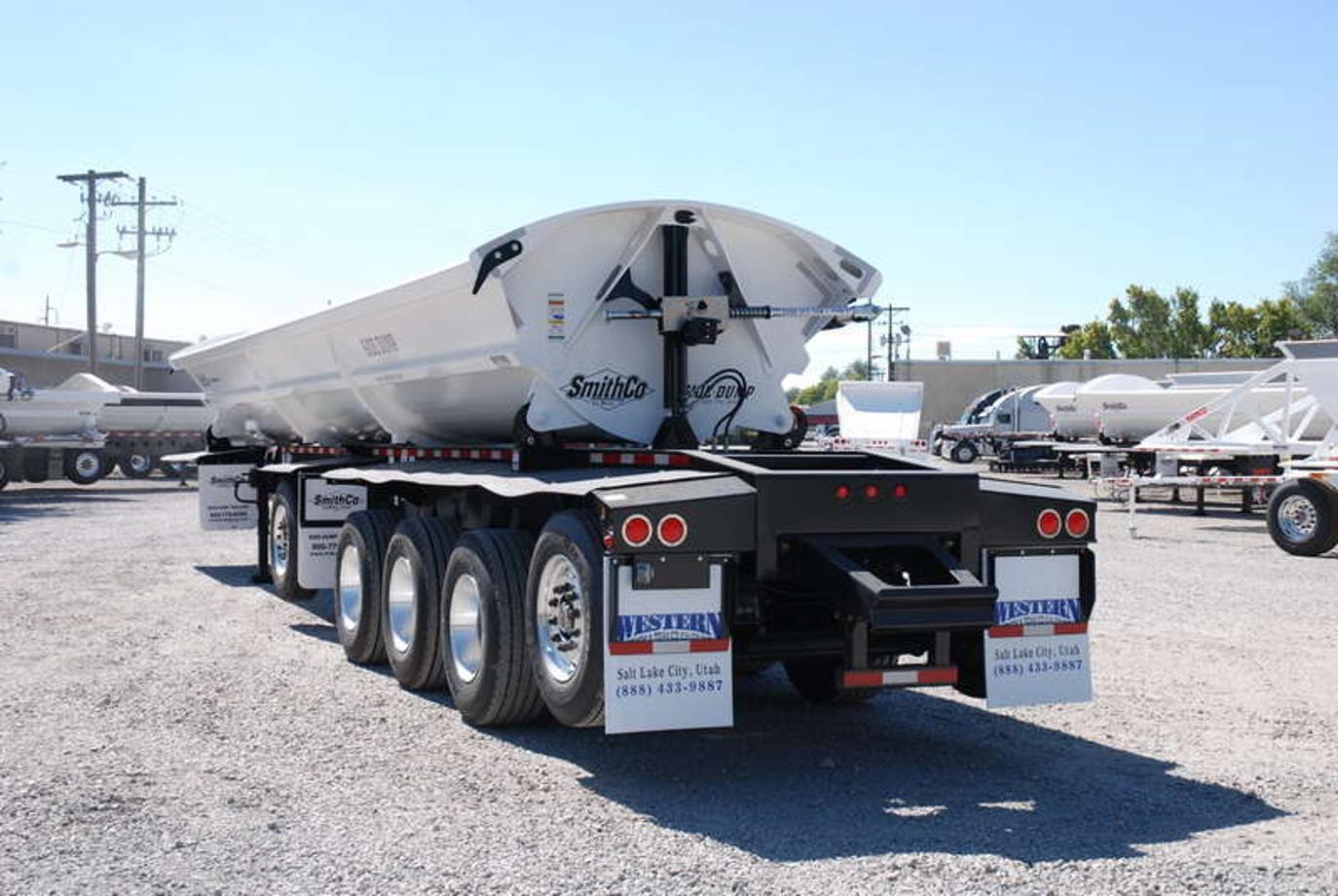

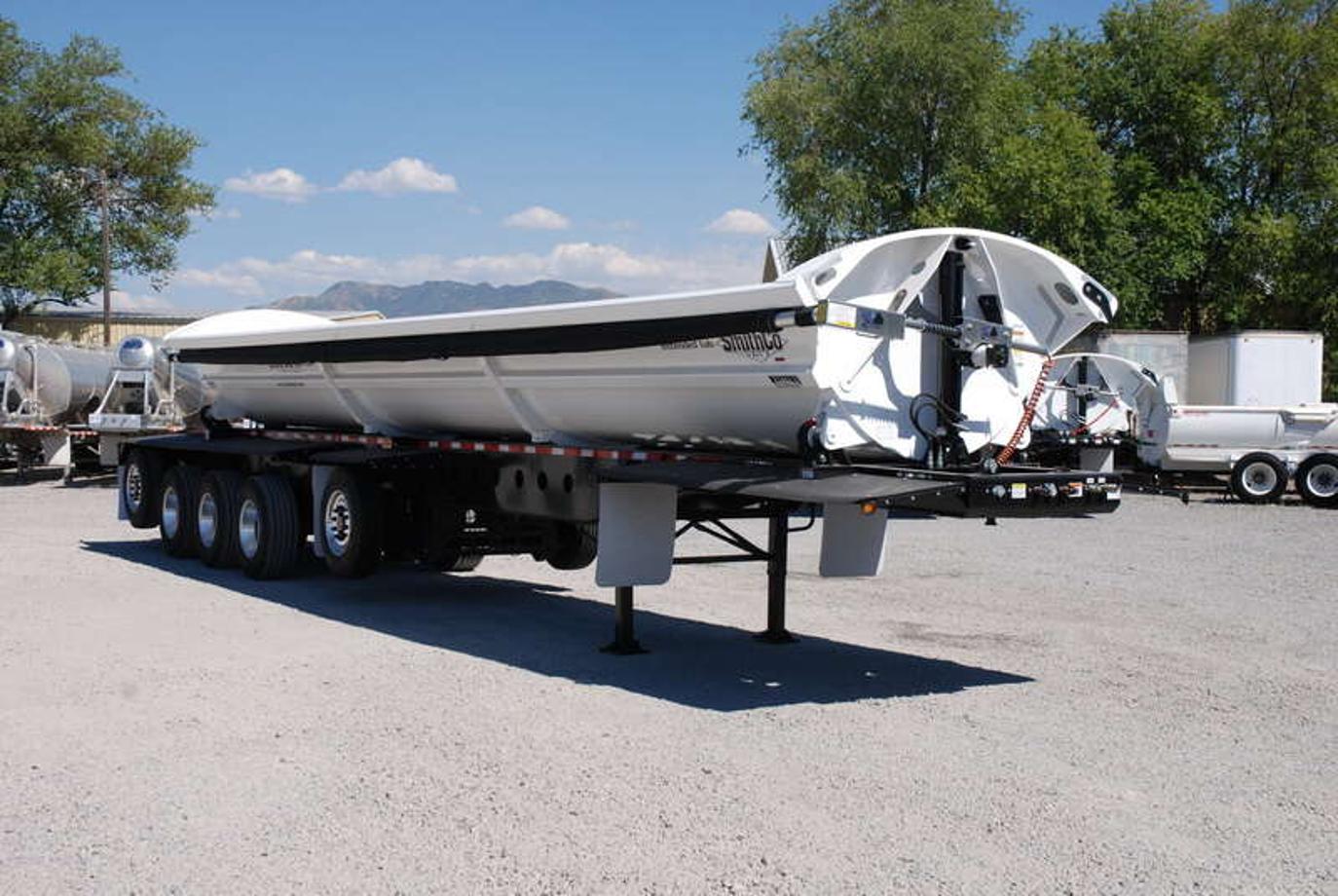

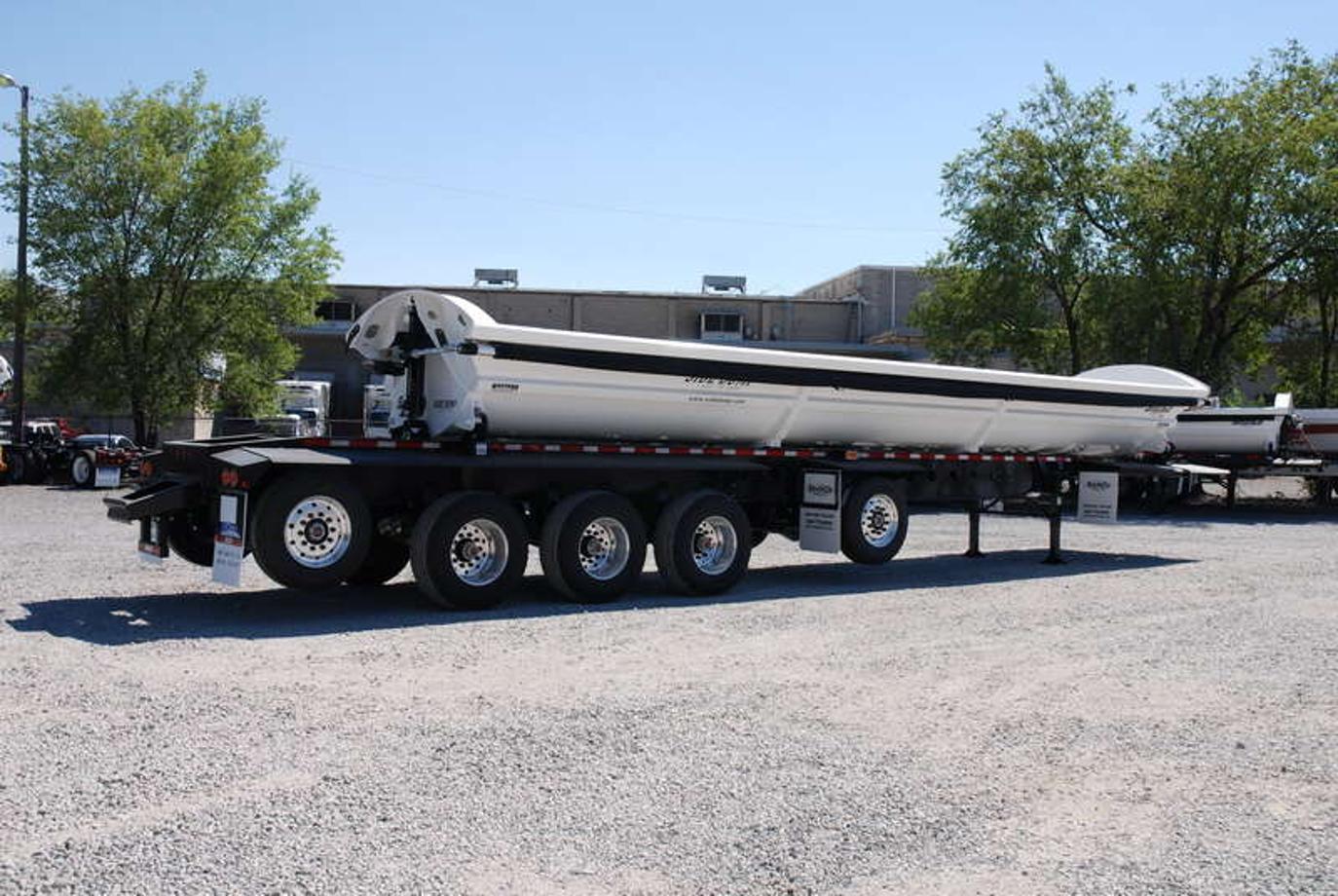

SmithCo SX5-49-38 Trailer

SmithCo SX5-49-38 – Side Dump, 49' frame, 38' tub

SmithCo SX5-49-38 Side Dump with 38' tub and SX-ROUND BOTTOM tub style.

Key Specs

• Width: 102" WIDE
• Frame Length: 49'
• Tub Length: 38'
• Tub Volume (water level): 25.5 CUBIC YARDS
• Tub Volume (heaped): 33.8 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR400
• Tub Floor: 1/4" AR400
• Tub Dividers: 0
• Tub Paint #: DV-19050 (GRAY)

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on Trailer: HYDRAULIC CONTROL VALVE ON TRAILER (AIR/HYDRAULIC)
• Grease Bank: FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Lock Out Switch: TARP LOCKOUT
• W Style Pushblock: STD

Axles & Suspension

• Suspension: RIDEWELL RW260
• Axle Spacing: 97"-54"-54"-60"
• Lift Axle: 1ST & 5TH (16.6K RW L/S)
• ABS Axles: 25K 1
• Non-ABS Axles: 25K 4
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-1/2" X 7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.5(6) 12.25 SS ALUMINUM, (4) 9x22.5 ALUMINUM
• Tires: 385/65R22.5 "J" PLY SUPER SINGLE(6) 385/65R22.5, (4) 295/75R22.5
• Fenders: ALL PLASTIC

Additional Features

• Dolly Legs: BINKLEY
• Frame Paint #: DV-L3781 (VIPER RED)
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• Large Liquid Filled Air Gauge: ON DRIVER'S SIDE - STD

Lighting & Safety

• Taillights: 3 TAILLIGHTS - RED
• ID Lights: 5 ID LIGHTS AT REAR
