SmithCo SX3-42-34 Trailer

SmithCo SX3-4234 – Side Dump, 42' frame, 34' tub

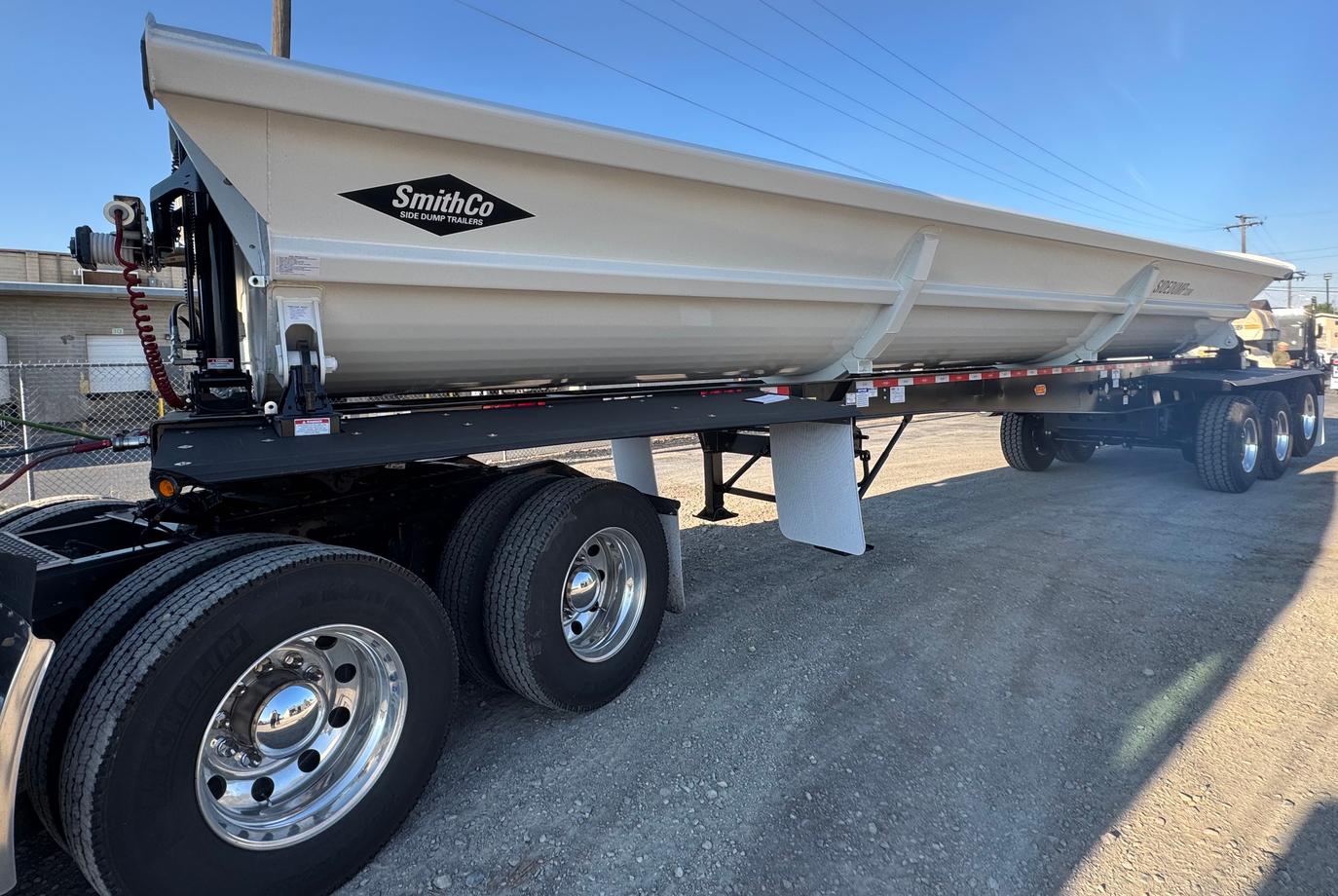

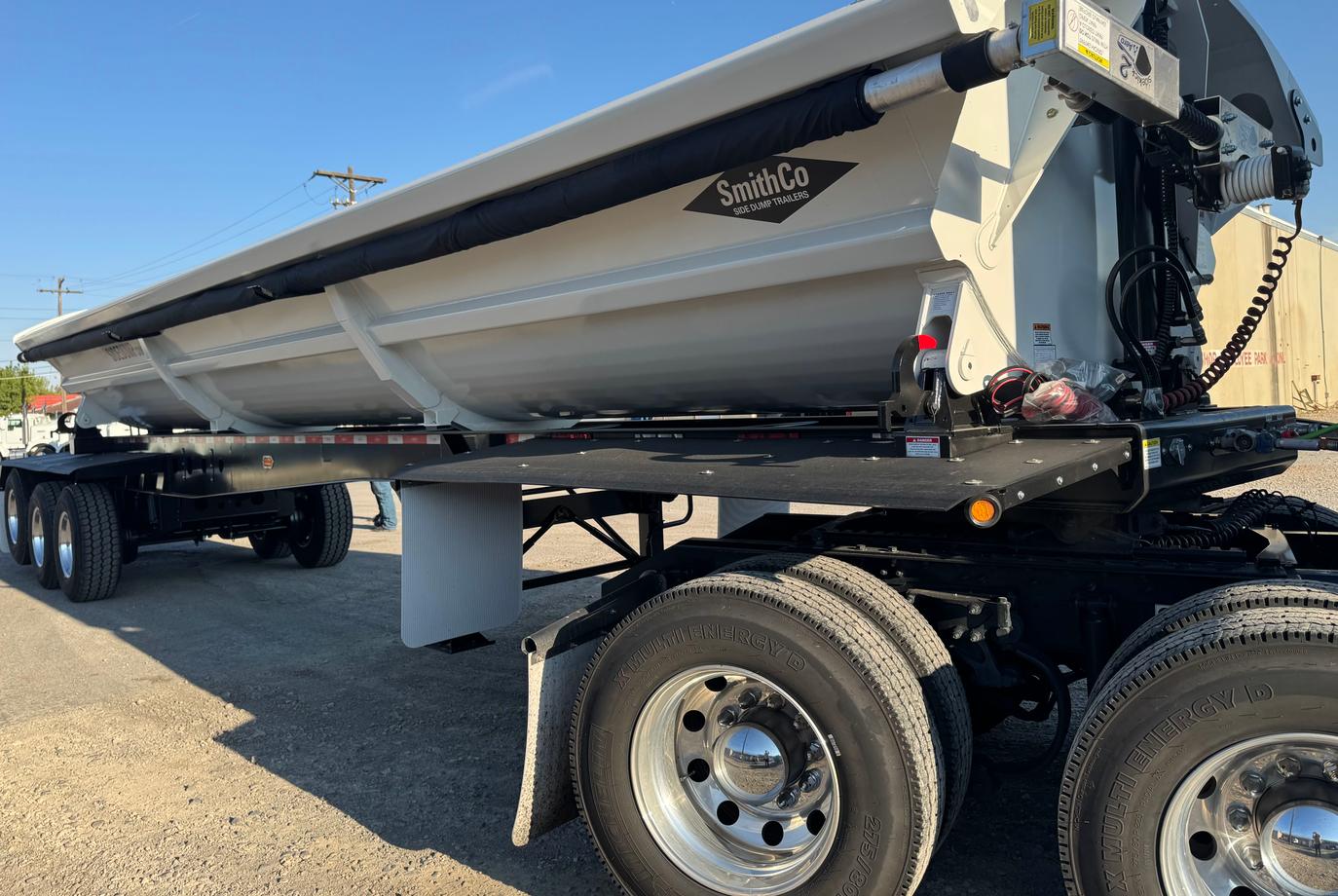

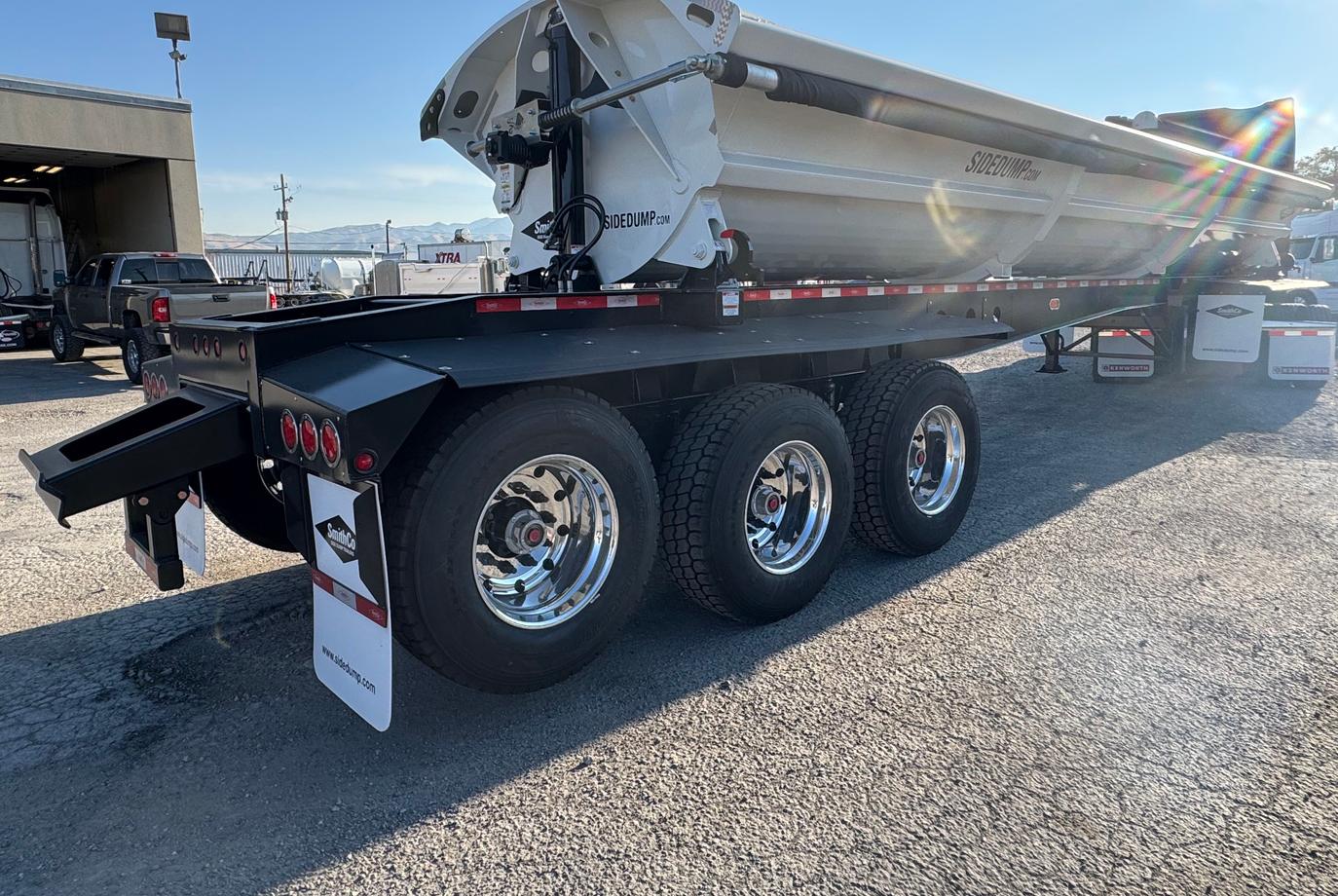

SmithCo SX3-4234 side dump with 42' frame and 34' tub.

Key Specs

• Model: SX3-4234
• Width: 102"
• Frame length: 42'
• Tub length: 34'
• Tub volume (34' SX, water level): 23 CUBIC YARDS
• Tub volume (34' SX, heaped): 30.3 CUBIC YARDS

Tub Construction

• Tub style: SX-ROUND BOTTOM
• Tub sides: 1/4" AR400
• Tub floor: 1/4" AR400
• Tub dividers: 0

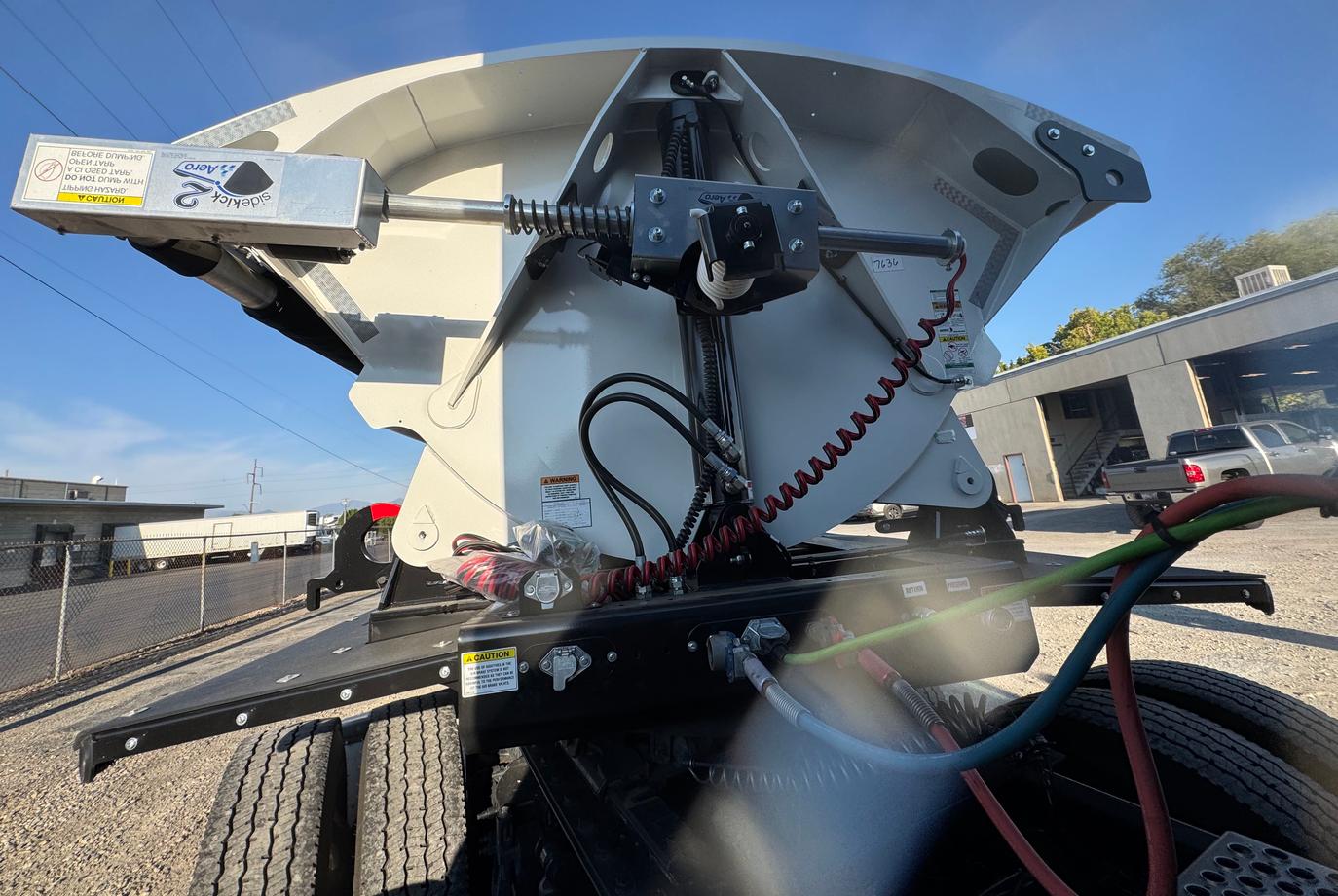

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Grease bank: FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD

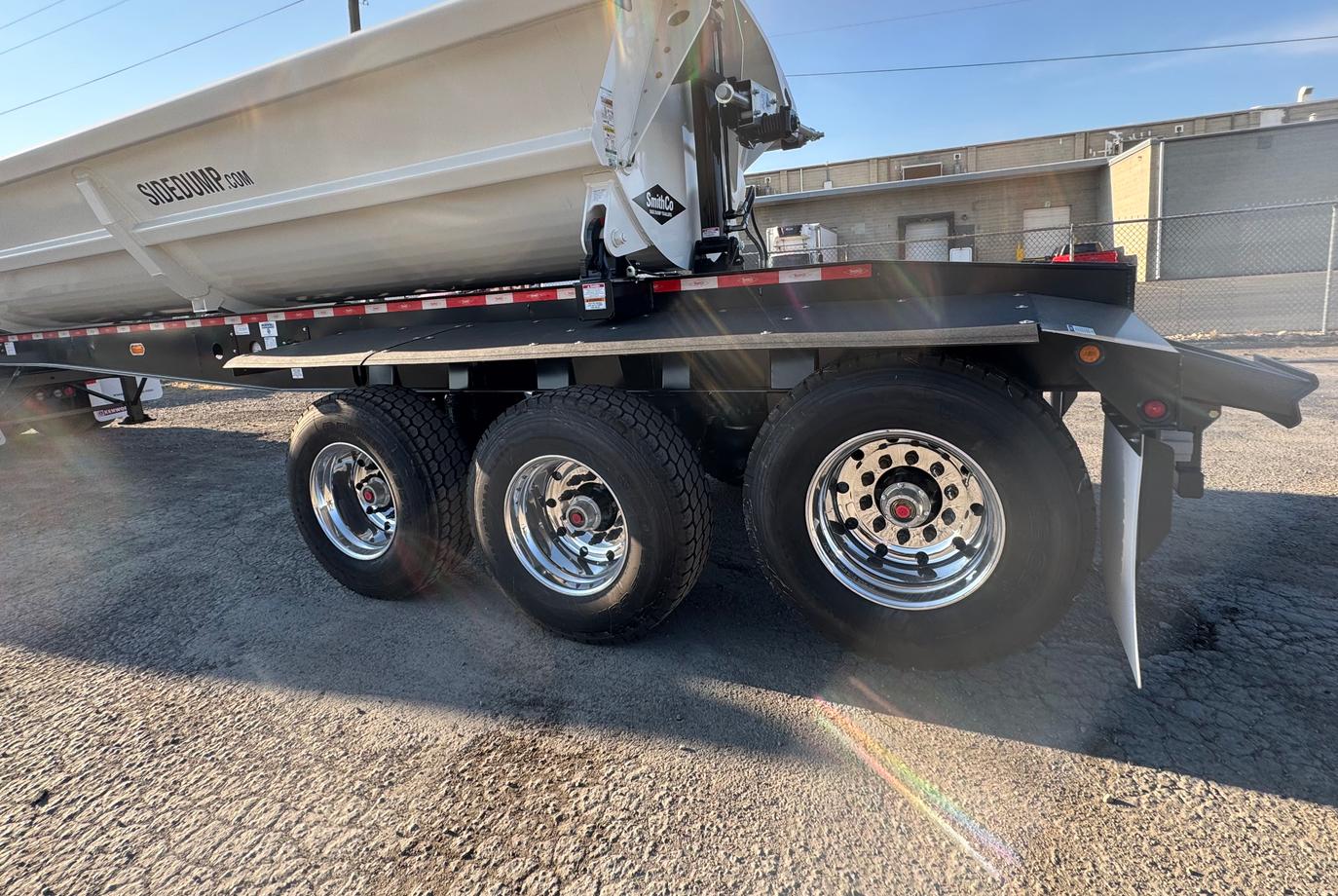

Axles & Suspension

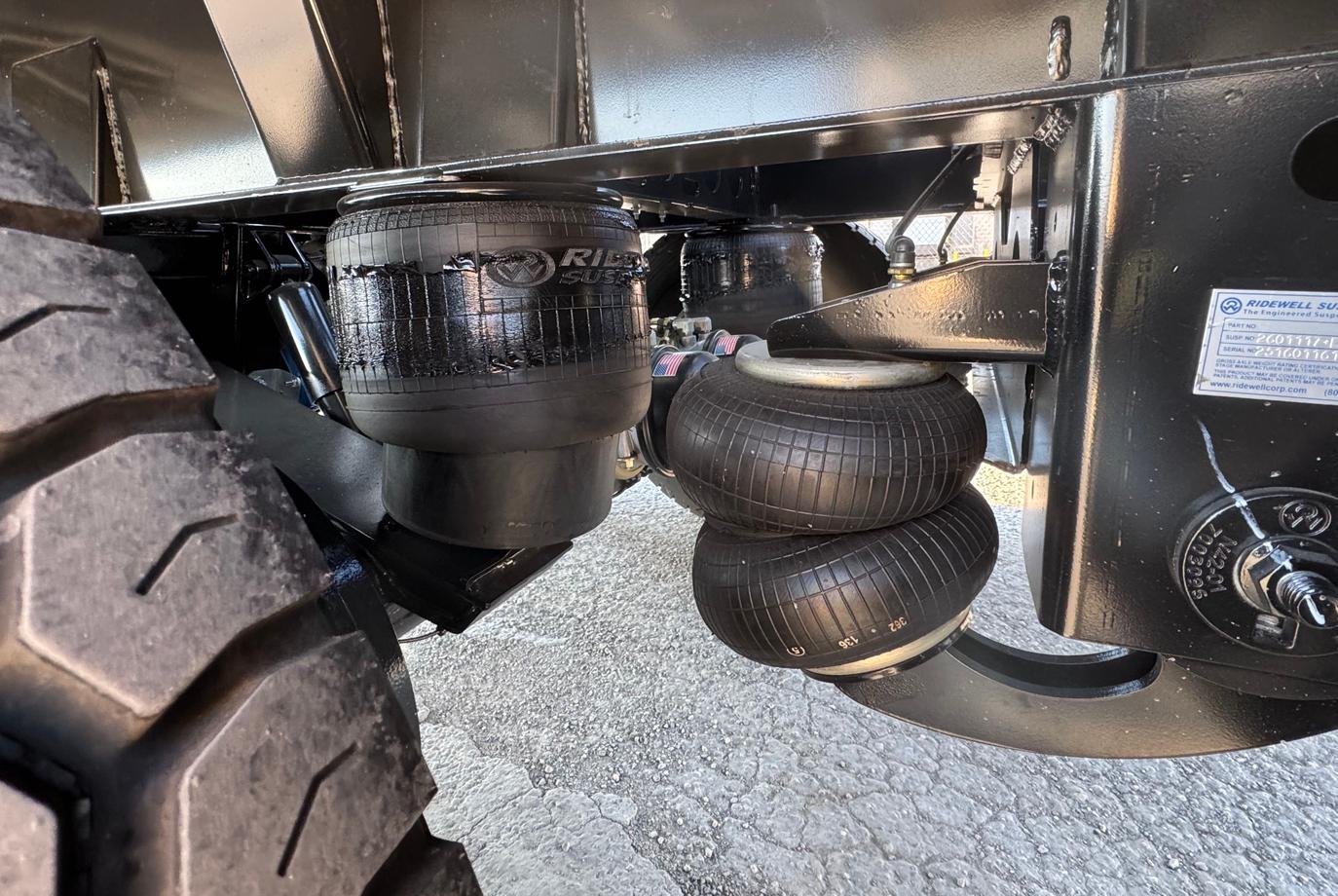

• Suspension: RIDEWELL RW260
• Axle spacing: 49"
• Lift axle: 3RD
• ABS-axles: 25K 1
• Non-ABS axles: 25K 2
• Axle track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-1/2"x7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel style: HUB-PILOTED U/M
• Wheel type: AL SS 12.25x22.5 6 SUPER SINGLE ALUMINUM
• Tires: 385/65R22.5 "J" PLY SUPER SINGLE 6

Additional Features

• Dolly legs: BINKLEY
• Fenders: ALL PLASTIC
• Tarp brand: AERO
• Tarp type: MESH-NON SEALED
• Lock out switch: TARP LOCKOUT
• W style pushblock: STD
• Large liquid filled air gauge on driver's side: STD
• Tub paint #: DV-19088 (WHITE)
• Frame paint #: DV-19040-DTM (BLACK)

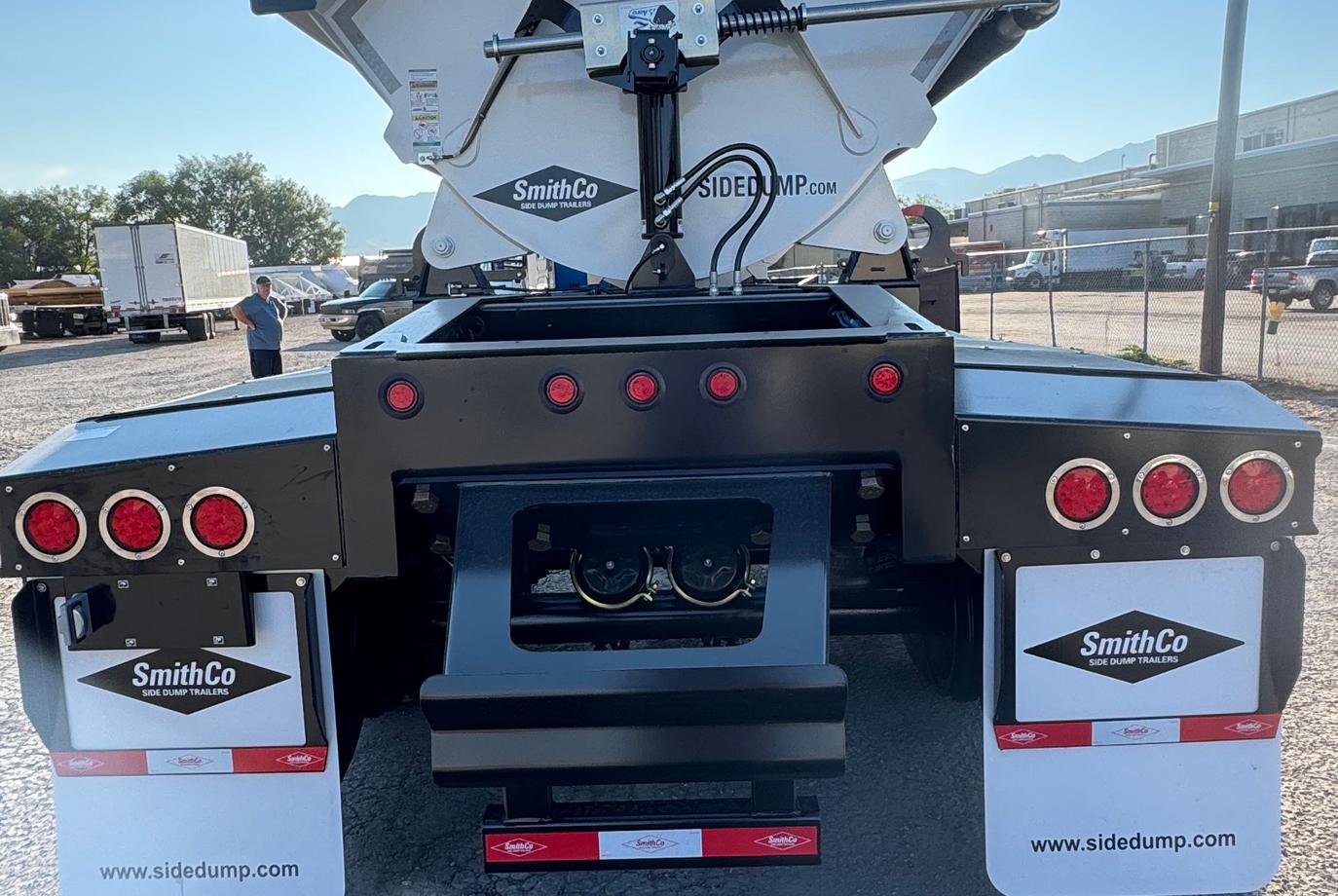

Lighting & Safety

• 3 taillights: RED
• ID lights at rear: 5
