SmithCo SX2FP-30-24 Trailer

SmithCo SX2FP-30-24 – Side Dump, 30' frame, 24' tub

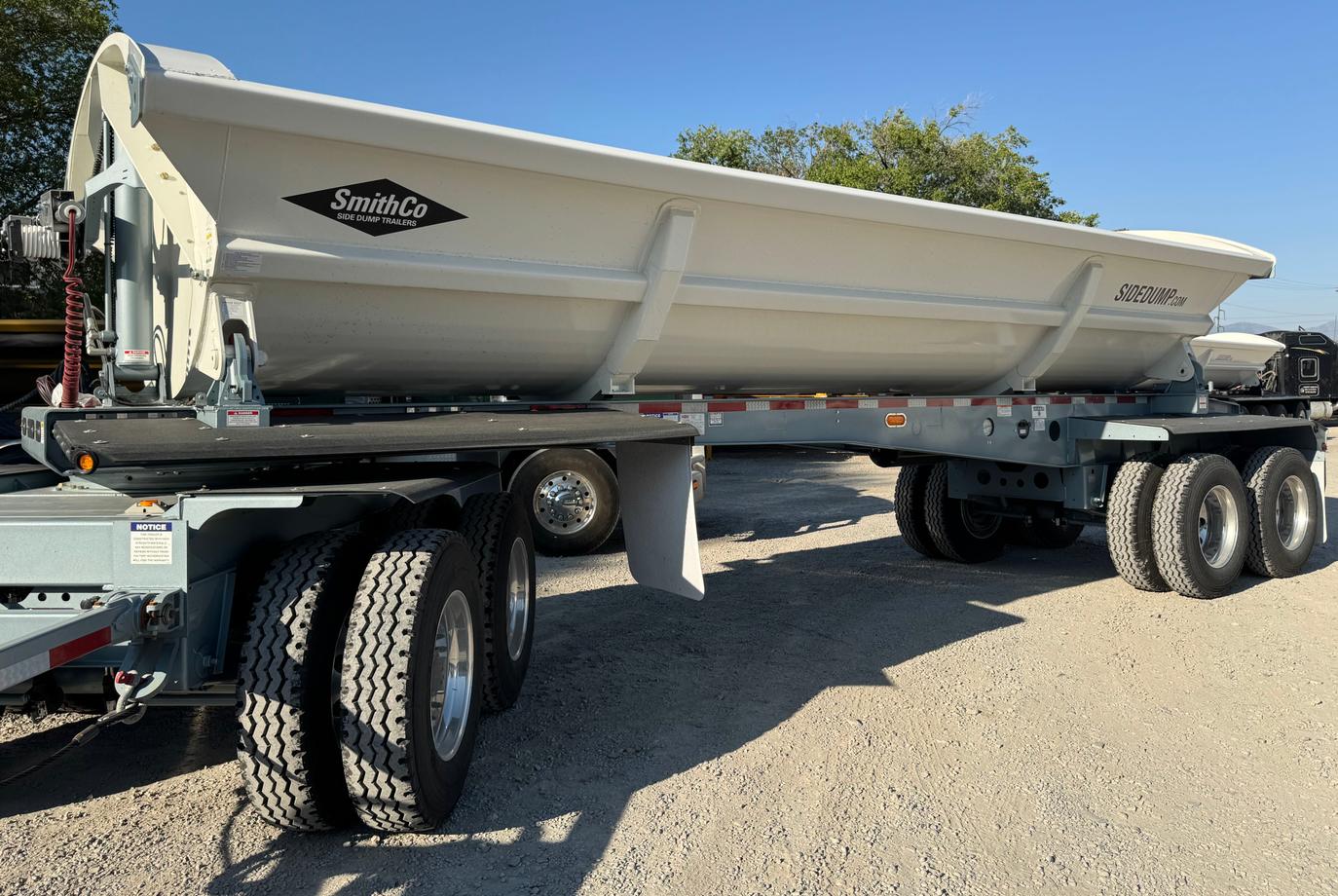

SmithCo SX2FP-30-24 Side Dump with 24' tub and SX-ROUND BOTTOM tub style.

Key Specs

• MODEL: SX2FP
• FRAME WIDTH: 102" WIDE
• FRAME LENGTH: 30'
• TUB LENGTH: 24'
• TUB VOLUME: 24' SX - WATER LEVEL - 16 CUBIC YARDS; 24' SX - HEAPED - 21.4 CUBIC YARDS
• TUB STYLE: SX-ROUND BOTTOM
• TUB SIDES: 1/4" AR450
• TUB FLOOR: 1/4" AR450

Tub Construction

• TUB DIVIDERS: 0
• TUB PAINT #: DV-19088 (WHITE)
• FRAME PAINT #: SPECIAL SEE MISC DV-N0334 BLUE
• FENDERS: ALL PLASTIC

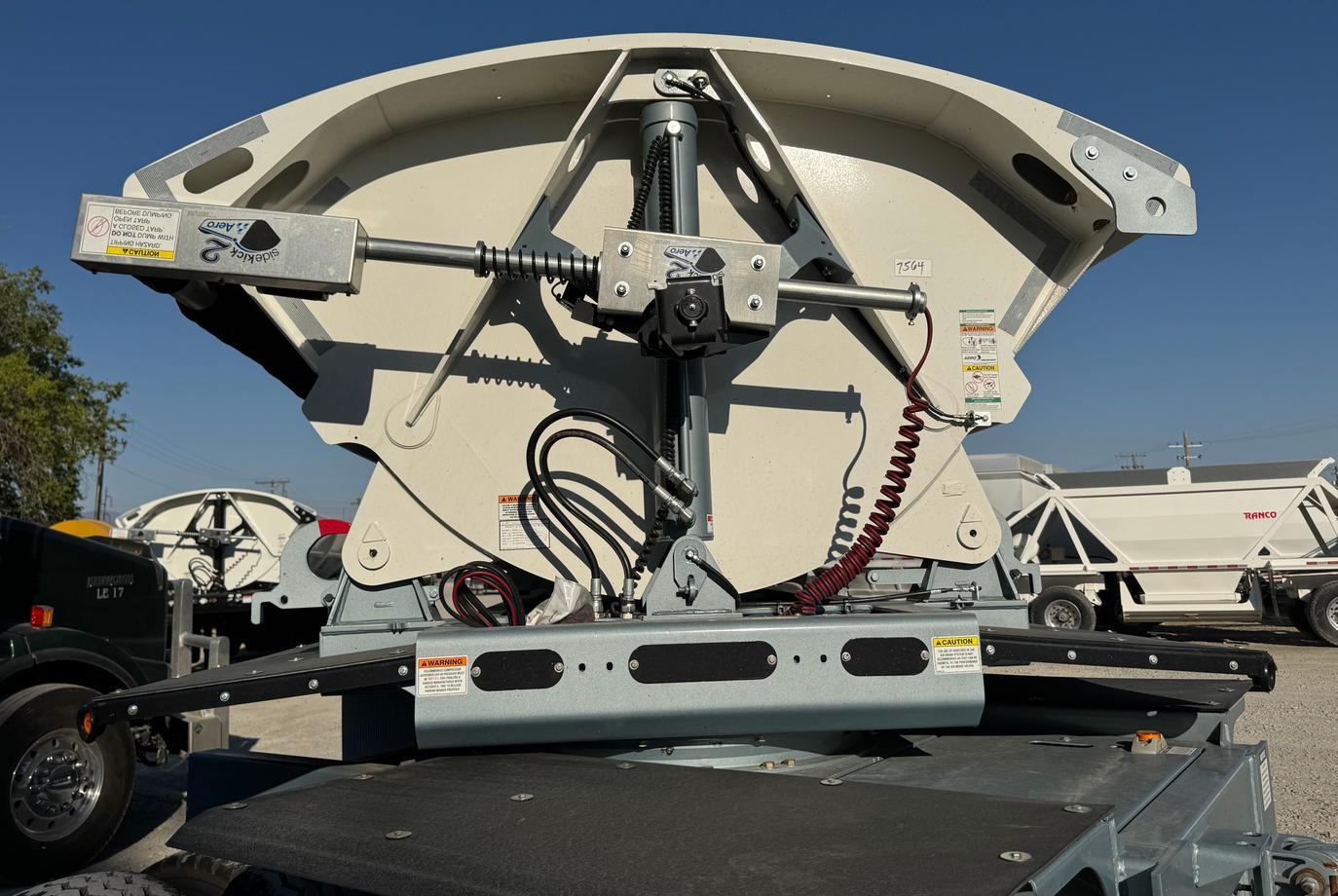

Hydraulics & Control

• HYDRAULICS: 5" CYLINDERS
• VALVE ON TRAILER: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• GREASE BANK FOR HYDRAULIC CYINDERS FRONT AND REAR - STD

Axles & Suspension

• SUSPENSION: RIDEWELL RW260 AIR RIDE
• AXLE SPACING: 49"
• LIFT AXLE: NONE
• ABS-AXLES: 25K 2
• NON-ABS AXLES: 25K 2
• AXLE TRACK: 77.5"-STD
• HUBS: DURALITE-STD OIL FILLED HUBS W/SOLID HUB CAPS
• BRAKES: 16-1/2"x7"
• DRUMS: CAST STEEL

Wheels & Tires

• WHEEL STYLE: HUB-PILOTED U/M
• WHEEL TYPE: AL 8.25x22.5 8 ALUMINUM INNER/8 POLISH ALUMINUM OUTER
• TIRES: DOUBLE COIN RR99 11R22.5 16

Additional Features

• DOLLY LEGS: NONE
• TARP BRAND: AERO
• TARP TYPE: MESH-NON SEALED
• LOCK OUT SWITHC: TARP LOCKOUT
• LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD

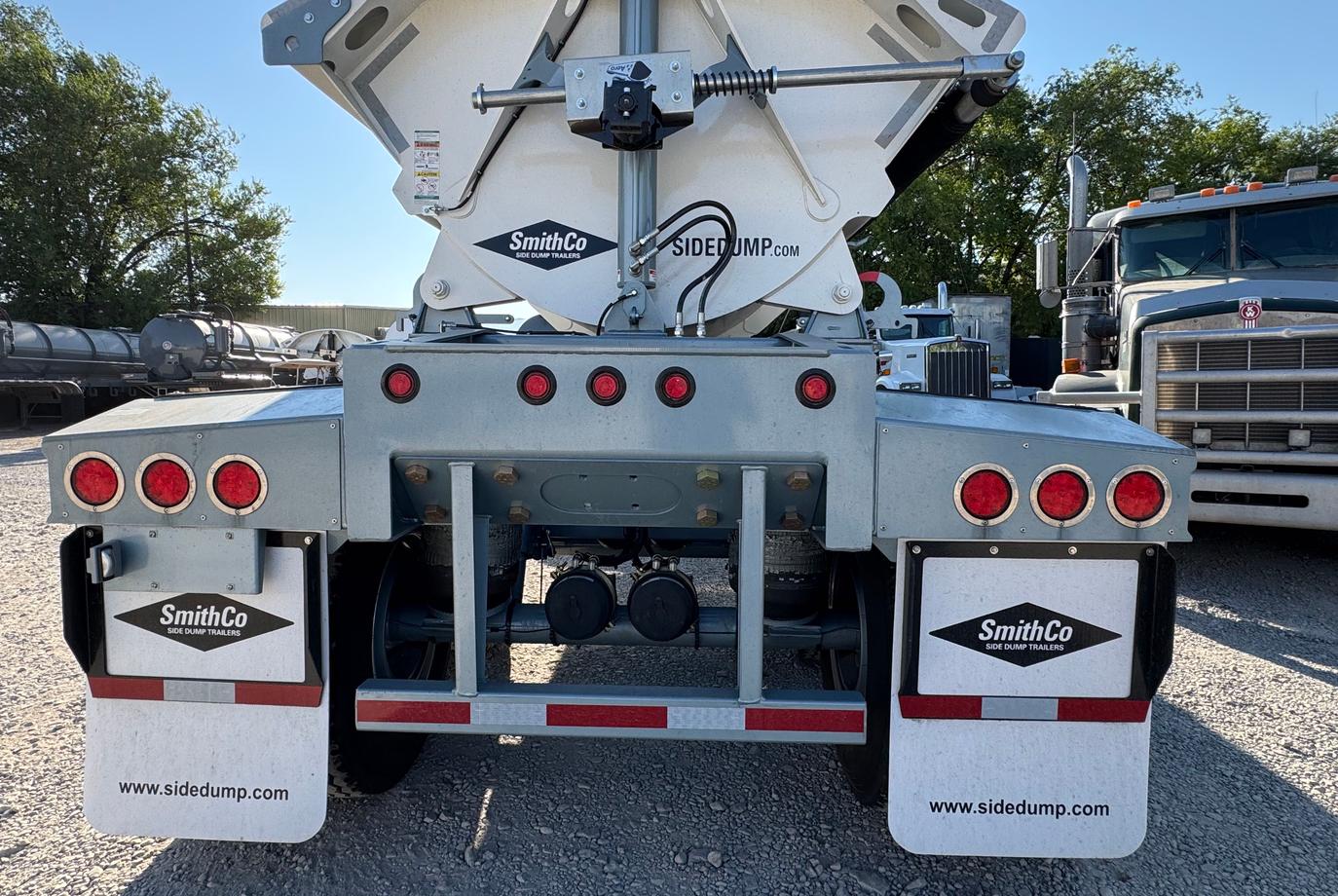

Lighting & Safety

• 3 TAILLIGHTS - RED
• 5 ID LIGHTS AT REAR
