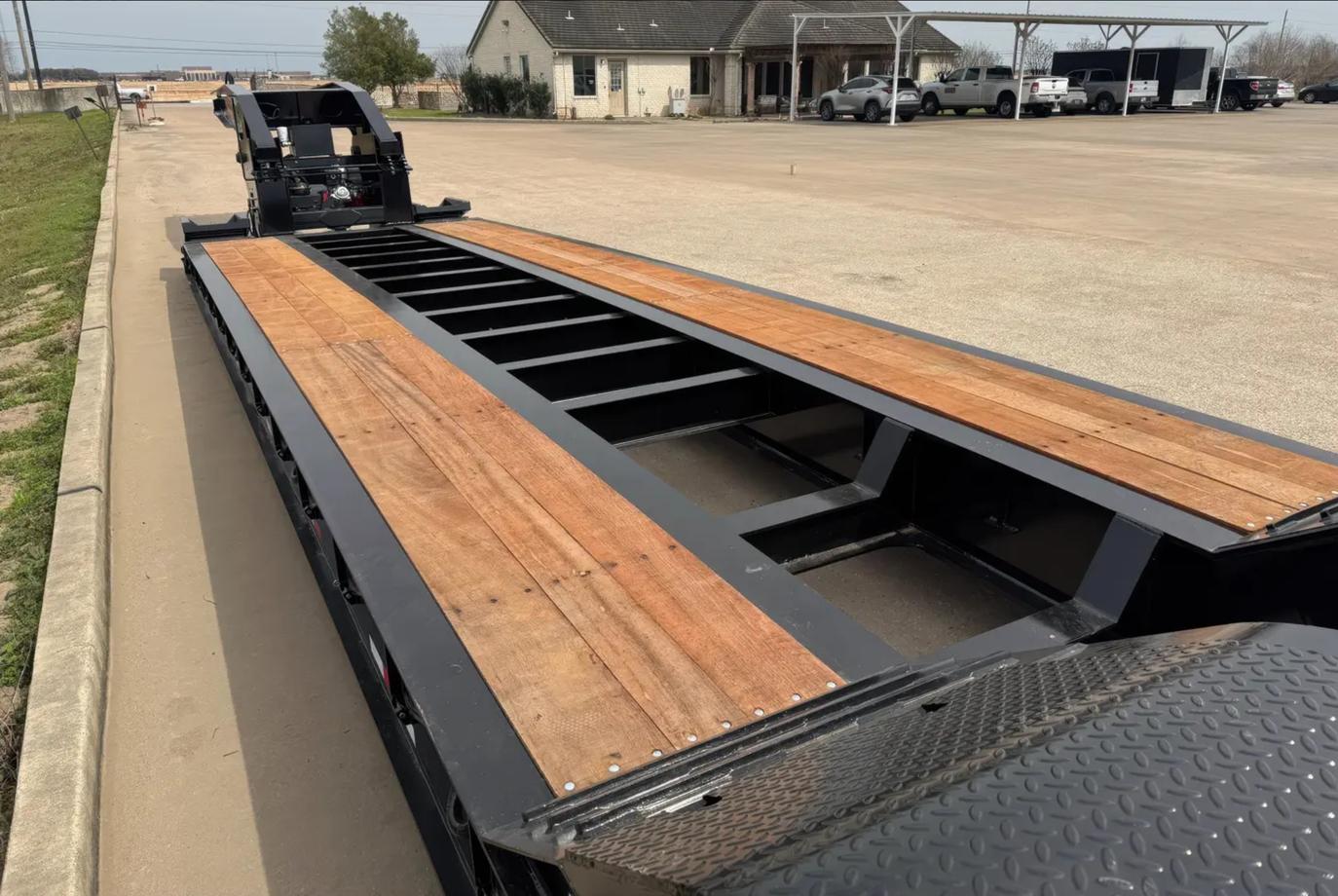

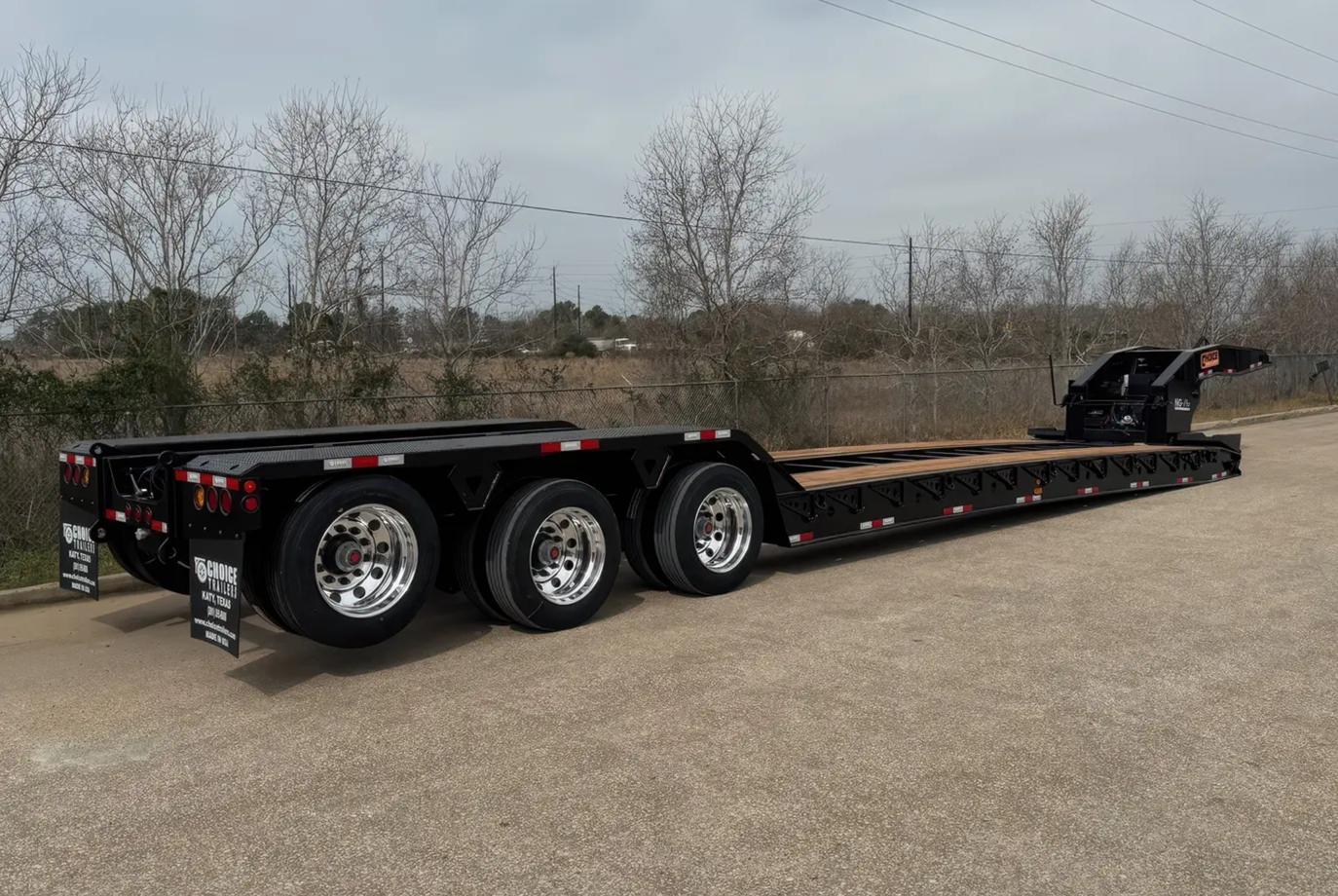

Choice 355NG Dressed Trailer

Choice 355NG Dressed – Lowboy, 53' x 102"

Choice 355NG Dressed Lowboy with overall length 53' and width 102", capacity 110,000lbs.

Key Specs

• Configuration: 3 axle 55-ton non-ground bearing
• Capacity: 110,000lbs
• Overall Length: 53'
• Overall Width: 102"
• Deck Length: 26'
• Loaded Deck Height: 22" w/ 6" ground clearance; adjustable

Tub Construction

• Main Deck: 4-beam construction, fully cambered fabricated beams, 100KSI hightensile T1 steel; expanded metal tool tray at front of main deck
• Decking: Raised apitong flooring; center deck open standard
• Rear Deck: Bolster style, open wheels standard
• Bucketwell: Recessed bucketwell cutout at rear of main deck
• Boomwell: Recessed boomwell cutout over axles and bumper
• Ramps: Front loading ramps, folding style with traction cleats for loading tracked equipment
• Outriggers: Heavy-duty pull-out outriggers at beginning of load bed, removeable 12" swing-type outriggers evenly spaced the entire length of main deck
• Lashing Rings: 1" forged bent d-rings, evenly spaced the entire length of main deck
• Flag Holder Slots: One pair located at front of load bed and one pair located on rear bumper

Hydraulics & Control

• Gooseneck Type: Low profile scraper gooseneck, arched, hydraulic detachable, non-ground bearing, air-actuated locking pin
• Hyd. Lift Cylinders: Two (2); control valve located on driver side of gooseneck
• Hydraulic Power: Runs off wet kit (5 TO 12 GPM hyd. requirement)
• Adj. Ride Heights: Yes; 5 positions
• Hyd. Neck Support: Yes

Axles & Suspension

• Suspension: Air-ride; 25,000# capacity; automatic ride height controls; manual override; raise and lower valve
• Axles: 25,000# nominal axles; oil-lubricated hubs; 77.5" track width; Axle Spacing: 55"
• Lift Axle: Equipped on third axle standard
• Brakes: 16" x 7" drum brakes, 4S2M ABS-equipped, automatic slack adjusters, 30-30 chambers on all axles
• Flip Axle: Reinforced sub-frame; connections for flip axle included

Wheels & Tires

• Wheels: Steel disc, hub-piloted type, white
• Tires: 255/70R22.5 Load Range H 16-ply steel-belted radial
• Wheels outer: 8.25 x 22.5 10-Hole pilot mount aluminum polished wheels

Electrical & Lighting

• Electrical: D.O.T.-approved, sealed 12 electrical and lighting system
• Lighting: LED lights; 3 tail lights per side; mid turn

Additional Features

• Paint: Sandblasted, painted with epoxy primer and polyurethane topcoat, black
• Options: 13 HP Honda unit, base of neck, dual hydraulics
