Choice 355NG Trailer

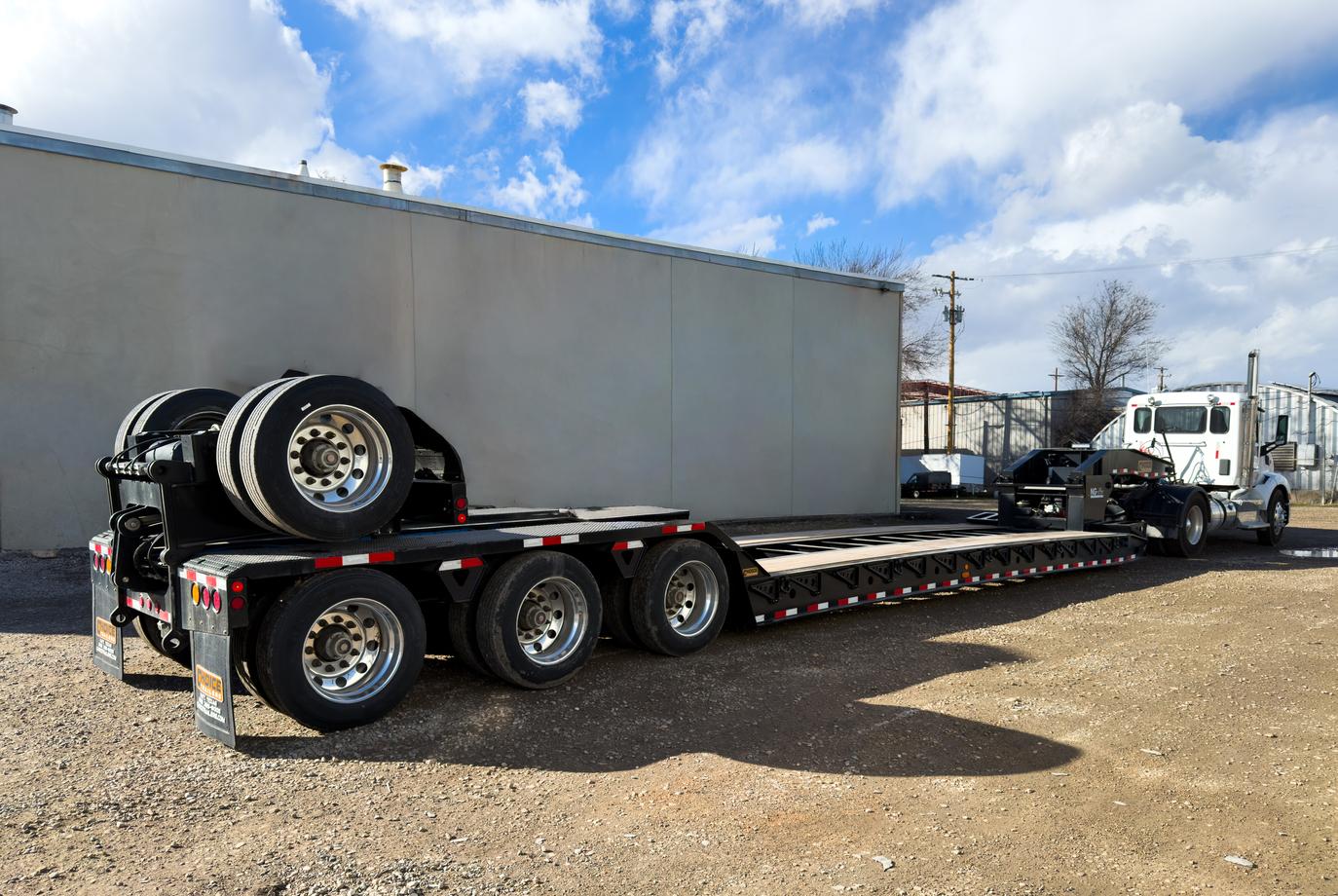

Choice 355NG – Lowboy, 53' x 102", 110,000 LBS

Choice 355NG is a Lowboy with overall length 53' and overall width 102", capacity 110,000 LBS.

Key Specs

• Capacity: 110,000 LBS
• Overall length: 53'
• Overall width: 102"
• Axle configuration: 3-AXLE 55-TON NON-GROUND BEARING
• Deck length: 26'
• Loaded deck height: 22" W/ 6" GROUND CLEARANCE; ADJUSTABLE
• King pin setting: 34" & 16"
• Swing clearance: 108" & 90"

Main Deck

• Main deck: 4-BEAM CONSTRUCTION, FULLY CAMBERED FABRICATED BEAMS, 100KSI HIGHTENSILE T1 STEEL, EXPANDED METAL TOOL TRAY AT FRONT OF MAIN DECK
• Decking: RAISED APITONG FLOORING; CENTER DECK OPEN STANDARD
• Bucketwell: RECESSED BUCKETWELL CUTOUT AT REAR OF MAIN DECK
• Boomwell: RECESSED BOOMWELL CUTOUT OVER AXLES AND BUMPER
• Boom trough: COVERED BOOM TROUGH - BOLT ON BOTTOM PLATE ONLY
• Ramps: FRONT LOADING RAMPS, FOLDING STYLE WITH TRACTION CLEATS FOR LOADING TRACKED EQUIPMENT
• Outriggers: HEAVY-DUTY PULL-OUT OUTRIGGERS AT BEGINNING OF LOAD BED, REMOVEABLE 12" SWING-TYPE OUTRIGGERS EVELY SPACED THE ENTIRE LENGTH OF MAIN DECK
• Lashing rings: 1" FORGED BENT D-RINGS, EVENLY SPACED THE ENTIRE LENGTH OF MAIN DECK
• Flag holder slots: ONE PAIR LOCATED AT FRONT OF LOAD BED AND ONE PAIR LOCATED ON REAR BUMPER
• Rear deck: BOLSTER STYLE, OPEN WHEELS STANDARD - HEAVY DUTY WHEEL COVERS, LOAD BEARING, DIAMOND TREAD PLATE 1/4" THK

Hydraulics & Control

• Gooseneck type: LOW PROFILE SCRAPER GOOSENECK, ARCHED, HYDRAULIC DETACHABLE, NON-GROUND BEARING, AIR-ACTUATED LOCKING PIN
• Hyd. lift cylinders: TWO (2); CONTROL VALVE LOCATED ON DRIVER SIDE OF GOOSENECK
• Hydraulic power: RUNS OFF WET KIT (5 TO 12 GPM HYD. REQUIREMENT)
• Auxiliary hydraulic power: 13 HP HONDA UNIT, BASE OF NECK, DUAL HYDRAULICS
• Adjustable ride heights: YES; 5 POSITIONS
• Hyd. neck support: YES

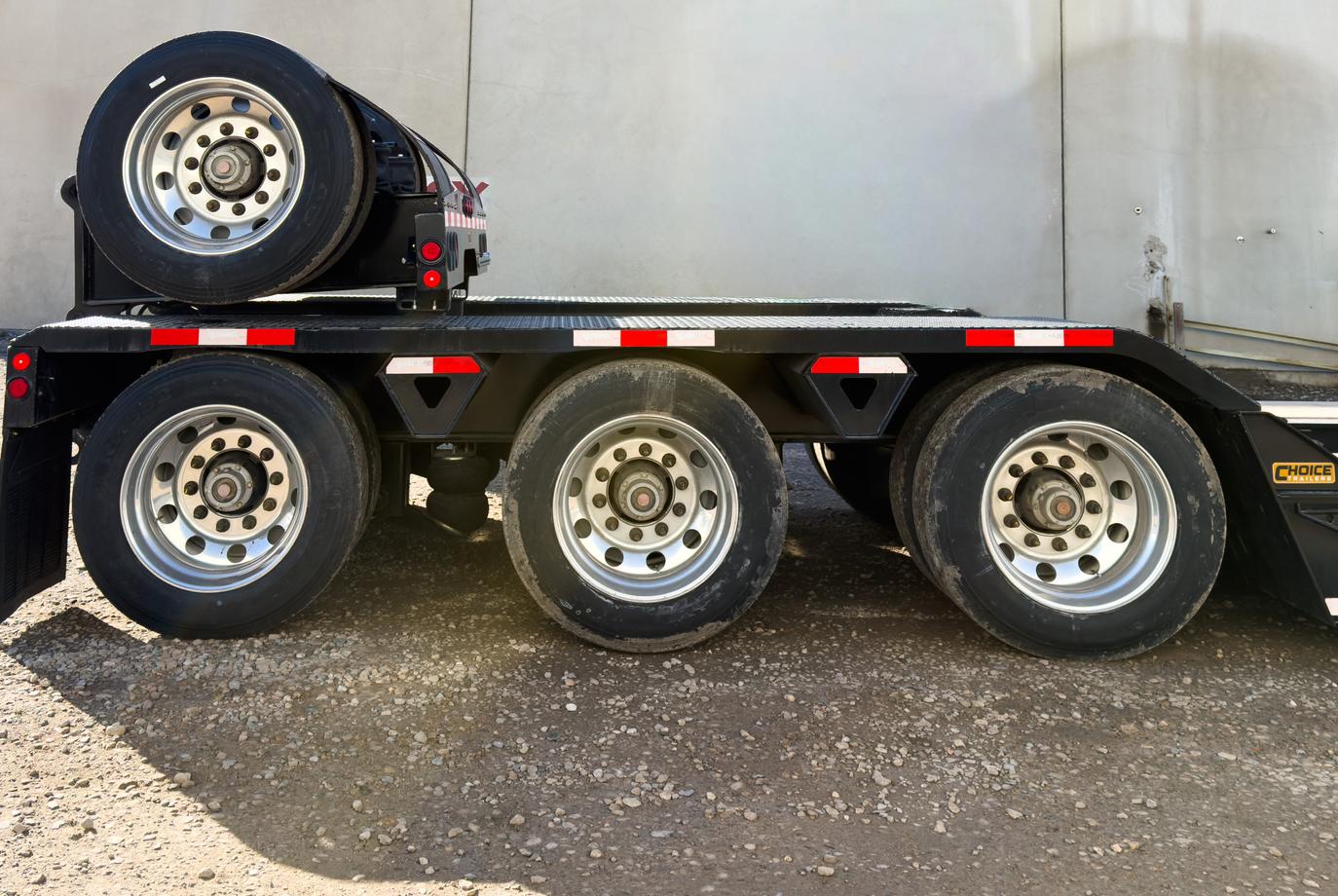

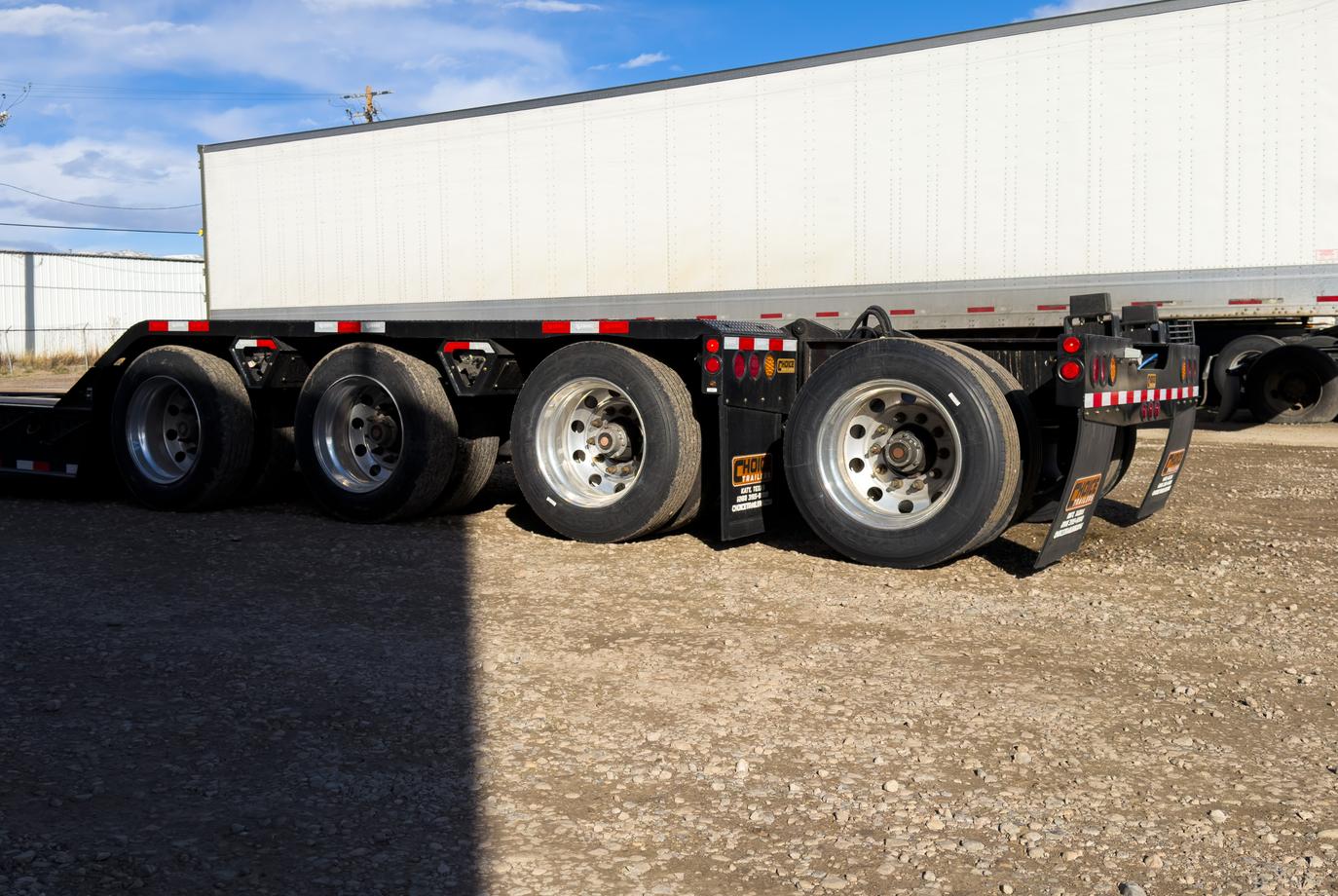

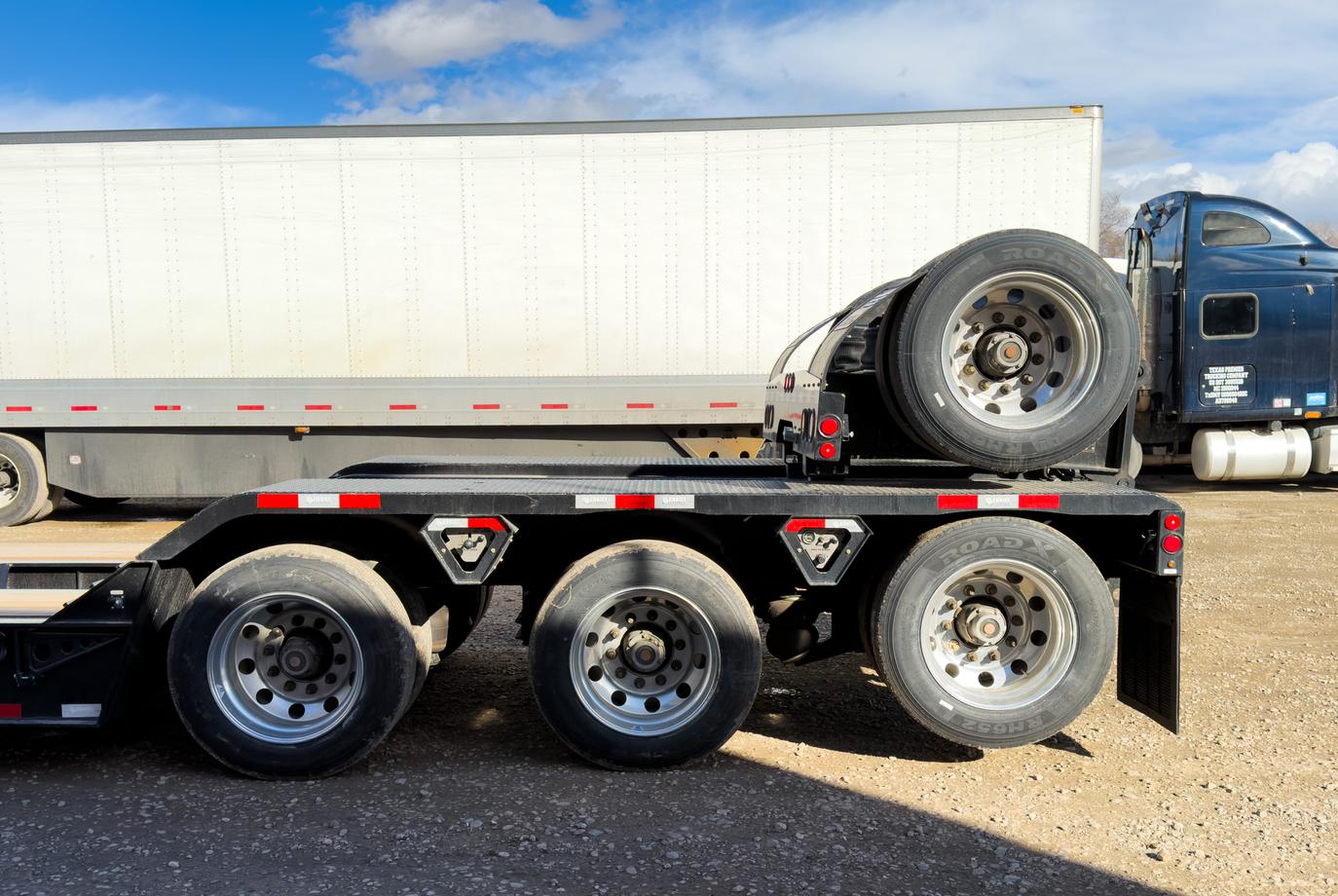

Axles & Suspension

• Axles: 25,000# NOMINAL AXLES
• Suspension: AIR-RIDE; 25,000# CAPACITY; AUTOMATIC RIDE HEIGHT CONTROLS; MANUAL OVERRIDE; RAISE AND LOWER VALVE
• Axle spacing: 54.5"
• Track width: 77.5"
• Lift axle: EQUIPPED ON THIRD AXLE STANDARD
• Flip axle: REINFORCED SUB-FRAME; CONNECTIONS FOR FLIP AXLE INCLUDED
• Hubs: OIL-LUBRICATED HUBS

Wheels & Tires

• Wheels: STEEL DISC, HUB-PILOTED TYPE. WHITE
• Wheels outer: 8.25x22.5 10-HOLE PILOT MOUNT ALUMINUM POLISHED WHEELS
• Tires: 255/70R22.5 LOAD RANGE H 16-PLY STEEL-BELTED RADIAL

Brakes & Electrical

• Brakes: 16 1/2"x7" DRUM BRAKES, 4S2M ABS-EQUIPPED, AUTOMATIC SLACK ADJUSTERS, 30-30 CHAMBERS ON ALL AXLES
• Electrical: D.O.T.-APPROVED, SEALED 12V ELECTRICAL AND LIGHTING SYSTEM, LED LIGHTS, 3 TAIL LIGHTS PER SIDE, MID TURN
• Strobe light: 4" AMBER STROBE LIGHT

Paint & Finish

• Paint: SANDBLASTED, PAINTED WITH EPOXY PRIMER AND POLYURETHANE TOPCOAT, BLACK
