– Alpha A110HDG-SF – Lowboy, 53' x 10', 110,000 lbs

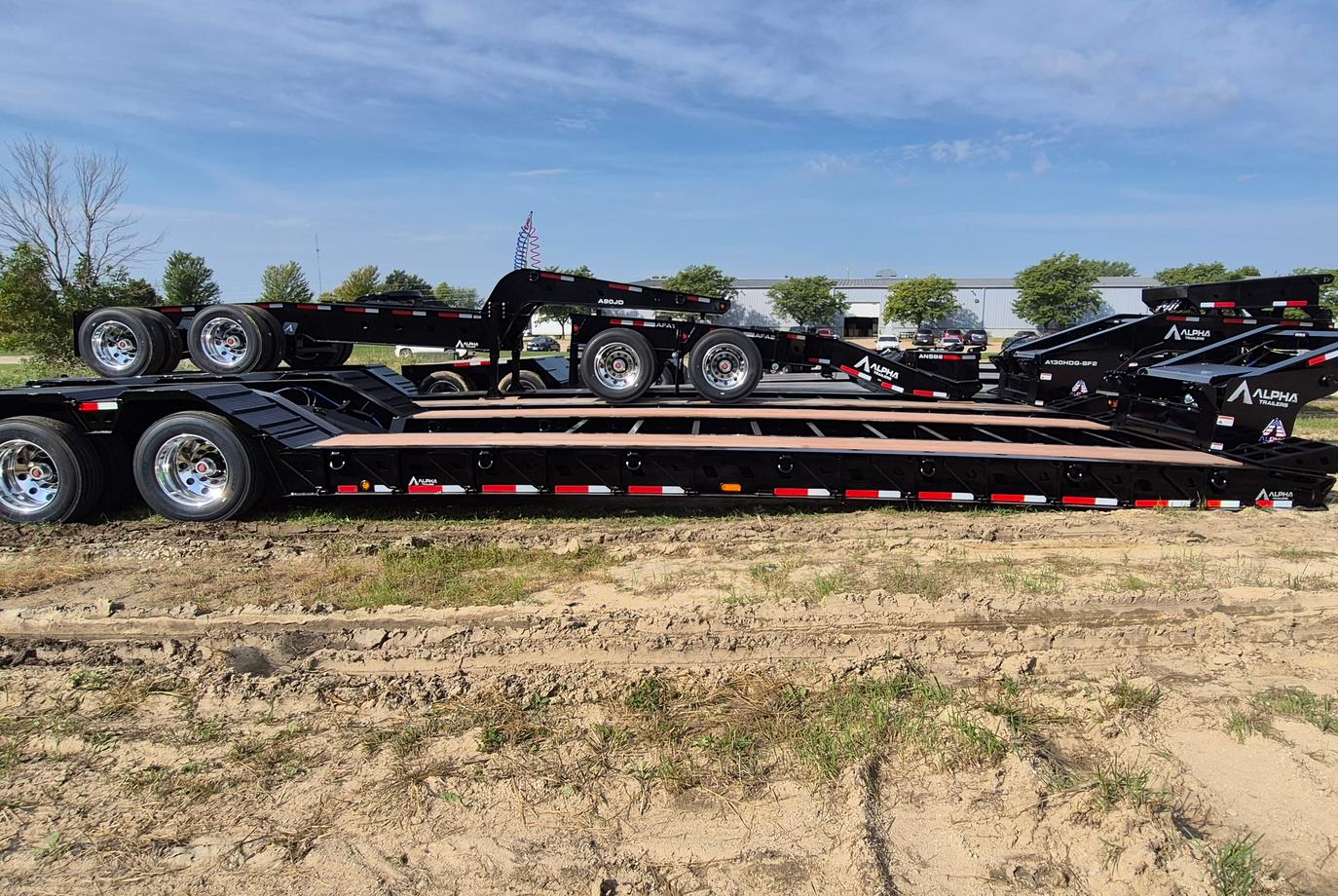

Alpha A110HDG-SF is a Lowboy hydraulic detachable gooseneck trailer with 110,000 lbs capacity and 10' overall width.
Key Specs
- Capacity: 110,000 lbs
- Concentrated Load: 110,000 lbs in 12'
- Overall Length: 53'
- Overall Width: 10'
- Axles: 3 x 25,000 lbs
Gooseneck
- Type: 12' 11" Hydraulic Detachable
- 5th Wheel Height: 51"
- King Pin: 15" & 41"
- Swing Clearance: 110" & 84"
- Ride Height Positions: 5
- Hydraulics: Runs by Wet Kit
- Lock Pin: Air Operated
Main Deck
- Deck Length: 26'
- Fabricated I-Beams: 16"
- Loaded Deck Height: 22"
- Ground Clearance: 6"
- Cross Member Spacing: 12" (10" & 4")
- Outriggers: HD Swing Out
- Removable Outriggers: 2 Sets of HD Flat Back
- Chain Drops: Every 24"
- D-Rings: 7 Bent D-Rings Per Side
- Tool Box: 5' at Front with 2 Bent D-Rings
- Bucket Well: 6' at Rear with 2 Pairs of Bent D-Rings
- Top Flange Reinforcement: Yes
- Load Ramps: Front Flip Load Ramps
- Decking: 1 3/4" Apitong
Sub Frame
- Length: 14' 1"
- Loaded Deck Height: 39"
- Rear Transition: 32°
- Wheels: Open Wheels with Bolsters
- Chain Slots: In Each Bolster
- D-Rings: 2 Flat at Rear
- Flag Holders: Yes
- Stake Pockets: 1 Pair in Tail Channel
- Frame Reinforcement: For Single Axle Stinger
Axles & Suspension
- Axle Spacing: 54 1/2"
- Suspension: Ridewell
- Brakes: 16 1/2" x 7" Drum
- Spring Brakes: On Two Axles
- Ride Height Control: Manual
- Raise & Lower Valve: Yes
- Lift Axle: Air Lift on 3rd Axle
- Tires: 255/70R22.5
- Suspension Controls: Located in Bolster
Lighting & Electrical
- Tail Lights: 2 Packages with Stainless Steel Covers
- Side Markers: 2 Pairs
- Mid-Turn Lights: 1 Pair on Deck
- Wiring Harness: Grote Ultra Blue-Seal
