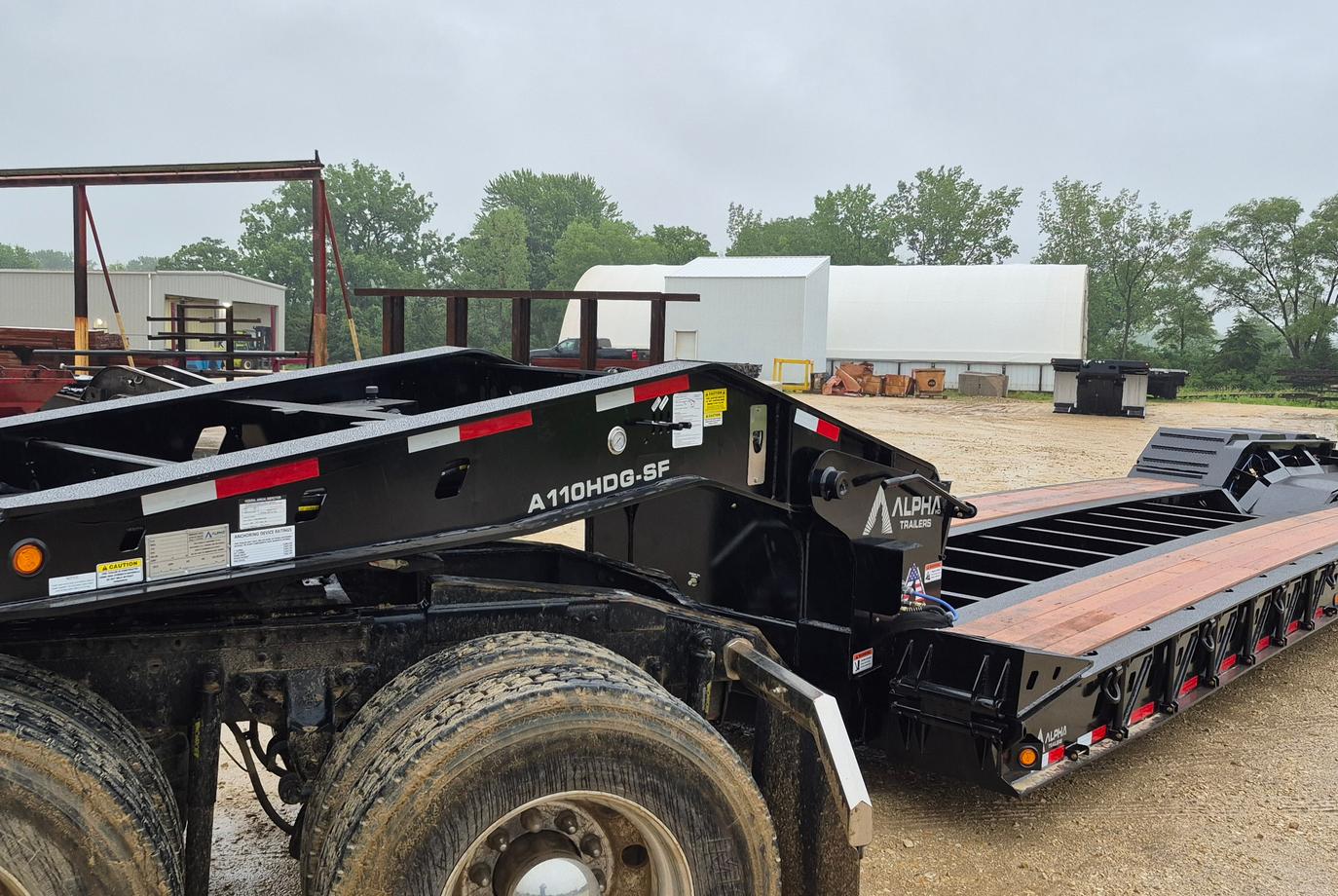

Alpha A110HDG-SF – Lowboy, 110,000 lbs, 108"
Alpha A110HDG-SF is a Lowboy with capacity 110,000 lbs and overall length 53'.
Key Specs
- Capacity: 110,000 lbs
- Concentrated Load: 110,000 lbs in 12'
- Overall Length: 53'
- Overall Width: 108"
Gooseneck Specifications
- Type: Hydraulic Detachable
- Length: 12' 11"
- Fifth Wheel Height: 51"
- King Pin: 15" & 41"
- Swing Clearance: 110" & 84"
- Ride Height: 5 Position Adjustable
- Hydraulics: Wet Kit Operated
- Lock Pin: Air Operated
- Engine: 13 HP Honda Mounted in Base Section
Sub Frame
- Length: 14' 1"
- Loaded Deck Height: 39"
- Rear Transition: 32 Degree
- Open Wheels: With Bolster
- Load Securing Features: Chain Slots in Each Bolster, 2 Flat D-Rings at Rear, Flag Holders, 1 Pair Stake Pockets in Tail Channel
- Frame Reinforcement: Single Axle Stinger
- Additional Protection: Covered Boom Trough, Bolt-On Covered Wheel Wells
Main Deck
- Length: 26'
- Main Beams: 16" Fabricated I-Beams
- Loaded Deck Height: 22"
- Ground Clearance: 6"
- Cross Member Spacing: 12" (10" & 4")
- Outriggers: HD Swing-Out
- Load Securing: Chain Drops on 24" Centers, 7 Bent D-Rings Per Side
- Storage & Accessories: 5' Toolbox at Front with Bent D-Rings, 6' Bucket Well at Rear with 2 Pairs Bent D-Rings
- Reinforcement: Top Flange Reinforcement
- Ramp: Front Flip Load Ramps
Axles & Suspension
- Axles: (3) 25,000 lb
- Axle Spacing: 54 ½"
- Suspension: Ridewell Air Ride
- Brakes: 12 ½" x 7" Drum Brakes, Spring Brakes on Two Axles
- Control Features: Raise & Lower Valve, Manual Ride Height Control, Air Lift on 3rd Axle
- Monitoring: Liquid Filled Air Gauge
- Tires: 255/70R 22.5
- Suspension Controls: Located in Bolster
Lighting & Electrical
- Tail Light Package: 2 Tail Lights with Stainless Steel Cover
- Side Markers: 2 Pairs
- Mid-Turn Signals: 1 Pair on Deck
- Additional Lights: 3rd Tail Light Package with Strobe and 4-Way Plug
- Wiring: Grote Ultra Blue-Seal Wire Harness
