XL Specialized XL 80 HDG – Lowboy, 47' 5" x 102", 80,000 LB DISTRIBUTED
XL Specialized XL 80 HDG Lowboy with overall length 47' 5" and width 102", capacity 80,000 LB DISTRIBUTED.
Key Specs
- Model: XL 80 HDG
- Category: Lowboy
- Overall length: 47' 5"
- Overall width: 102"
- Capacity: 80,000 LB DISTRIBUTED; 80,000 LB IN 12'
- Weight +/-3%: 0,000 LB
Gooseneck
- Neck style: CLASSIC NECK FULL WIDTH GOOSNECK WITH 1 1/8" APITONG DECKING FLUSH
- D-rings: (2) BENT D-RINGS PER SIDE
- Length: 10' 5"
- Kingpin setting: 16"
- Swing clearance: 84"
- 5th wheel height: 49" W/ 7 VARIABLE RIDE HEIGHT POSITIONS
- Hydraulics: 13 HP HONDA, DUAL HYDRAULICS, W/ STEEL COVER (BASE OF GOOSENECK)
- Work lights: TRILLIANT WORK LIGHT; (1) PAN STYLE IN EACH CORNER
Main Deck
- Length: 28'
- Loaded deck height: 20" W/ 6" GROUND CLEARANCE
- Decking: 1 3/8" APITONG DECKING, RAISED - CENTER OPEN
- Crossmember: 8" & 4" JR. I-BEAM STUBBED 12" ALTERNATING CENTERS
- Beams: (4) 14" FAB I-BEAMS TOP FLANGE REINFORCEMENT, FRONT RAMP AND MAIN DECK
- D-rings: (8) BENT D-RINGD PER SIDE
- Pan style d-rings: (4) PAN STYLE D-RINGS PER SIDE
- Outriggers: SWING OUT OUTRIGGERS - 24" CENTERS, CENTER SWINGS TOGETHER; PULLOUT FRONT H.D. OUTRIGGER
- Chain drops: 24" CENTERS - OUTSIDE BEAMS TAPERS TO 4"

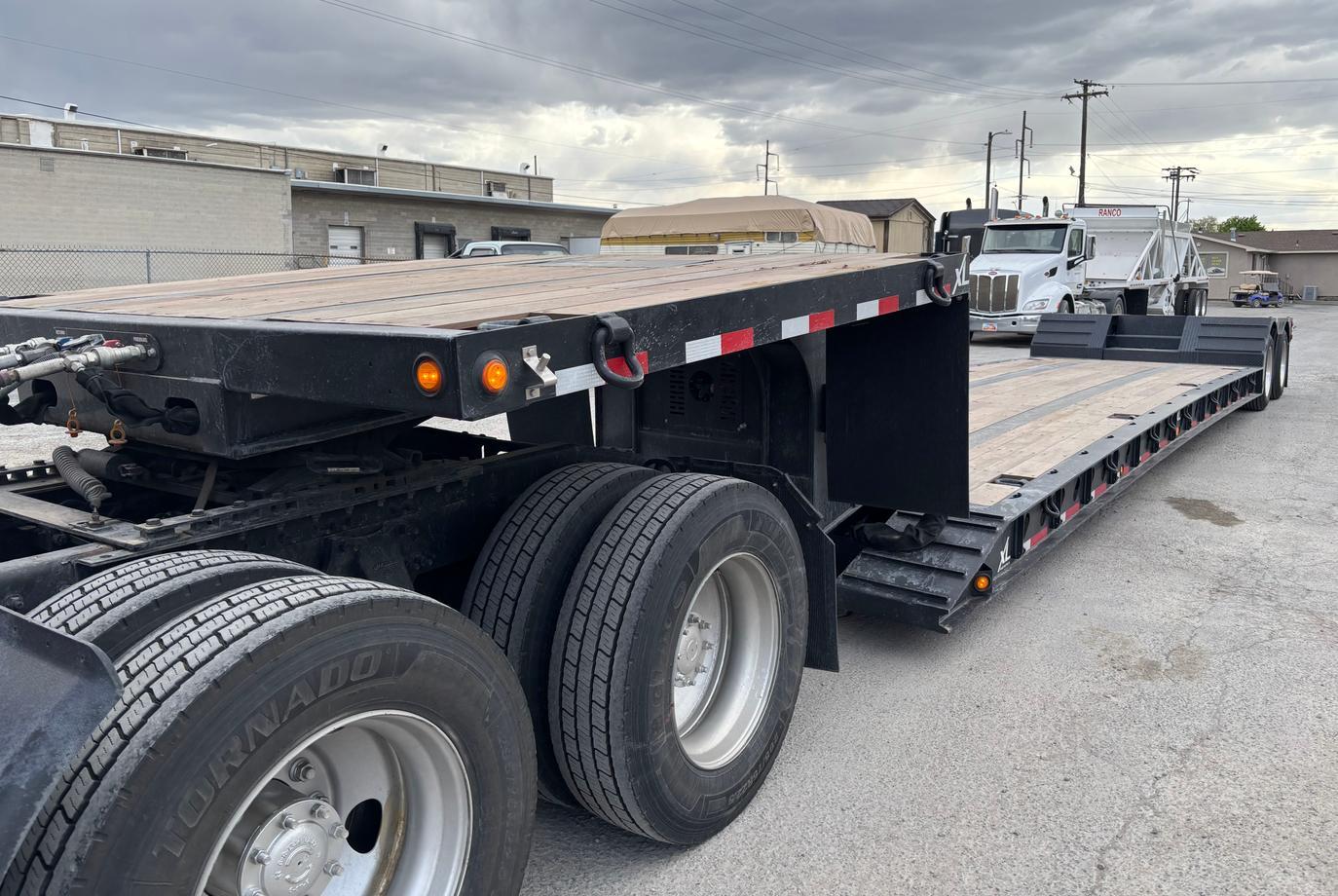

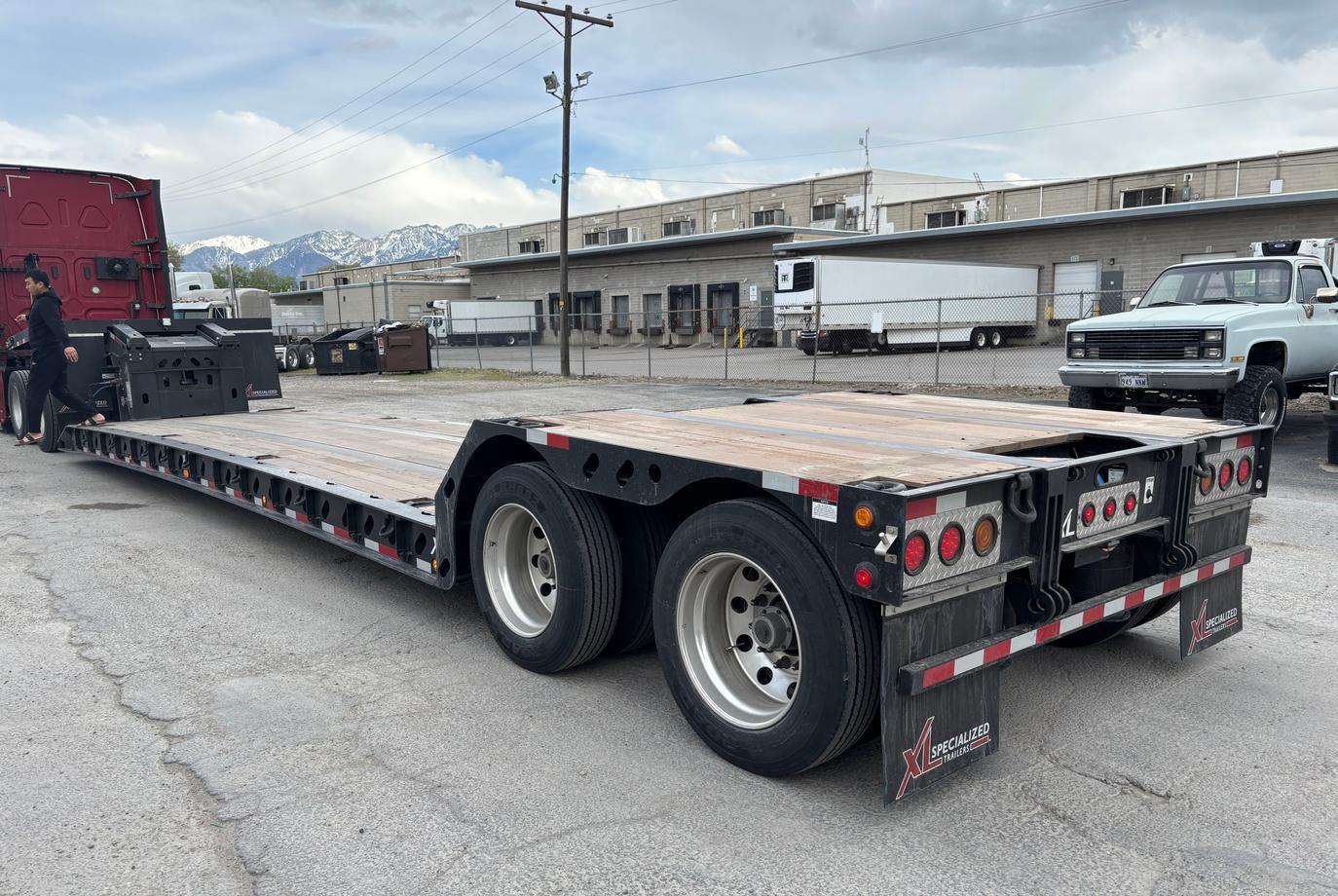

Rear Deck
- Length: 9'
- Loaded deck height: 40"
- Decking: FULL-WIDTH STYLE WITH 1 1/8" APITONG DECKING FLUSH
- D-rings: (1) PAN STYLE D-RING IN EACH CORNER
- Stake pockets: (2) STAKE POCKETS IN TAIL CHANNEL
Axles & Suspension
- Axles: (2) 25,000 LBS. NOMINAL (5/8" WALL)
- Suspension: HENDRICKSON / 25,000 CAPACITY / AIR RIDE
- Axle spacing: 54"
- ABS: 4S2M SPRING BRAKES ON (2) AXLES
- Brakes: 16 1/2" x 7"
- Drums: OUTBOARD
Wheels & Tires
- Tires: 255 / 70R / 22.5 (H)
- Wheels: 8.25 x 22.5 10-HOLE PILOT MOUNT POLISHED ALUMINUM OUTSIDE, STEEL INSIDE DISC
Electrical & Lighting
- Electrical: 12V SEALED GROTE SYSTEM WITH (3) TAIL LIGHT ALUMINU PACKAGE
- Strobe: 4" AMBER STROBE TO BE USED AS 3RD TAIL LIGHT
Additional Features
- MANUAL RIDE HEIGHT CONTROL
- PREP FOR FLIP AXLE AND RAISE AND LOWER
- BUCKET WELL AT REAR OF MAIN DECK WITH PLATE ON BOTTOM WITH (4) FLAT D-RINGS
- TOOLBOX AT FRONT OF MAIN DECK WITH (4) FLAT D-RINGS
- (2) PAIR EZ MOUNT FLAG HOLDERS
- LIQUID FILLED AIR GAUGE
- NO 31" FRONT FLIP RAMPS
- (4) ADDITIONAL CLEARANCE LIGHTS PER SIDE ON MAIN DECK
Paint & Finish
