Choice 355NG Trailer

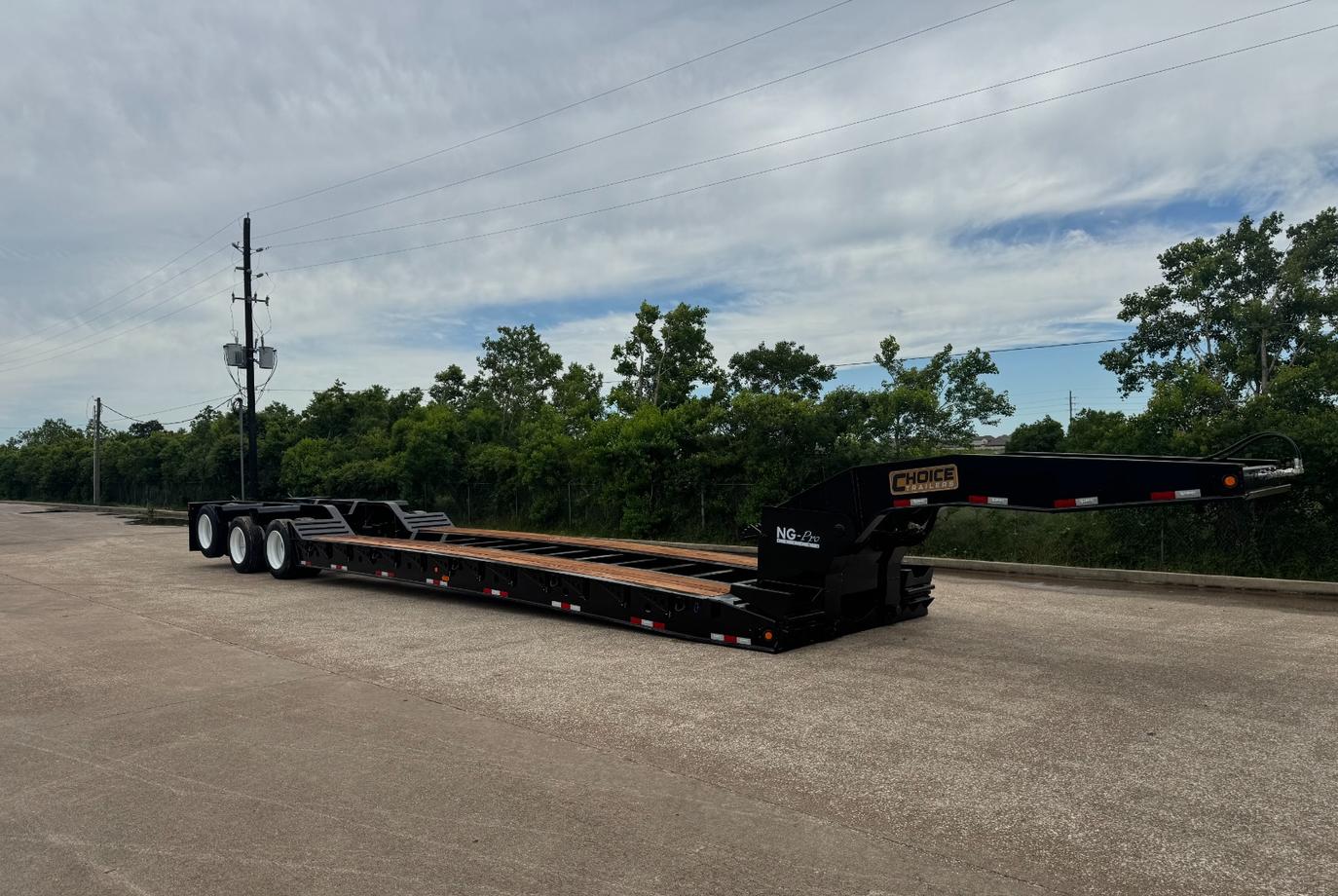

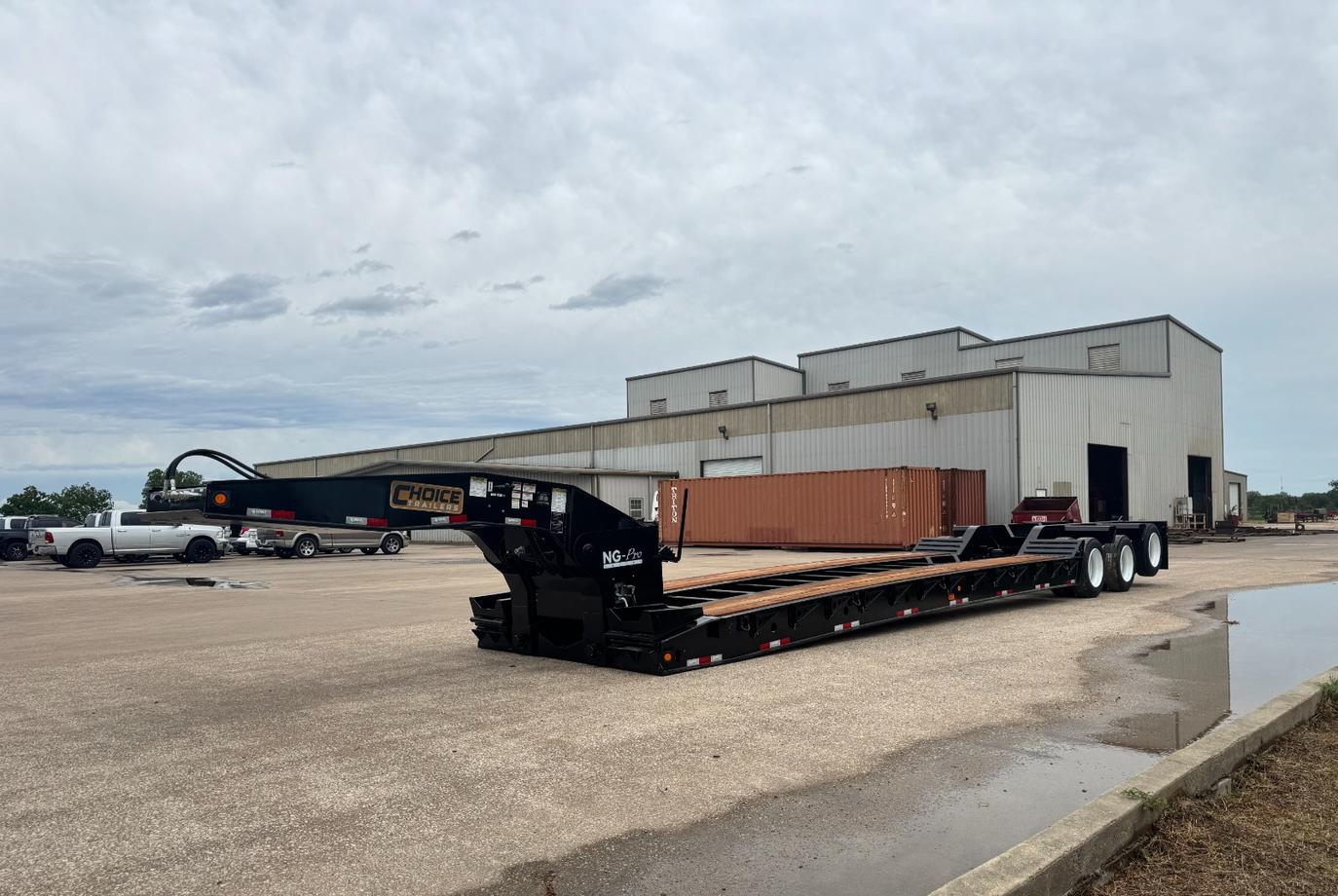

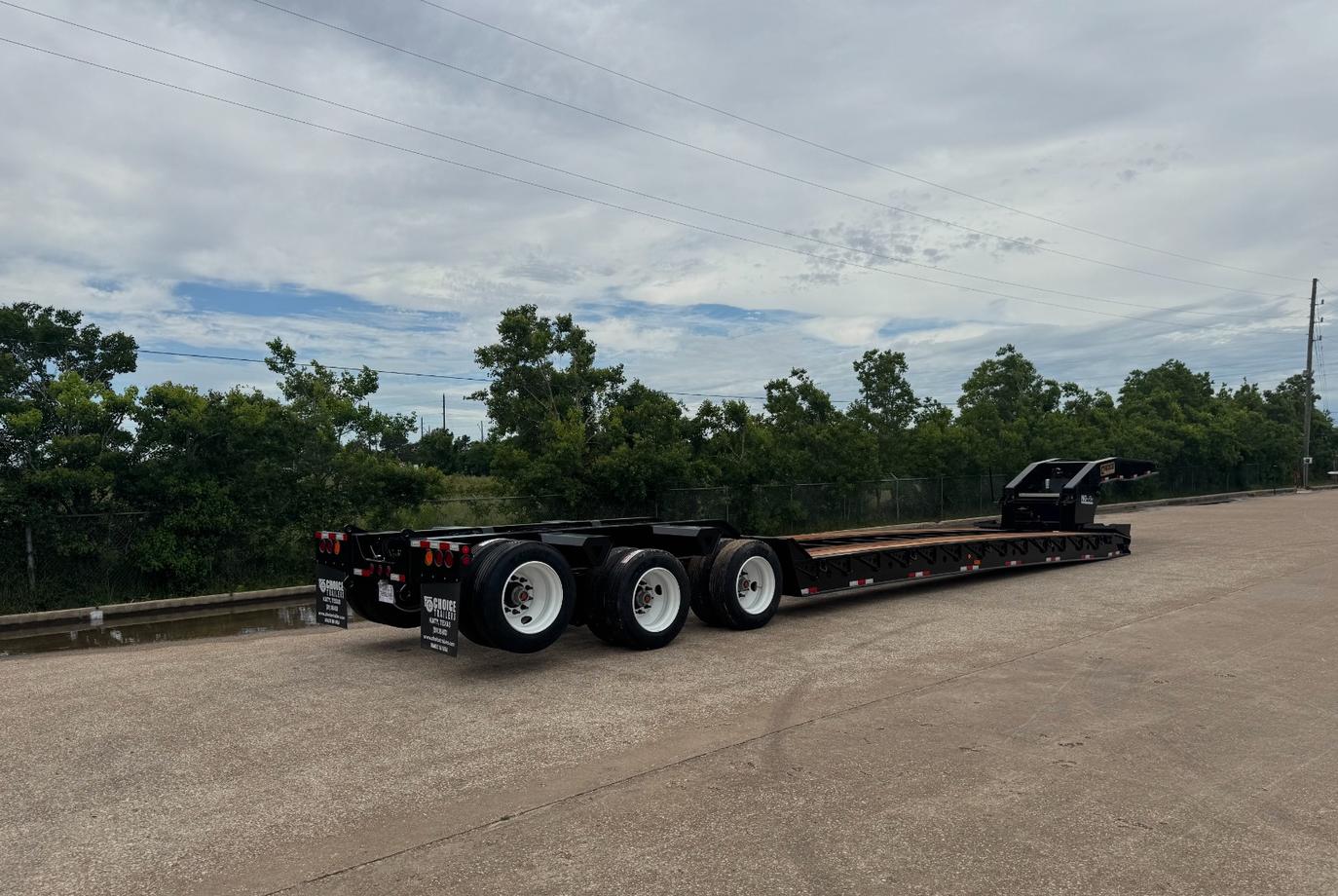

Choice 355NG – Lowboy, 53', 110,000 LBS

Choice 355NG lowboy trailer with overall length 53' and capacity 110,000 LBS.

Key Specs

• Overall Length: 53'
• Overall Width: 102"
• Capacity: 110,000 LBS
• Deck Length: 26'
• Loaded Deck Height: 22" W/ 6" GROUND CLEARANCE; ADJUSTABLE

Hydraulics & Control

• Gooseneck Type: LOW PROFILE SCRAPER GOOSENECK, ARCHED, HYDRAULIC DETACHABLE, NON-GROUND BEARING, AIR-ACTUATED LOCKING PIN
• Hyd. Lift Cylinders: TWO (2); CONTROL VALVE LOCATED ON DRIVER SIDE OF GOOSENECK
• Hydraulic Power: RUNS OFF WET KIT (5 TO 12 GPM HYD. REQUIREMENT)
• Adjustable Ride Heights: YES; 5 POSITIONS
• Hyd. Neck Support: YES

Tub Construction

• Main Deck: 4-BEAM CONSTRUCTION, FULLY CAMBERED FABRICATED BEAMS, 100KSI HIGHTENSILE T1 STEEL; EXPANDED METAL TOOL TRAY AT FRONT OF MAIN DECK
• Decking: RAISED APITONG FLOORING; CENTER DECK OPEN STANDARD
• Ramps: FRONT LOADING RAMPS, FOLDING STYLE WITH TRACTION CLEATS FOR LOADING TRACKED EQUIPMENT
• Bucketwell: RECESSED BUCKETWELL CUTOUT AT REAR OF MAIN DECK
• Boomwell: RECESSED BOOMWELL CUTOUT OVER AXLES AND BUMPER
• Outriggers: HEAVY-DUTY PULL-OUT OUTRIGGERS AT BEGINNING OF LOAD BED, REMOVEABLE 12" SWING-TYPE OUTRIGGERS EVENLY SPACED THE ENTIRE LENGTH OF MAIN DECK
• Lashing Rings: 1" FORGED BENT D-RINGS, EVENLY SPACED THE ENTIRE LENGTH OF MAIN DECK
• Flag Holder Slots: ONE PAIR LOCATED AT FRONT OF LOAD BED AND ONE PAIR LOCATED ON REAR BUMPER
• Rear Deck: BOLSTER STYLE, OPEN WHEELS STANDARD
• Flip Axle: REINFORCED SUB-FRAME; CONNECTIONS FOR FLIP AXLE INCLUDED

Axles & Suspension

• Suspension: AIR-RIDE; 25,000# CAPACITY; AUTOMATIC RIDE HEIGHT CONTROLS; MANUAL OVERRIDE; RAISE AND LOWER VALVE
• Axles: 25,000# NOMINAL AXLES
• Axle Spacing: 54.5"
• Track Width: 77.5"
• Lift Axle: EQUIPPED ON THRID AXLE STANDARD
• Hubs: OIL LUBRICATED HUBS

Wheels & Tires

• Wheels: STEEL DISC, HUB-PILOTED TYPE, WHITE
• Wheels Outer: 8.25 X 22.5 10-HOLE PILOT MOUNT ALUMINUM POLISHED WHEELS
• Tires: 255/70R22.5 LOAD RANGE H 16-PLY STEEL-BELTED RADIAL

Brakes & Electrical

• Brakes: 16 1/2"x7" DRUM BRAKES, 4S2M ABS-EQUIPPED, AUTOMATIC SLACK ADJUSTERS, 30-30 CHAMBERS ON ALL AXLES
• Electrical: D.O.T.-APPROVED, SEALED 12V ELECTRICAL AND LIGHTING SYSTEM, LED LIGHTS, 3 TAIL LIGHTS PER SIDE, MID TURN; 4" AMBER STROBE LIGHT
• Paint: SANDBLASTED, PAINTED WITH EPOXY PRIMER AND POLYURETHANE TOPCOAT, BLACK

Additional Features

• Change Order on VIN: 1C96N5333SK883124
