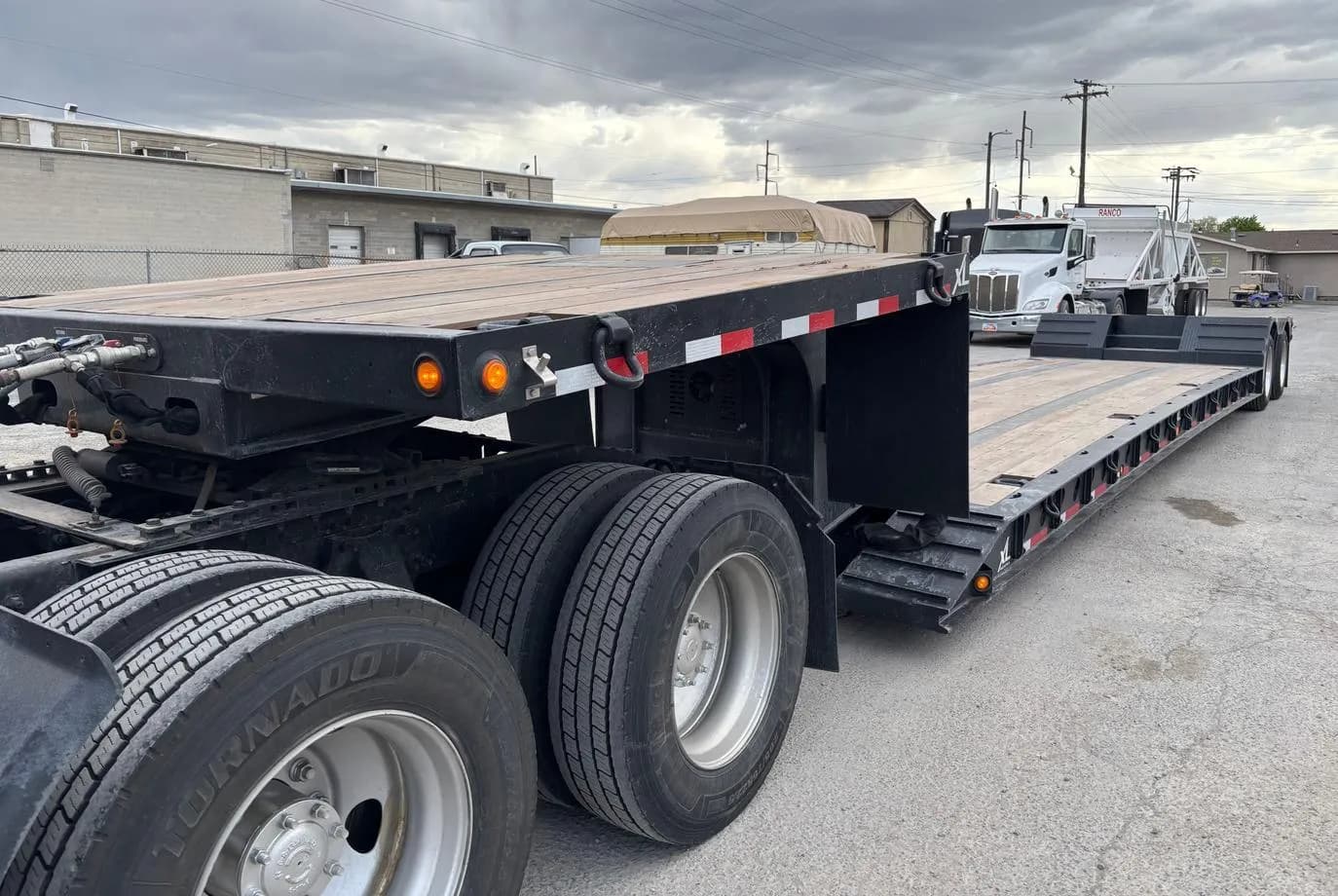

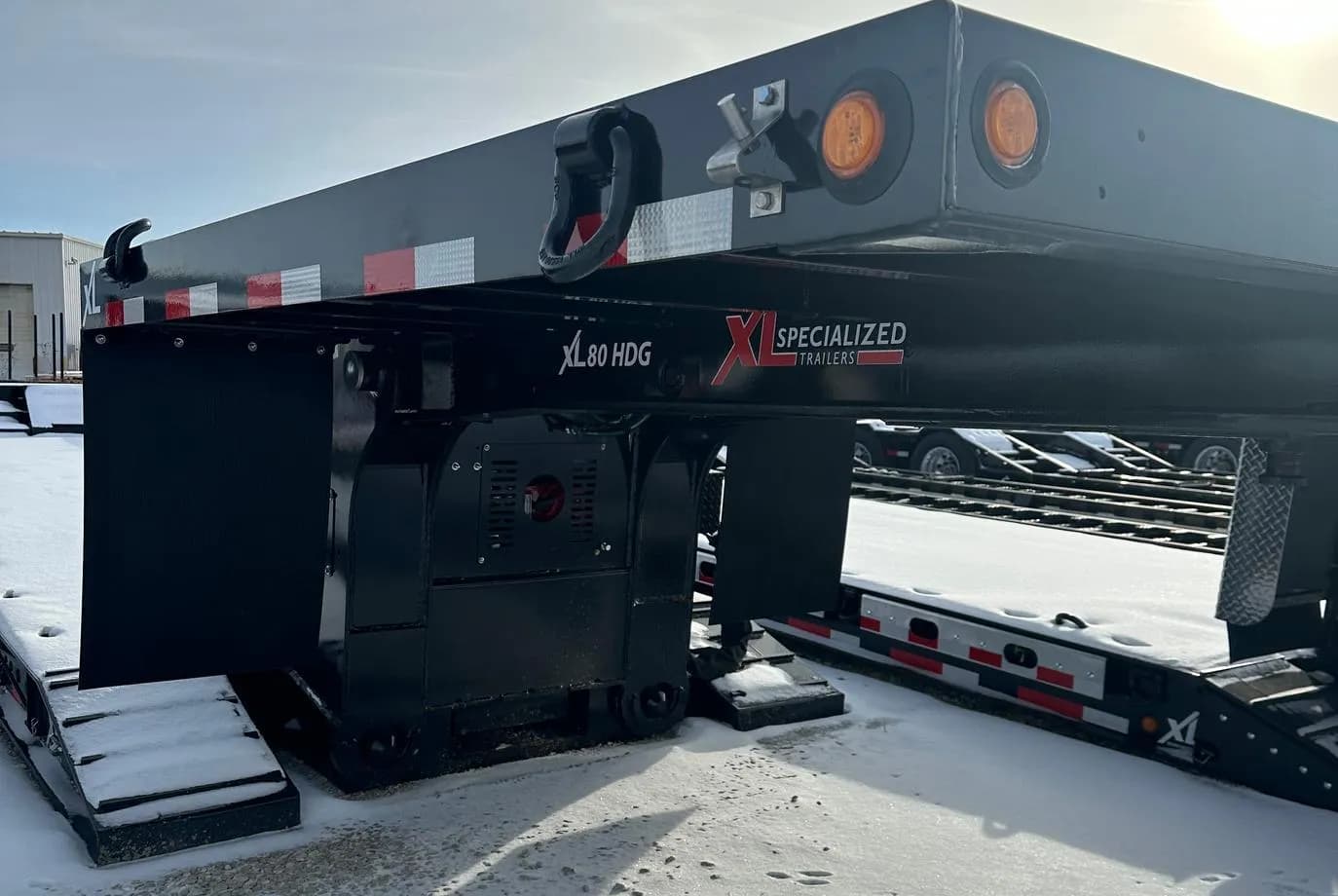

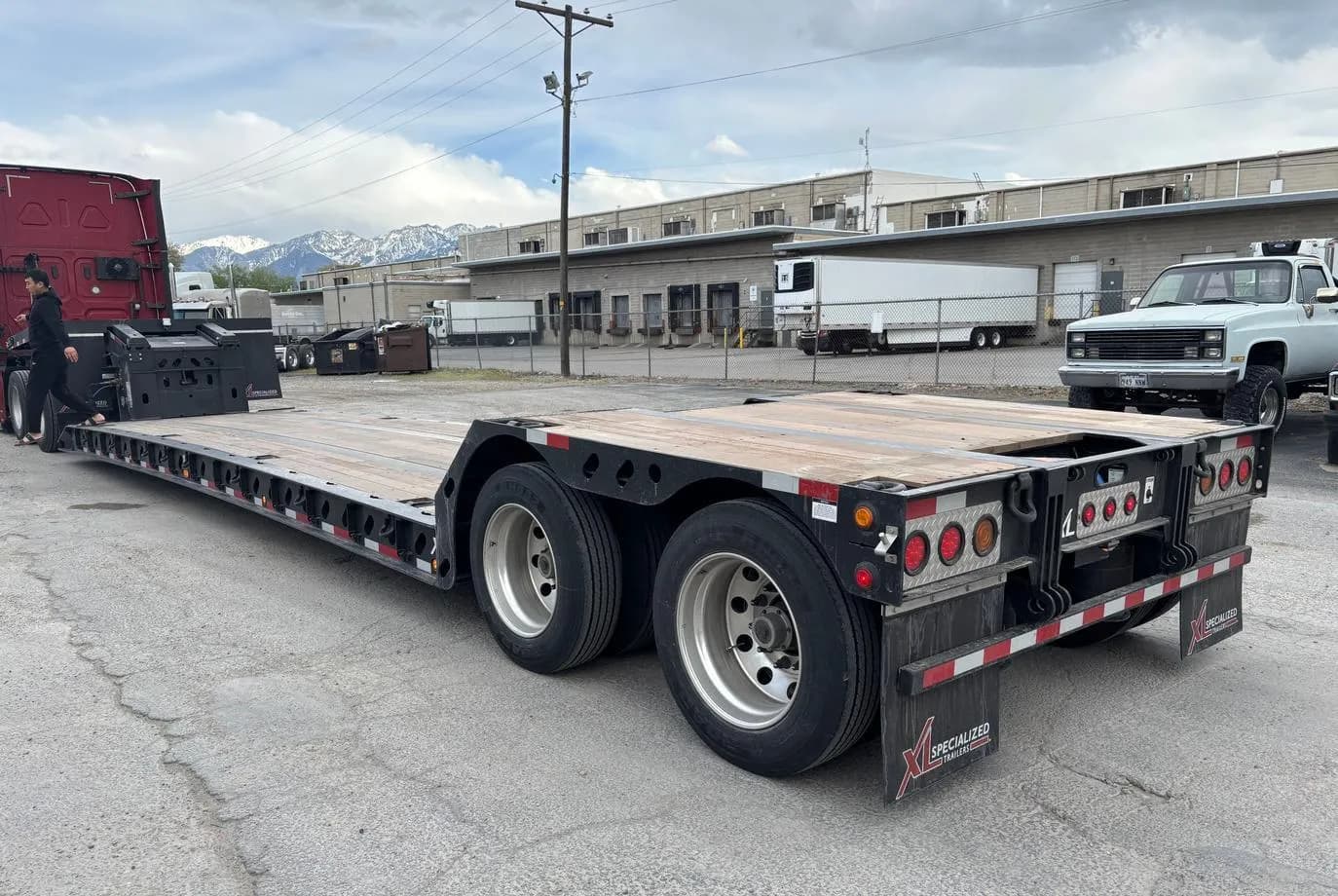

2026 XL Specialized XL 80 HDG Lowboy

XL Specialized XL 80 HDG – Lowboy, 47' 5" x 102"

XL Specialized XL 80 HDG is a Lowboy with overall length 47' 5" and overall width 102".

Key Specs

• Manufacturer: XL Specialized
• Model: XL 80 HDG
• Category: Lowboy
• Overall Length: 47' 5"
• Overall Width: 102"
• Capacity: 80,000 LB DISTRIBUTED; 80,000 LB IN 12'
• Weight +/-3%: 0,000 LB

Gooseneck

• Neck Style: CLASSIC NECK
• Decking: FULL WIDTH GOOSNECK WITH 1 1/8" APITONG DECKING FLUSH
• D-Rings: (2) BENT D-RINGS PER SIDE
• Length: 10' 5"
• Kingpin Setting: 16"
• Swing Clearance: 84"
• 5th Wheel Height: 49" W/ 7 VARIABLE RIDE HEIGHT POSITIONS
• Hydraulics: 13 HP HONDA, DUAL HYDRAULICS, W/ STEEL COVER (BASE OF GOOSENECK)
• Work Light: TRILLIANT WORK LIGHT
• Pan Style Lights: (1) PAN STYLE IN EACH CORNER

Main Deck

• Length: 28'
• Loaded Deck Height: 20" W/ 6" GROUND CLEARANCE
• Decking: 1 3/8" APITONG DECKING, RAISED - CENTER OPEN
• Crossmember: 8" & 4" JR. I-BEAM STUBBED 12" ALTERNATING CENTERS
• Beams: (4) 14" FAB I-BEAMS TOP FLANGE REINFORCEMENT, FRONT RAMP AND MAIN DECK
• D-Rings: (8) BENT D-RINGD PER SIDE
• (4) PAN STYLE D-RINGS PER SIDE
• Outriggers: SWING OUT OUTRIGGERS - 24" CENTERS, CENTER SWINGS TOGETHER
• PULLOUT FRONT H.D. OUTRIGGER
• Chain Drops: 24" CENTERS - OUTSIDE BEAMS TAPERS TO 4"

Rear Deck

• Length: 9'
• Loaded Deck Height: 40"
• Axles: (2) 25,000 LBS. NOMINAL (5/8" WALL)
• Suspension: HENDRICKSON / 25,000 CAPACITY / AIR RIDE
• Axle Spacing: 54"
• ABS: 4S2M SPRING BRAKES ON (2) AXLES
• Tires: 255 / 70R / 22.5 (H)
• Wheels: 8.25 x 22.5 10-HOLE PILOT MOUNT POLISHED ALUMINUM OUTSIDE, STEEL INSIDE DISC
• Brakes: 16 1/2" x 7"
• Drums: OUTBOARD
• Electrical: 12V SEALED GROTE SYSTEM WITH (3) TAIL LIGHT ALUMINU PACKAGE; 4" AMBER STROBE TO BE USED AS 3RD TAIL LIGHT
• Decking: FULL-WIDTH STYLE WITH 1 1/8" APITONG DECKING FLUSH
• (1) PAN STYLE D-RING IN EACH CORNER
• Stake Pockets: (2) STAKE POCKETS IN TAIL CHANNEL

Additional Features

• PAINT: BLACK
• MANUAL RIDE HEIGHT CONTROL
• PREP FOR FLIP AXLE AND RAISE AND LOWER
• BUCKET WELL AT REAR OF MAIN DECK WITH PLATE ON BOTTOM WITH (4) FLAT D-RINGS
• TOOLBOX AT FRONT OF MAIN DECK WITH (4) FLAT D-RINGS
• (2) PAIR EZ MOUNT FLAG HOLDERS
• LIQUID FILLED AIR GAUGE
• NO 31" FRONT FLIP RAMPS
• (4) ADDITIONAL CLEARANCE LIGHTS PER SIDE ON MAIN DECK
