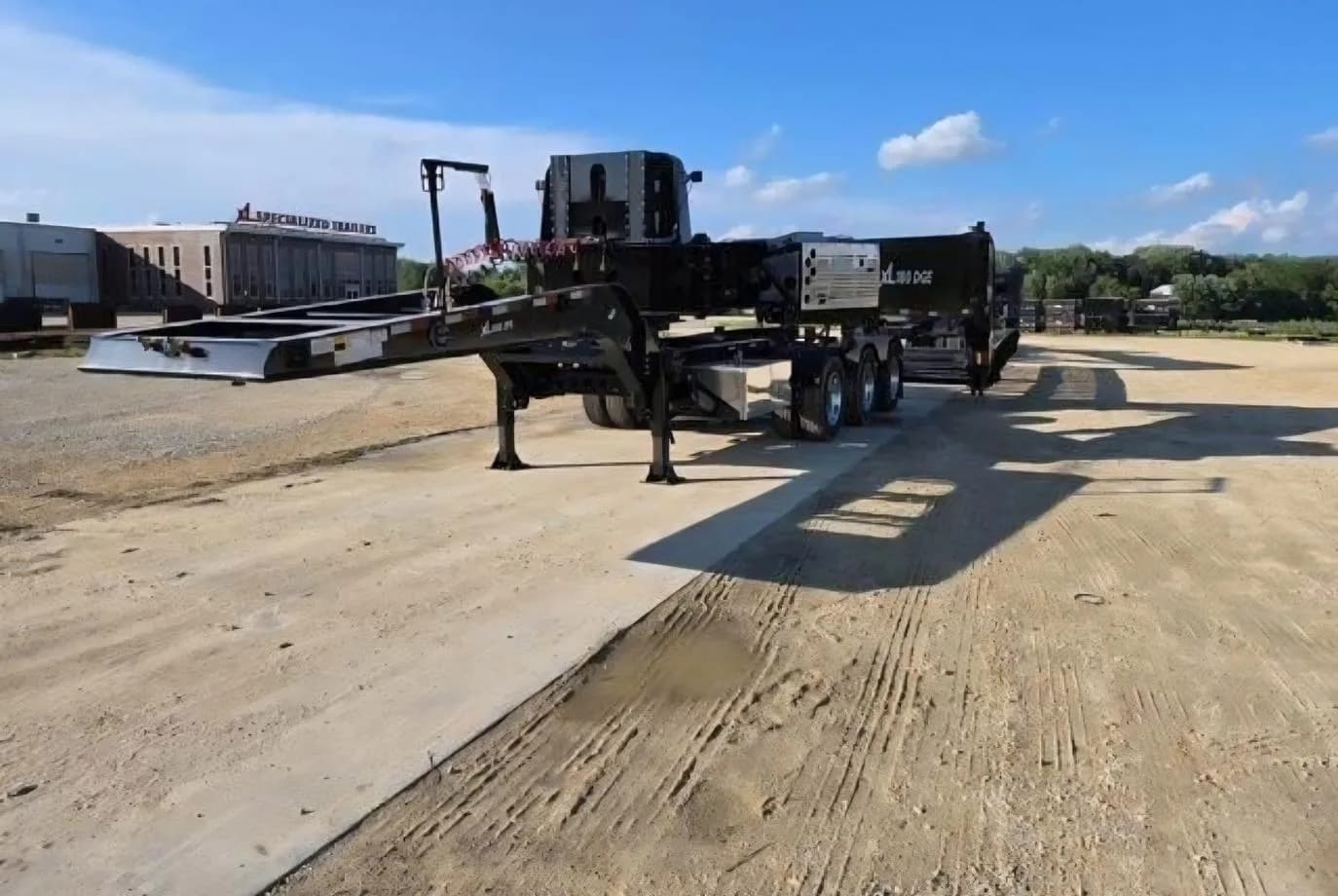

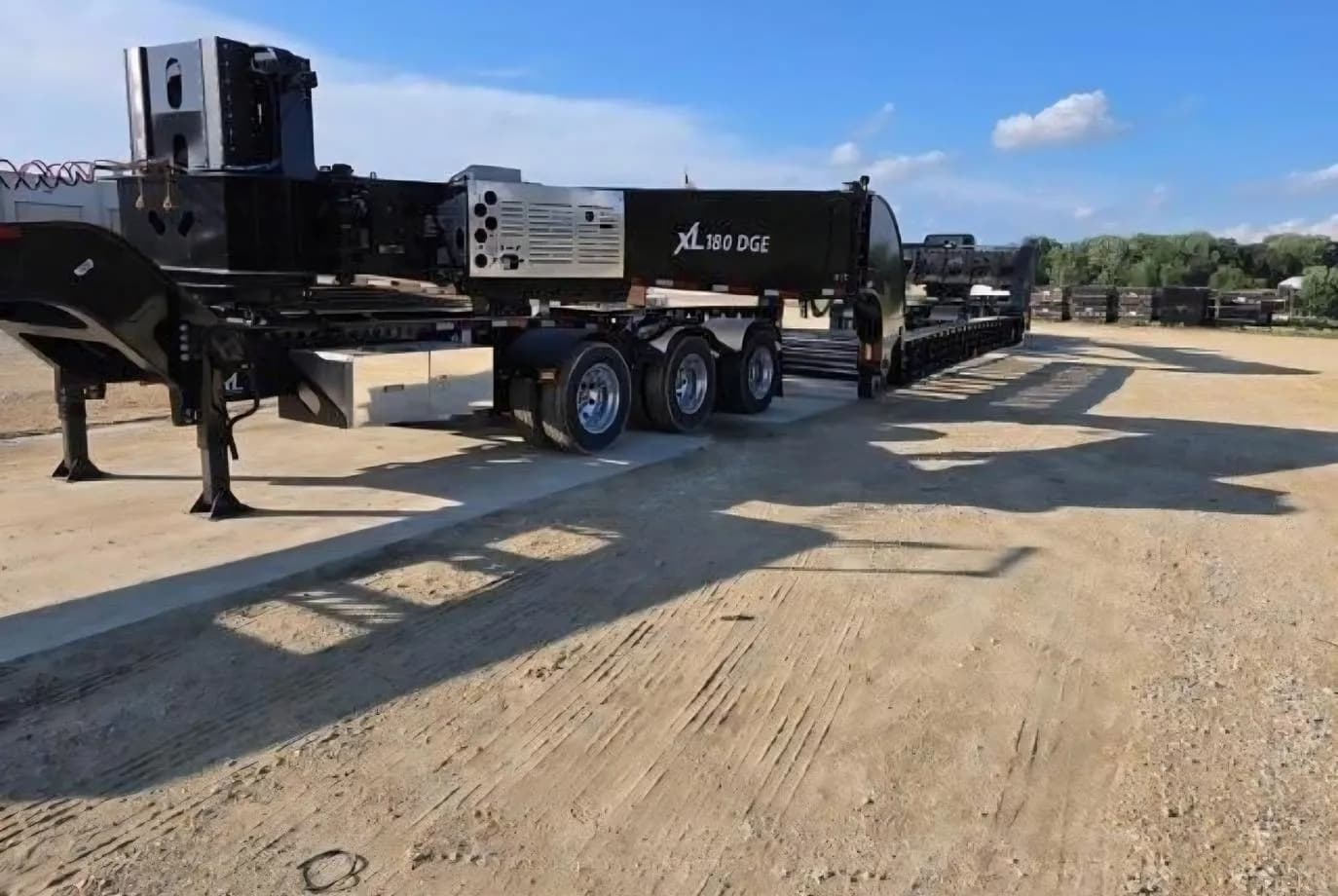

2027 XL Specialized 180 DGX

XL Specialized 180 DGX – Lowboy, Overall width: 144" TO 240"

XL Specialized 180 DGX lowboy with overall width 144" TO 240" and Weight +/- 3%: 44,480 LB

Key Specs

• Overall width: 144" TO 240"
• Weight +/- 3%: 44,480 LB
• Lead time: SEP-OCT 2026

Front Gooseneck

• Length: 24' 7 3/4" COLLAPSED LENGTH
• Kingpin setting: 16", 3.5" KING PINS
• Swing clearance: 238"
• 5th wheel height: 49"
• Decking: NONE
• Hat box: HYDRAULIC HAT BOX IN GOOSENECK WITH 36" OF LIFT
• Cylinders: DUAL POSITION FOR CYLINDERS
• Expandable cross braces: 2 EXPANDABLE CROSS BRACES WITH INDIVIDUAL ADJUSTMENT CYLINDERS
• Expandable gate: 1 EXPANDABLE GATE
• Engine/SCU: HONDA IGX SCU W/ REMOTE START
• Wireless remote: ( 8 ) FUNCTION WIRELESS REMOTE FOR NECK FUNCTIONS
• Manual controls: MANUAL HYDRAULIC CONTROLS FOR GOOSENECK OPERATION ON DRIVER SIDE
• D-rings: ( 3 ) PAIR OF FLAT D-RINGS ON TOP FLANGE OF THE GOOSENECK, ( 1 ) ON REAR OF BASE ( 2 ) ON TOP FOR BALANCE LIFTING

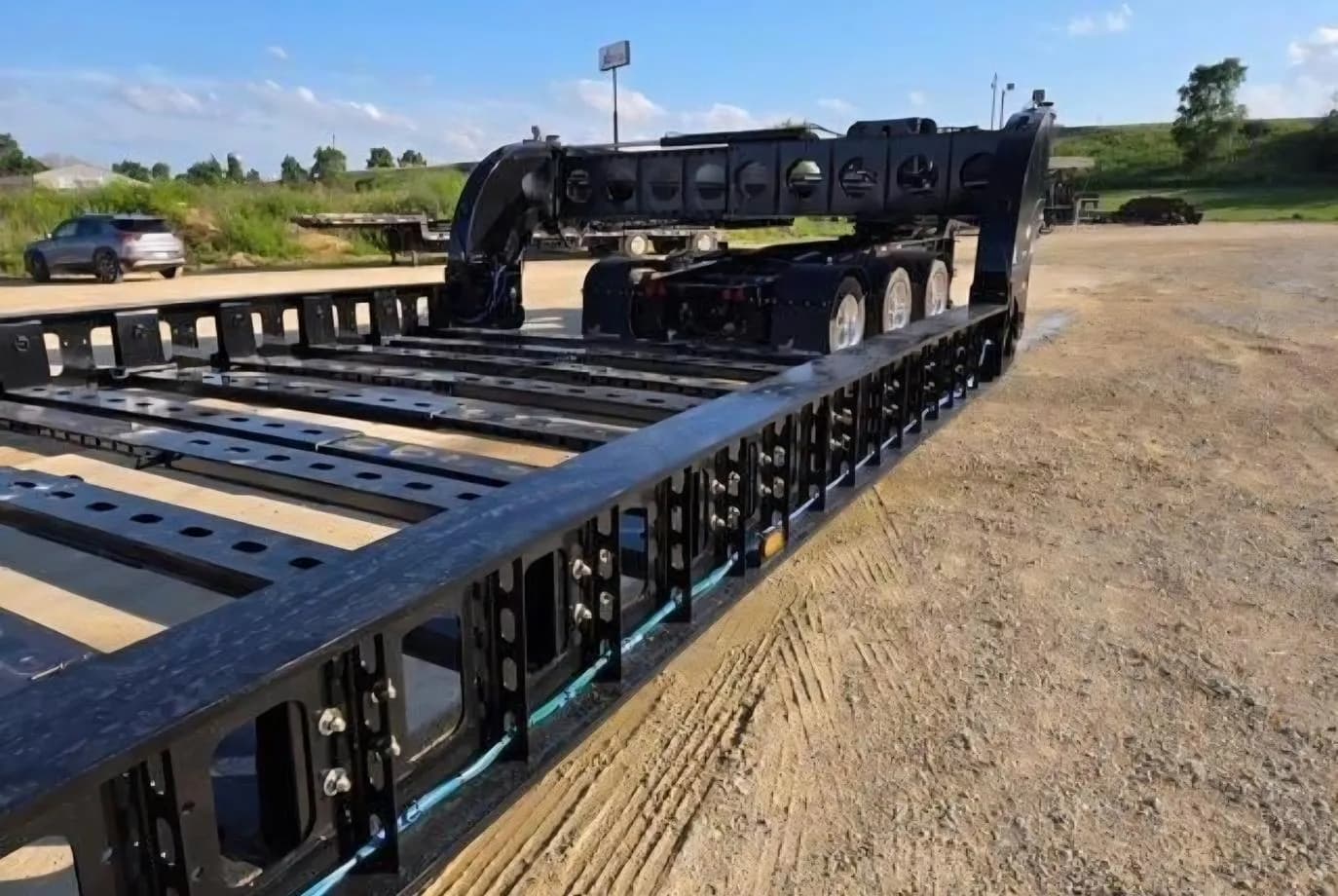

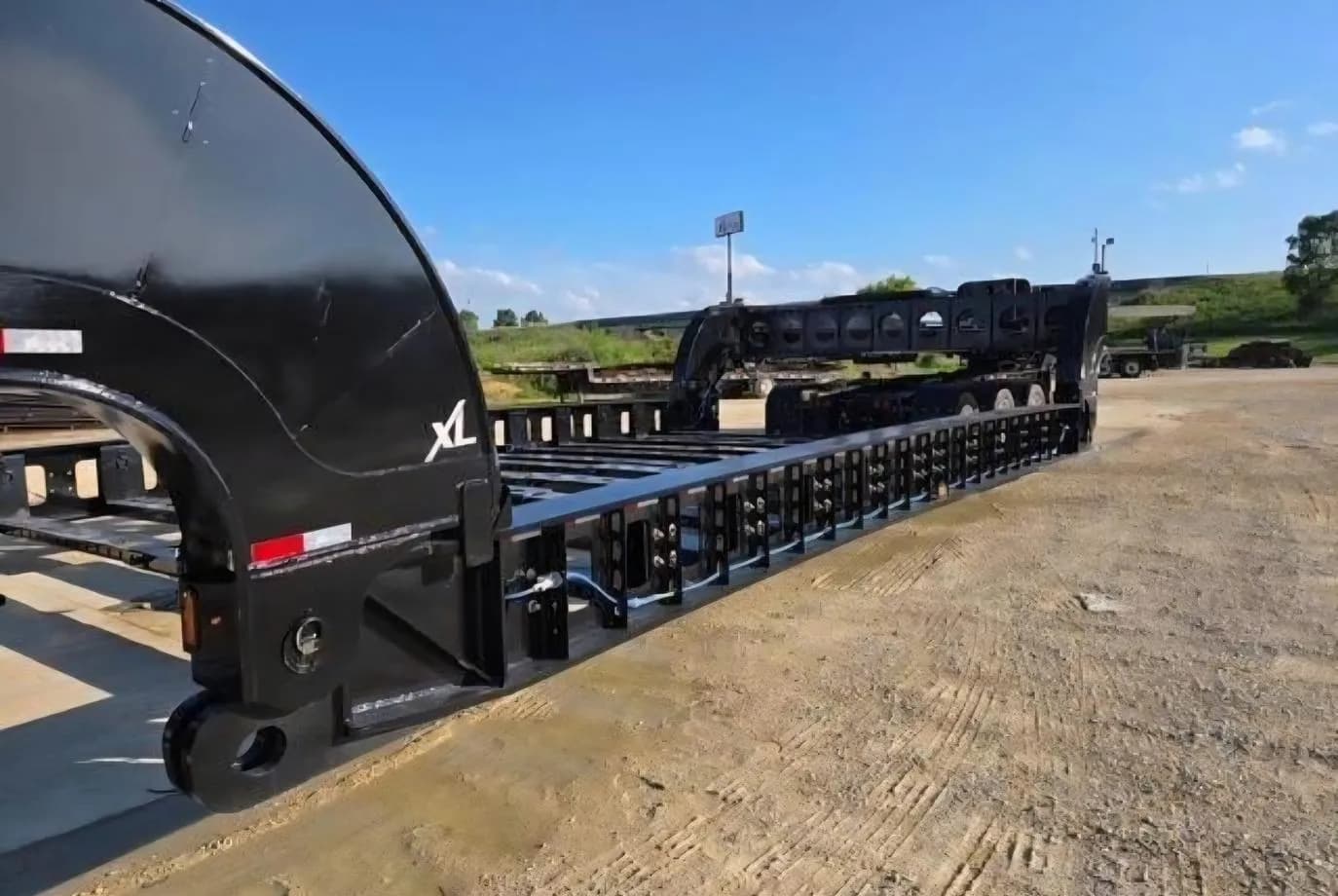

Main Deck

• Length: 30'
• Deck type: HYDRAULIC EXPANDABLE DECK FROM 12' WIDE TO 20' WIDE ( OUTSIDE TO OUTSIDE ) ( 10' 2" TO 18' 2" INSIDE TO INSIDE )
• Loaded deck height: 28" LOADED OUTER BEAMS & 8" LOADED TOP OF CROSSMEMBERS IN LOWEST SETTING
• Decking: NONE
• Crossmembers: ( 6 ) 4" X 12" FAB EXPANDABLE CROSSMEMBERS - BOLT ON REVERSABLE WITH HOLES 16" O/OC
• Crossmember adjustment: TO HAVE 3" INCREMENT ADJUSTMENT
• Crossmember rating: CROSSMEMBERS RATED FOR 30KLBS EACH WITH LOAD SUPPORTED TO OUTSIDE
• Beams: ( 2 ) 24" PERIMETER FRAME BEAMS
• D-rings: ( 1 ) ON EACH CORNER ON THE INSIDE SHIM STORAGE
• Expandable deck insert section length: 20'

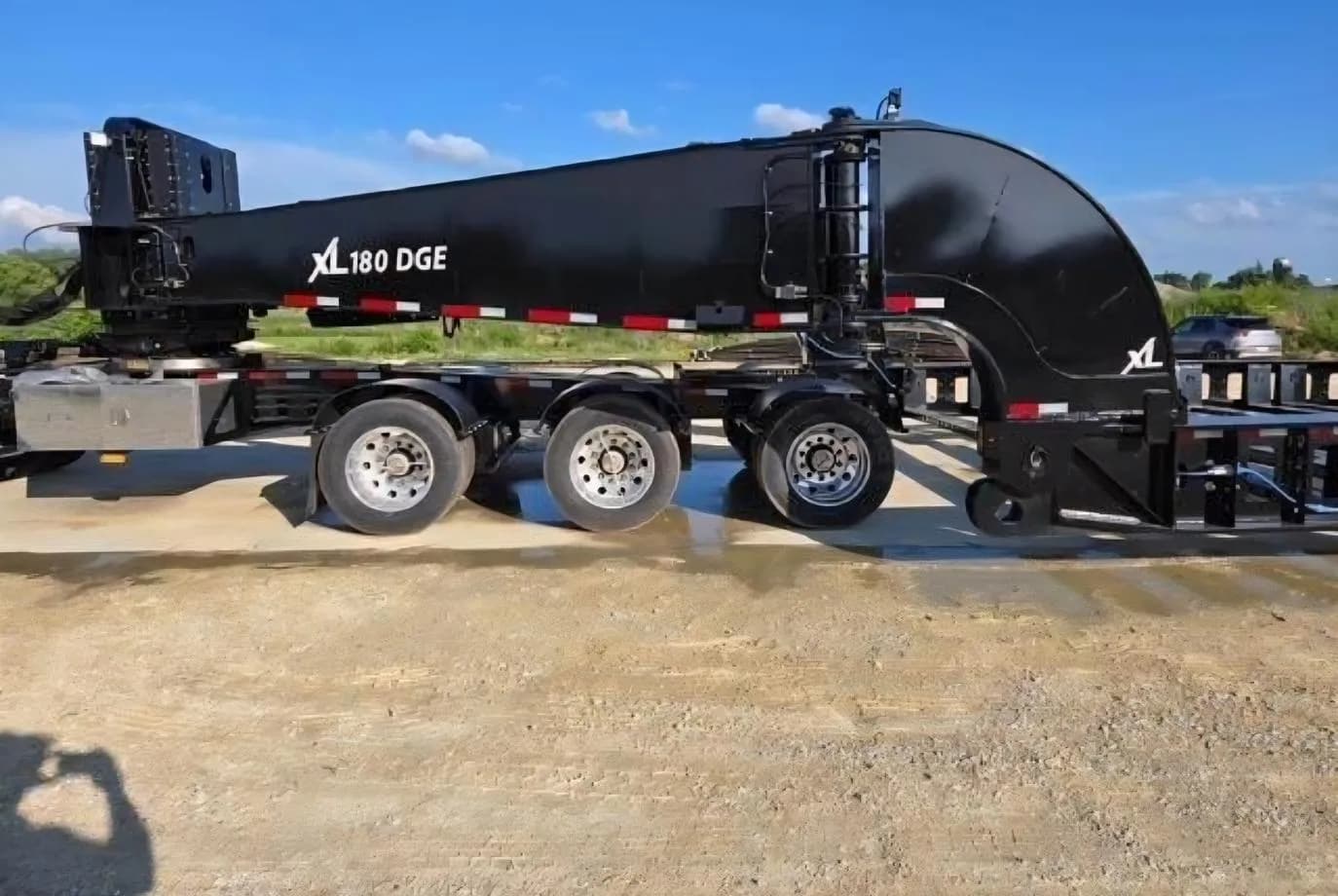

Rear Gooseneck

• Length: 24' 7 3/4" COLLAPSED LENGTH
• Kingpin setting: ROCKER BOLSTER CONNECTION FOR DOLLYS
• Swing clearance: 238"
• 5th wheel height: 49"
• Decking: NONE

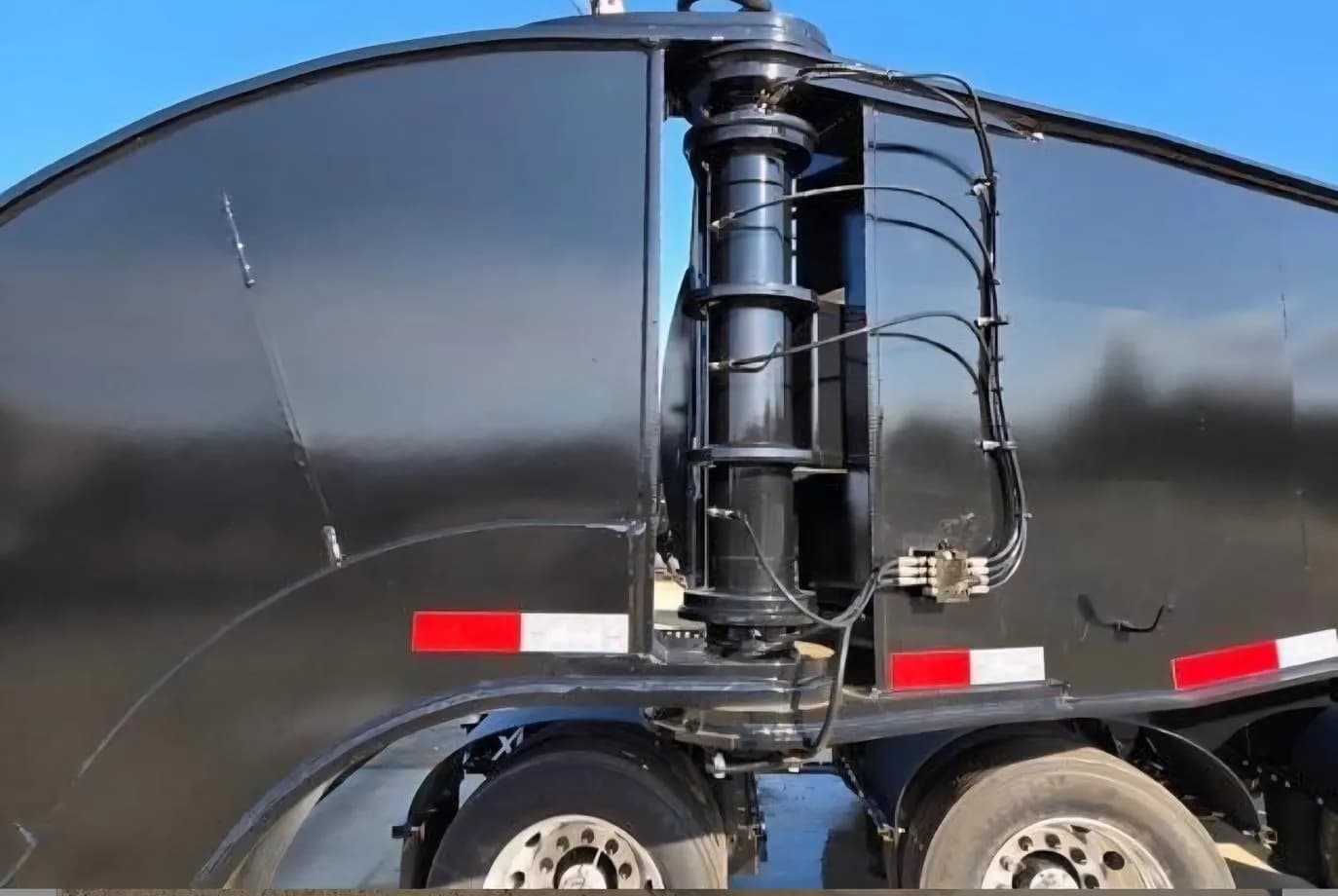

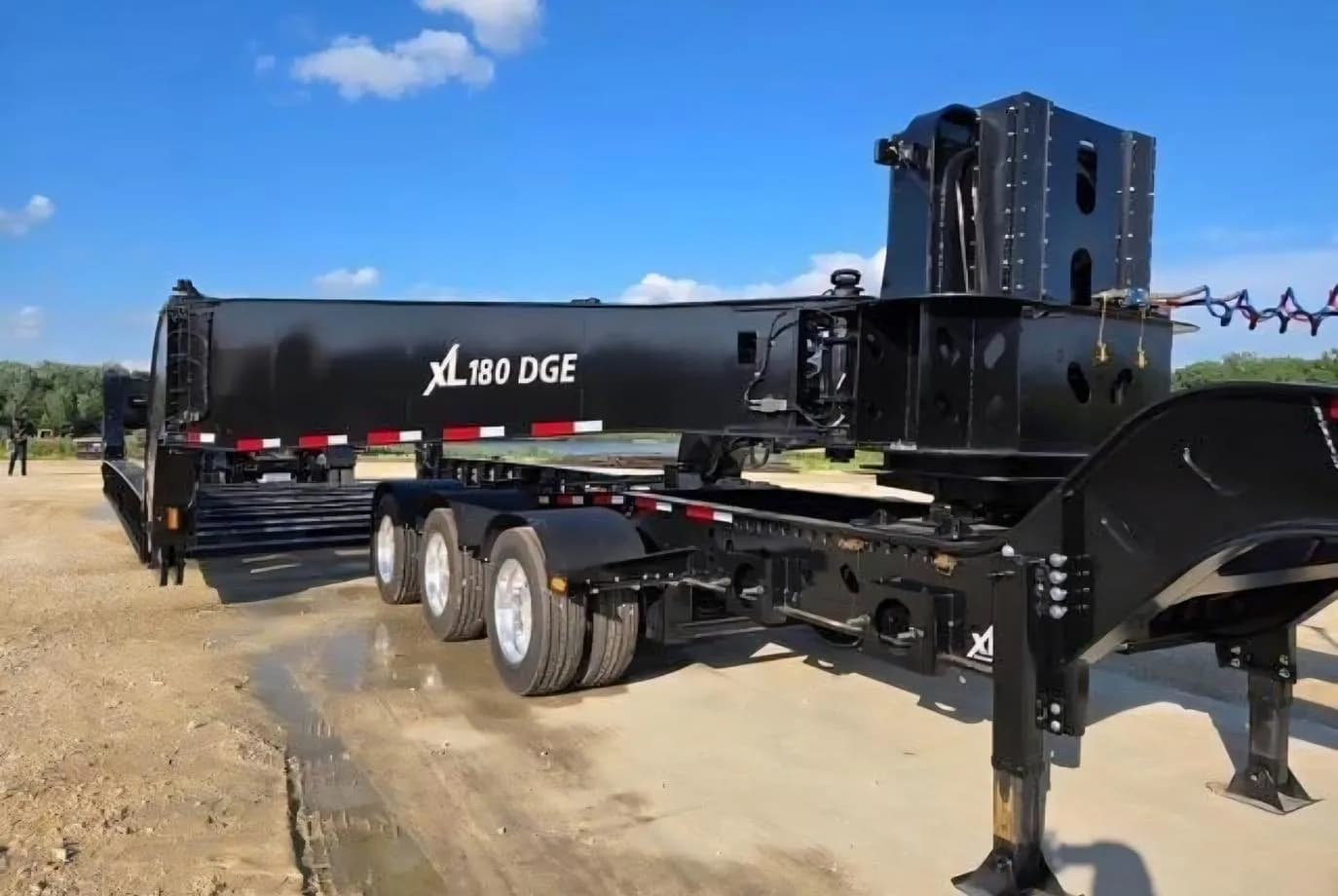

• Hat box: POWER TOWER HAT BOX WITH 36" OF TRAVEL
• Cylinders: DUAL POSITION FOR CYLINDERS
• Expandable cross braces: 2 EXPANDABLE CROSS BRACES WITH INDIVIDUAL ADJUSTMENT CYLINDERS
• Expandable gate: 1 EXPANDABLE GATE
• Wireless remote: ( 11 ) FUNCTION WIRELESS REMOTE NECK FUNCTIONS & STEERING ON DOLLY
• Manual controls: MANUAL HYDRAULIC CONTROLS FOR REAR GOOSENECK IN GOOSENECK CONTROL BOX
• D-rings: ( 3 ) PAIR OF FLAT D-RINGS ON TOP FLANGE OF THE GOOSENECK, ( 1 ) ON REAR OF BASE ( 2 ) ON TOP FOR BALANCE LIFTING

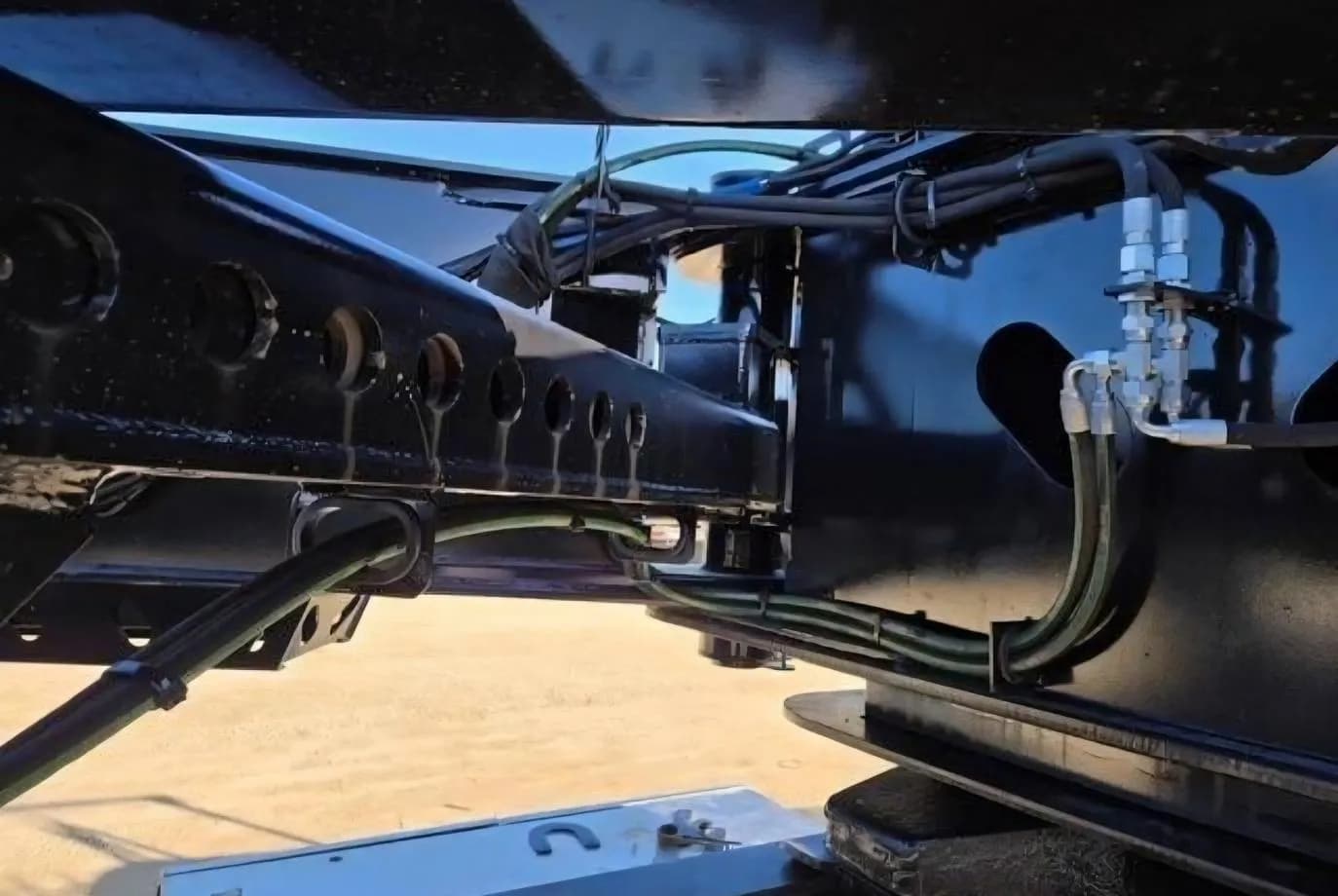

Hydraulics & Control

• Cylinders: DUAL POSITION FOR CYLINDERS
• Hat box lift: 36" OF LIFT (gooseneck) / 36" OF TRAVEL (power tower)
• Expandable cross braces: 2 EXPANDABLE CROSS BRACES WITH INDIVIDUAL ADJUSTMENT CYLINDERS
• Wireless remotes: ( 8 ) FUNCTION WIRELESS REMOTE FOR NECK FUNCTIONS; ( 11 ) FUNCTION WIRELESS REMOTE NECK FUNCTIONS & STEERING ON DOLLY
• Manual controls: MANUAL HYDRAULIC CONTROLS FOR GOOSENECK OPERATION ON DRIVER SIDE; MANUAL HYDRAULIC CONTROLS FOR REAR GOOSENECK IN GOOSENECK CONTROL BOX

Electrical

• System: 12V SEALED GROTE SYSTEM
• Work lights: 1 SET OF GROTE TRILLIANT WORK LIGHT ON TOP OF HEADER BEAM, 1 SET ON POWER TOWER

Additional Features

• Paint: BLACK
• Flag holders: ( 2 ) PAIR OF FLAG HOLDERS (ONE PAIR EACH END OF DECK)
• Lights: CLEARANCE LIGHT, MIDTURN, AND STROBE LIGHT ON THE BASE OF THE NECKS 3' FROM BOTTOM
• Ladders: FLIP DOWN LADDER ON ROADSIDE OF EACH GOOSENECK
• Gooseneck height requirement: GOOSENECK HEIGHT MUST BE UNDER 9' 10"
• Expandable gates: EXPANDABLES GATES HAVE INDICATORS ON THE OPENINGS

Tare Weights

• JEEP: 11,450
• DGE: 44,480
• DECK: 8,100

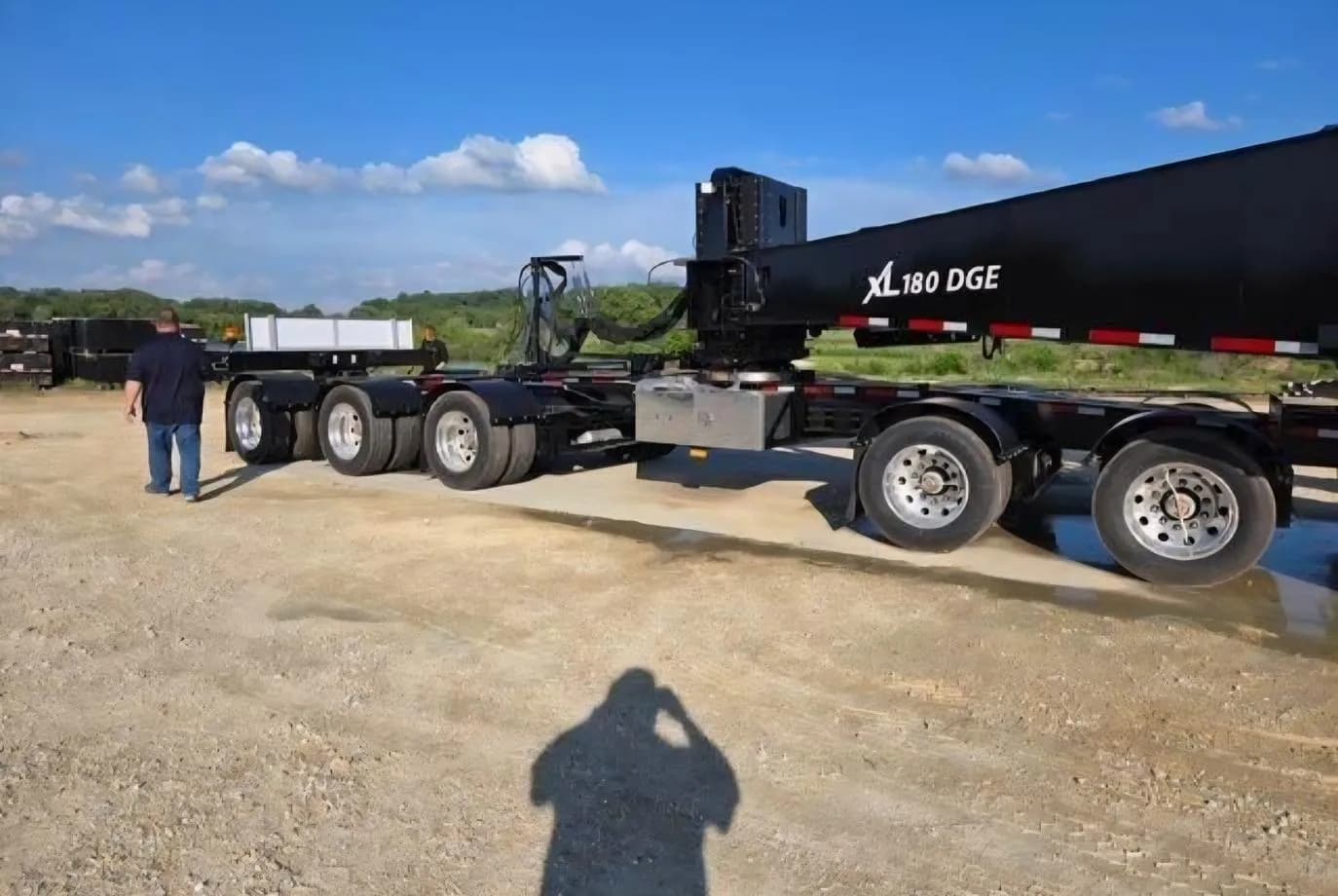

• DOLLY: 22,350
