2026 XL Specialized 110HDG

XL Specialized 110HDG – Lowboy, 53' overall, 110,000 LB DISTRIBUTED

XL Specialized 110HDG Lowboy with 53' overall length and 110,000 LB DISTRIBUTED capacity.

Key Specs

• Overall Length: 53'
• Overall Width: 102"
• Capacity: 110,000 LB DISTRIBUTED
• Main deck length: 25'
• Rear deck length: 15' WITH 32° REAR TRANSITION
• Loaded deck height: 22" W/ 6" GROUND CLEARANCE
• 5th wheel height: 51" W/ 5 VARIABLE RIDE HEIGHT POSITIONS

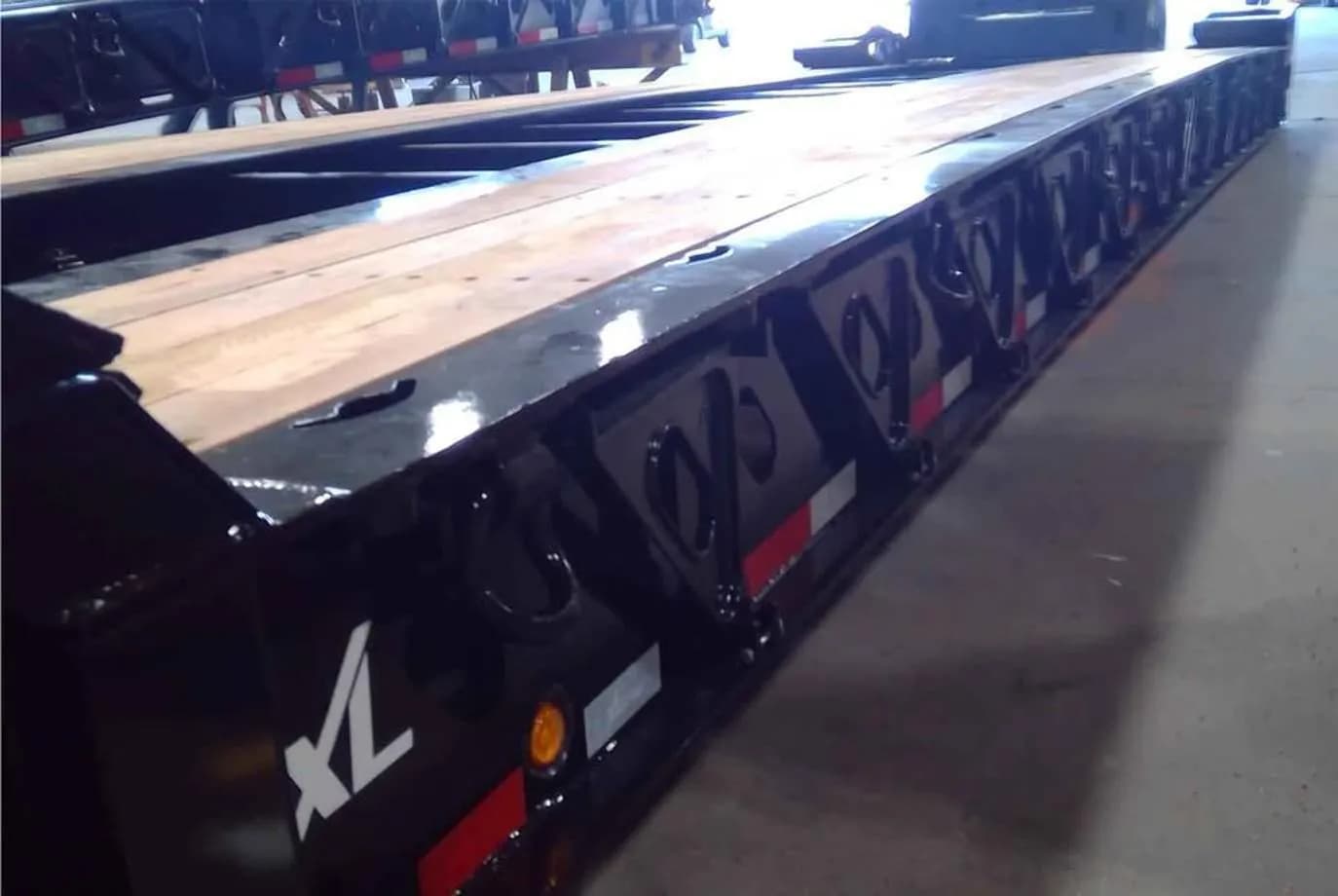

Tub Construction

• Decking: 1 3/8" APITONG DECKING, RAISED - CENTER OPEN
• Crossmembers: 10" & 4" STUBBED JR I-BEAM 12" ALTERNATING CENTERS
• Beams: ( 4 ) 16" FAB I-BEAM
• Top flange reinforcement: FRONT RAMP AND MAIN DECK
• D-rings (per side): ( 7 ) BENT D-RINGS PER SIDE

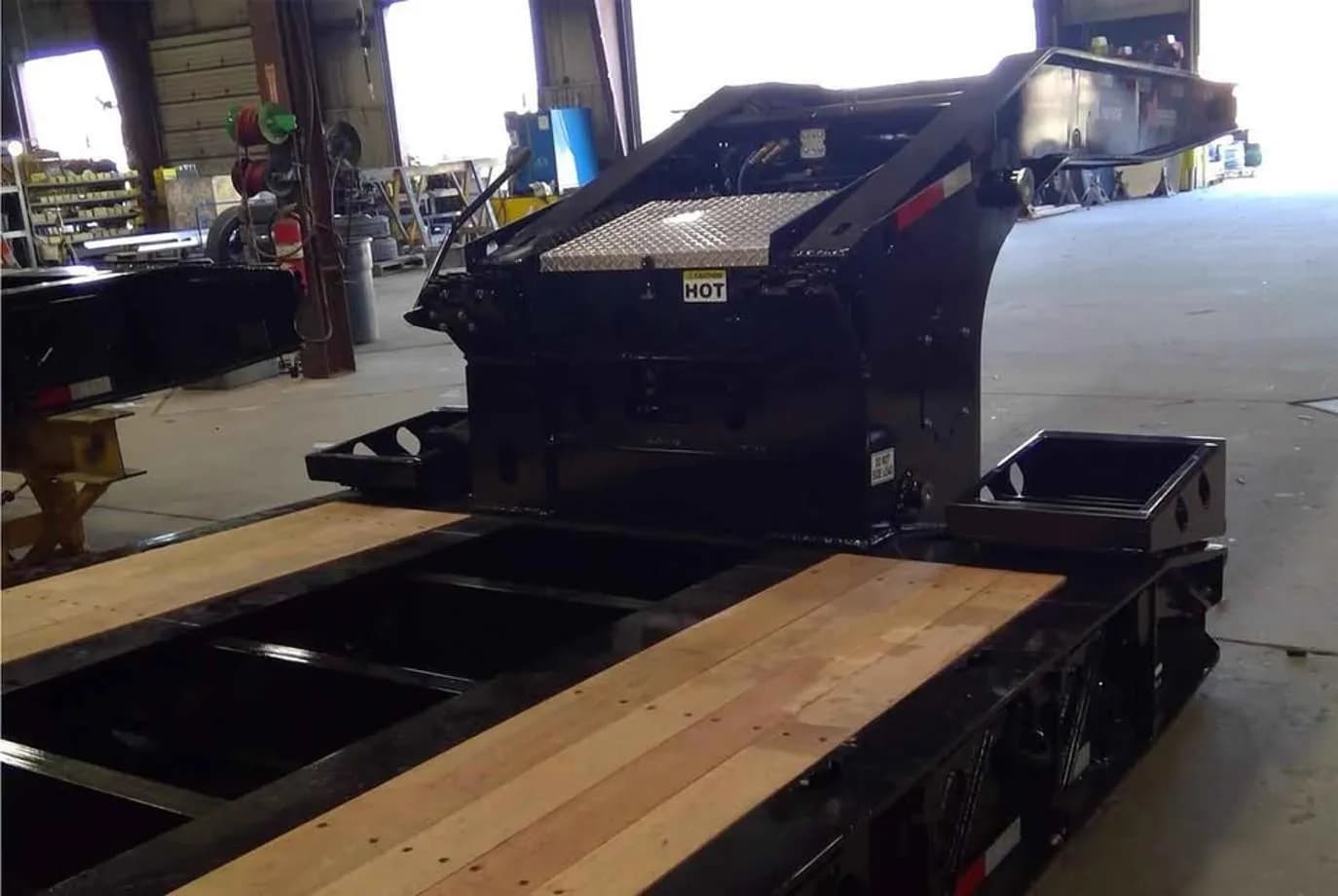

Hydraulics & Control

• Hydraulics: 13 HP HONDA SCU, DUAL HYDRAULICS, W/ ALUMINUM COVER
• Couplers: 1" WING TYPE COUPLERS
• Work light: TRILLIANT WORK LIGHT
• Manual ride height control: MANUAL RIDE HEIGHT CONTROL

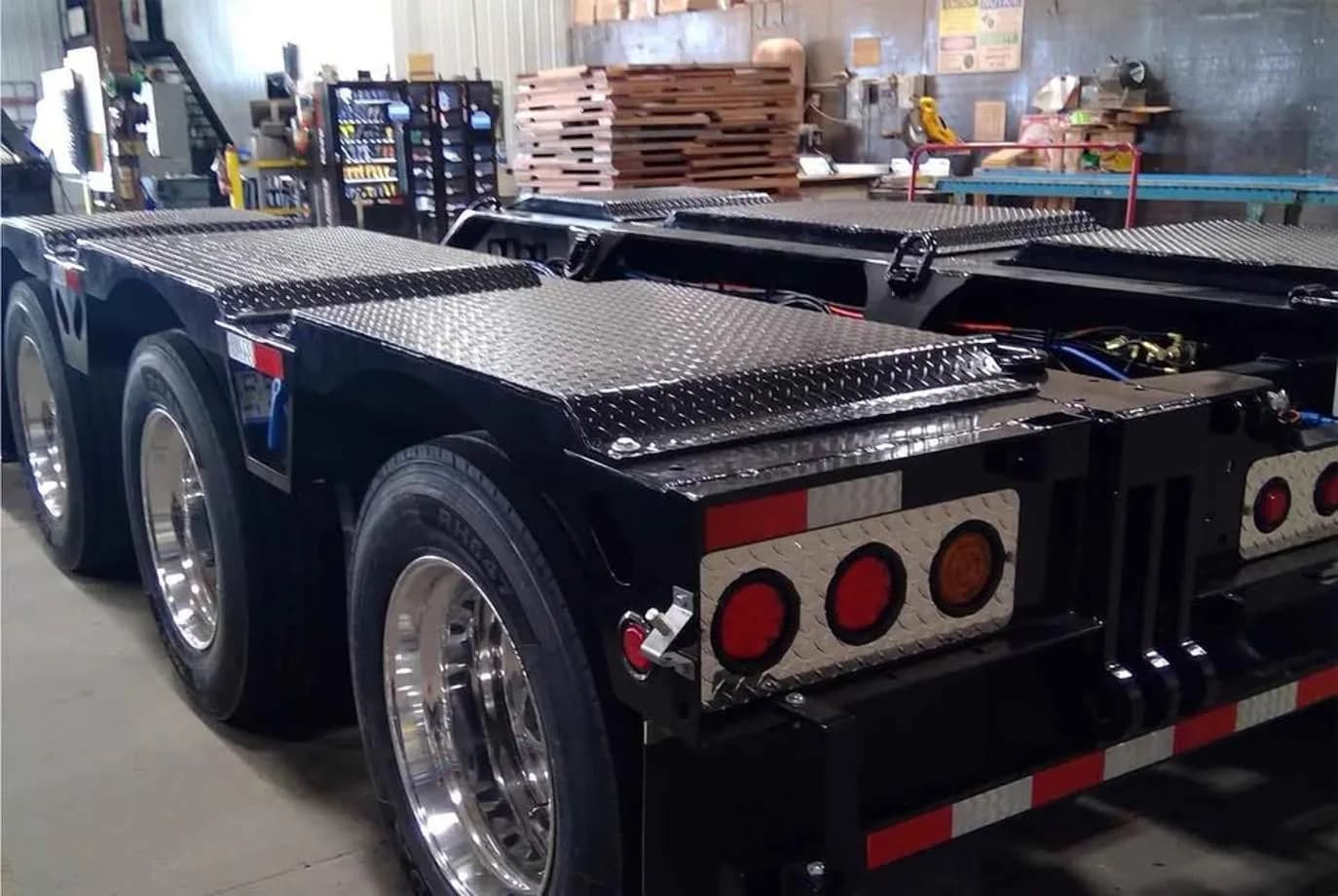

Axles & Suspension

• Axles: ( 3 ) 25,000 LBS. NOMINAL (5/8" WALL)
• Suspension: HENDRICKSON / 25,000 CAPACITY / AIR RIDE
• Axle spacing: 60"
