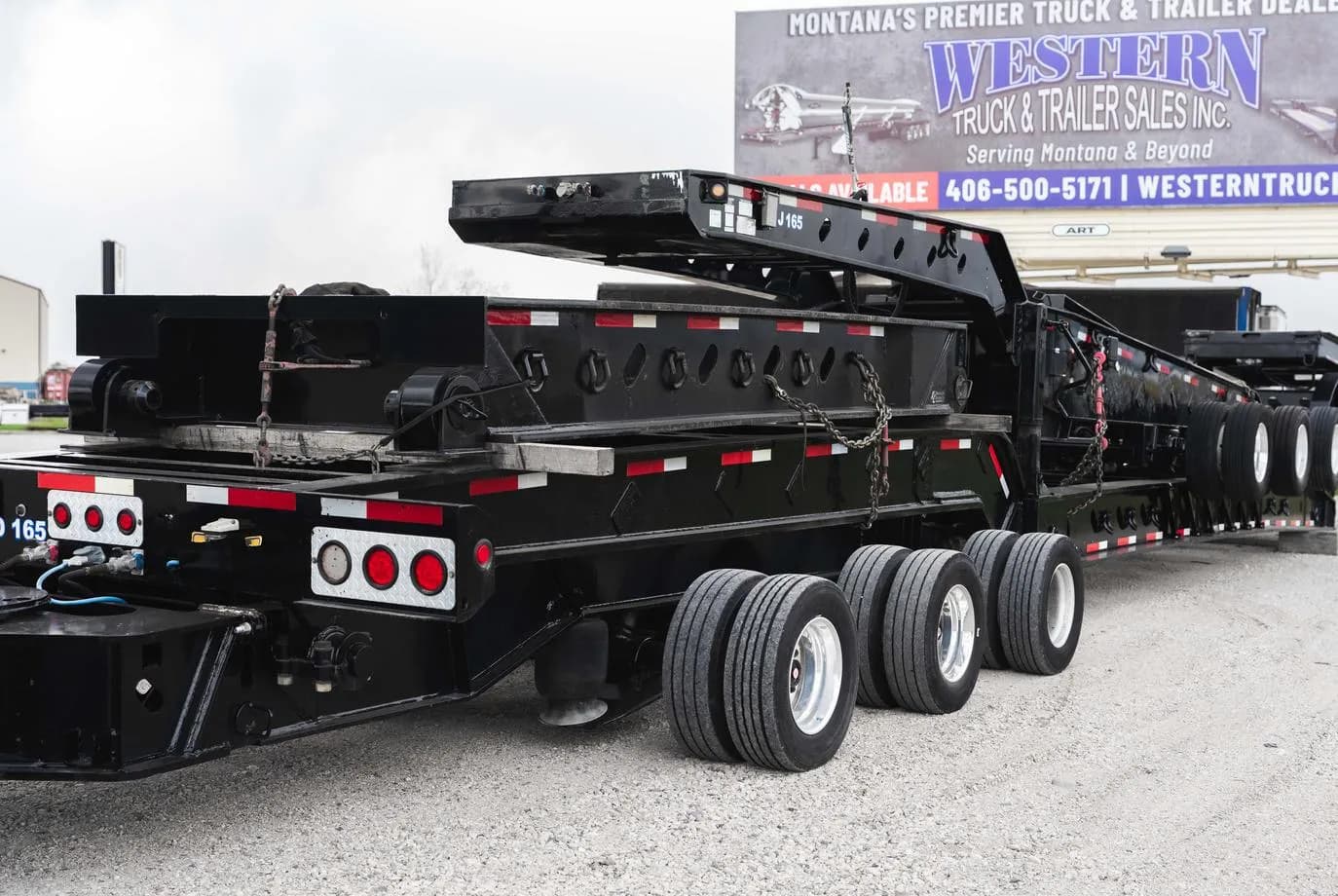

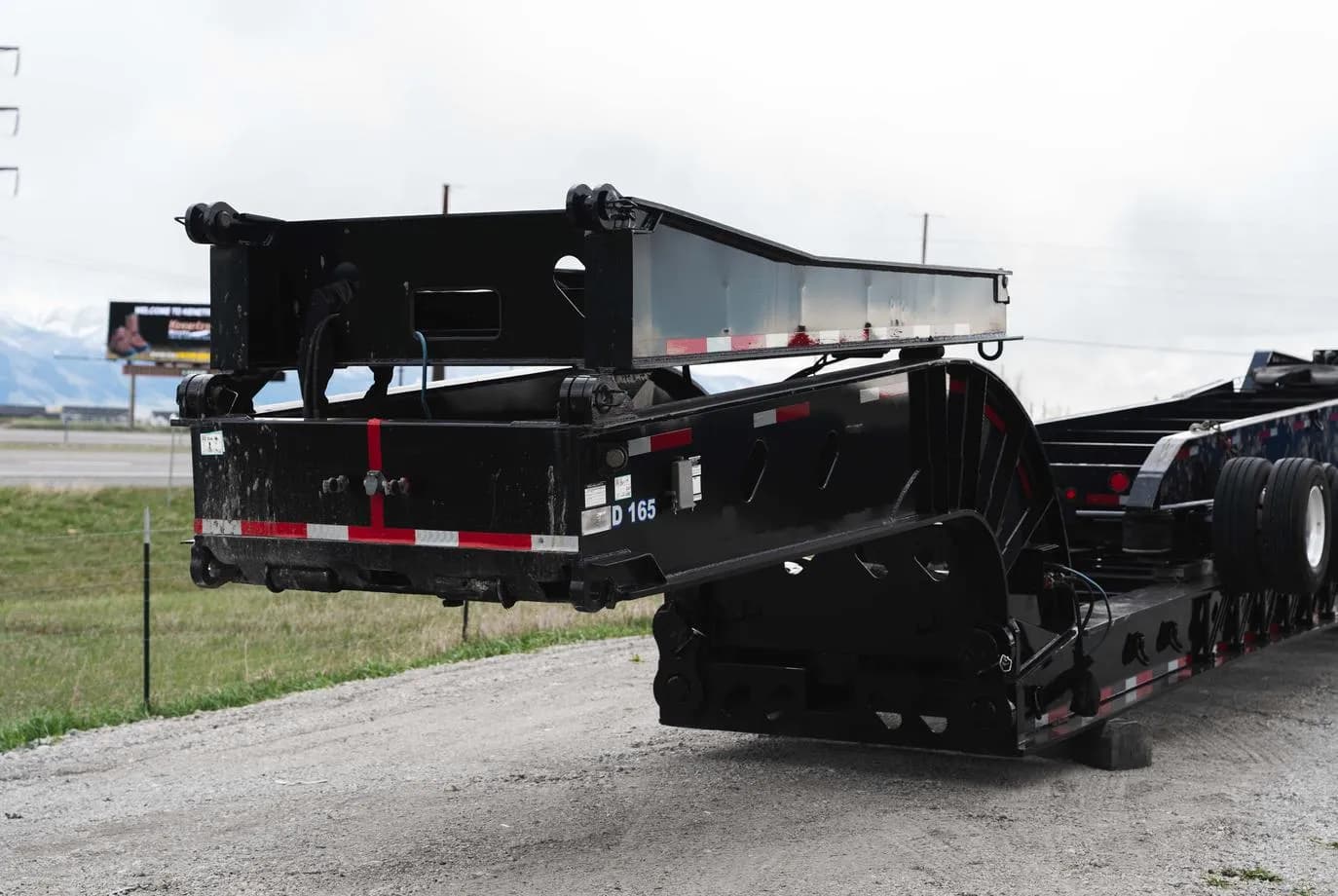

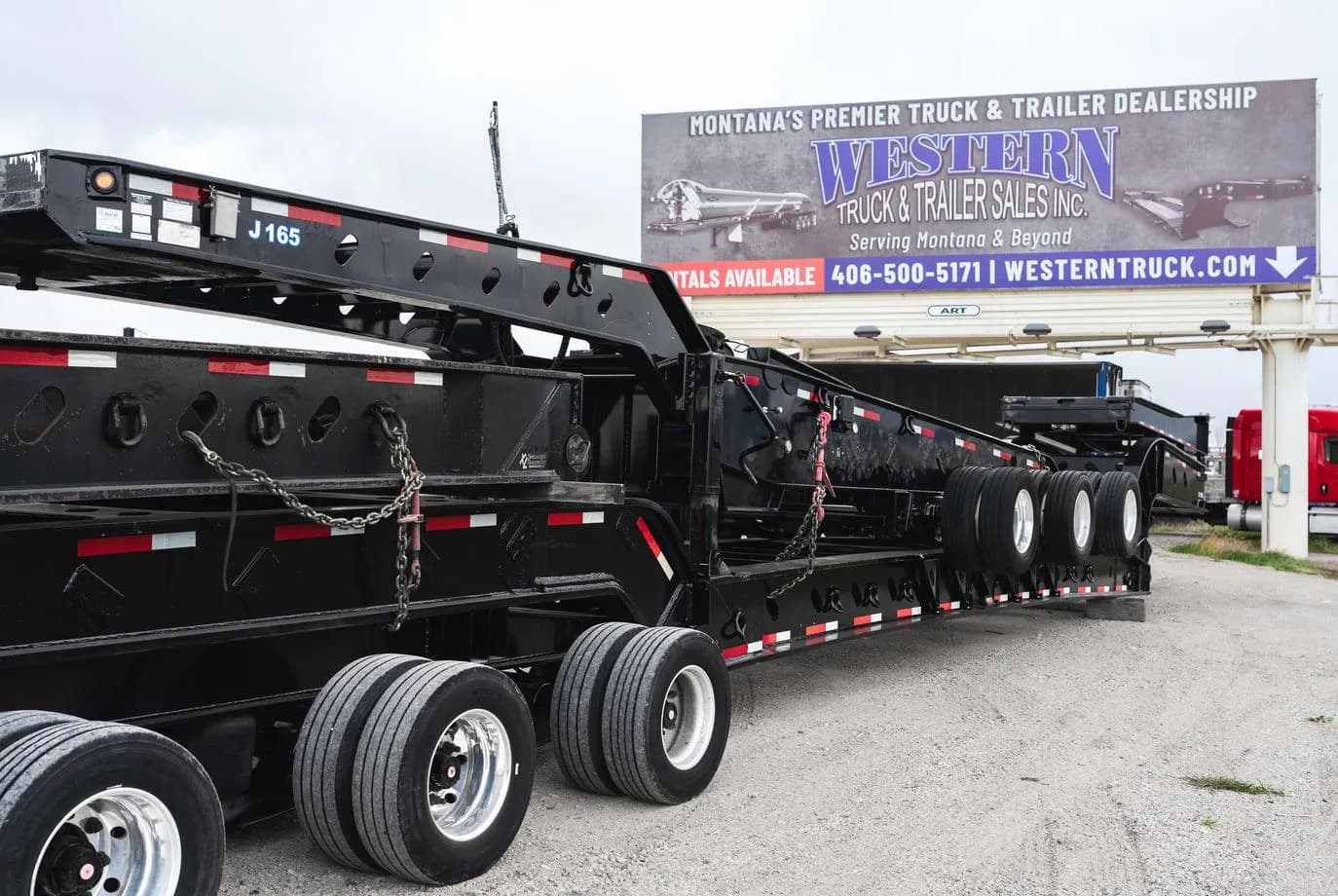

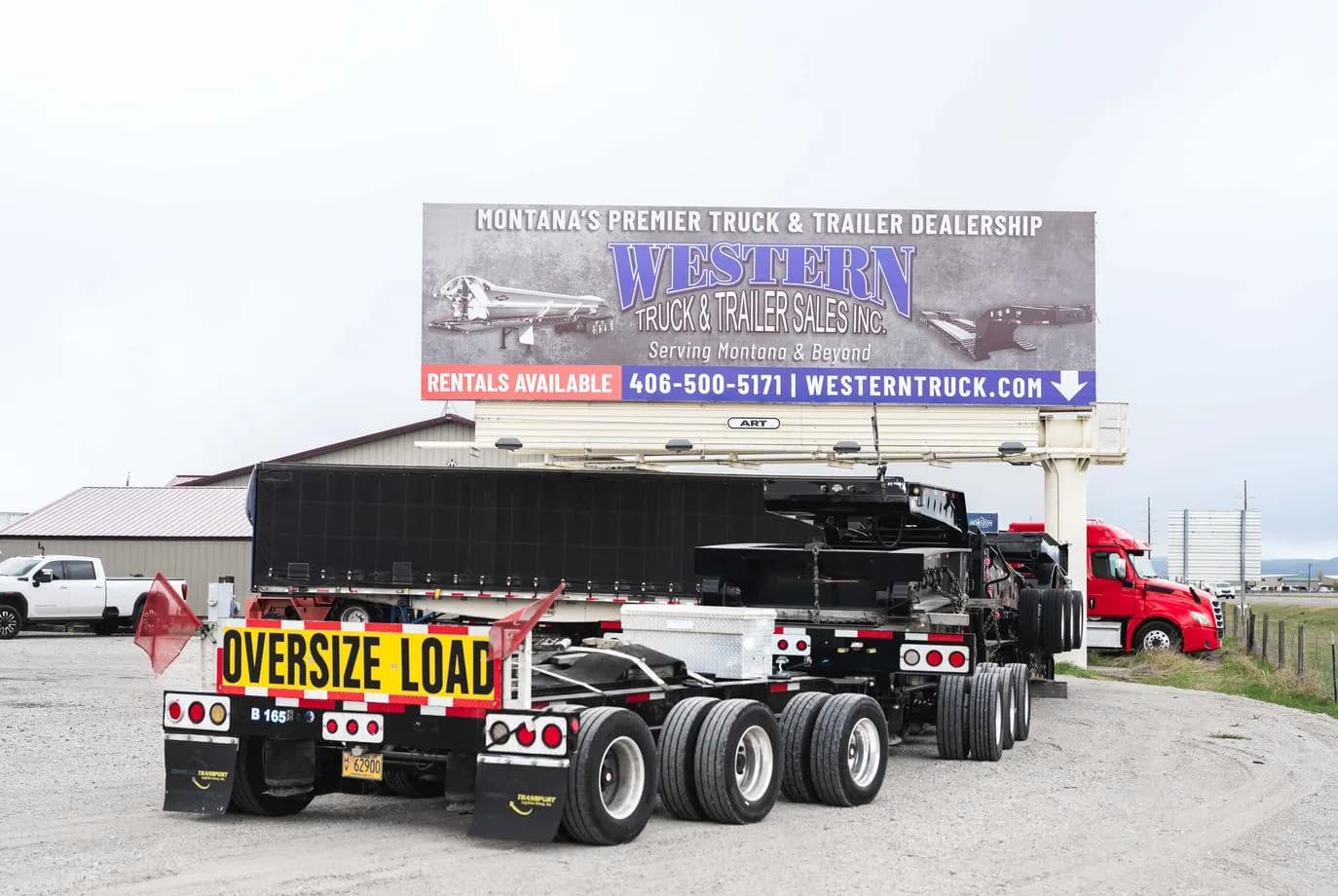

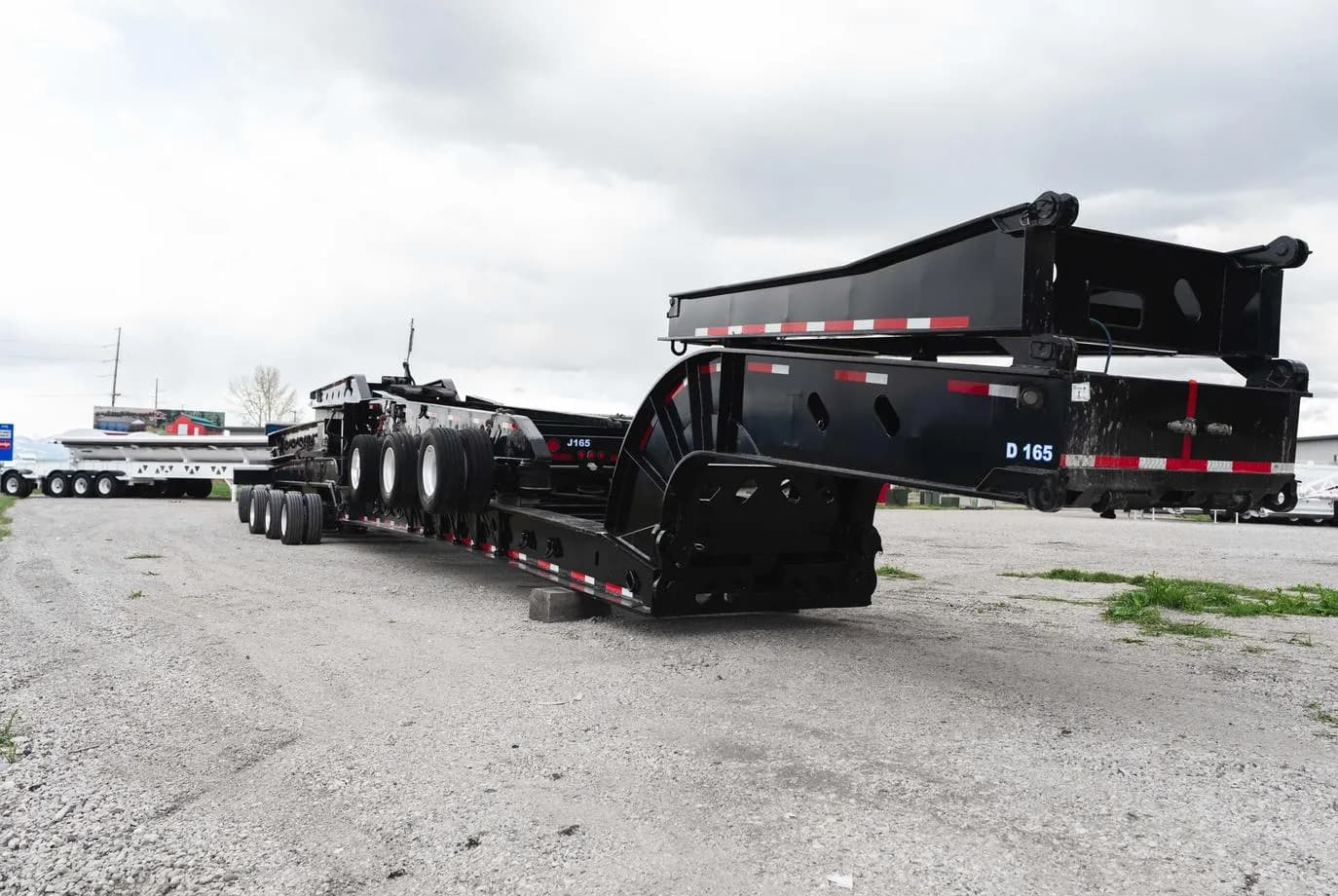

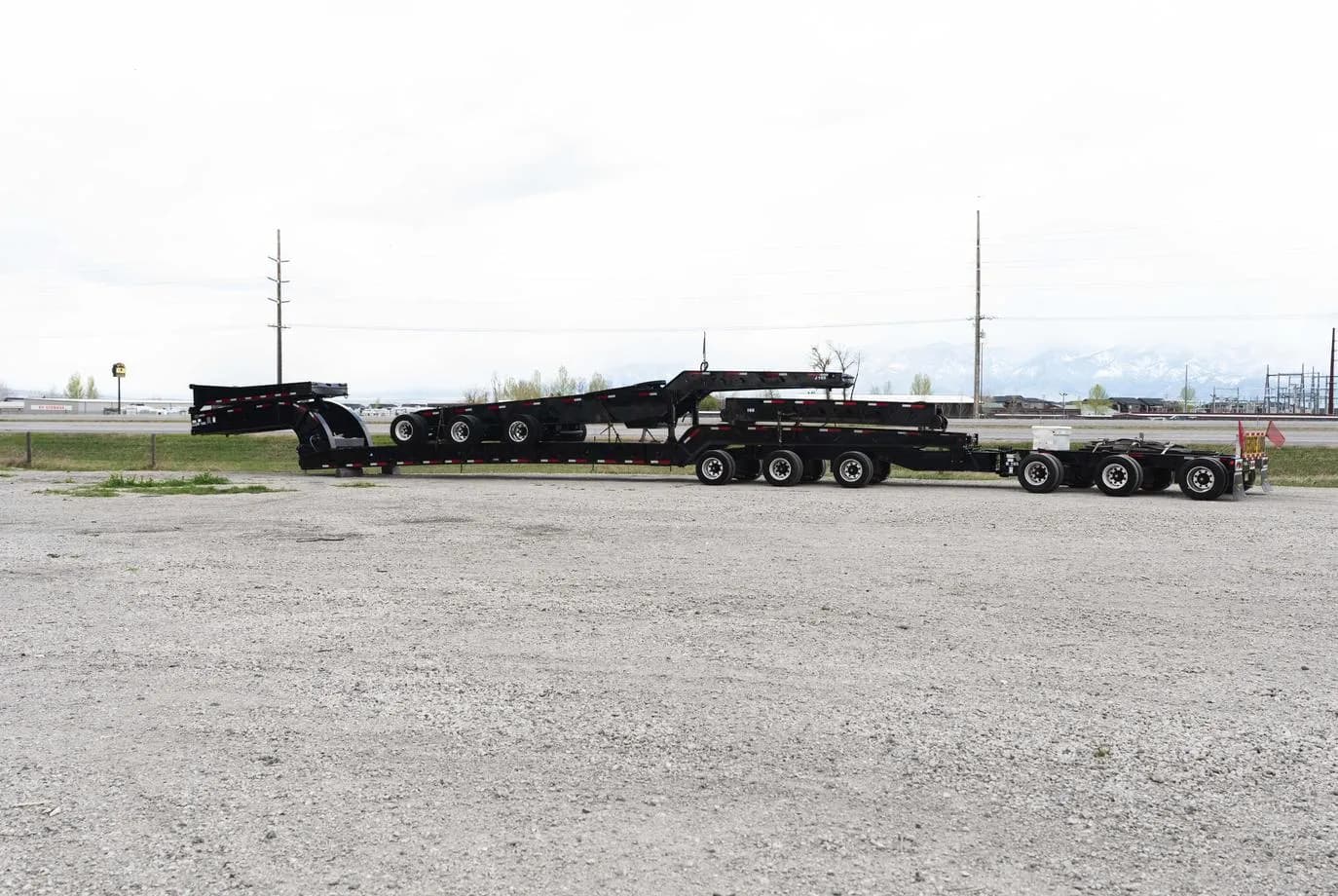

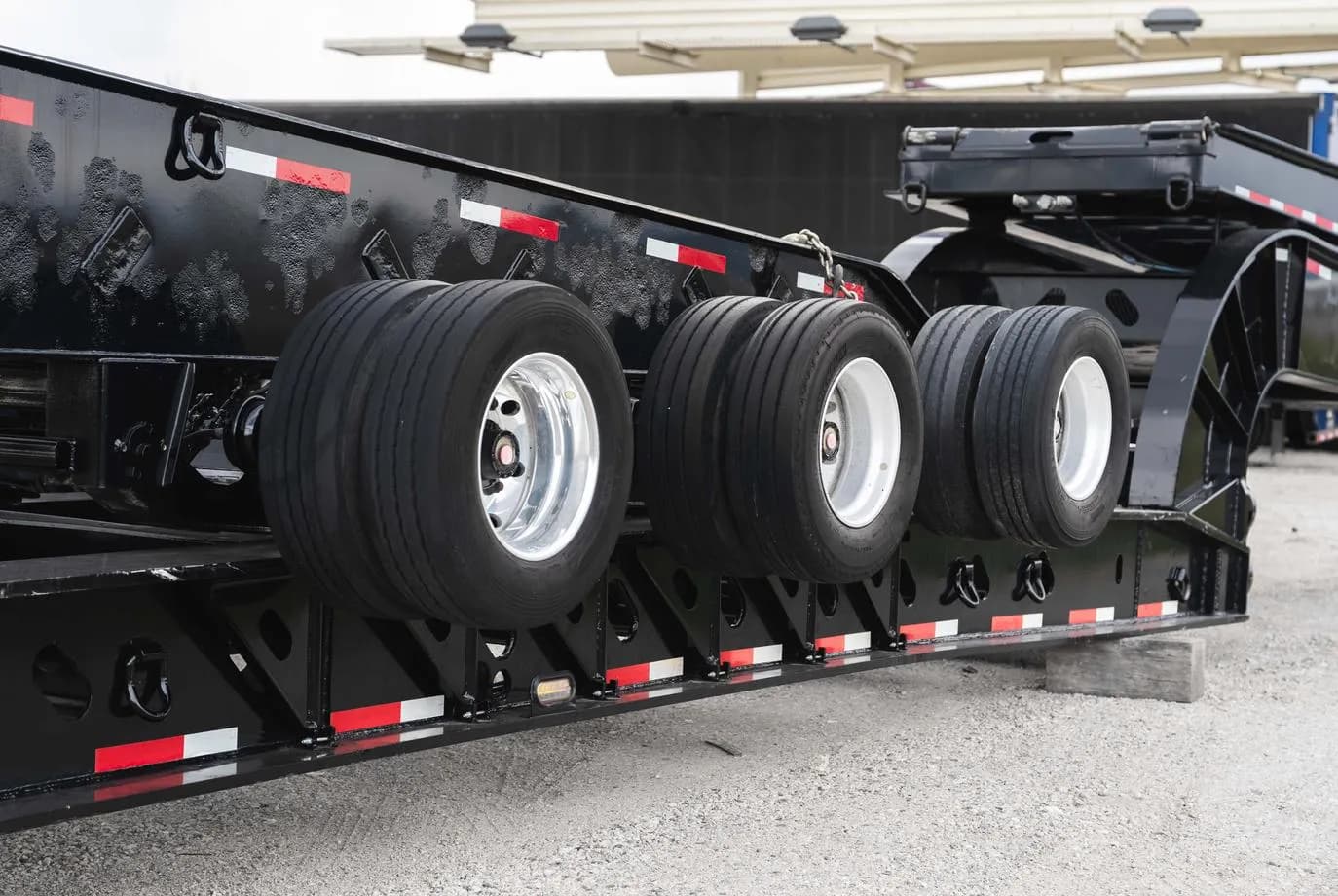

2013 XL Specialized 170MG

XL Specialized 170MG – Lowboy, 30', ( 3 ) 30,000 NOMINAL

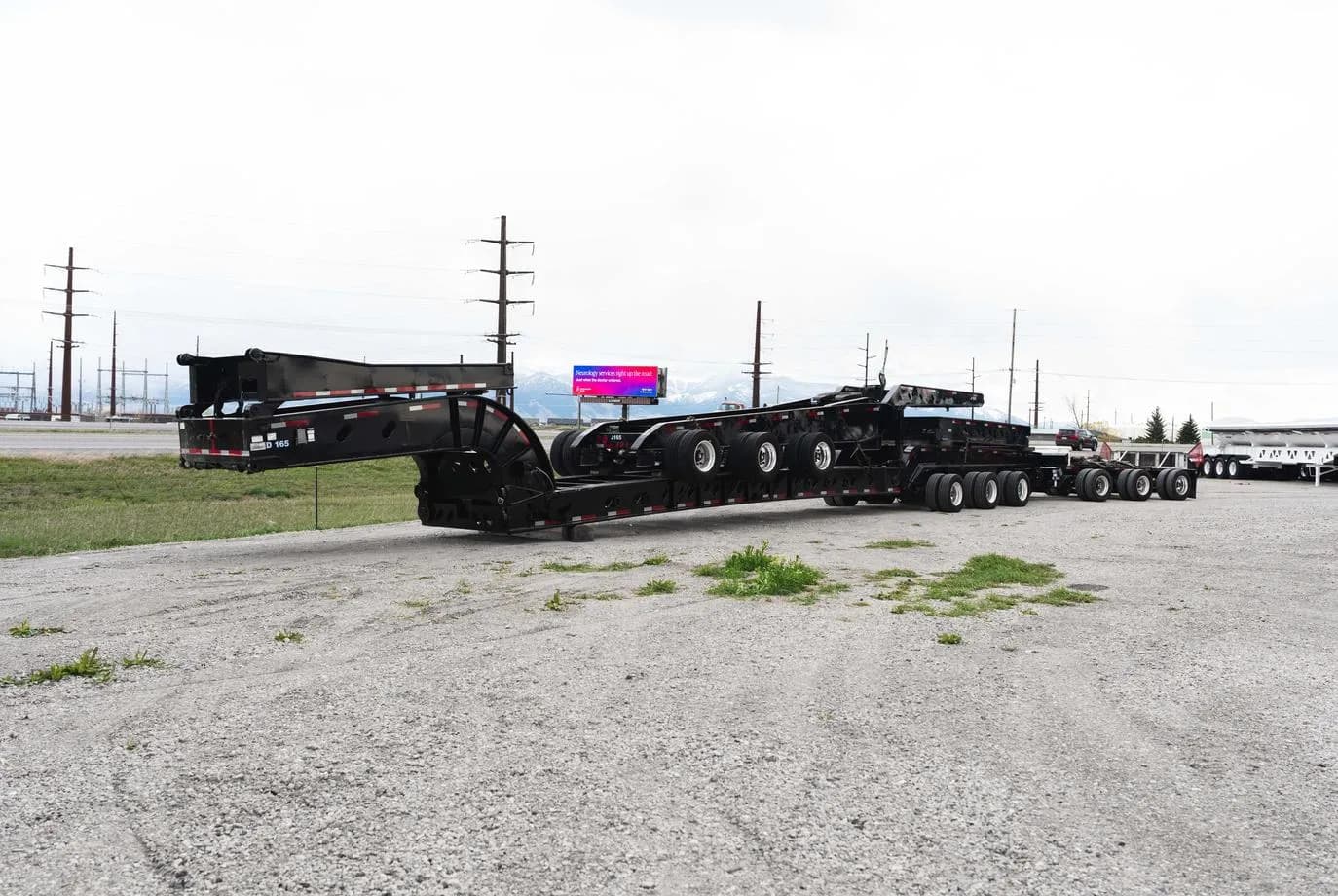

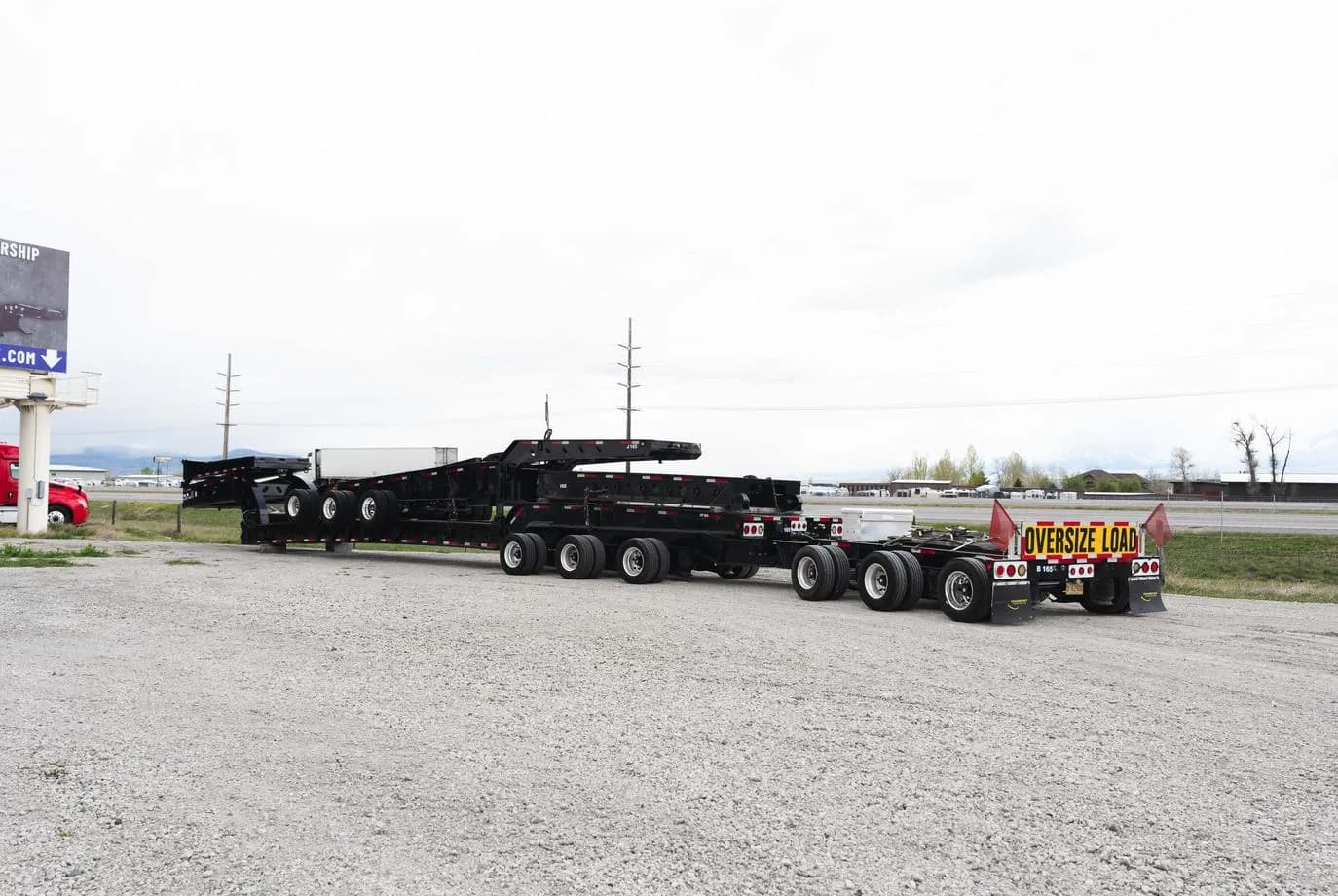

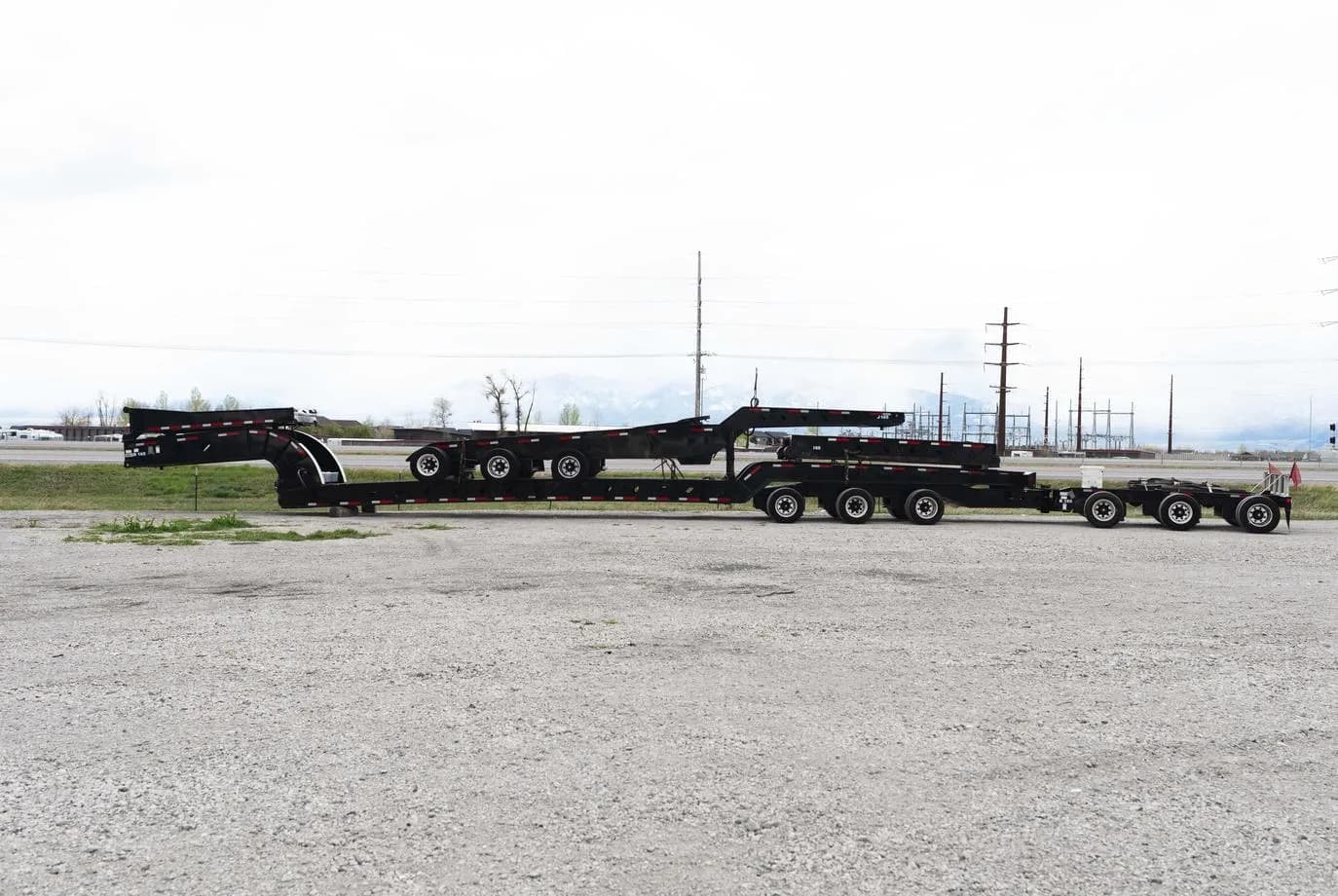

XL Specialized 170MG Lowboy with 30' main deck and ( 3 ) 30,000 NOMINAL axles.

Key Specs

• Manufacturer: XL Specialized
• Model: 170MG
• Category: Lowboy
• Main deck length: 30'
• Rear deck length: 21'
• Gooseneck length: 14' 3"
• Axles: ( 3 ) 30,000 NOMINAL
• Weight: 36,500LB
• King pin setting: 16"
• Swing clearance: 115"
• 5th wheel height: 59"
• Flip neck: FRAME REINFORCEMENT, AIR, ELECTRIC AND BRACKETS FOR 142" FLIP NECK EXTENSION

Tub Construction

• Main deck loaded height: 26" W/ 6" GROUND CLEARANCE
• Decking: 2" OAK DECKING, RAISED BETWEEN MAIN BEAMS AND OUTSIDE BEAMS ONLY
• T-deck: FIRST 8' SECTION OF MAIN DECK TO BE MAIN BEAMS ONLY, NEXT 10' SECTION TO BE 114'' WIDE, FINAL 12' SECTION BE BE MAIN BEAMS ONLY
• Crossmembers: FAB 12" X-MEMBERS ON 24" O/C
• Side beams: 2 BEAMS 20"; 2 BEAMS 16"
• Decking (rear): NO BOLSTERS
• D-rings: 20 BENT D-RINGS

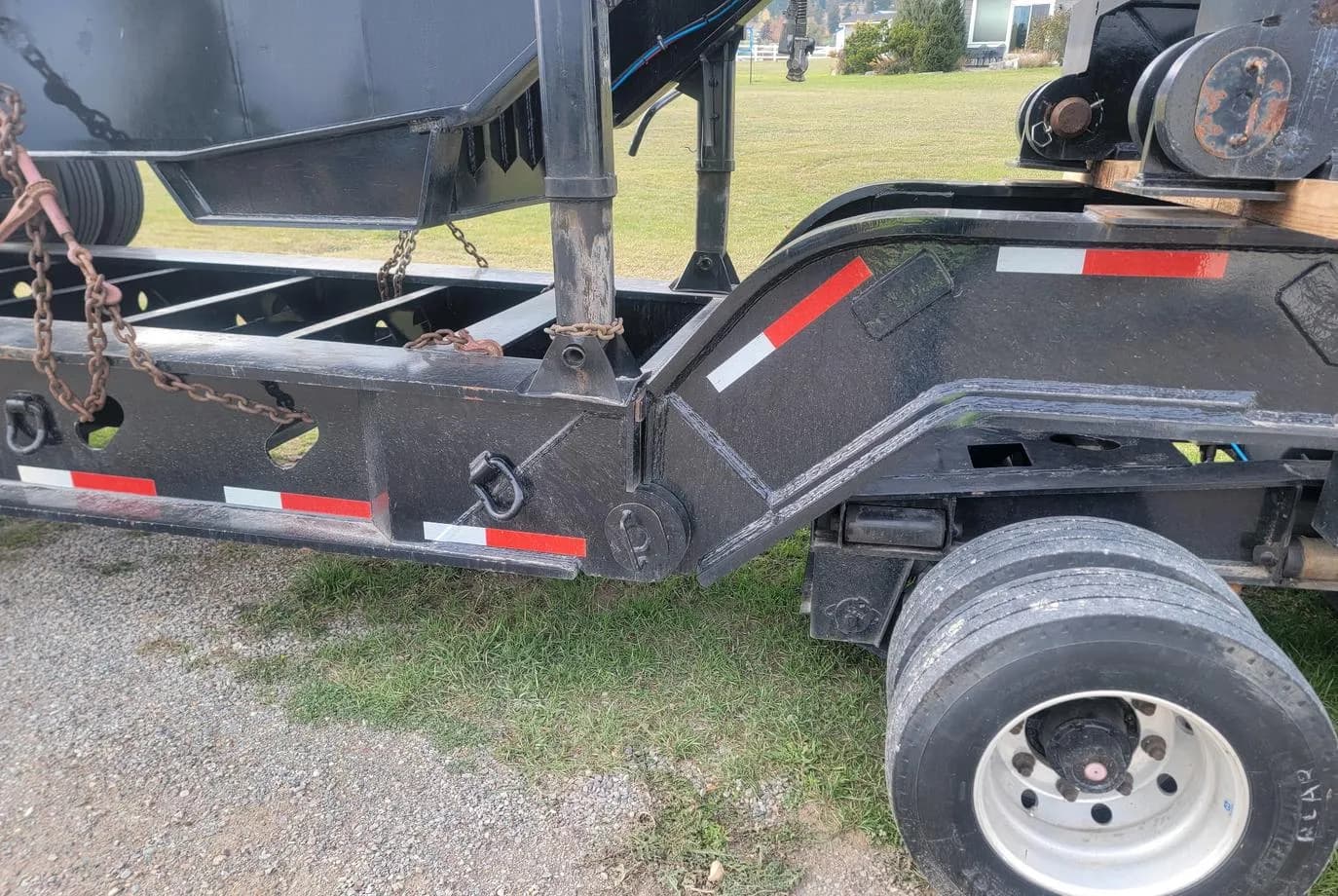

Axles & Suspension

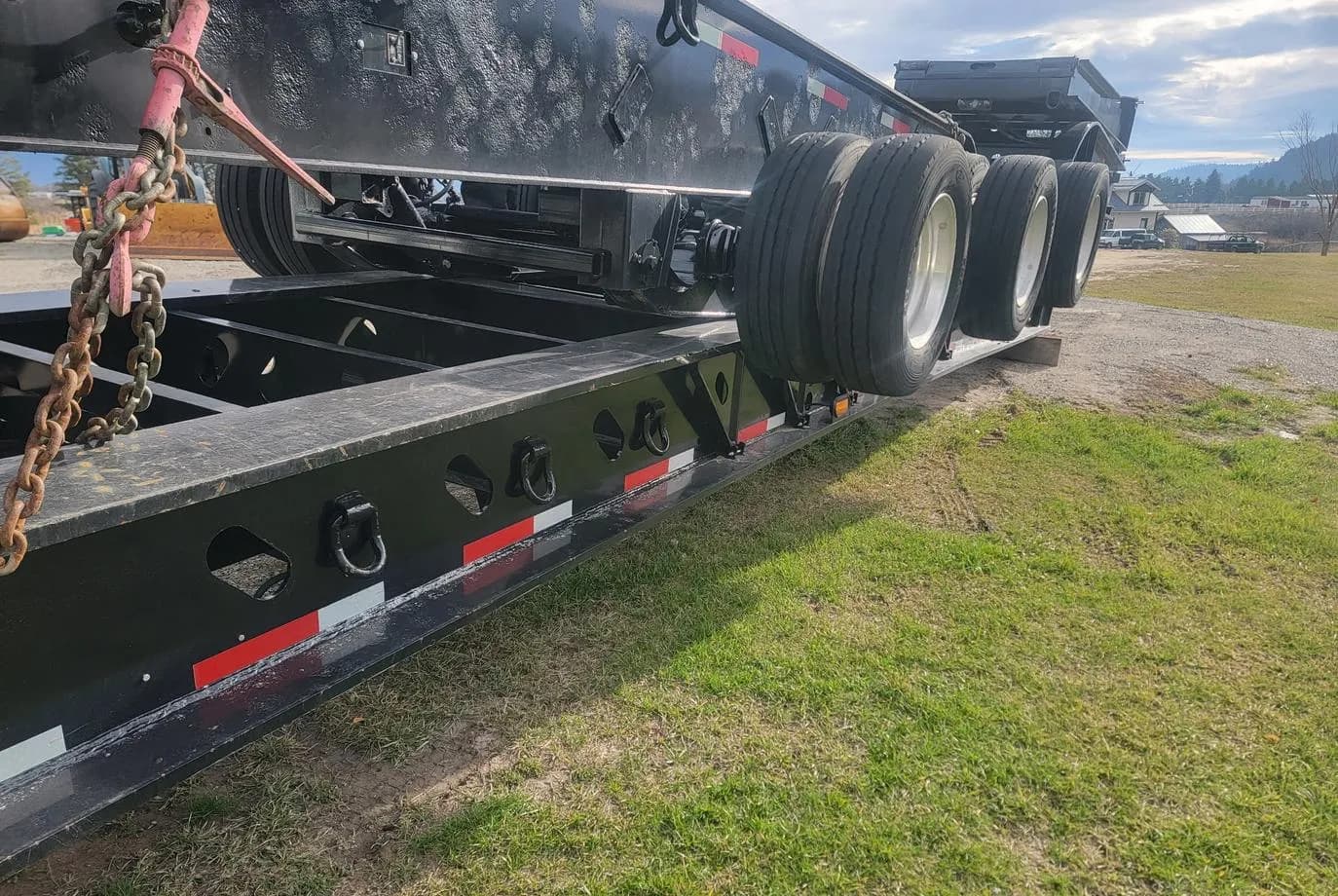

• Axles: ( 3 ) 30,000 NOMINAL
• Tracking: 97 1/2''
• Suspension: CUSH / 25,000 CAPACITY / AIR
• Air axle spacing: 60"
• ABS: N/A
• Spring brakes: ON ALL 1 AXLES

Wheels & Tires

• Tires: MICHELIN 245/70R/17.5
• Wheels: 6.75 X 17.5 / ALUMINUM MILLED INSIDE & OUTSIDE / DISC / PILOTED HUB
• Wheel covers: 16 GAUGE INDIVIDUAL STAINLESS STEEL WHEEL COVERS

Electrical & Lighting

• Electrical: 12V SEALED GROTE SYSTEM WITH 3 TAIL LIGHT ALUM. PACKAGE
• Strobe: 4" AMBER STROBE WITH SWITCH TO MAKE 3 STT
• Lighting: LED LIGHTING

Additional Features

• Tail D-rings: 2 BENT D-RINGS IN TAIL CHANNEL
• Paint: WHITE URETHANE WITH 2 PART EPOXY PRIMER
• Frame reinforcement: FOR THREE AXLE BOOSTER BRACKETS, AIR & ELEC.
• Air bag shut offs: AIR BAG SHUT OFFS
• Scale: DIGITAL AIR WEIGH SCALER
• Ride height control: MANUAL RIDE HEIGHT CONTROL RAISE AND LOWER VALVE
• Legal setup: CA LEGAL WEST COAST SET UP

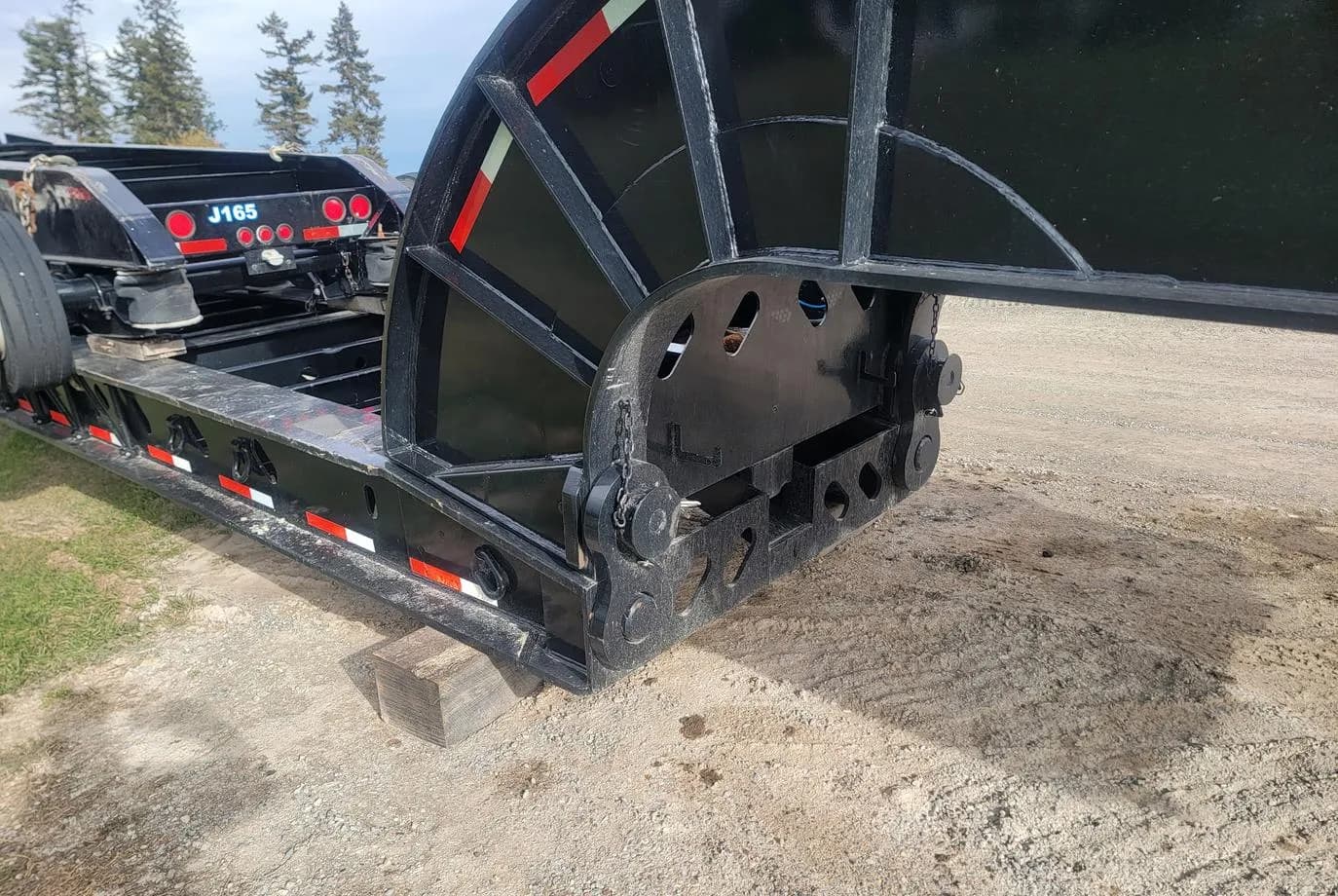

• Detachable wheel area: DETACHABLE WHEEL AREA WITH HORIZONTAL PINS
• Brackets in wheel area: BRACKETS IN WHEEL AREA FOR SHIMSTARE
