XL Specialized 80HDG – Lowboy, 53' x 102"
XL Specialized 80HDG lowboy with overall length 53' and overall width 102". Capacity: 80,000 lbs Distributed; 70,000 lbs in 16'.
Key Specs
- Year: 2018
- Tub Style: Deck over GN
- Overall Length: 53'
- Overall Width: 102"
- Capacity: 80,000 lbs Distributed; 70,000 lbs in 16'
- Weight: +/- 3% 0,000 lbs
Gooseneck Specifications
- Neck Style: Low-Profile Scraper
- Length: 11'
- Kingpin Setting: 16"
- Swing Clearance: 86"
- Fifth Wheel Height: 51" with 5 Variable Ride Height Positions
Hydraulics & Control

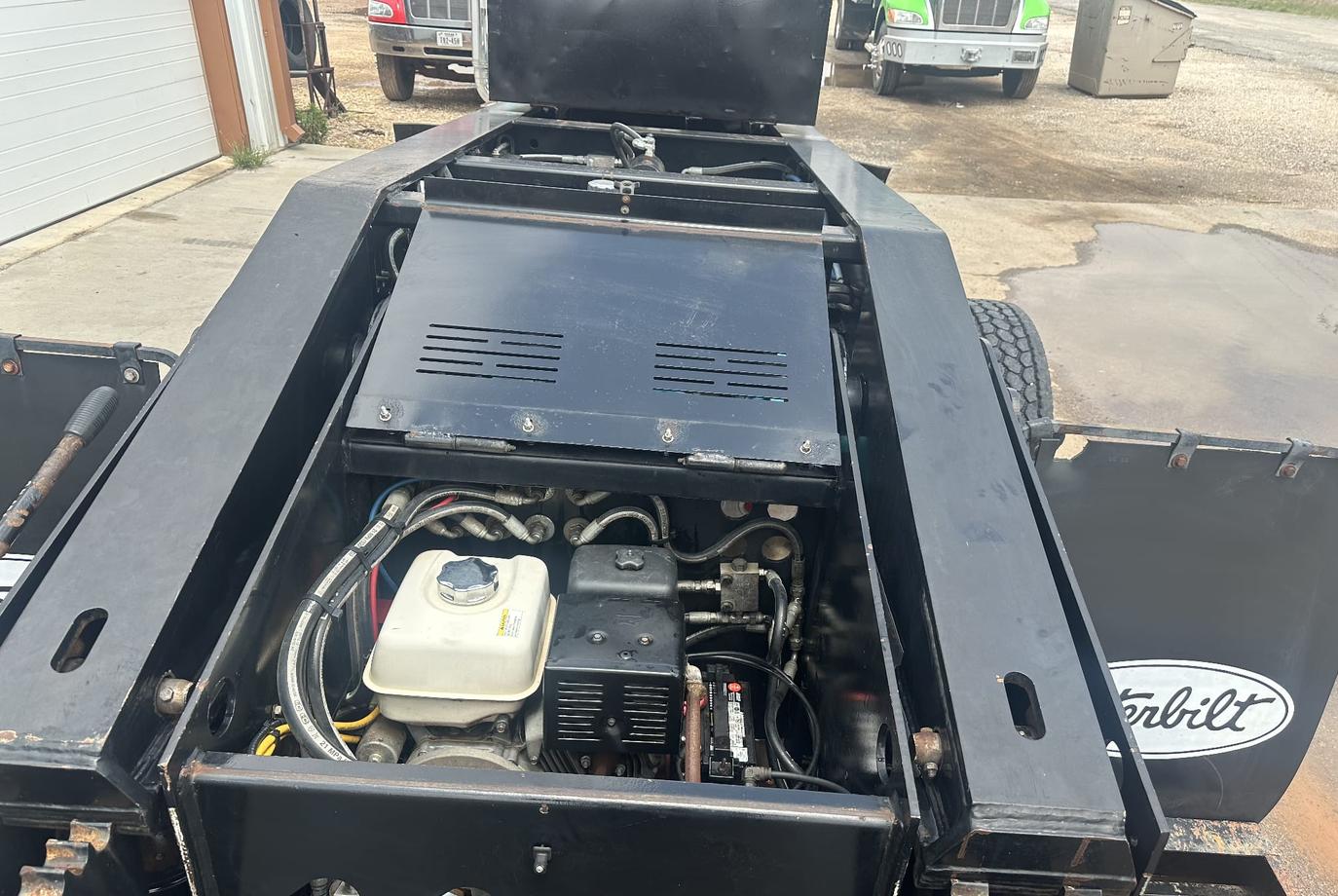

- Hydraulics: 13 HP Honda, Dual Hydraulics, Steel Cover (Base of Gooseneck)
- Ride Height Control: Manual Ride Height Control, Raise and Lower Valve
Main Deck
- Length: 31'
- Loaded Deck Height: 18"
- Ground Clearance: 6"
- Decking: 1 1/8" Apitong Decking, Full-Width Style
- Beams: (4) 12" Fabricated I-Beams
- Crossmembers: 6" & 4" JR I-Beam on 12" Alternating Centers
- D-Rings: (8) Bent D-Rings Per Side, (4) Pan-Style D-Rings Per Side
- Outriggers: Removable Swing-Out Outriggers, Brackets Only on 24" Centers
- Ramps: Tapers to 4"
- Chain Drops: 24" Centers - Outside Beams
Rear Deck
- Length: 9'
- Loaded Deck Height: 40"
Axles & Suspension
- Axles: (2) 25,000 lbs Nominal (5/8" Wall)
- Suspension: Hendrickson Air Ride, 25,000 lb Capacity
- Axle Spacing: 54"
- Brakes: 16 1/2" x 7" Drum Brakes, ABS 4S2M with Spring Brakes on (2) Axles
Wheels & Tires
- Tires: 255/70R 22.5 (H)
- Wheels: 8.25 x 22.5, 10-Hole Pilot Mount, Steel Disc Inner/Polished Aluminum Outer
- Rims: Aluminum
Lighting & Electrical
- Electrical: 12V Sealed Grote System with (3) Tail Lights
- Strobe Lights: 4" Amber Strobe Light with Switch
- Clearance Lights: (4) Extra Pairs on the Main Deck
- Flag Holders: (2) Pairs EZ Mount Flag Holders
Additional Features
- Pony Motor
- Load Bearing Covered Wheel Fenders
- Bucket Pan
- Additional Tool box on the GN included
- Paint: Black
- Flip Axle Preparation: Prepped for Flip Axle
- Monitoring: Liquid Filled Air Gauge
- Rear Transition Cutout: 2' x 2'
