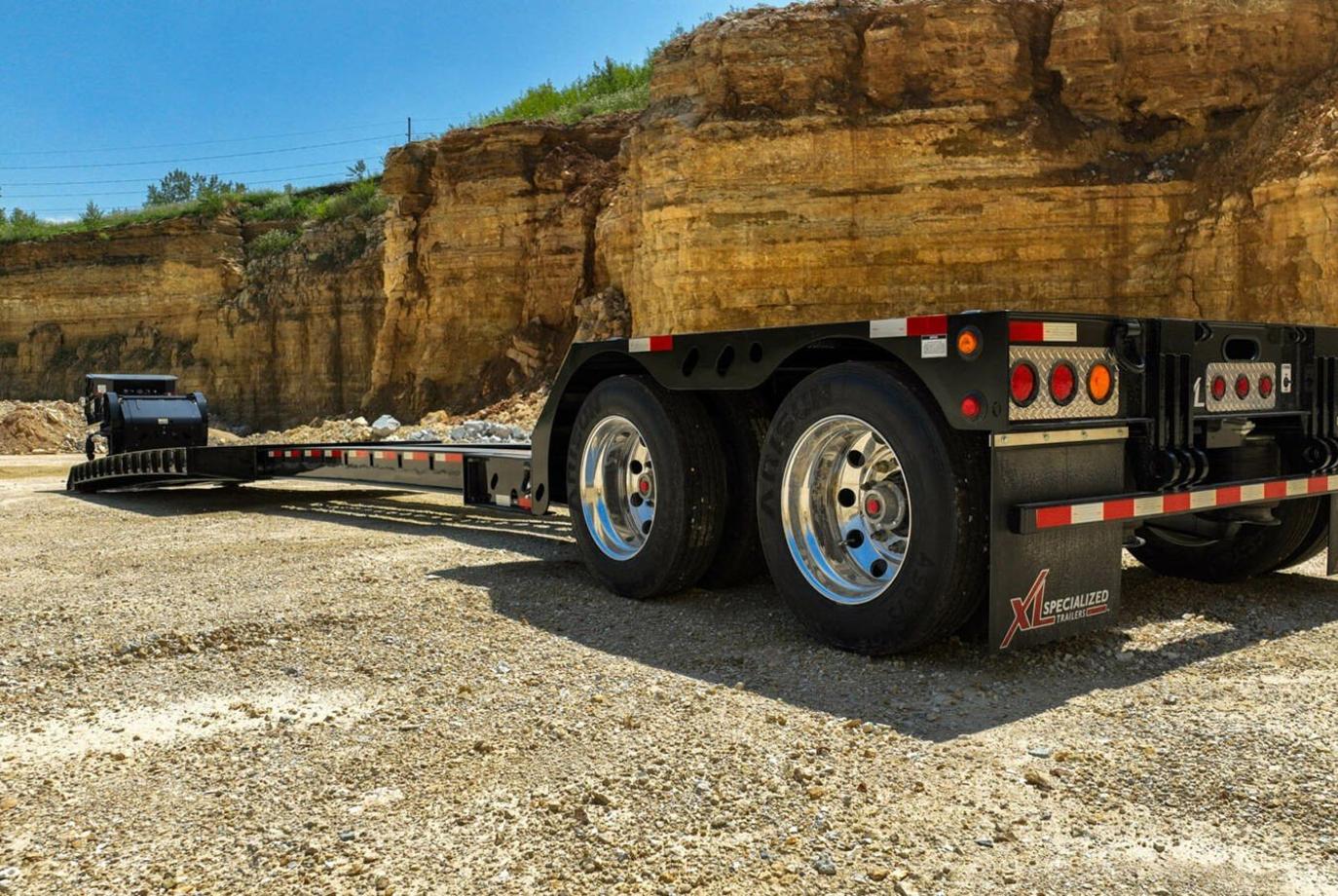

XL Specialized XL 90 HDE-D Trailer

XL Specialized XL 90 HDE-D – Lowboy, 48' x 102", 90,000 LB

XL Specialized XL 90 HDE-D is a Lowboy with an overall length of 48' and capacity 90,000 LB EVENLY DISTRIBUTED FULLY CLOSED

Key Specs

• Overall Length: 48'
• Overall Width: 102"
• Capacity: 90,000 LB EVENLY DISTRIBUTED FULLY CLOSED
• Extended Capacity: 35,000 LB IN 5' AT FRONT AND REAR OF MAIN DECK FULLY EXTENDED (70,000 LB TOTAL)
• Weight: +/- 3%

Gooseneck

• Neck Style: CLASSIC
• Length: 10' 5"
• Kingpin Setting: 16"
• Swing Clearance: 84"
• 5th Wheel Height: 49" W/ 7 VARIABLE RIDE HEIGHT POSITIONS
• Hydraulics: 13HP HONDA UNIT, BASE OF NECK, DUAL HYDRAULICS W/ ALUMINUM COVER
• Flip Neck: PREP FOR 36" FLIP NECK
• 36" FLIP NECK
• REGISTRATION HOLDER

Main Deck

• Length: 28' 7" / OPENING TO 49' 11"-30" STATIONARY DECK
• Loaded Deck Height: 20" W/ 6" GROUND CLEARANCE
• Decking: 1 1/8" APITONG DECKING, FLUSH, CENTER COVERED
• Crossmember: 6" JR. I-BEAM AND KNEE BRACES ON 12" ALTERNATING CENTERS
• Beams: (4) FAB I-BEAMS
• D-Rings: (8) BENT D-RINGS PER SIDE
• Outriggers: REMOVABLE SWING OUT OUTRIGGERS ON 24" CENTERS
• Chain Drops: 24" CENTERS - OUTSIDE BEAMS
• Ramps: TAPERS TO 4"
• Additional Clearance Lights: (4) ADDITIONAL PAIR OF 3/4" LED CLEARANCE LIGHTS
• Extension Stops: ON 24" CENTERS

Rear Deck

• Length: 9'
• Loaded Deck Height: 40"
• Decking: 1 1/8" APITONG DECKING FLUSH, COVERED WHEELS
• 2' x 2' CUT OUT IN TRANSITION AREA
• D-Rings (corners): (1) PAN STYLE D-RING IN EACH CORNER
• D-Rings (rear transition): (1) PAIR FLAT D-RINGS ON REAR TRANSITION
• D-Rings (tail channel): (2) BENT D-RINGS IN TAIL CHANNEL
• Rear Connection: PREP FOR TWO AXLE BOOSTER

Axles & Suspension

• Axles: (2) 25,000 LB NOMINAL (5/8" WALL)
• Suspension: HENDRICKSON / 25,000 CAPCACITY / AIR RIDE
• Axle Spacing: 54"
• ABS: 4S2M WITH SPRING BRAKES ON (2) AXLES
• Brakes: 16 1/2" x 7"
• Drums: OUTBOARD

Wheels & Tires

• Tires: 255/ 70R / 22.5 (H)
• Wheels Inside: STEEL DISC
• Wheels Outside: ALUMINUM POLISHED

Electrical & Lighting

• Electrical: 12V SEALED GROTE SYSTEM WITH (3) TAIL LIGHT ALUMINUM PACKAGE
• Strobe: 4" AMBER STROBE TO BE USED AS 3RD TAILIGHT
• Battery Backup: BATTERY BACKUP W/ 4-WAY PLUG
• Additional Clearance Lights: (1) ADDITIONAL PAIR OF 3/4" LED CLEARANCE LIGHTS
• Clearance Lights: ALL CLEARANCE LIGHTS TO BE 3/4" LED

Additional Features

• Paint: BLACK
• Air System: MANUAL RIDE HEIGHT CONTROL
• COLAS+ RAISE AND LOWER VALVE
• LIQUID FILLED AIR GAUGE
• Flag Holders: (2) PAIR EZ MOUNT FLAG HOLDERS
• RUBBER GLAD HAND COVERS
