2018 XL Specialized 80HDG Lowboy Trailer w/Hydraulic Flip Axle

2018 XL80HDG Deck Over Gooseneck Trailer

Reliable heavy-haul performance with premium features, designed for versatility and durability.

General & Features

• Deck Over GN
• Pony Motor
• Load Bearing Covered Wheel Fenders
• Aluminum Rims
• Michelin Tires
• Apitong Decking
• Bucket Pan
• Additional Tool Box on the GN Included

Dimensions & Capacity

• Overall Length: 53'
• Overall Width: 102"
• Capacity: 80,000 lbs Distributed; 70,000 lbs in 16'
• Weight: +/- 3%

Gooseneck Specifications

• Neck Style: Low-Profile Scraper
• Length: 11'
• Kingpin Setting: 16"
• Swing Clearance: 86"
• Fifth Wheel Height: 51" with 5 Variable Ride Height Positions

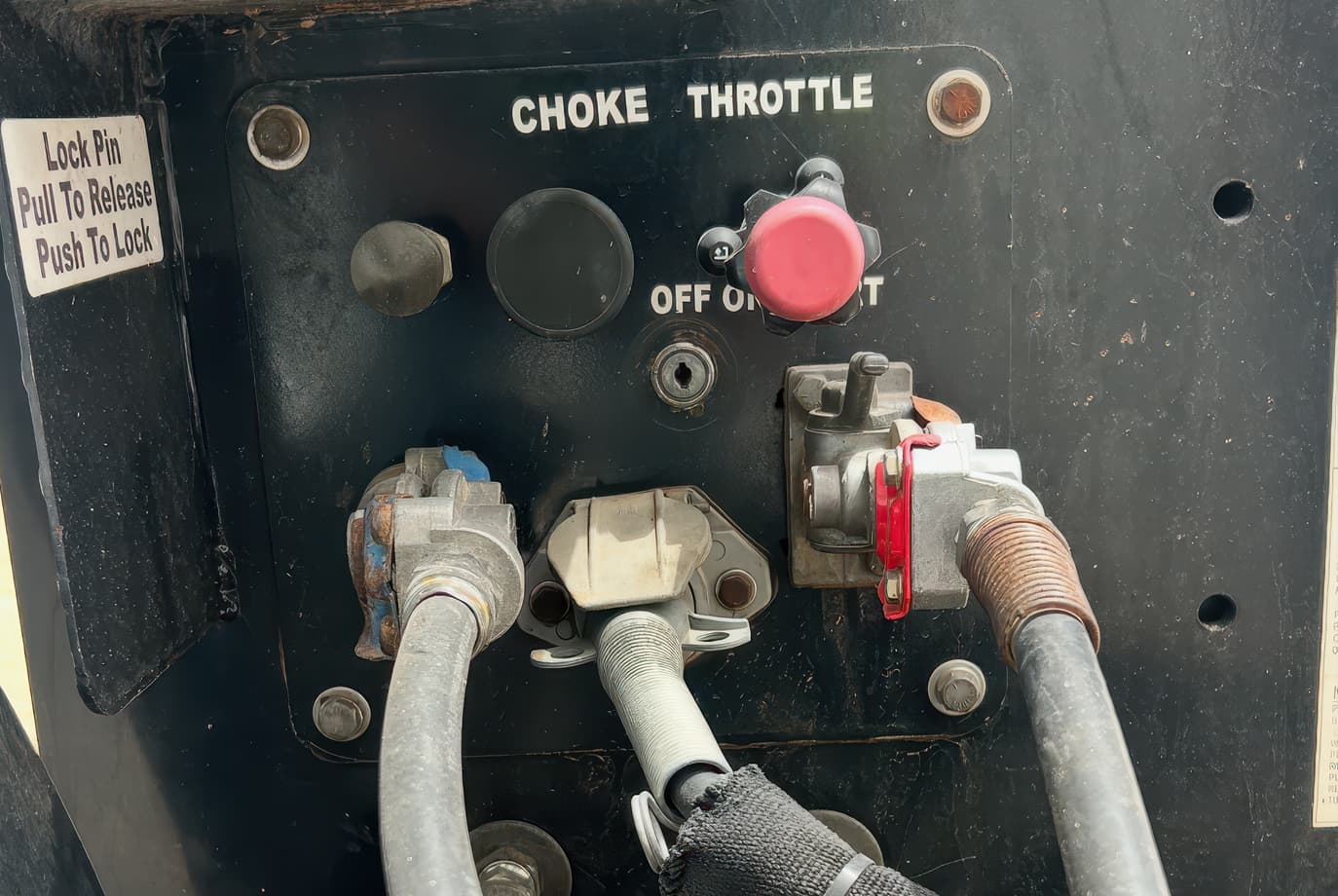

• Hydraulics: 13 HP Honda, Dual Hydraulics, Steel Cover (Base of Gooseneck)

Main Deck

• Length: 31'
• Loaded Deck Height: 18"
• Ground Clearance: 6"
• Decking: 1 1/8" Apitong Decking, Full-Width Style
• Beams: (4) 12" Fabricated I-Beams
• Crossmembers: 6" & 4" JR I-Beam on 12" Alternating Centers
• D-Rings: (8) Bent D-Rings Per Side, (4) Pan-Style D-Rings Per Side
• Outriggers: Removable Swing-Out Outriggers, Brackets Only on 24" Centers
• Ramps: Tapers to 4"
• Chain Drops: 24" Centers - Outside Beams

Rear Deck

• Length: 9'
• Loaded Deck Height: 40"

Axles & Suspension

• Axles: (2) 25,000 lbs Nominal (5/8" Wall)
• Suspension: Hendrickson Air Ride, 25,000 lb Capacity
• Axle Spacing: 54"
• Brakes: 16½" x 7" Drum Brakes, ABS 4S2M with Spring Brakes on (2) Axles

Wheels & Tires

• Tires: 255/70R22.5 (H)
• Wheels: 8.25 x 22.5, 10-Hole Pilot Mount, Steel Disc Inner/Polished Aluminum Outer

Lighting & Electrical

• Electrical: 12V Sealed Grote System with (3) Tail Lights
• Strobe Lights: 4" Amber Strobe Light with Switch

Additional Features

• Paint: Black
• Ride Height Control: Manual Ride Height Control, Raise and Lower Valve
• Flip Axle Preparation: Prepped for Flip Axle
• Clearance Lights: (4) Extra Pairs on the Main Deck
• Flag Holders: (2) Pairs EZ Mount Flag Holders
• Monitoring: Liquid Filled Air Gauge
• Rear Transition Cutout: 2' x 2"
