2015 XL Specialized 110 HDG Trailer

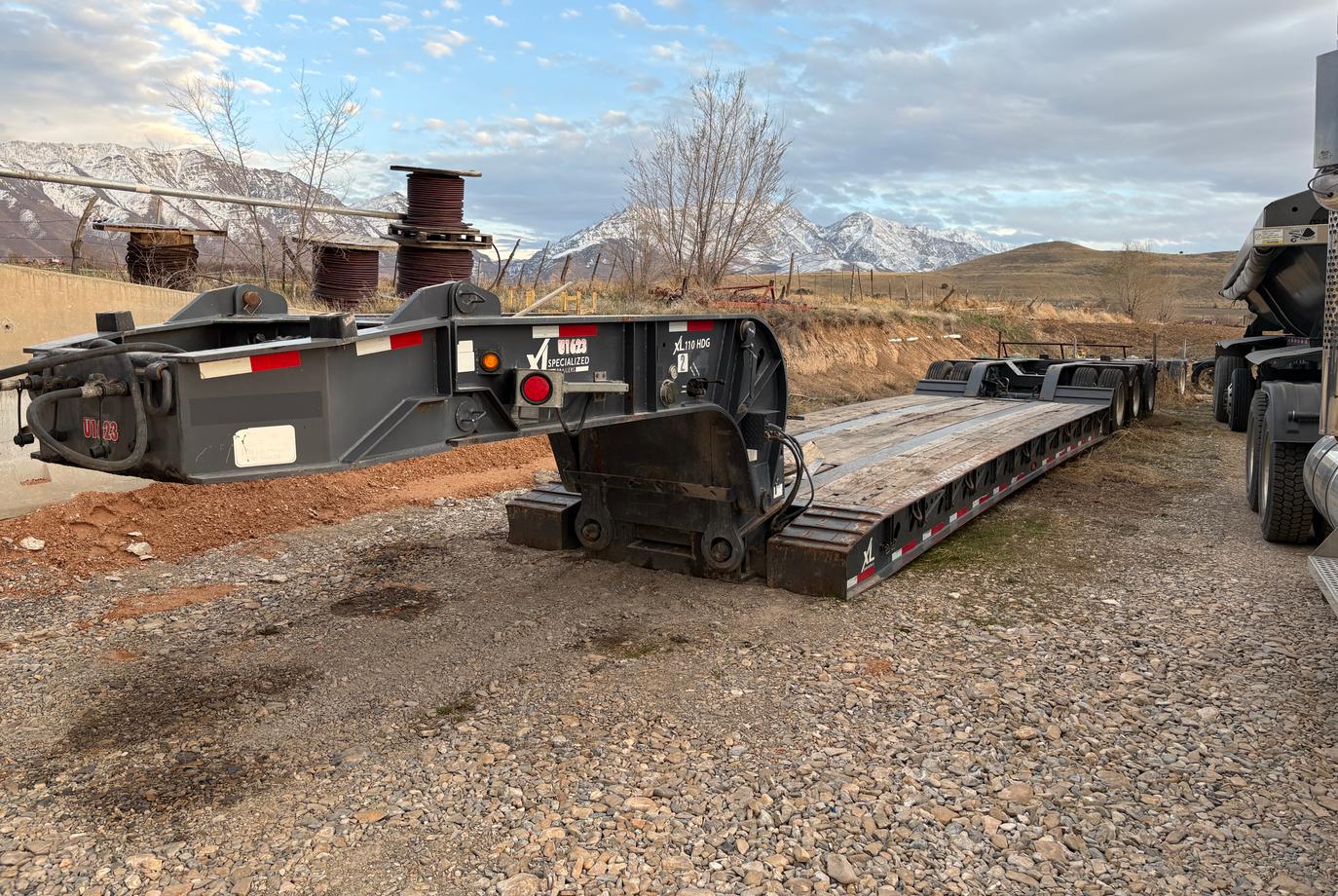

XL Specialized 110 HDG – Lowboy, 110,000 lbs, 46′ 8″

XL Specialized 110 HDG Lowboy with a gross capacity of 110,000 lbs and overall length 46′ 8″.

Key Specs

• Gross Capacity: 110,000 lbs
• Overall Length: 46′ 8″
• King Pin Setting: 16″
• Swing Clearance: 84″
• 5th Wheel Height: 52″ (7 variable ride height positions)

Construction & Finish

• Finish: Grey RAL 7024 urethane finish (with a 2‑part epoxy primer)

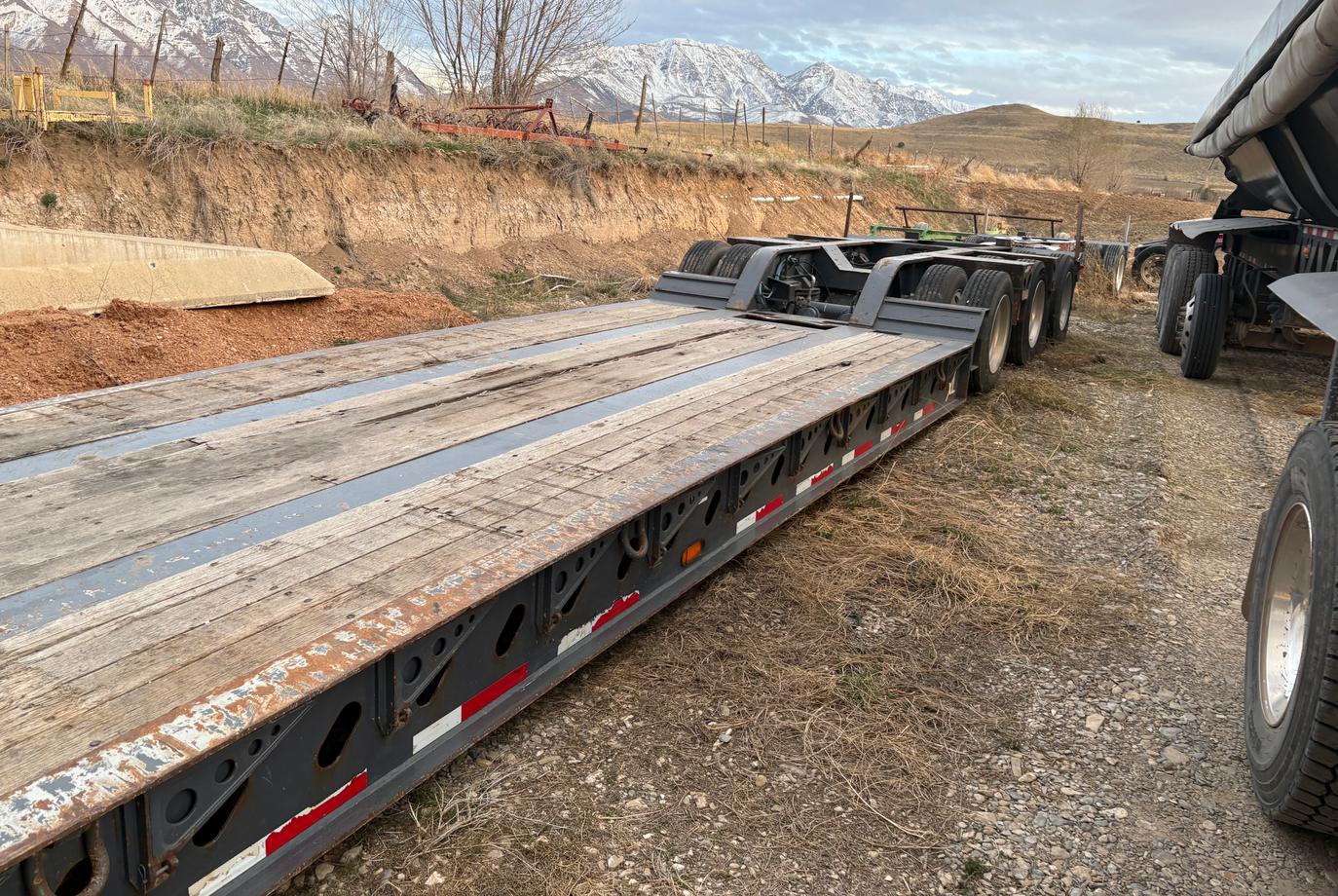

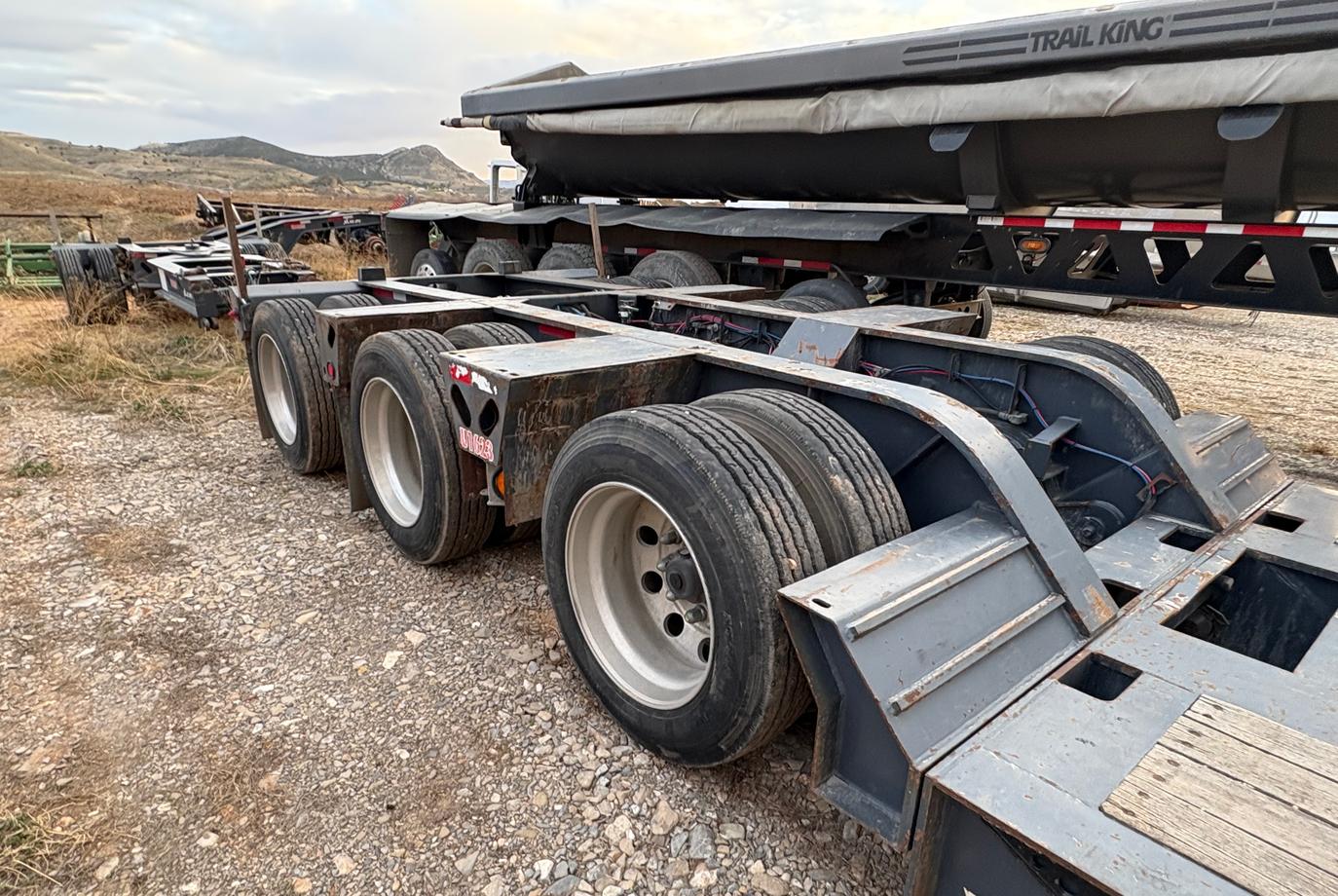

• Main Deck: 26′ long; loaded height 22″ (6″ ground clearance); 1 3⁄8″ Apitong decking; reinforced beams
• Rear Deck: 10′ long; loaded height 40″

Axles & Suspension

• Axles: nominal 25,000‑lb
• Suspension: Hend‑Turner (or Hendricksen) air ride suspension
• Tracking: 77½″

Wheels & Tires

• Tires: 255/70R22.5
• Wheels: 8.25″ x 22.5″ aluminum, polished with disc wheels

Brakes & Electrical

• Brakes: 16½″ x 7″
• Electrical: 12V sealed Grotte system (tail light configurations vary)

Hydraulics & Control

• Power Unit: 13HP Honda
• Hydraulics: dual hydraulics

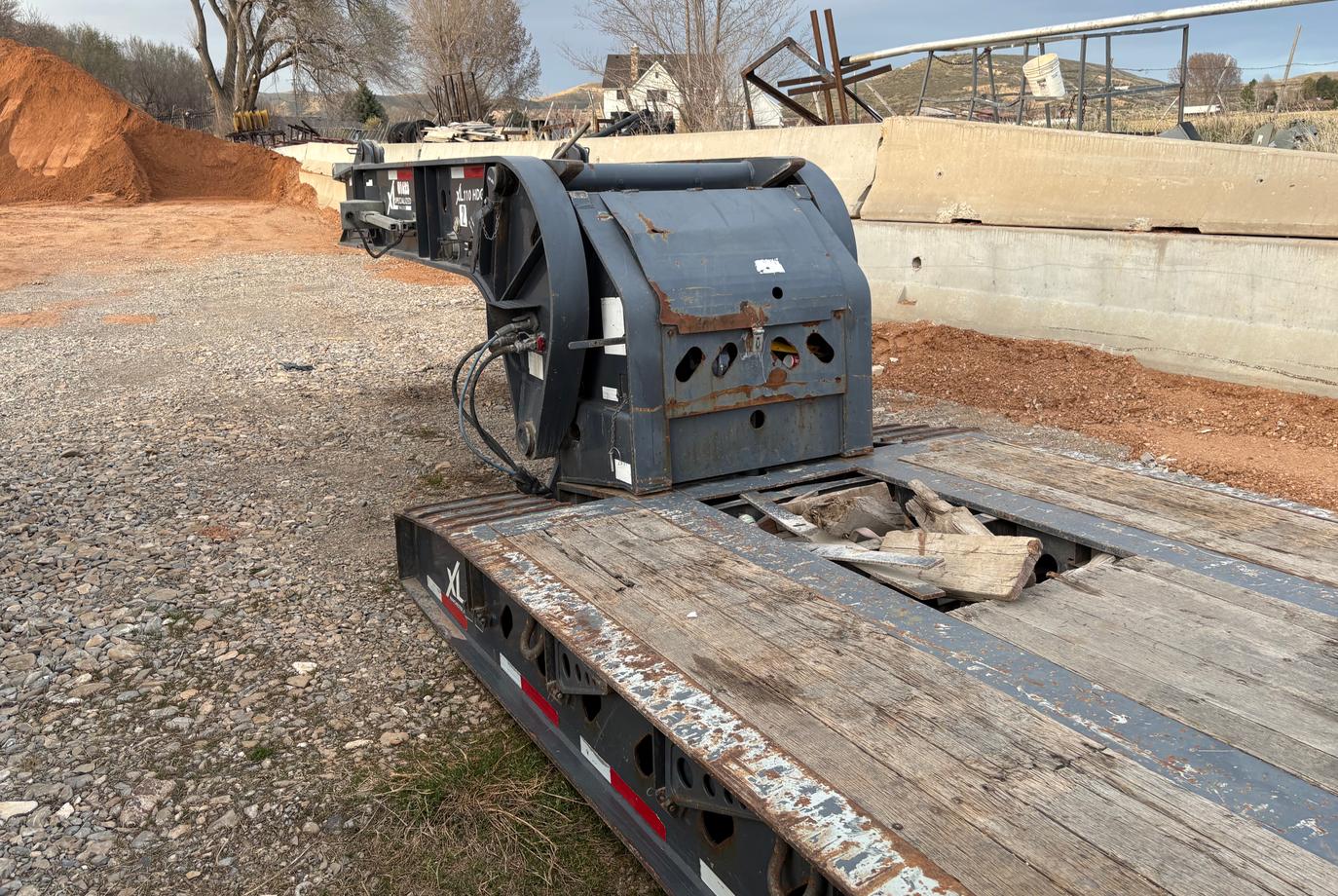

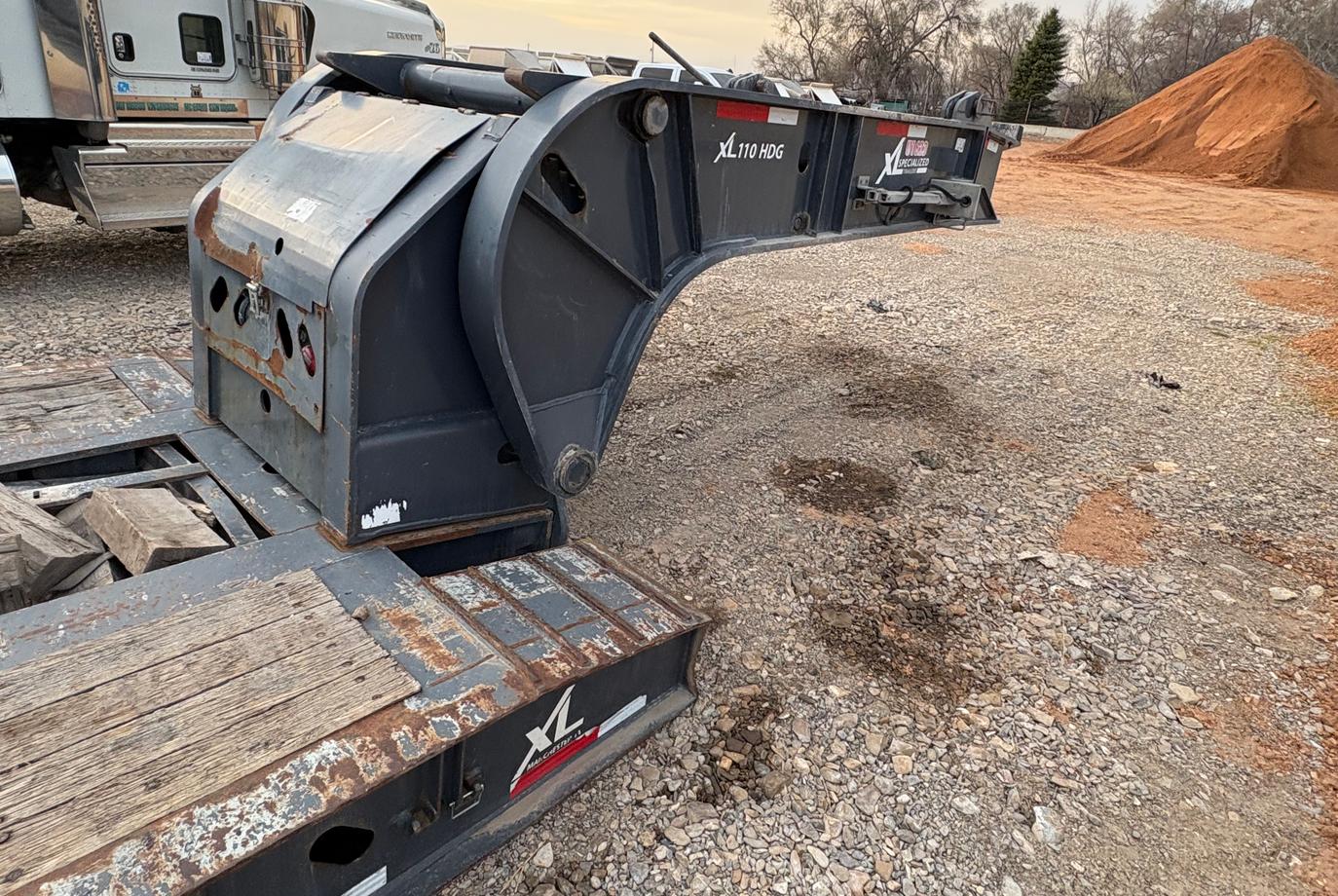

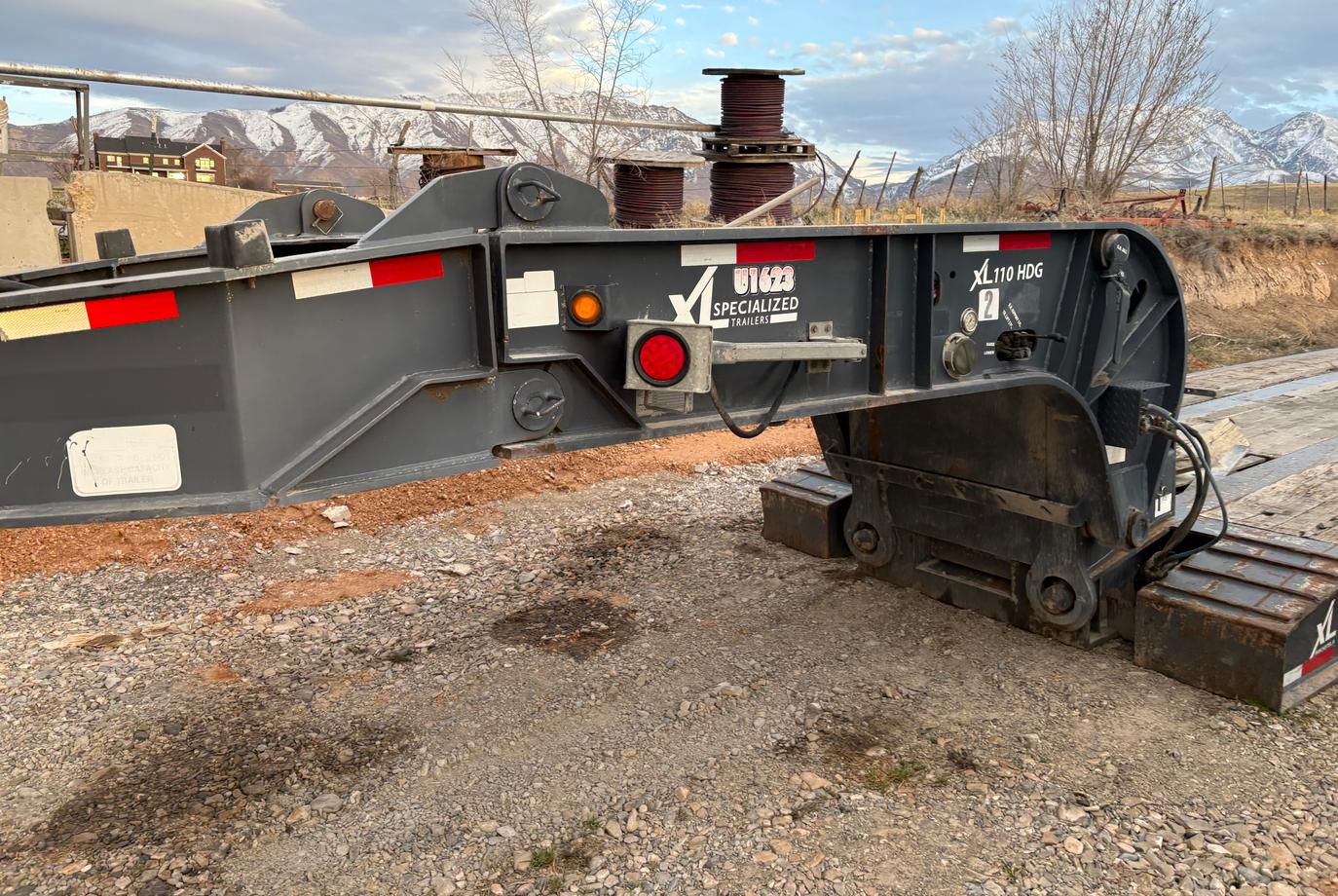

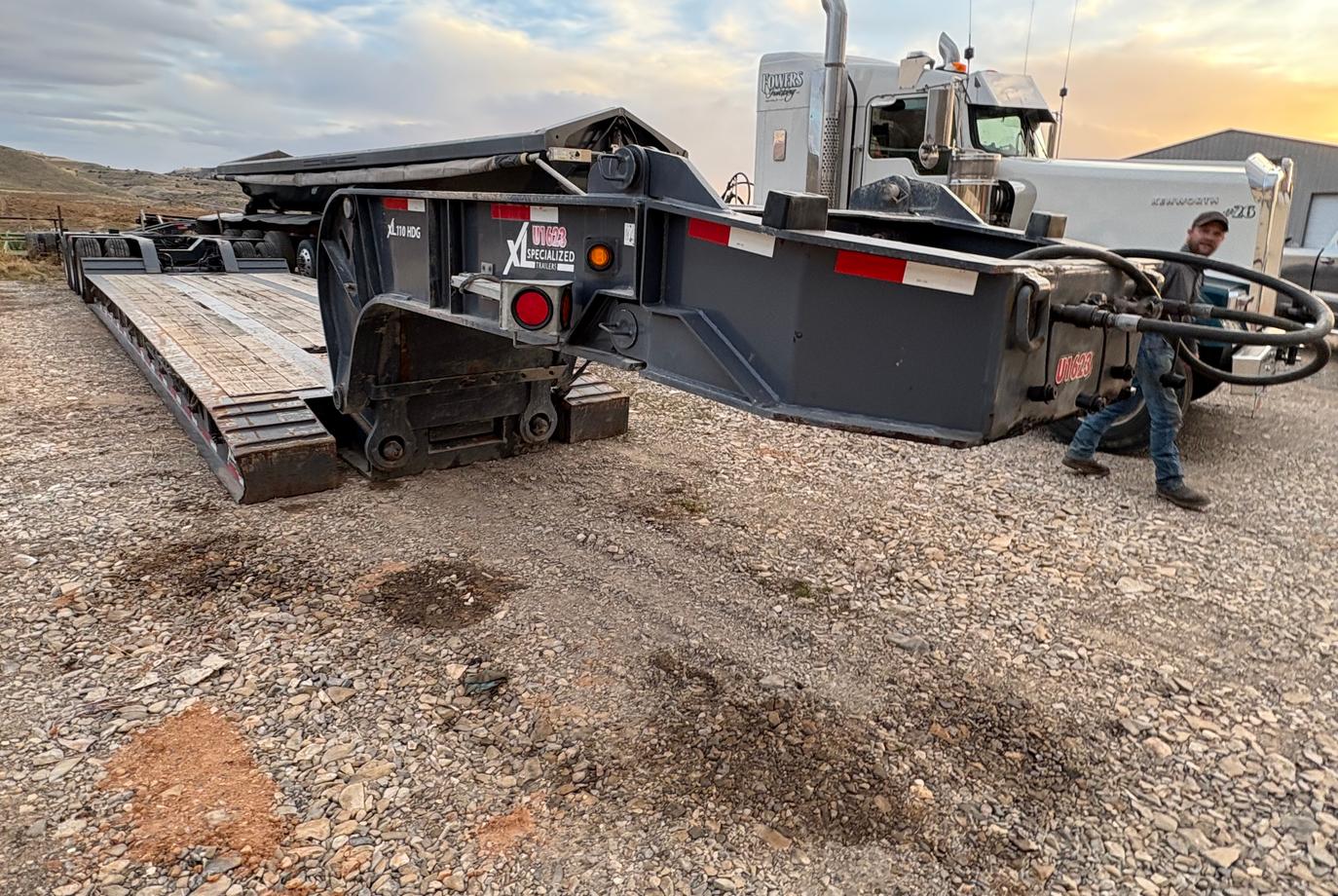

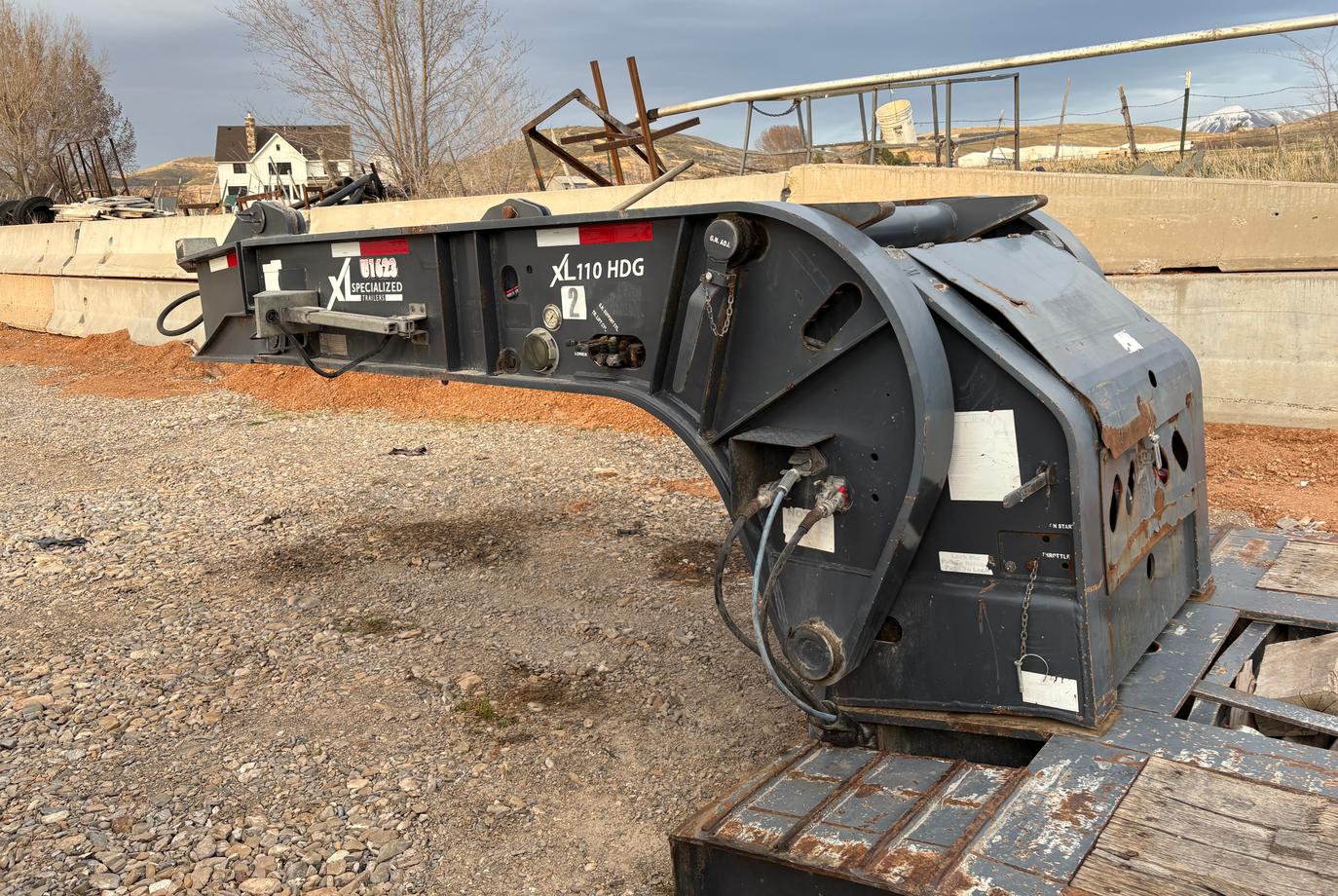

• Flip Neck: flip neck option with reinforced frame, air and electric operation, flip neck extension capability
• Manual Ride Height Control: where applicable

Additional Features

• Common Features: D‑rings; LED lighting; manual ride height control (where applicable)
• Smartsheet Entries: 72XGL014988, 12GL04980, 19GL014900

Unit-Specific

• 2015 XL 110 HDG (Main Unit): Gross Capacity: 110,000 lbs; Overall Length: 46′ 8″; King Pin Setting: 16″; Swing Clearance: 84″; 5th Wheel Height: 52″ (7 variable ride height positions); Main Deck: 26′ long, loaded height 22″ (6″ ground clearance); Rear Deck: 10′ long, loaded height 40″; 1 3⁄8″ Apitong decking; reinforced beams; 13HP Honda power unit with dual hydraulics; flip neck option with reinforced frame, air and electric operation; flip neck extension capability

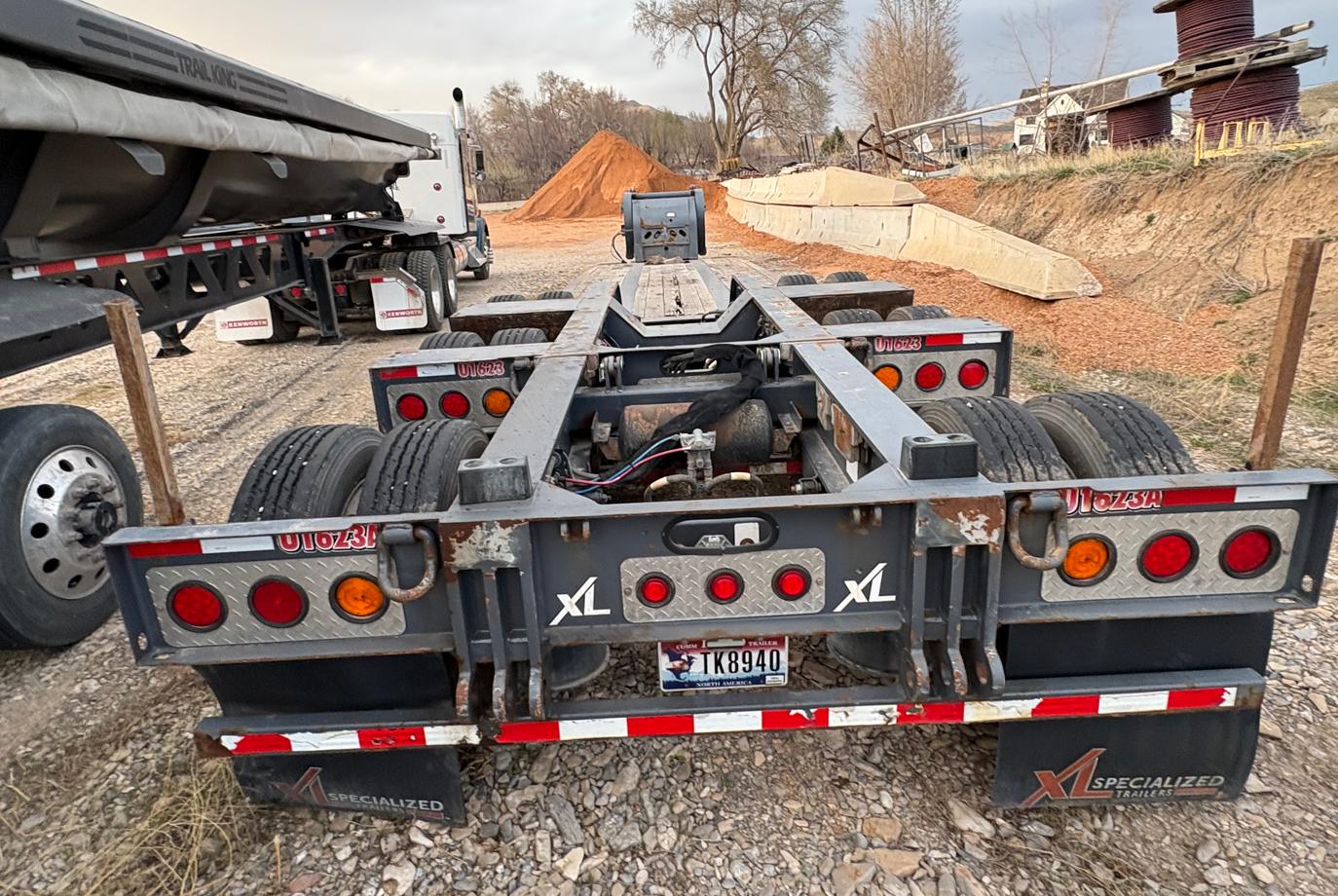

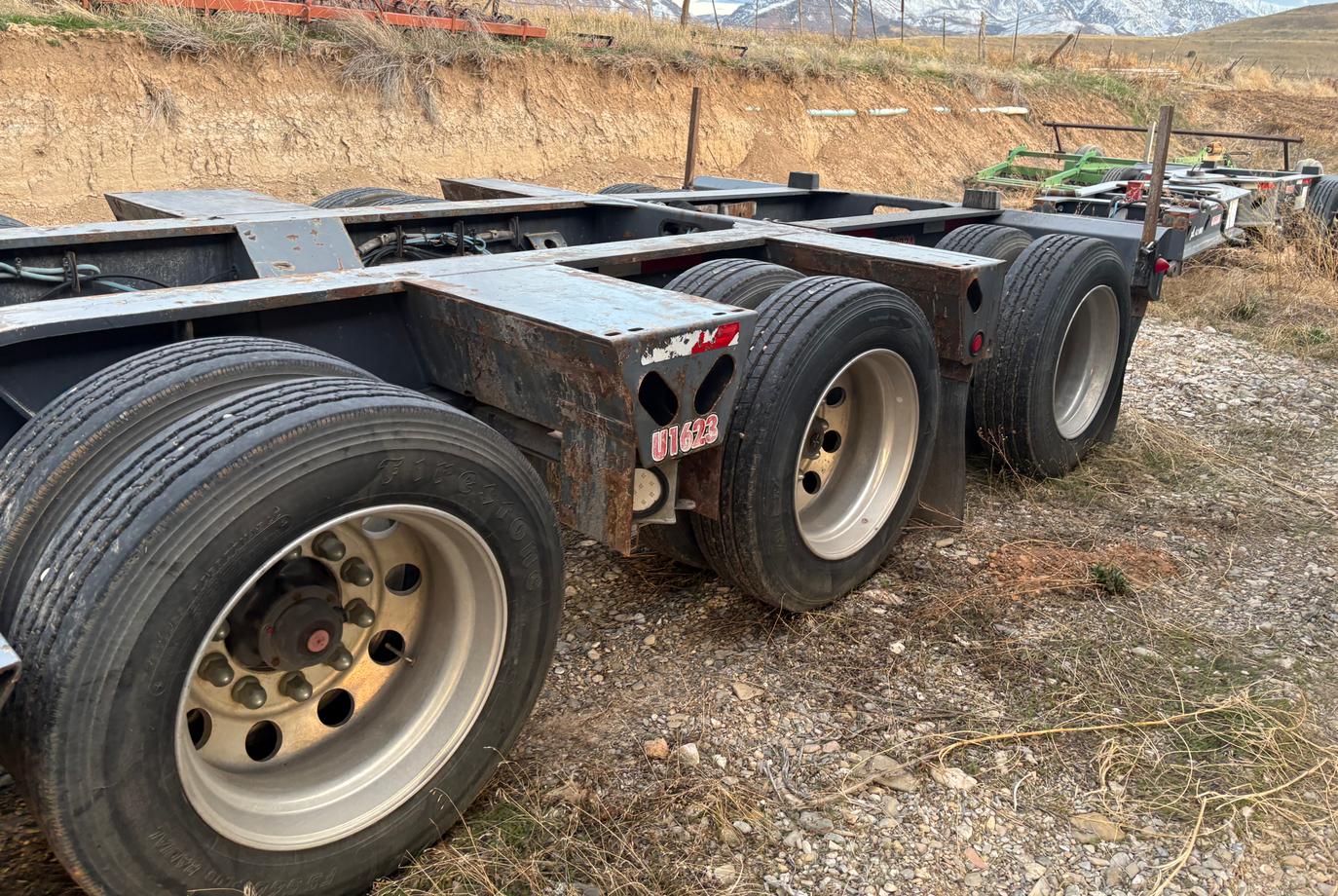

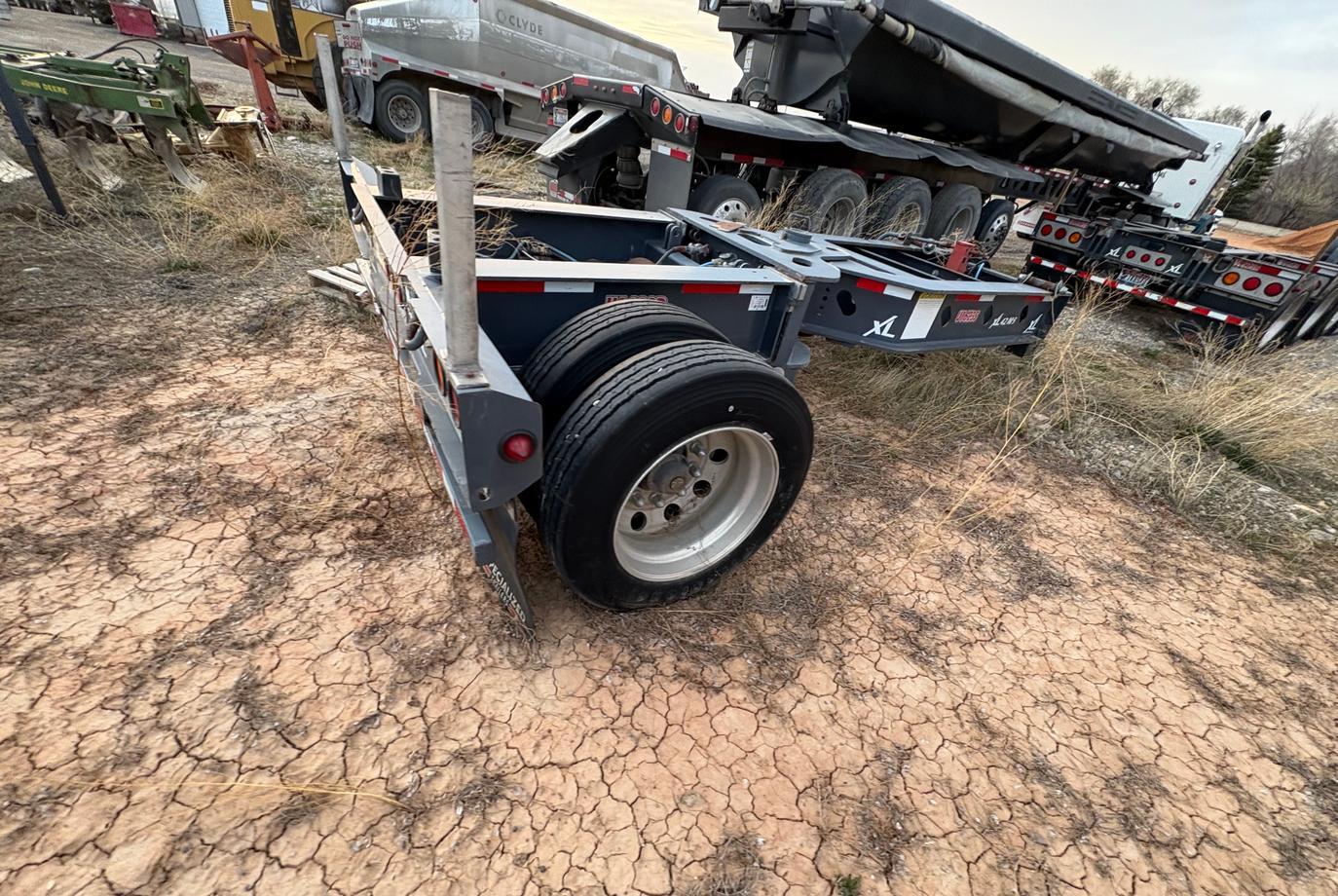

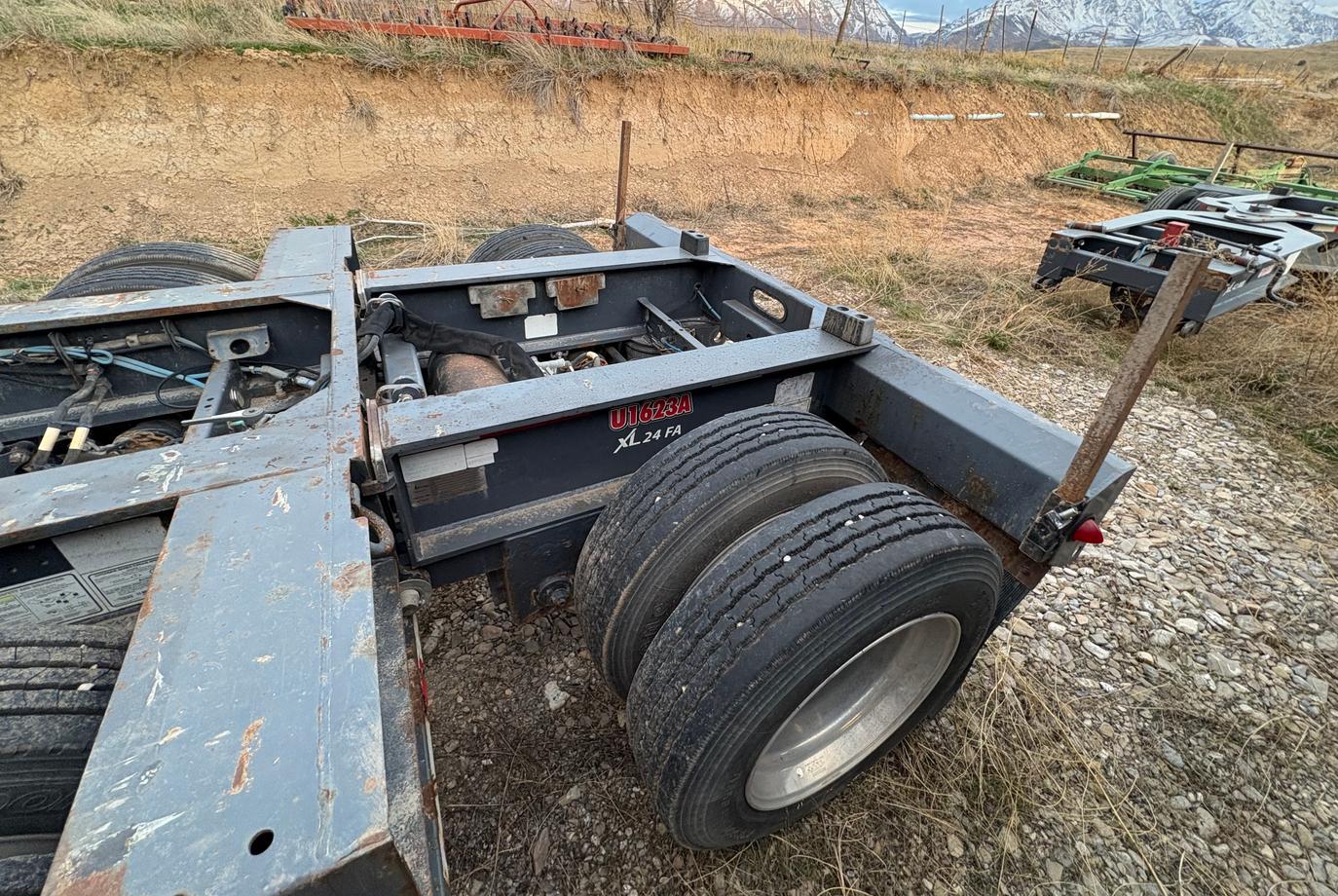

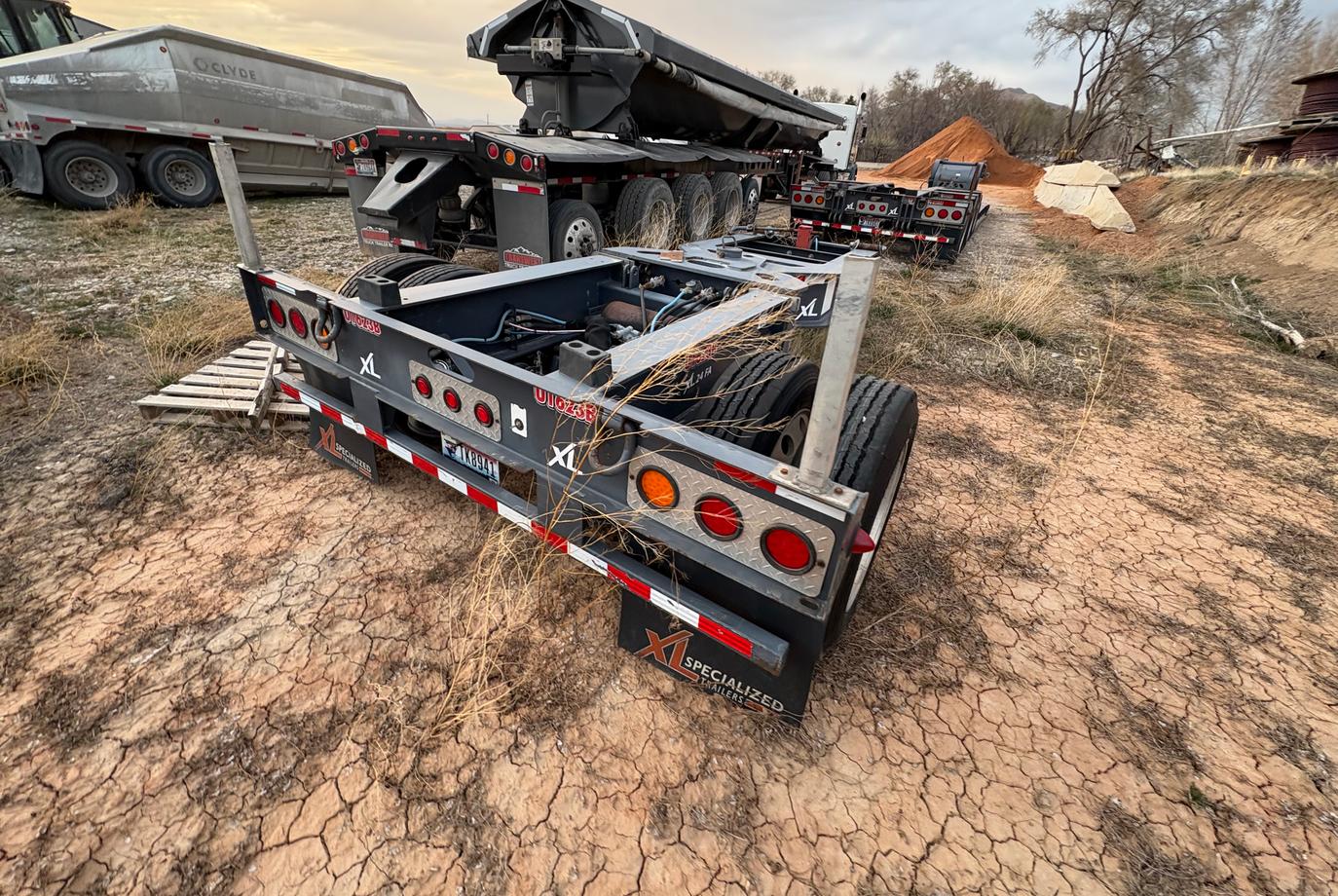

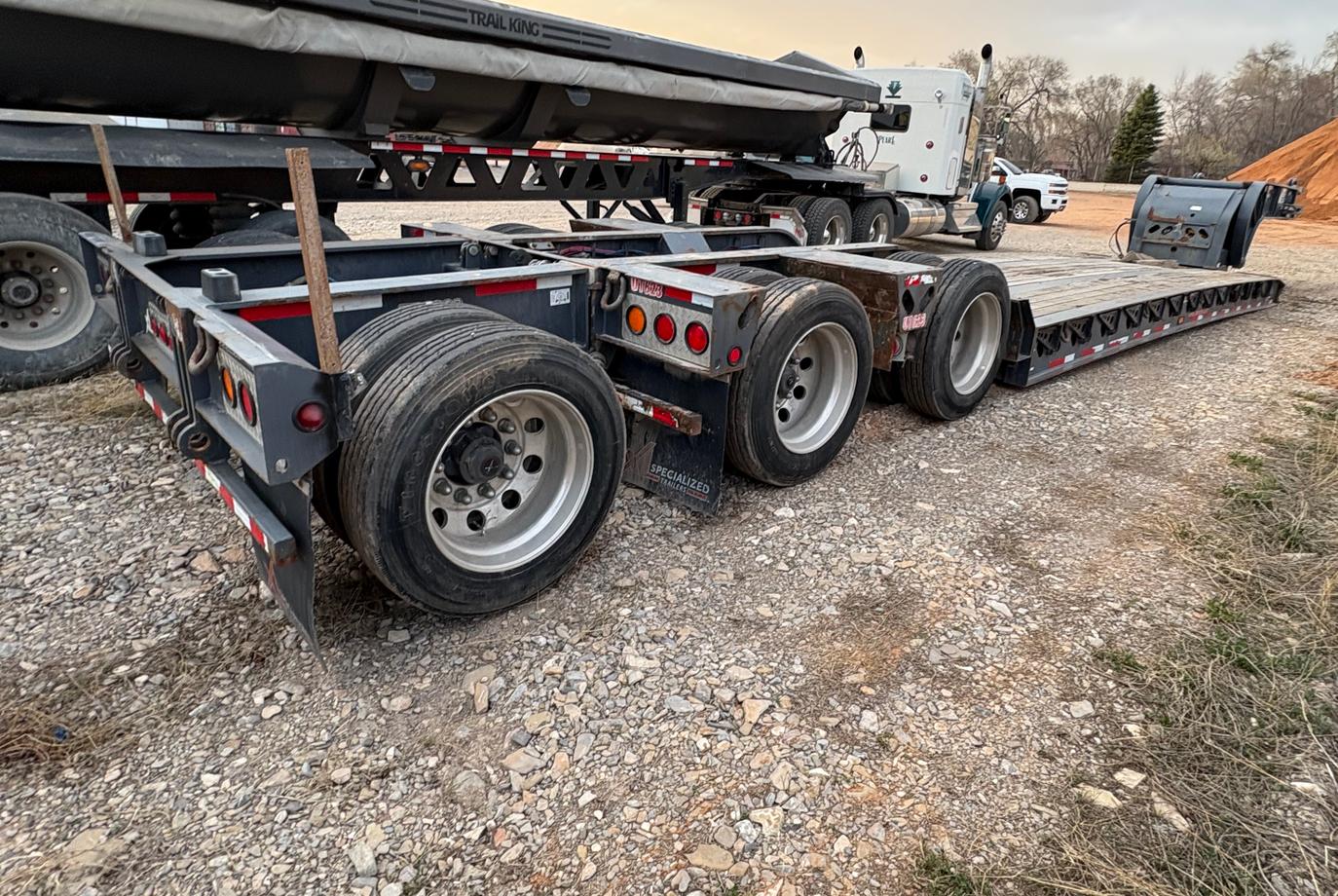

• XL 24FA Flip Axle Trailer: Flip axle configuration; Rear deck: 60″ long, loaded deck height 40″; Single 25,000‑lb nominal axle with 60″ axle spacing; Hend‑Turner air ride suspension; Open wheels with open center; one pair of flag holders; 4″ amber strobe light as a third tail light; variant includes extra frame reinforcement with air, brackets, and electrical provisions for pin‑on axles

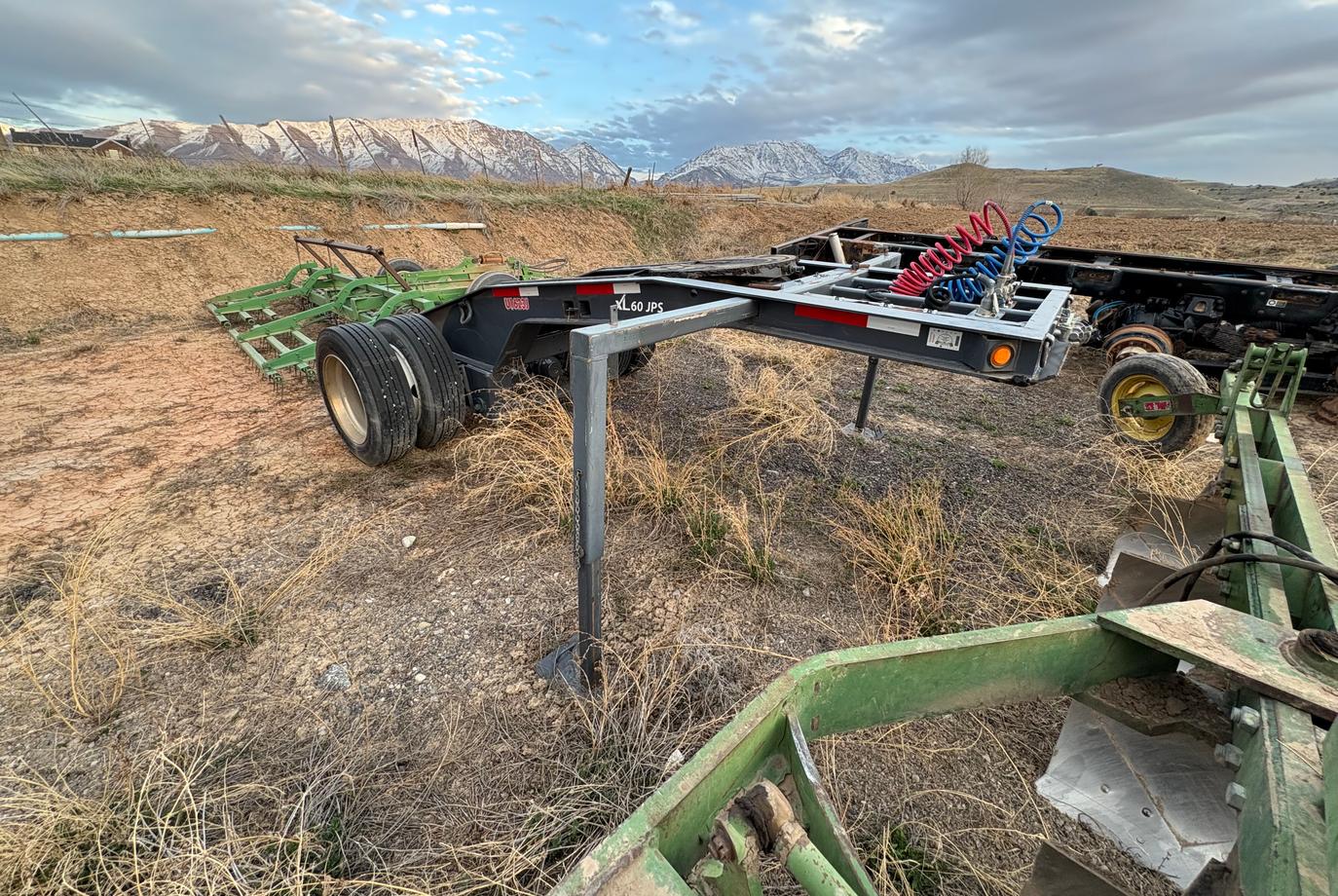

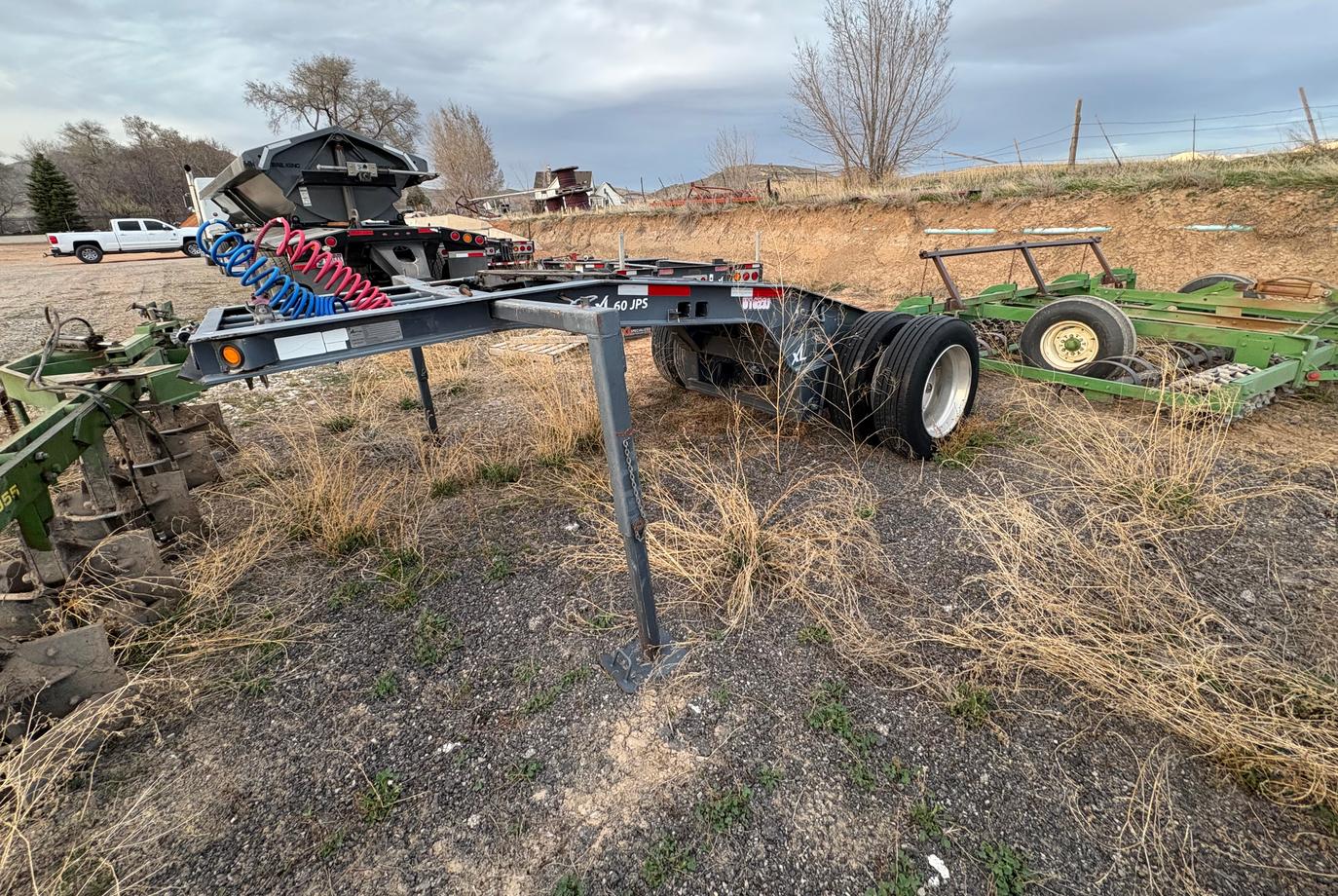

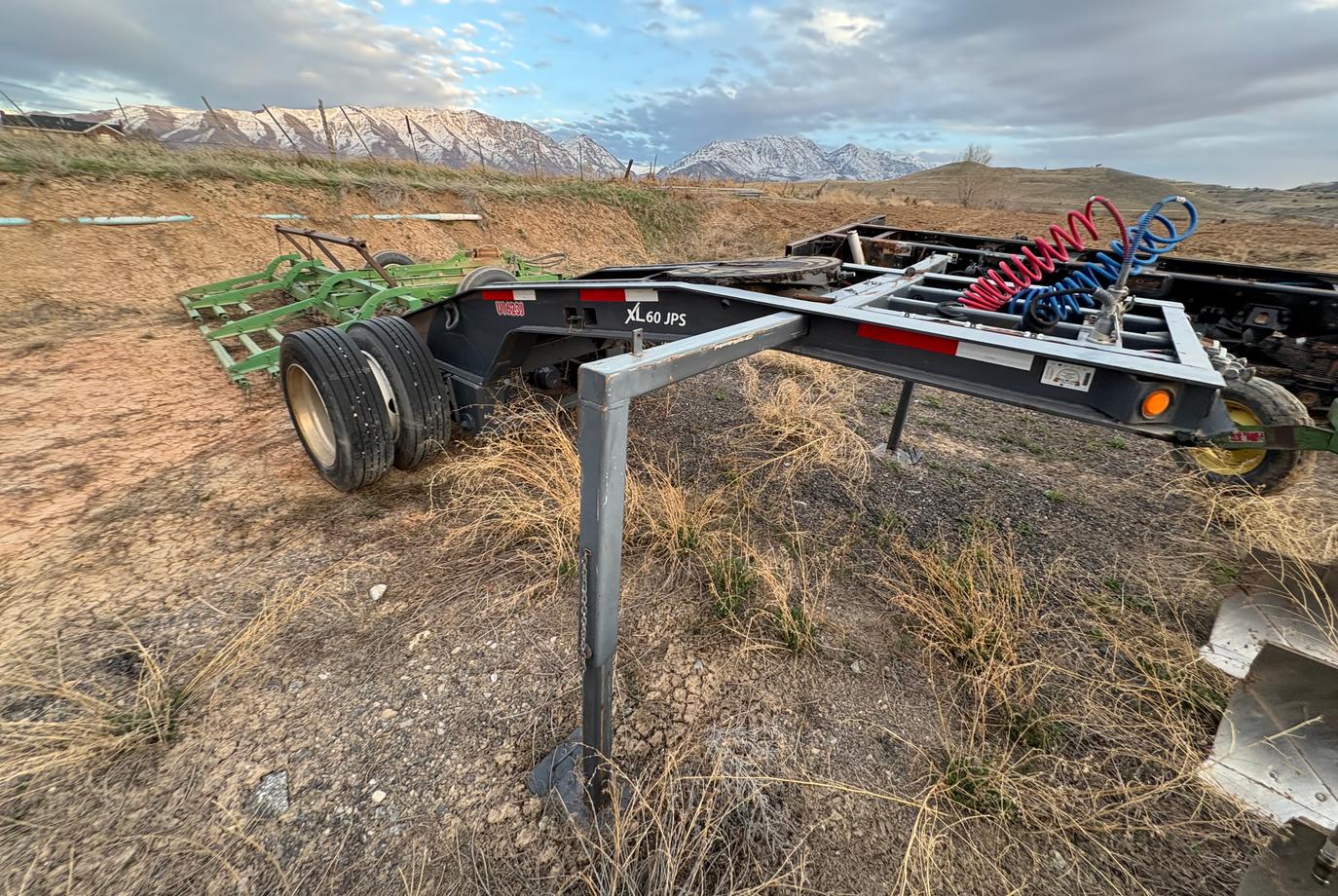

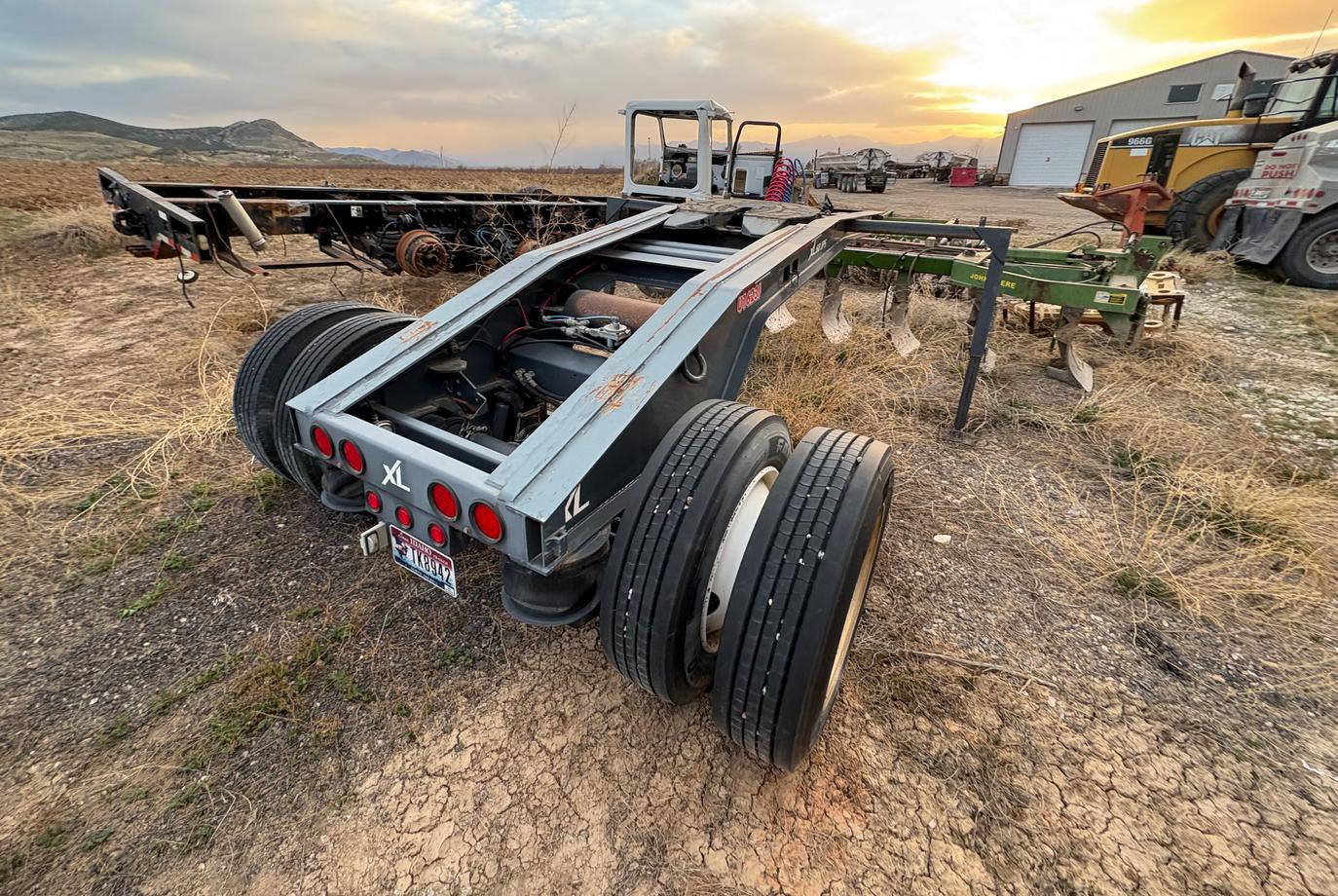

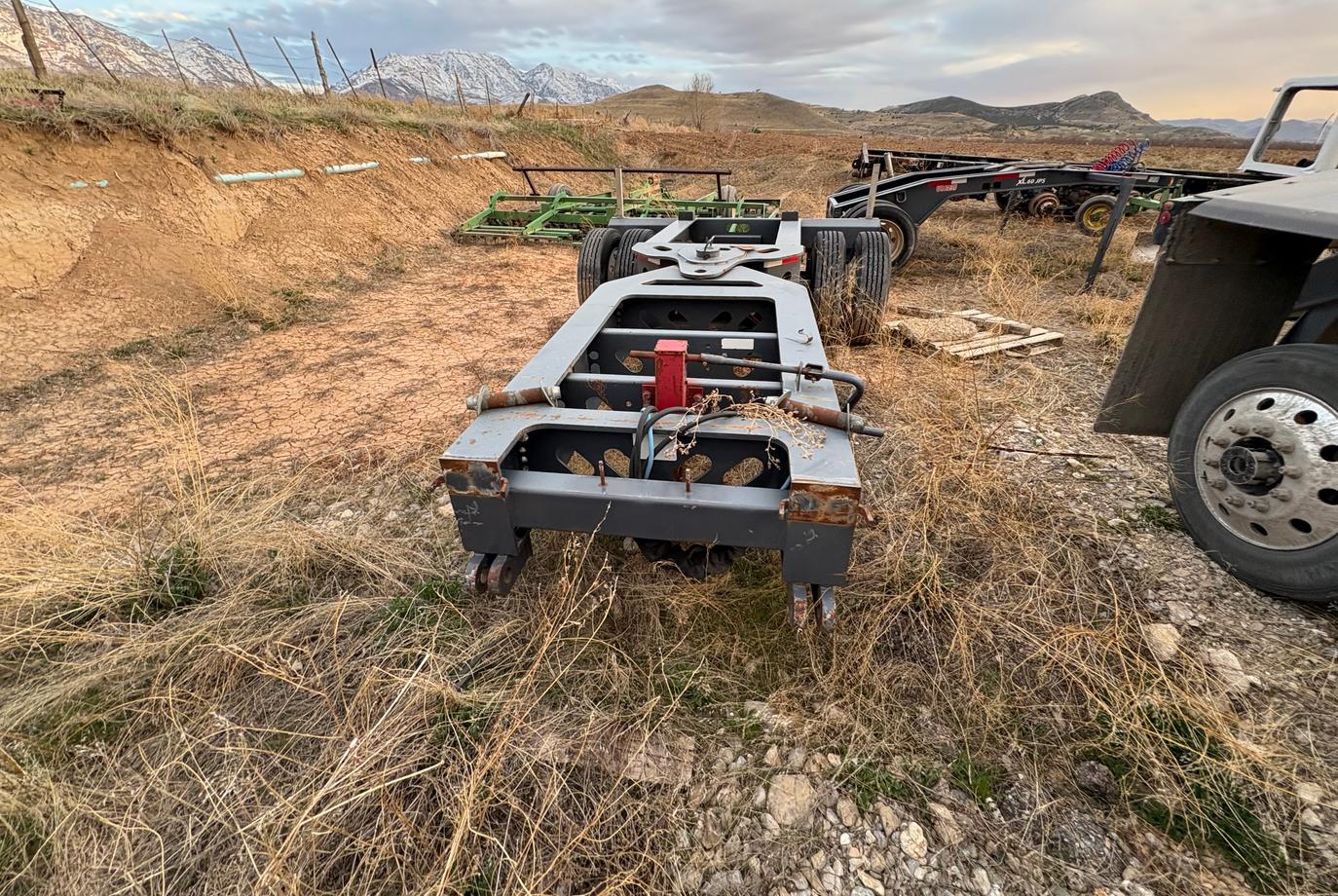

• XL 60JPS Jeep Trailer: Overall length of 23,794 (units to be verified); King Pin Setting: 16″; Swing Clearance: 84″; 5th Wheel Height: 49″ (loaded height: 56″); Single 25,000‑lb nominal axle with spring brakes (ABS not applicable); Hendricksen air ride suspension; Two-tail light package; D‑rings at the neck (one per side at the front and one bent per side at the rear); gooseneck support leg rated at 950
