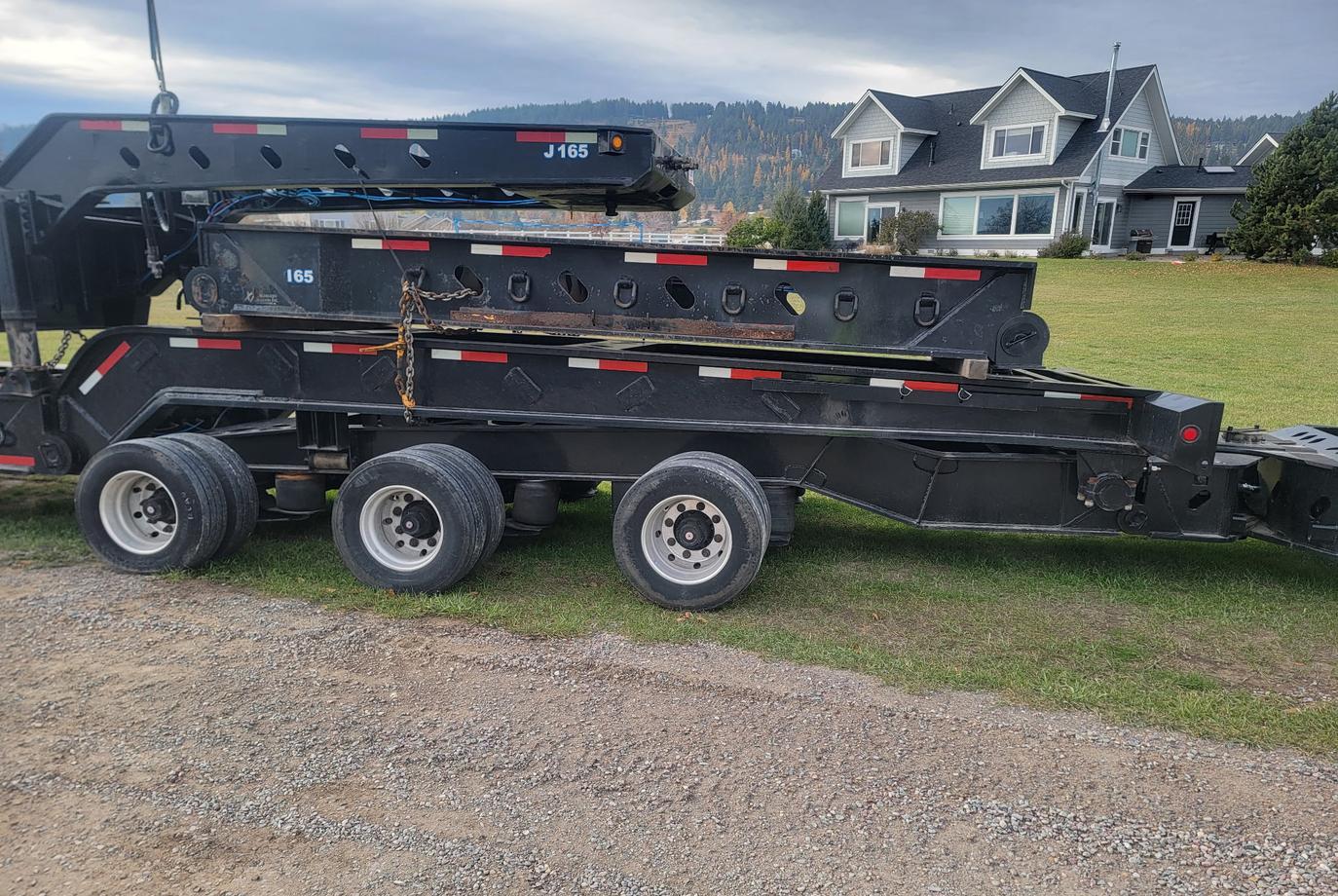

2013 XL Specialized 170 MG Trailer

XL Specialized 170 MG – Lowboy, 30' main deck, ( 3 ) 30,000 NOMINAL axles

2013 XL Specialized 170 MG Lowboy trailer with 30' main deck and ( 3 ) 30,000 NOMINAL axles.

Key Specs

• Year: 2013
• Tare weight: 36,500
• Main deck length: 30'
• Rear deck length: 21'
• Loaded deck height (main): 26" W/ 6" GROUND CLEARANCE
• Loaded deck height (rear): 44"

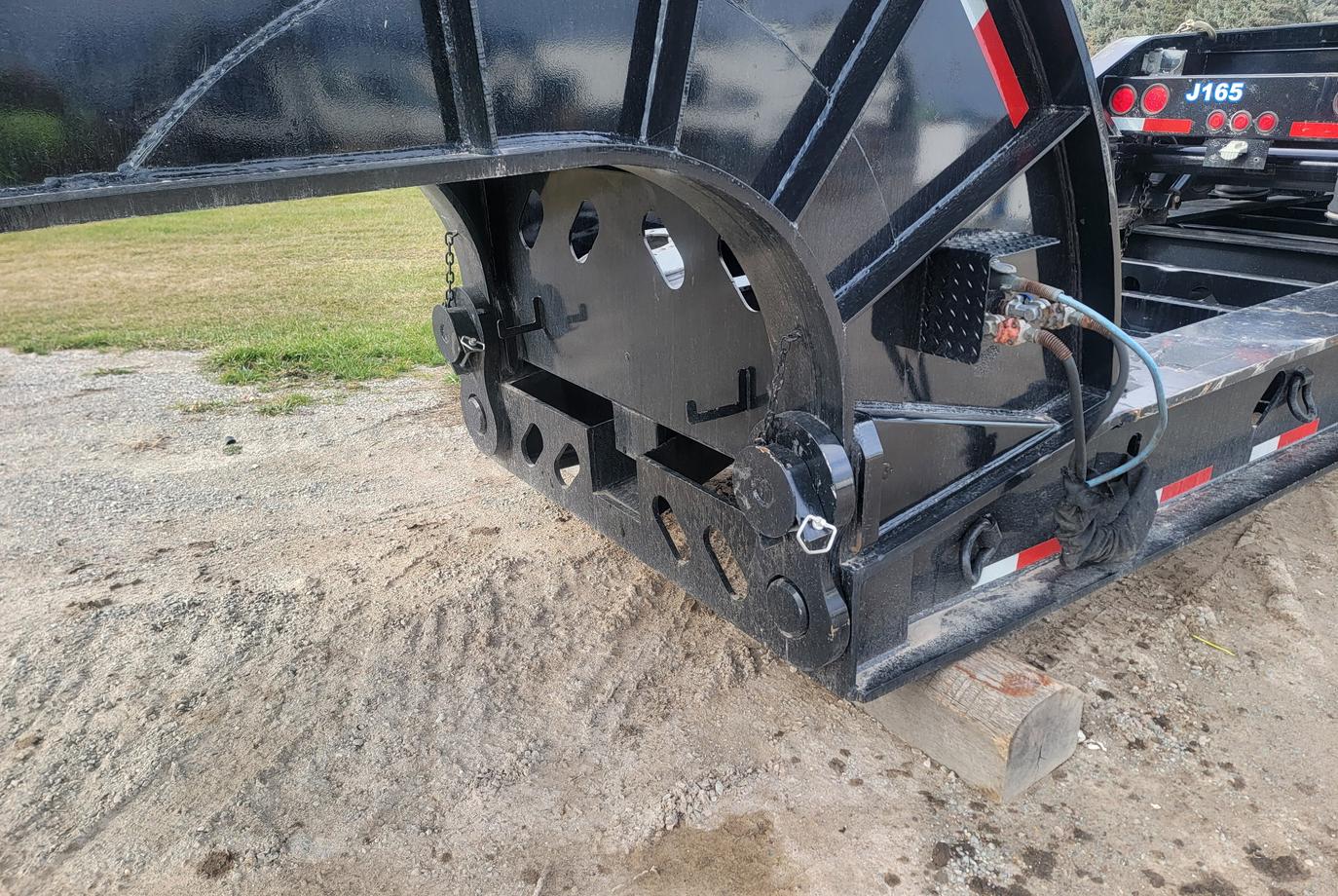

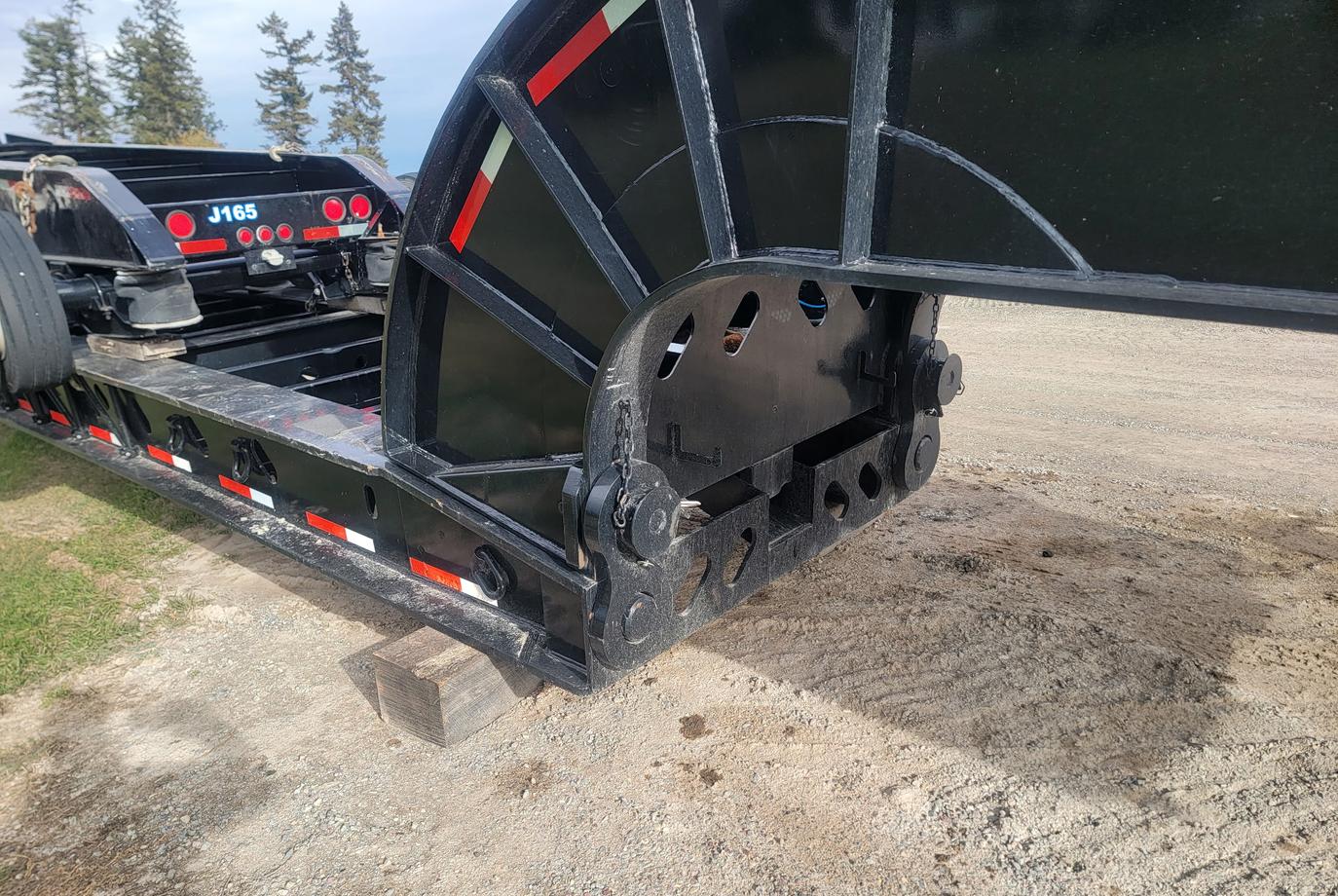

Gooseneck

• Length: 14' 3"
• King pin setting: 16"
• Swing clearance: 115"
• 5th wheel height: 59"
• Flip neck: FRAME REINFORCEMENT, AIR, ELECTRIC AND BRACKETS FOR 142" FLIP NECK EXT. 142" FLIP NECK EXTENSION

Main Deck

• Decking: 2" OAK DECKING, RAISED BETWEEN MAIN BEAMS AND OUTSIDE BEAMS ONLY
• Crossmember: FAB 12" X-MEMBERS ON 24" O/C
• Side beams: 2 BEAMS 20"; 2 BEAMS 16"
• T-deck: FIRST 8' SECTION OF MAIN DECK TO BE MAIN BEAMS ONLY, NEXT 10' SECTION TO BE 114'' WIDE, FINAL 12' SECTION BE BE MAIN BEAMS ONLY.

Axles & Suspension

• Axles: ( 3 ) 30,000 NOMINAL, 97 1/2'' TRACKING
• Suspension: CUSH / 25,000 CAPACITY / AIR
• Axle spacing: 60"
• ABS: N/A
• Spring brakes: SPRING BRAKES ON ALL 1 AXLES

Wheels & Tires

• Tires: MICHELIN 245/70R/17.5
• Wheels: 6.75 X 17.5 / ALUMINUM MILLED INSIDE & OUTSIDE / DISC / PILOTED HUBS
• Wheel covers: 16 GAUGE INDIVIDUAL STAINLESS STEEL WHEEL COVERS
• Brakes: DISC DRUMS

Lighting & Safety

• Electrical: 12V SEALED GROTE SYSTEM WITH 3 TAIL LIGHT ALUM. PACKAGE
• Strobe: 4" AMBER STROBE WITH SWITCH TO MAKE 3 STT
• LED lighting: LED LIGHTING BRACKETS IN WHEEL AREA FOR SHIMS

Additional Features

• Paint: WHITE URETHANE WITH 2 PART EPOXY PRIMER
• Frame reinforcement: FRAME REINFORCEMENT FOR THREE AXLE BOOSTER BRACKETS, AIR & ELEC.
• Air bag shut offs: AIR BAG SHUT OFFS
• Scale: DIGITAL AIR WEIGH SCALE
• Ride height control: MANUAL RIDE HEIGHT CONTROL RAISE AND LOWER VALVE
• Legal setup: CA LEGAL WEST COAST SET UP
• Detachable wheel area: DETACHABLE WHEEL AREA WITH HORIZONTAL PINS
• D-rings (main): 20 BENT D-RINGS
• D-rings (tail): 2 BENT D-RINGS IN TAIL CHANNEL
