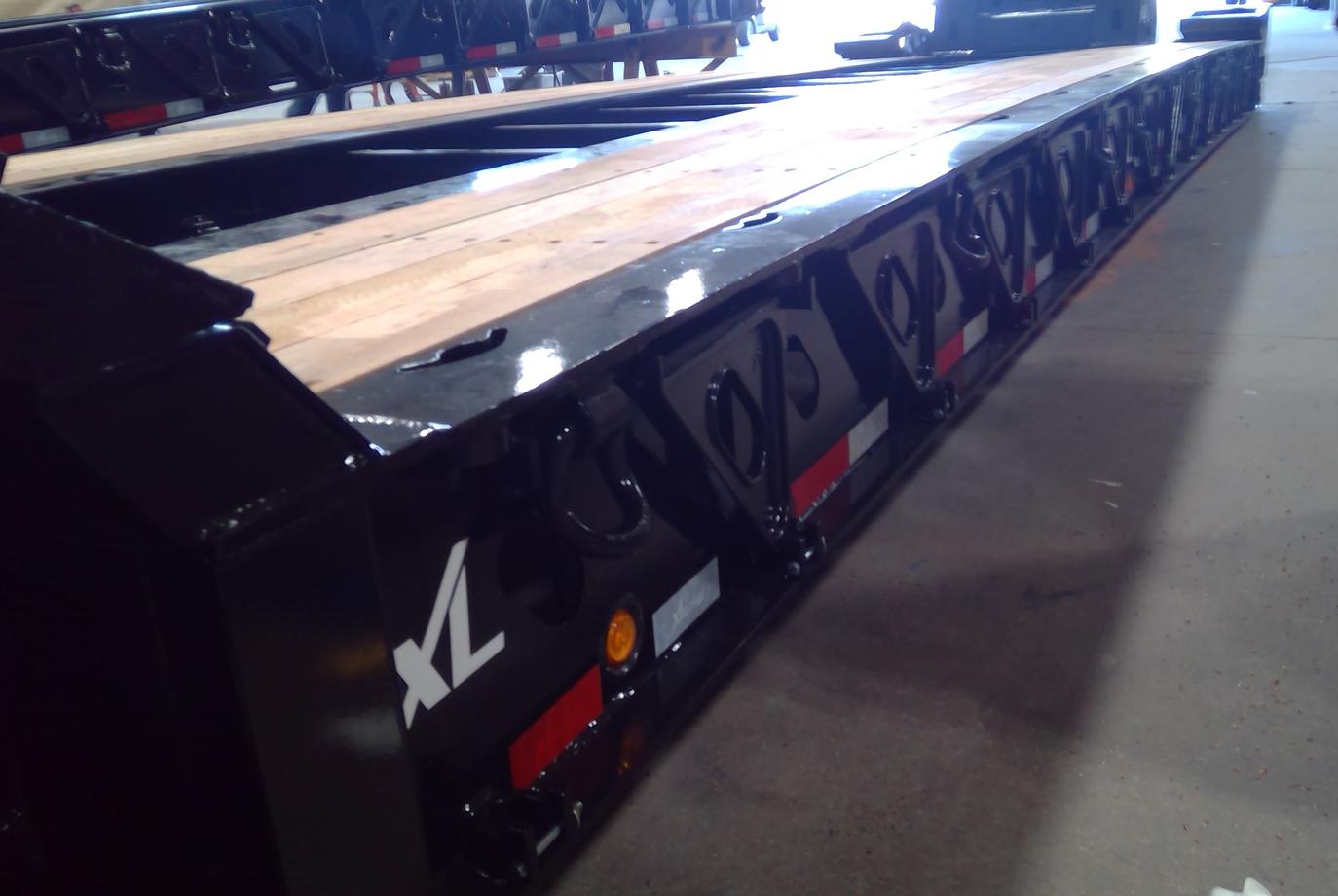

XL Specialized 110 HDGS Trailer

XL Specialized 110 HDGS – Lowboy, 53' x 102"

XL Specialized 110 HDGS Lowboy with 53' overall length and 102" overall width.

Key Specs

• Manufacturer: XL Specialized
• Model: 110 HDGS
• Category: Lowboy
• Overall Length: 53'
• Overall Width: 102"
• Capacity: 110,000 LB DISTRIBUTED; 110,000 LB IN 12'-GOOSENECK-

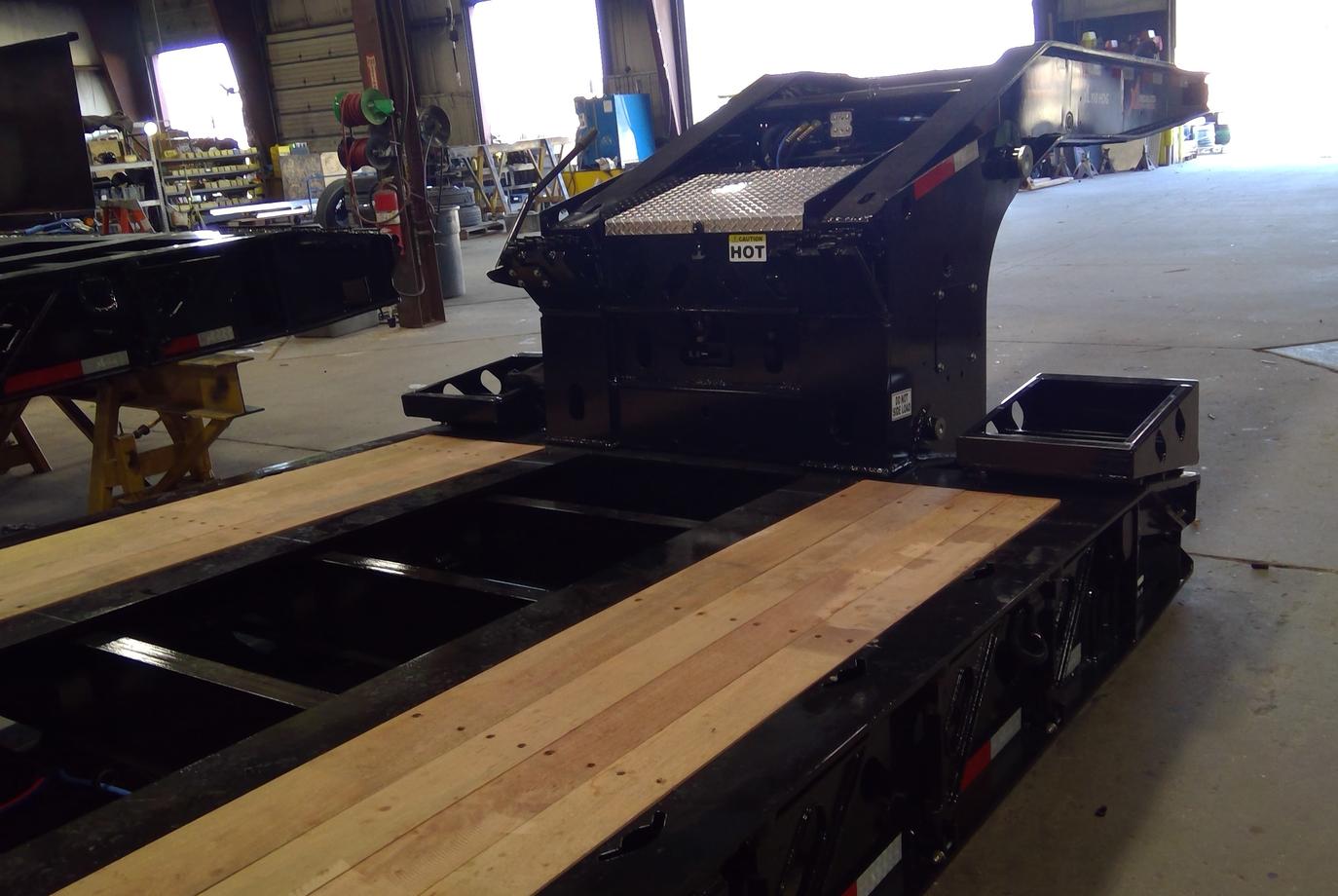

Neck & Decks

• Neck Style: LOW-PROFILE SCRAPER NECK
• Neck Length: 13'
• Kingpin Setting: 16" 42"
• Swing Clearance: 110" 84"
• 5th Wheel Height: 51" W/5 VARIABLE RIDE HEIGHT POSITIONS
• Main Deck Length: 25'
• Main Deck Loaded Height: 22" W/ 6" GROUND CLEARANCE
• Rear Deck Length: 15' WITH 32 DEGREE REAR TRANSITION
• Rear Deck Loaded Height: 41'

Structural

• Decking: 1 3/8" APITONG DECKING, RAISED - CENTER OPEN
• Crossmembers: 10" & 4" STUBBED JR I-BEAMS 12" ALTERNATING CENTERS
• Beams: (4) 16" FAB I-BEAMS TOP FLANGE REINFORCEMENT, FRONT RAMP AND MAIN DECK
• D-Rings: (7) BENT D-RINGS PER SIDE
• Outriggers: REMOVABLE H.D. SWING OUT OUTRIGGERS - 24" CENTERS, CENTER SWINGS TOGETHER; (1) EXTRA PAIR OF REMOVABLE SWING OUTRIGGERS ON FARTHEST REAR OF MAIN DECK TO BE USED ONLY WHEN NEEDED BRACKETS INSTALLED, STORE EXTRA PAIR OF OUTRIGGERS IN TOOL BOX TO SHIP LOOSE PULLOUT FRONT H.D. OUTRIGGER
• Chain Drops (outside beams): 24" CENTERS - OUTSIDE BEAMS-REAR DECK-
• Chain Drops (bolster): (2) CHAIN DROPS PER BOLSTER
• Stake Pockets: (2) STAKE POCKETS AT REAR

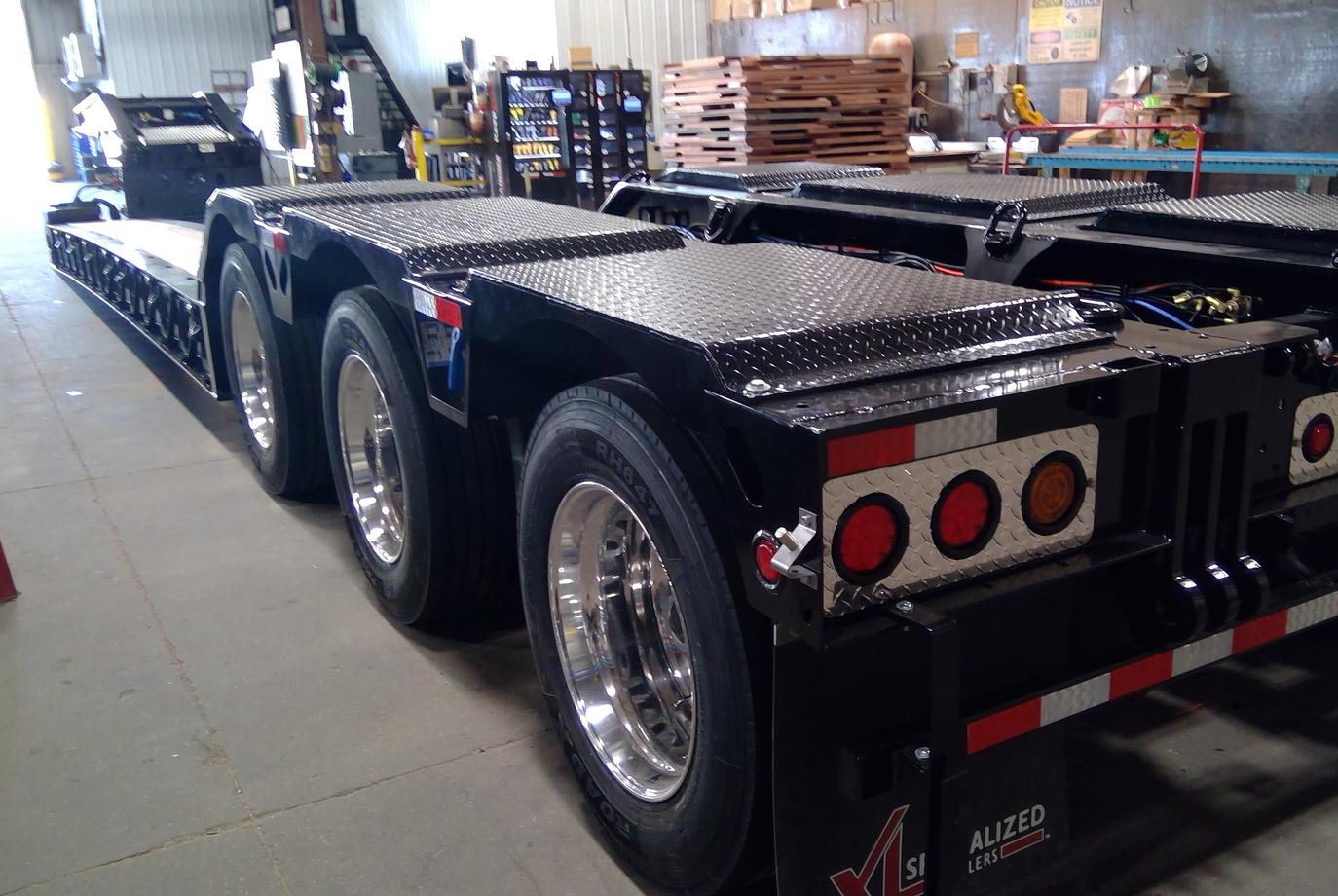

Axles & Suspension

• Axles: (3) 25,000 LBS. NOMINAL (5/8" WALL)
• Suspension: HENDRICKSON / 25,000 CAPACITY / AIR RIDE
• Axle Spacing: 60"
• ABS: N/A SPRING BRAKES ON (1) AXLE
• Tires: 275 / 70R / 22.5 (J)
• Wheels: 8.25 X 22.5 10-HOLE PILOT MOUNT POLISHED ALUMINUM OUTSIDE, STEEL INSIDE DISC
• Brakes: 16 1/2" X 7"
• Drums: OUTBOARD

Hydraulics & Control

• Hydraulics: 13 HP HONDA SCU, DUAL HYDRAULICS, W/ ALUMINUM COVER
• Coupler: 1" WING TYPE COUPLER

Electrical & Lighting

• Electrical: 12V SEALED GROTE SYSTEM WITH (3) TAIL LIGHT ALUMINUM PACKAGE 4" AMBER STROBE TO BE USED AS 3RD TAIL LIGHT BATTERY BACK UP W/ 4-WAY PLUG
• Work Light: STRILLIANT WORK LIGHT-MAIN DECK-
• Additional Clearance Lights: (2) ADDITIONAL CLEARANCE LIGHTS PER SIDE

Additional Features

• Decking (bolster/boom trough): OPEN WHEELS BOLSTER STYLE, OPEN BOOM TROUGH, FLAT STYLE BOOM TROUGH HEAVY DUTY RAISED REMOVABLE LOAD BEARING WHEEL COVERS
• Manual Ride Height Control: MANUAL RIDE HEIGHT CONTROL
• Prep: PREP FOR SINGLE AXLE BOOSTER
• Top Connections: NO ADDITONAL TOP CONNECTIONS
• Valve: COLAS+ RAISE AND LOWER VALVE
• Bucket Well: BUCKET WELL AT REAR OF MAIN DECK WITH PLATE ON BOTTOM - 4 FLAT D-RINGS
• Front Flip Ramps: 31" FRONT FLIP RAMPS
• Air Lift: AIR LIFT ON REAR AXLE
• Air Gauge: LIQUID FILLED AIR GAUGE
• Tool Box: TOOL BOX IN FRONT OF MAIN DECK WITH 4 FLAT D-RINGS
• Flag Holders: (2) PAIR EZ MOUNT FLAG HOLDERS
• Sign Bracket: D-SIGN BRACKET IN TAIL CHANNEL
