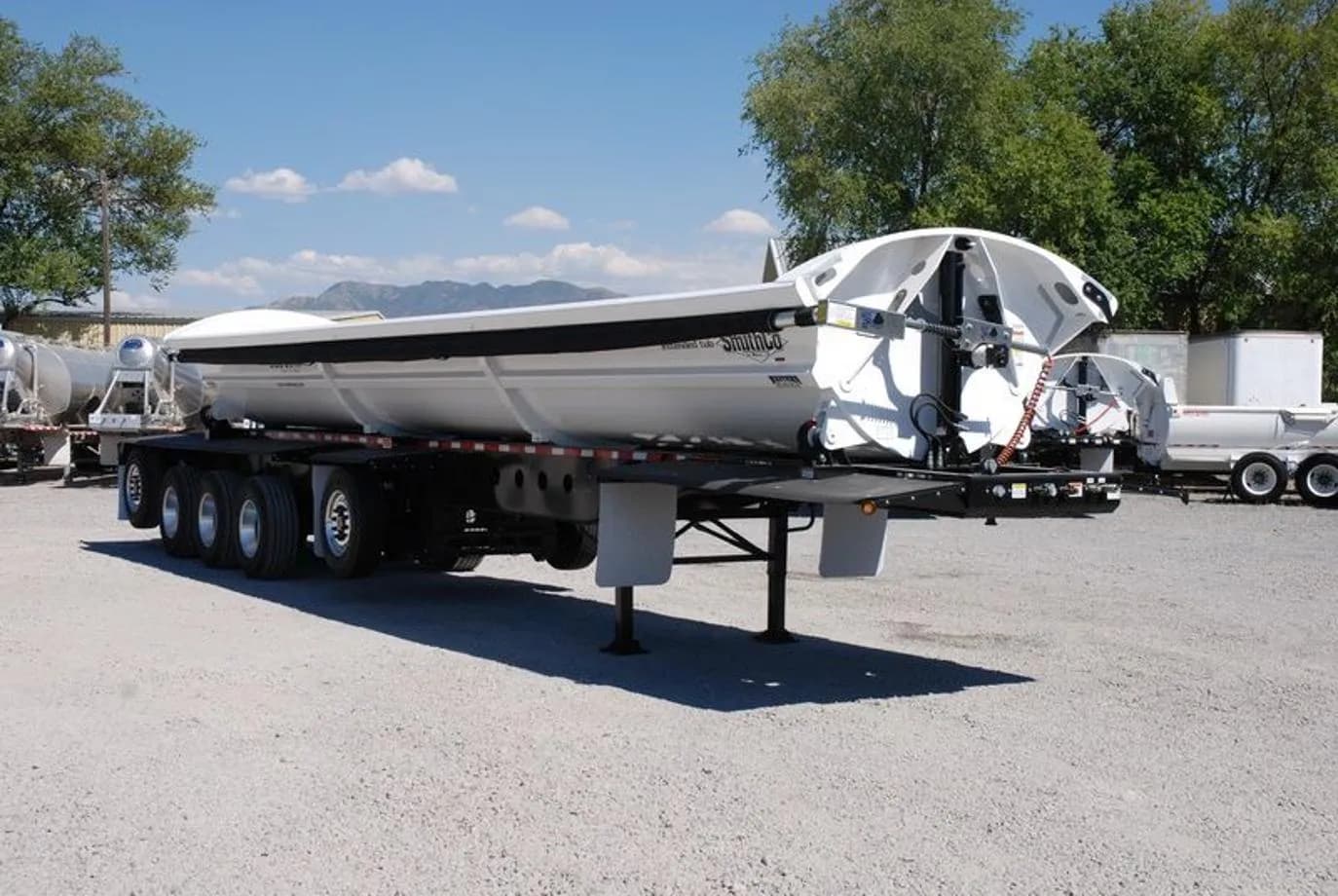

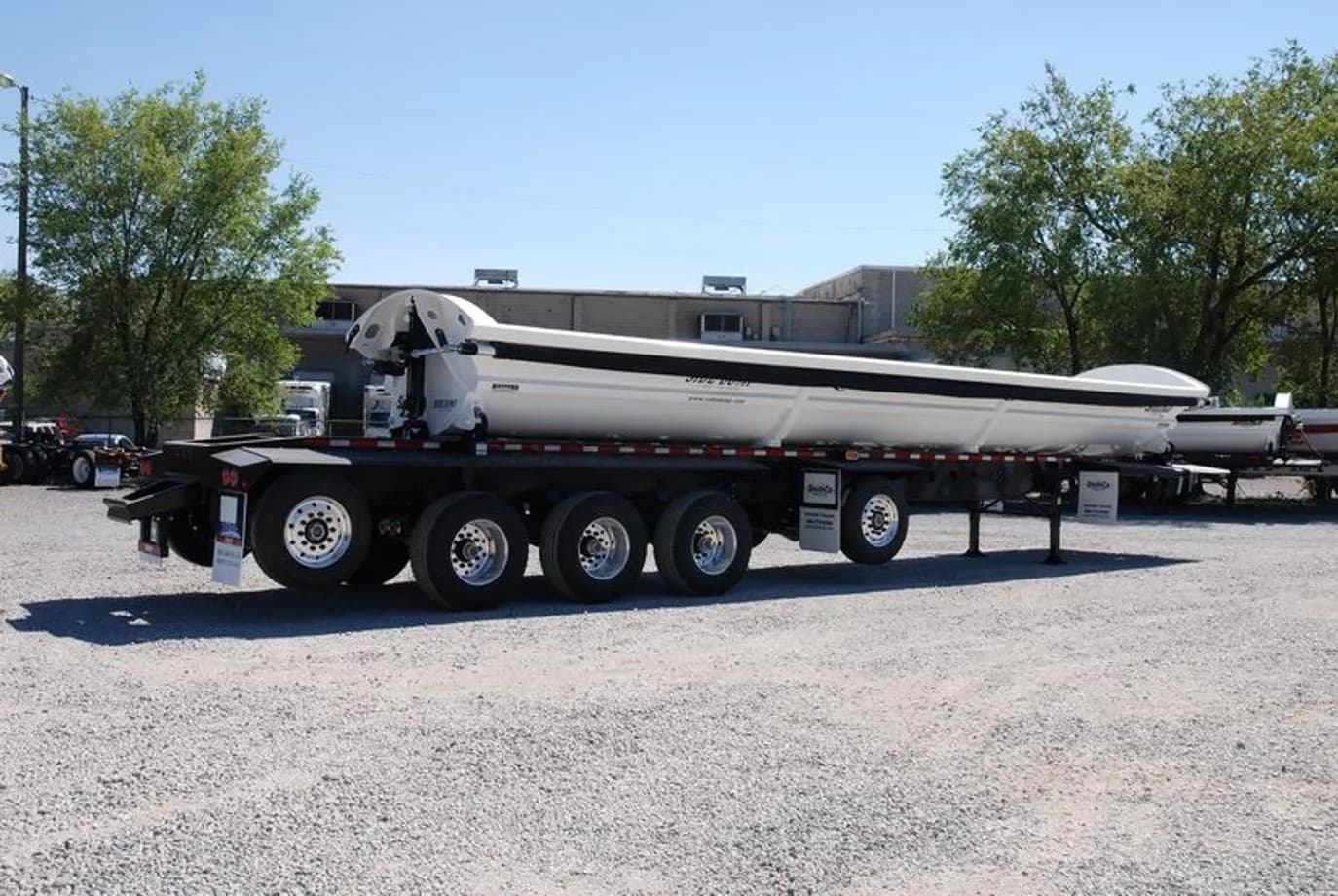

2025 SmithCo SX5-49-38 Side Dump

SmithCo SX5-49-38 – Side Dump, 49' frame, 38' tub

SmithCo SX5-49-38 side dump trailer with 49' frame and 38' SX-ROUND BOTTOM tub. Tub sides and tub floor: ¼" AR400.

Key Specs

• Manufacturer: SmithCo
• Model: SX5-49-38
• Category: Side Dump
• Width: 102" WIDE
• Frame Length: 49'
• Tub Length: 38'
• Tub Volume (water level): 38' SX – WATER LEVEL – 25.5 CUBIC YARDS
• Tub Volume (heaped): 38' SX – HEAPED – 33.8 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: ¼" AR400
• Tub Floor: ¼" AR400
• Tub Dividers: 0

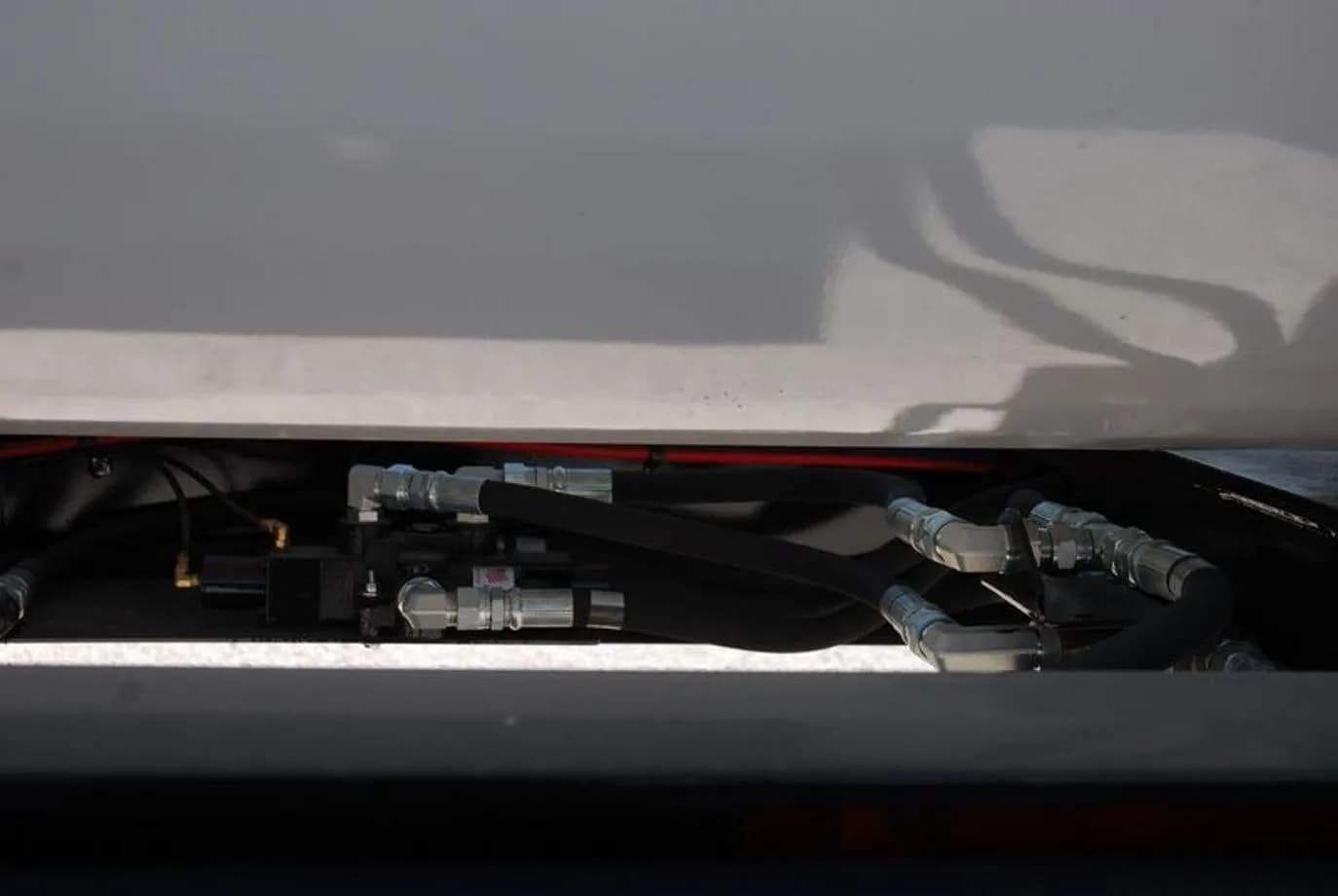

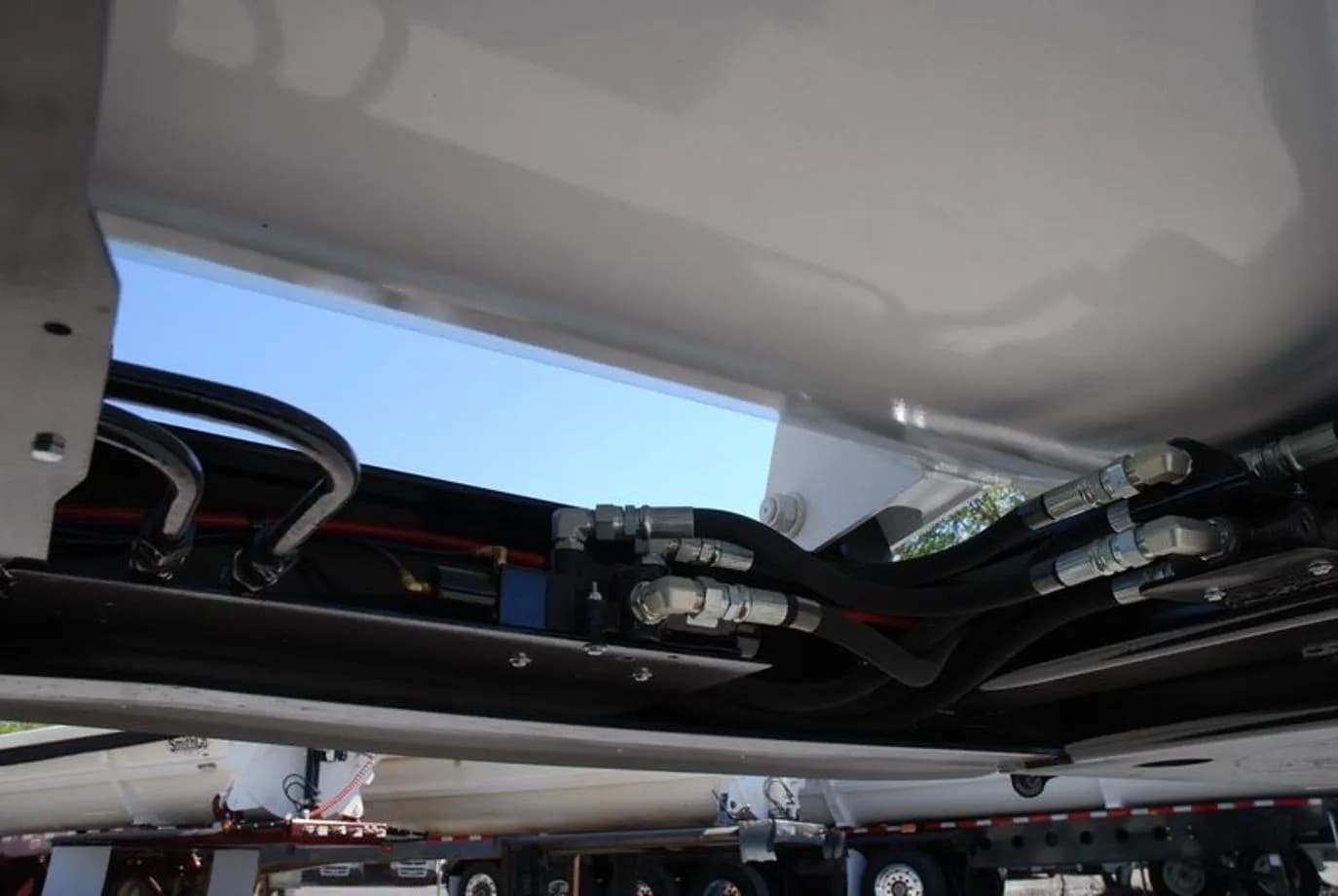

Hydraulics & Control

• Dolly Legs: MARK V
• Hydraulics: 5" CYLINDERS
• Valve on Trailer: HYDRAULIC CONTROL VALVE (AIR/HYDRAULIC)
• Lock Out Switch: TARP LOCKOUT
• Grease Bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR – STD
• Pushblock: W STYLE PUSHBLOCK – STD

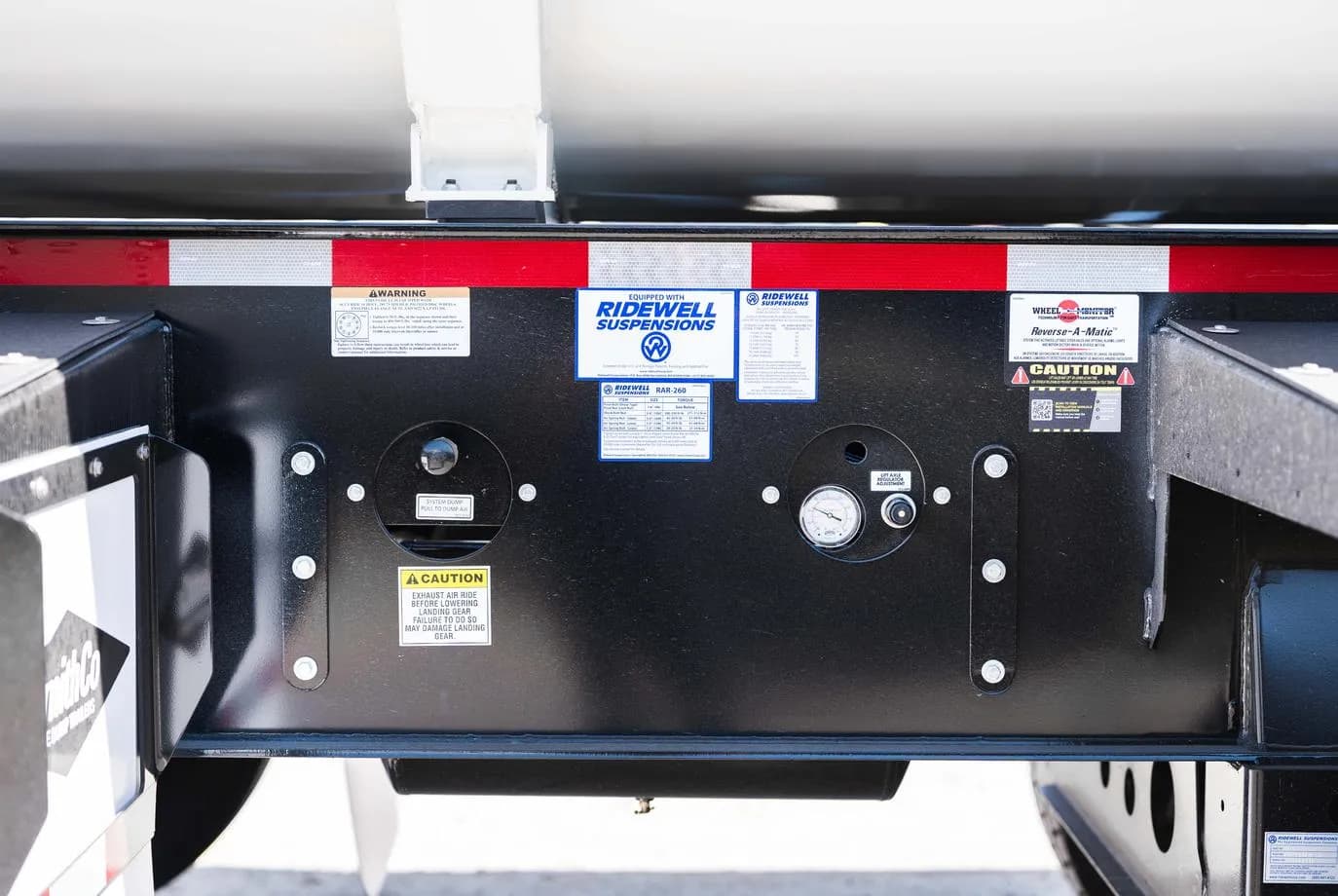

• Large liquid filled air gauge: LARGE LIQUID FILLED AIR GAUGR ON DRIVER'S SIDE – STD

Axles & Suspension

• Suspension: RIDEWELL RW260
• Axle Spacing: 97"-54"-54"-60"
• Lift Axle: 1ST & 5TH (16.6K RW L/S)
• ABS Axles: 25K 1
• Non-ABS Axles: 25K 4
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-½" x 7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.5 (6) 12.25 SS ALUM, (4) 9x22.5 ALUM
• Tires: F'STONE FS818 385/65R22.5 (6) 385/65R22.5, (4) 295/75R22.6

Additional Features

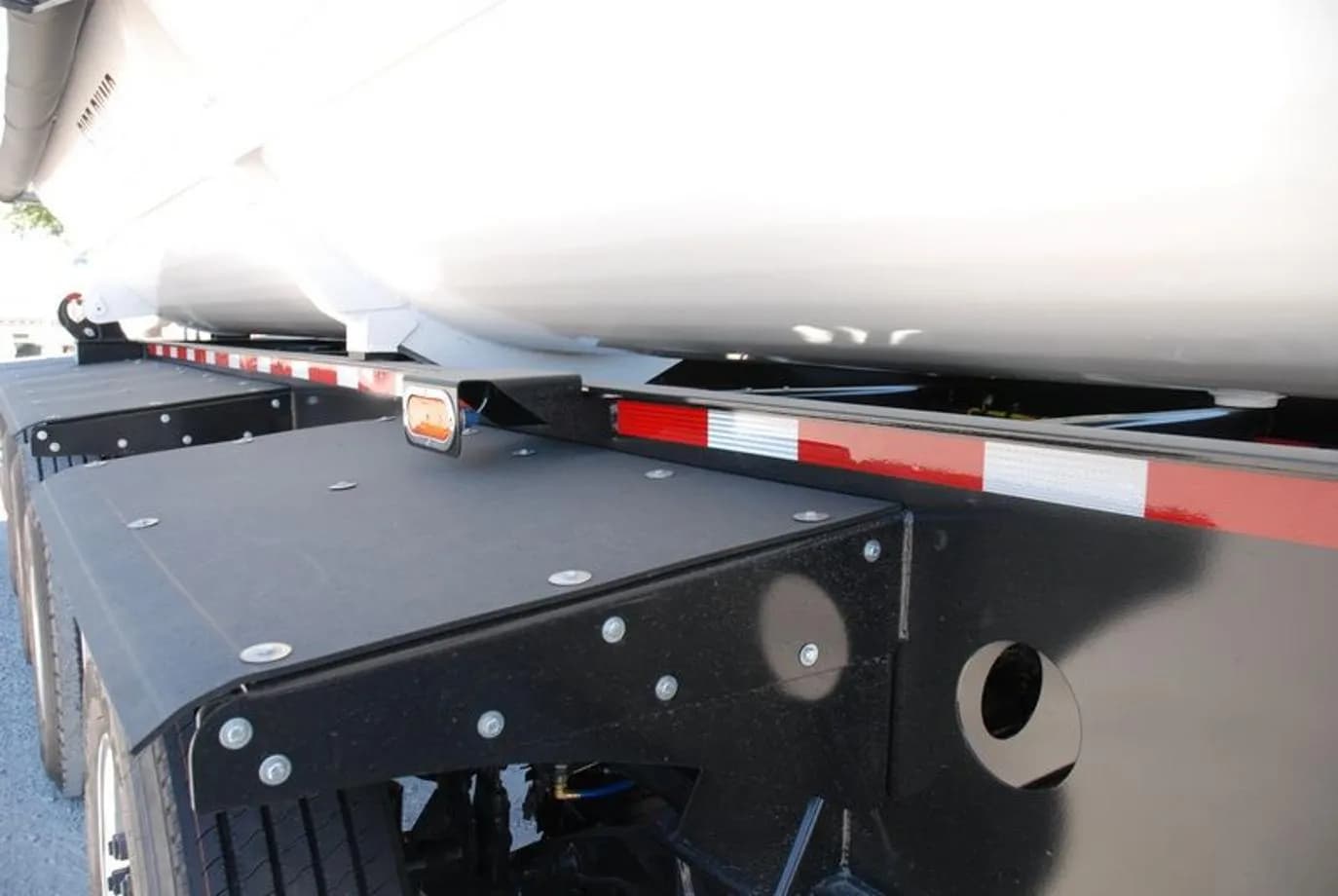

• Fenders: ALL PLASTIC

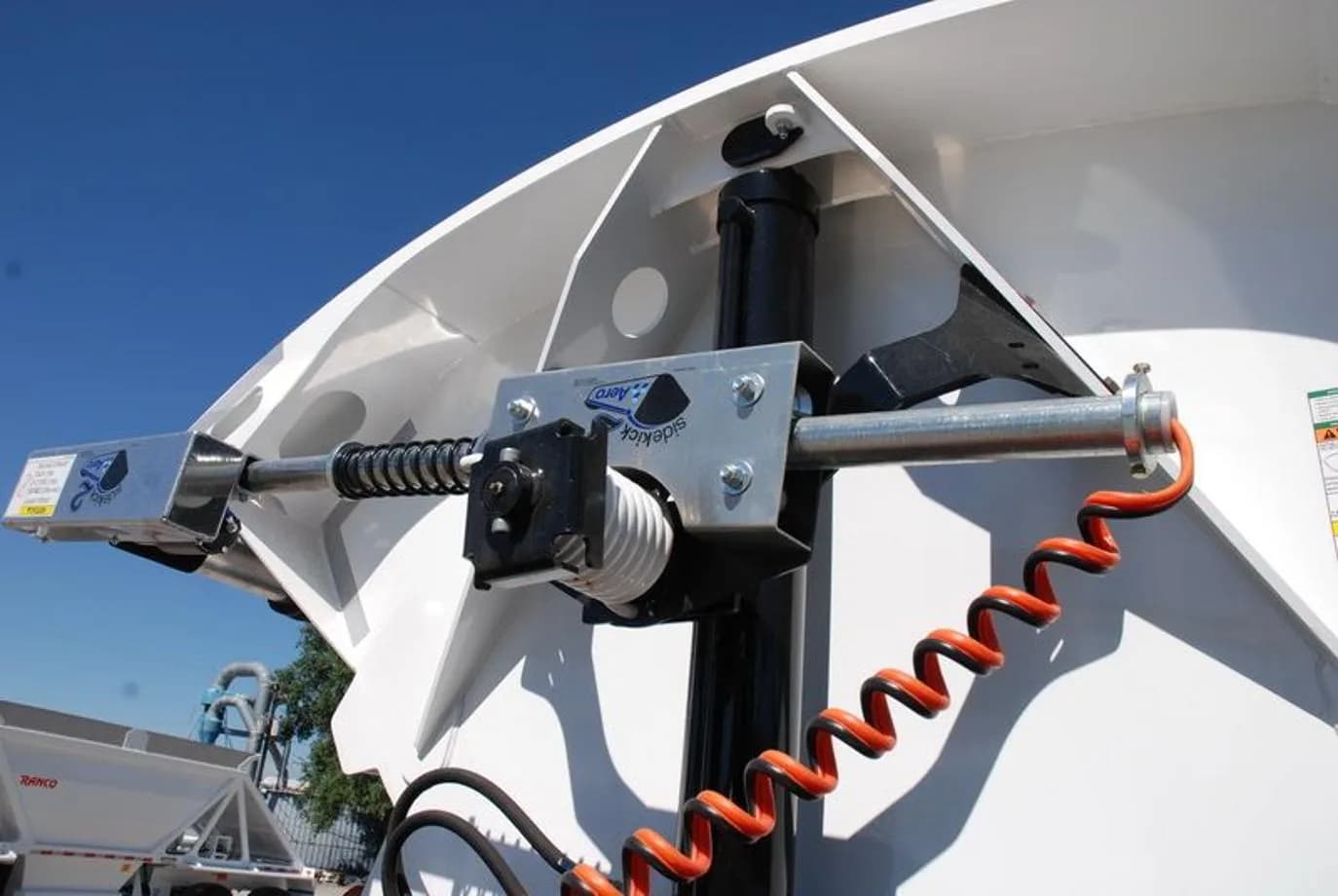

• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED

Lighting & Safety

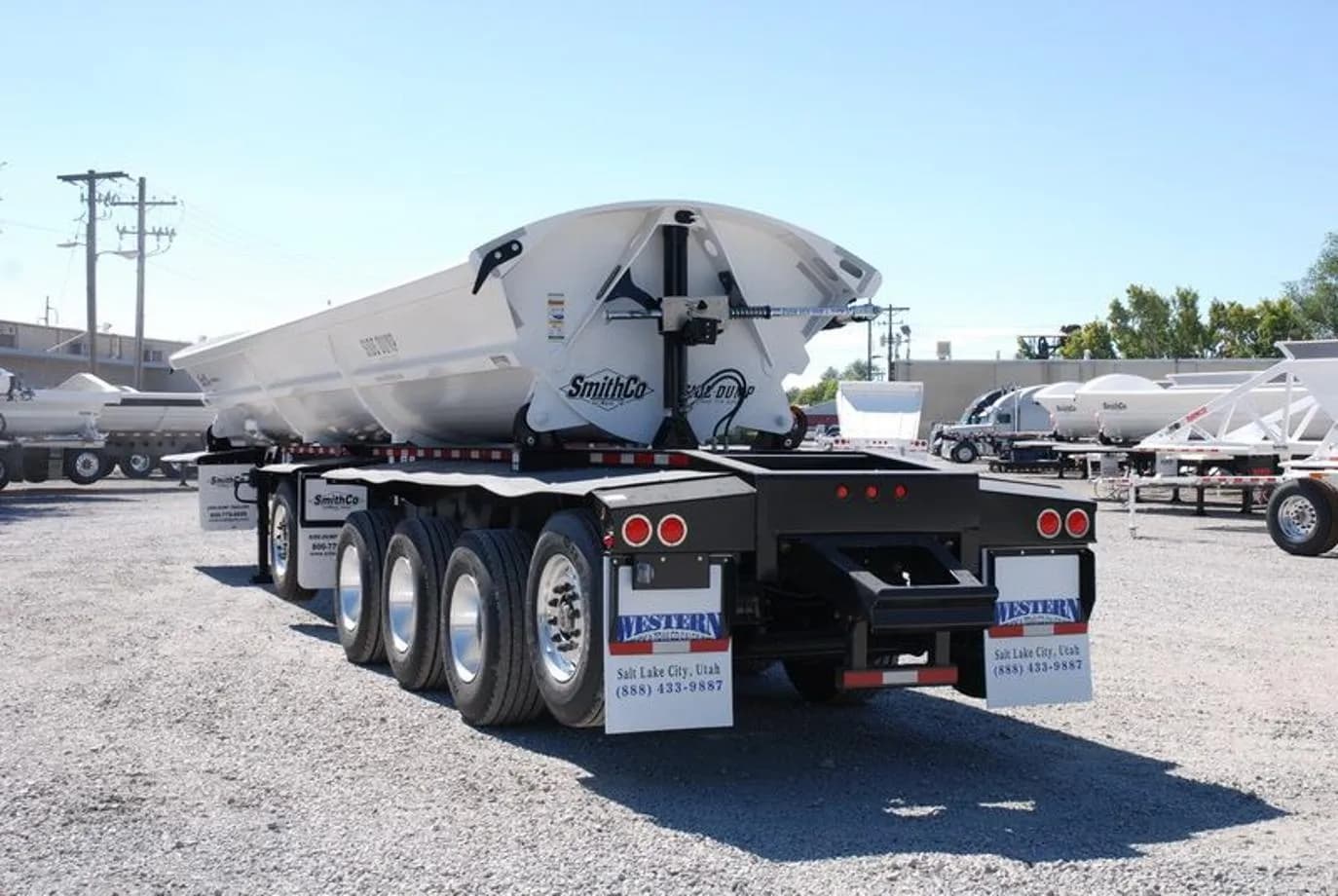

• 3 TAIL LIGHTS (RED)
• 5 ID LIGHTS AT REAR
