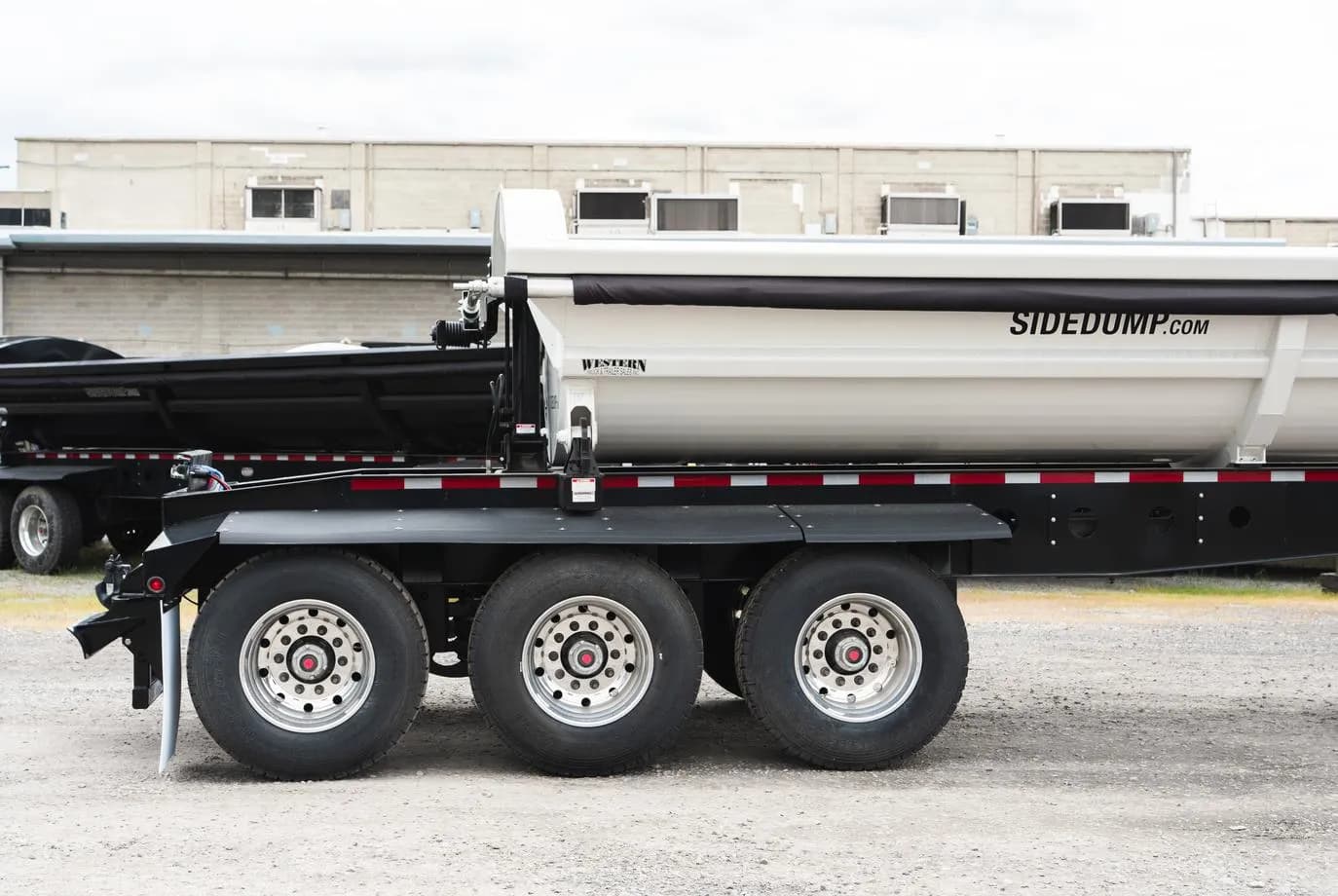

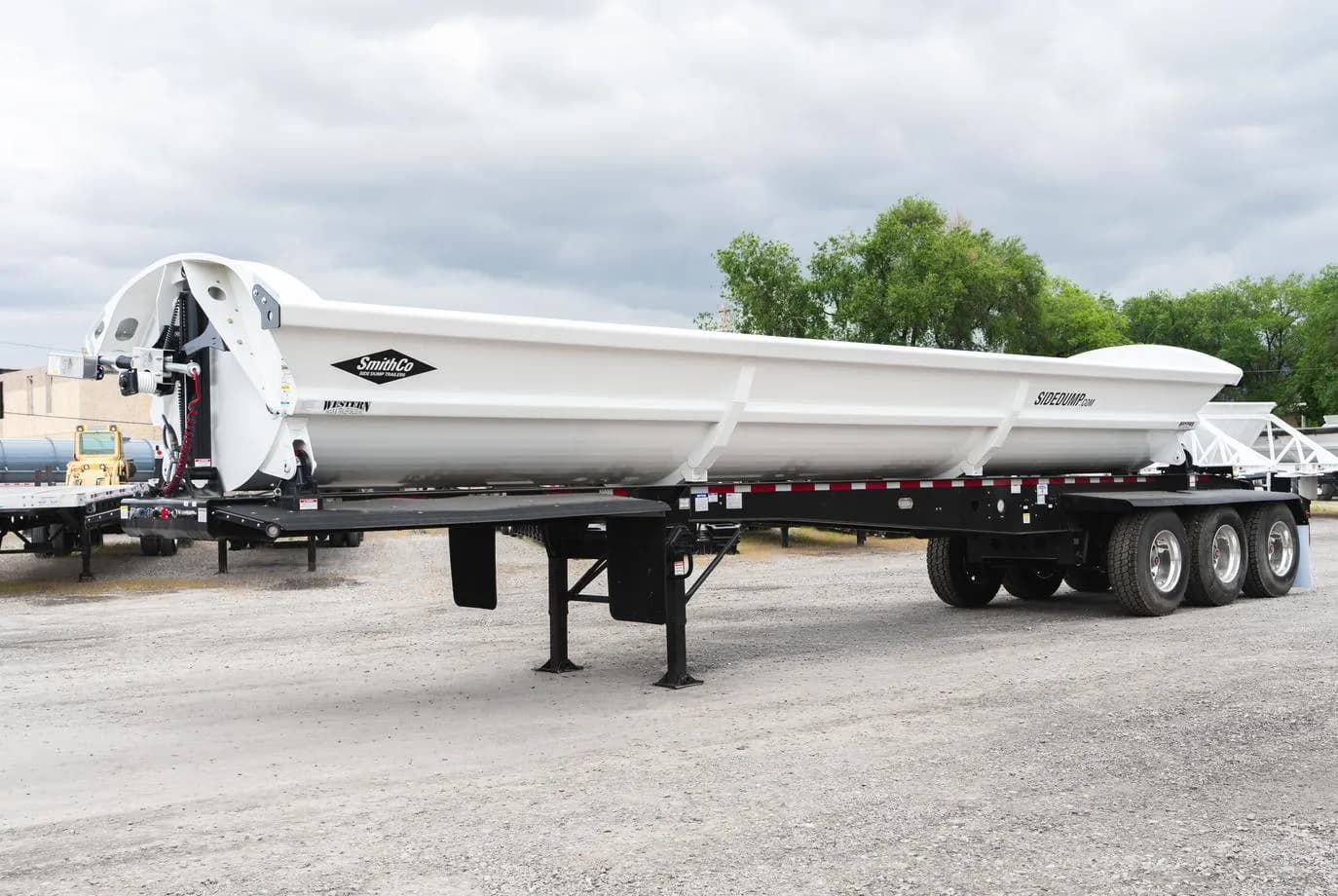

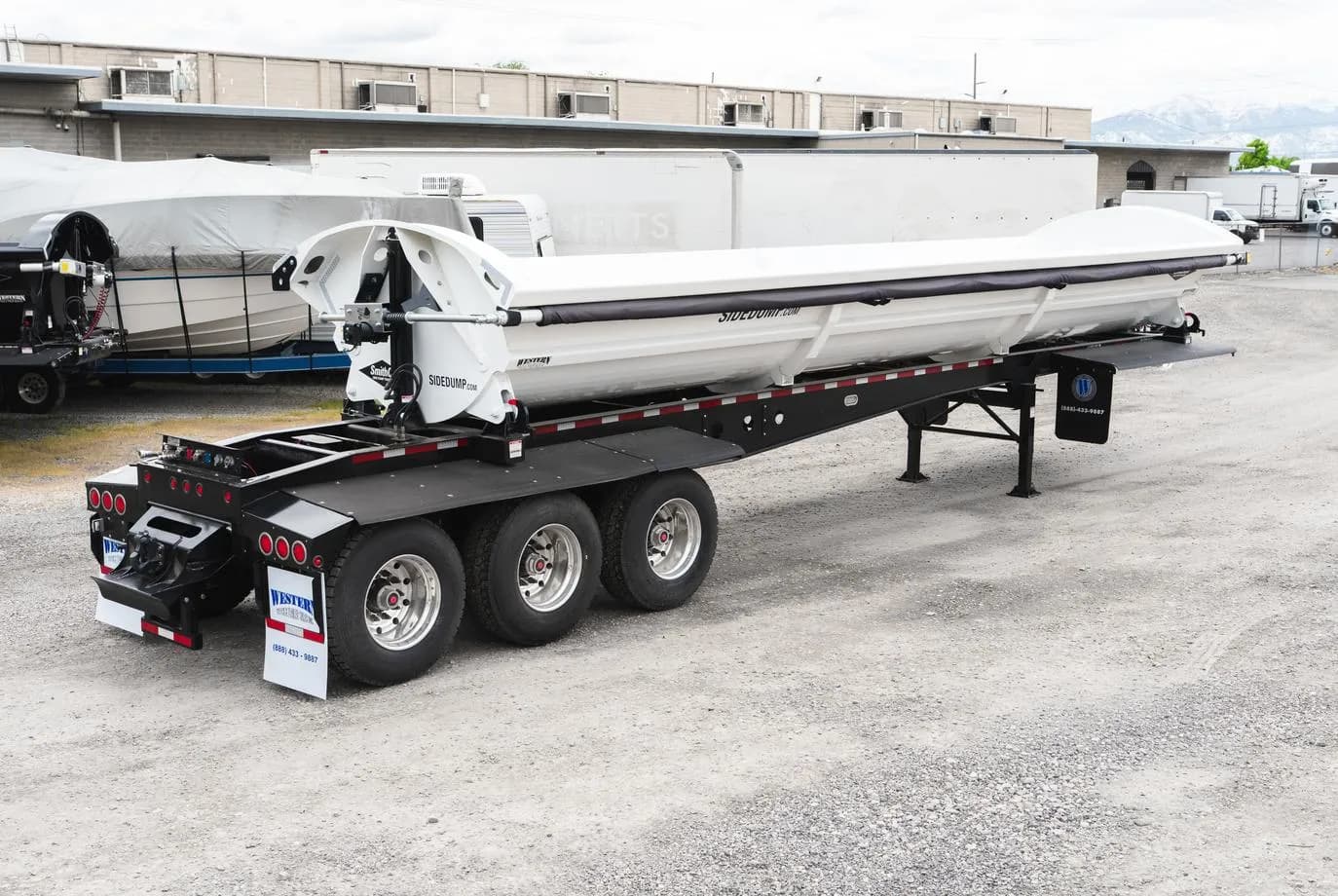

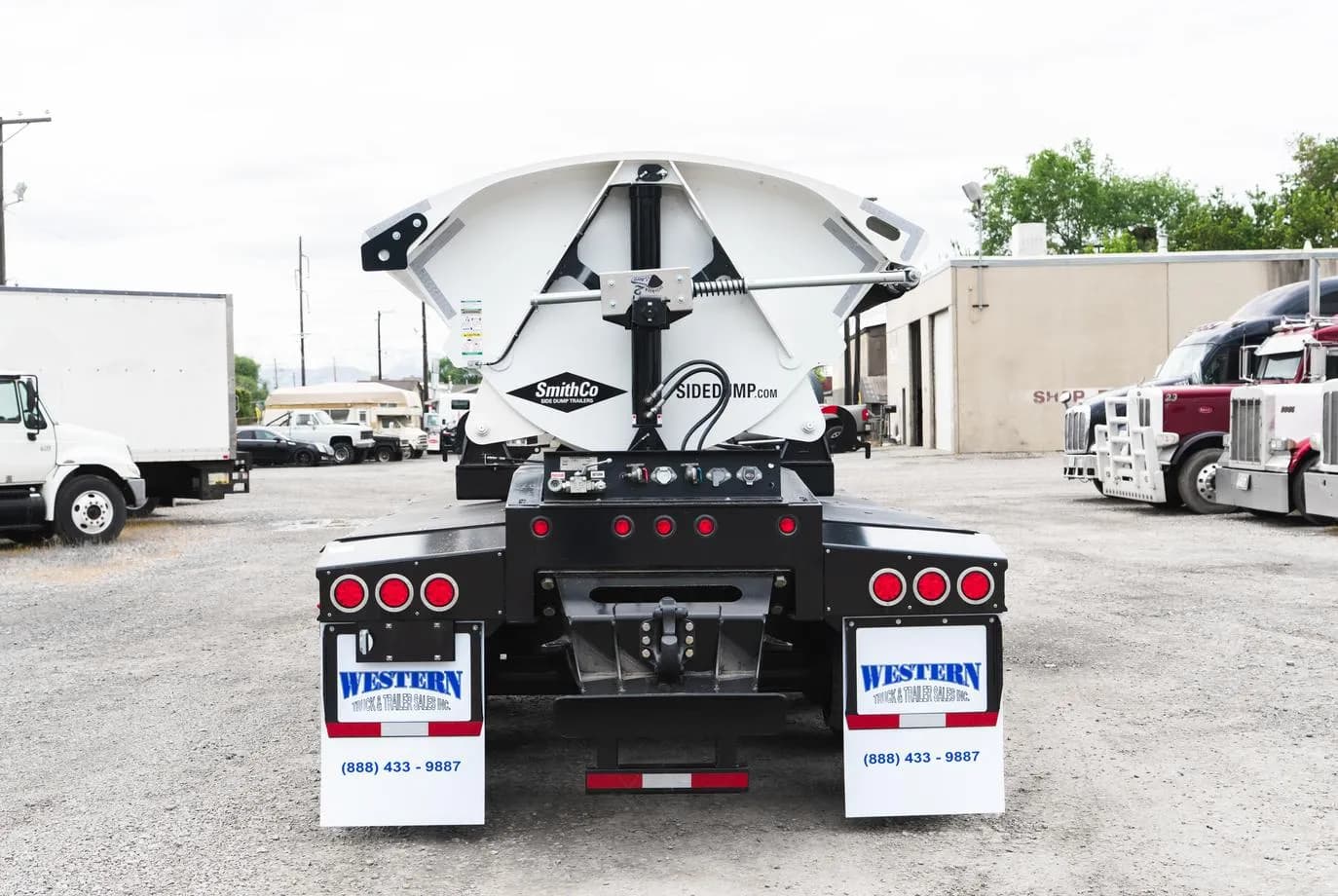

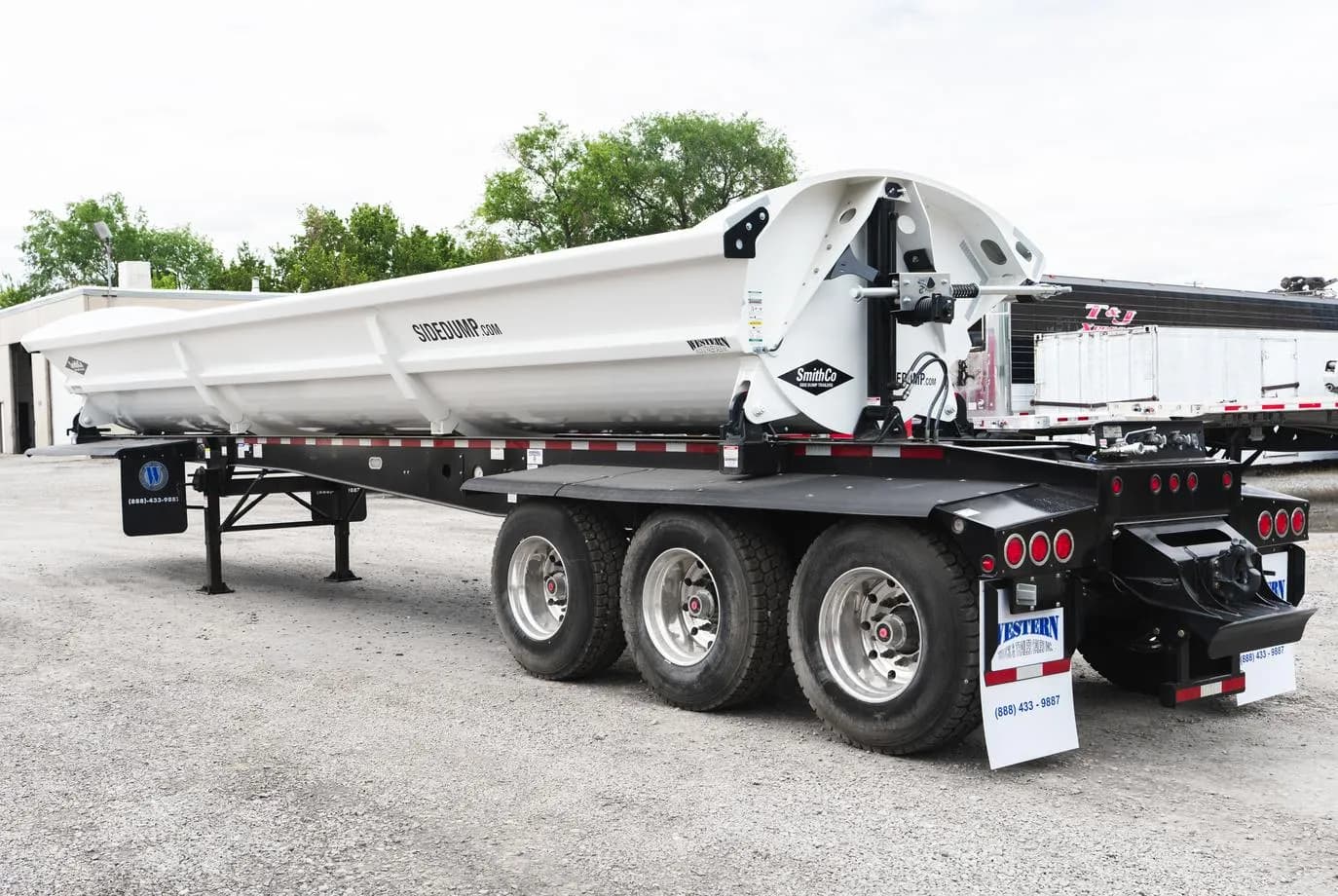

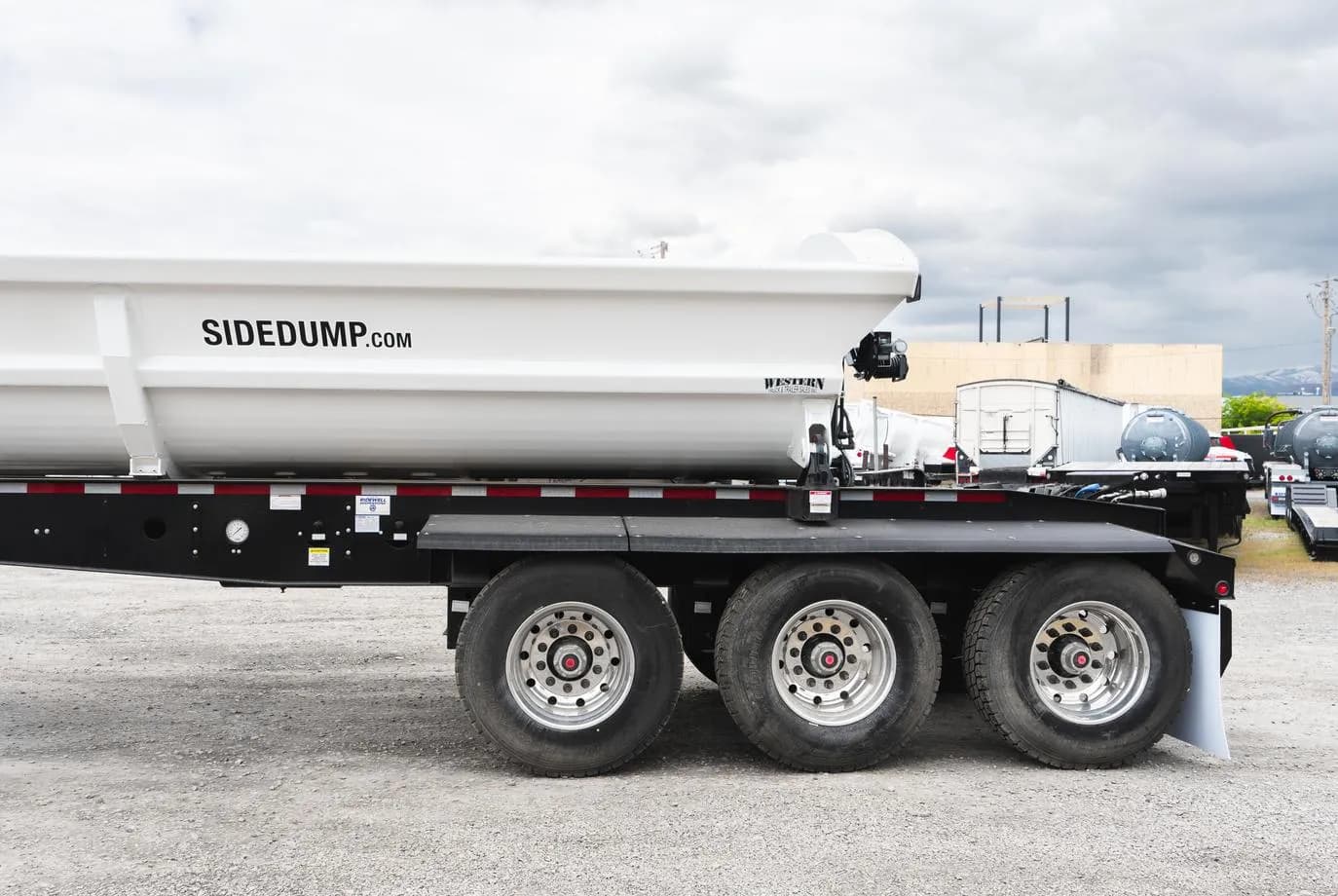

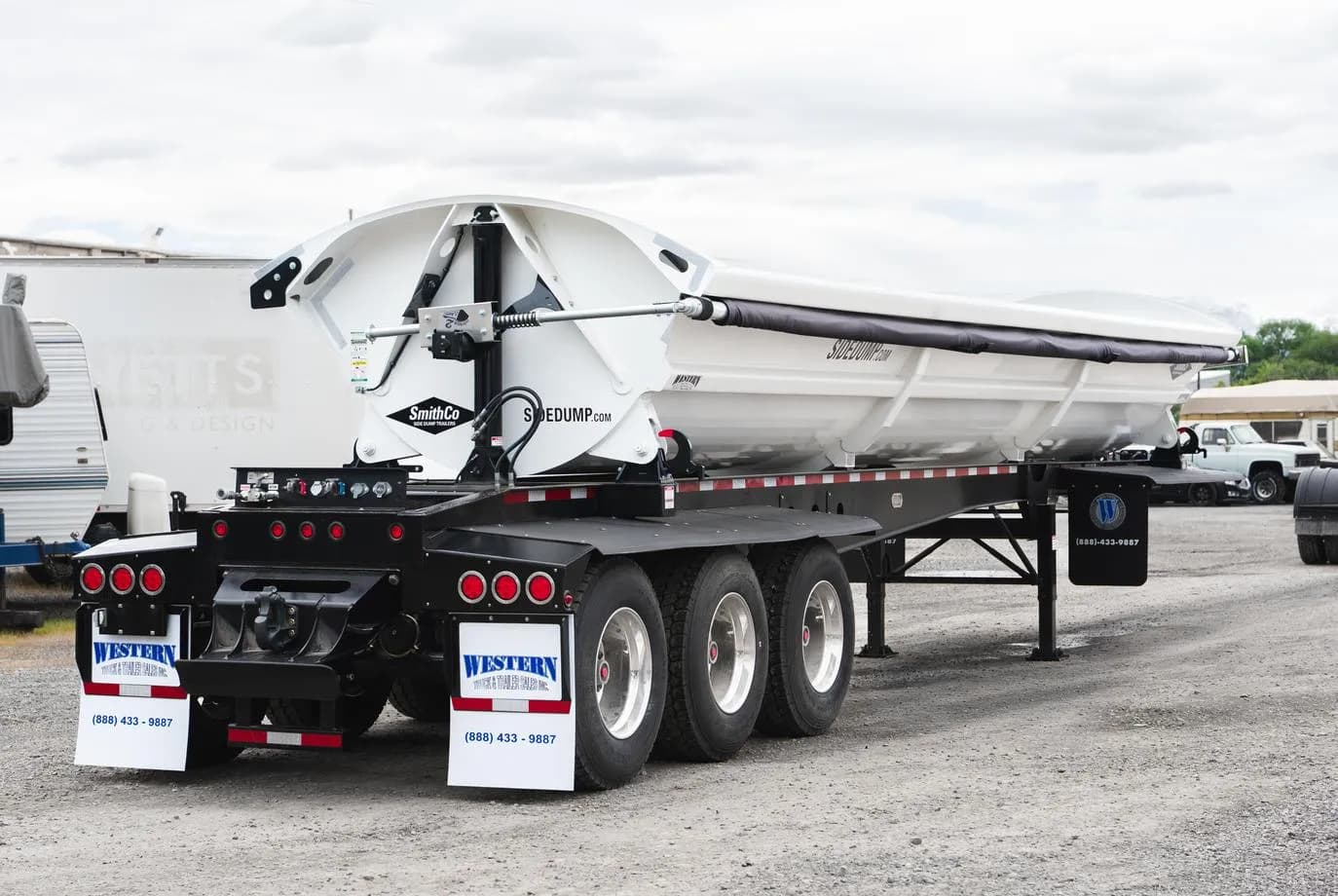

SmithCo SX3-42-34 Side Dump

SmithCo SX3-42-34 – Side Dump, 102" WIDE, 34' TUB LENGTH

SmithCo SX3-42-34 side dump with 34' tub length and SX-ROUND BOTTOM tub style.

Key Specs

• Manufacturer: SmithCo
• Model: SX3-42-34
• Category: Side Dump
• Frame Length: 42'
• Width: 102" WIDE
• Tub Length: 34'
• Tub Volume (water level): 22.8 CUBIC YARDS
• Tub Volume (heaped): 30.3 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR450
• Tub Floor: 1/4" AR450
• Tub Dividers: 0
• Tub Paint #: DV-19088 (WHITE)

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Dolly Legs: BINKLEY
• Grease Bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD

Axles & Suspension

• Suspension: RIDEWELL RW260 AIR RIDE
• Axle Spacing: 49"-49"
• Lift Axle: 3RD
• ABS Axles: 25K (1)
• Non-ABS Axles: 25K (2)
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.56 SUPER SINGLE ALUMINUM
• Tires: DC RLB980 385/65R22.5 (6)

Additional Features

• Fenders: ALL PLASTIC
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• LOCK OTU SWITCH: TARP LOCKOUT
• Pushblock: W STYLE PUSHBLOCK - STD
• Air Gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD

Paint & Finish

• Frame Paint #: DV-19040-DTM (BLACK)

Lighting & Safety

• Tail Lights: 3 TAILLIGHTS - RED
• ID Lights: 5 ID LIGHTS AT REAR
