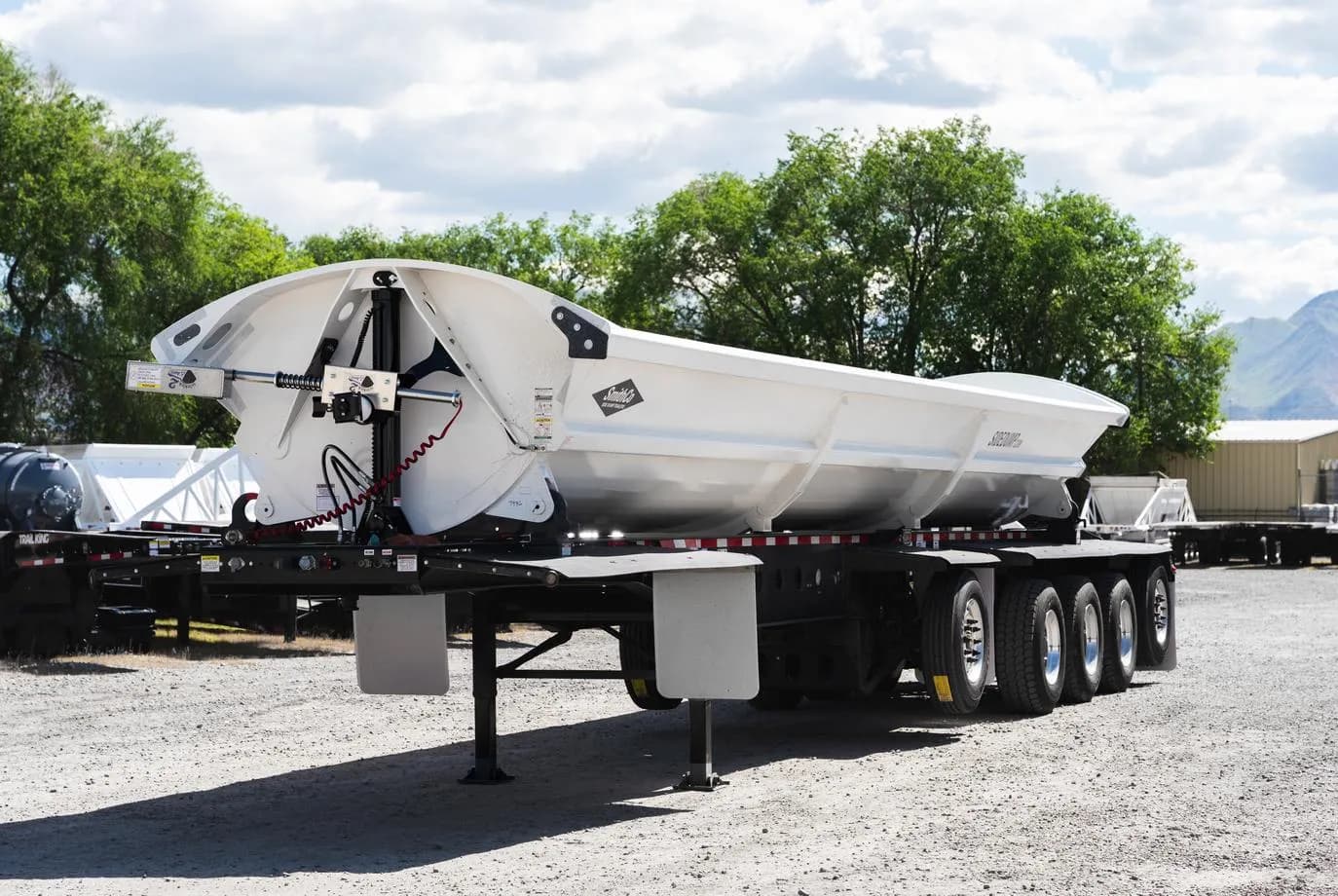

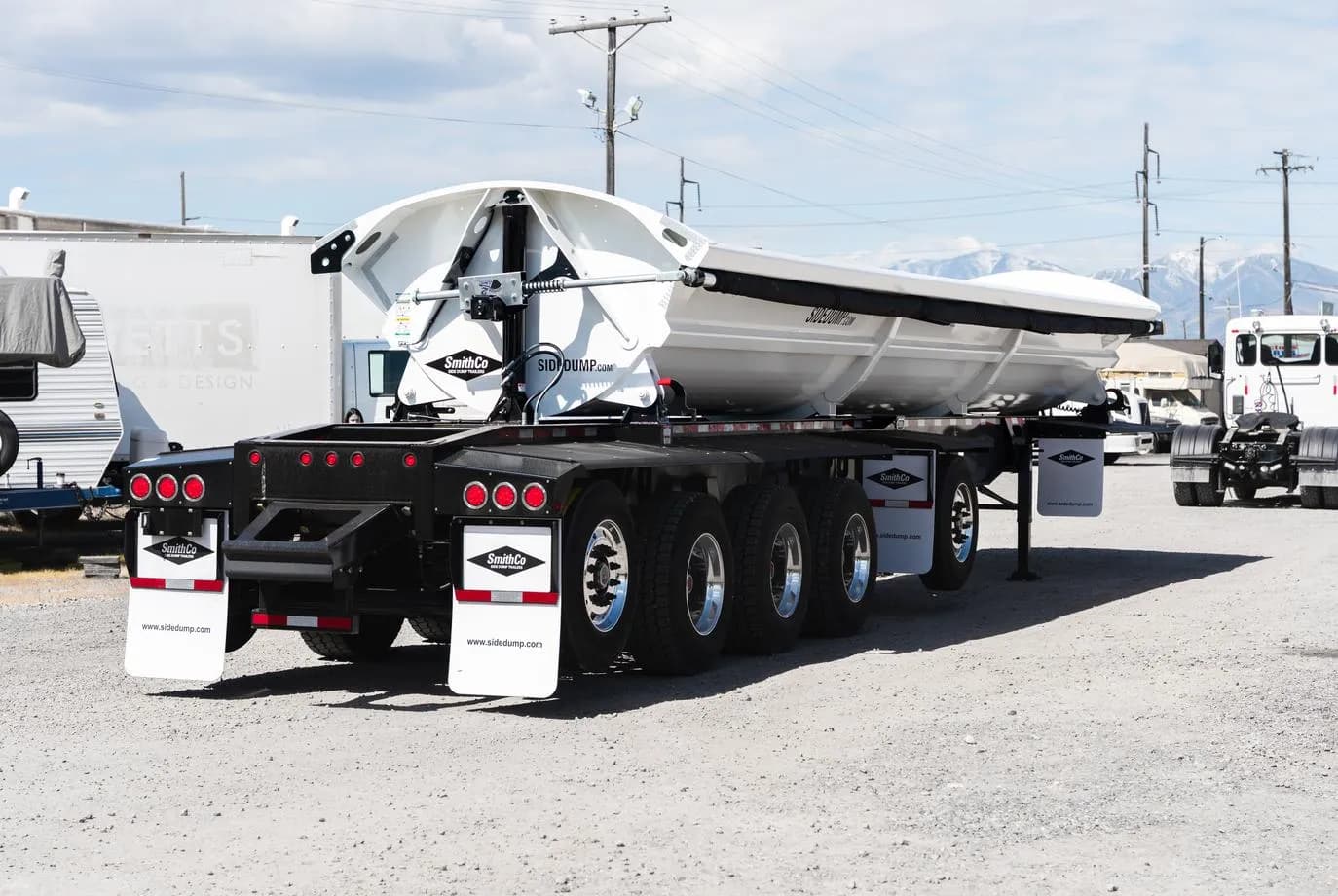

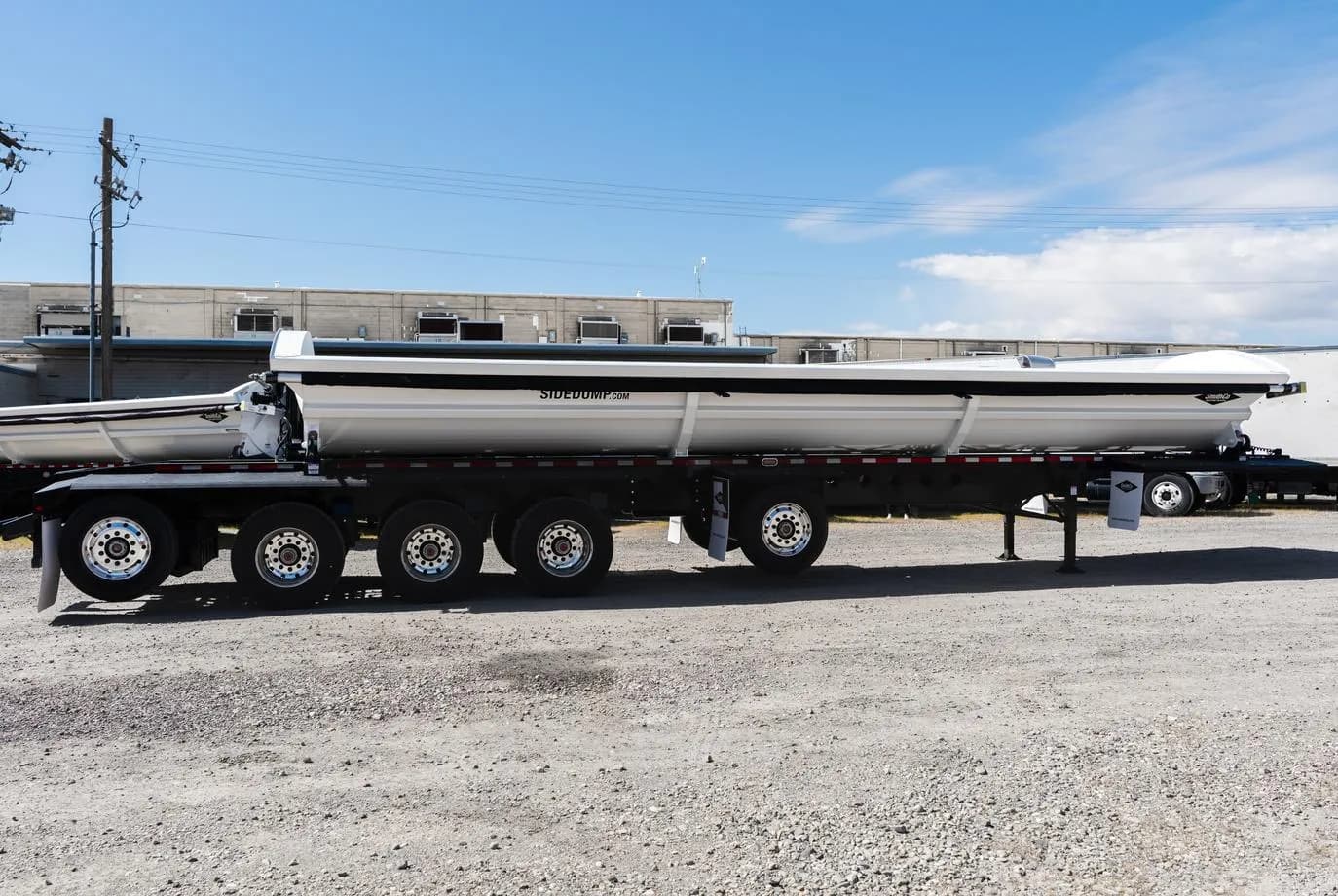

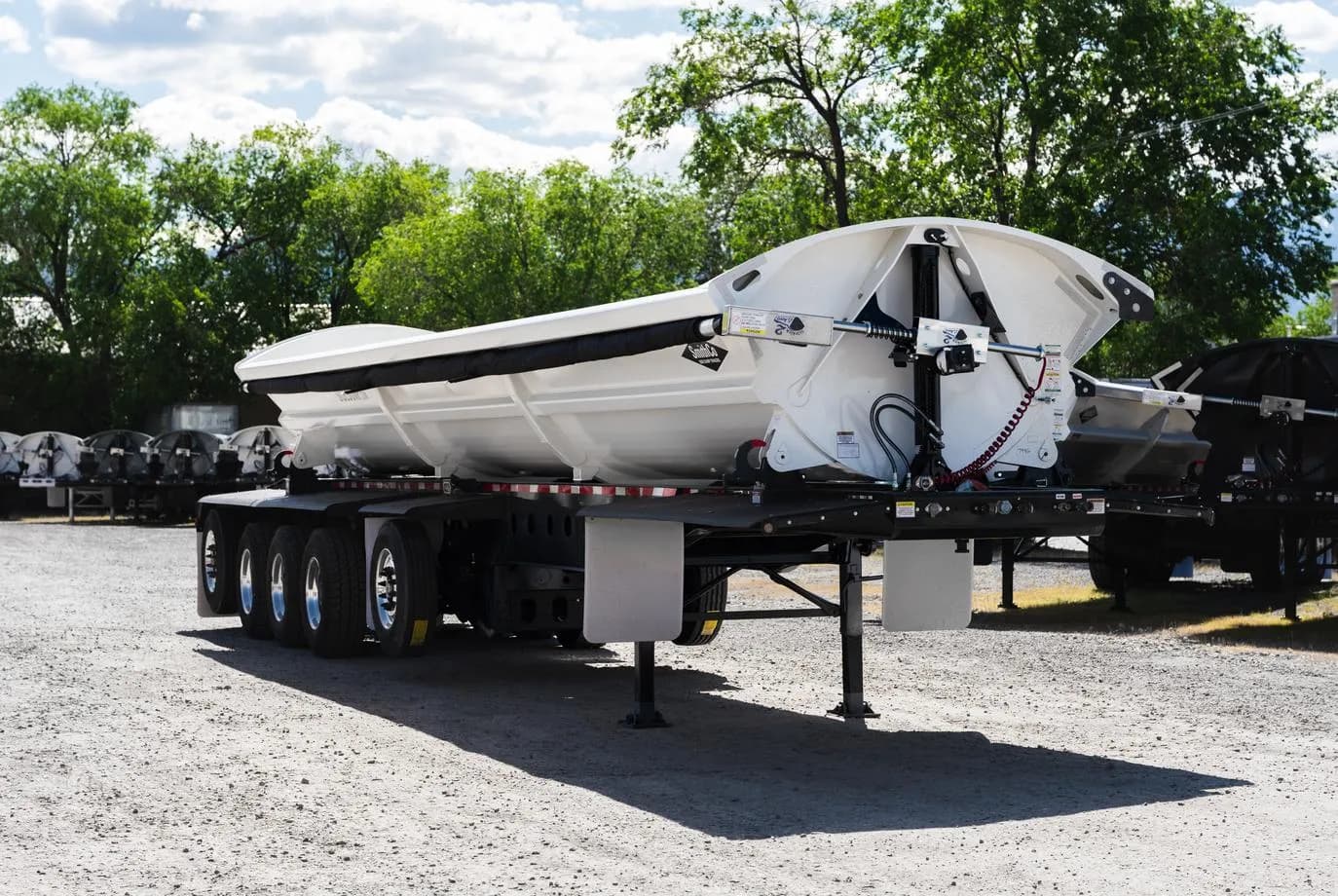

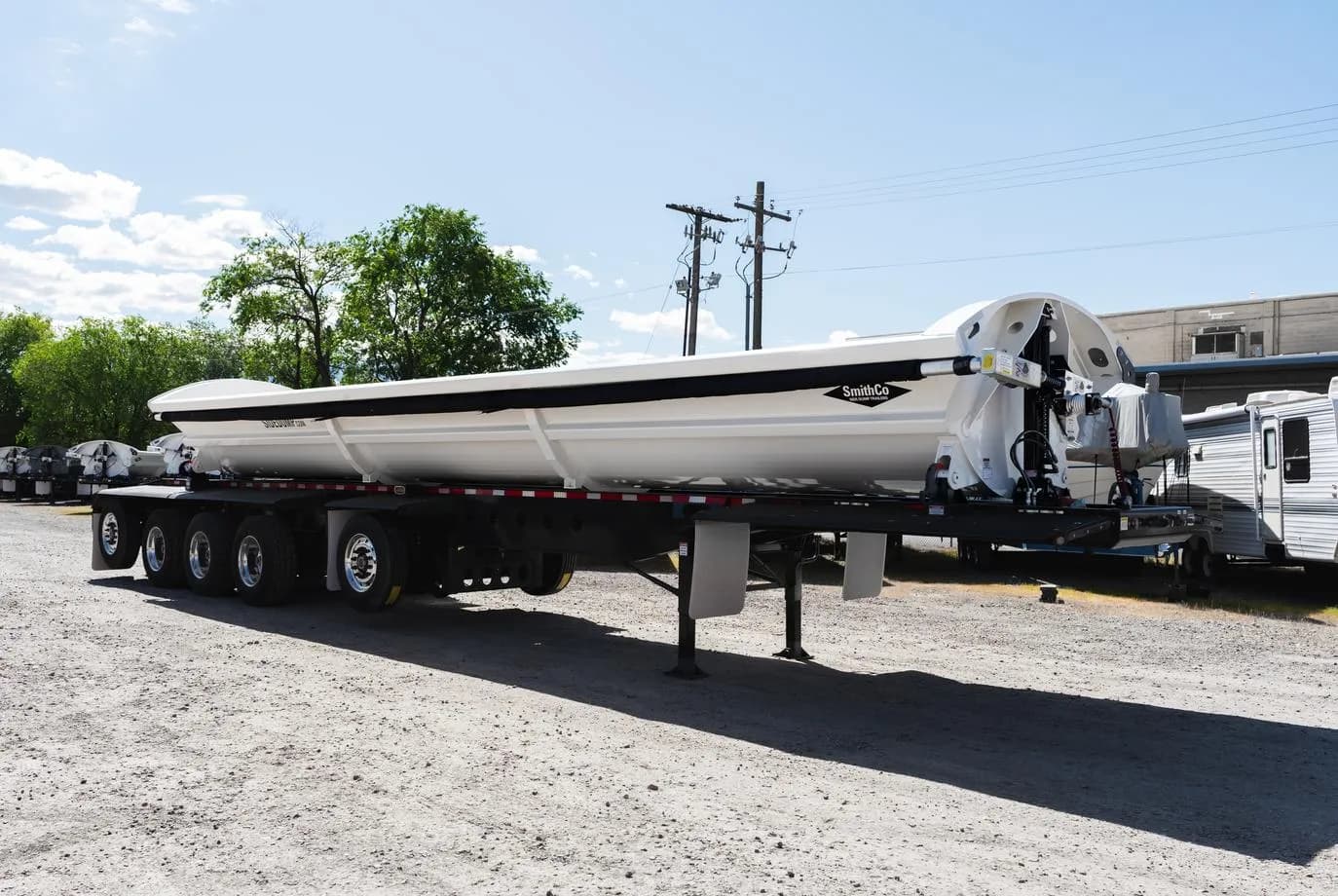

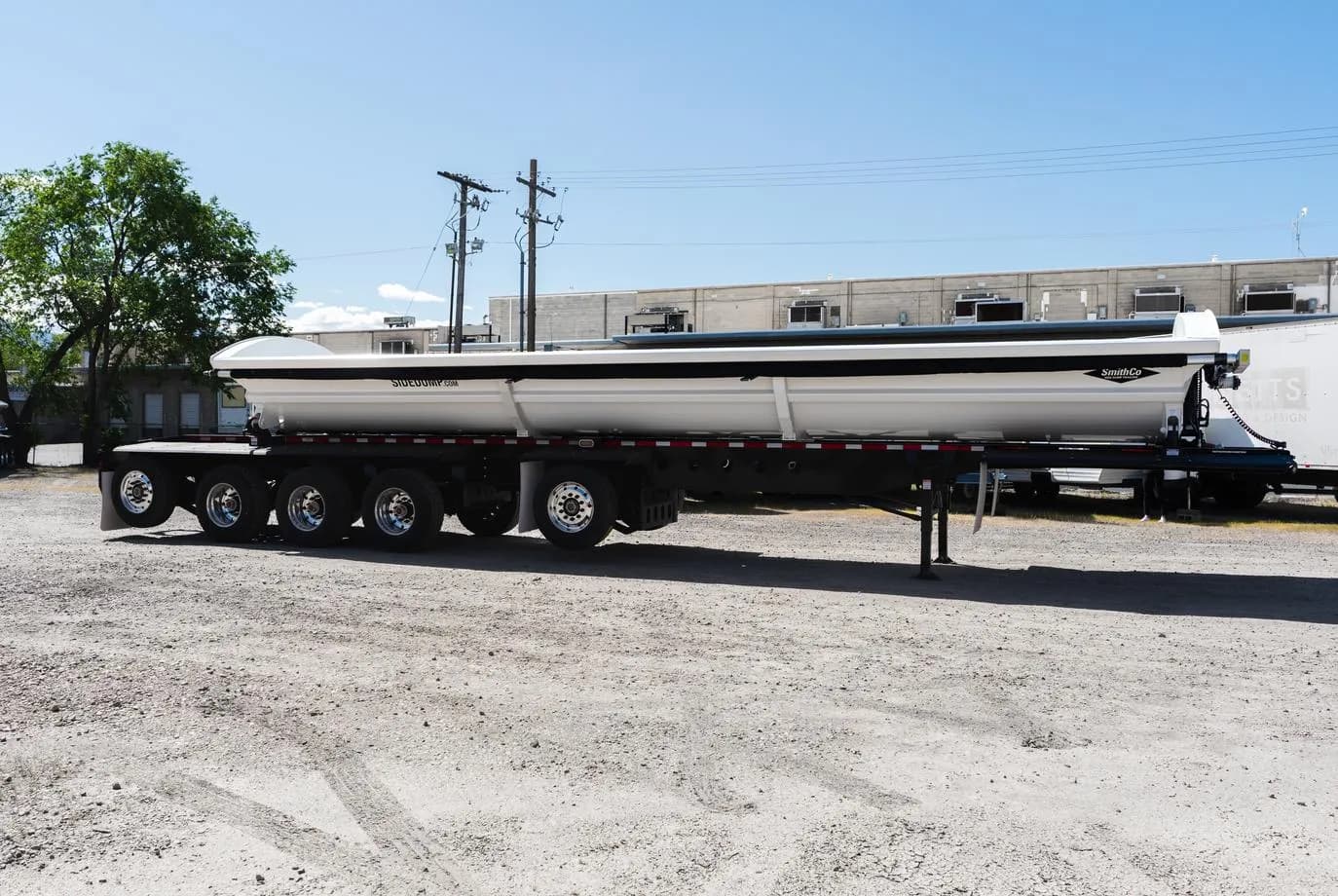

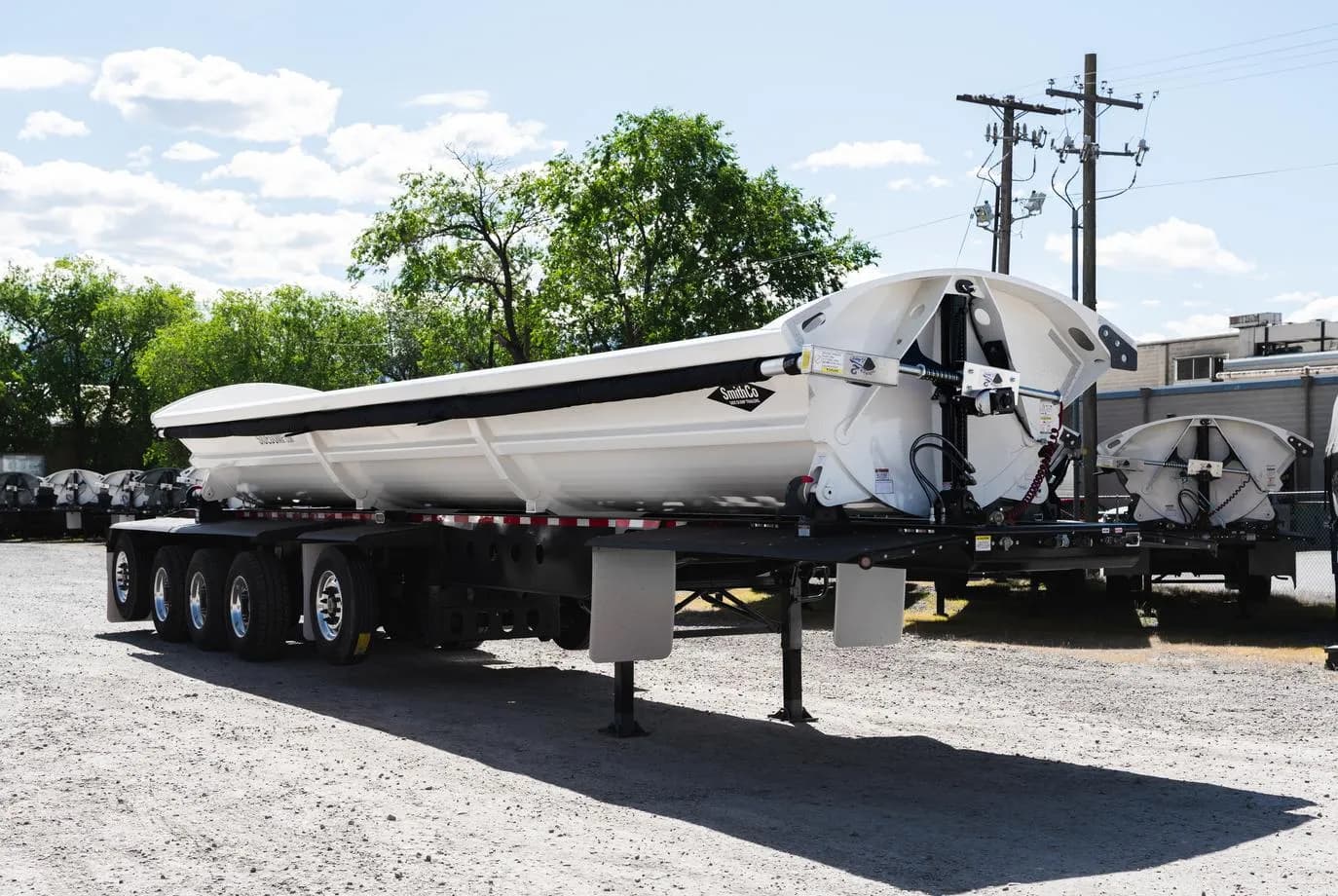

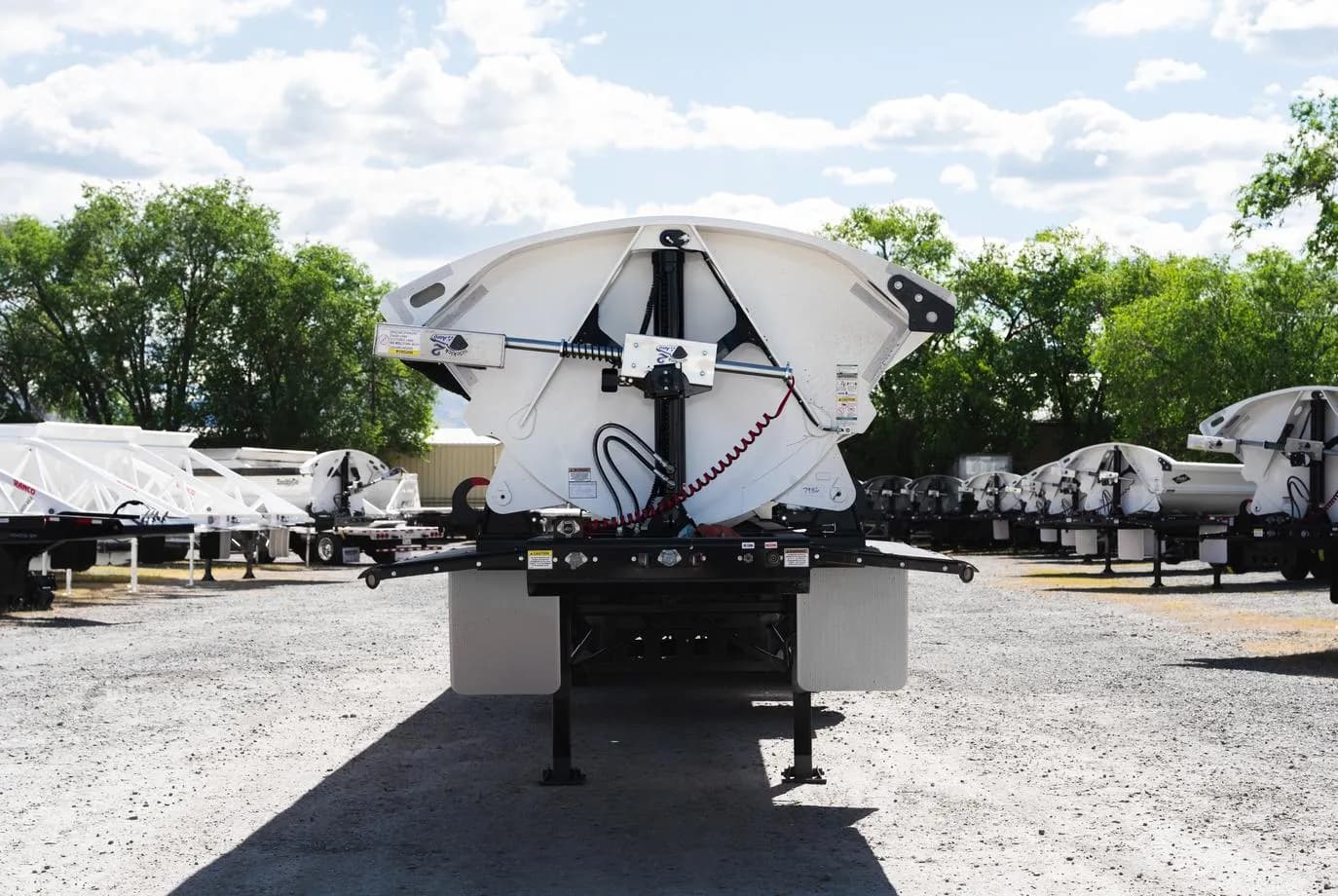

SmithCo SX5-49-38 Side Dump

SmithCo SX5-49-38 – Side Dump, 49' Frame Length, 38' Tub Length

SmithCo SX5-49-38 Side Dump with 49' frame length and 38' tub length.

Key Specs

• Manufacturer: SmithCo
• Model: SX5-49-38
• Category: Side Dump
• Width: 102" WIDE
• Frame Length: 49'
• Tub Length: 38'
• Tub Volume: 38' SX - WATERL LEVEL - 25.5 CUBIC YARDS; 38' SX - HEAPED - 33.8 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR450
• Tub Floor: 1/4" AR450
• Tub Dividers: 0

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on Trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Lock Out Switch: TARP LOCKOUT
• Grease Bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD

Axles & Suspension

• Suspension: RIDEWELL RW260AIR RIDE
• Axle Spacing: 97"-54"-54"-60"
• Lift Axle: 1ST & 5TH (16.6K RW L/S) STEERABLE/LIFTABLE
• ABS Axles: 25K (1)
• Non-ABS Axles: 25K (4)
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.56 SUPER SINGLE ALUM 2-4, (4) 9x22.5 ALUM 1 & 5
• Tires: DC RLB980 385/65R22.56 385's AXLES 2-4, (4) 295/75R22.5 AXLES 1 & 5

Additional Features

• Dolly Legs: BINKLEY
• Fenders: ALL PLASTIC
• Tub Paint #: DV-19088 (WHITE)
• Frame Paint #: DV-19040-DTM (BLACK)
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• W Style Pushblock: STD
• Large Liquid Filled Air Gauge on Driver's Side: STD

Lighting & Safety

• Tail lights: 3 TAILLIGHTS - RED
• Identification Lights: 5 ID LIGHTS AT REAR
