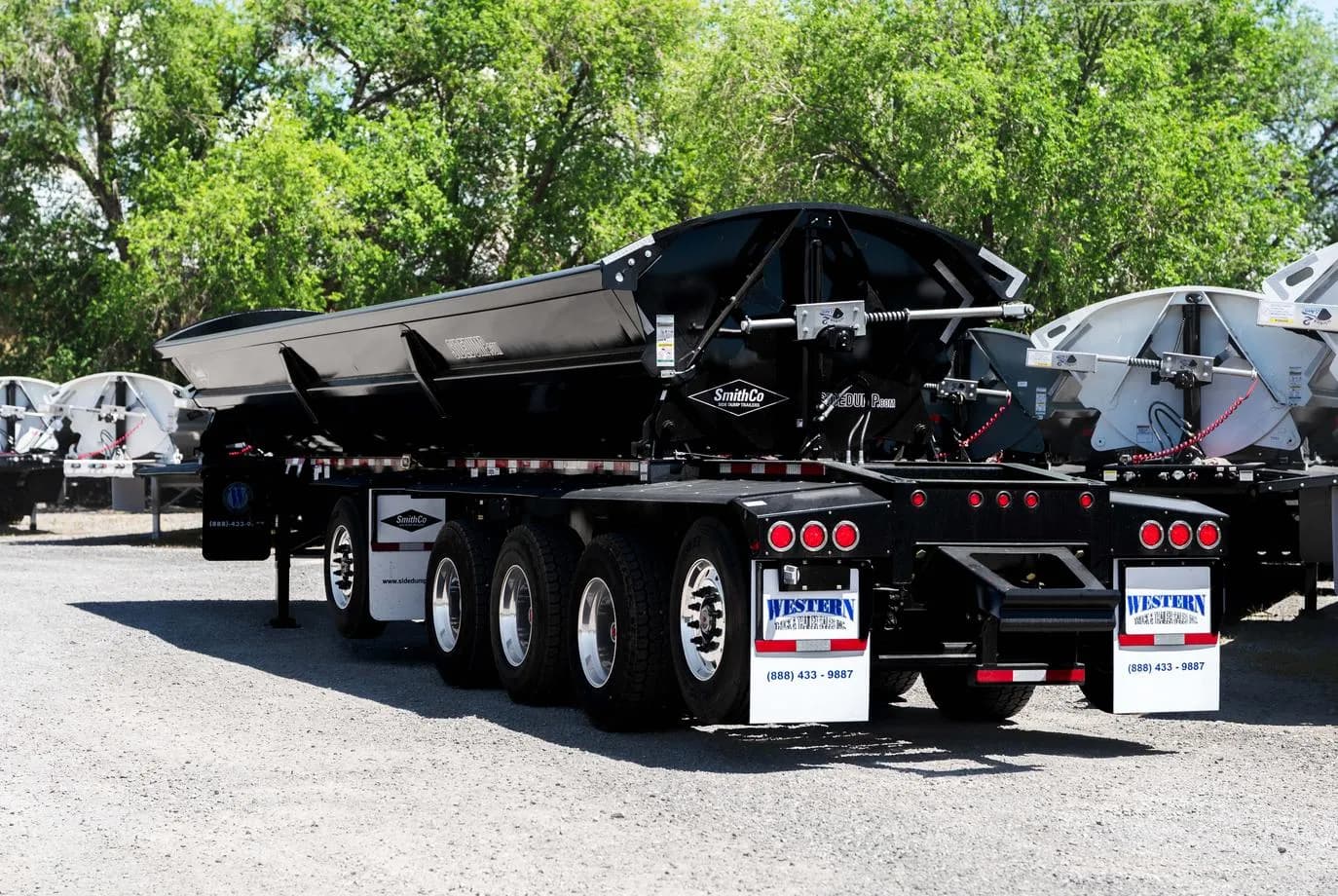

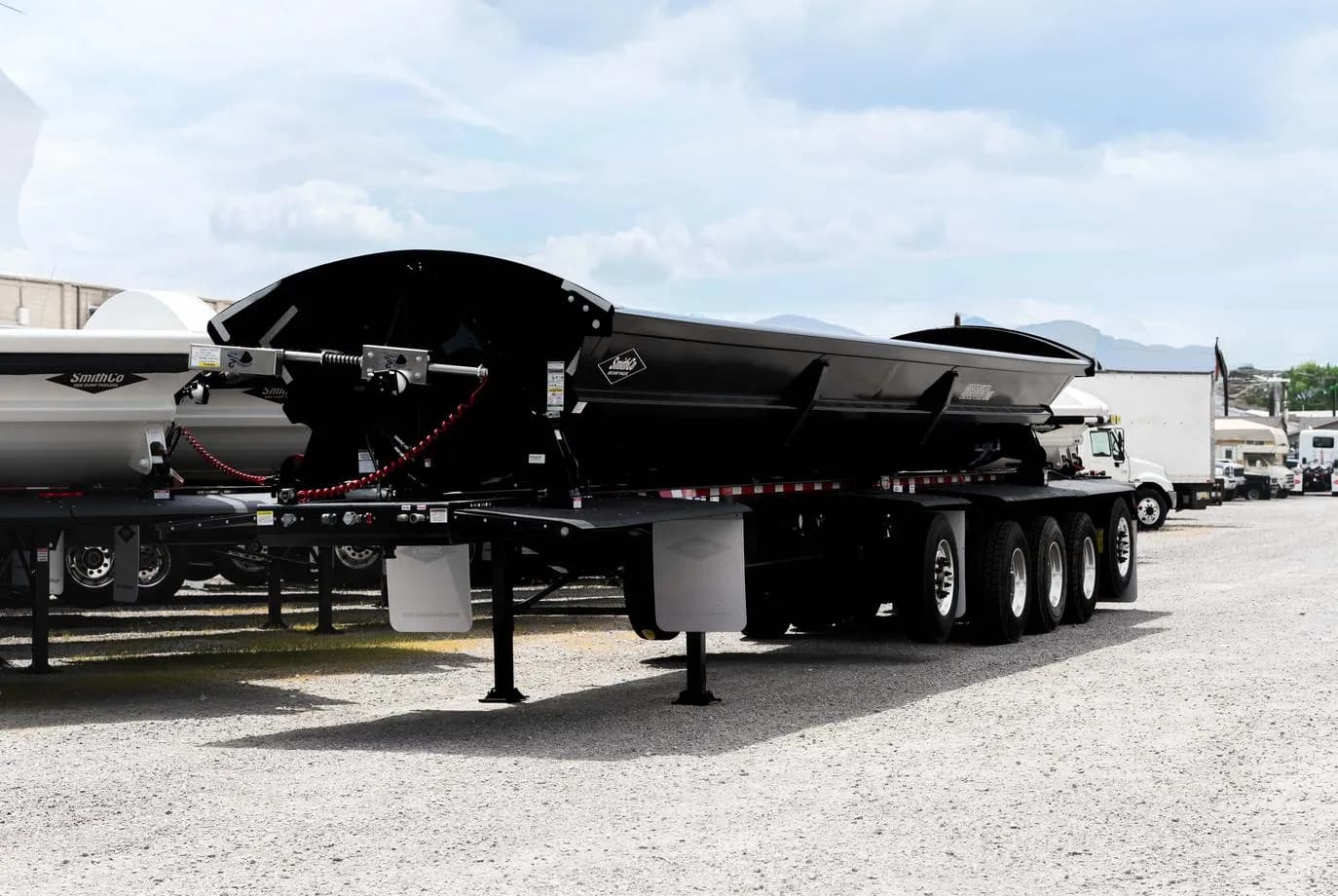

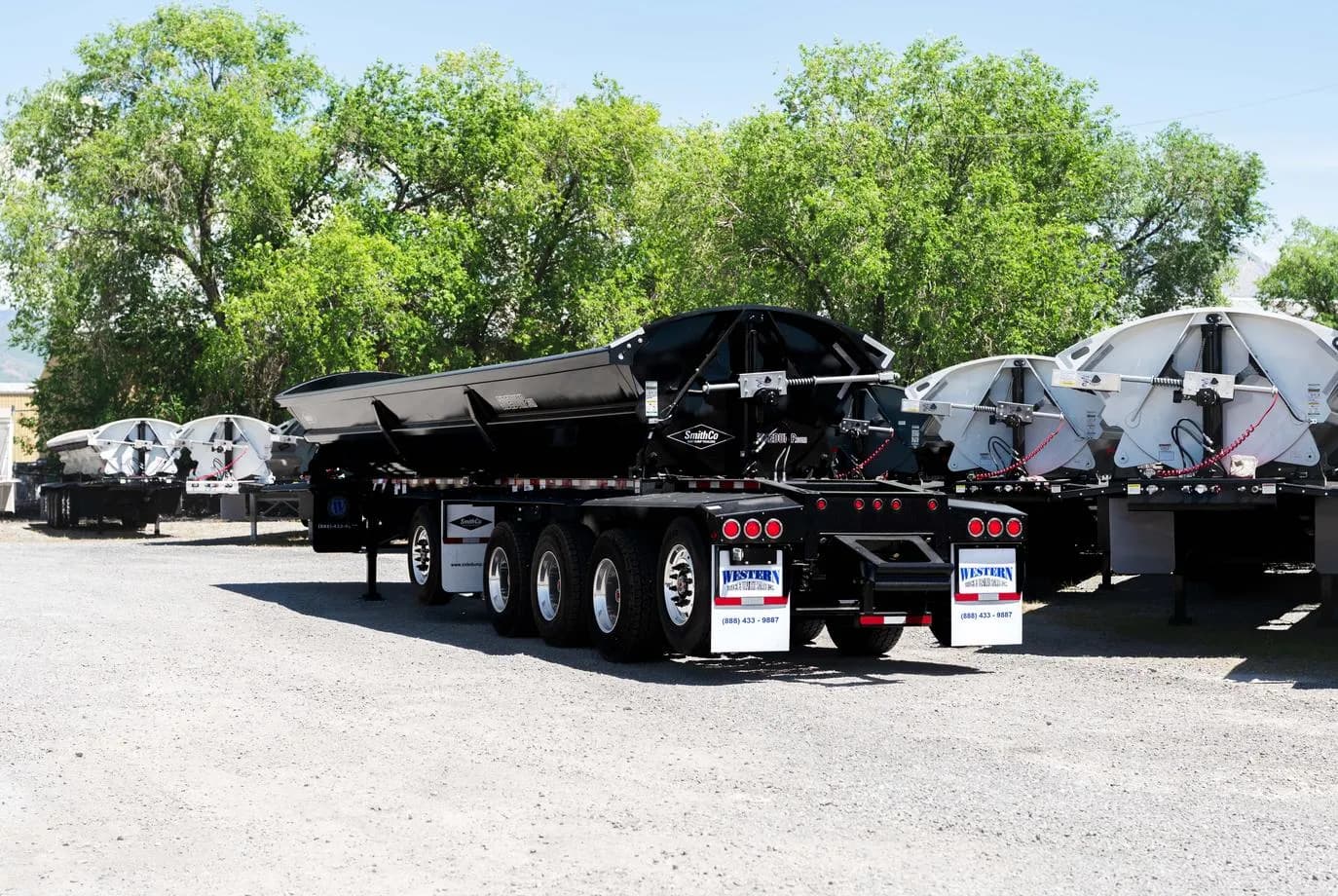

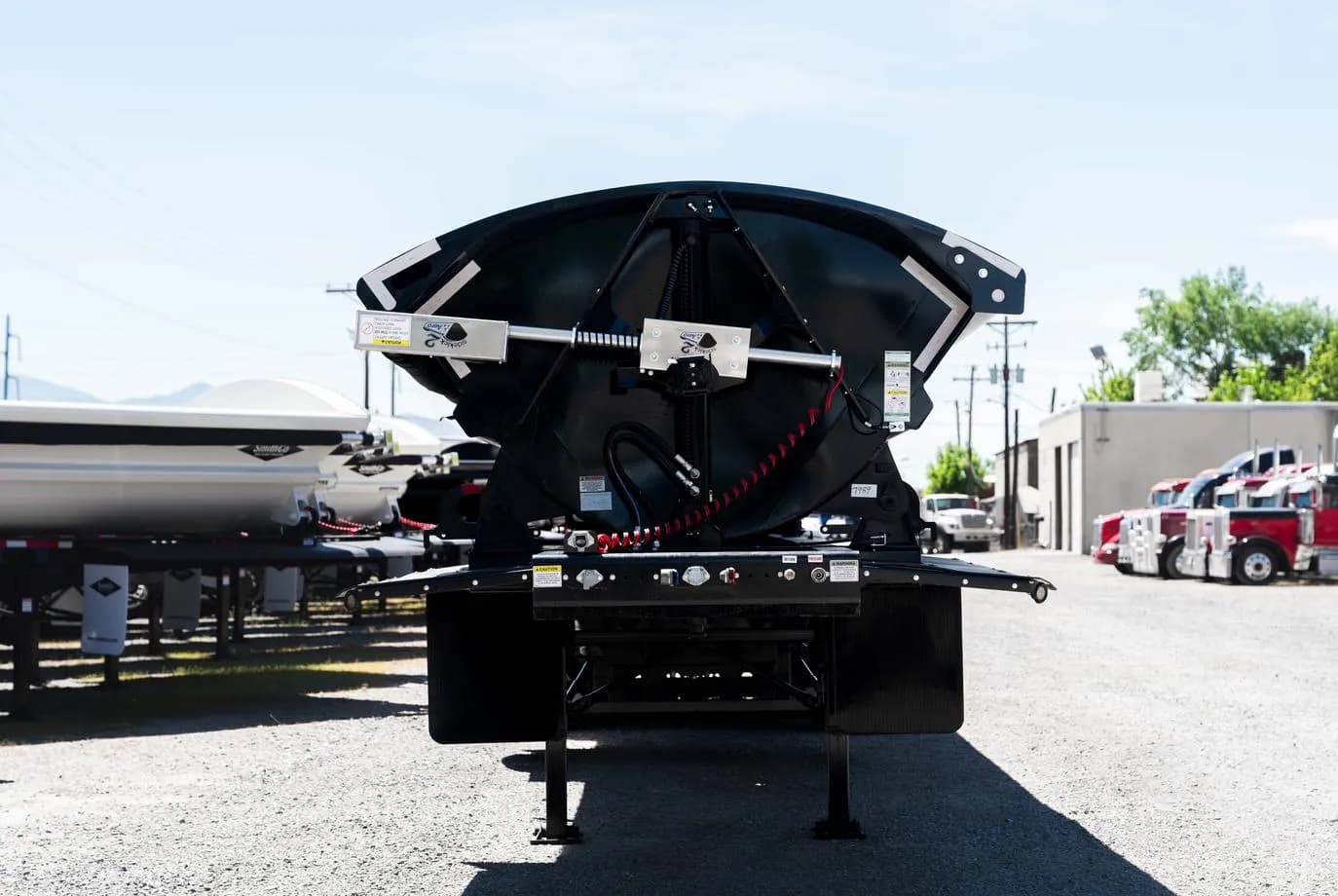

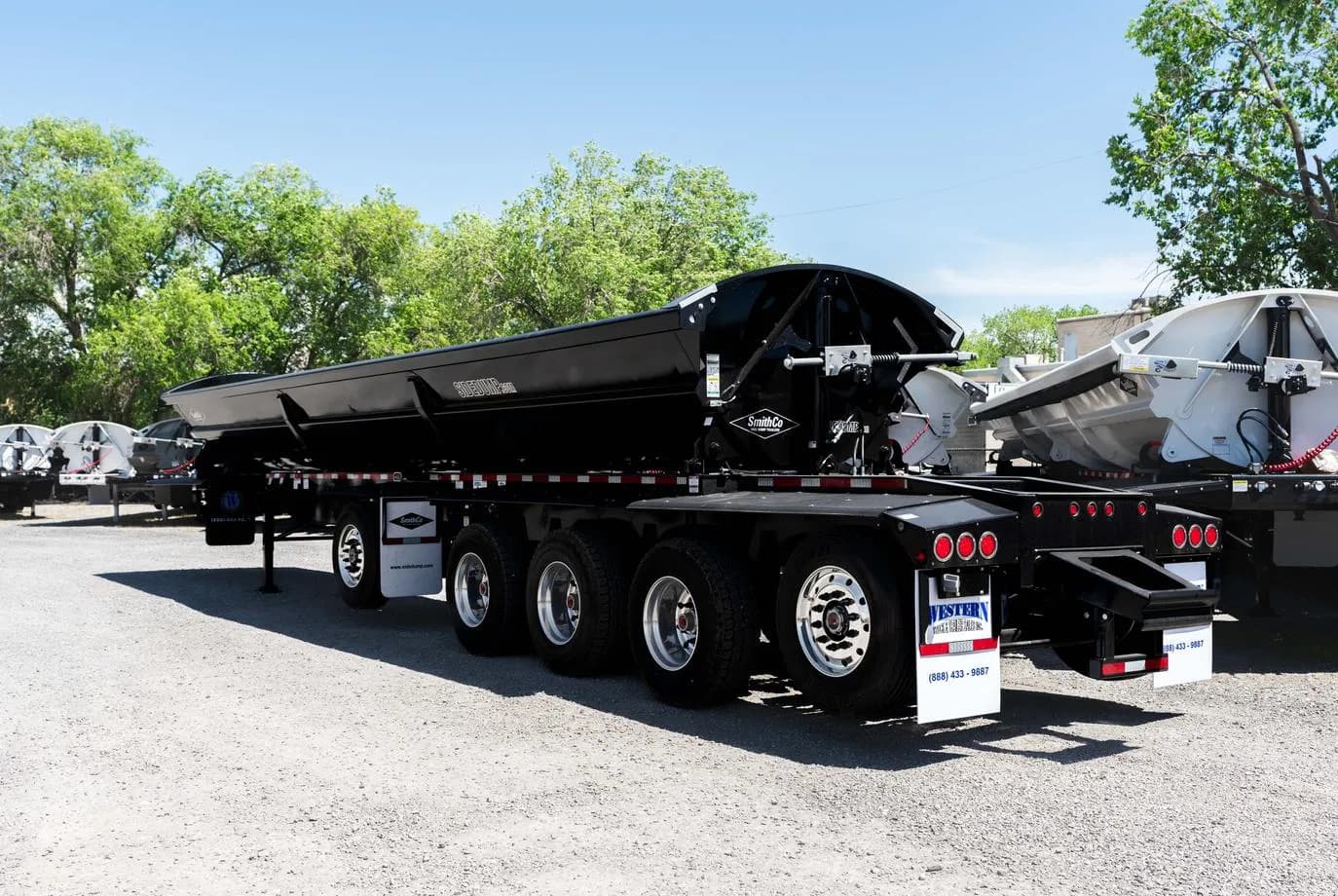

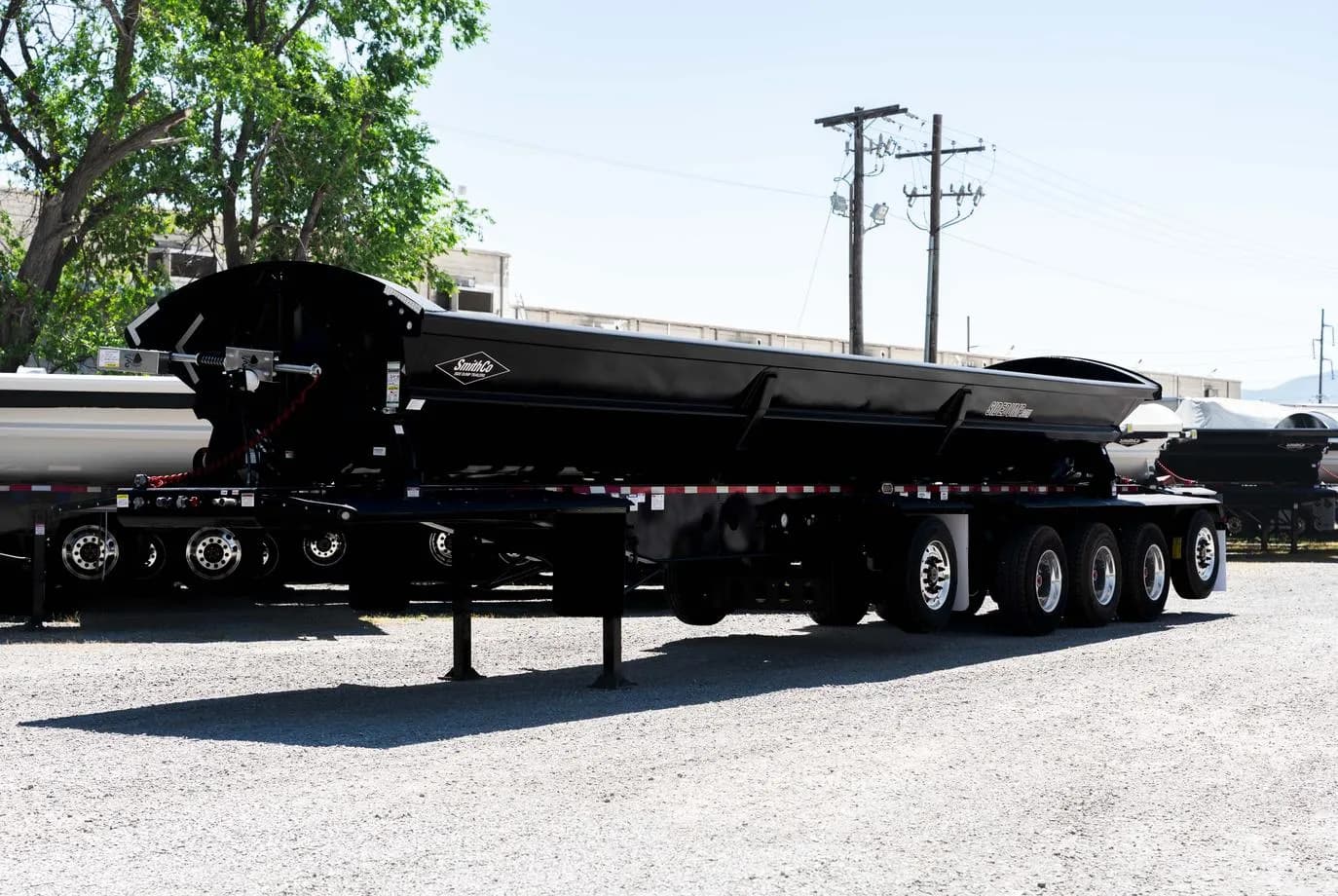

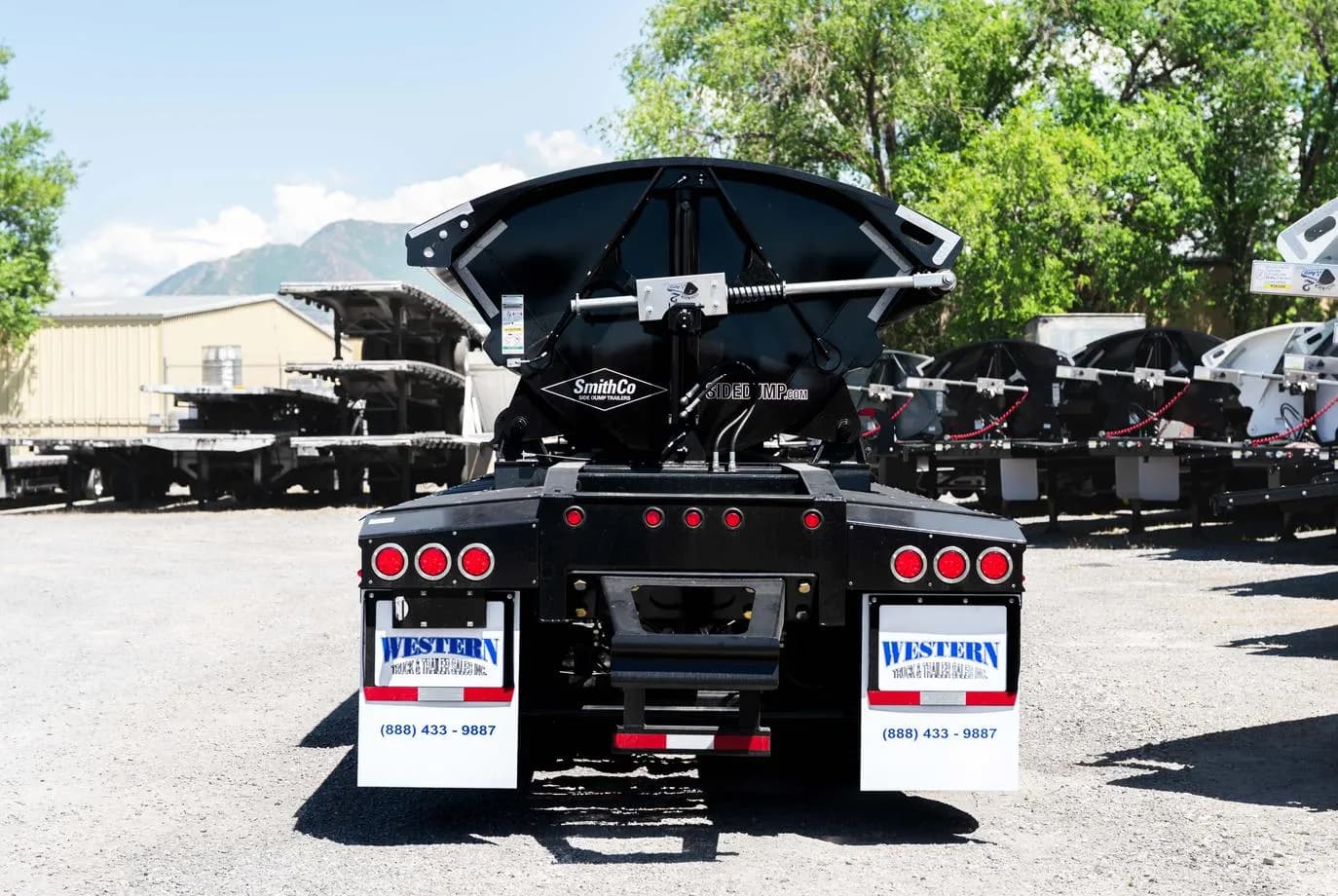

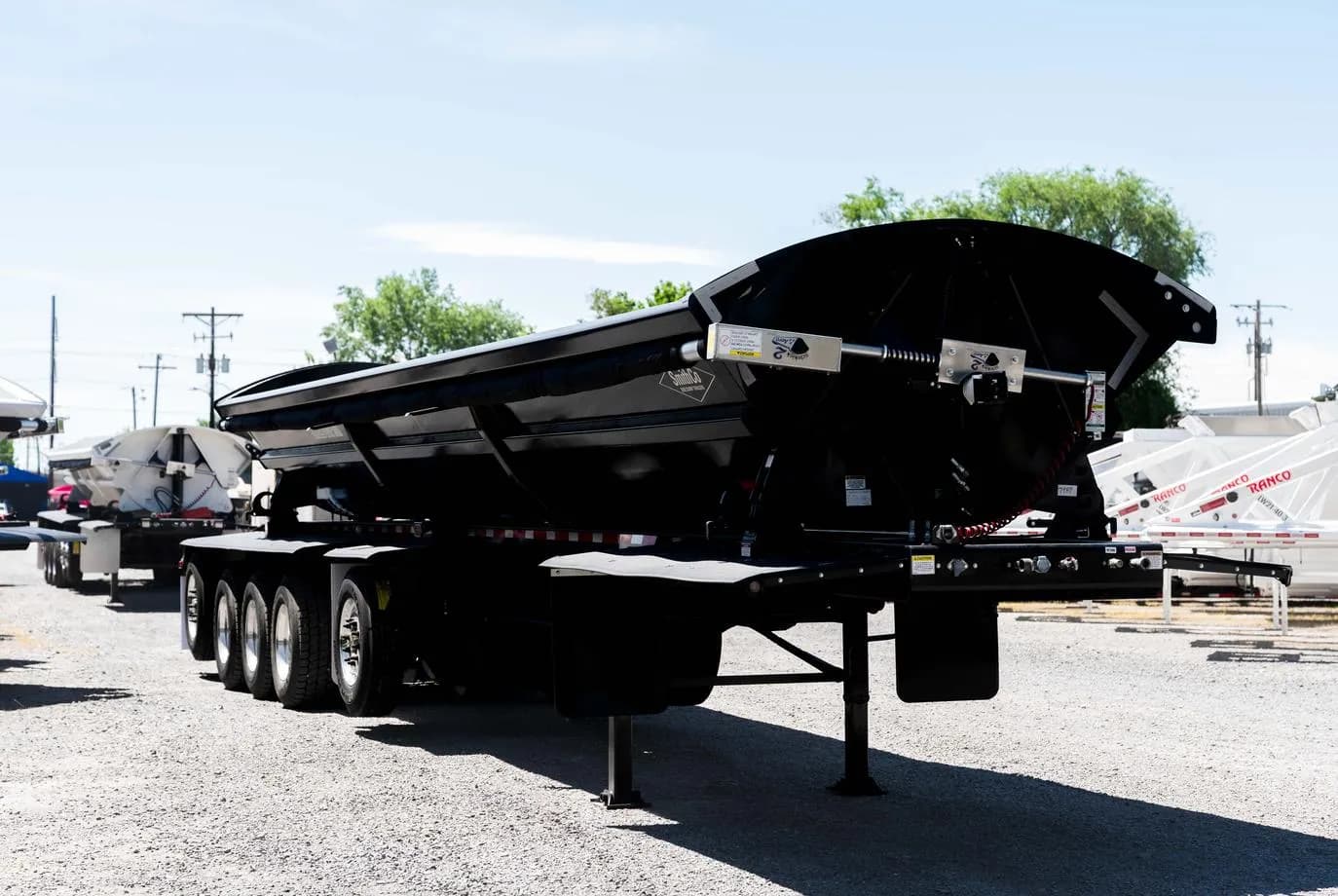

2027 SmithCo SX5-49-38 Side Dump

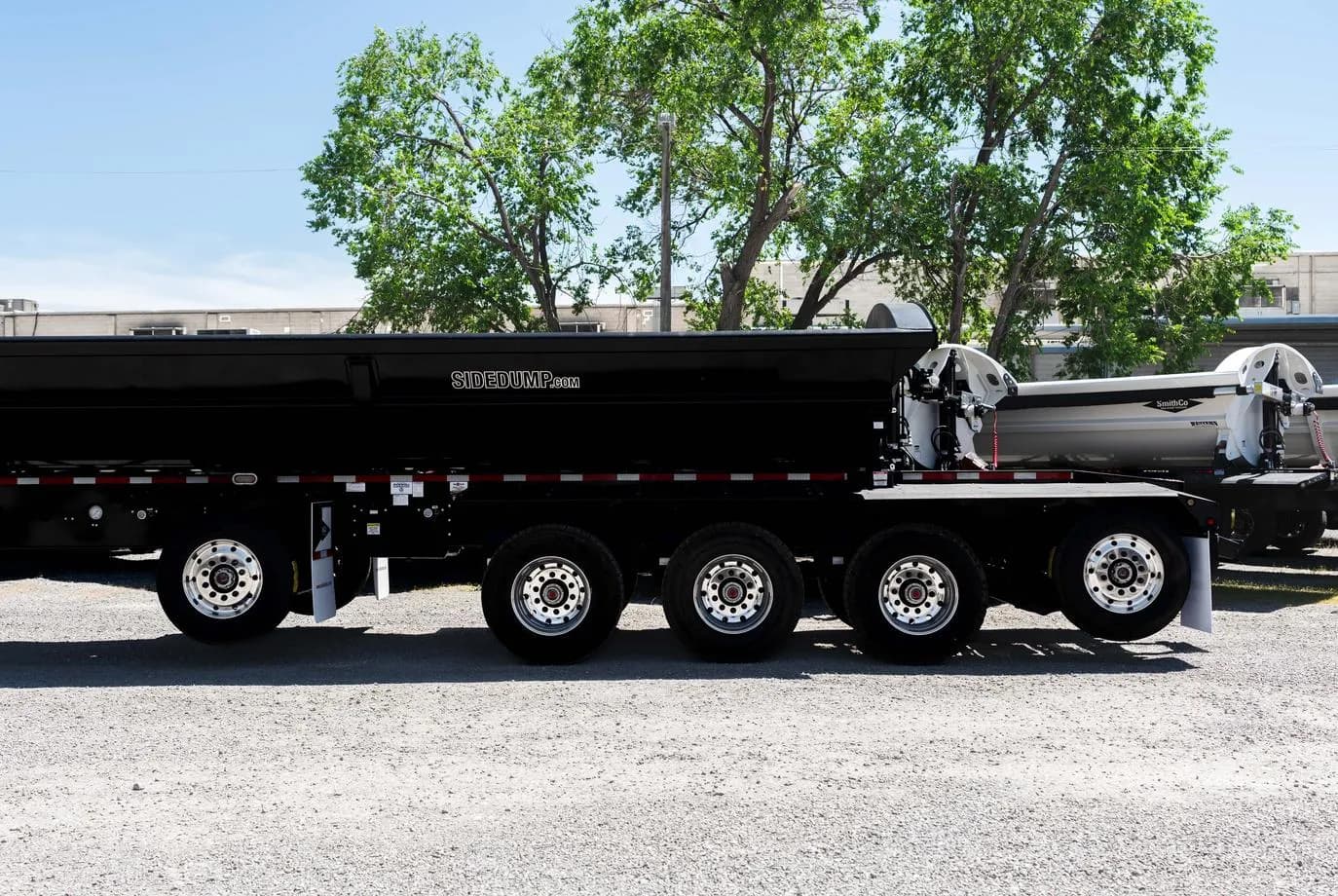

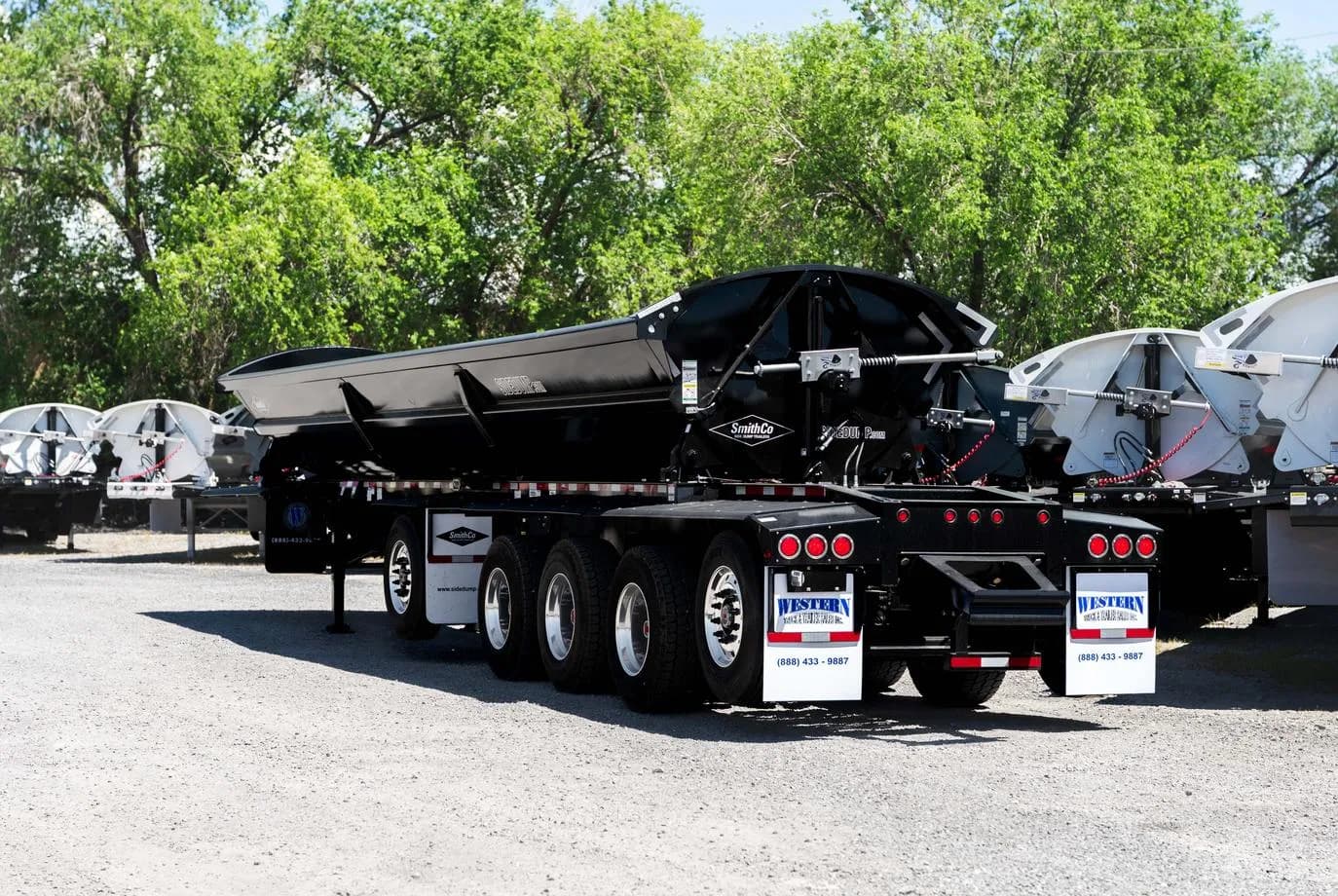

SmithCo SX5-49-38 – Side Dump, 49' frame, 38' tub

SmithCo SX5-49-38 Side Dump with 38' tub and SX-ROUND BOTTOM tub, 1/4" AR450 sides

Key Specs

• Width: 102"
• Frame Length: 49'
• Tub Length: 38'
• Tub Volume (water level): 25.5 CUBIC YARDS
• Tub Volume (heaped): 33.8 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR450
• Tub Floor: 1/4" AR450
• Tub Dividers: 0
• Tub Paint #: DV-19040 (BLACK)
• Frame Paint #: DV-19040-DTM (BLACK)

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Grease bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Lock out switch: TARP LOCKOUT

Axles & Suspension

• Suspension: RIDEWELL RW260 AIR RIDE
• Axle Spacing: 97"-54"-54"-60"
• Lift Axle: 1ST & 5TH (16.6K RW L/S) LIFTABLE/STEERABLE
• ABS axles: 25K 1
• Non-ABS axles: 25K 4
• Axle Track: 77.5" - STD
• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.56 SUPER SINGLE ALUM 2-4, (4) 9x22.5 ALUM 1 & 5
• Tires: DC RLB980 385/65R22.56 385's AXLES 2-4, (4) 295/75R22.5 AXLES 1&5
• Fenders: ALL PLASTIC

Additional Features

• Dolly Legs: BINKLEY
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• W Style Pushblock: W STYLE PUSHBLOCK - STD
• Large liquid filled air gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD

Lighting & Safety

• 3 TAILLIGHTS - RED
• 5 ID LIGHTS AT REAR
