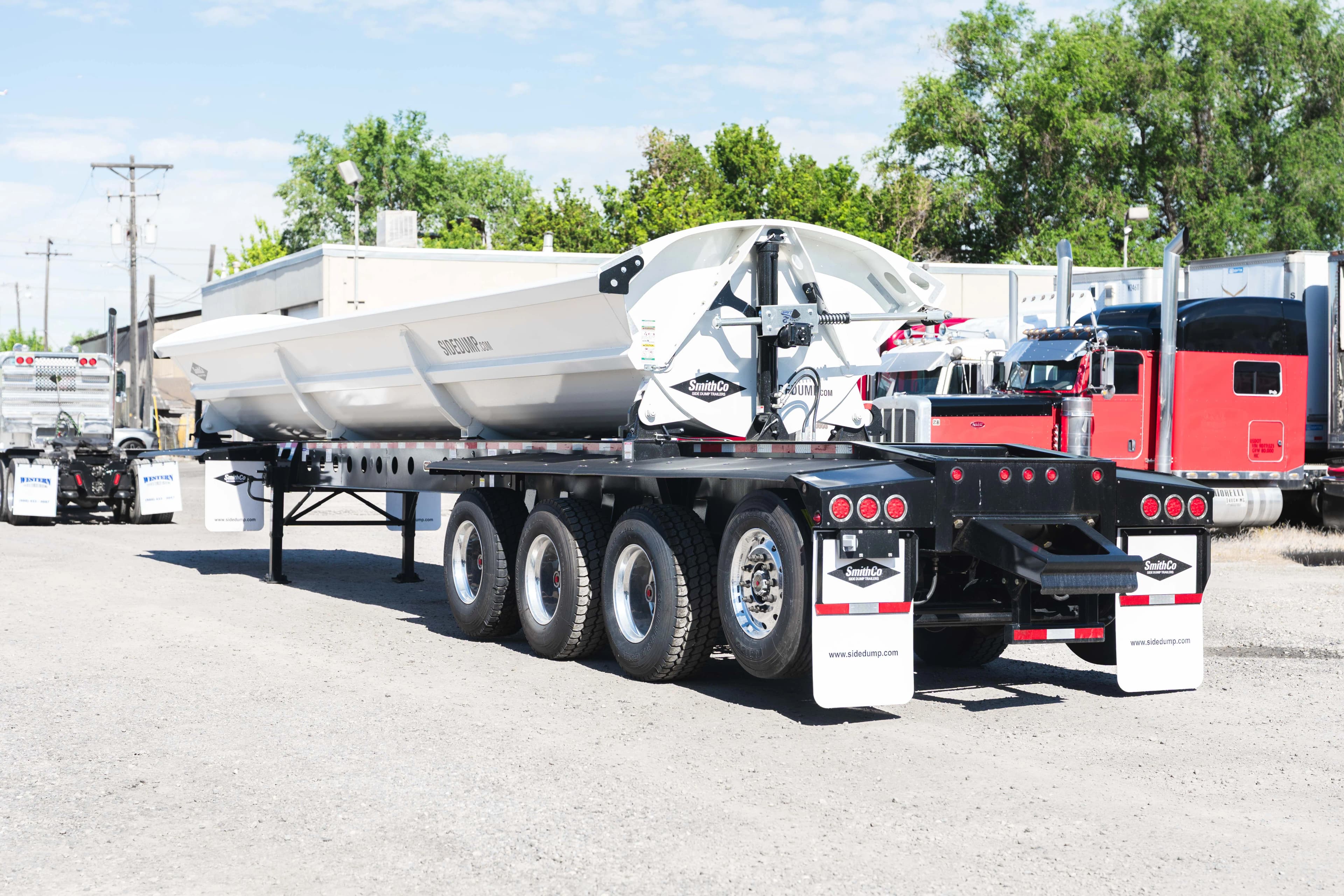

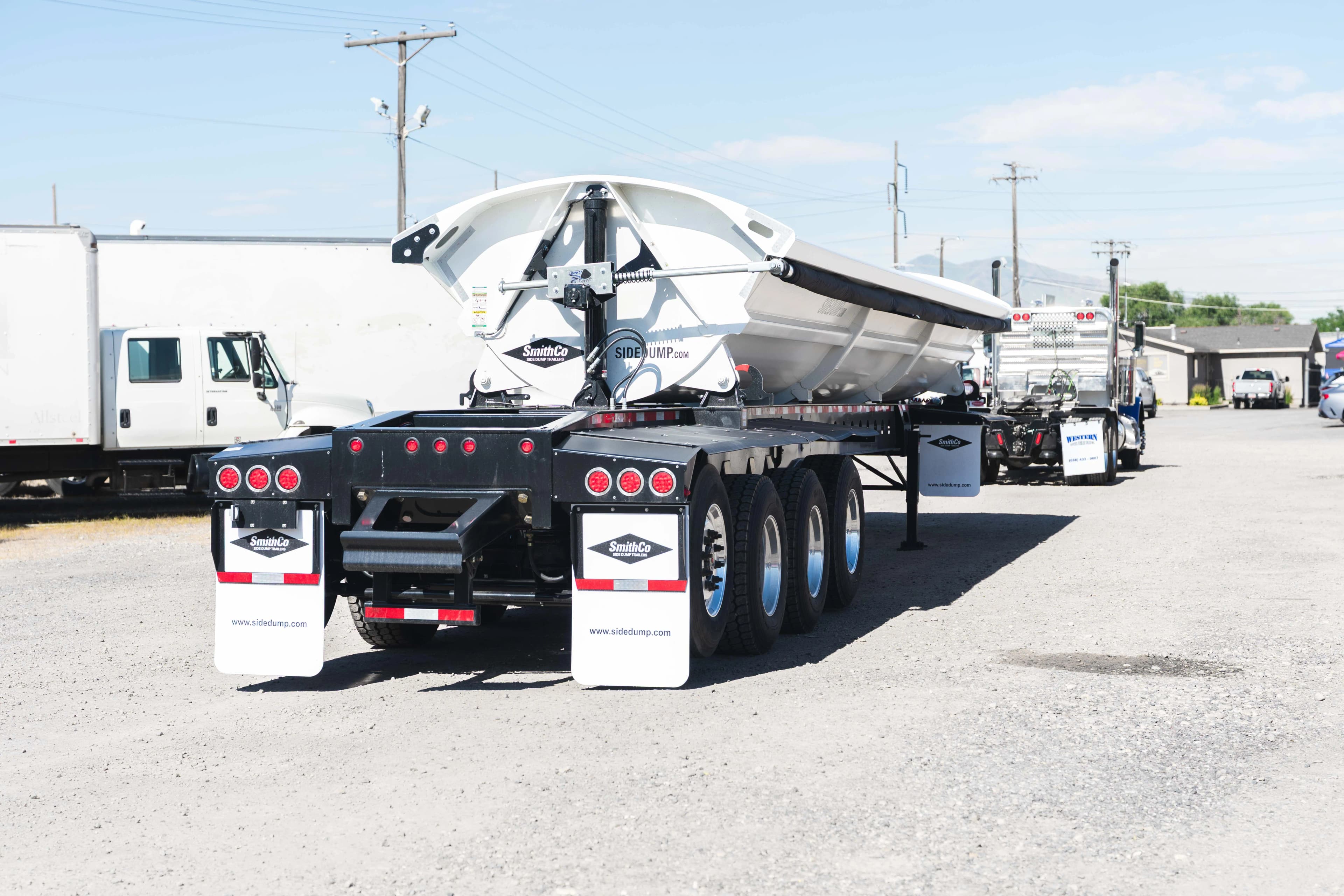

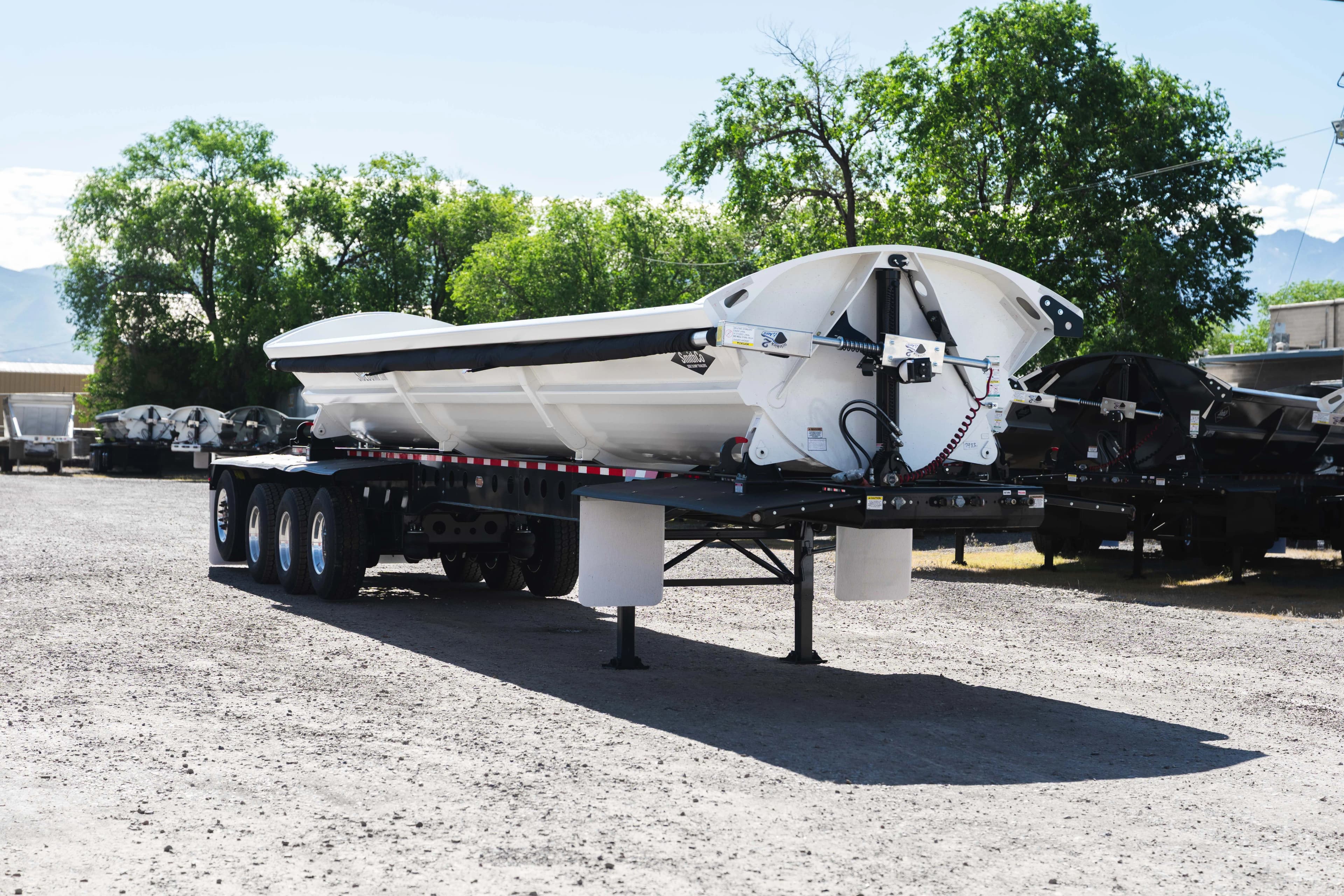

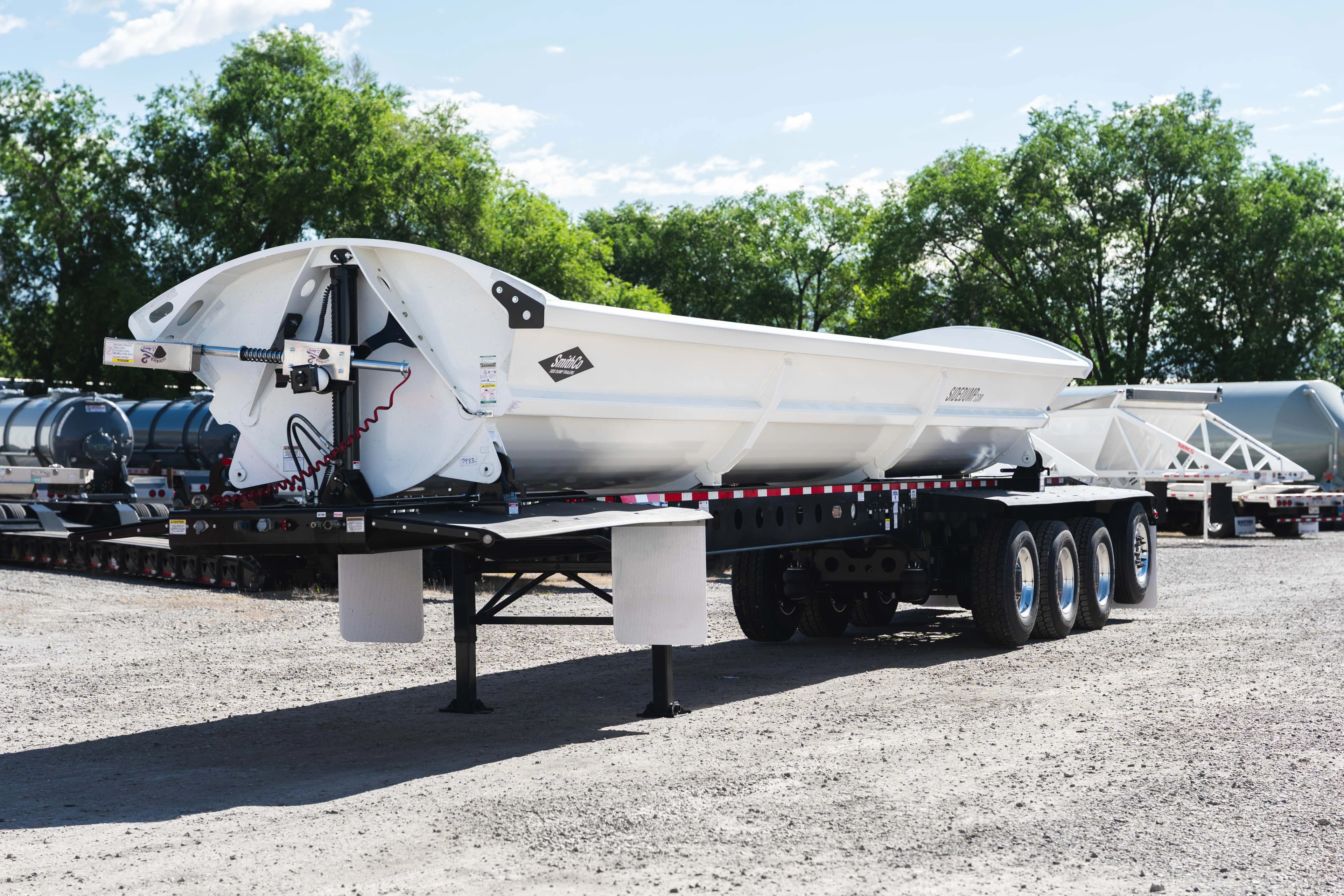

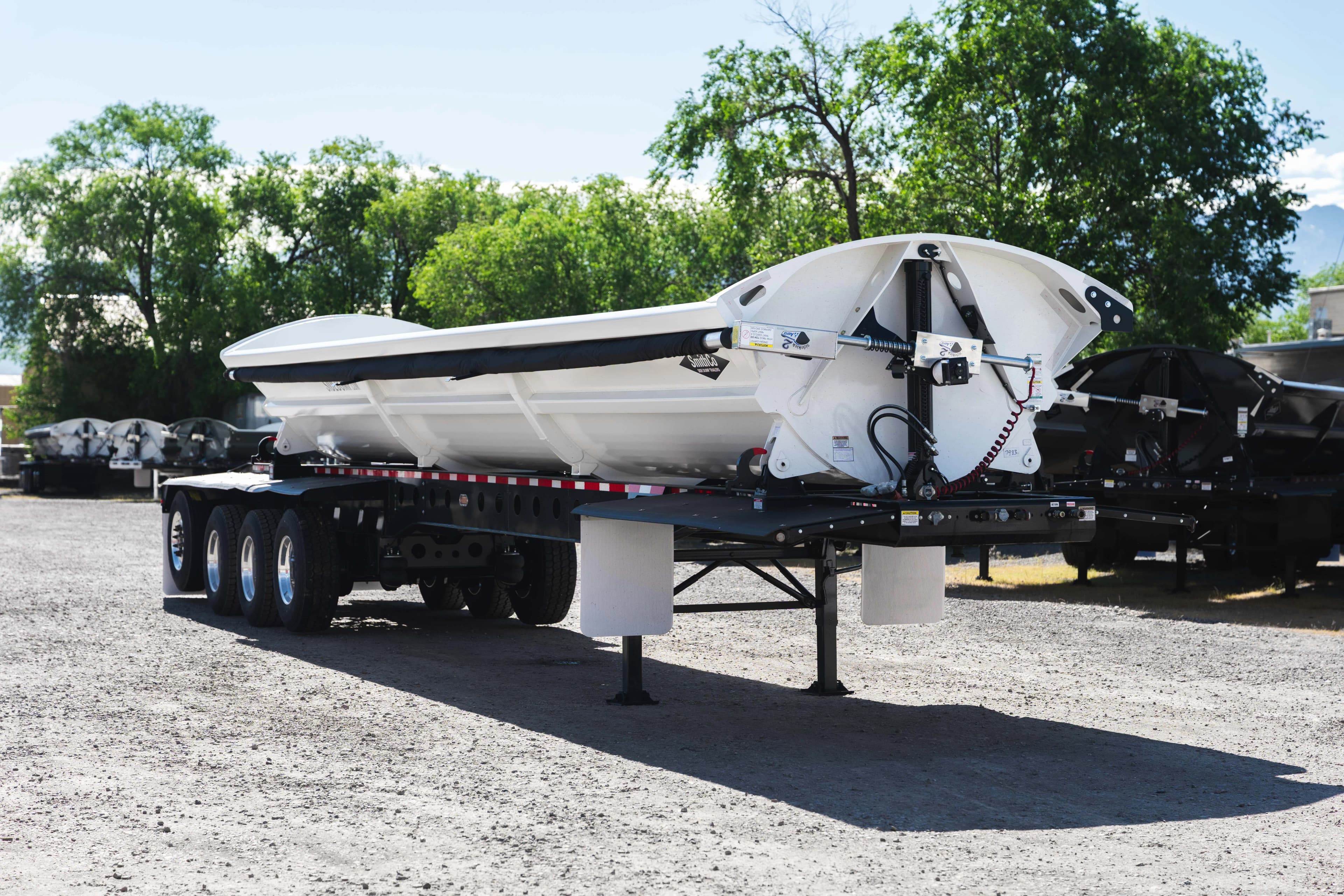

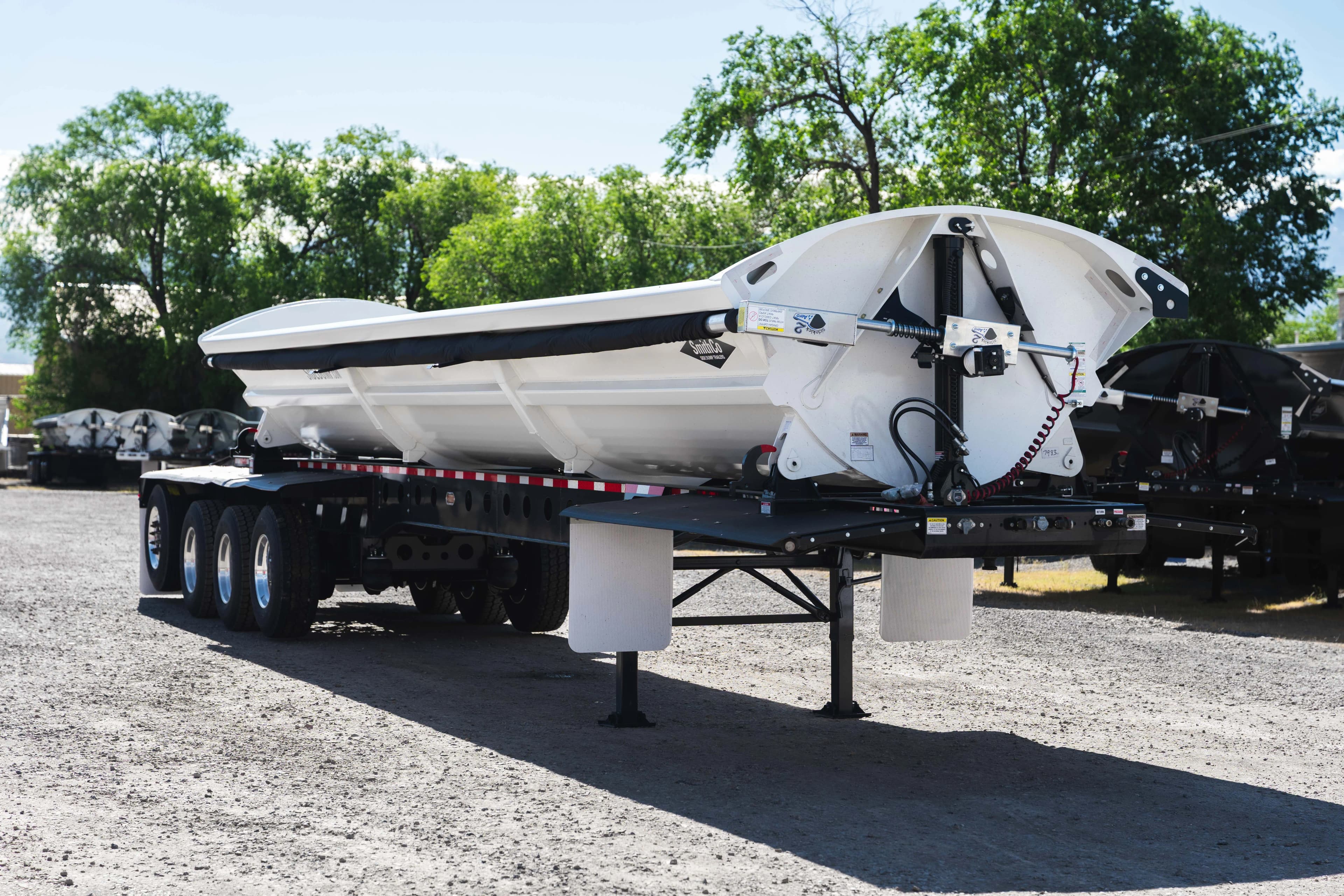

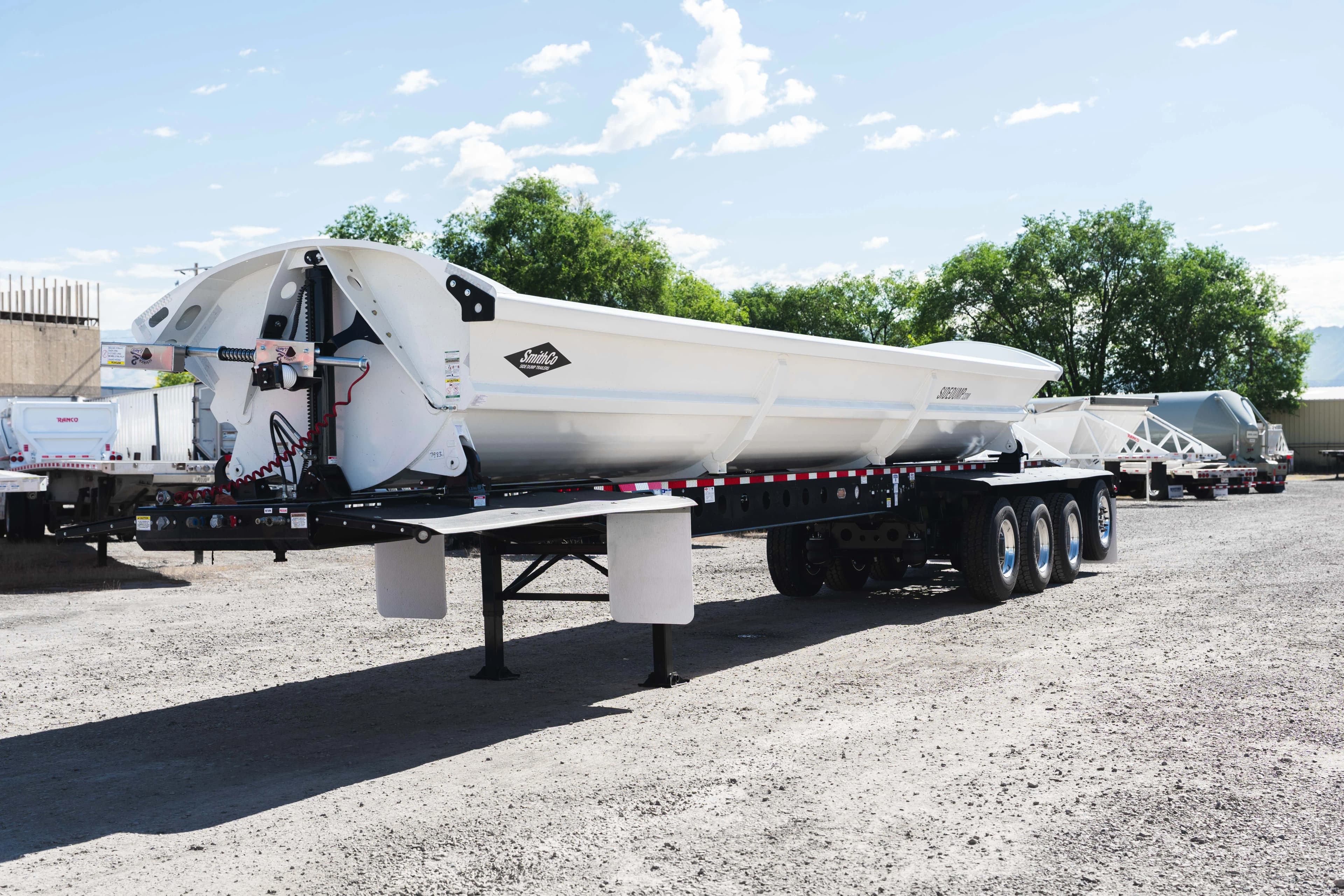

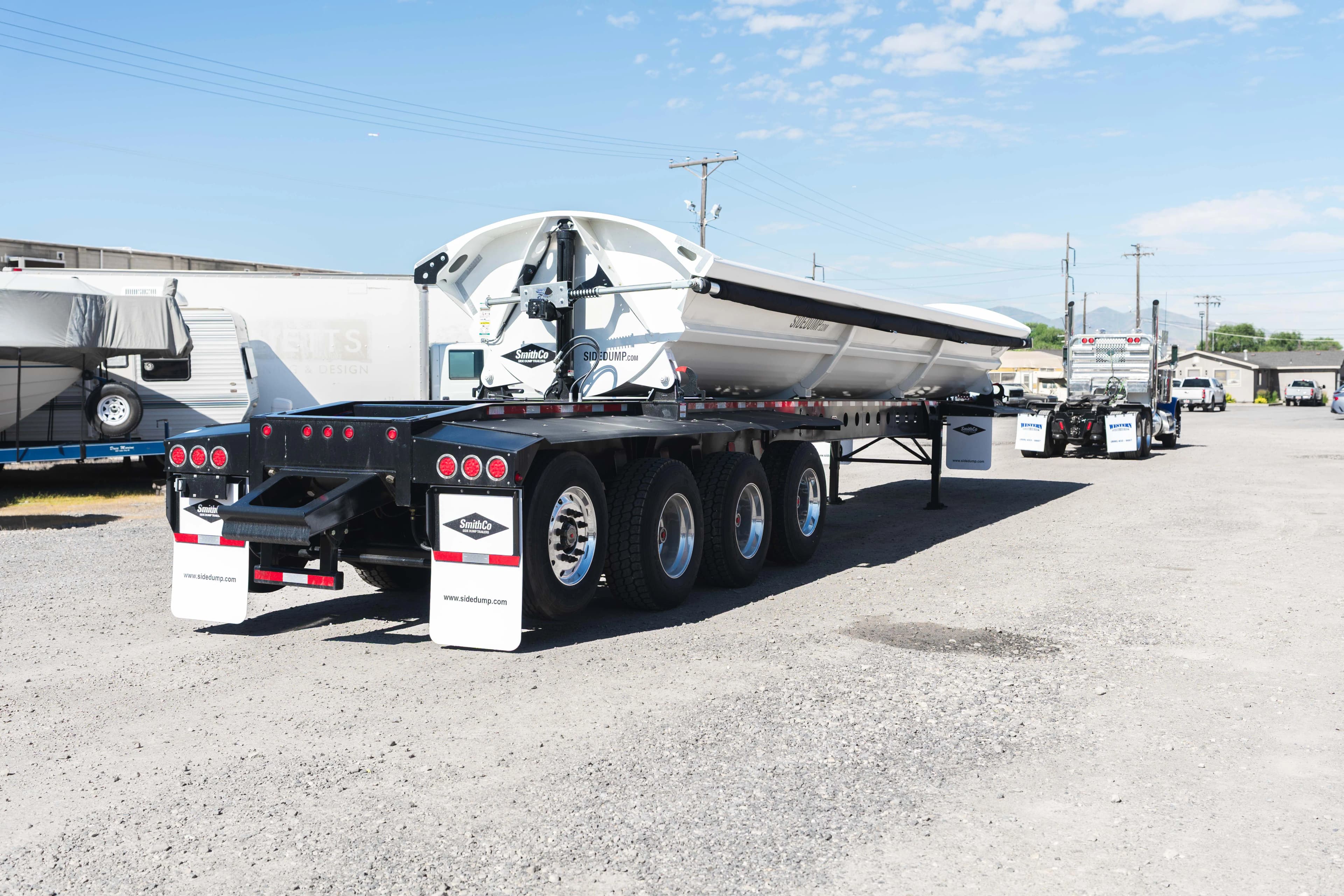

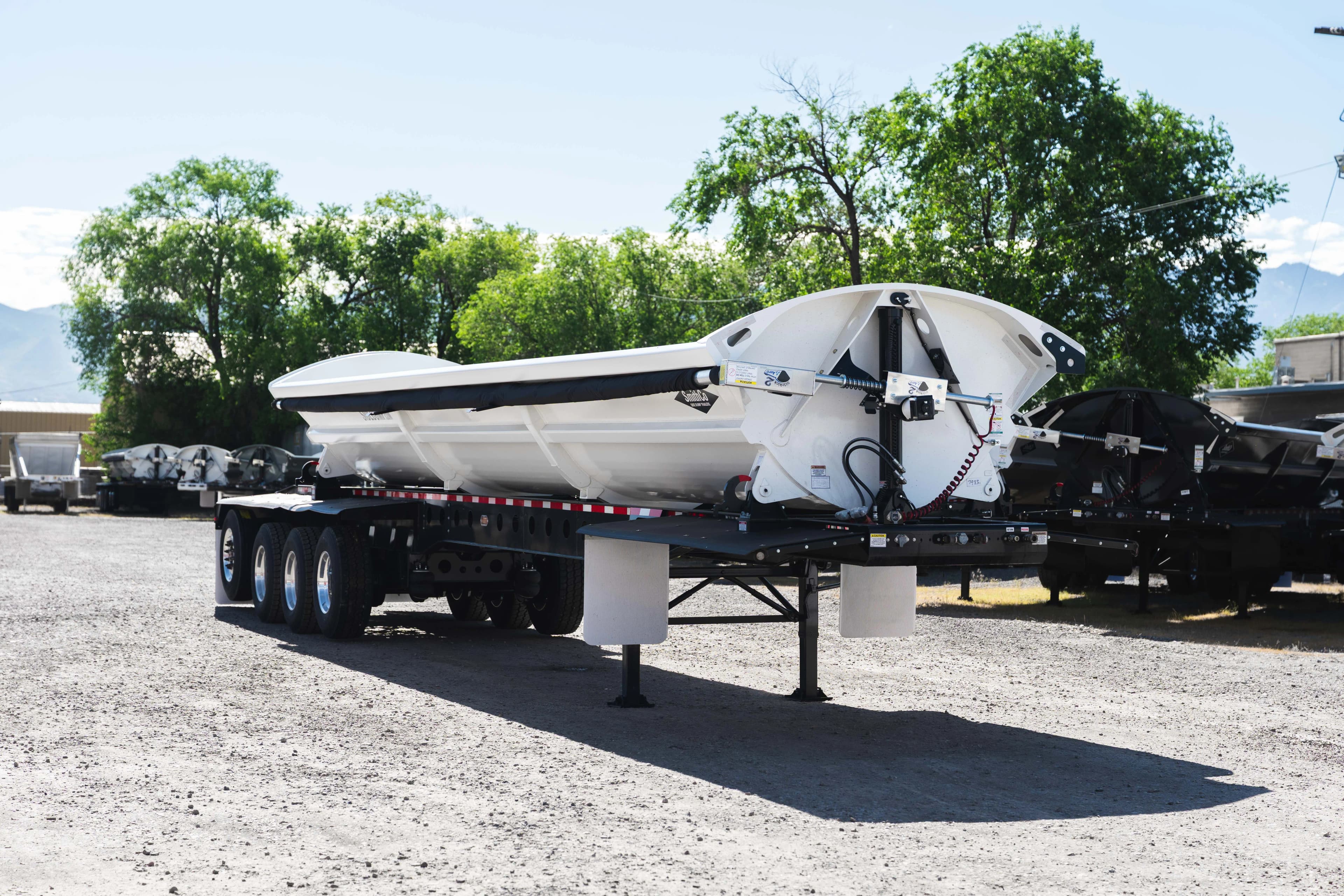

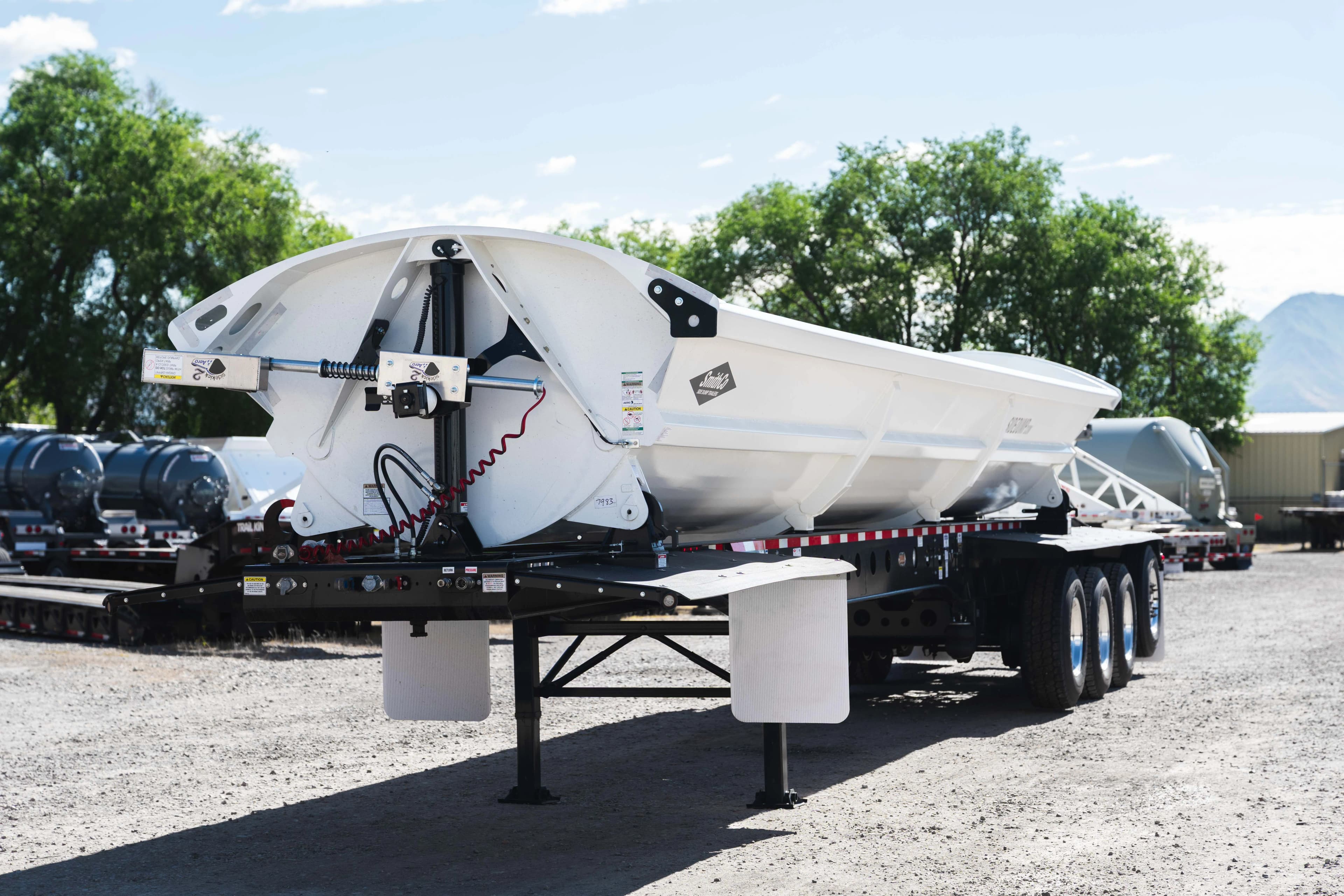

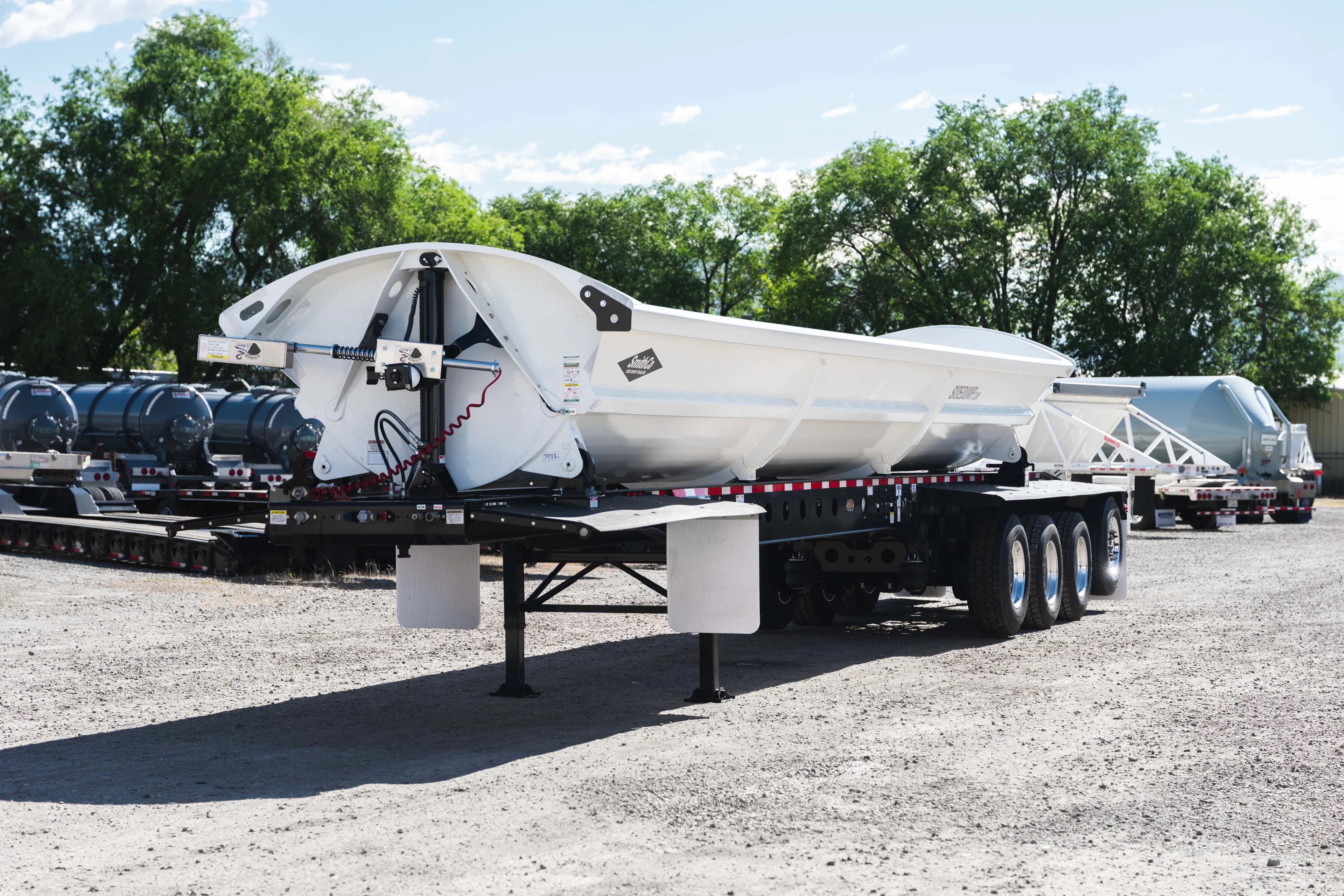

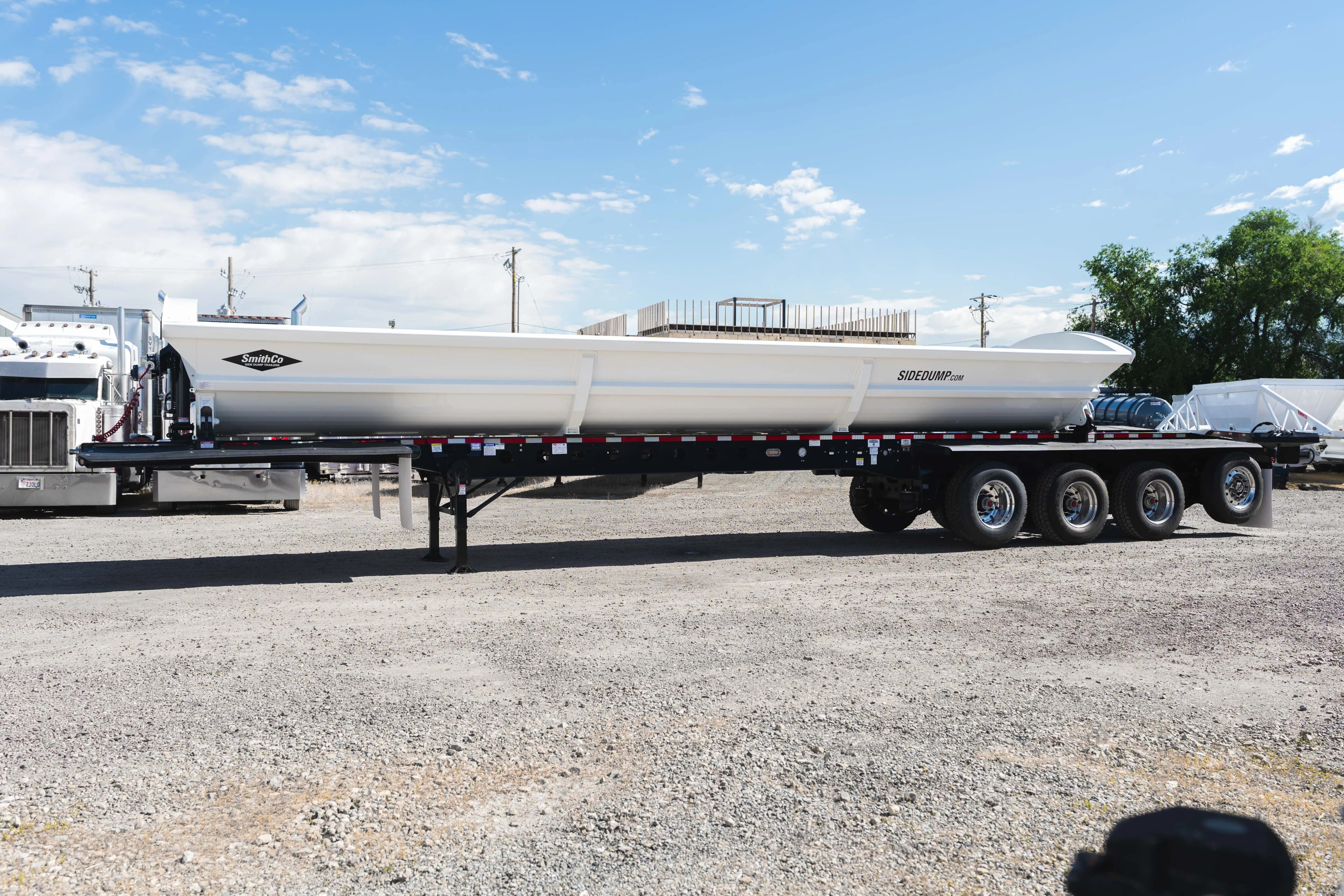

SmithCo SX4-49-36 Side Dump

SmithCo SX4-49-36 – Side Dump, 49' frame, 36' tub

SmithCo SX4-49-36 is a Side Dump with a 36' tub and SX-ROUND BOTTOM tub style.

Key Specs

• Frame Length: 49'
• Tub Length: 36'
• Width: 102"
• Tub Style: SX-ROUND BOTTOM
• Tub Volume: 36' SX - WATER LEVEL - 24.1 CUBIC YARDS; 36' SX - HEAPED - 32 CUBIC YARDS

Tub Construction

• Tub Sides: 1/4" AR450
• Tub Floor: 1/4" AR450
• Tub Dividers: 0
• Tub Paint #: DV-19088 (WHITE)

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on Trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)

Axles & Suspension

• Suspension: RIDEWELL RW260 AIR RIDE
• Axle Spacing: 54"-54"-60"
• Lift Axle: 1ST STANDARD LIFT; 4TH AXLE 16.6K STEERABLE/LIFT
• ABS-Axles: 25K 1
• Non-ABS Axles: 25K 3
• Axle Track: 77.5"-STD

Wheels & Tires

• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL
• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.5 6 SUPER SINGLE ALUM AXLES 1-3, (2) 9" ALUM ON AXLE 4
• Tires: DC RLB980 385/65R22.56 385/65R22.5 AXLES 1-3, 295/75R22.5 ON AXLE 4
• Fenders: ALL PLASTIC

Additional Features

• Dolly Legs: BINKLEY
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• Lock Out Switch: TARP LOCKOUT
• W Style Pushblock: STD
• Large Liquid Filled Air Gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD
• Grease Bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Frame Paint #: DV-19040-DTM (BLACK)

Lighting & Safety

• Taillights: 3 TAILLIGHTS - RED
• Rear ID Lights: 5 ID LIGHTS AT REAR
