SmithCo SX4-49-36 Side Dump

SmithCo SX4-49-36 – Side Dump, 49' x 36', 1/4" AR450

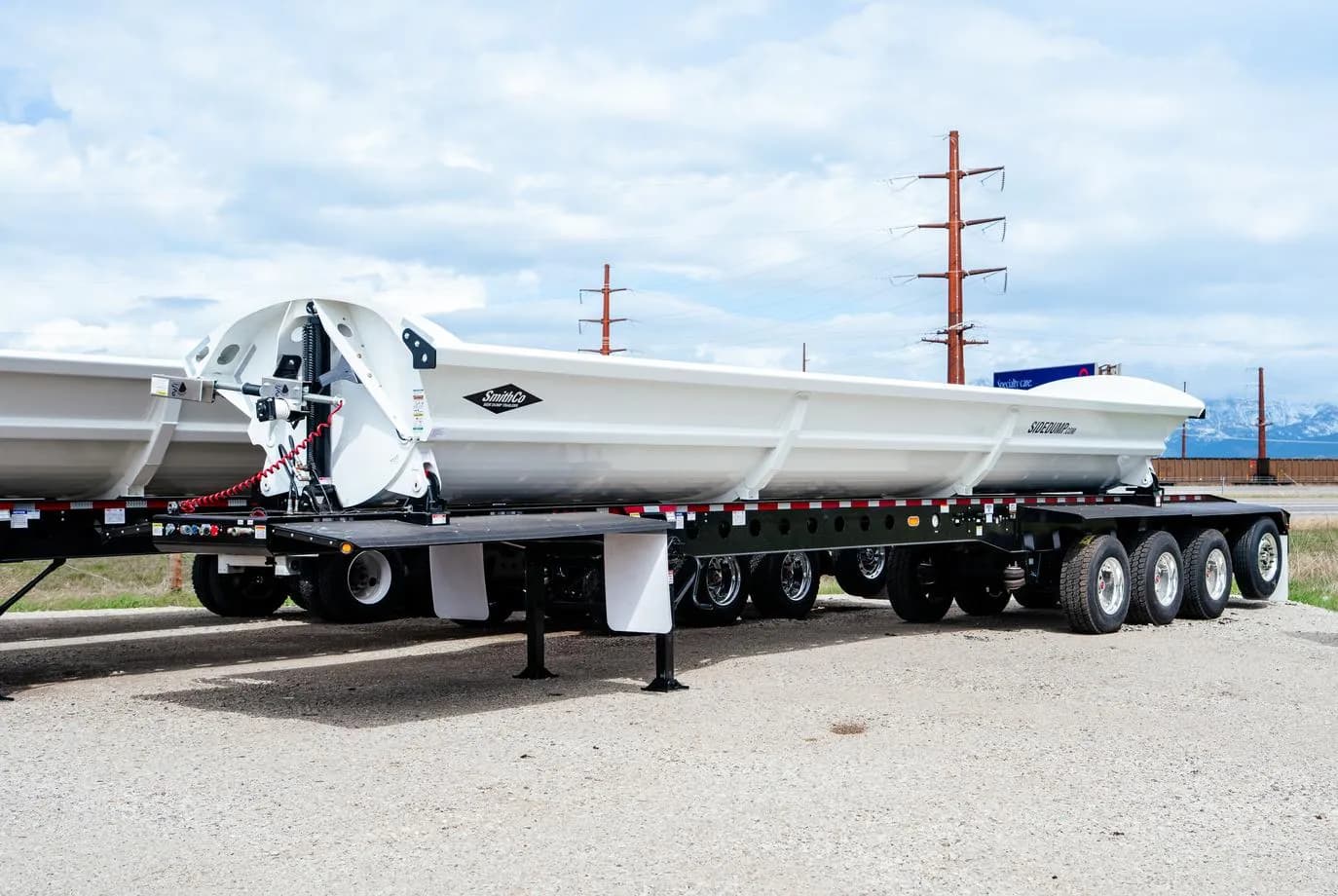

SmithCo SX4-49-36 side dump with 102" WIDE frame and 36' tub length.

Key Specs

• Model: SX4
• Frame width: 102" WIDE
• Frame length: 49'
• Tub length: 36'
• Tub volume (water level): 24.1 CUBIC YARDS
• Tub volume (heaped): 32 CUBIC YARDS
• Tub dividers: 0

Tub Construction

• Tub style: SX-ROUND BOTTOM
• Tub sides: 1/4" AR450
• Tub floor: 1/4" AR450
• Tub paint #: DV-19088 (WHITE)

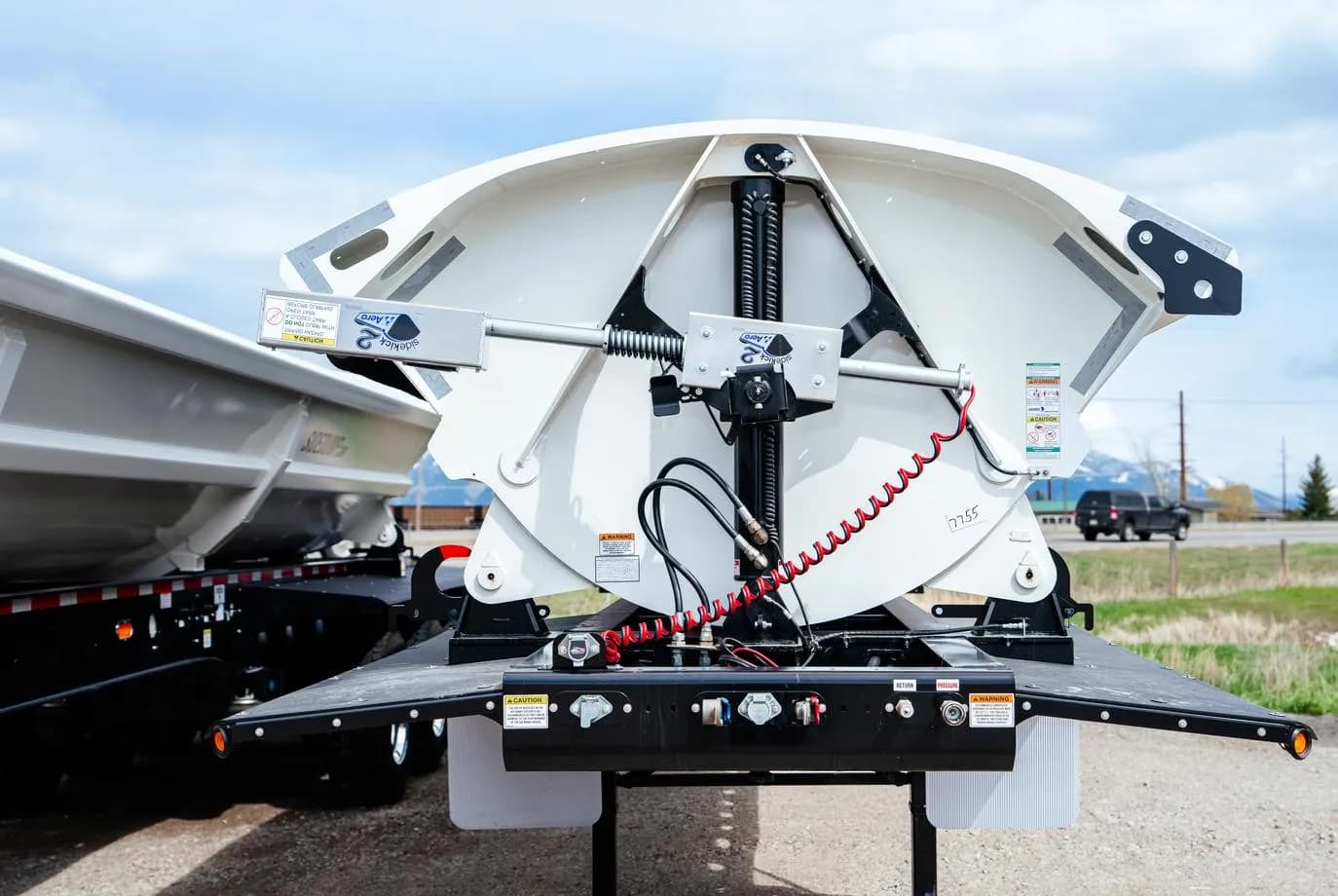

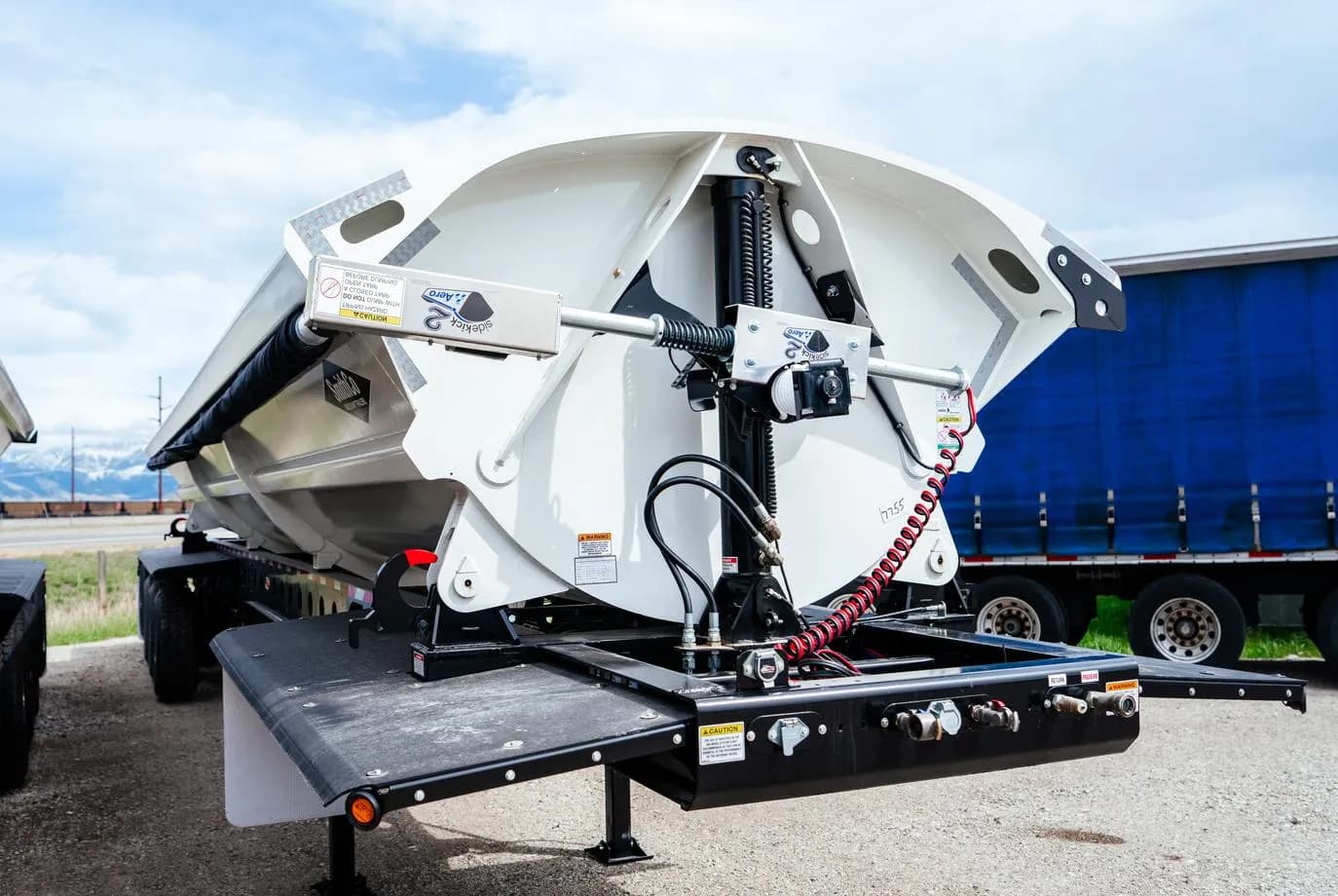

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Grease bank: FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• W style pushblock: STD
• Dolly legs: MARK V

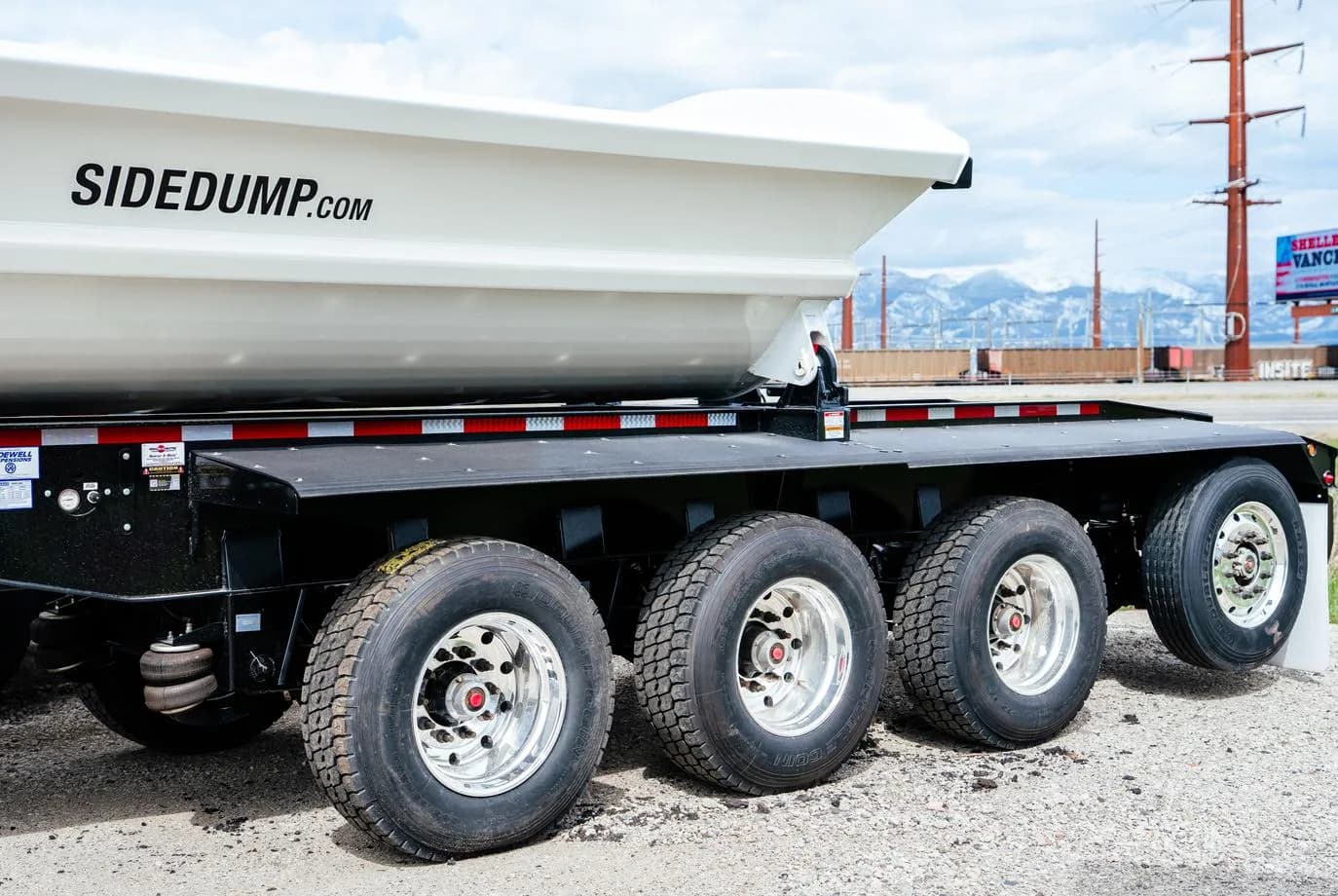

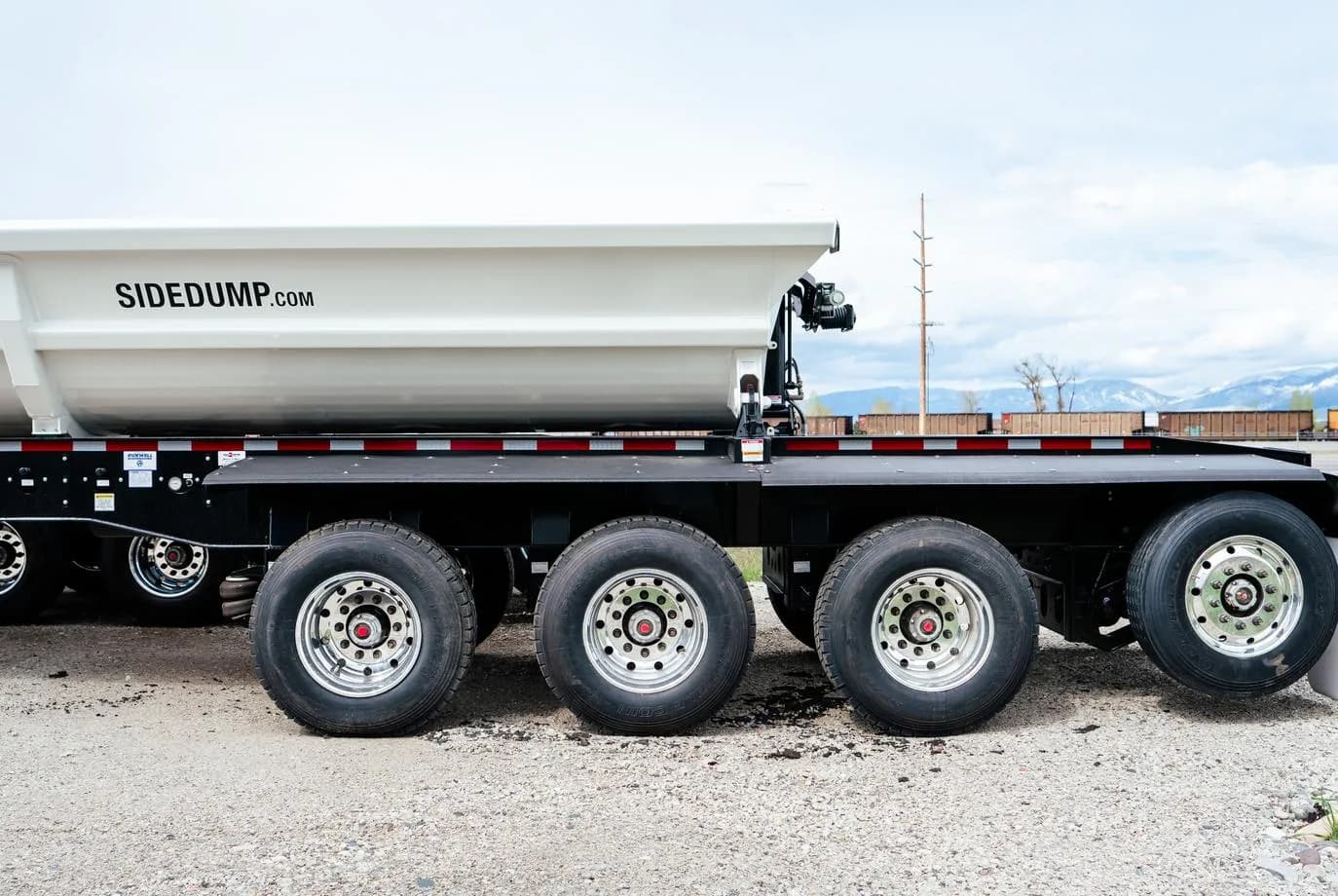

Axles & Suspension

• Suspension: RIDEWELL RW260 AIR RIDE
• Axle spacing: 54"-54"-60"
• Lift axle: 1ST STANDARD LIFT, 4TH AXLE 16.6K STEERABLE/LIFT
• ABS-AXLES: 25K 1
• NON-ABS AXLES: 25K 3
• Axle track: 77.5"-STD

Wheels & Tires

• Hubs: DURALITE-STD
• Brakes: 16-1/2"x7"
• Drums: CAST STEEL
• Wheel style: HUB-PILOTED U/M
• Wheel type: AL SS 12.25x22.5 6 SUPER SINGLE ALUM AXLES 1-3, (2) 9" ALUM ON AXLE 4
• Tires: DC RLB980 385/65R22.5 6 385/65R22.5 AXLES 1-3, 295/75R22.5 ON AXLE 4

Additional Features

• Fenders: ALL PLASTIC
• Frame paint #: DV-19040-DTM (BLACK)
• Tarp brand: AERO
• Tarp type: MESH-NON SEALED
• Lock out switch: TARP LOCKOUT
• Large air gauge: LIQUID FILLED ON DRIVER'S SIDE - STD

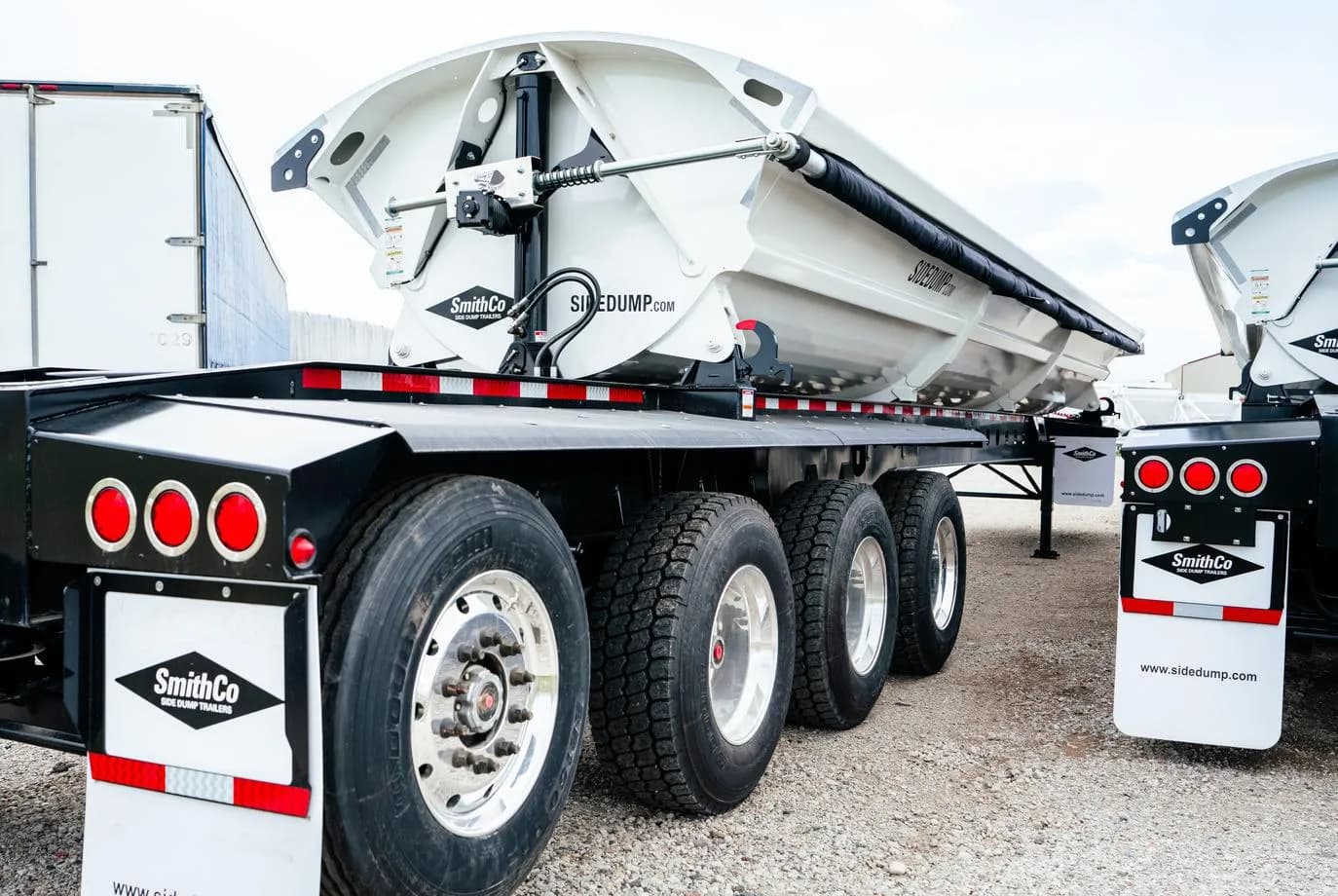

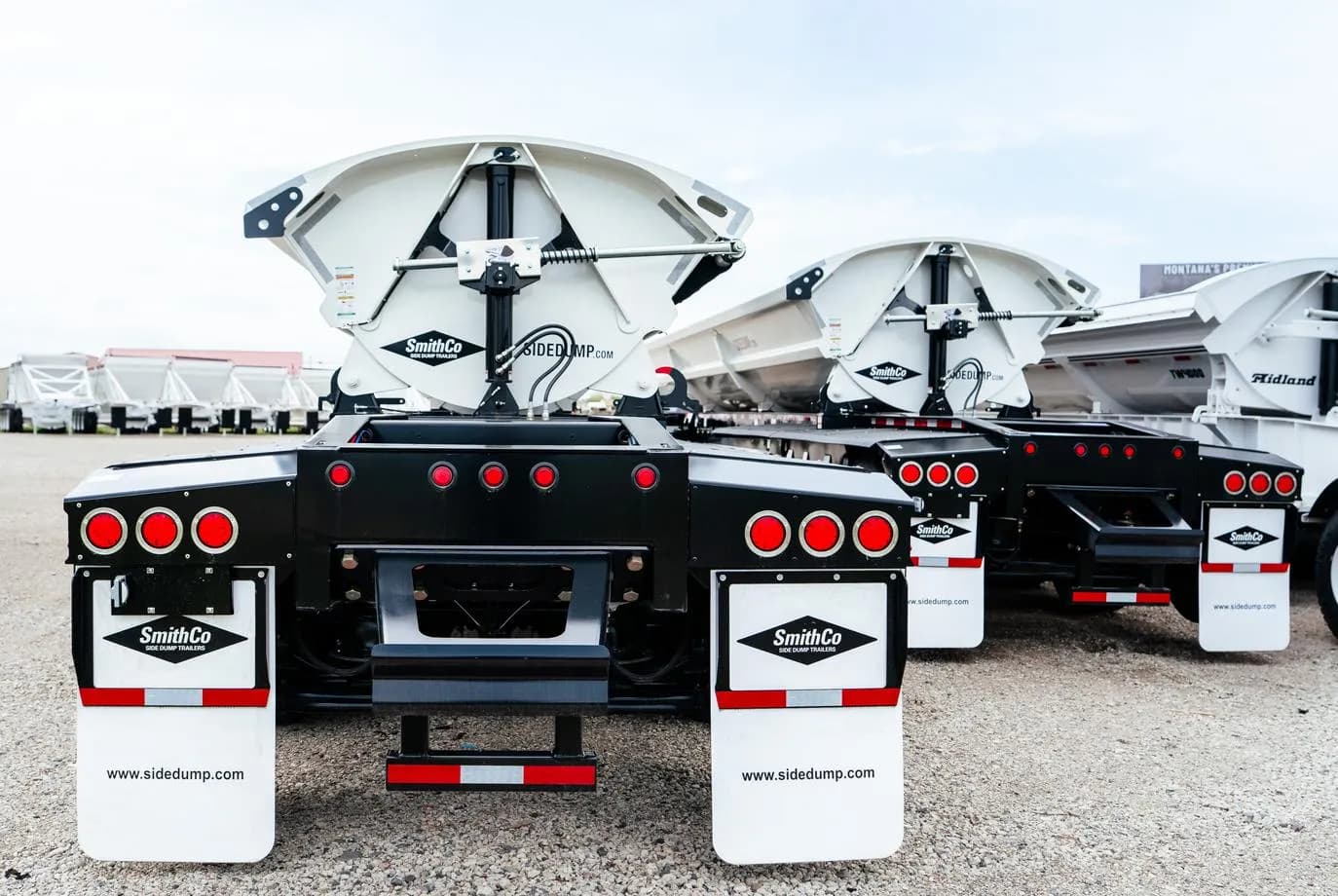

Lighting & Safety

• 3 TAILLIGHTS - RED
• 5 ID LIGHTS AT REAR
