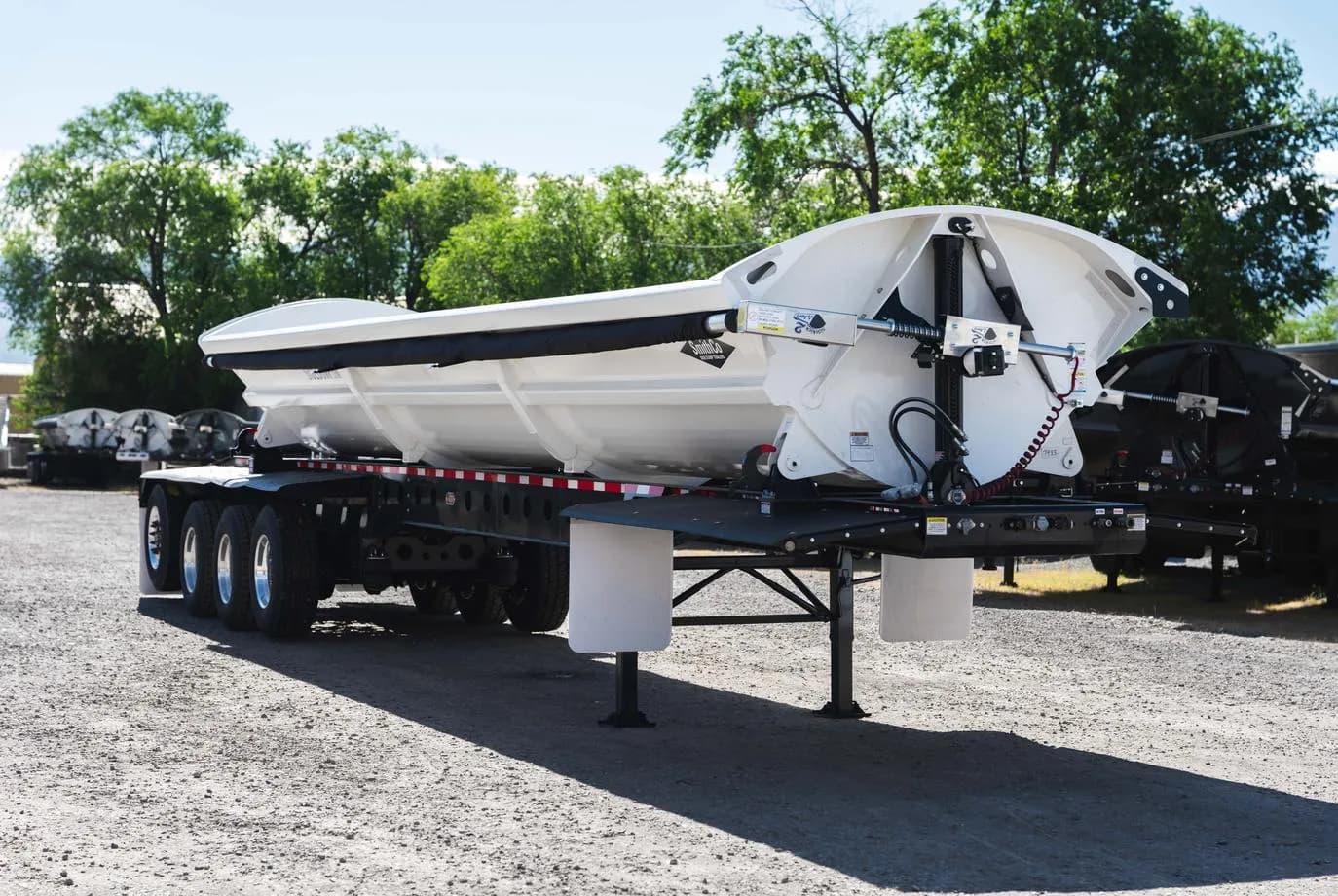

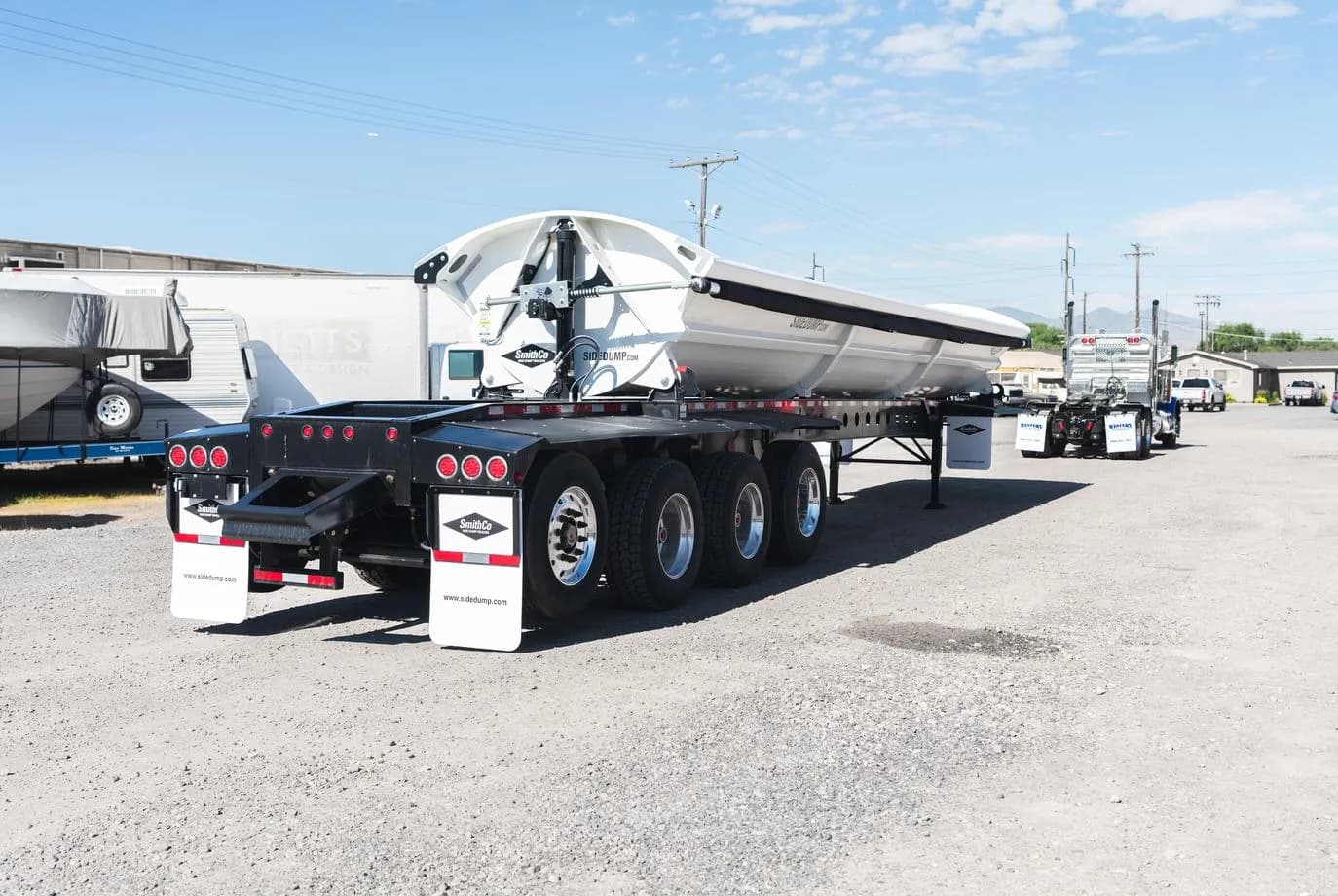

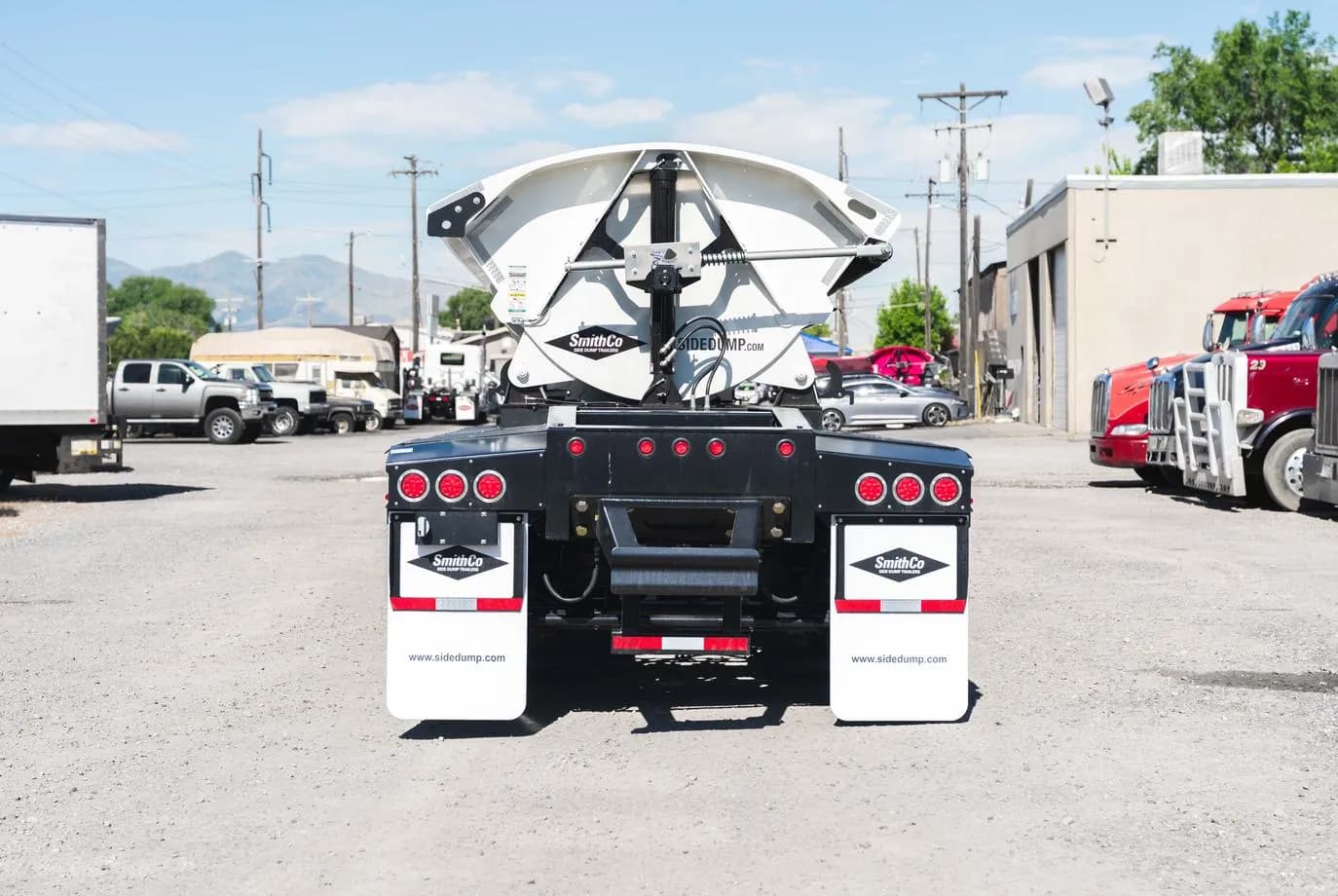

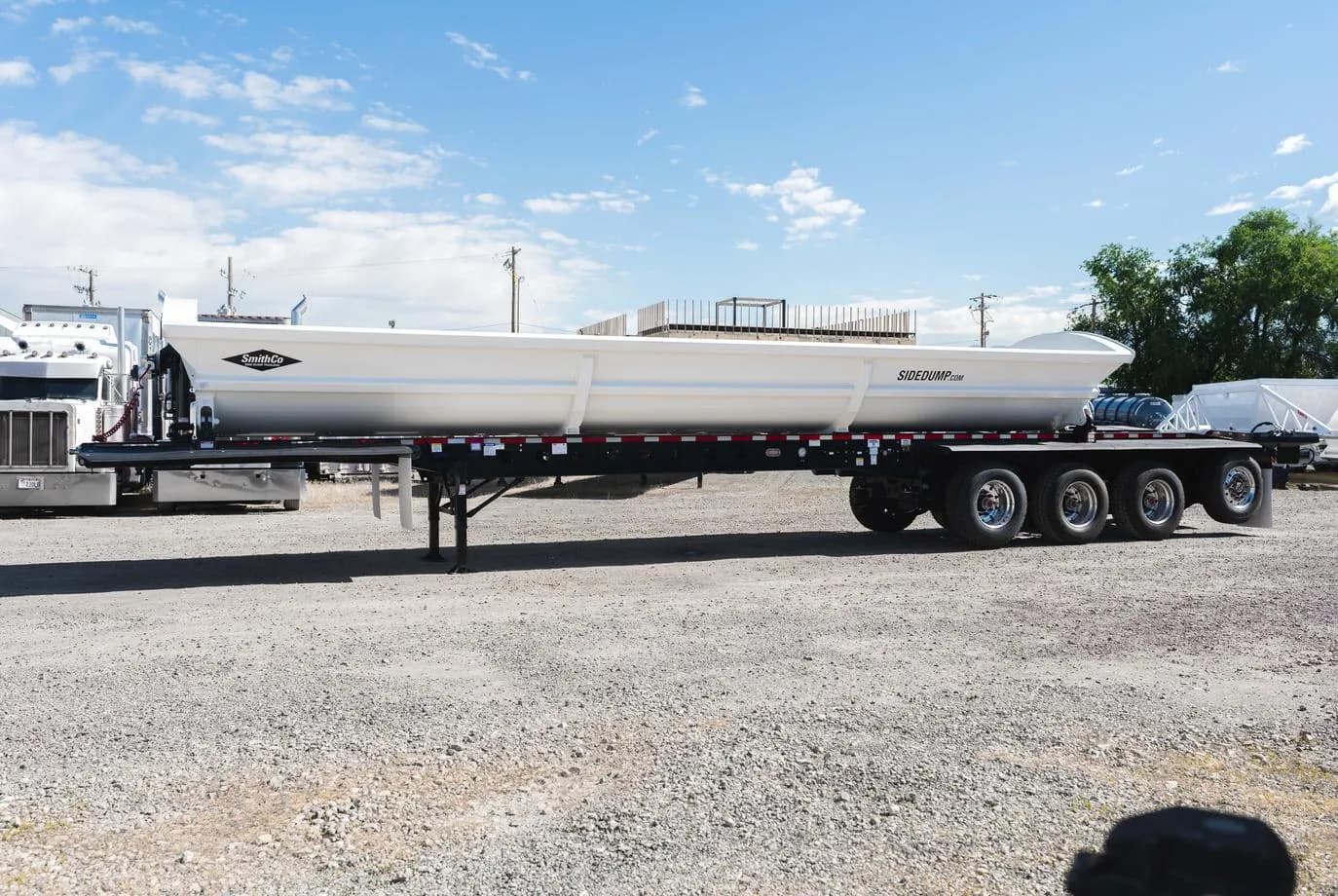

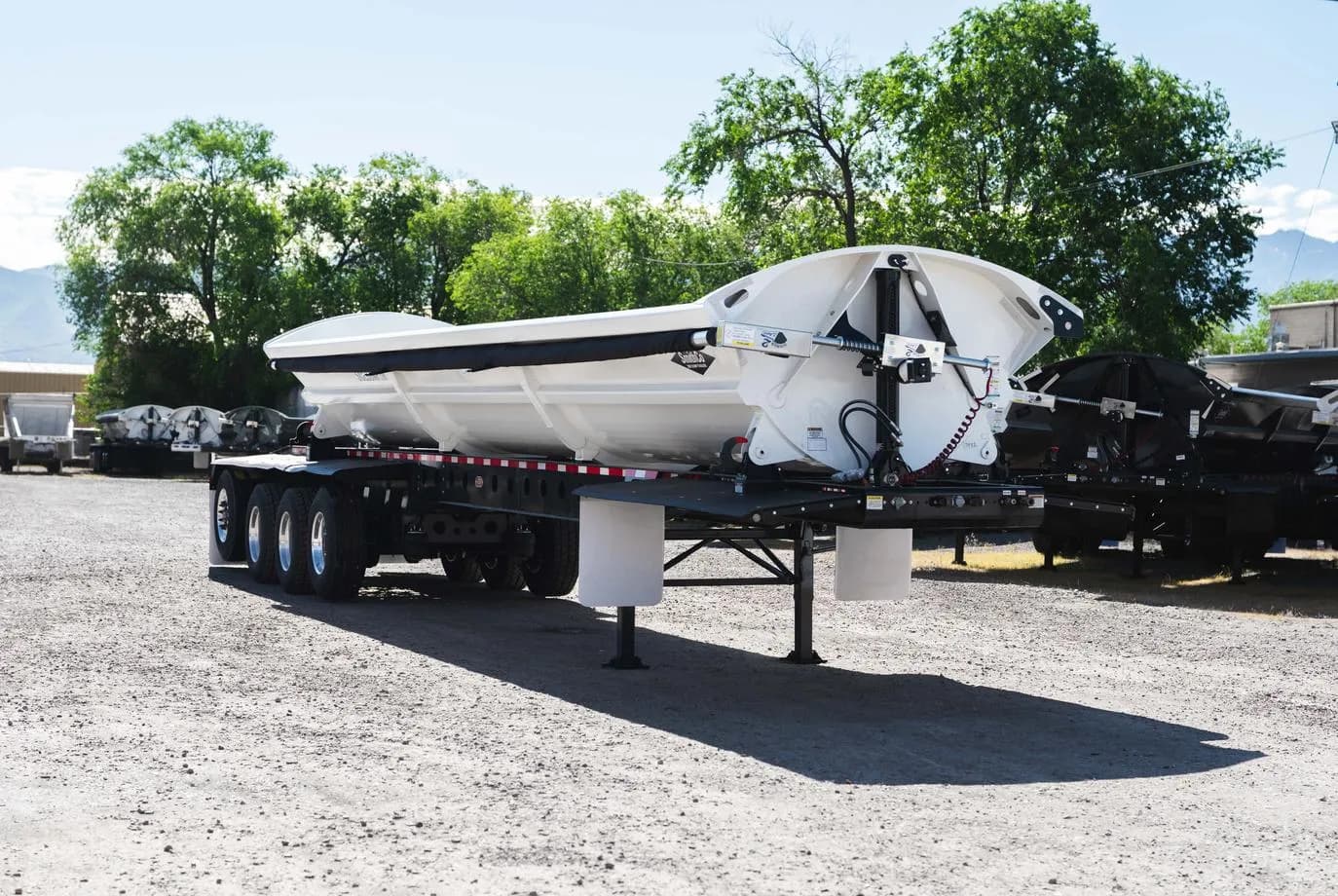

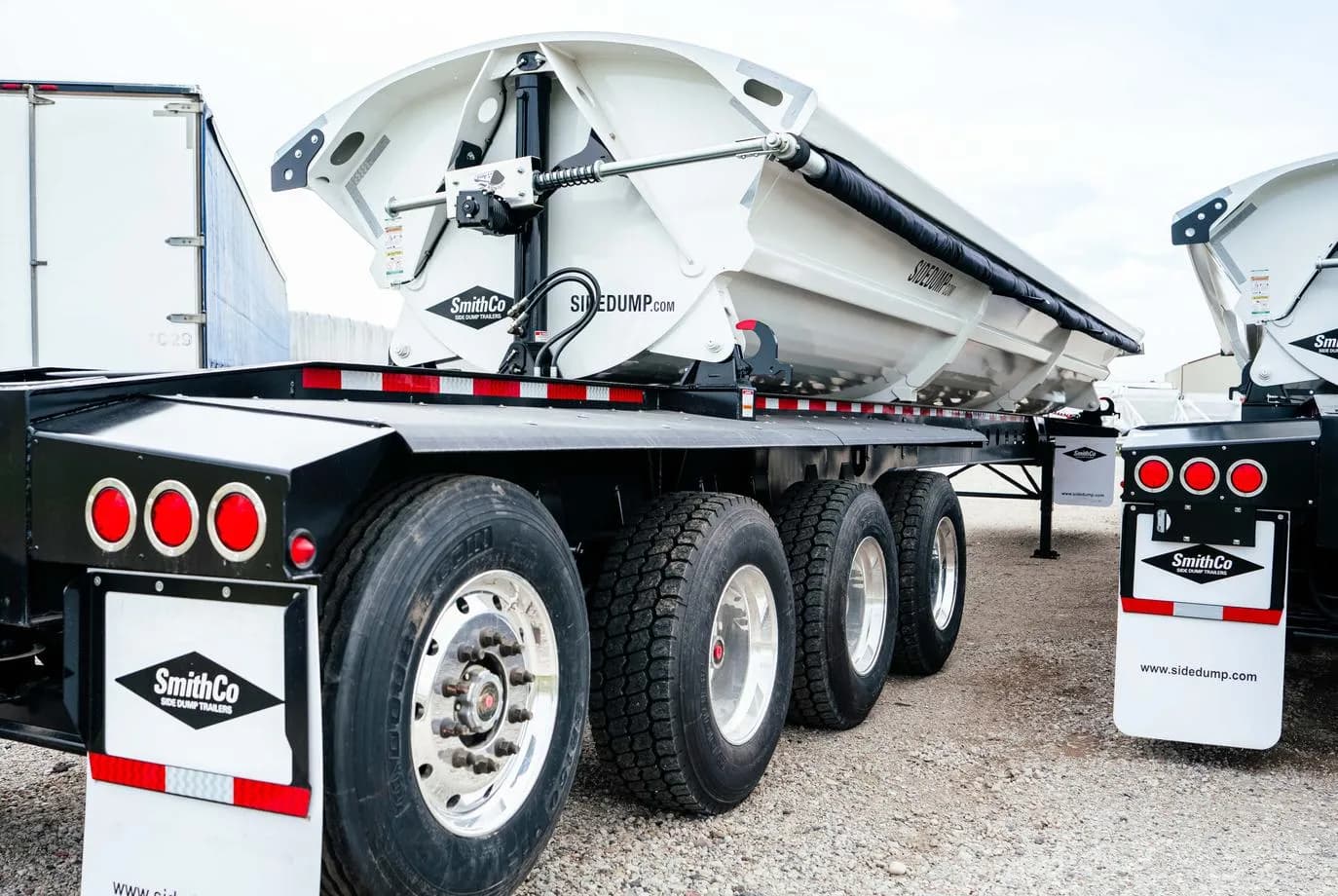

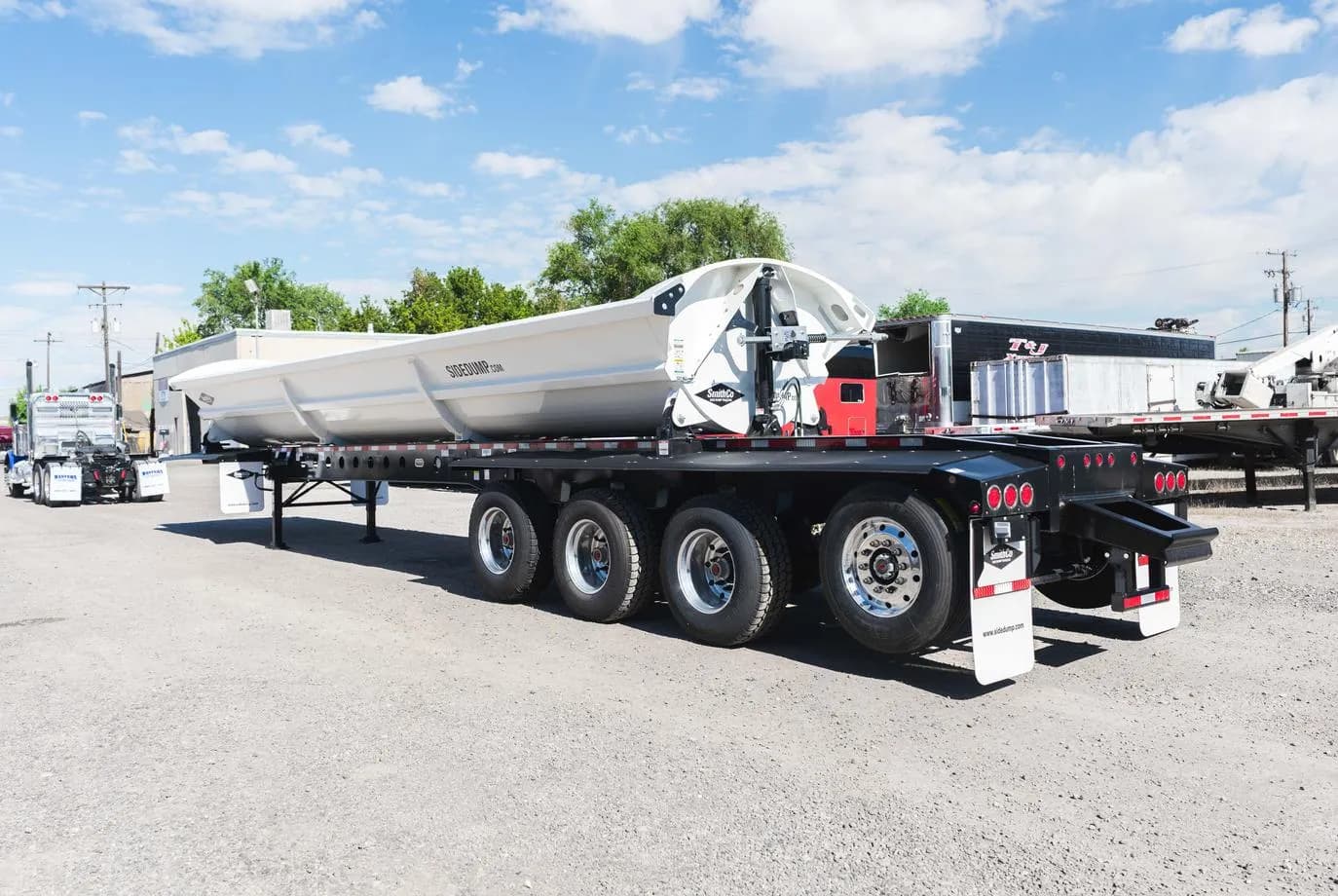

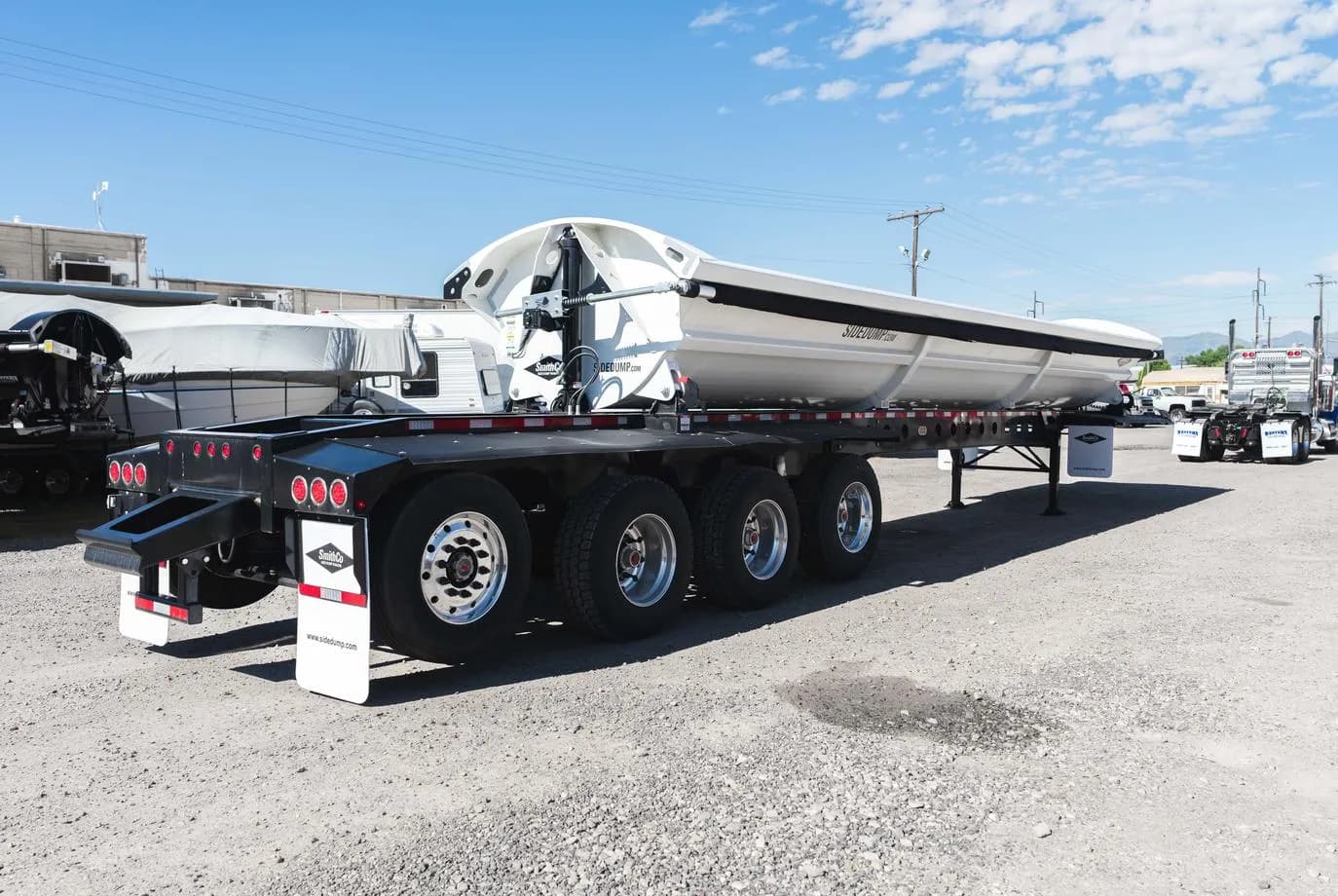

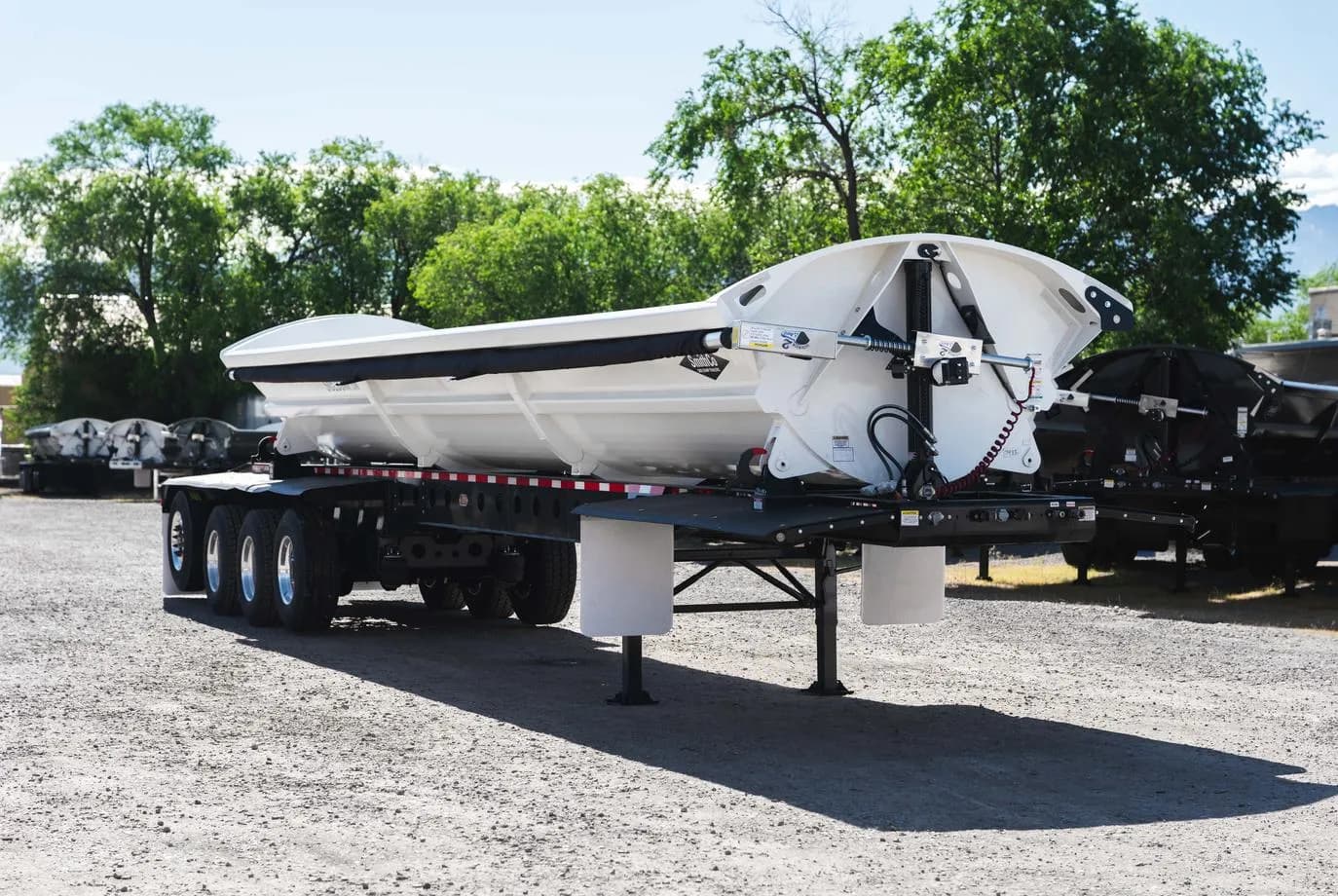

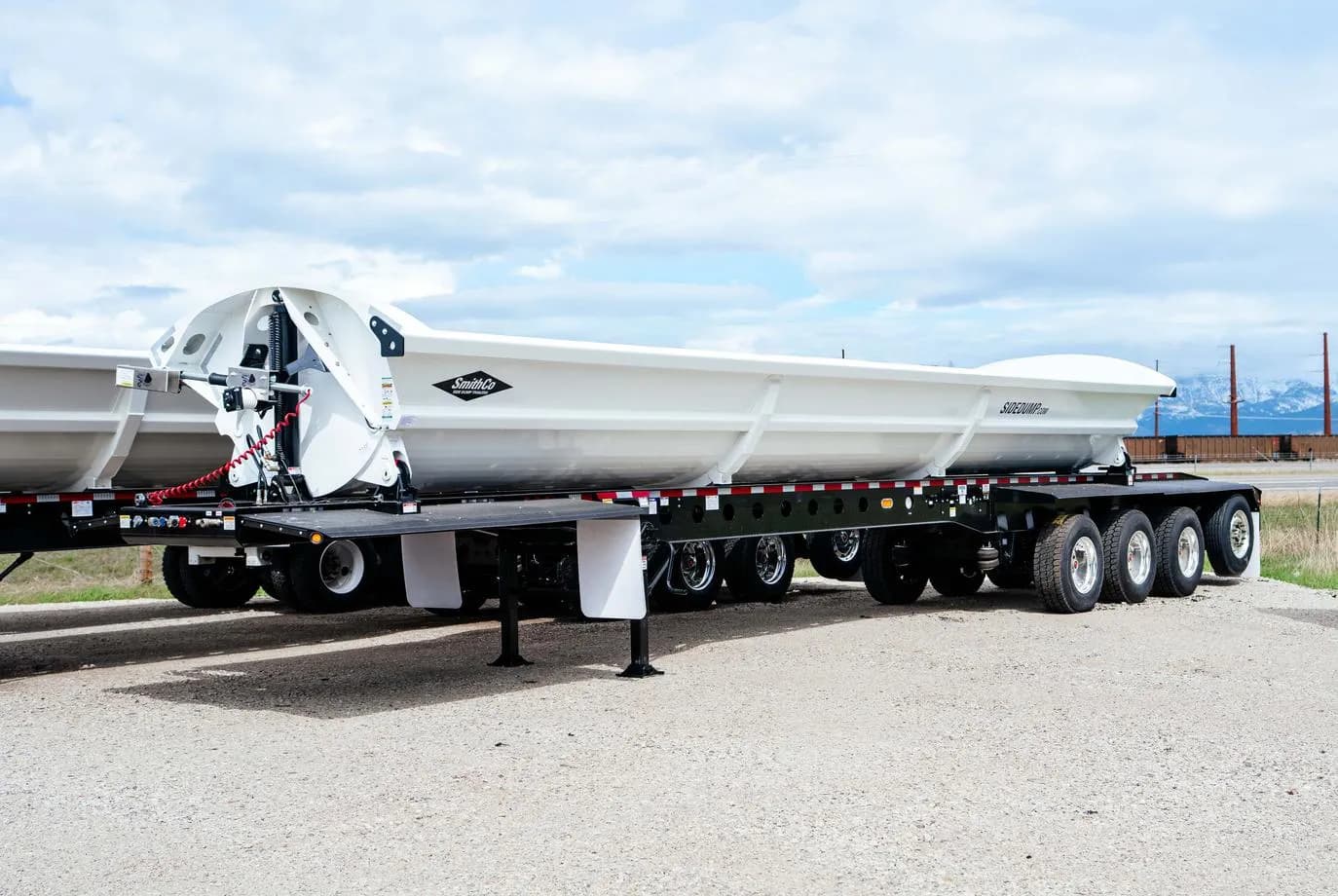

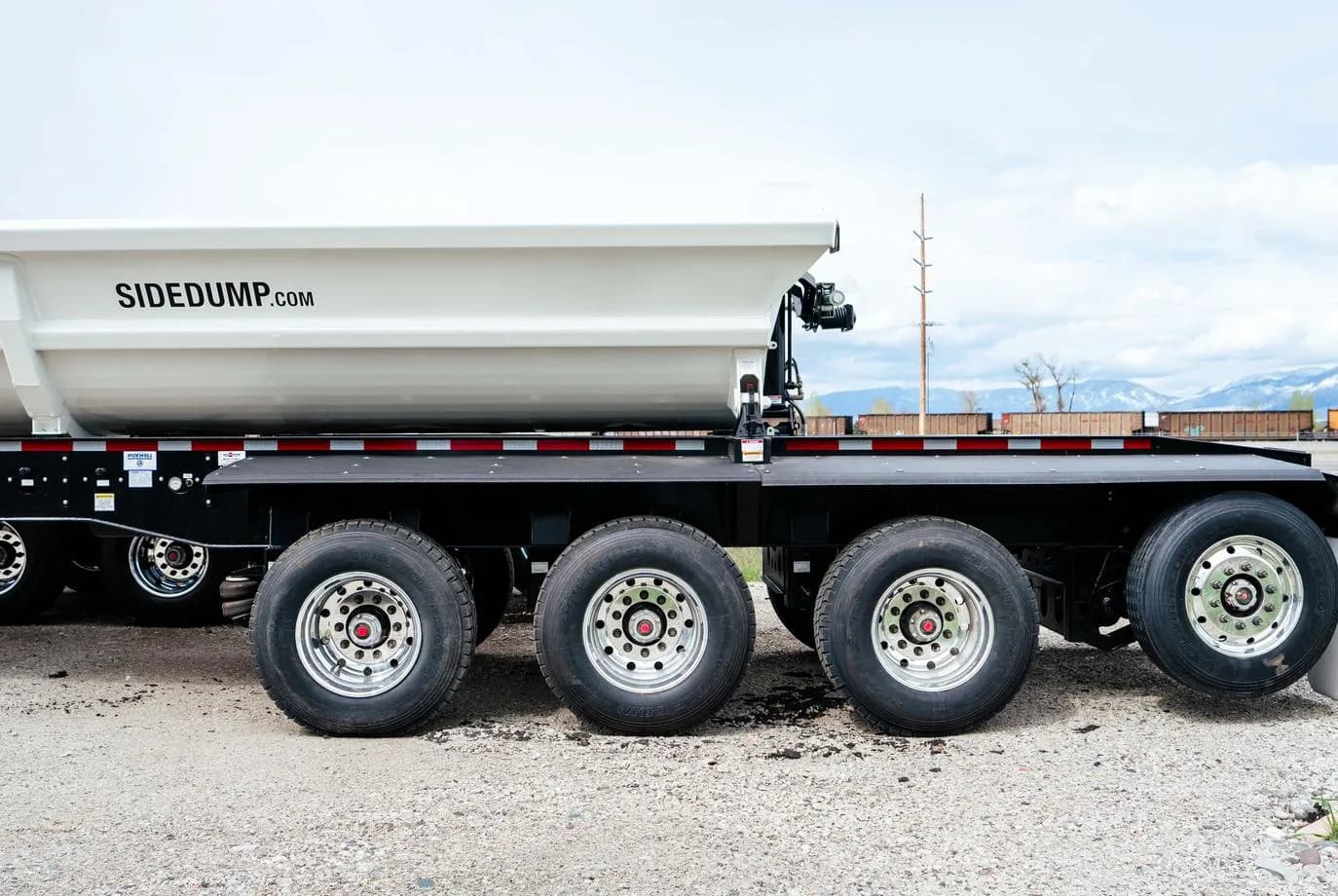

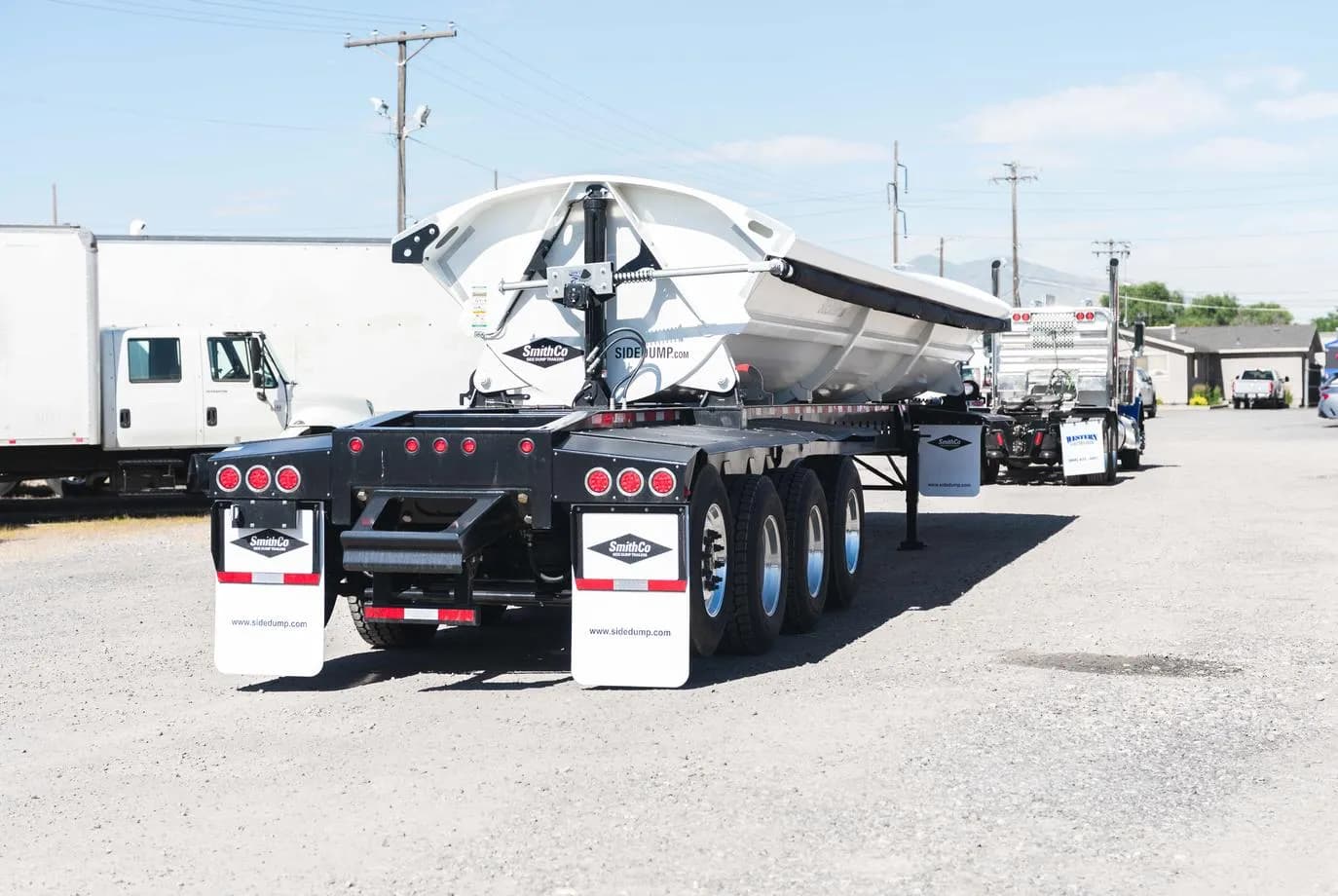

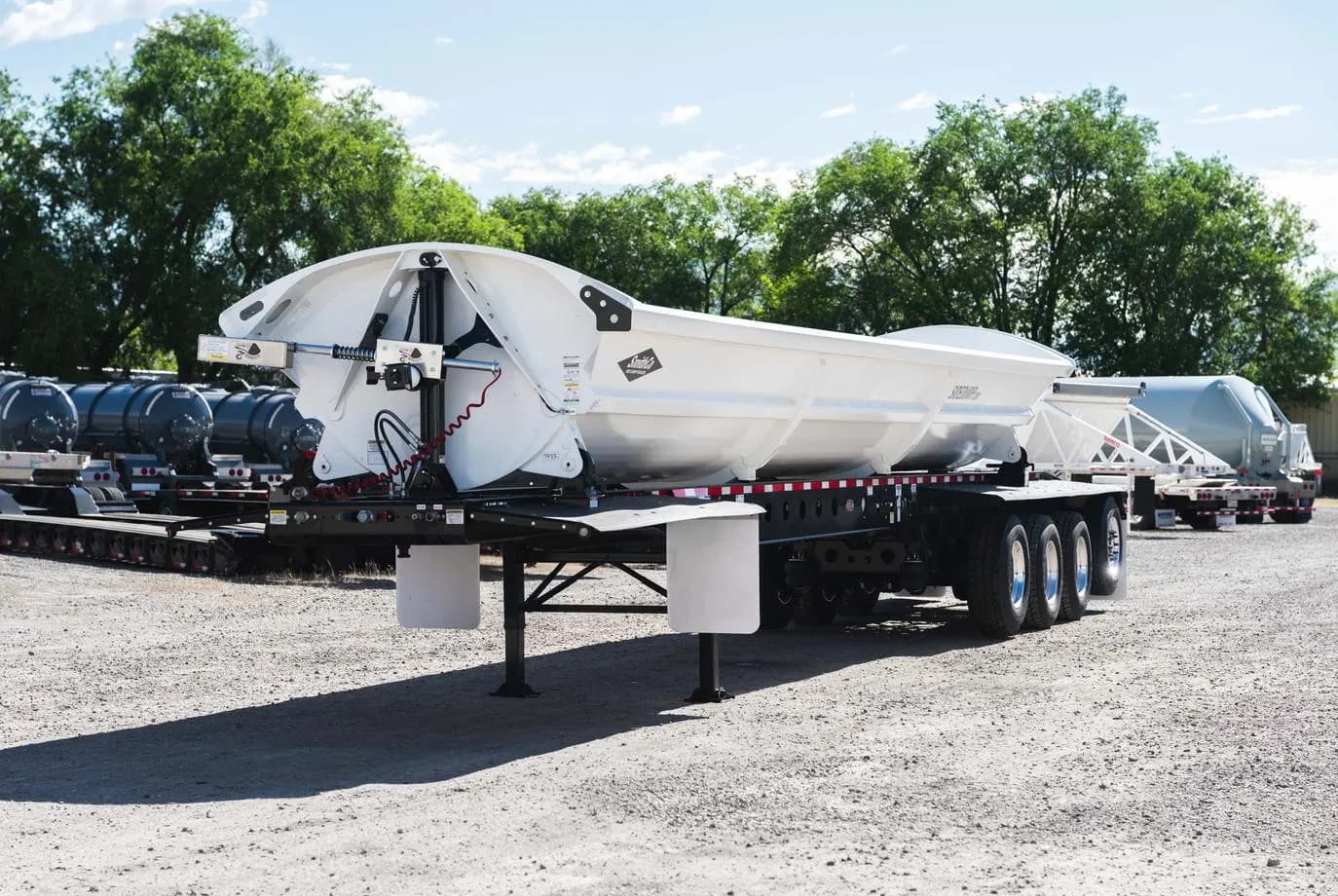

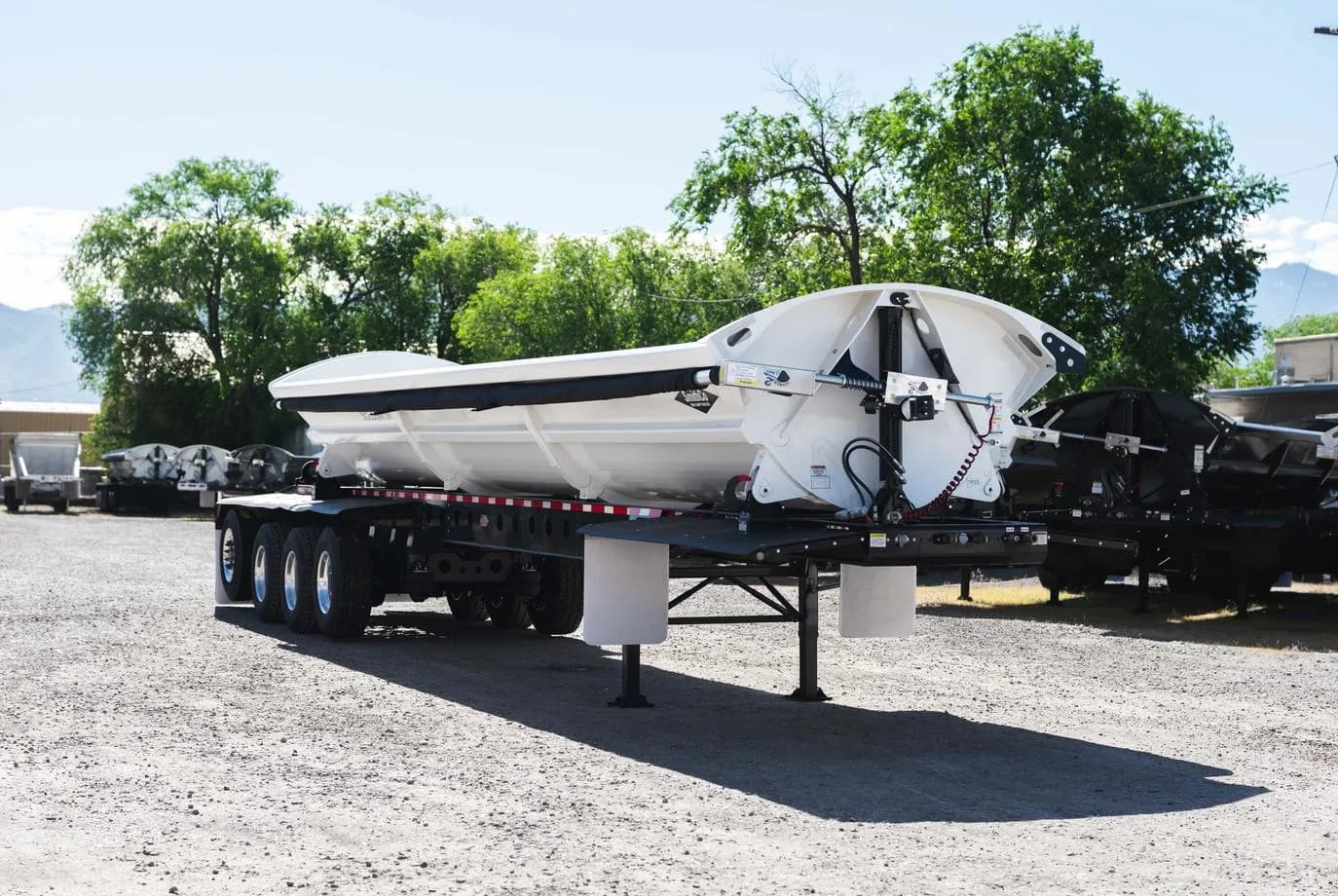

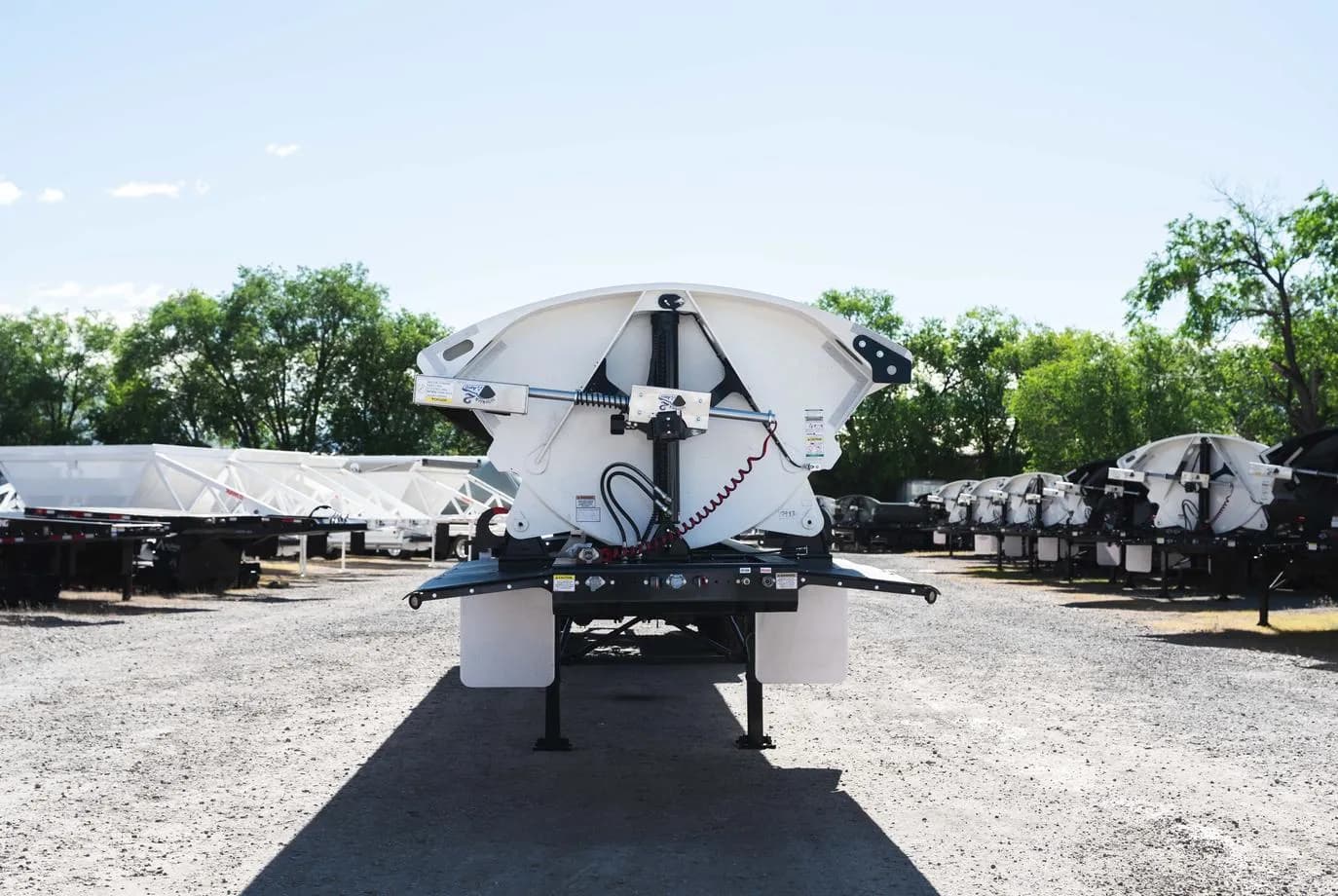

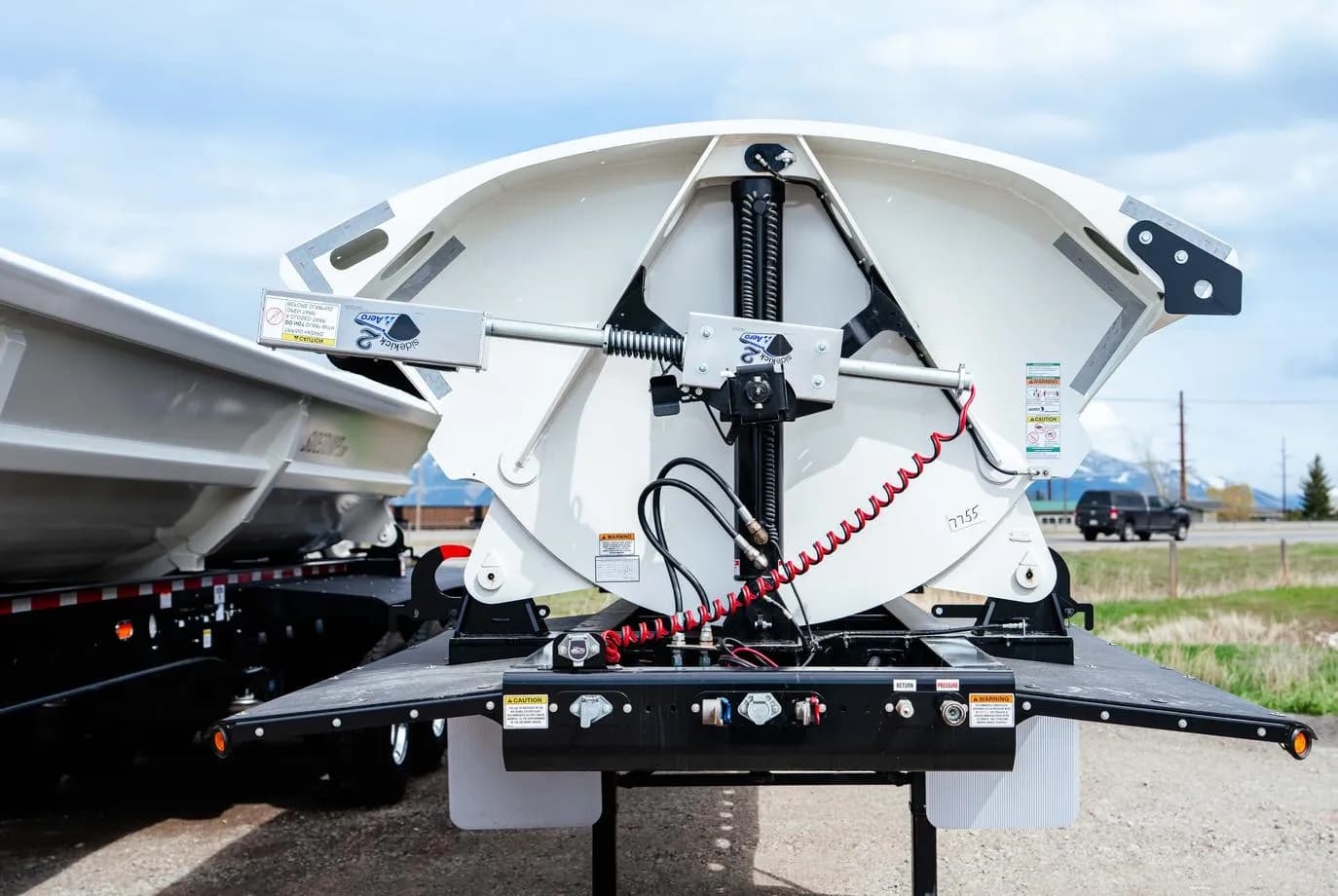

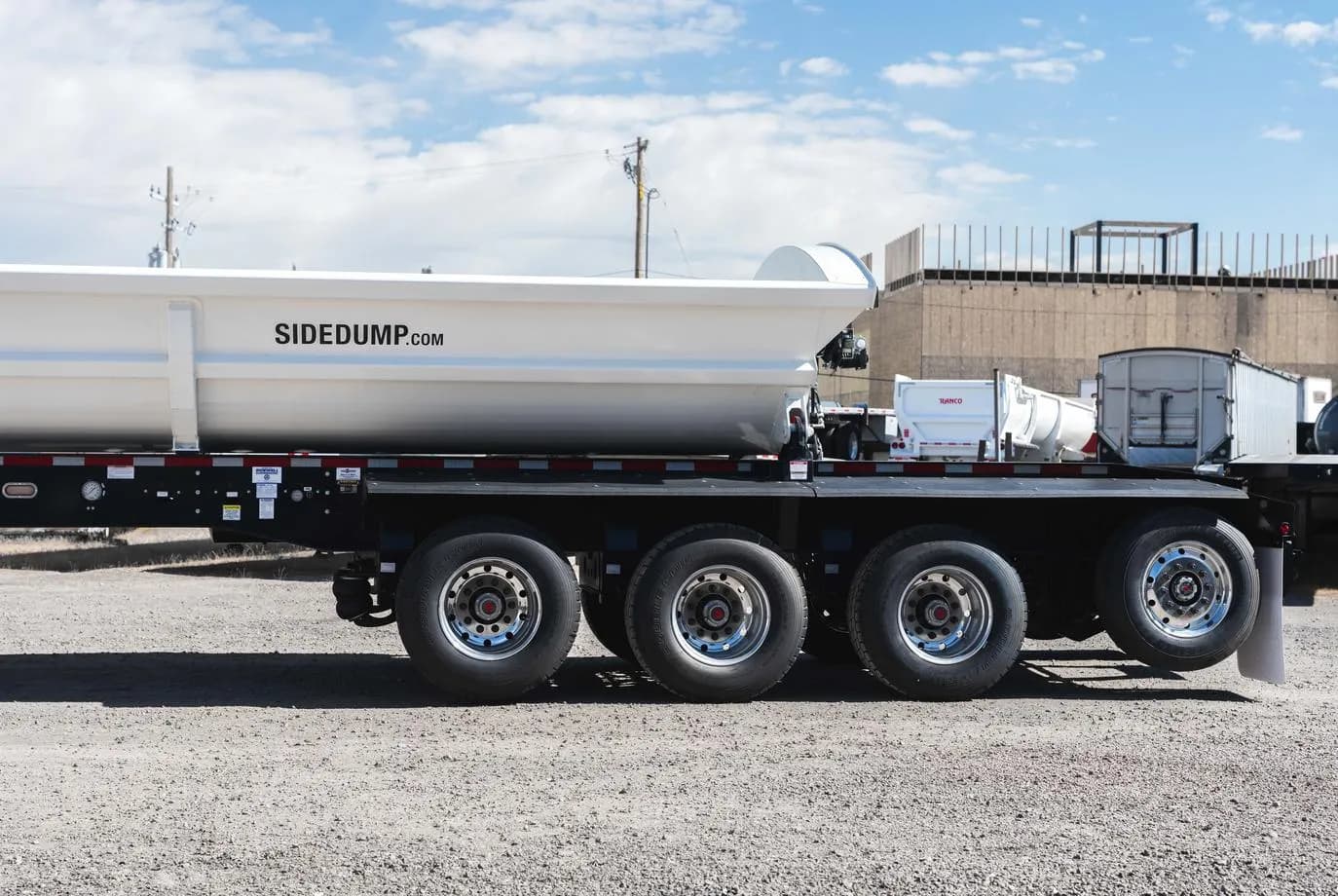

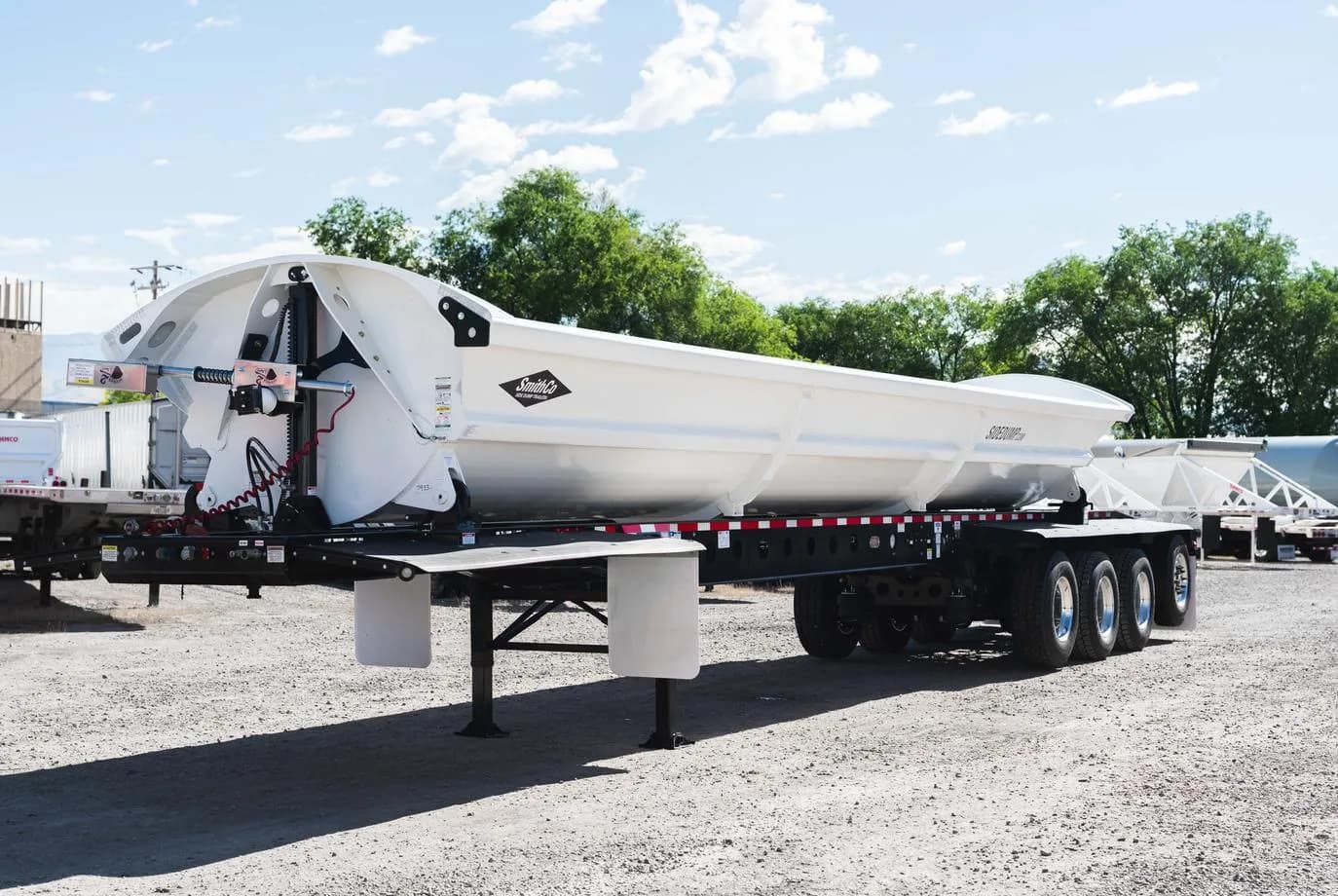

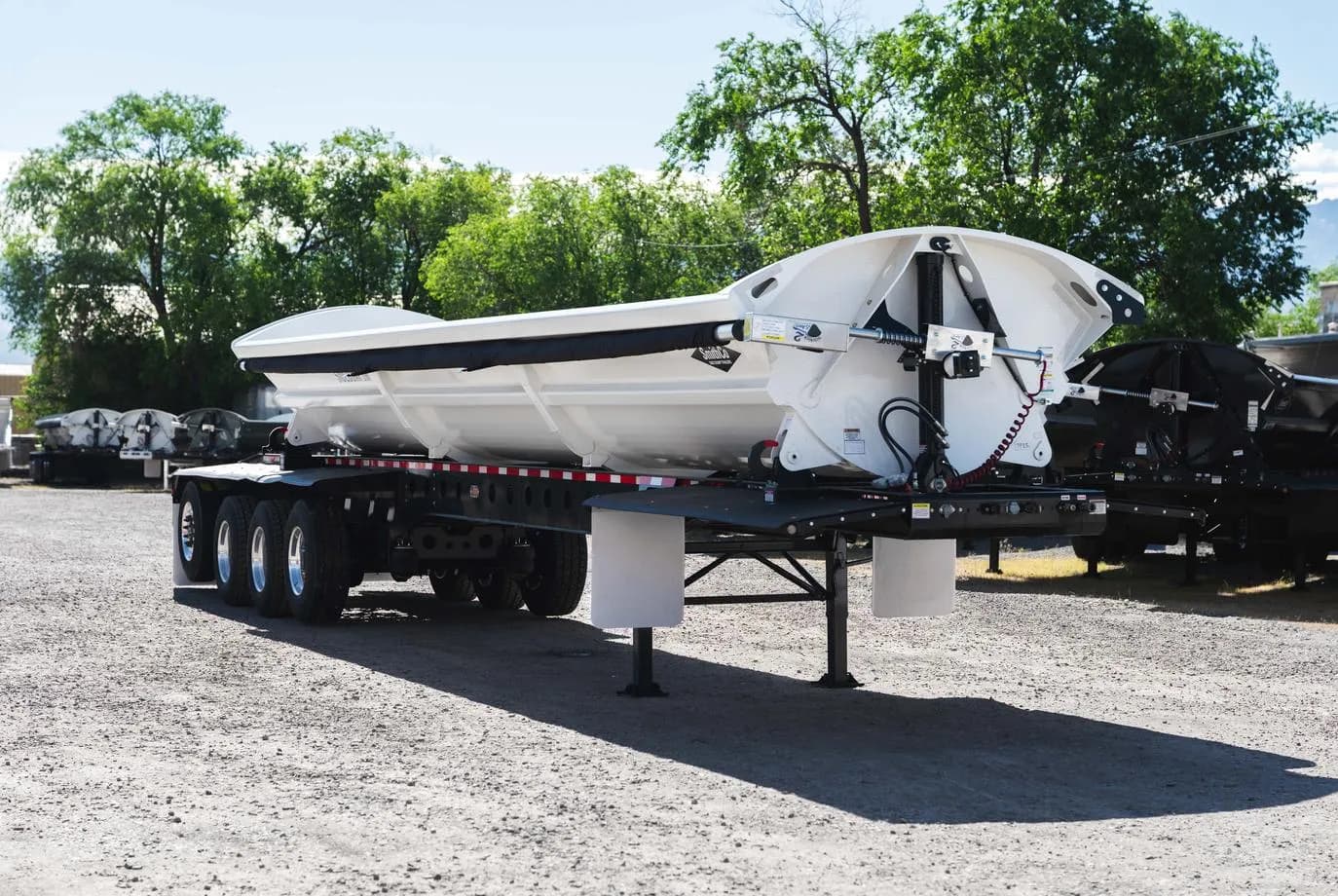

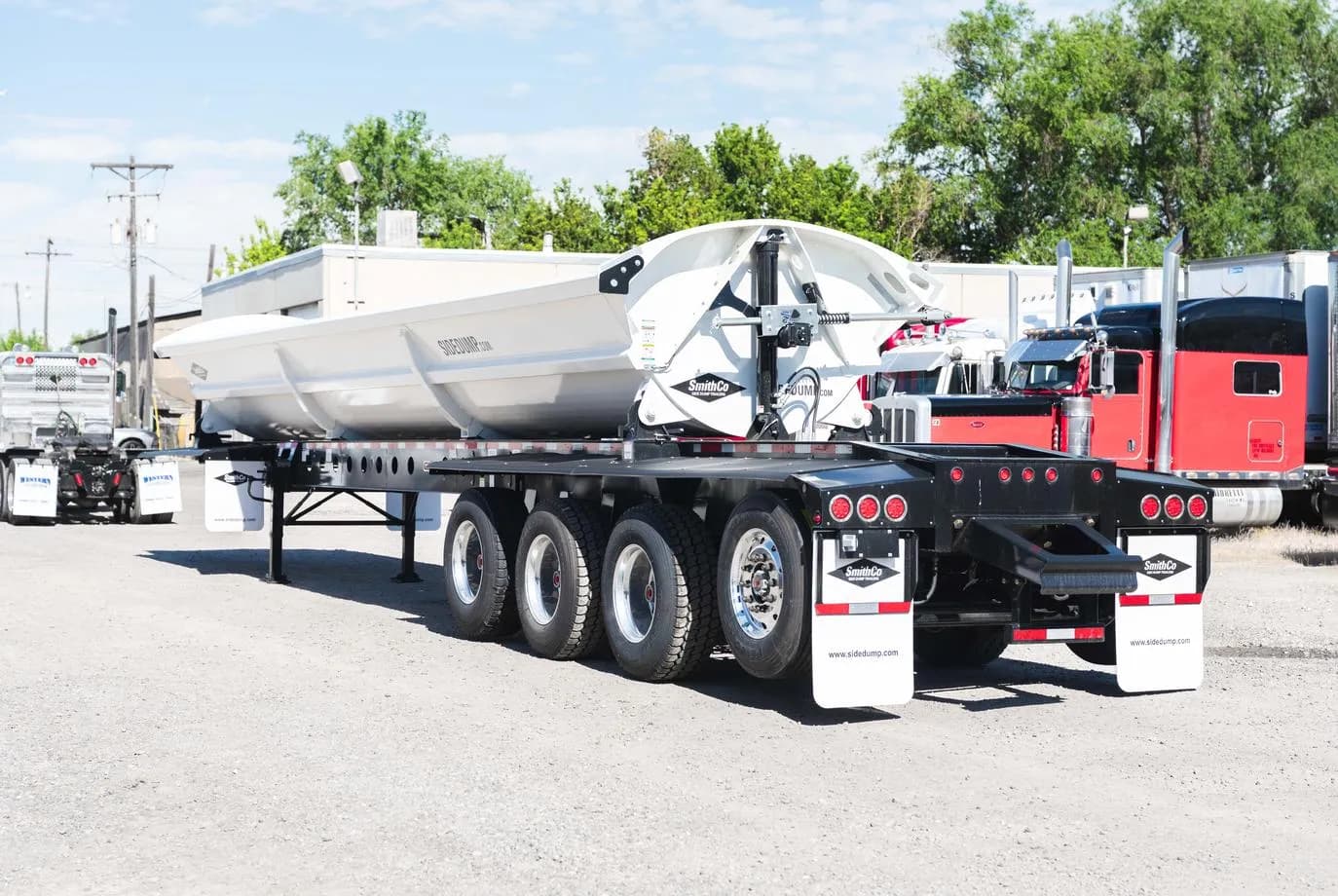

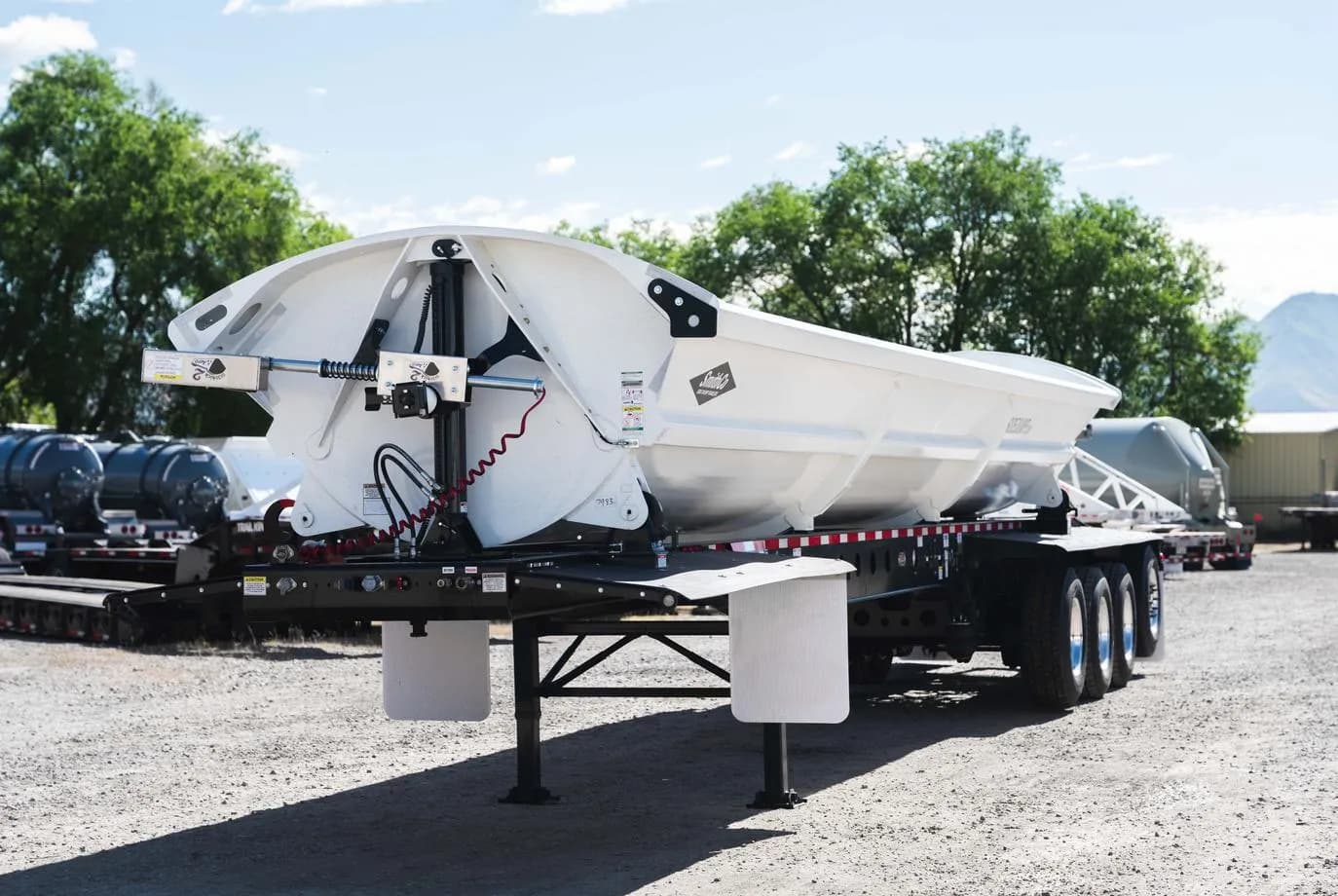

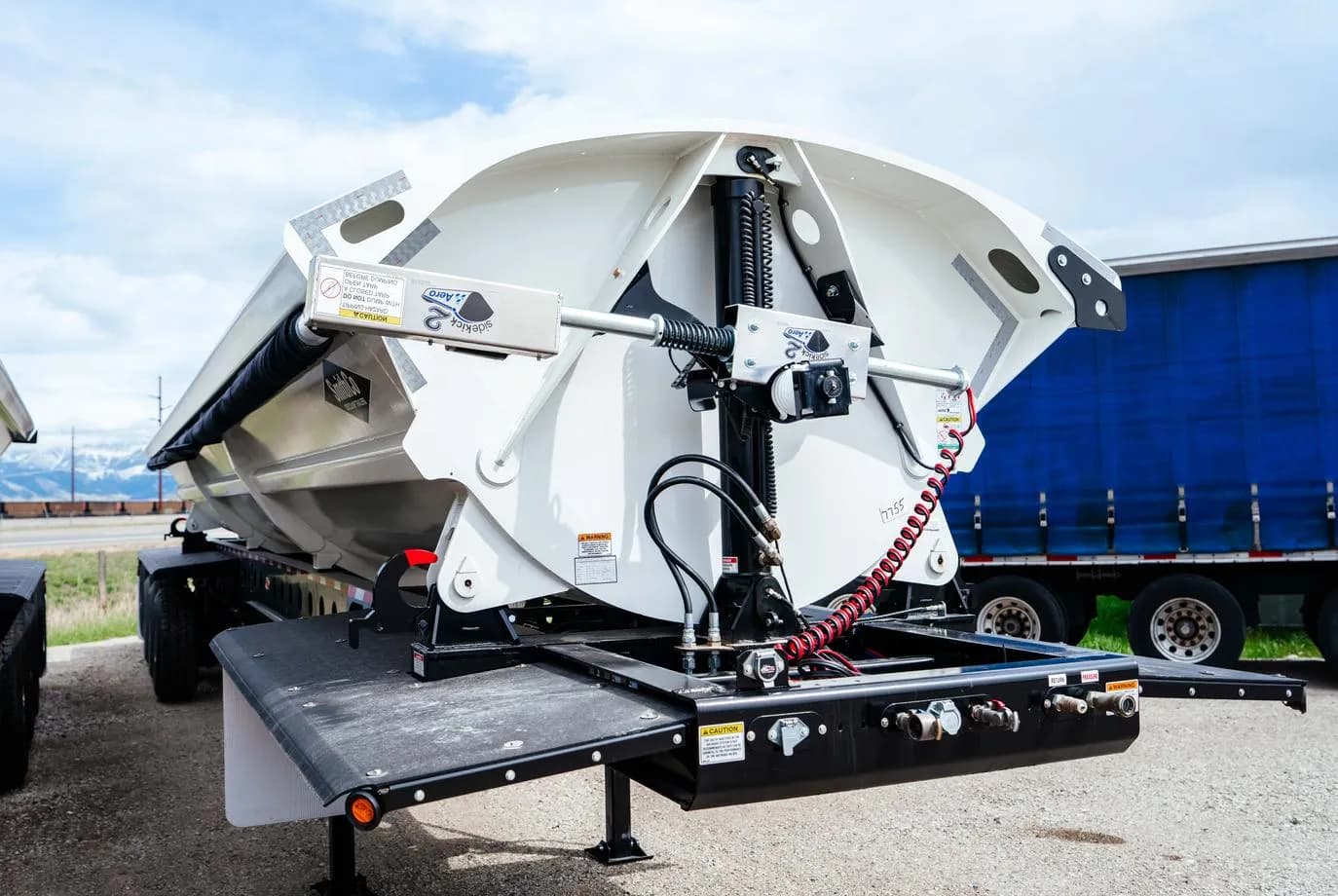

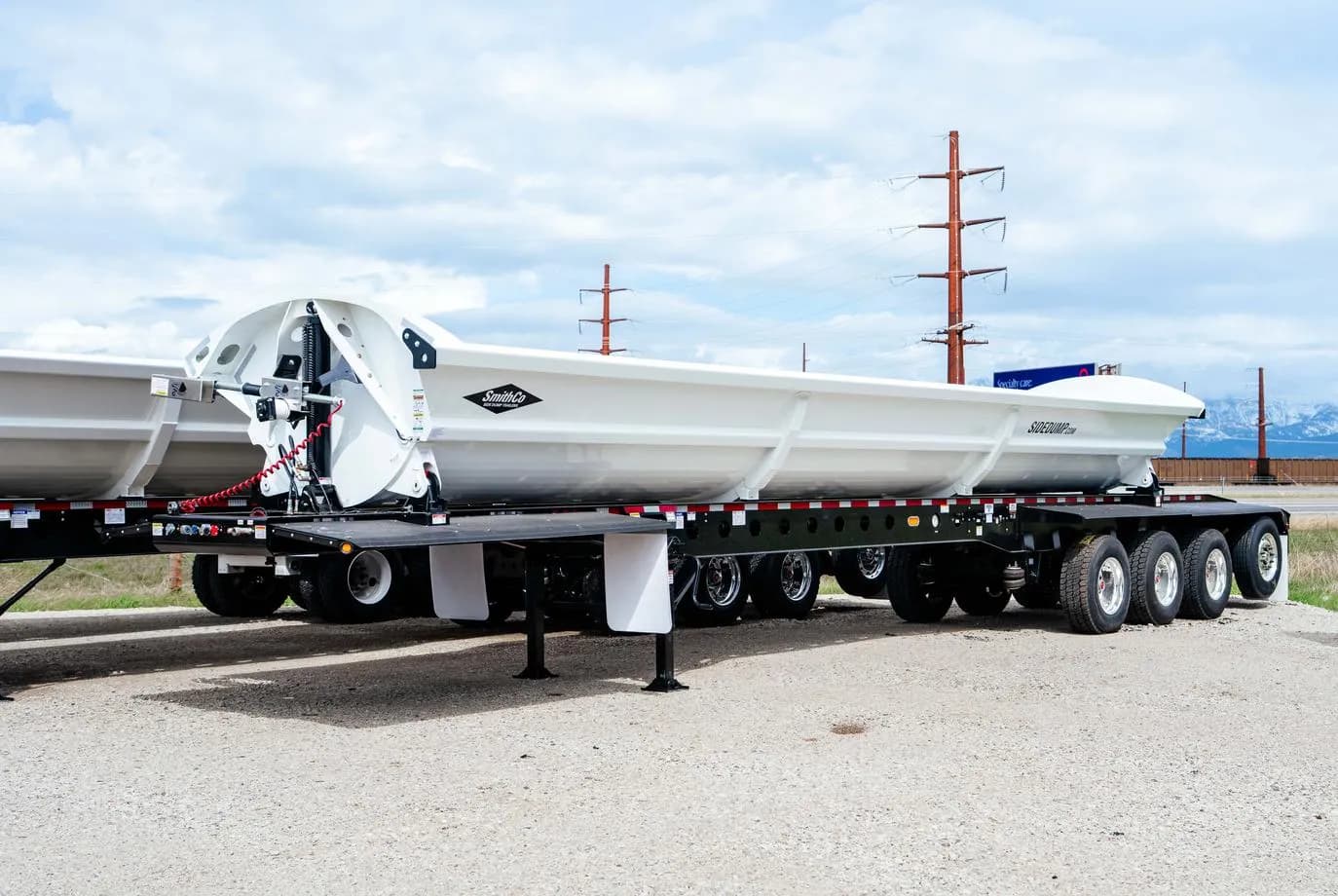

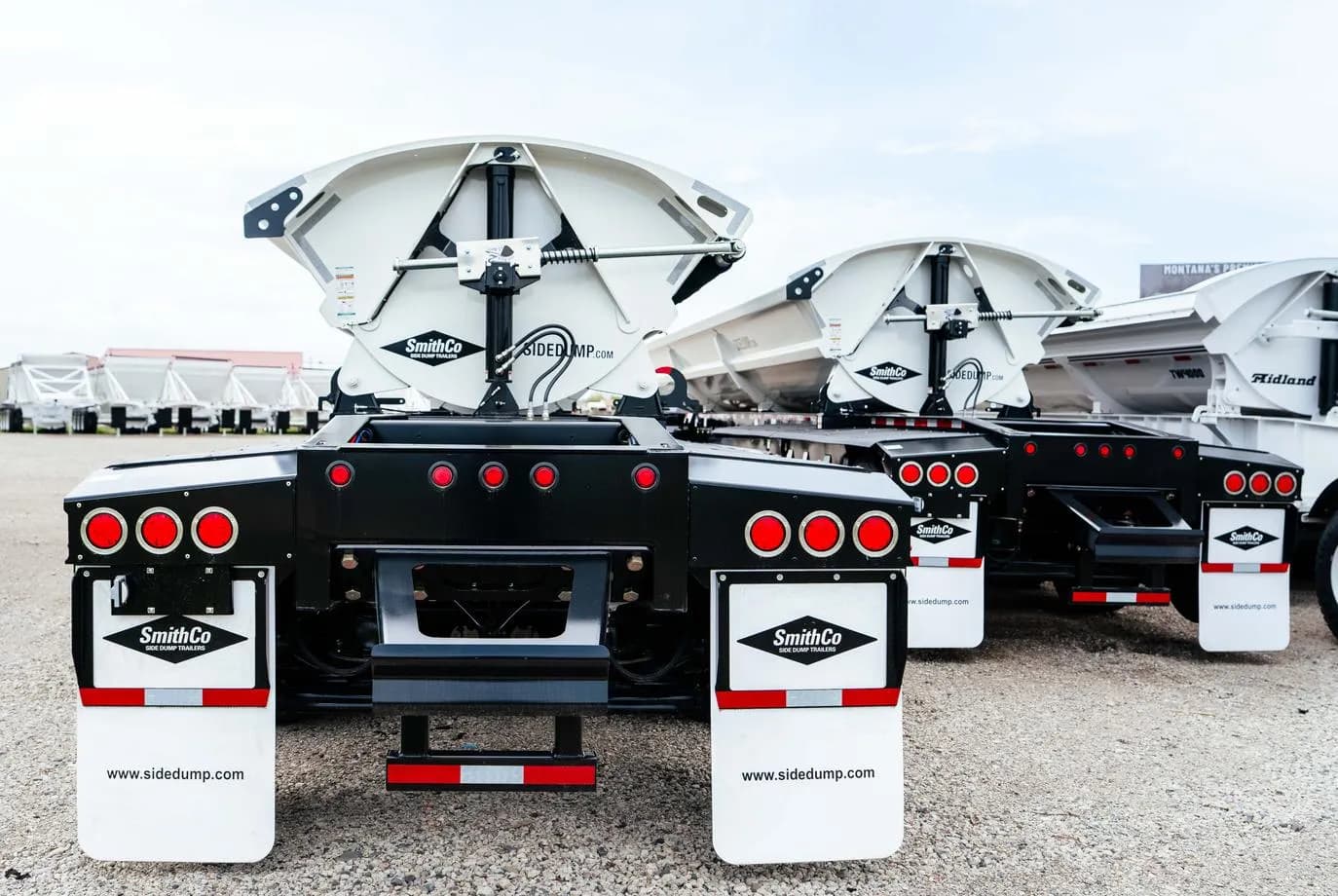

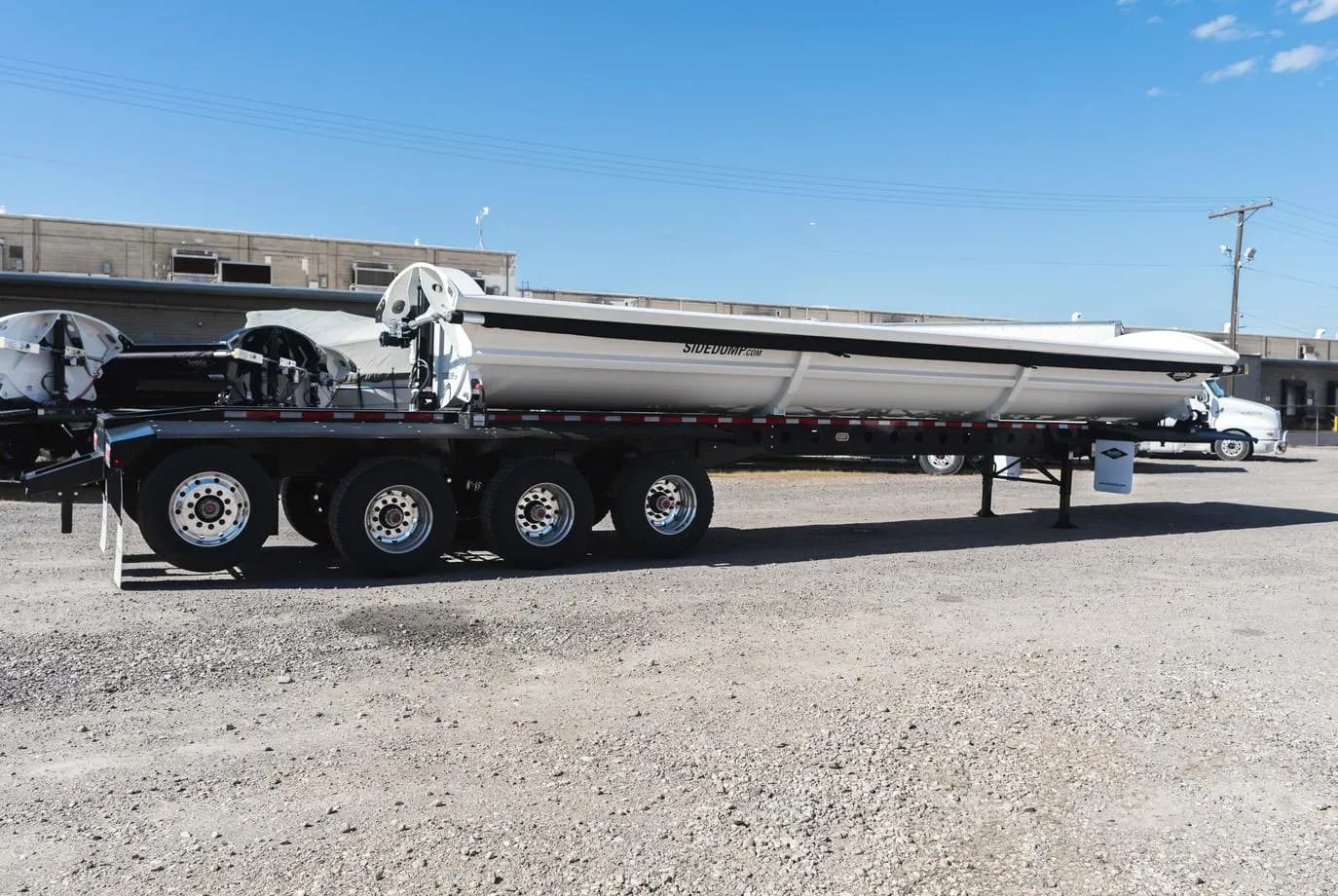

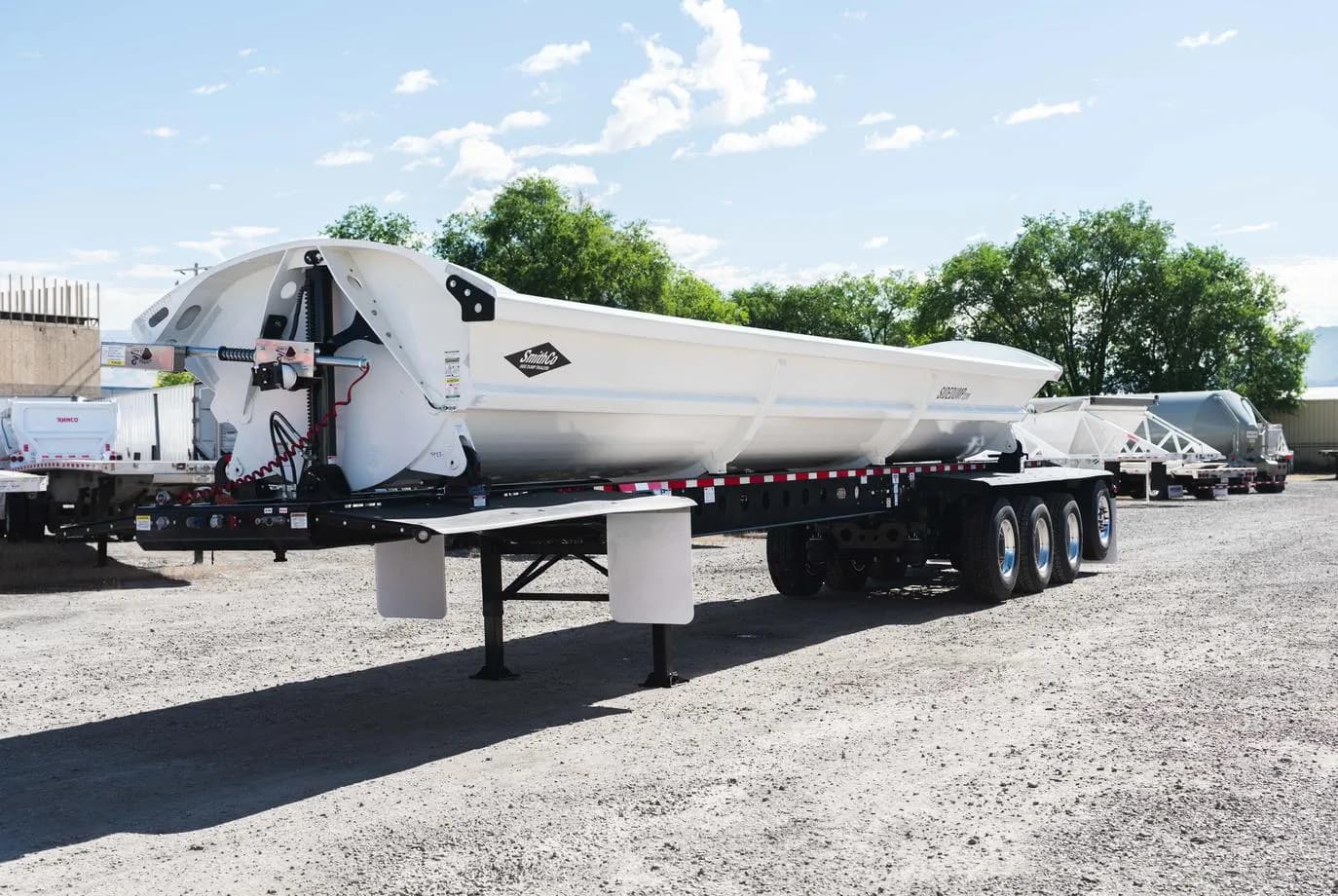

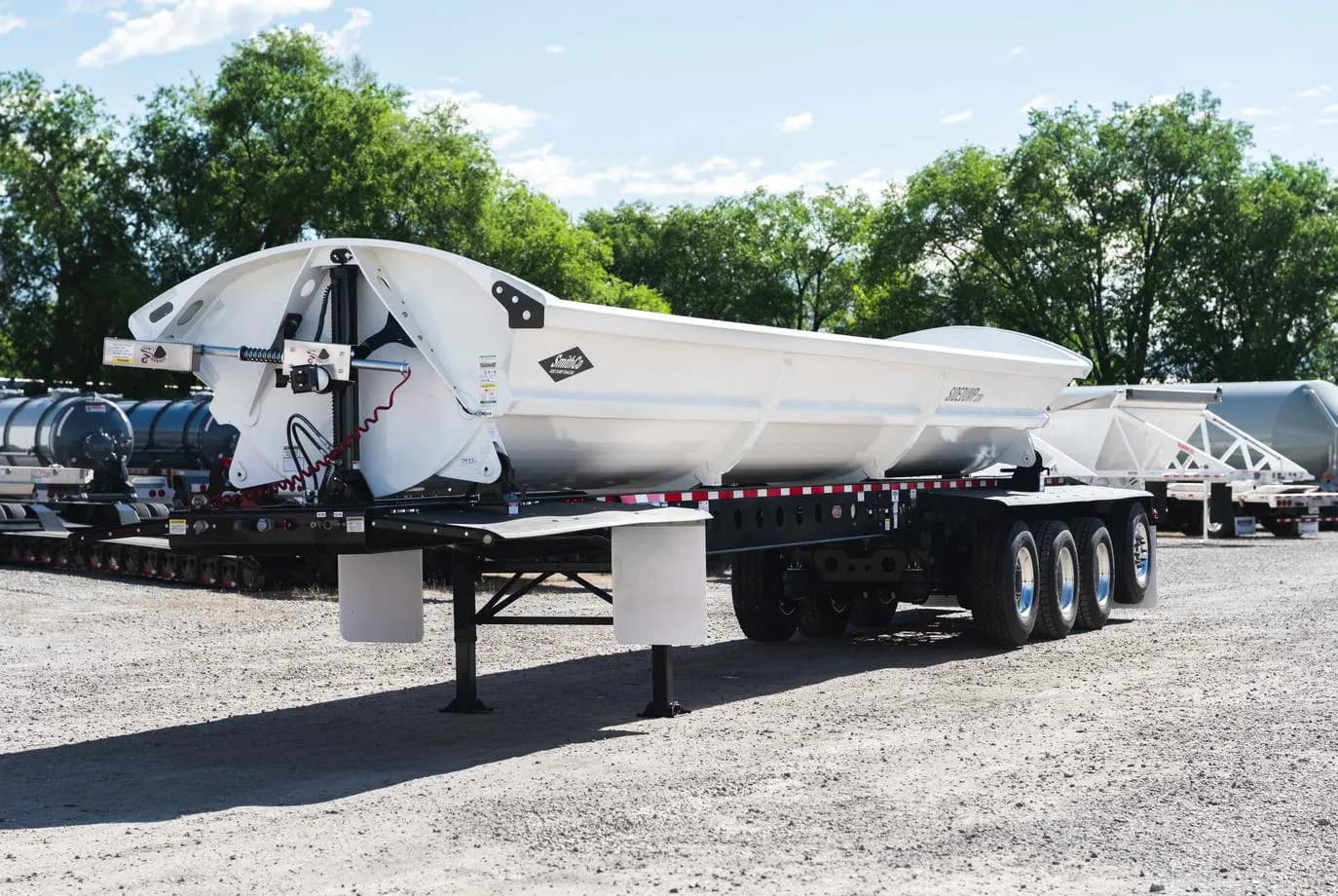

2027 SmithCo SX4-49-36 Side Dump

SmithCo SX4-49-36 – Side Dump, 49' x 36', 1/4" AR450

SmithCo SX4-49-36 Side Dump with 36' tub and 1/4" AR450 tub sides and floor.

Key Specs

• Manufacturer: SmithCo
• Model: SX4-49-36
• Category: Side Dump
• Width: 102"
• Frame length: 49'
• Tub length: 36'
• Tub volume (water level): 24.1 CUBIC YARDS
• Tub volume (heaped): 32 CUBIC YARDS

Tub Construction

• Tub style: SX-ROUND BOTTOM
• Tub sides: 1/4" AR450
• Tub floor: 1/4" AR450
• Tub dividers: 0
• Tub paint #: DV-19088 (WHITE)
• Frame paint #: DV-19040-DTM (BLACK)
• Fenders: ALL PLASTIC

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Dolly legs: BINKLEY
• Grease bank: FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Lock out switch: TARP LOCKOUT
• W style pushblock: STD
• Large liquid filled air gauge: ON DRIVER'S SIDE - STD

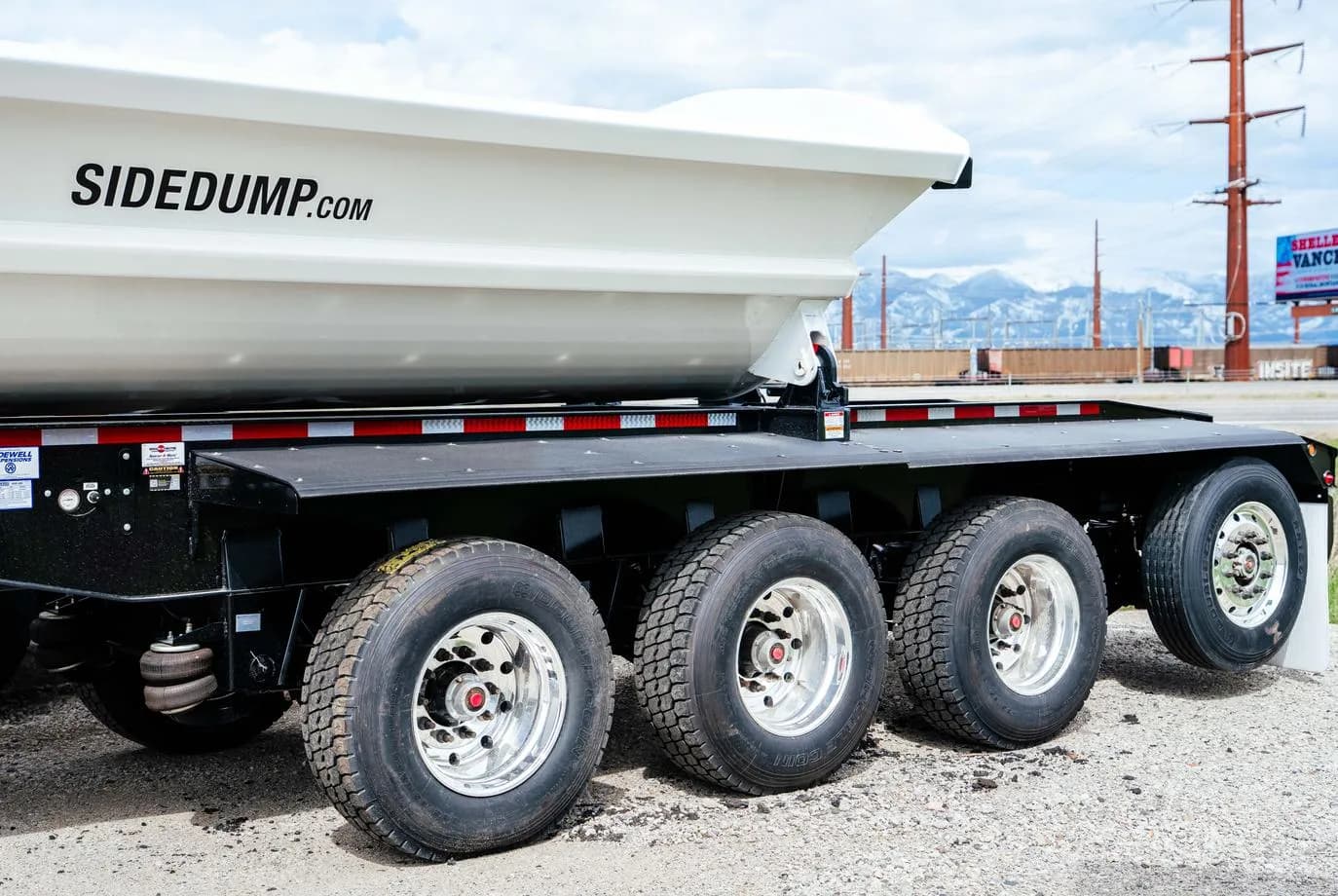

Axles & Suspension

• Suspension: RIDEWELL RW260 AIR RIDE
• Axle spacing: 54"-54"-60"
• Lift axles: 1ST STD. LIFT; 4TH-16.6K L/S; 4TH AXLE STEERABLE/LIFTABLE
• ABS-axles: 25K 1
• Non-ABS axles: 25K 3
• Axle track: 77.5"-STD
• Hubs: DURALITE-STD

Wheels & Tires

• Wheel style: HUB-PILOTED U/M
• Wheel type: AL 9.00x22.56 SUPER SINGLE ALUM ON 1-3, 9x22.5 ALUM ON 4TH
• Tires: DC RLB980 385/65R22.56 385's 1-3, (2) 295/75R22.5 AXLE 4
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL

Additional Features

• Tarp brand: AERO
• Tarp type: MESH-NON SEALED
• Pushblock: W STYLE - STD
• Grease bank: FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD

Lighting & Safety

• Tail lights: 3 TAILLIGHTS - RED
• ID lights: 5 ID LIGHTS AT REAR
