2026 Manac CPS. Belly 4B240A200 Bottom Dump · Unit RT-93

Manac CPS. Belly 4B240A200 – Bottom Dump, 40' x 96"

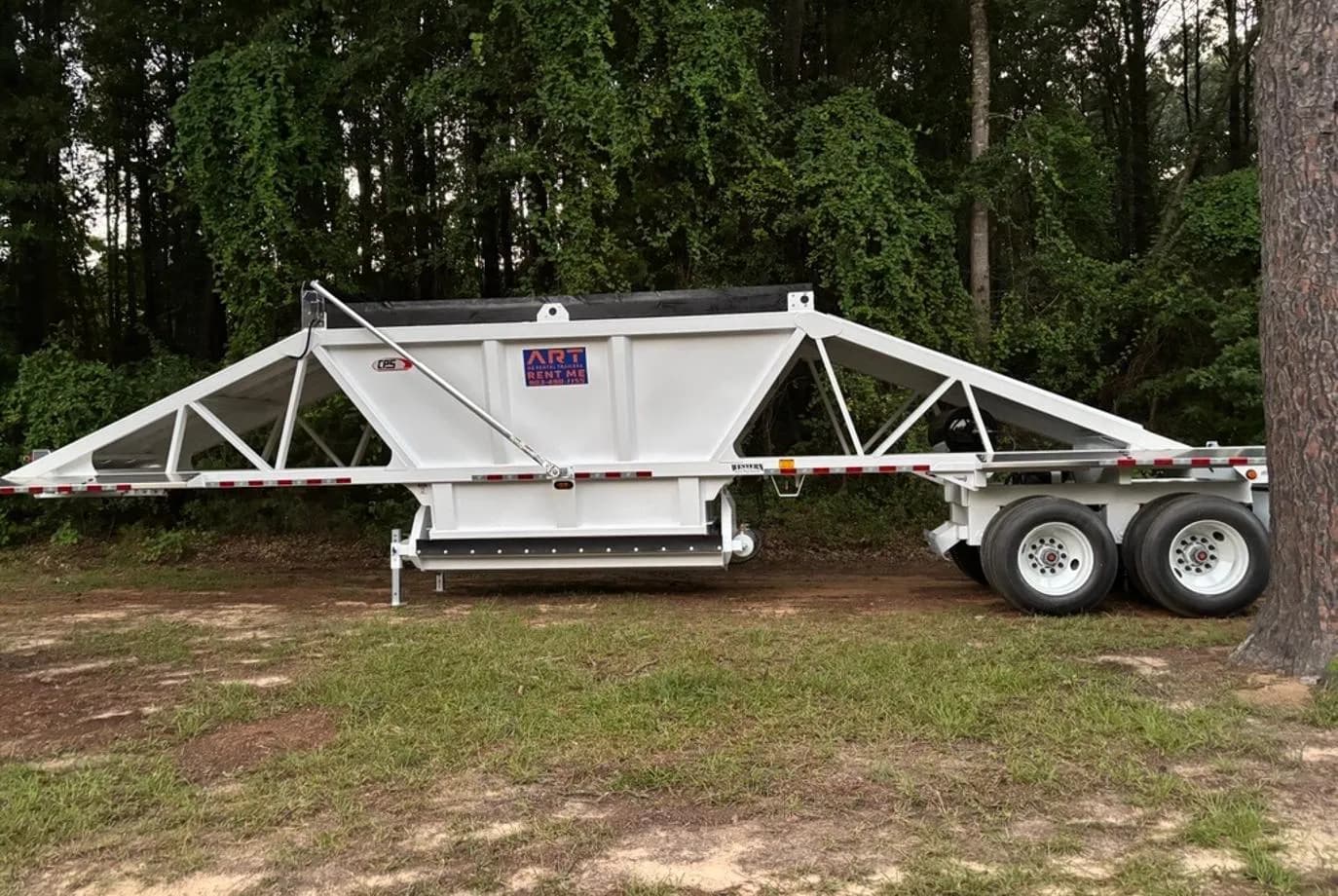

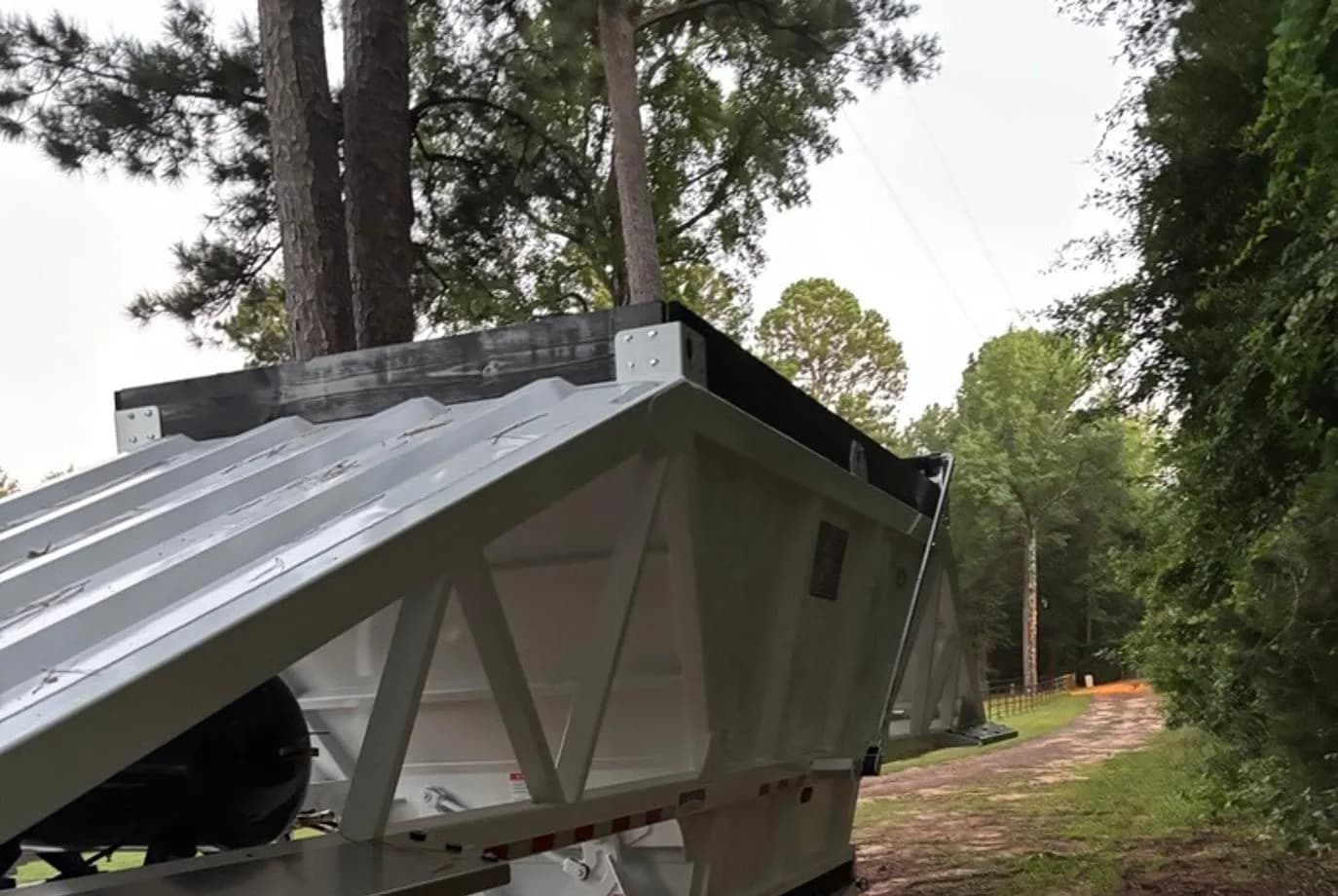

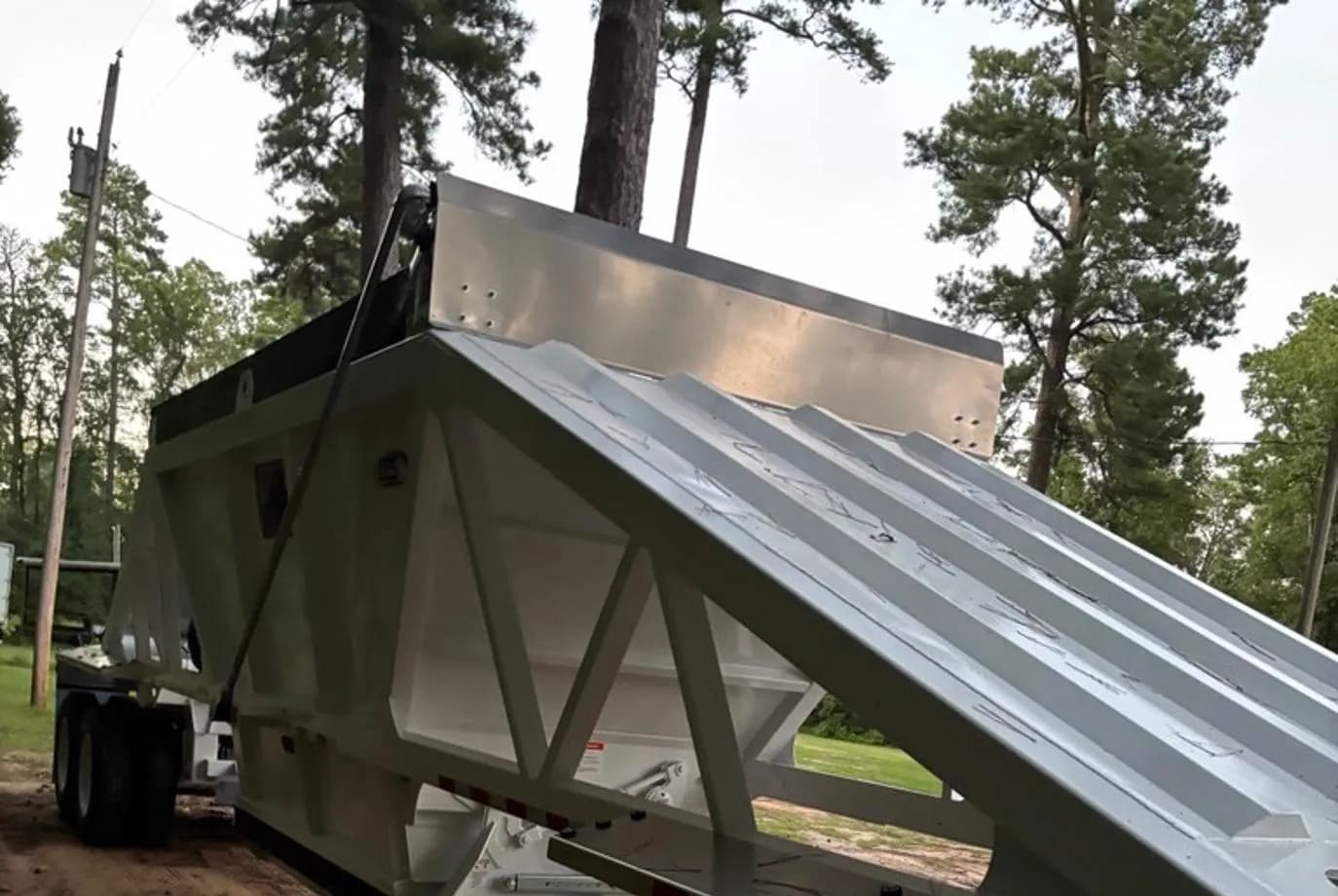

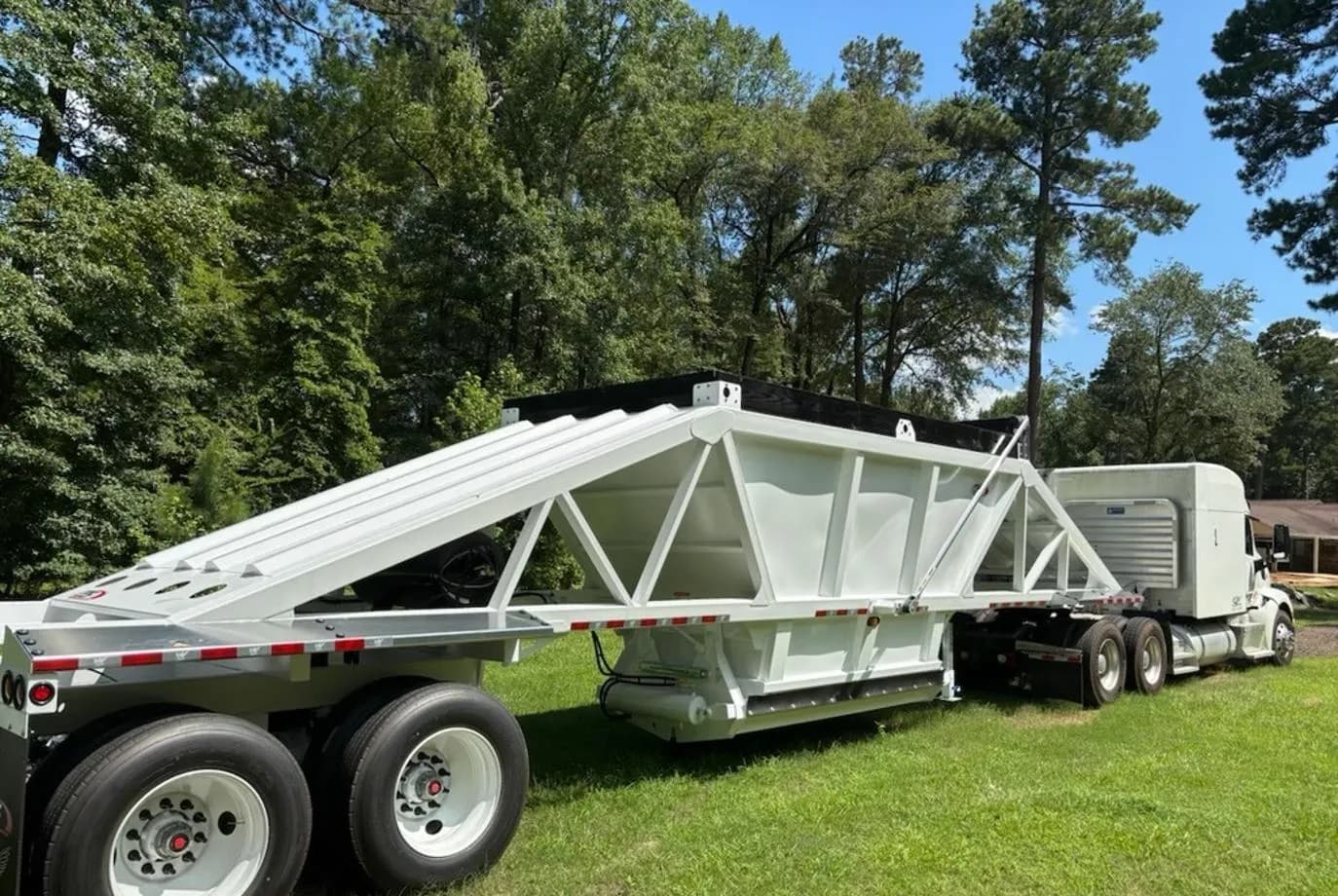

Manac CPS. Belly 4B240A200 bottom dump trailer, 40' length with a single hopper 20 Cubic Yards capacity.

Key Specs

• Manufacturer: Manac
• Model: CPS. Belly 4B240A200
• Category: Bottom Dump
• Model Year: New - 2025
• Length: 40'
• Width: 96"
• Height: 10' with Bangboards / 9'1"
• Capacity: 20 Cubic Yards (Single Hopper) / 23 Cubic Yards (with Bangboards)
• Coupler Height: 48"

Tub Construction

• Hopper Material: Upper Hopper: 10 & 12 GA Lightweight, Lower Hopper: 10 GA Lightweight
• Gate Material: 3/16 80W Standard Steel Doors
• Gate Style: Commercial Grade Steel with Slide Locks
• Frame Construction: Welded Push Block with Certified Underride

Hydraulics & Control

• Gate Control: Precision air-controlled electric/manual discharge system; electric/manual Versa valve hand control
• Air Cylinders: Twin 8-inch air cylinders
• Air System: 60 Gallon Air Tank with Air-Controlled Gate Control

Axles & Suspension

• Axle Configuration: Tandem
• Axles: hub-piloted 25K axles
• Suspension: Air Ride

Wheels & Tires

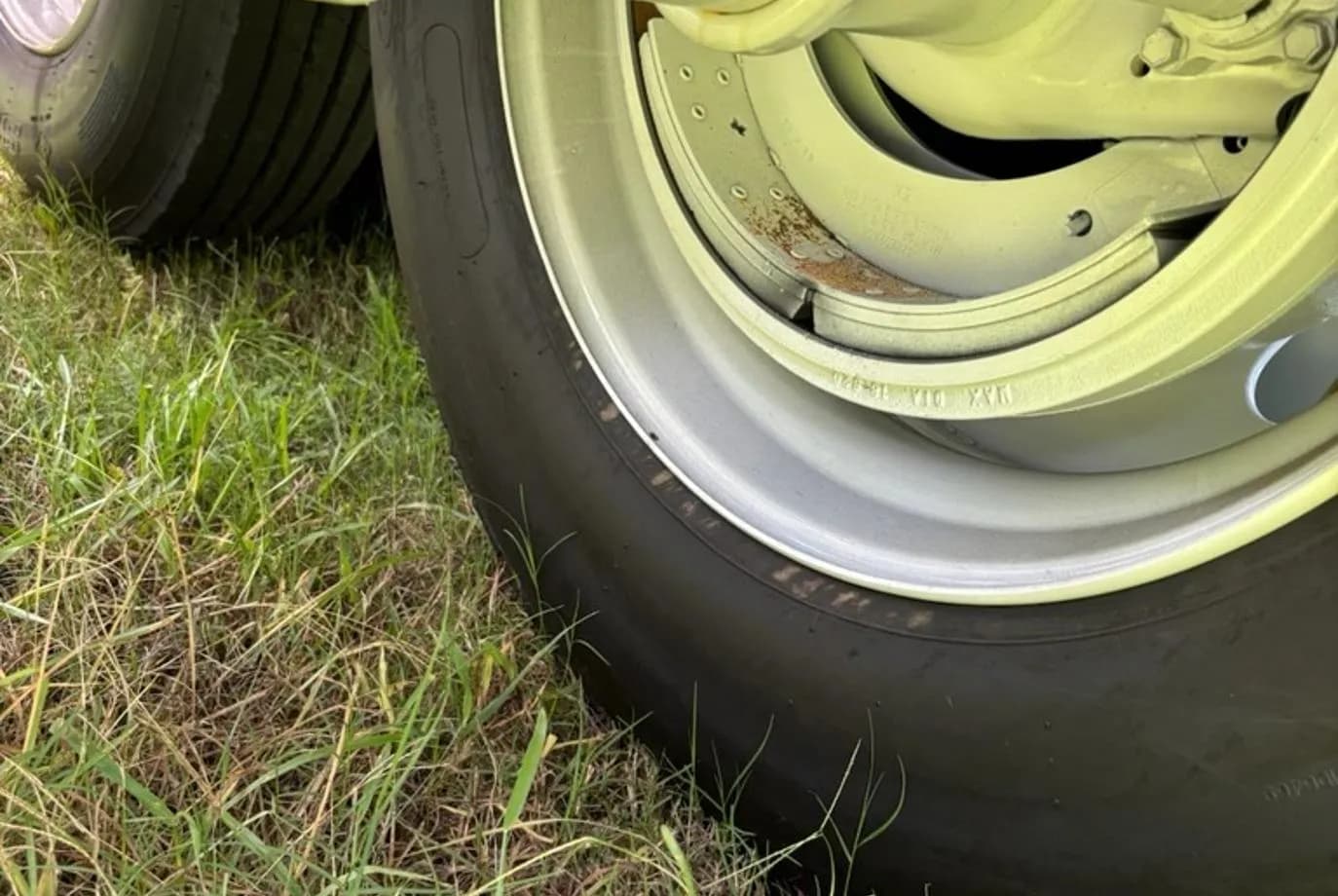

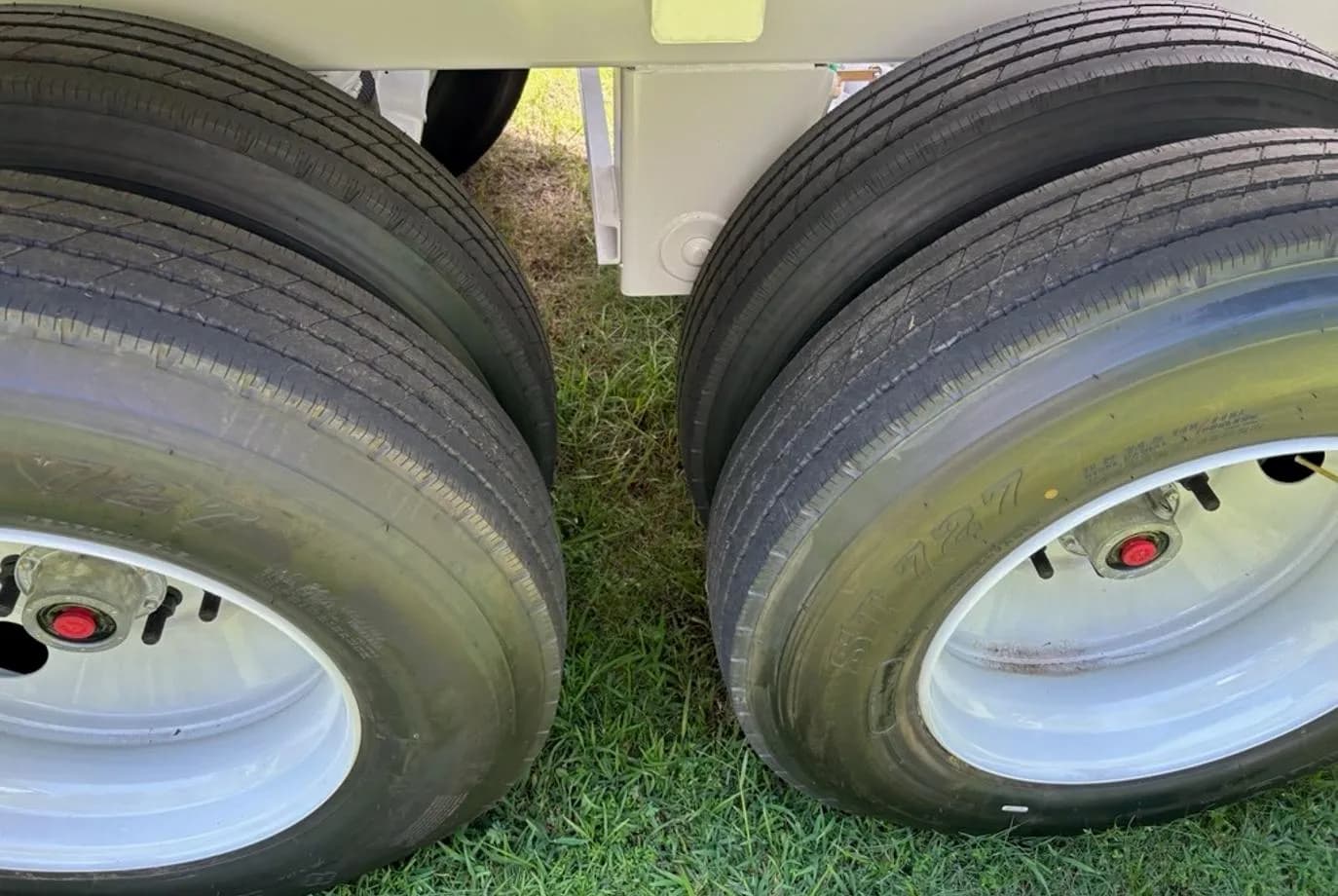

• Wheels & Tires: 11R24.5 16-Ply Steel Wheels
• Brakes: 16 1/2" x 7" Cam Brakes with Automatic Slack Adjusters

Lighting & Safety

• Lighting System: LED ICC & DOT Approved Sealed Beam System
• DOT Compliance: DOT-compliant lighting
• Reflective Tape: Conspicuity Striping Compliant with FMVSS/CMVSS 108
• Safety Features: Automatic slack adjusters; certified underride protection; mid-flashers

Additional Features

• Windrow Deflector: Standard galvanized windrow dirt deflector
• Push Block: Reinforced welded push block
• Finish: Shot Blasted, Epoxy Primer, Polyurethane Top Coat
• Color: White
