2026 Manac 4B240A200 Bottom Dump

Manac 4B240A200 – Bottom Dump, 40' x 96"

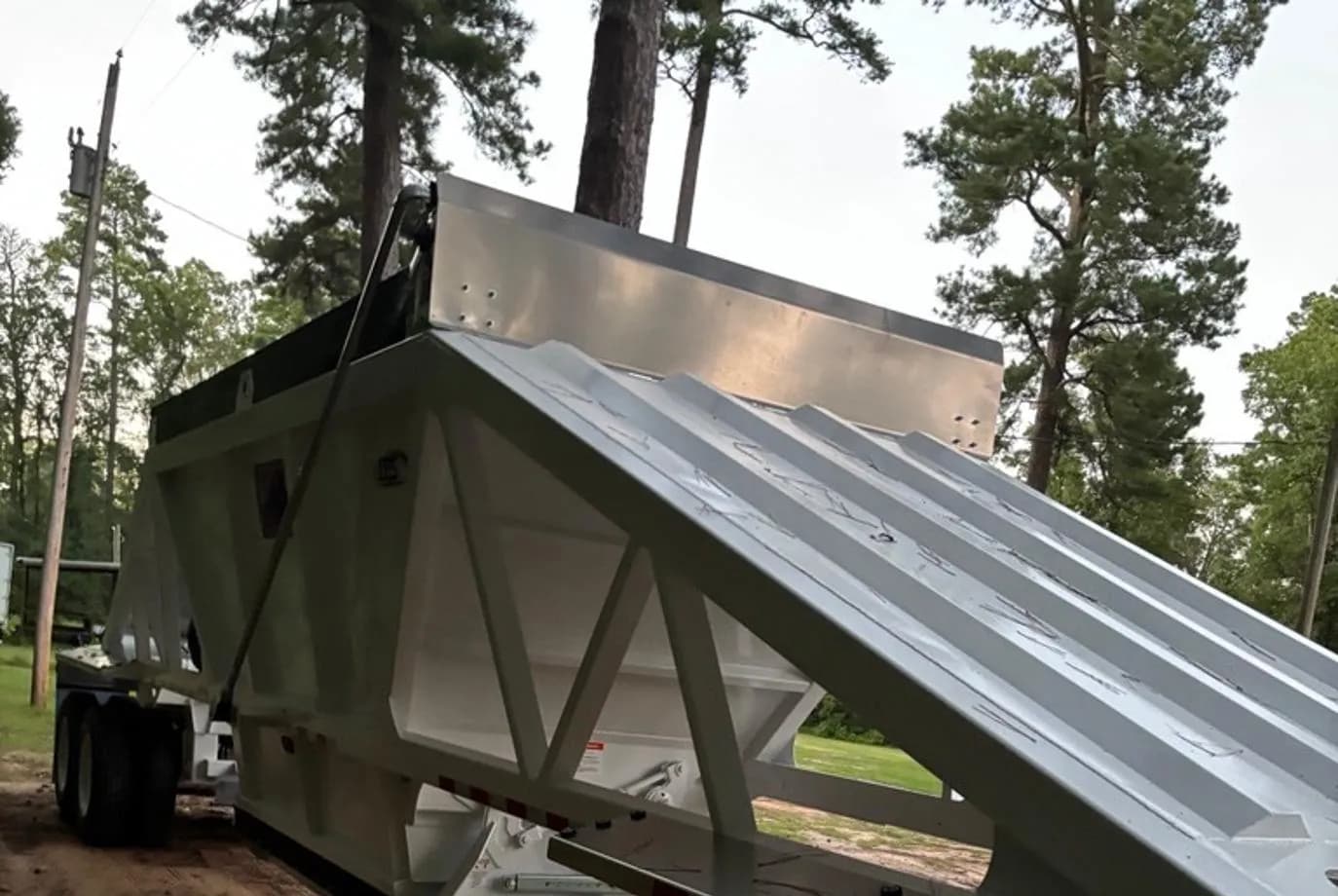

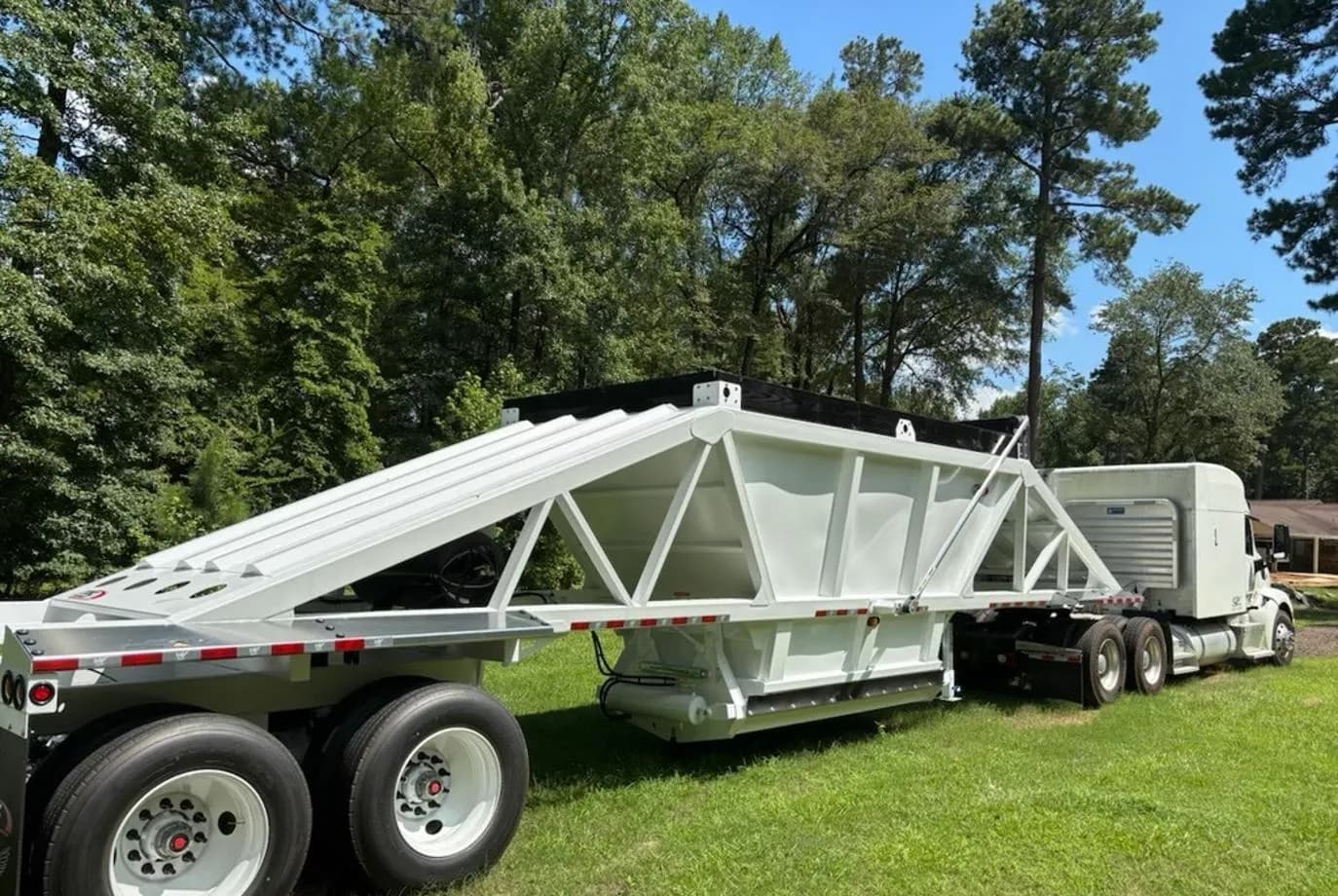

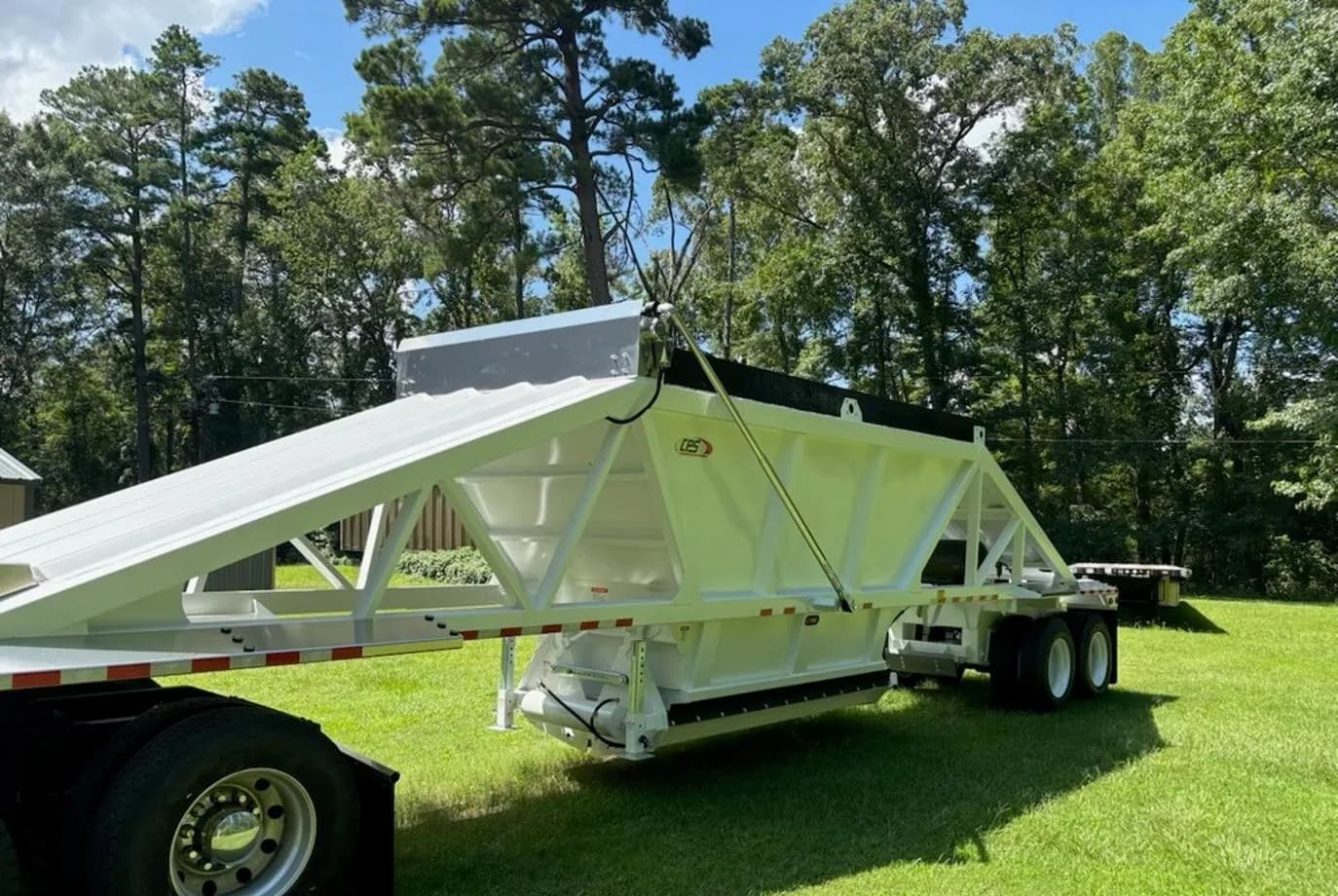

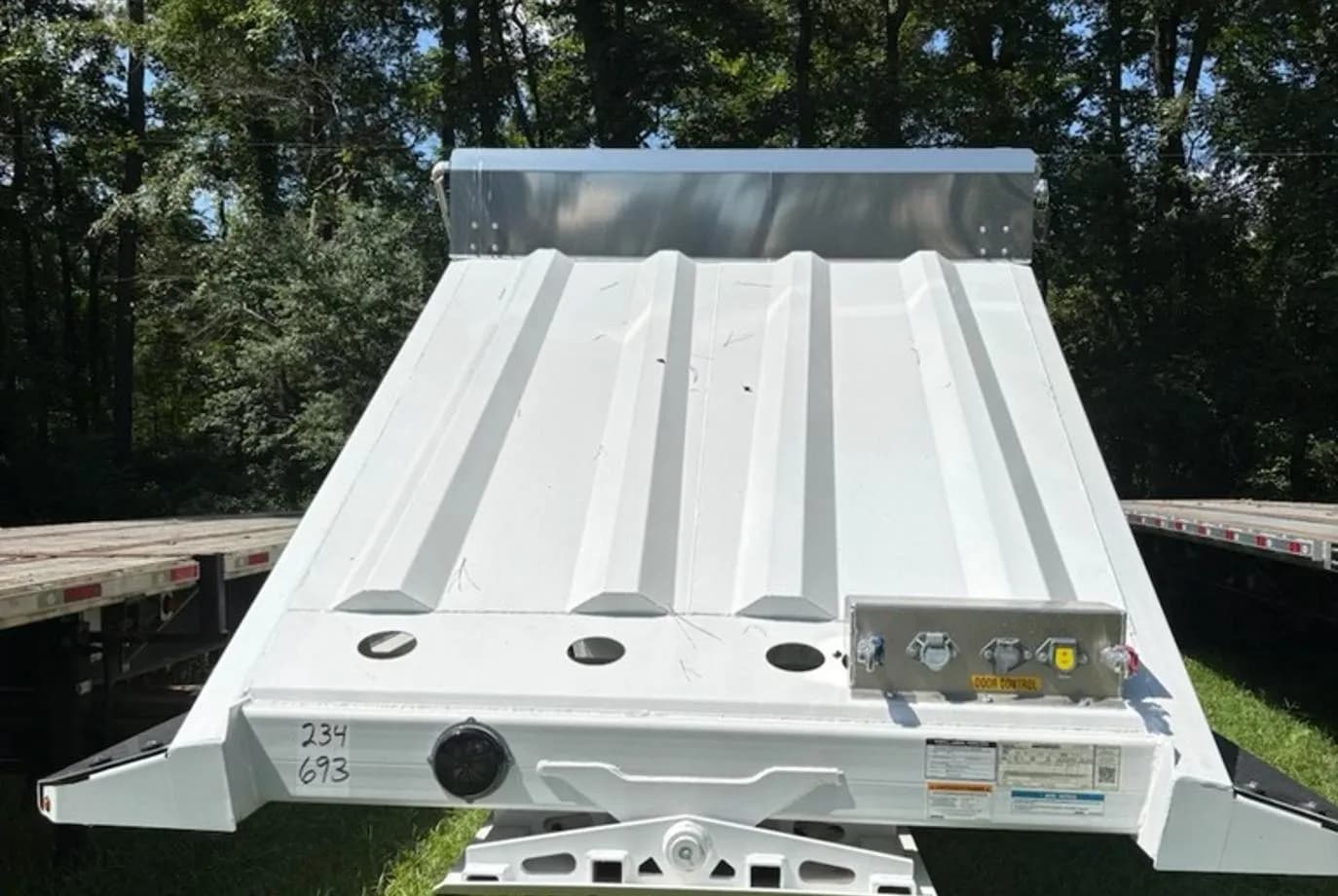

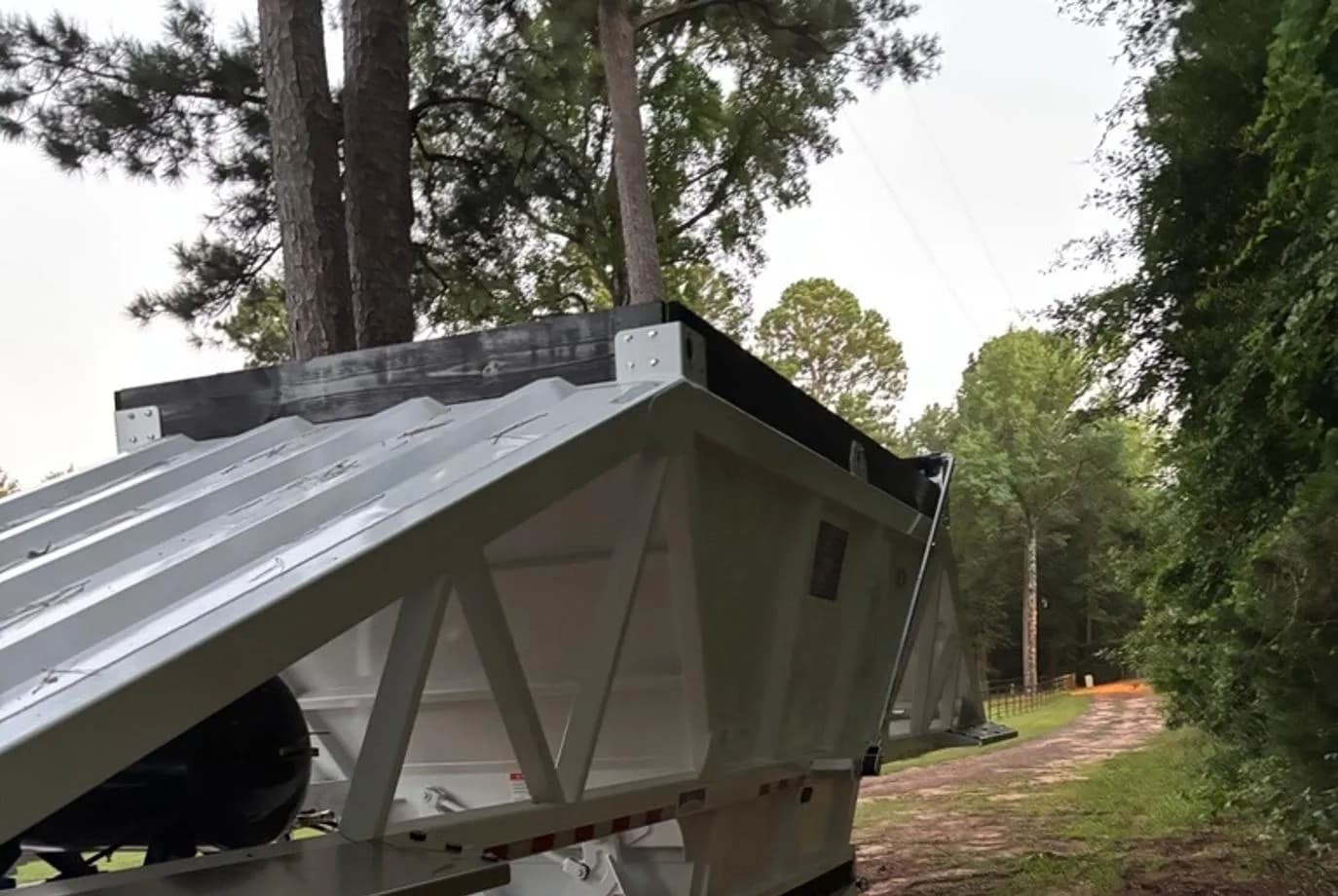

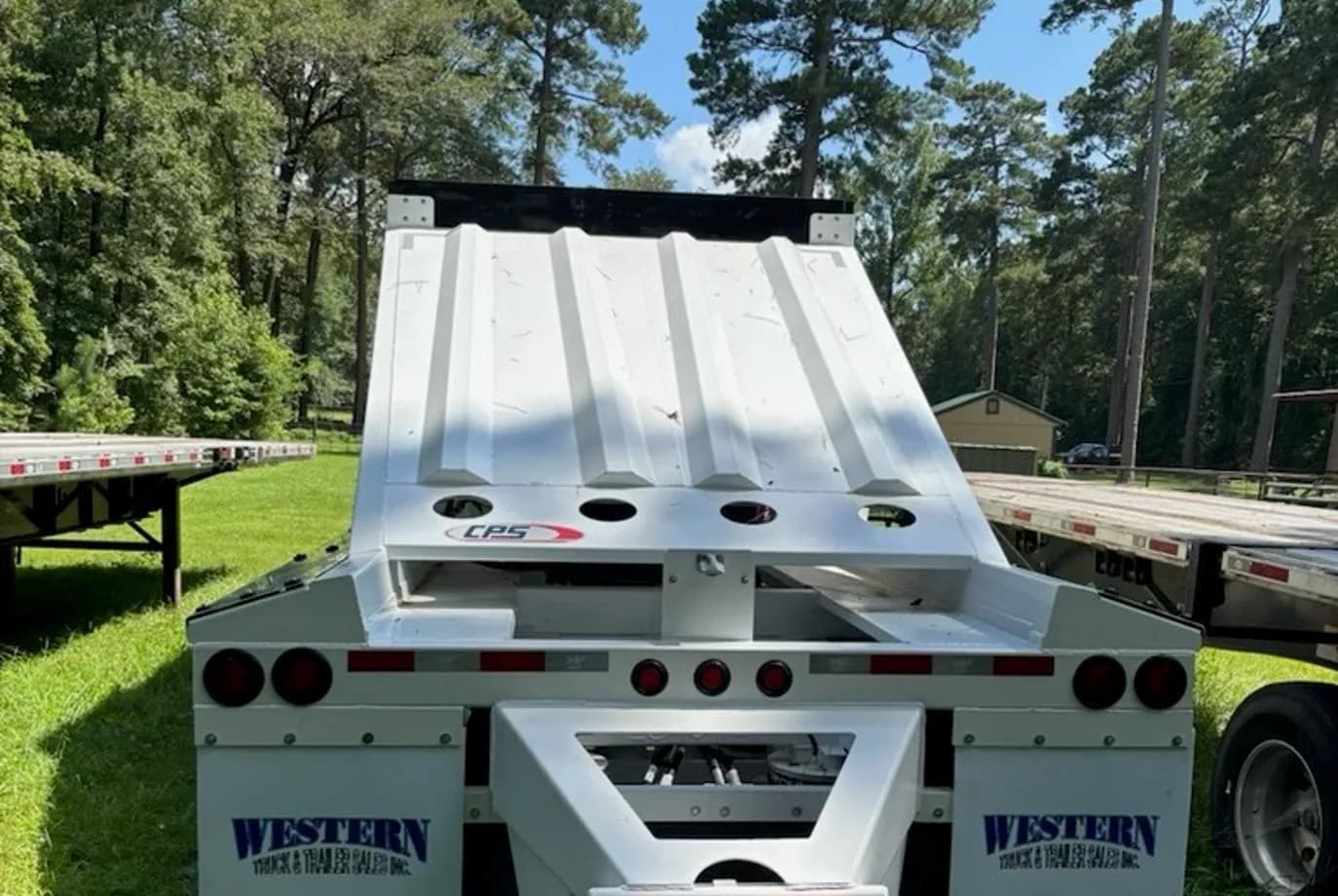

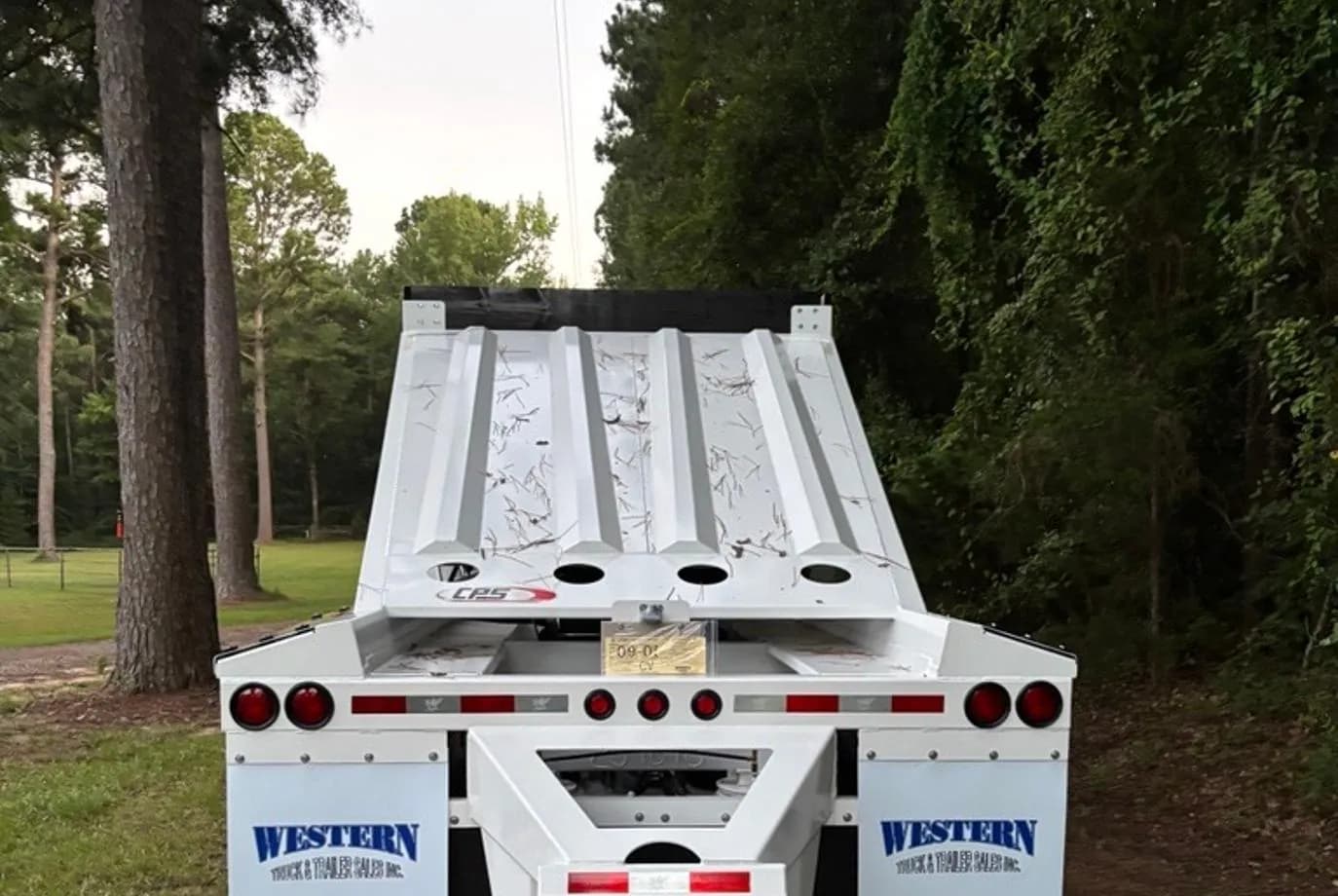

Manac 4B240A200 CPS Lightweight Bottom Dump trailer with 40' length and 20 Cubic Yards single hopper capacity.

Key Specs

• Model Year: New - 2025

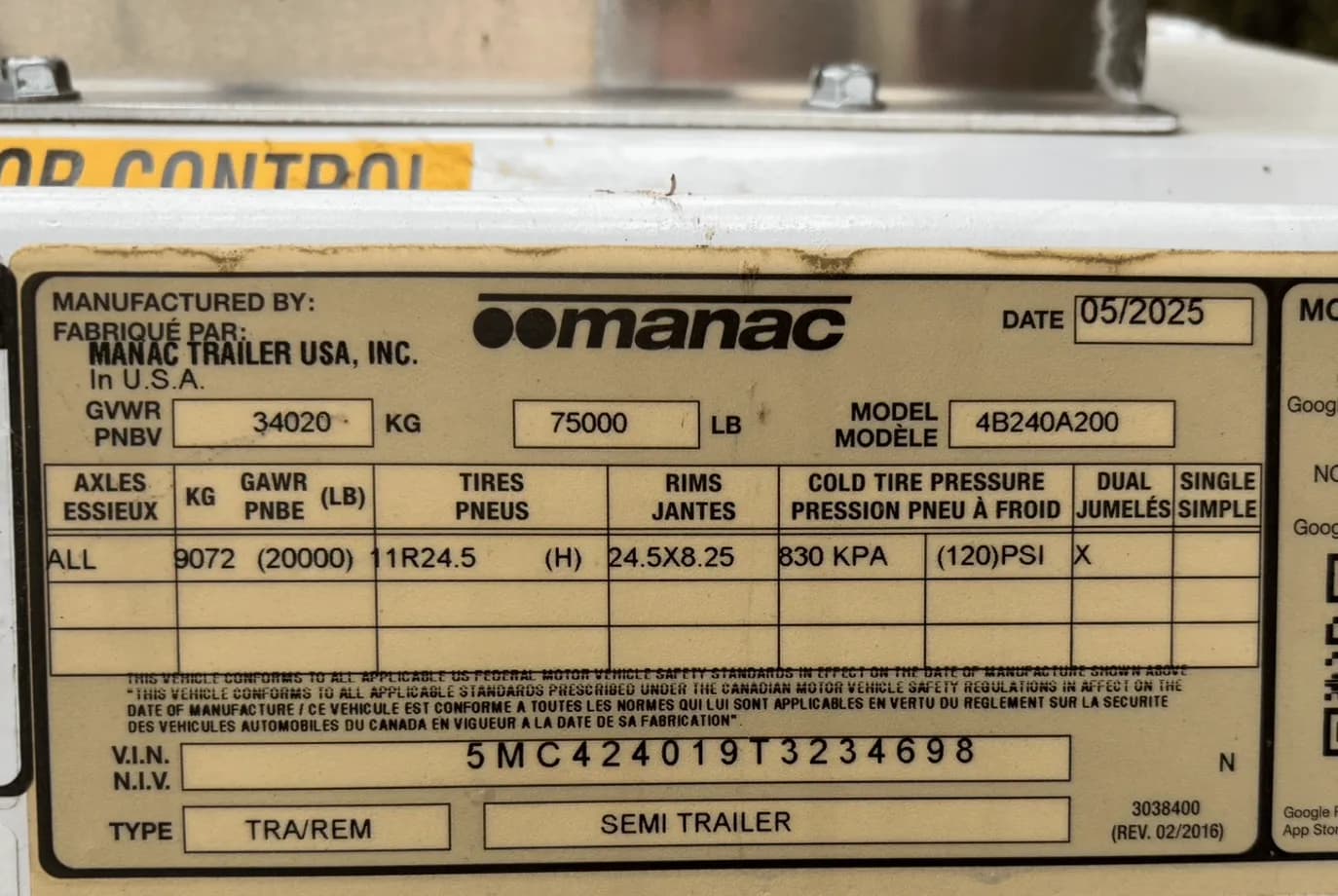

• Model: 4B240A200
• Series: Manac/CPS Lightweight Bottom Dump Trailer
• Length: 40'
• Width: 96"
• Height: 10' with Bangboards / 9'1" without Bangboards
• Capacity: 20 Cubic Yards (Single Hopper) / 23 Cubic Yards (with Bangboards)
• Coupler Height: 48"
• Axle Configuration: Tandem
• Suspension: Air Ride

Tub Construction

• Hopper Material: Upper Hopper: 10 & 12 GA Lightweight, Lower Hopper: 10 GA Lightweight
• Gate Material: 3/16 80W Standard Steel Doors
• Gate Style: Commercial Grade Steel with Slide Locks
• Frame Construction: Welded Push Block with Certified Underride

Hydraulics & Control

• Twin 8-inch air cylinders
• Air System: 60 Gallon Air Tank with Air-Controlled Gate Control
• Electric/manual Versa valve hand control

Wheels & Tires

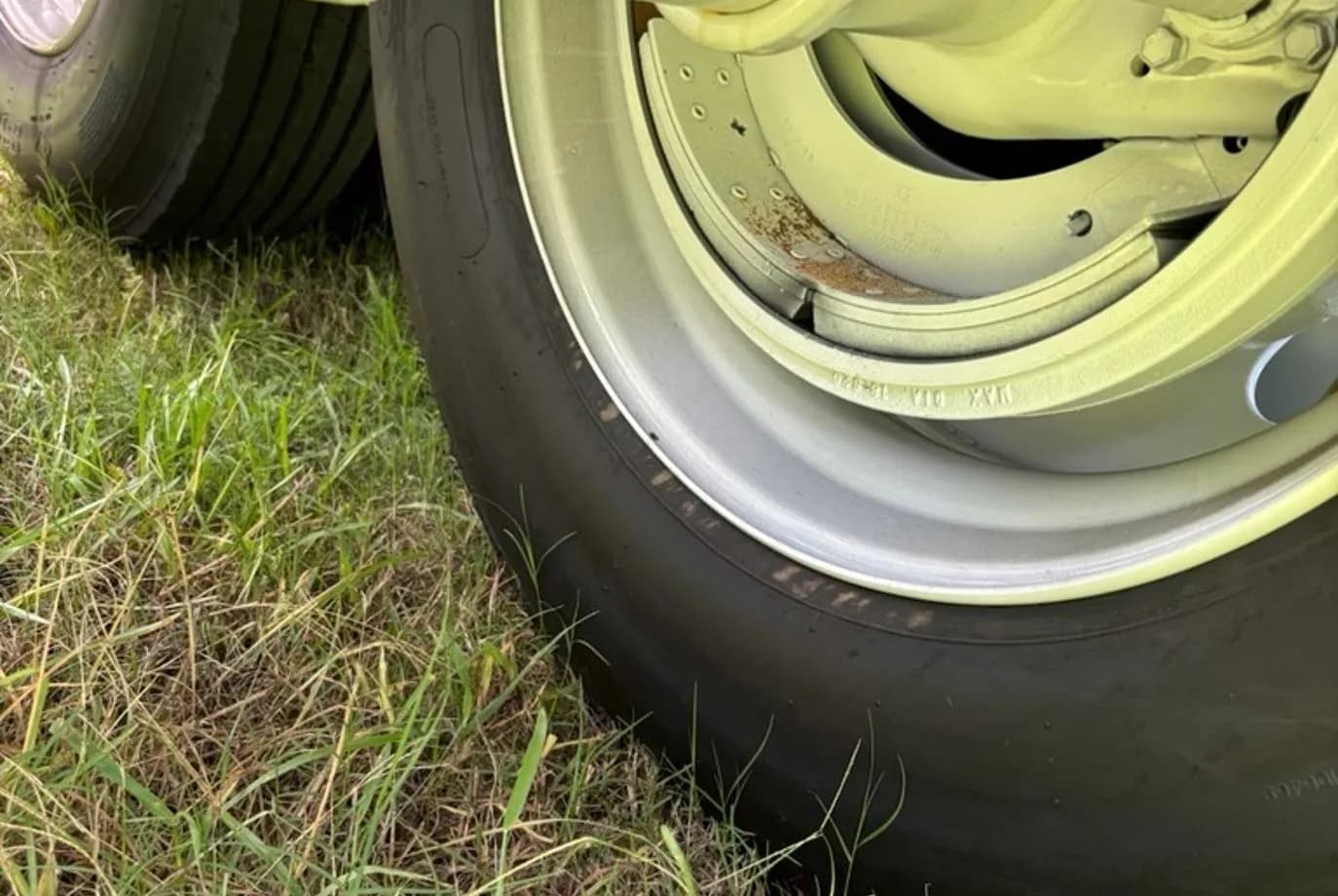

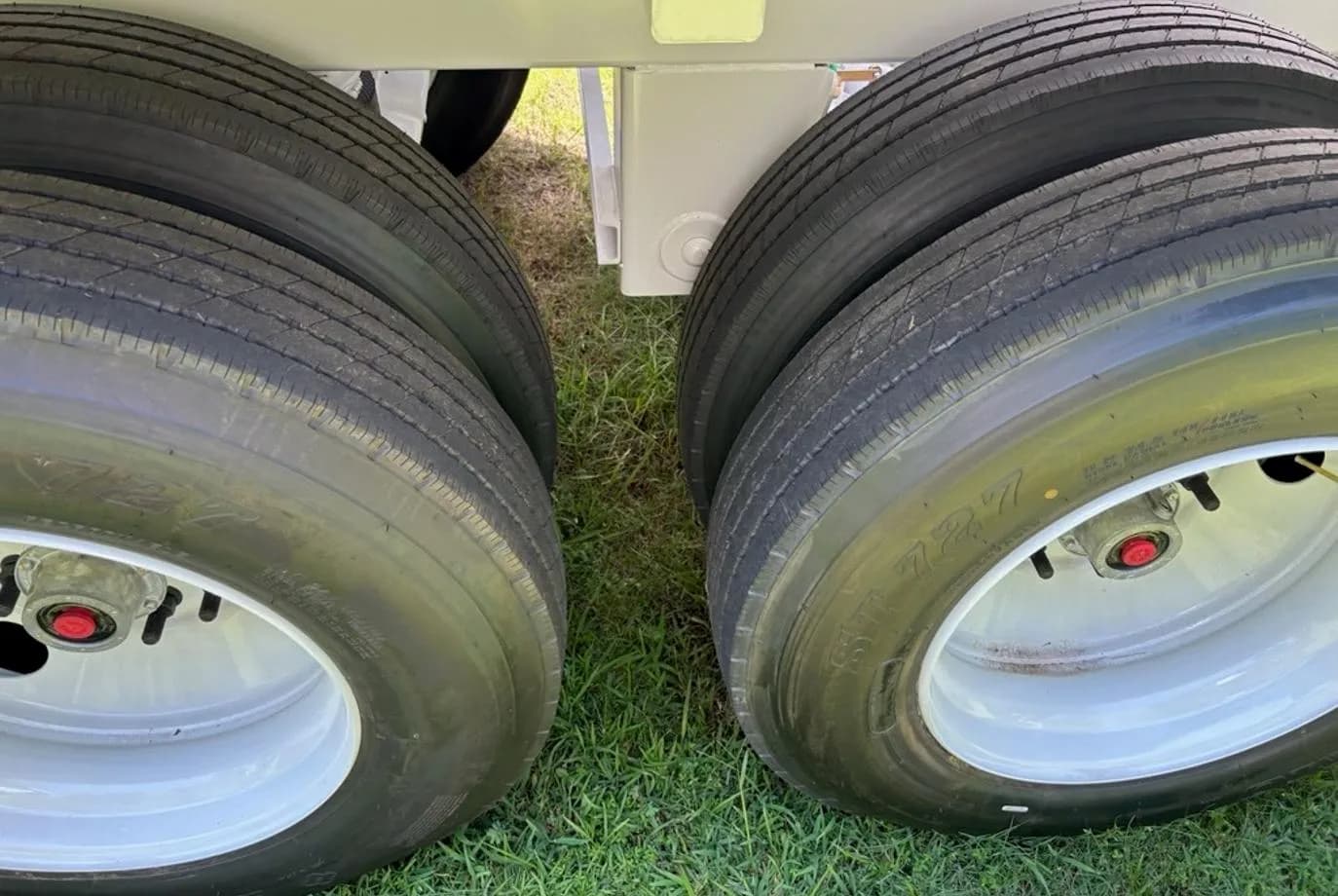

• Wheels & Tires: 11R24.5 16-Ply Steel Wheels
• Brakes: 16 1/2" x 7" Cam Brakes with Automatic Slack Adjusters

Additional Features

• Steel-welded push block
• Windrow deflector
• Finish: Shot Blasted, Epoxy Primer, Polyurethane Top Coat
• Color: White
• Reflective Tape: Conspicuity Striping Compliant with FMVSS/CMVSS 108

Lighting & Safety

• Lighting System: LED ICC & DOT Approved Sealed Beam System
