2026 Manac CPS. Belly 4B240A200 Bottom Dump — Unit RT-92

Manac CPS. Belly 4B240A200 – Bottom Dump, 40’-0”, 20 Cubic Yards

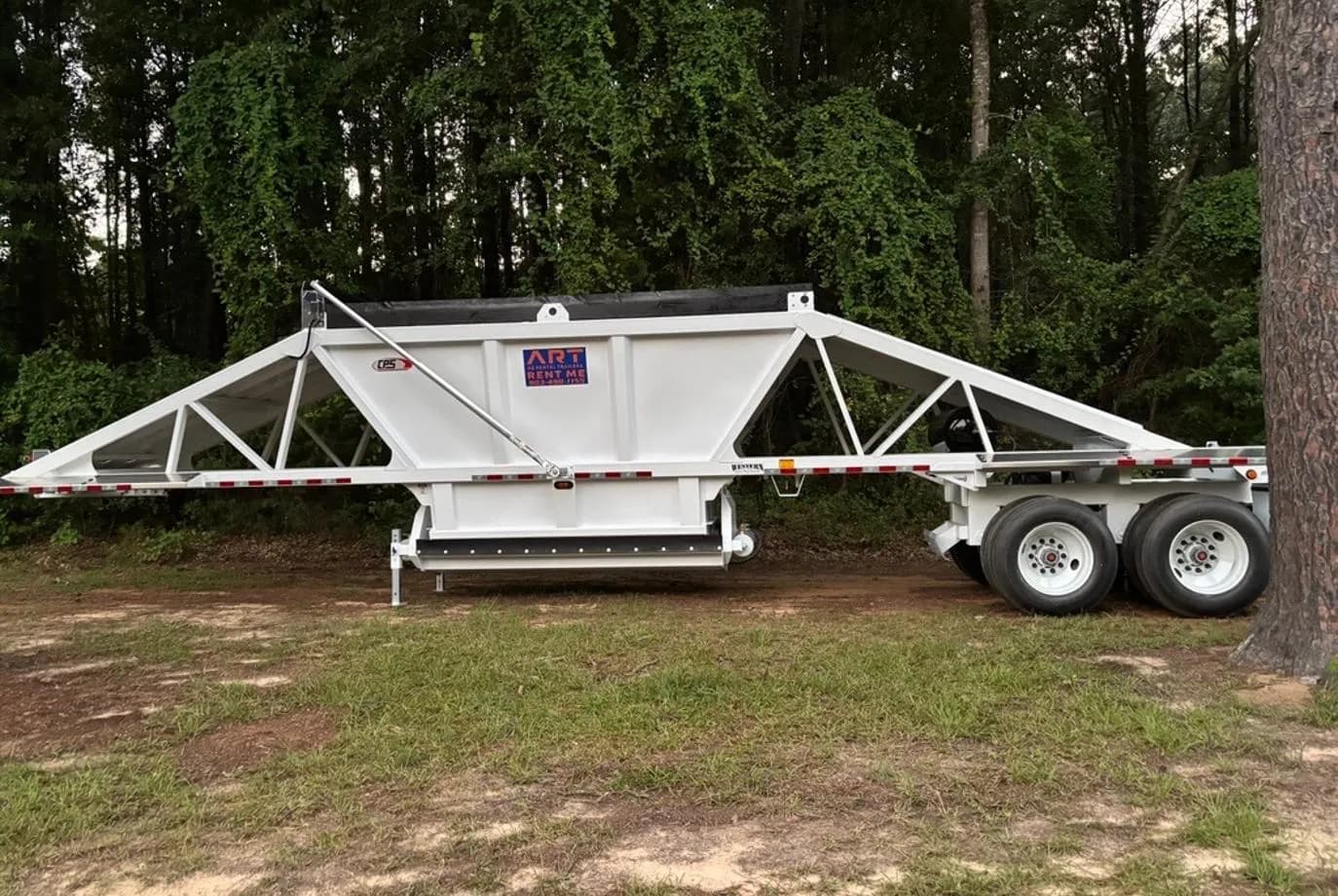

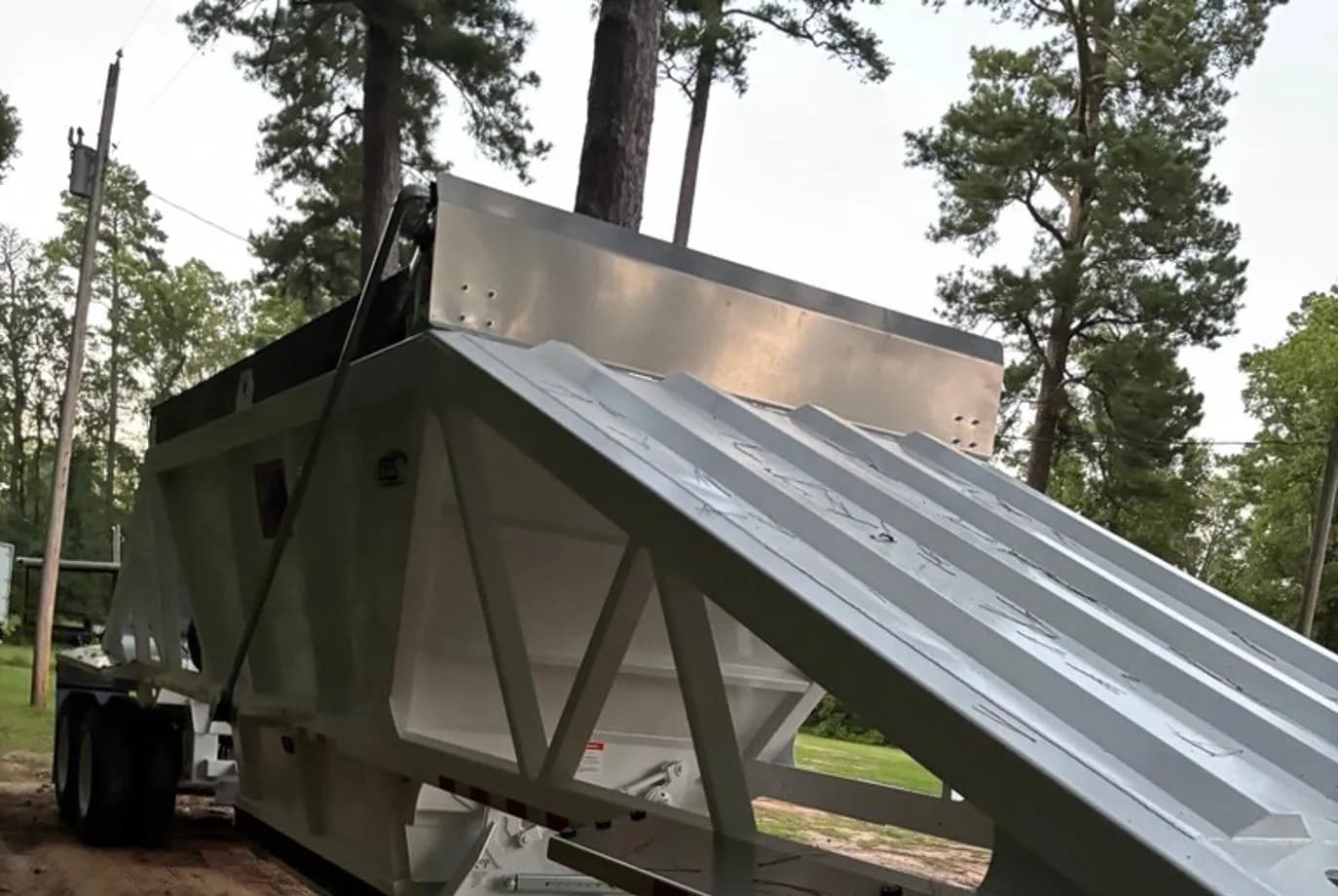

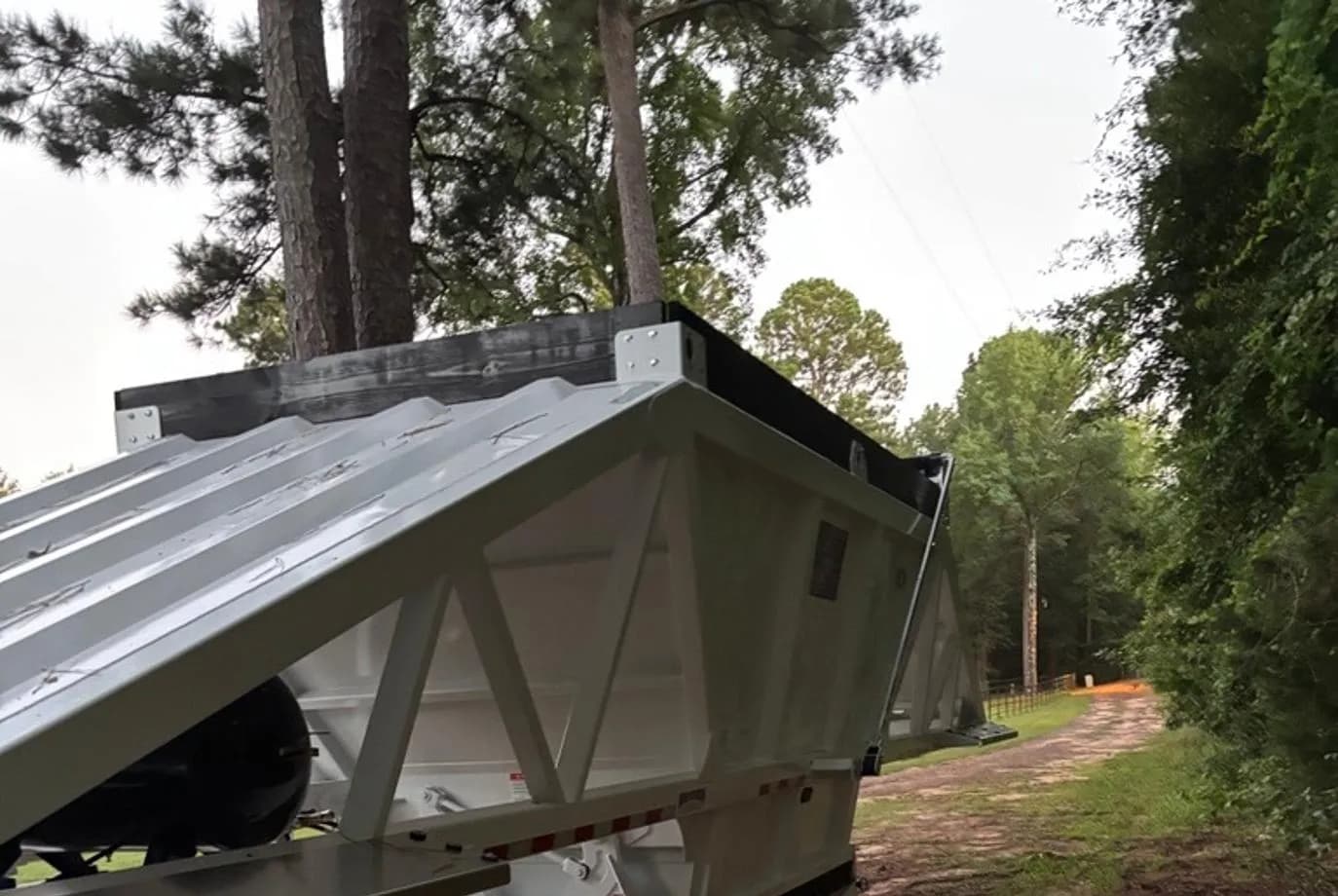

Manac CPS. Belly 4B240A200 Bottom Dump trailer, 40’-0” length, 20 Cubic Yards single hopper capacity.

Key Specs

• Model Year: New - 2025
• Length: 40’-0”
• Width: 96"
• Height: 10' with Bangboards / 9'1"
• Capacity: 20 Cubic Yards (Single Hopper) / 23 Cubic Yards (with Bangboards)
• Coupler Height: 48"
• Color: White

Tub Construction

• Hopper Material: Upper Hopper: 10 & 12 GA Lightweight, Lower Hopper: 10 GA Lightweight
• Frame Construction: Reinforced HSLA steel frame; Welded Push Block with Certified Underride Protection
• Gate Material: 3/16 80W Standard Steel Doors
• Gate Style: Commercial Grade Steel with Slide Locks

Hydraulics & Control

• Air Cylinders: Twin 8-inch air cylinders
• Air Reservoir: 60 Gallon air reservoir
• Gate Control: Electric/manual Versa valve hand control; Precision air-controlled gate system
• Power Requirements: Designed for efficient pneumatic transport (kW/HP optimized)

Axles & Suspension

• Axle Configuration: Tandem
• Axles: Hub-piloted 25K axles
• Suspension: Air Ride
• Brakes: 16 1/2" x 7" Cam Brakes with Automatic Slack Adjusters; ABS-equipped braking system

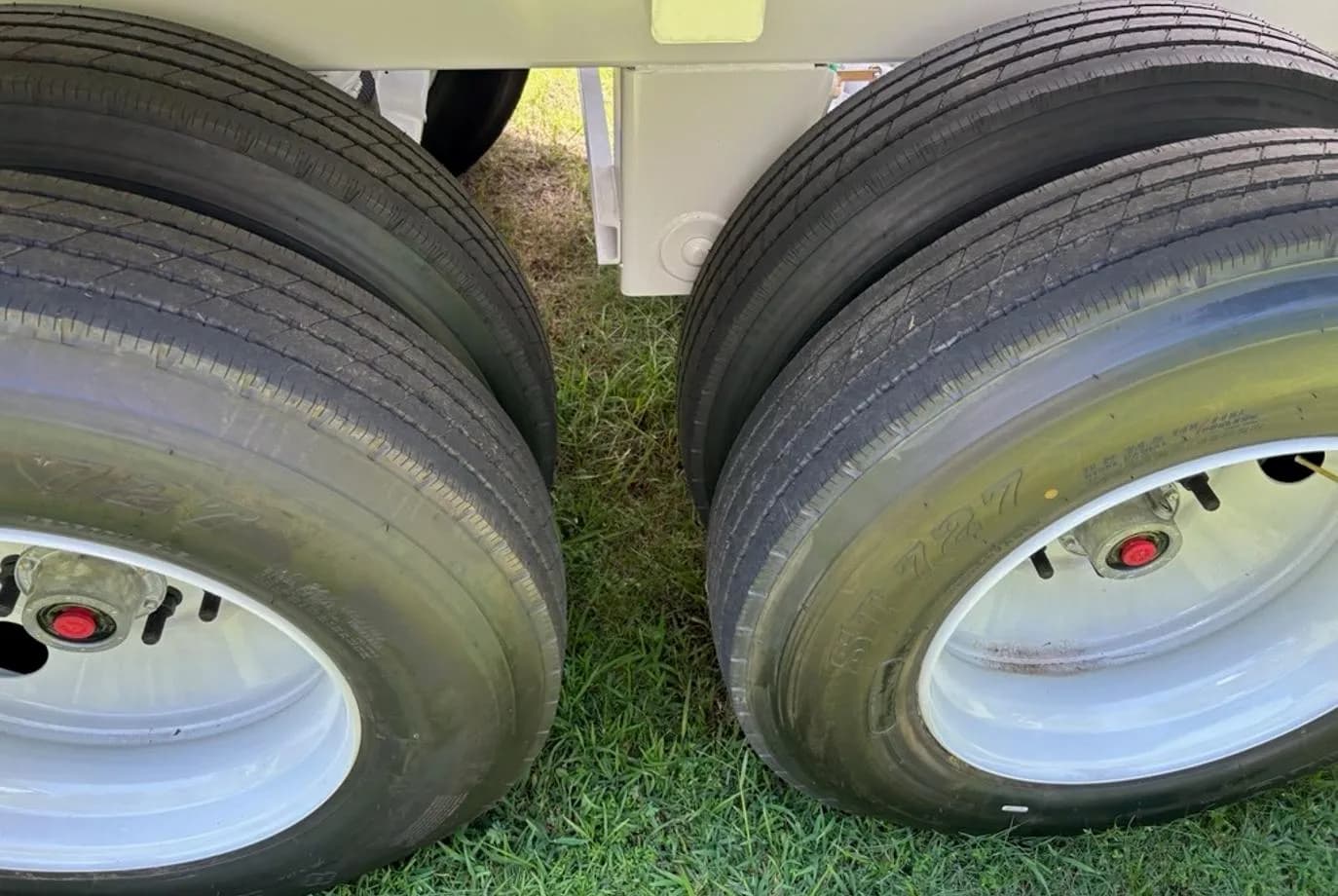

Wheels & Tires

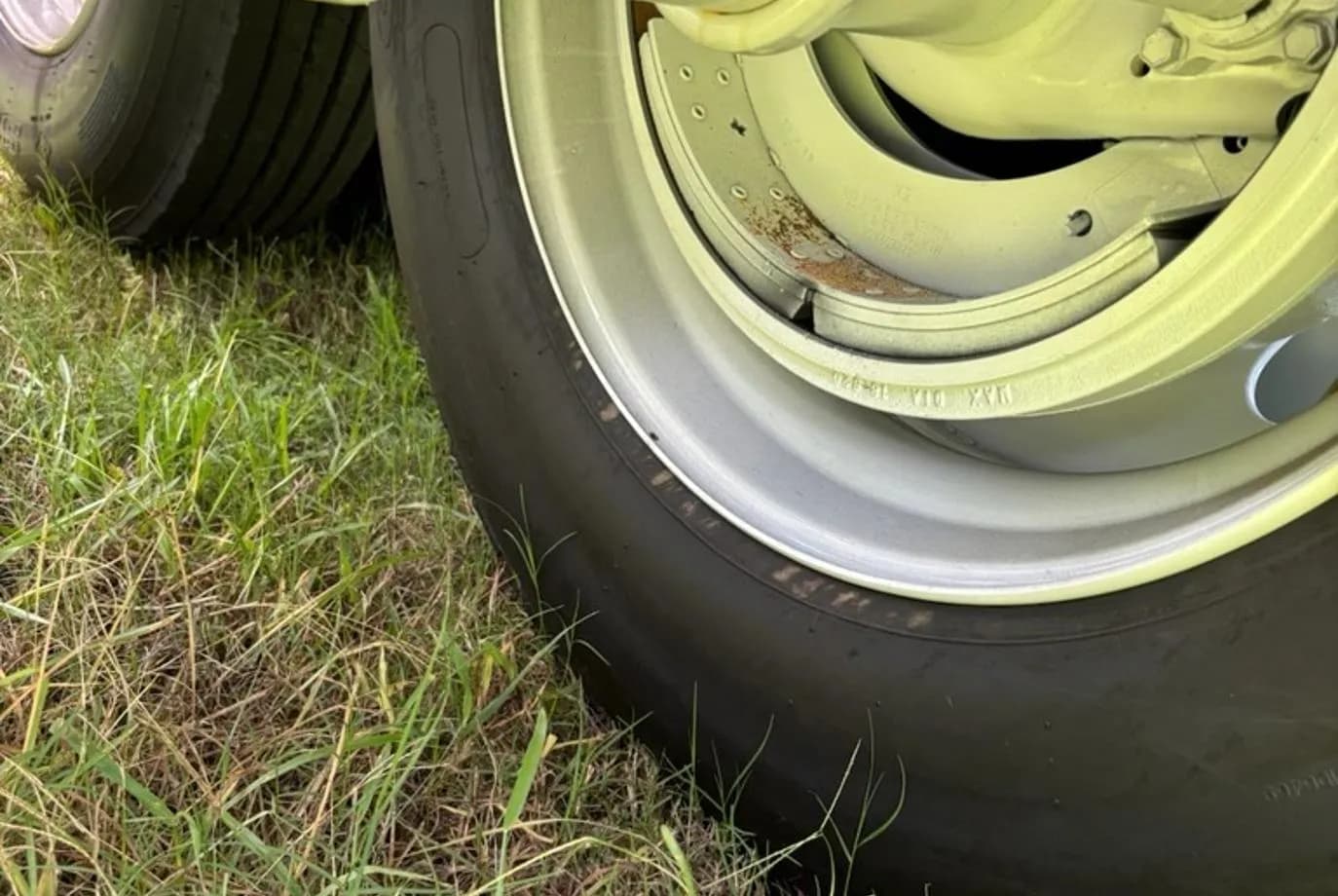

• Wheels: Steel exterior & interior wheels
• Tires: 11R24.5 16-Ply radial tires

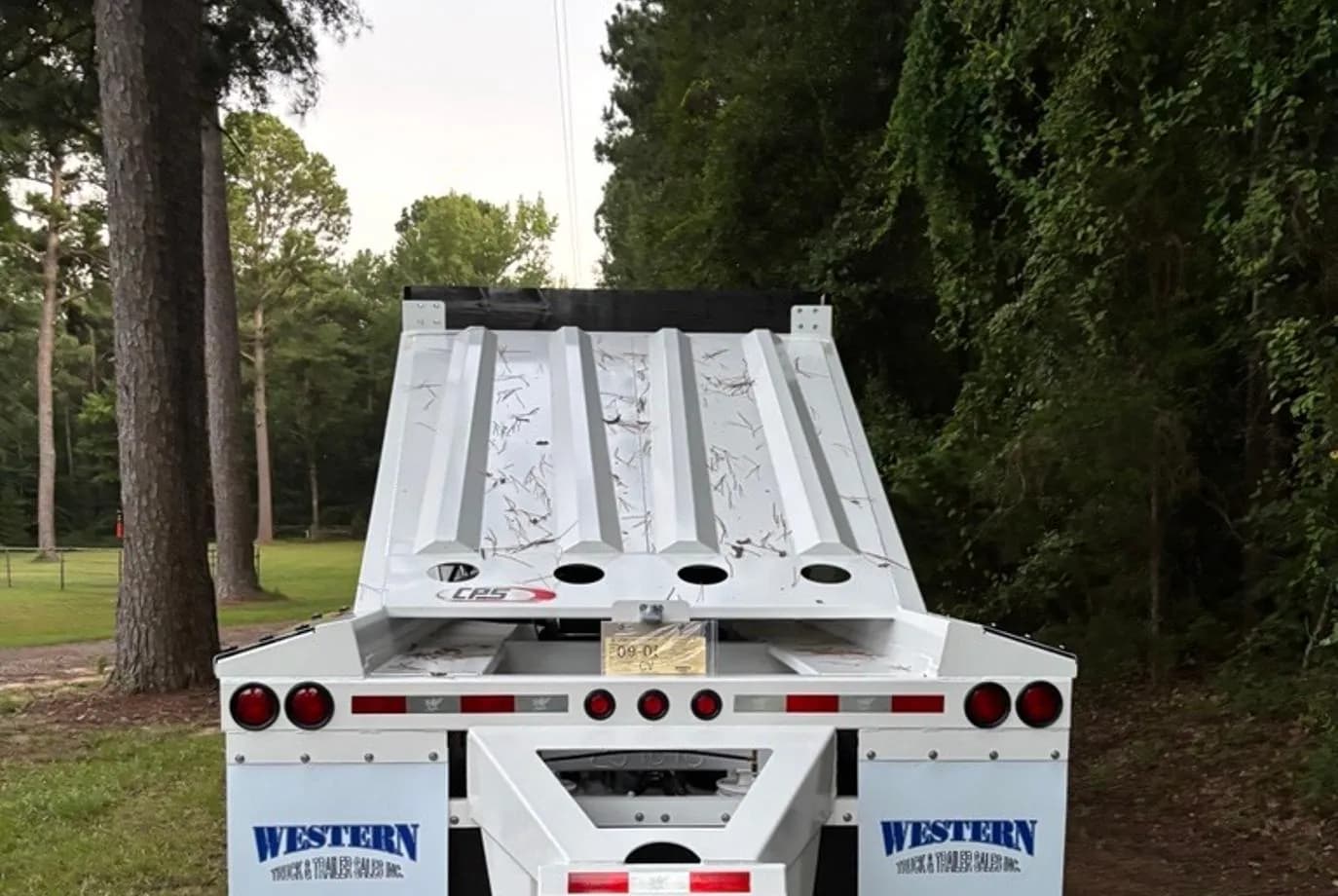

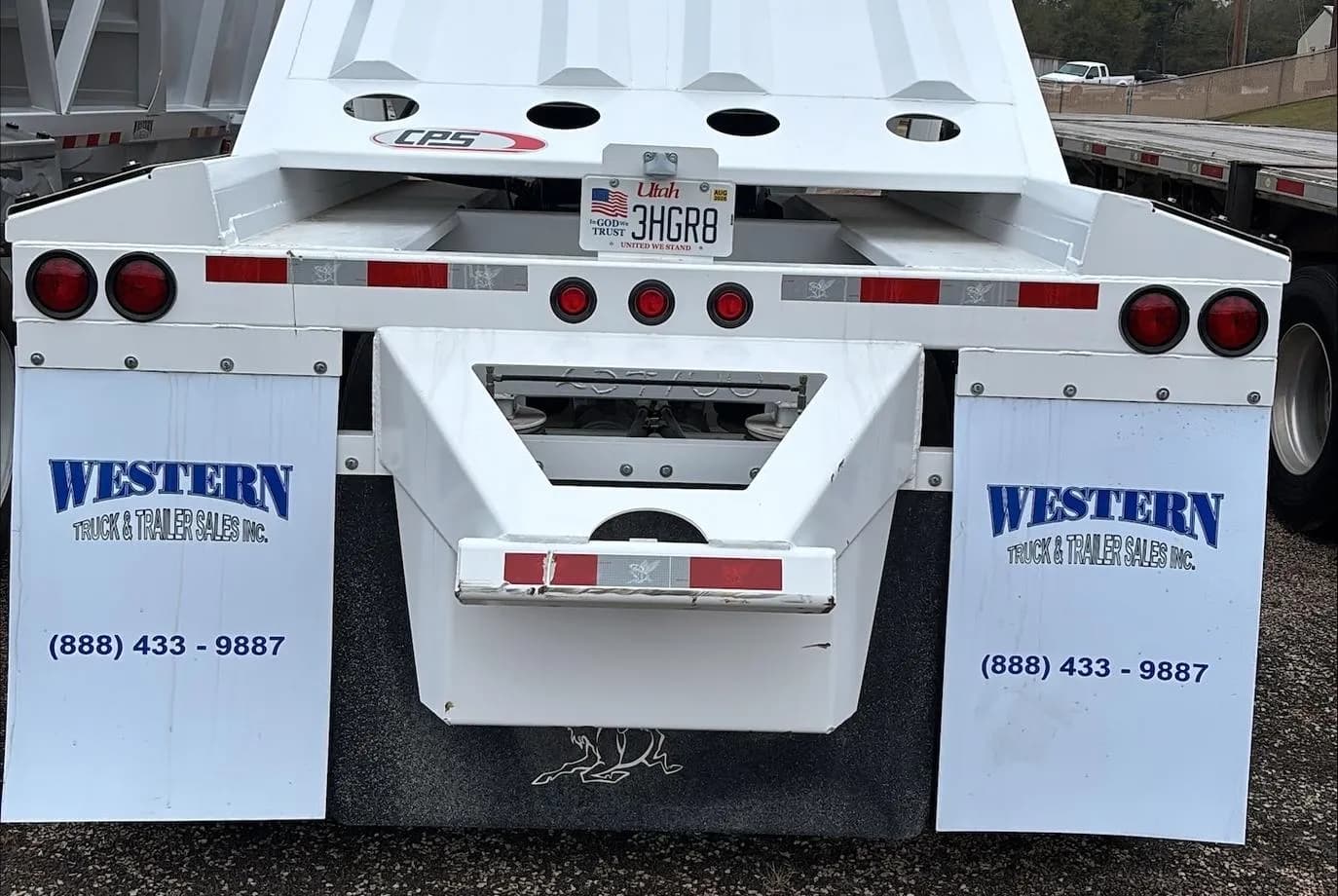

Lighting & Safety

• Lighting System: LED ICC & DOT Approved Sealed Beam System; DOT-compliant lighting; mid-flashers
• Reflective Tape: Conspicuity Striping Compliant with FMVSS/CMVSS 108
• Safety Features: Certified underride protection

Additional Features

• Windrow Deflector: Standard galvanized windrow dirt deflector
• Finish: Shot Blasted, Epoxy Primer, Polyurethane Top Coat
