2026 Manac CPS. Belly 4B240A200 Bottom Dump · Unit RT-87

Manac CPS. Belly 4B240A200 – Bottom Dump, 40' / 20 Cubic Yards

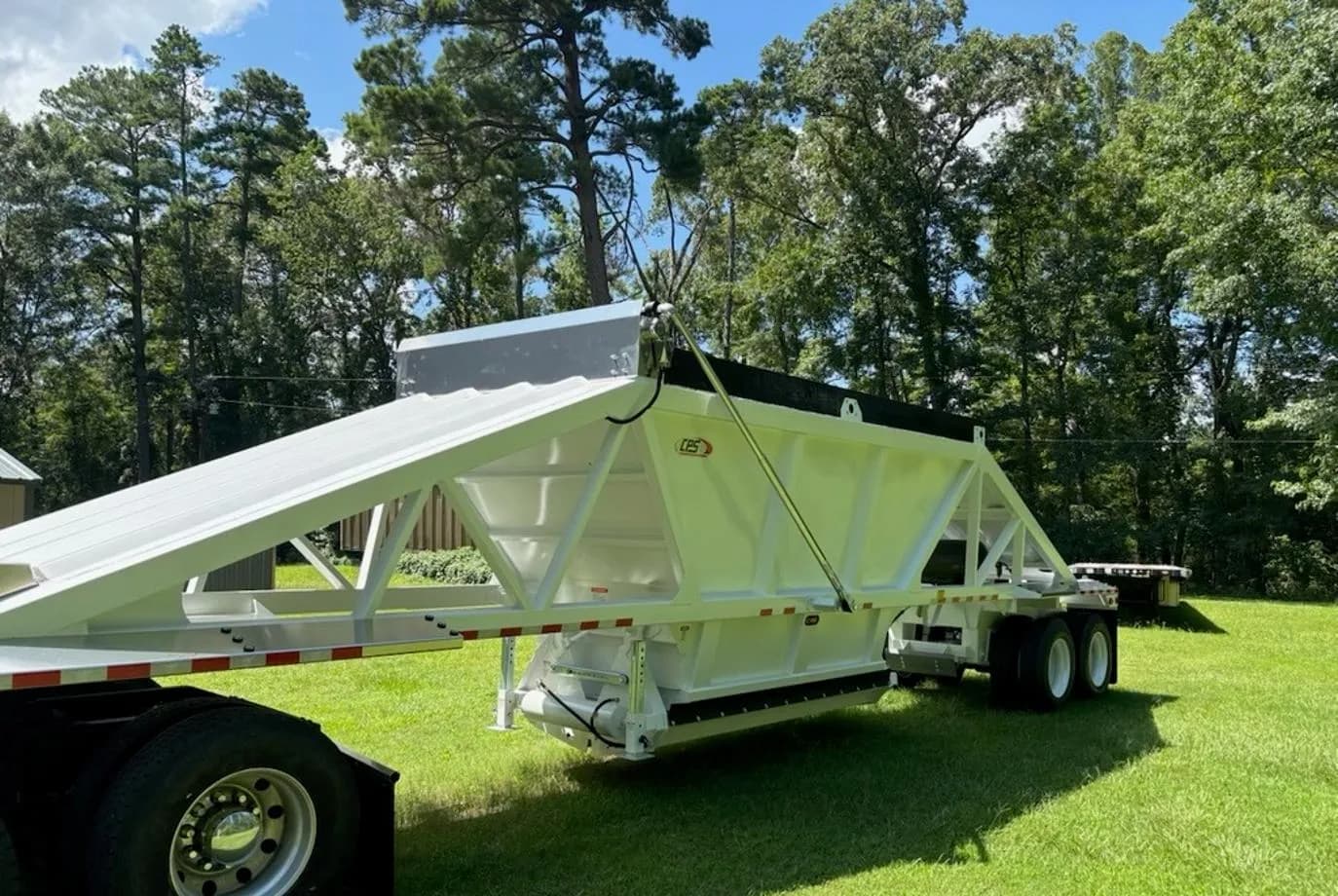

Manac CPS. Belly 4B240A200 is a Bottom Dump trailer with a 20 Cubic Yards single hopper capacity and 40' length.

Key Specs

• Model Year: New - 2025
• Length: 40'
• Width: 96"
• Height: 10' with Bangboards / 9'1" without Bangboards
• Capacity: 20 Cubic Yards (Single Hopper) / 23 Cubic Yards (with Bangboards)
• Coupler Height: 48"
• Axle Configuration: Tandem
• Suspension: Air Ride

Tub Construction

• Upper Hopper: 10 & 12 GA Lightweight
• Lower Hopper: 10 GA Lightweight
• Gate Material: 3/16 80W Standard Steel Doors
• Gate Style: Commercial Grade Steel with Slide Locks
• Frame Construction: Welded Push Block with Certified Underride

Hydraulics & Control

• Air System: 60 Gallon Air Tank
• Gate Control: Twin 8-inch air cylinders; electric/manual Versa valve hand control
• Power: Designed for efficient pneumatic integration (kW/HP optimized)

Axles & Suspension

• Axles: Hub-piloted 25K axles
• Brakes: 16 1/2" x 7" Cam Brakes with Automatic Slack Adjusters

Wheels & Tires

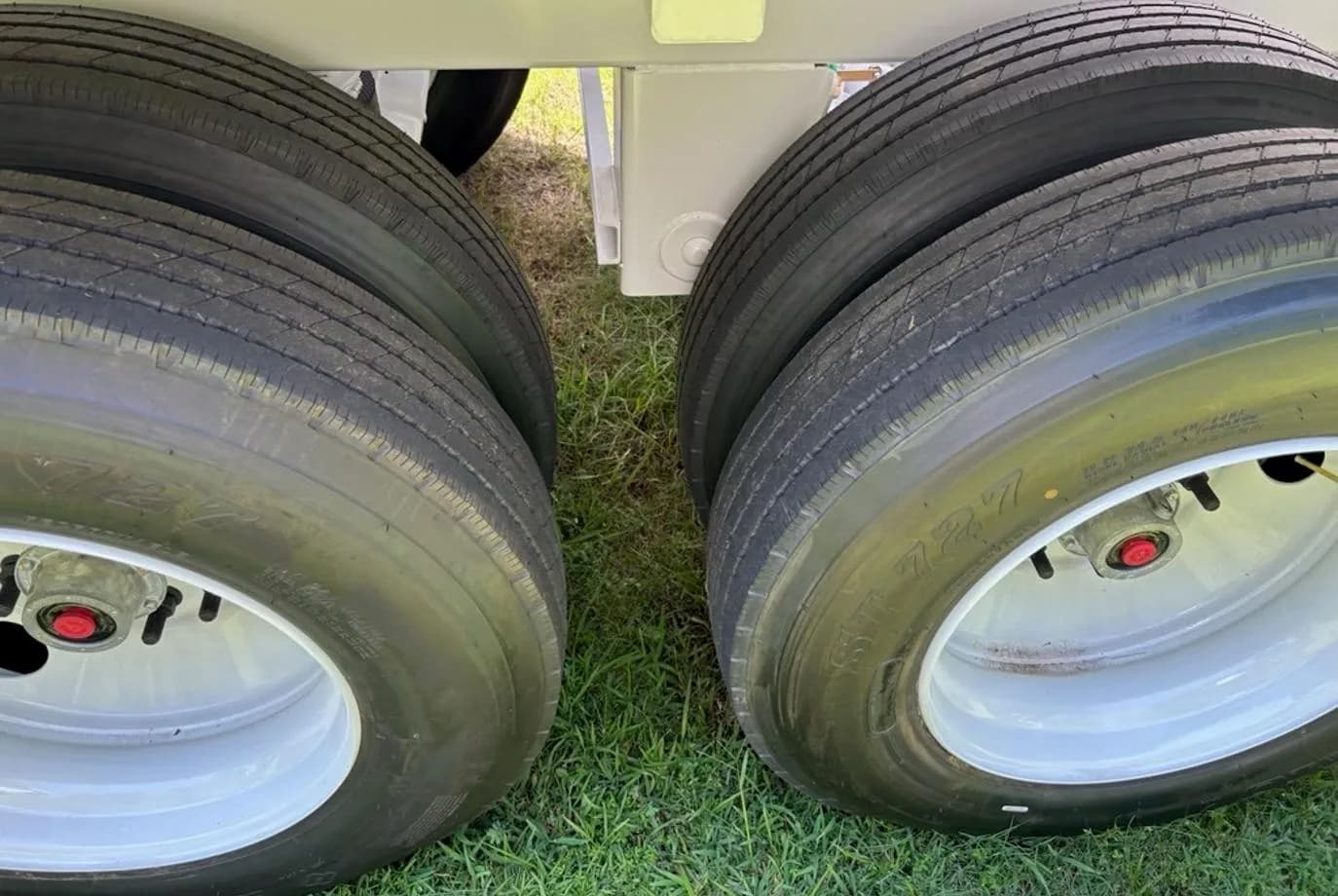

• Wheels: Steel exterior & interior wheels
• Tires: 11R24.5 16-Ply

Additional Features

• Frame Material: Reinforced HSLA steel frame
• Windrow Deflector: Galvanized windrow dirt deflector
• Push Block: Reinforced welded push block with certified underride protection
• Gate System: Precision air-controlled electric/manual discharge system

Lighting & Safety

• Lighting System: LED ICC & DOT Approved Sealed Beam System
• Safety: DOT-compliant lighting, mid-flashers, reflective conspicuity striping compliant with FMVSS/CMVSS 108
• Finish: Shot Blasted, Epoxy Primer, Polyurethane Top Coat; Color White
