2025 Manac CPS. Belly 4B240A200 Bottom Dump — Unit RT-89

Manac CPS. Belly 4B240A200 – Bottom Dump, 40’-0” – 20 Cubic Yards

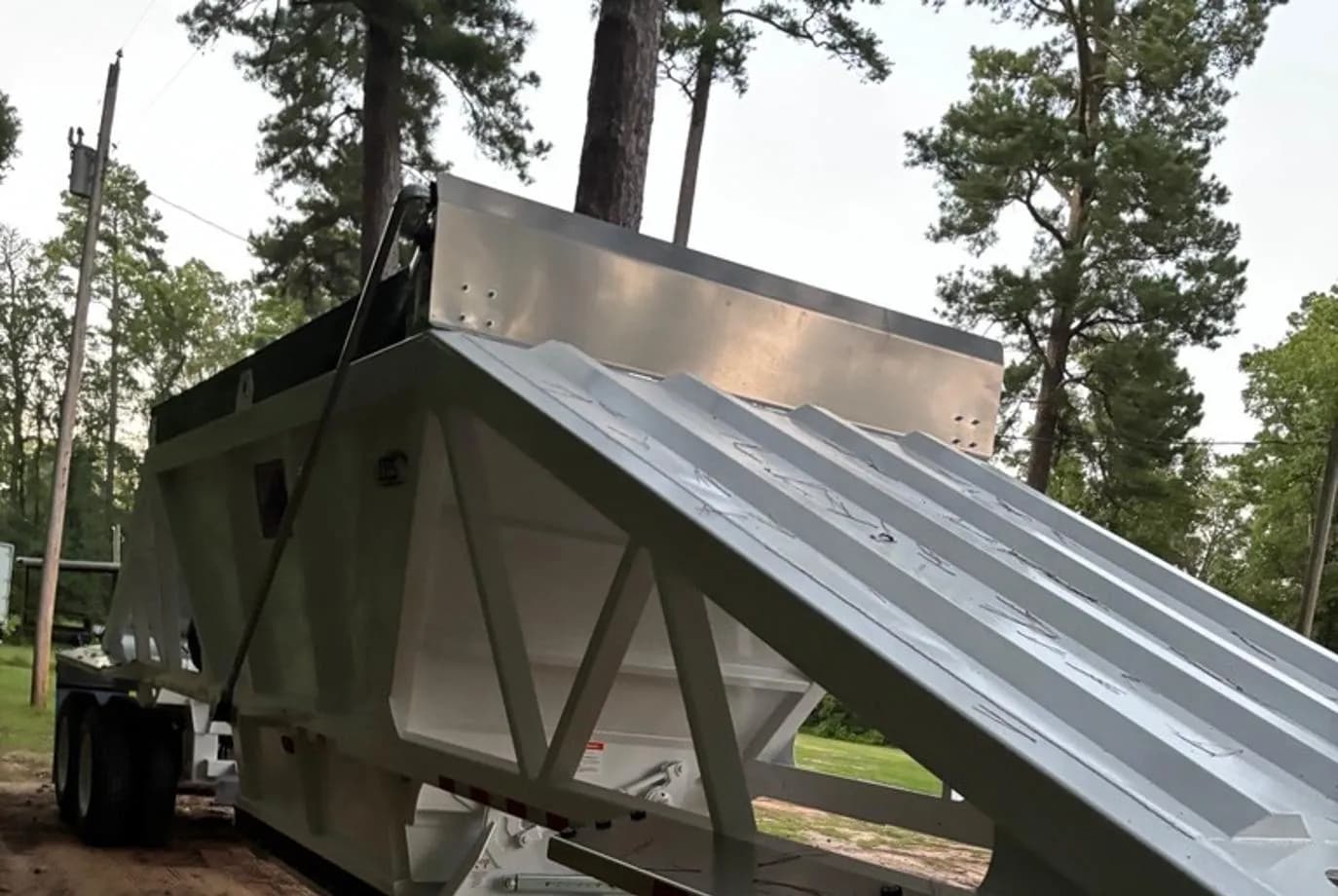

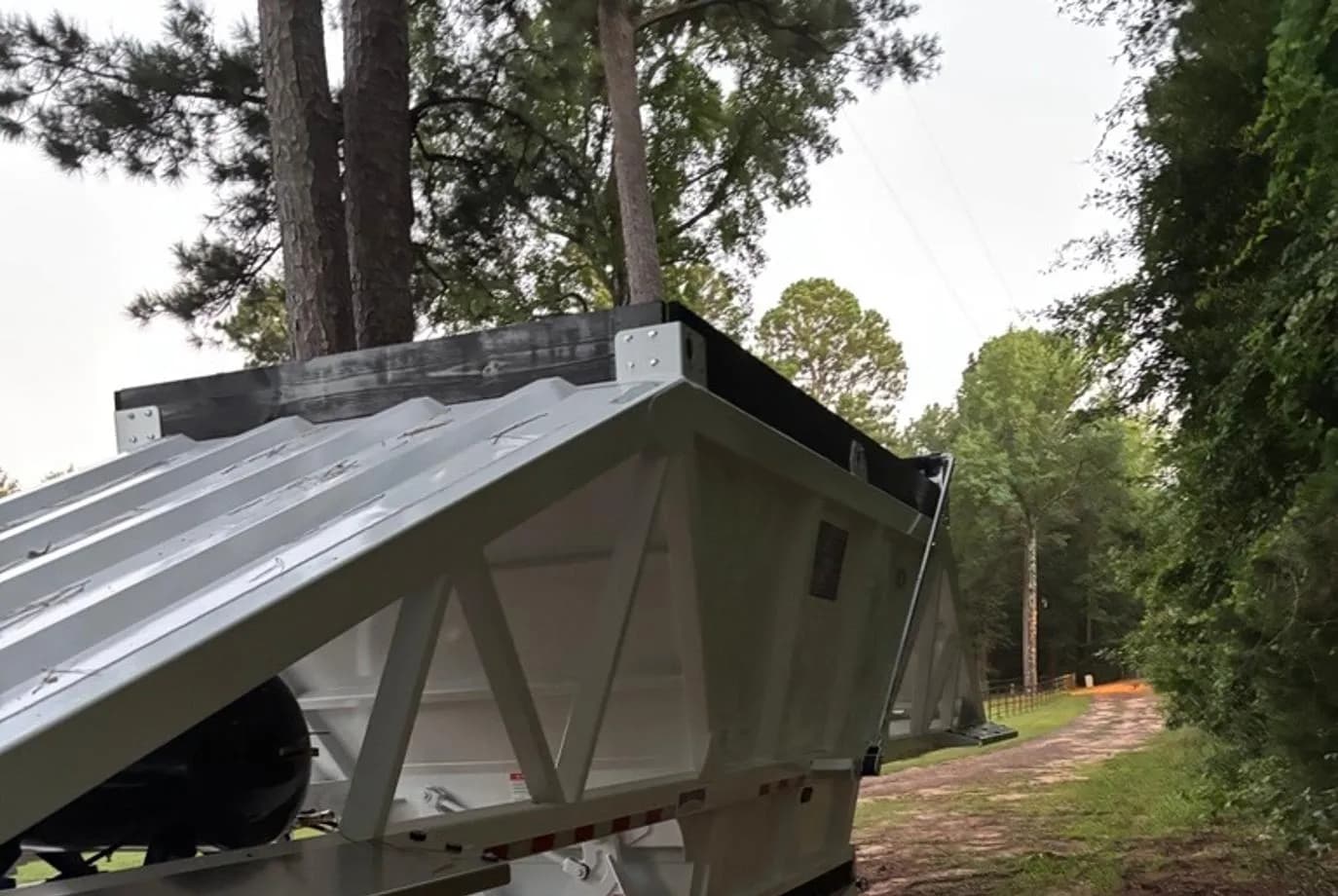

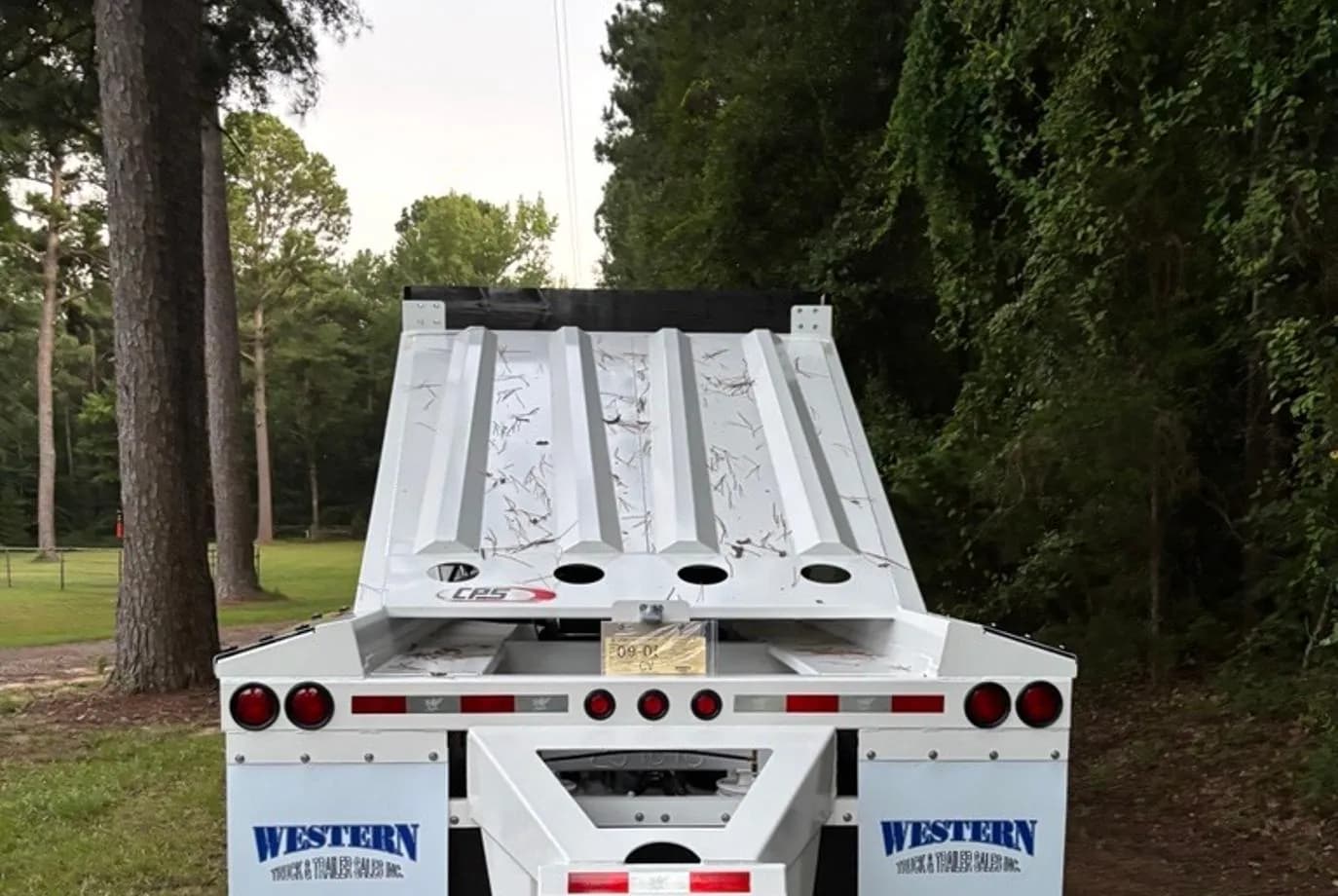

Manac CPS. Belly 4B240A200 bottom dump trailer with 40’-0” length and 20 Cubic Yards single hopper capacity.

Key Specs

• Manufacturer: Manac
• Model: CPS. Belly 4B240A200
• Category: Bottom Dump
• Model Year: New - 2025
• Length: 40’-0”
• Width: 96"
• Height: 10' with Bangboards / 9'1" without Bangboards
• Capacity: 20 Cubic Yards (Single Hopper) / 23 Cubic Yards (with Bangboards)
• Coupler Height: 48"

Tub Construction

• Hopper Material: Upper Hopper: 10 & 12 GA Lightweight, Lower Hopper: 10 GA Lightweight
• Gate Material: 3/16 80W Standard Steel Doors
• Gate Style: Commercial Grade Steel with Slide Locks
• Frame Construction: Welded Push Block with Certified Underride

Hydraulics & Control

• Air System: 60 Gallon Air Tank with Air-Controlled Gate Control
• Cylinders: Twin 8-inch air cylinders
• Controls: Electric/manual Versa valve hand control
• Power: Designed for efficient pneumatic transport (kW/HP optimized)

Axles & Suspension

• Axle Configuration: Tandem
• Suspension: Air Ride
• Axles: hub-piloted 25K axles
• Brakes: 16 1/2" x 7" Cam Brakes with Automatic Slack Adjusters; ABS-equipped braking system

Wheels & Tires

• Wheels & Tires: 11R24.5 16-Ply Steel Wheels; high-performance 11R24.5 16-ply radial tires

Lighting & Safety

• Lighting System: LED ICC & DOT Approved Sealed Beam System; LED lighting package; mid-flashers
• Reflective Tape: Conspicuity Striping Compliant with FMVSS/CMVSS 108

Additional Features

• Windrow Deflector: Standard galvanized windrow dirt deflector
• Push Block: Reinforced welded push block with certified underride protection
• Finish: Shot Blasted, Epoxy Primer, Polyurethane Top Coat
• Color: White
