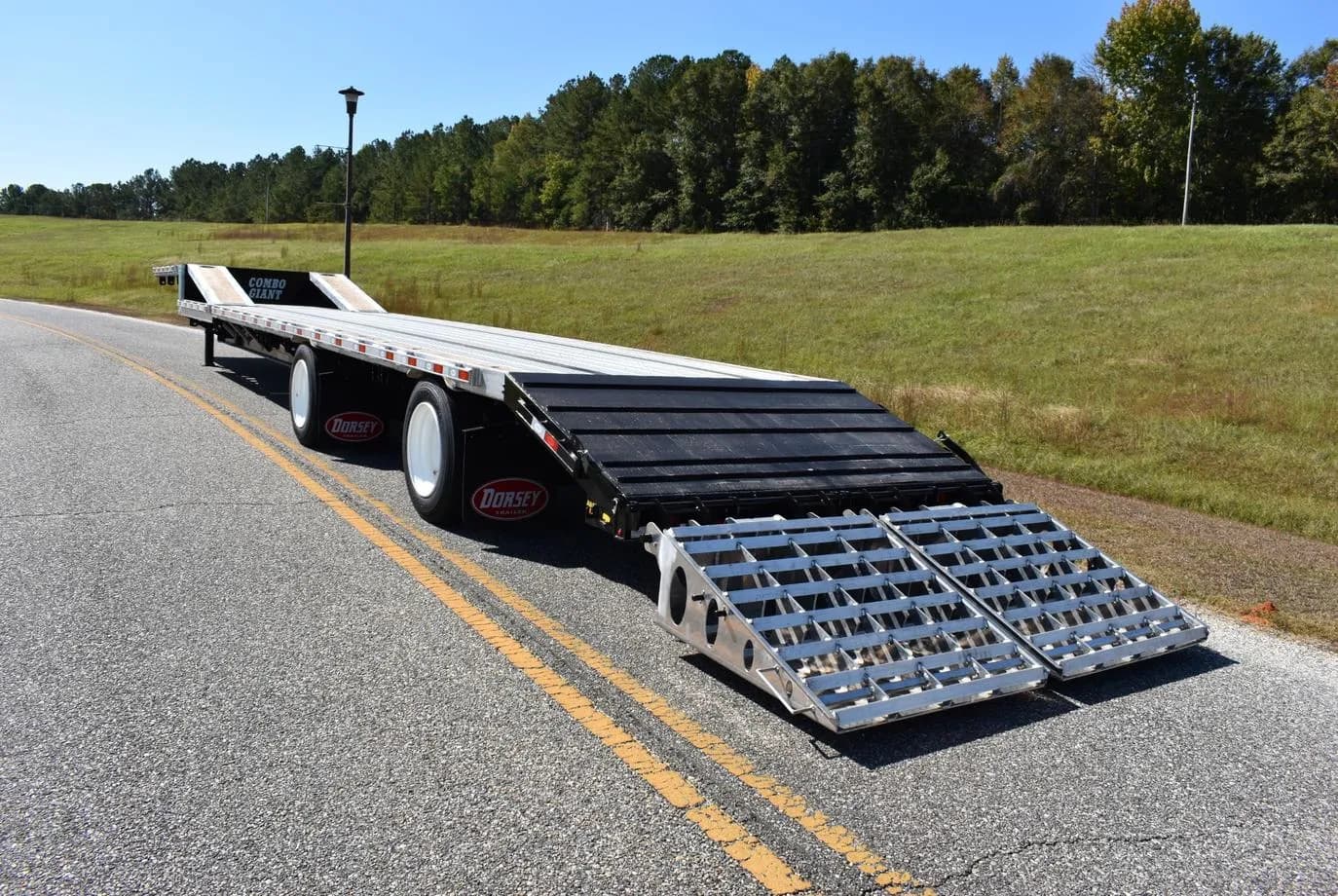

Dorsey DCG22 5-BTR Step Deck

Dorsey DCG22.5-BTR – Step Deck, 80,000 GVWR, 53' OAL

Dorsey DCG22.5-BTR is a Step Deck with 80,000 GVWR and 53' OAL.

Category: Step Deck
Capacity: STANDARD BEAM PKG - 80,000 GVWR (60,000 IN 10' SPAN)
Overall Length: 53' OAL
Overall Width: 8' 6"
King Pin Setting: 18" - SQUARED PICKUP PLATE
Main Frame: 26" PRECAMB BEAM-130K TRU-STRENGTH FLANGES - LIMITED LIFETIME WARRANTY

Top Deck - Length/Height: 10' LENGTH = 59" HEIGHT
Lower Deck - Length/Heights: 38' LENGTH = FRONT 41", CENTER 42" REAR 40.5" HEIGHTS
Floor Decking: 1-1/8" HD ALUMINUM W/ 2 NAILER BOARDS
Top Deck Floor Sills: 4" STEEL I-BEAM - 18" O.C.
Lower Deck Floor Sills: 4" STEEL I-BEAM 12" O.C. HD PKG
Side Rails: 6"-ALUM-EXTRUDED W/DOUBLE L TRACK
Rear Beavertail: 60"-15* DEGREE TRANSITION - STEEL W/TRACTION BARS
Front Skirt: ALUMINUM FRONT AND CORNERS
Rear Skirt: STEEL
Bulkhead: NONE

Suspensions: AIR RIDE - HENDRICKSON REAR AXLE SLIDE
Suspension Location: R.A.S.-CAL LEGAL (CENTER TO KP TO CENTER OF REAR AXLE 40' IN CLOSED POSITION)
Axles: (2) 23K CAPACITY - TYPE 30 CHAMBERS - AUTO SLACKS - ABS - 22.5 TIRES
Axle Spacing: RAS - 2 POSITION - 54-1/2" & 10' 2" SPREAD
Lift Axle: NONE
Parking Brakes: ALL AXLES
ABS System: WABCO ABS SYSTEM 2S/1M
Dust Shields: NONE

Wheels: DISC-HUB PILOT-22.5(2-AX)-POLISH ALUM 4 OUTSIDE WHEELS (4-STEEL INSIDE(-308#)
Tires: 255/70R 22.5 - FIRESTONE
Tire Inflation System: NONE
Tire Carriers: TIRE CARRIER POSITIONED IN FRONT OF MAIN BEAMS BETWEEN LANDING GEAR
Anti-Sail Mud Flaps: BEHIND ALL AXLES
Stake Pockets: 24" O.C. SIDES
Rub Band: 3/8" x 3" - ALUMINUM - RECESSED FOR DOT TAPE
Dock Bumpers: NONE (-5#)

Dump Valve: ELECT.-WIRED THRU AUX 7WAY PLUG @ FRONT OF TRAILER-DUMP REAR AXLE(+9#)
Landing Gear: TWO SPEED - JOST A500
Winch Track: DOUBLE L ALUMINUM - EXTRUDED SIDERAIL C/S & R/S - BOTH SIDES
Winches: 12 DOUBLE L6 ON EACH SIDE
Tie Bar: C/S & R/S - FULL LENGTH BOTH SIDES - 3/8" x 2"

Neck Transition Ramps: (2) 94" LONG ALUMINUM NECK RAMPS INTEGRATED INTO LOWER DECK
Rear Loading Ramps: (2) ALUMINUM SELF CLEANING-FULL WIDTH SPR. ASSIST-GOLIATH RAMPS
Coil Haul Package: SINGLE COIL PLACEMENT - 4 EXTRA STUD SILLS-CTR ON TRAILER
Cargo Tie Down: 14 PAIR OF RECESSED CHAIN TIES EVENLY SPACED
Container Twist Locks: NONE
Toolbox Material: ALUMINUM - SMOOTH BOX 18Hx18Dx60L - CAM LOCK 2 BOXES
Toolbox Location: BOTH SIDES - BEHIND LANDING GEAR
Dunnage Rack: NONE
Spool: TRIANGULAR SHAPED

Lights: GROTE ULTRA BLUE SEALED WIRING HARNESS - 2 MICROS PER SIDE & MID TURN-3/3/3 REAR
Custom Lights: NONE
Decal Package: STANDARD DORSEY LOGO KIT
Paint: BLACK - SHERWIN WILLIAMS EPOXY PRIMER AND ACRYLIC POLYURETHNE - SHOT BLASTED
