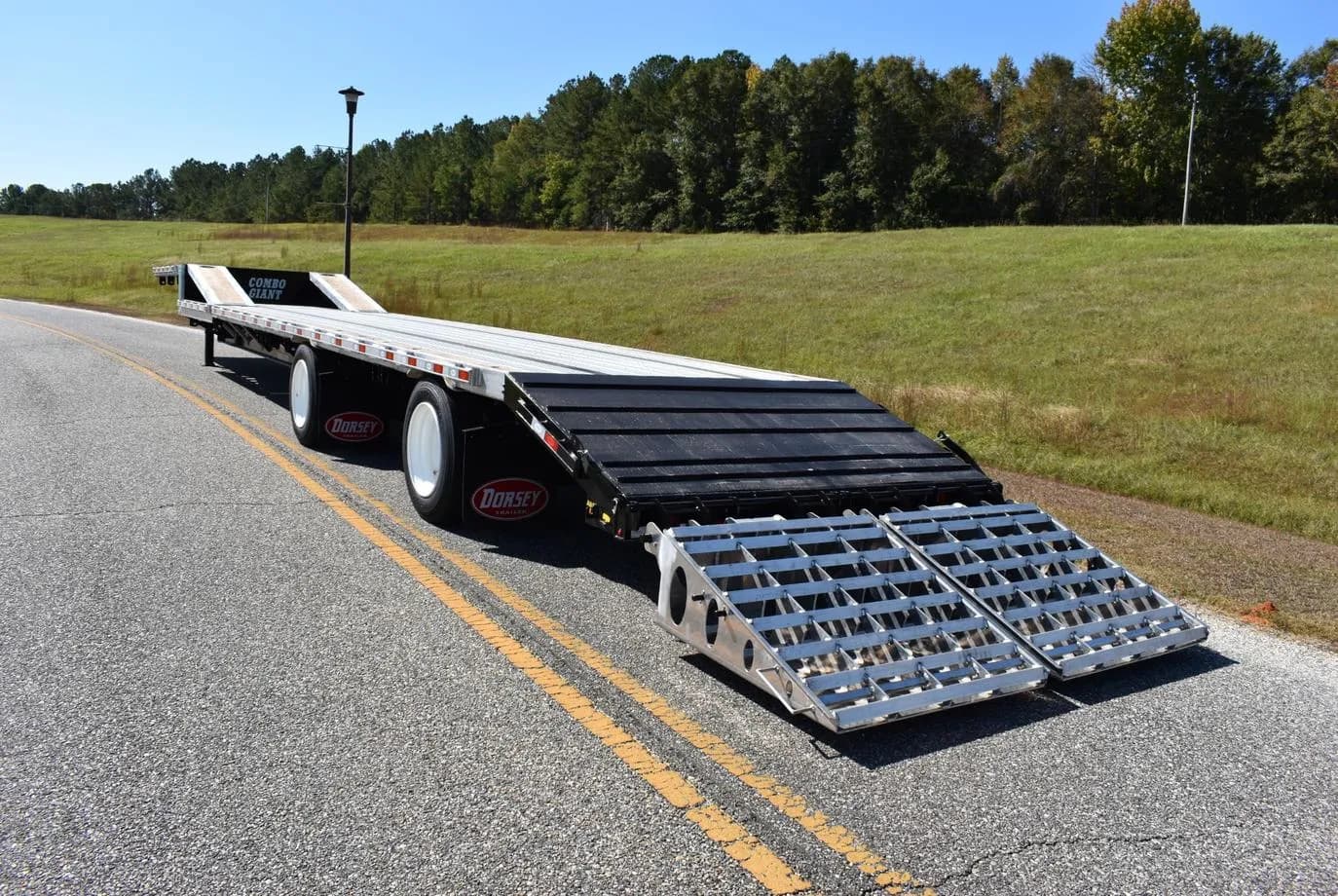

Dorsey DCG22 5-BTR Step Deck

Dorsey DCG22.5-BTR – Step Deck, 53' OAL, 80,000 GVWR

Dorsey DCG22.5-BTR Step Deck with 53' OAL and 80,000 GVWR.

Key Specs

• Series: GOLIATH SERIES
• Variant: DROP DECK - COMBO GIANT
• Capacity: STANDARD BEAM PKG - 80,000 GVWR (60,000 IN 10' SPAN)
• Overall length: 53' OAL
• Overall width: 8' 6"
• King pin setting: 18" - SQUARED PICKUP PLATE

Tub Construction

• Main frame: 26" PRECAMB BEAM - 130K TRU-STRENGTH FLANGES - LIMITED LIFETIME WARRANTY
• Side rails: 6"-ALUM-EXTRUDED W/DOUBLE L TRACK
• Top deck length/height: 10' LENGTH = 59" HEIGHT
• Lower deck length/height: 38' LENGTH = FRONT 41", CENTER 42" REAR 40.5" HEIGHTS
• Top deck floor sills: 4" STEEL I-BEAM - 18" O.C.
• Lower deck floor sills: 4" STEEL I-BEAM 12" O.C. HD PKG
• Floor decking: 1-1/8" HD ALUMINUM W/ 2 NAILER BOARDS
• Rear beavertail: 60"-15* DEGREE TRANSITION - STEEL W/TRACTION BARS

Ramps & Load Handling

• Neck transition ramps: (2) 94" LONG ALUMINUM NECK RAMPS INTEGRATED INTO LOWER DECK
• Rear loading ramps: (2) ALUMINUM SELF CLEANING-FULL WIDTH SPR. ASSIST-GOLIATH RAMPS
• Coil haul package: SINGLE COIL PLACEMENT - 4 EXTRA STUD SILLS-CTR ON TRAILER
• Cargo tie down: 14 PAIR OF RECESSED CHAIN TIES EVENLY SPACED

Hydraulics & Control

• Dump valve: ELECT.-WIRED THRU AUX 7WAY PLUG @ FRONT OF TRAILER-DUMP REAR AXLE(+9#)
• Winch track: DOUBLE L ALUMINUM - EXTRUDED SIDERAIL C/S & R/S - BOTH SIDES
• Winches: 12 DOUBLE L6 ON EACH SIDE
• Straps: NONE

Axles & Suspension

• Suspensions: AIR RIDE - HENDRICKSON INTRAAX 23K - 2 AXLES FIXED
• Suspension location: 10' 2" FIXED AIR RIDE SPREAD - 43' FROM KING PIN TO CENTER OF REAR AXLE
• Axles: (2) 23K CAPACITY - TYPE 30 CHAMBERS - AUTO SLACKS - ABS - 22.5 TIRES
• Axle spacing: 10'2" WIDE SPREAD
• Lift axle: NONE
• Parking brakes: ALL AXLES
• ABS system: WABCO ABS SYSTEM 2S/1M

Wheels & Tires

• Wheels: DISC-HUB PILOT-22.5(2-AX)-POLISH ALUM 4 OUTSIDE WHEELS(4-STEEL INSIDE(-308#)
• Tires: 255/70R 22.5 - FIRESTONE
• Tire inflation system: NONE
• Tire carriers: TIRE CARRIER POSITIONED IN FRONT OF MAIN BEAMS BETWEEN LANDING GEAR

Additional Features

• Landing gear: TWO SPEED - JOST A500
• Front skirt: ALUMINUM FRONT AND CORNERS
• Rear skirt: STEEL
• Bulkhead: NONE
• Tie bar: C/S & R/S - FULL LENGTH BOTH SIDES - 3/8" x 2"
• Stake pockets: 24" O.C. SIDES
• Rub band alum: 3/8" x 3" - ALUMINUM - RECESSED FOR DOT TAPE
• Toolbox material: ALUMINUM - SMOOTH BOX 18Hx18Dx60L - CAM LOCK 2 BOXES
• Toolbox location: BOTH SIDES - BETWEEN SPREAD
• Dock bumpers: NONE (-5#)
• Anti-sail mud flaps: BEHIND REAR AXLE

Lighting & Finish

• Lights: GROTE ULTRA BLUE SEALED WIRING HARNESS - 2 MICROS PER SIDE & MID TURN-3/3/3 REAR
• Custom lights: NONE
• Paint: BLACK - SHERWIN WILLIAMS EPOXY PRIMER AND ACRYLIC POLYURETHANE - SHOT BLASTED
• Decal package: STANDARD DORSEY LOGO KIT
