2024 SmithCo SX5-49-38 Side Dump

SmithCo SX5-49-38 – Side Dump, 49', 38’

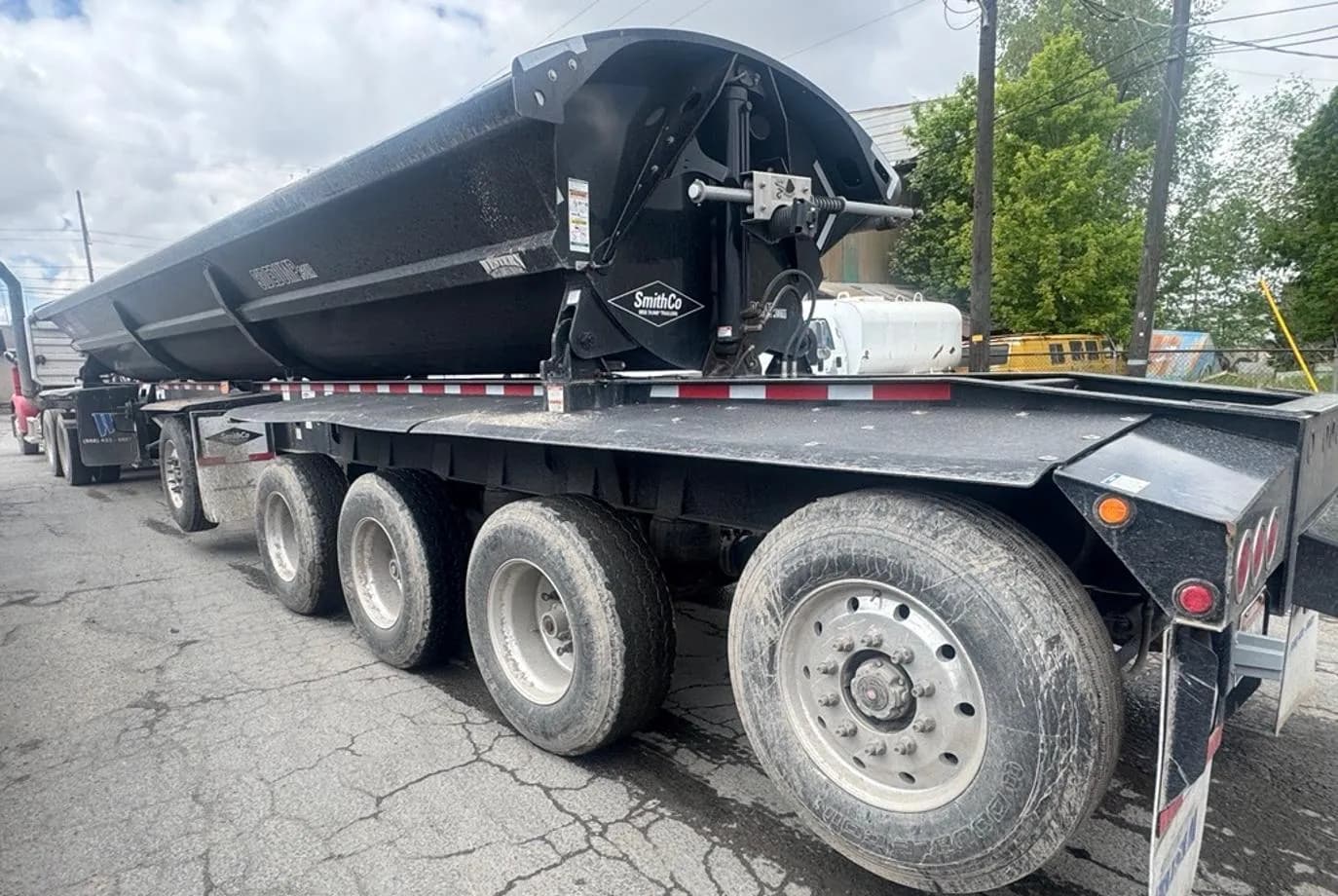

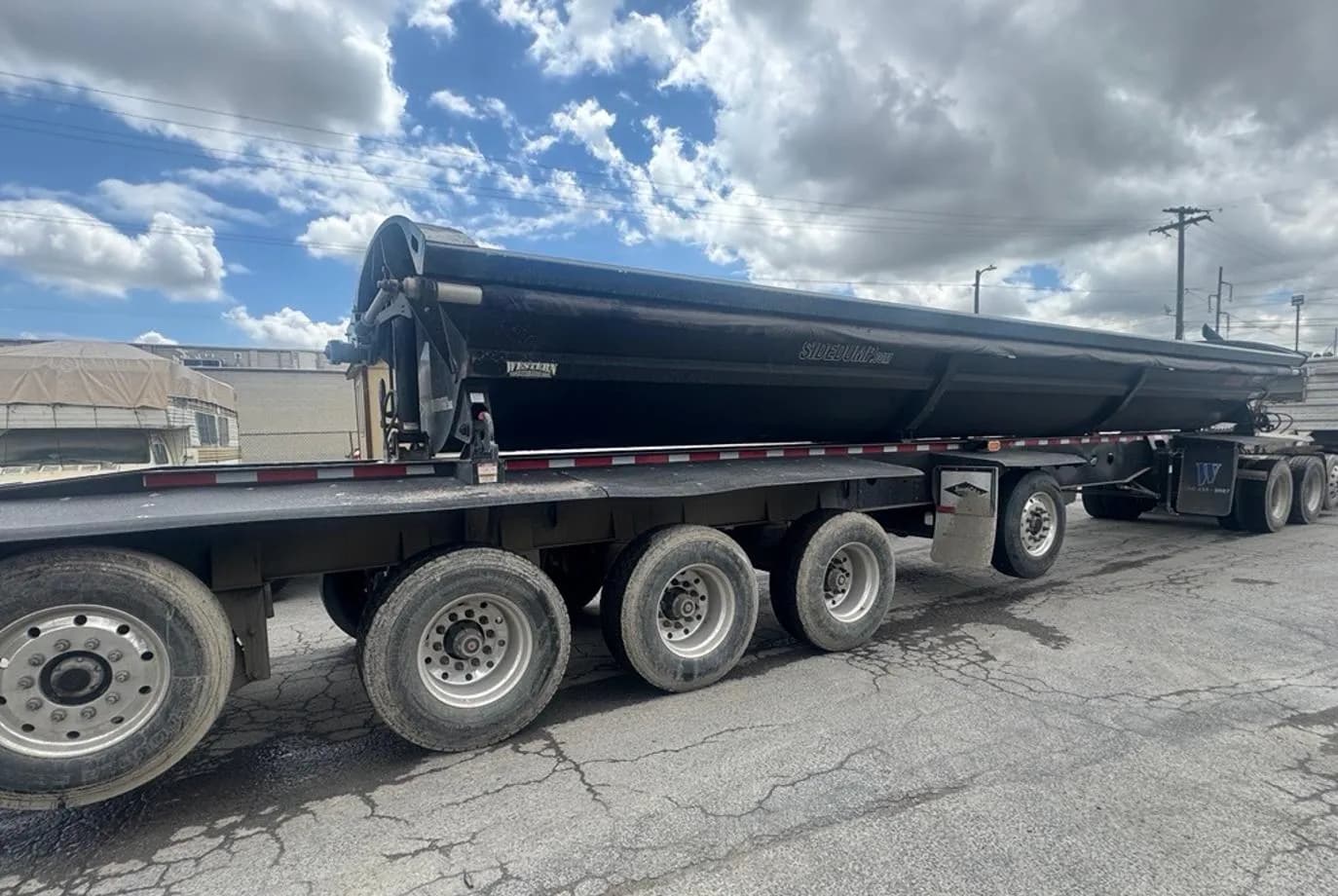

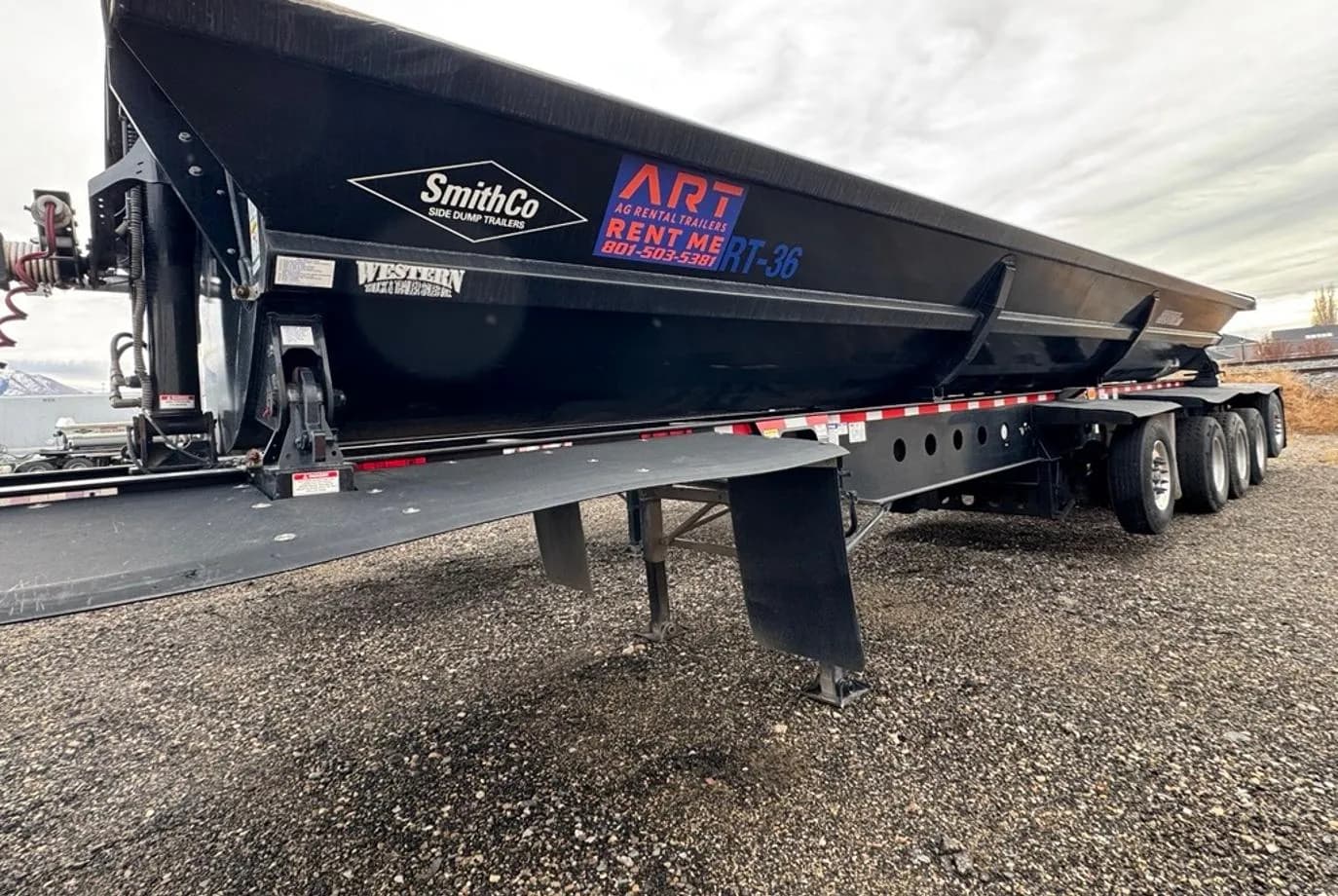

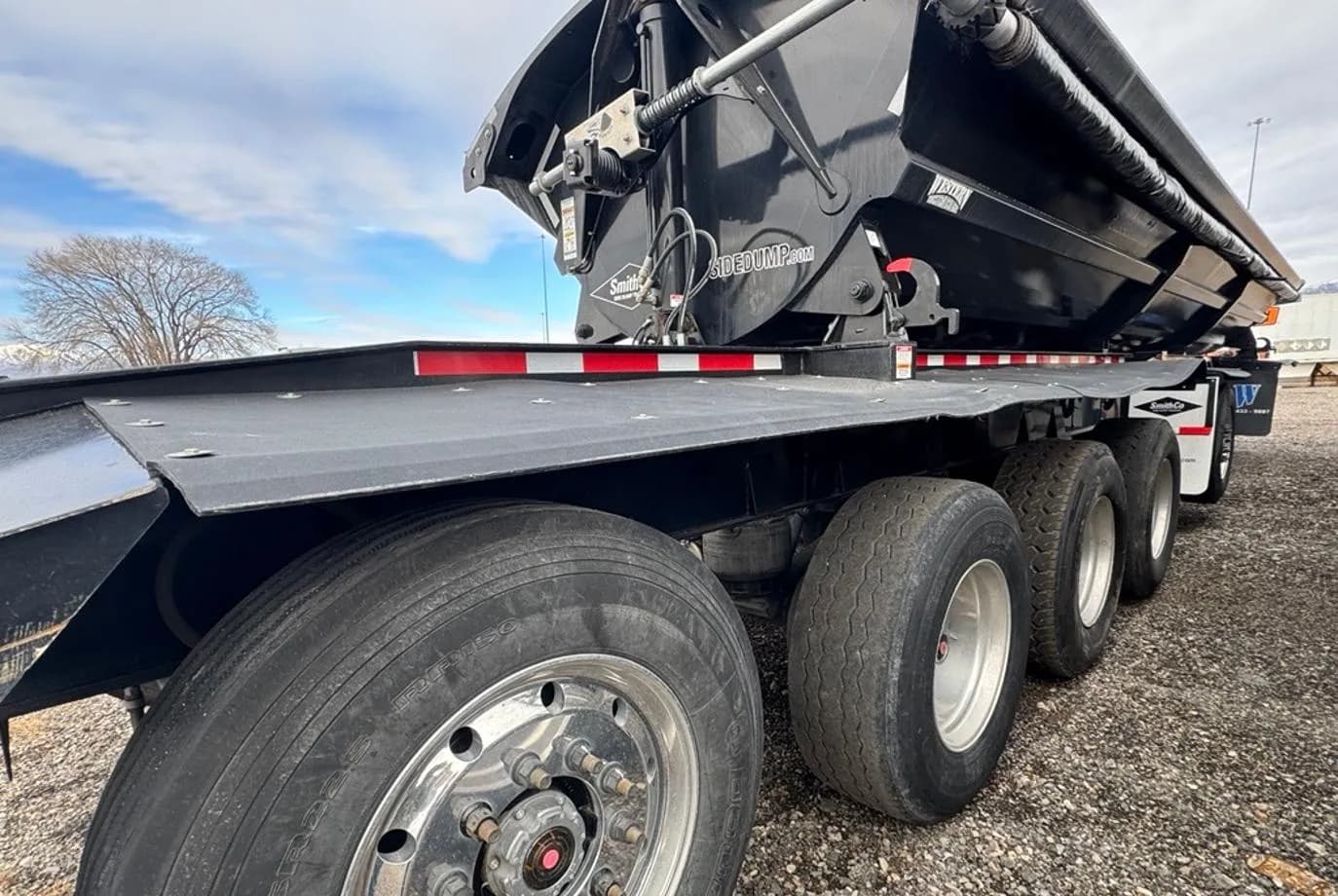

SmithCo SX5-49-38 is a 5 axle side dump trailer with a 49' frame and 38’ tub.

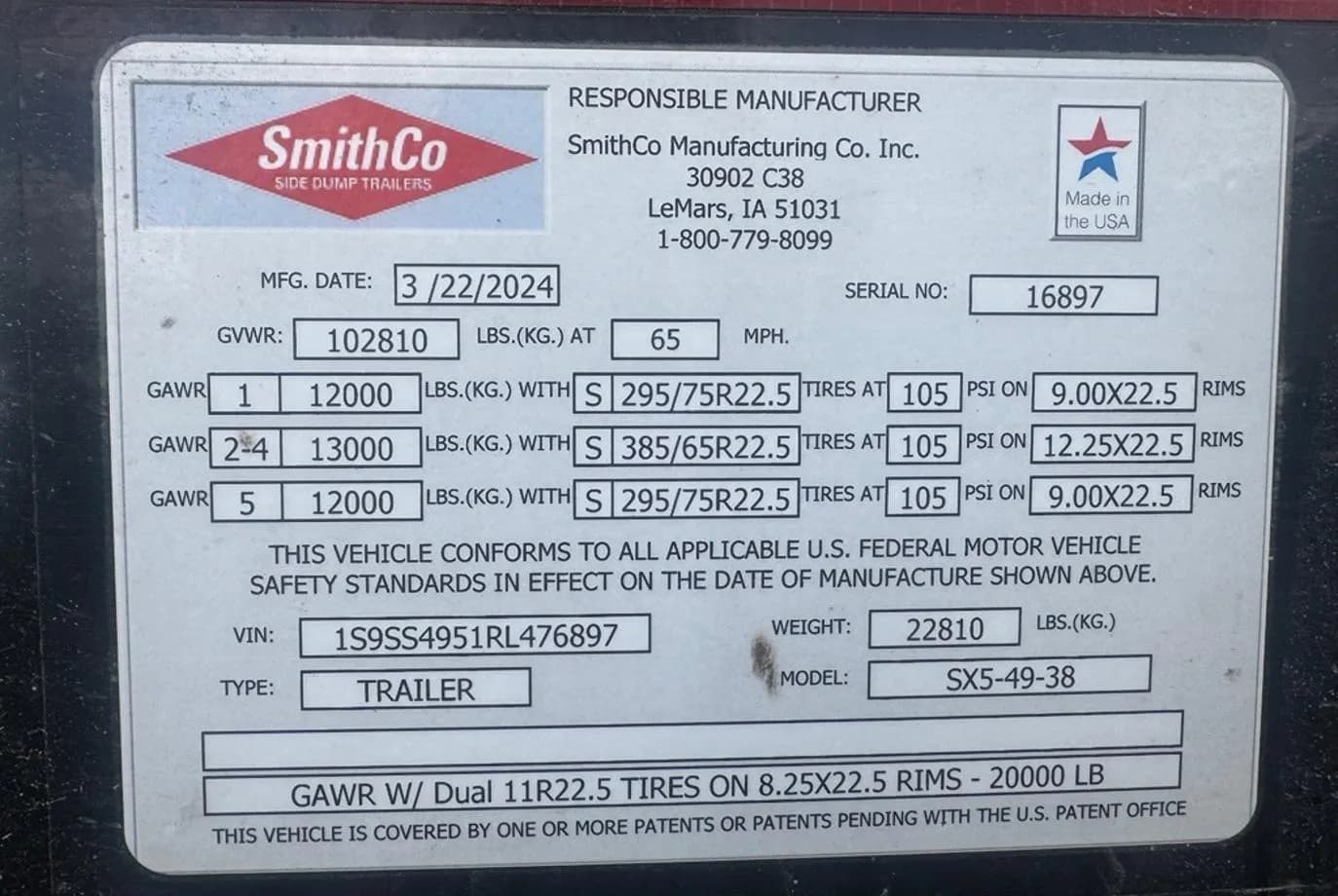

Key Specs

• Frame Length: 49'
• Tub Length: 38’
• Width: 102”
• Height: 8’ 7” at Tub side, 9’ 10” at Center
• Axles: (5) 25,000# capacity
• Cap gross weight allowed: up to 108,500 lbs

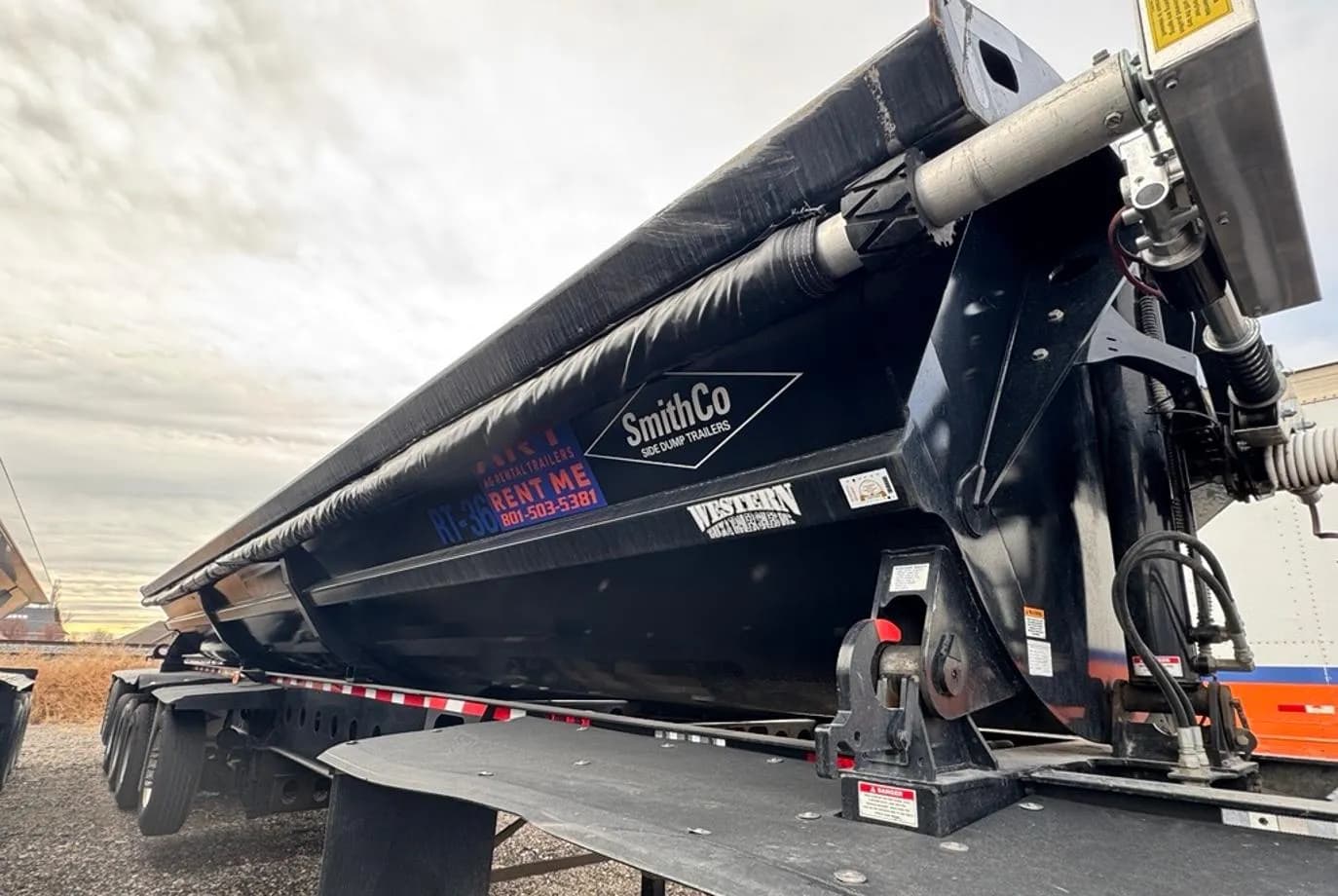

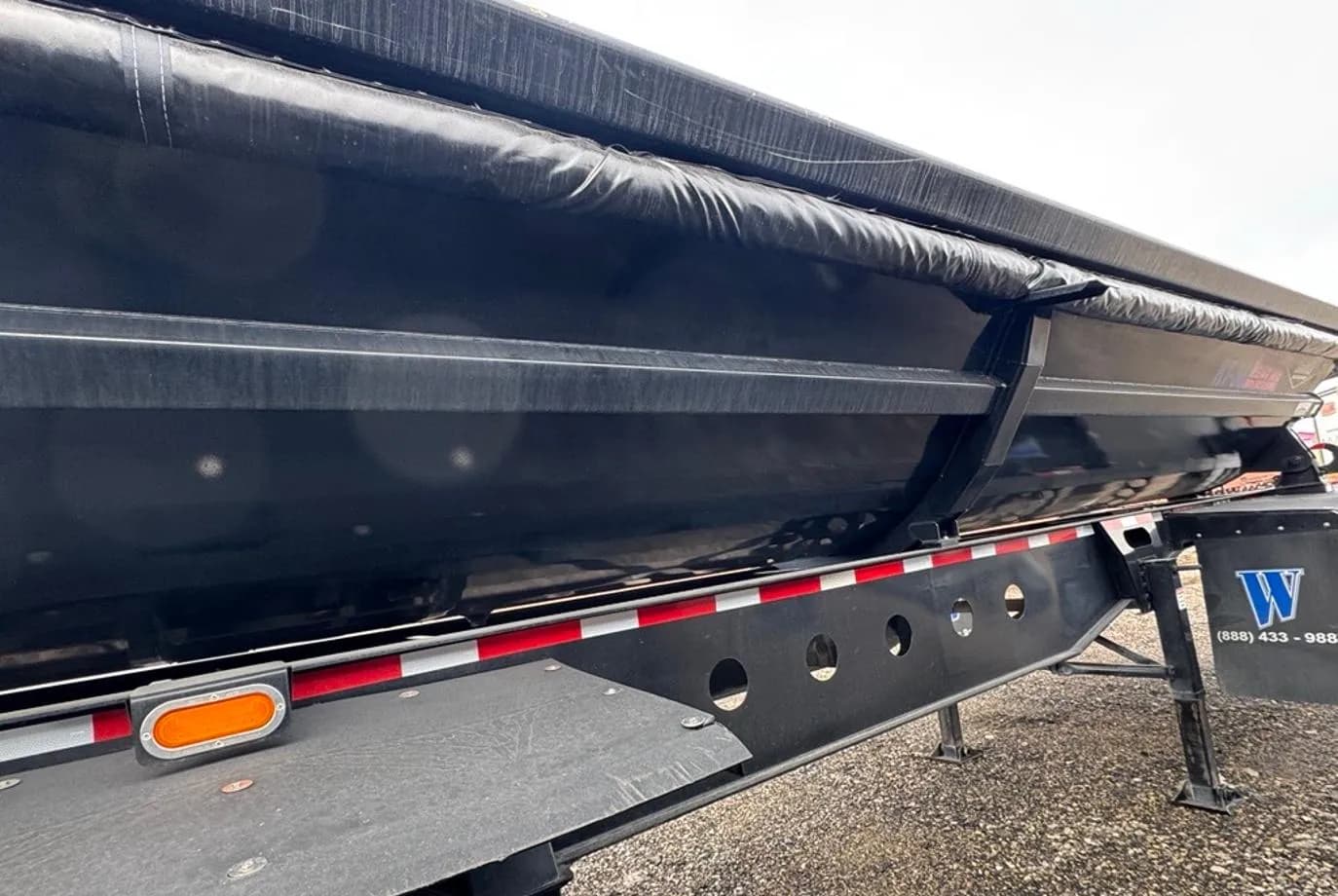

Tub Construction

• Material: 1/4" Thick, AR450 Steel (or equivalent)
• Optional: 3/16" Thick, AR450 Steel (or equivalent) is optional
• Supports: External Column Supports, No Center Tub Divider
• Hinges: Self-Aligning, Spherical Bearing Type (greaseable)

Frame & Kingpin

• Frame Construction: 80/100 KSI, Fabricated Steel I-beam
• Kingpin: 2" Kingpin, 18" Setting, Replaceable Type

Hydraulics & Control

• Cylinders: 3500 PSI, 5" bore
• Landing Gear: Two Speed, Non-Load Bearing

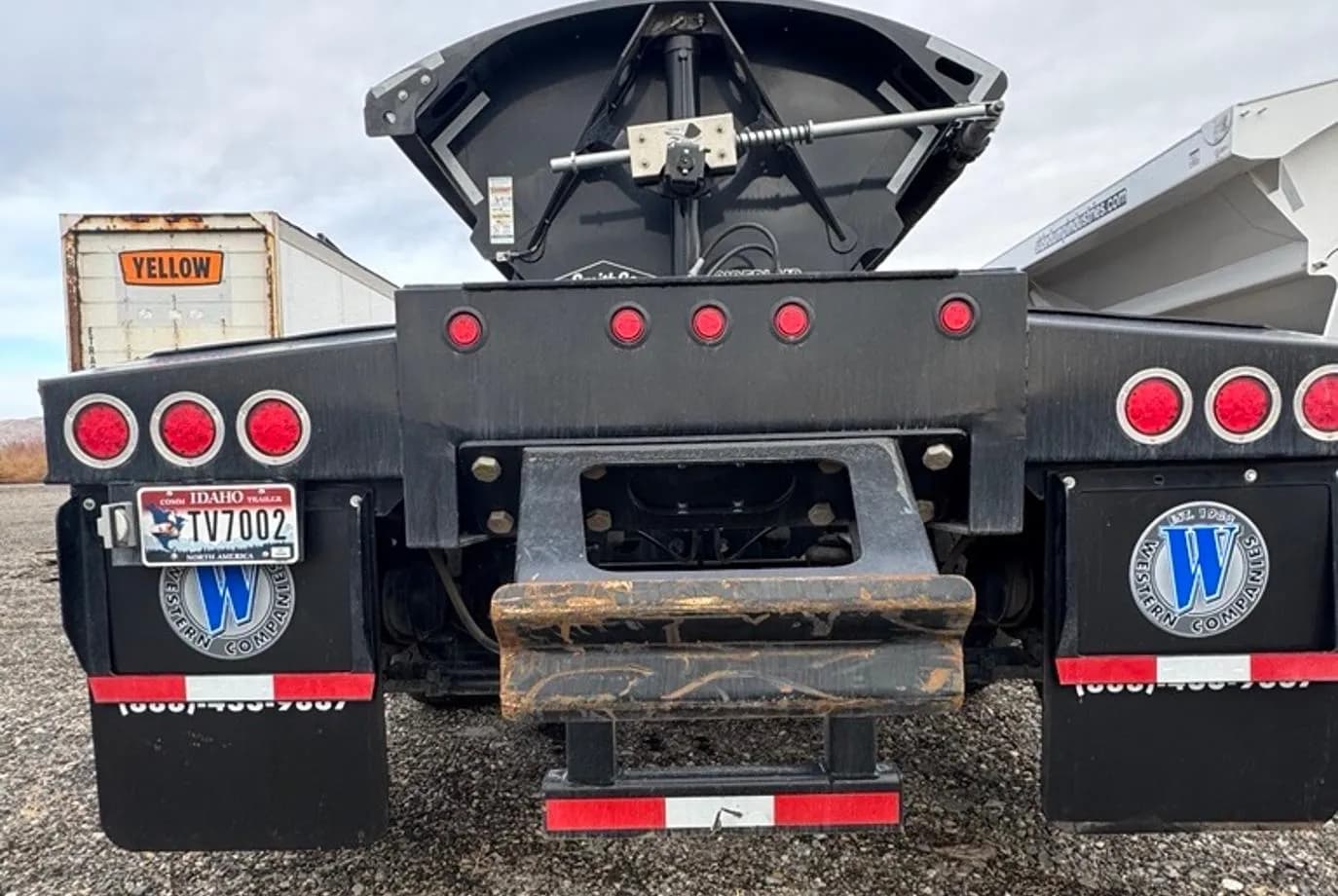

• Bumper: Push Bar Type, Bolt-On
• Min. Tractor Hydraulic Reqs.: 25-30 GPM, 2,600-2,800 PSI, 10 Gallon Reservoir

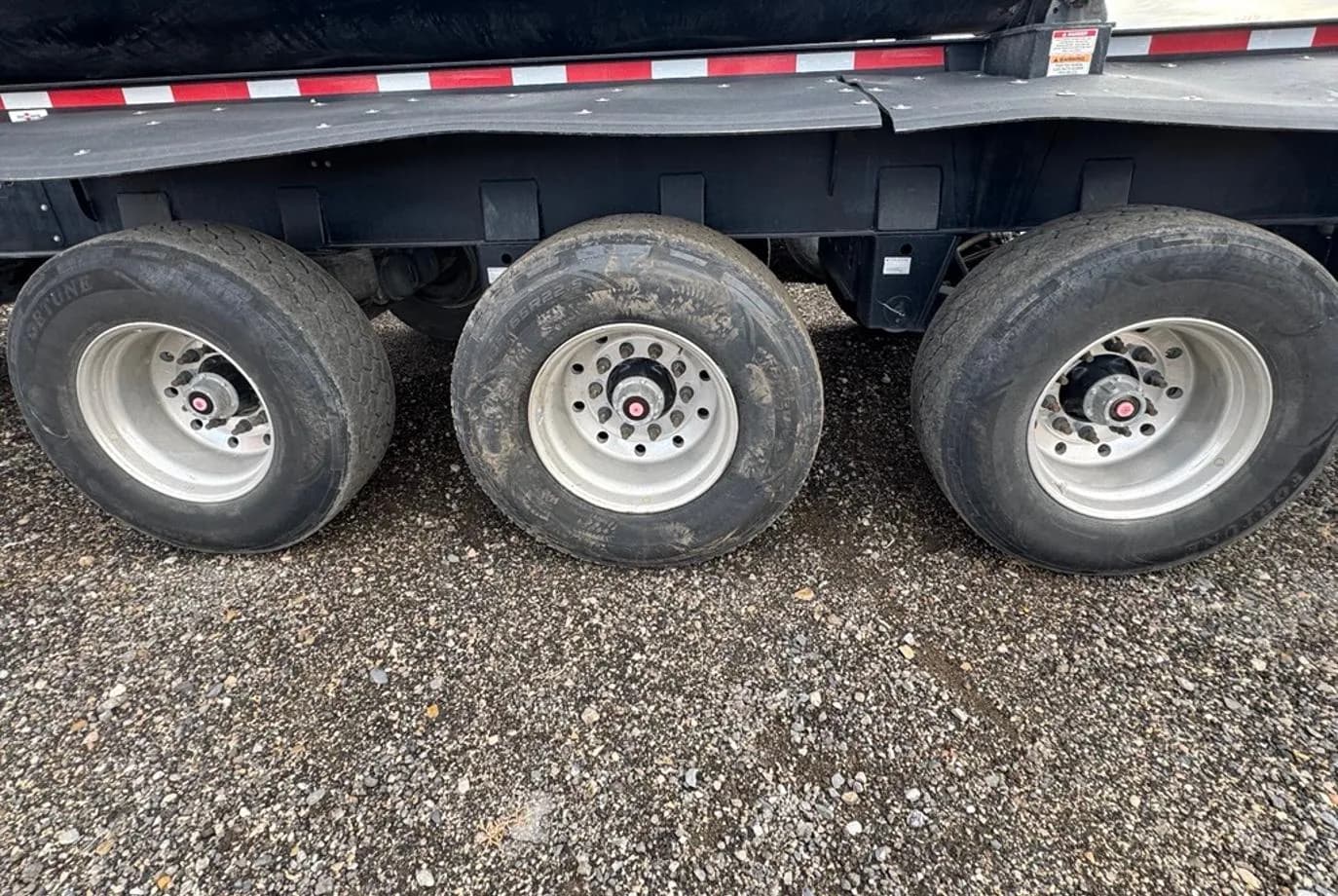

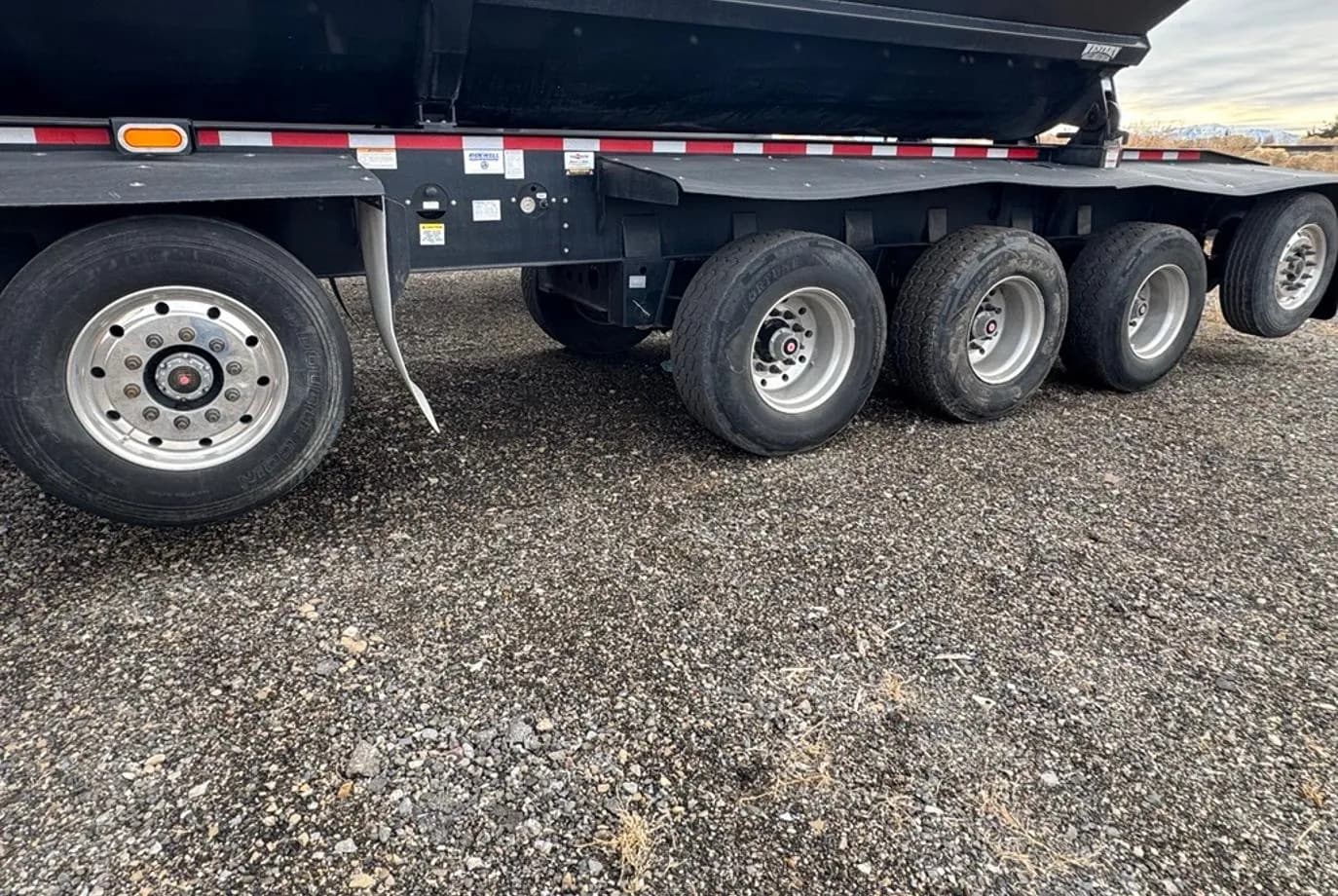

Axles & Suspension

• Suspension: Air Ride Suspension Standard
• Axles (additional): (1) 16.6K Air Ride/Lift/Steerable 1st axle, (5th axle optional)
• Hubs: 10 Hole, Hub Piloted
• ABS: 2S1M Anti-Lock Brake System
• Drums: Outboard Mount, Cast Steel

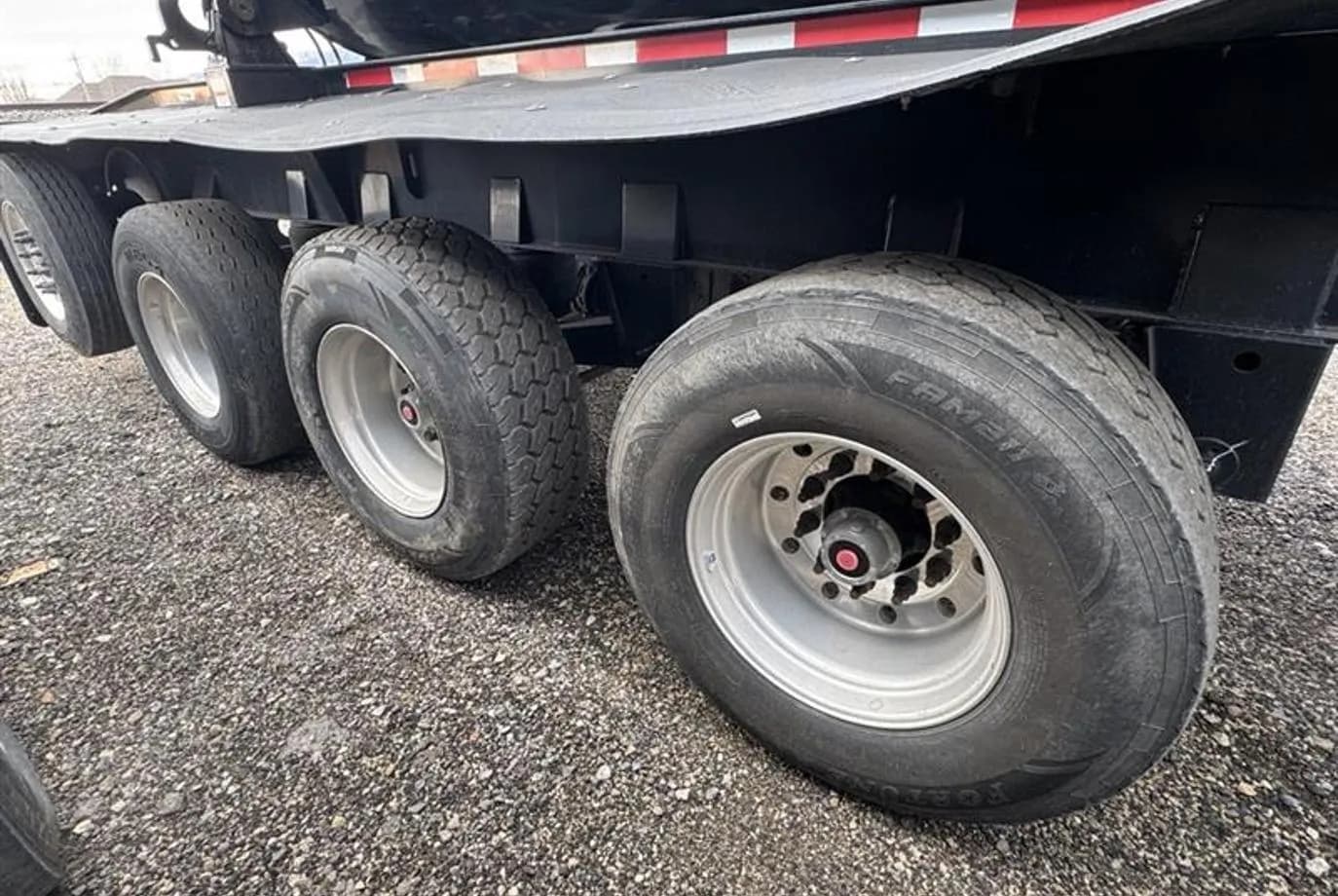

Wheels & Tires

• Wheels: Steel Disc, 8.25 X 22.5 (16), 9 X 22.5 on Steerable/lift (2)
• Tires: 11 R 22.5 G Radial Tires (18); Steer Option: 11 R 22.5 HRadial Tires (16), 295/75 R 22.5 on Steerable/lift (2)
• Brakes: 16 1/2" x 7"
• Fenders: Front & Rear, 1/4" Synthetic, 7 Degree Slope

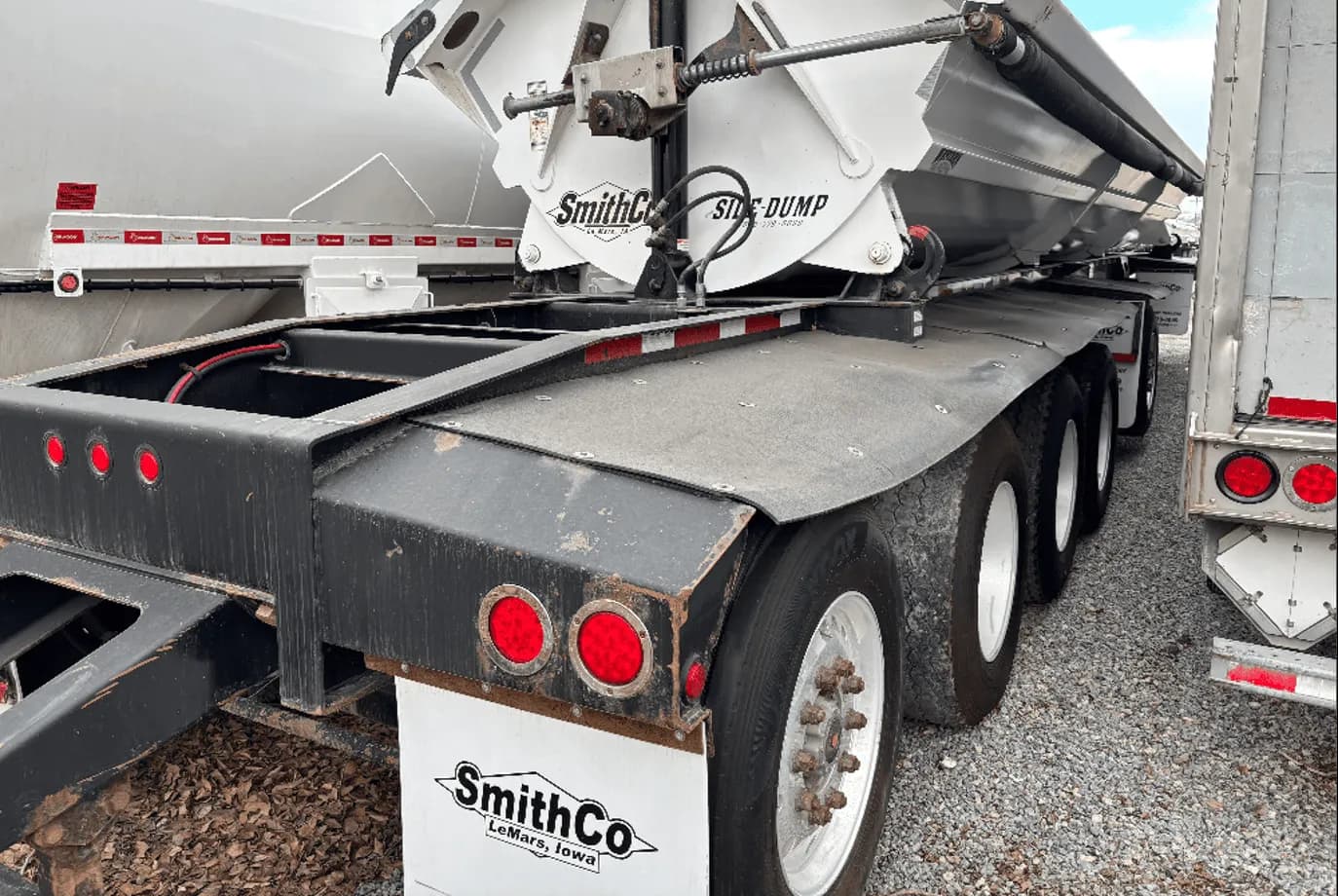

Lighting & Safety

• Lights: 12 Volt ICC w/ Sealed Harness
• Mud Flap: (2) Polyline Anti-Spray Splash Guard w/SmithCo name
