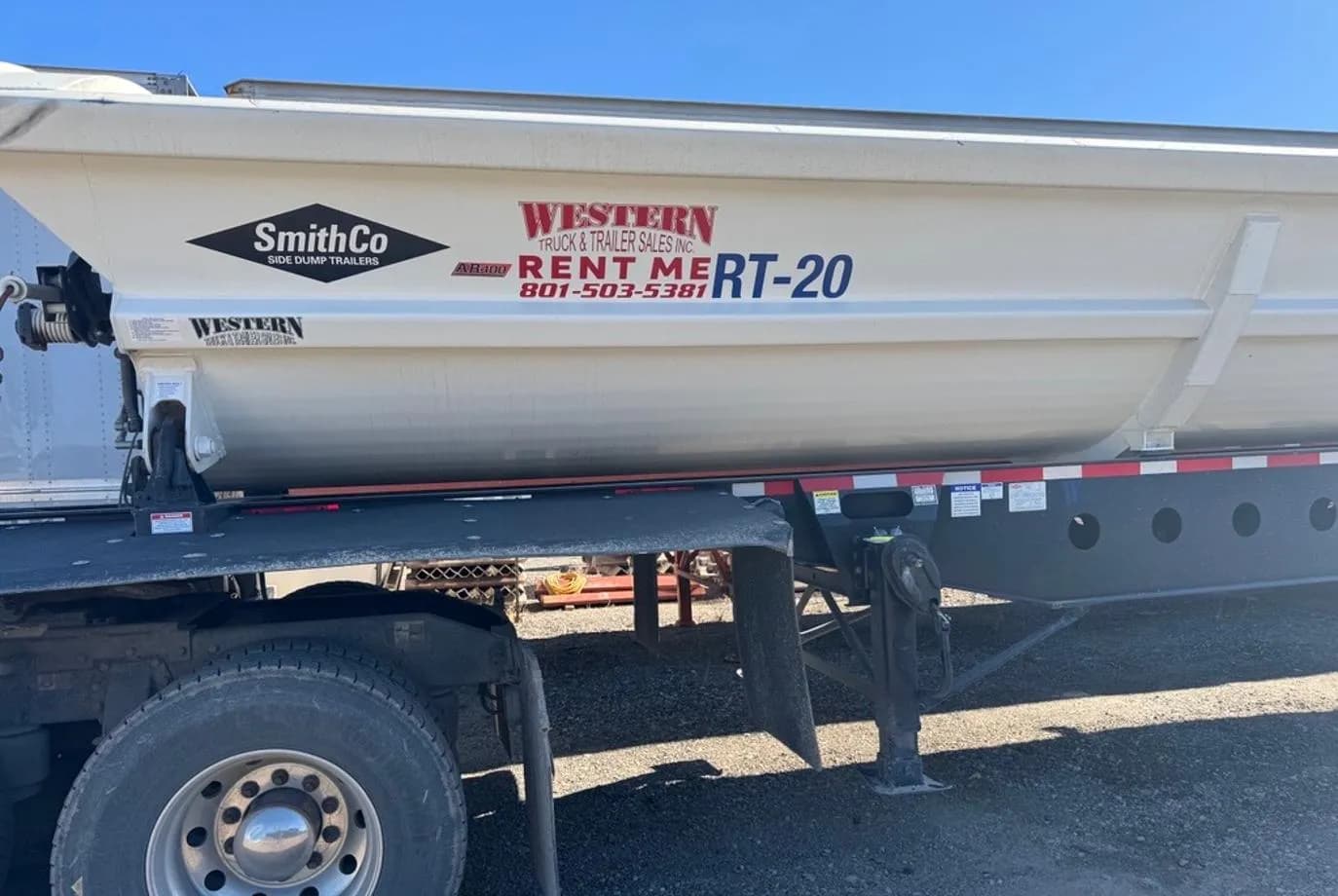

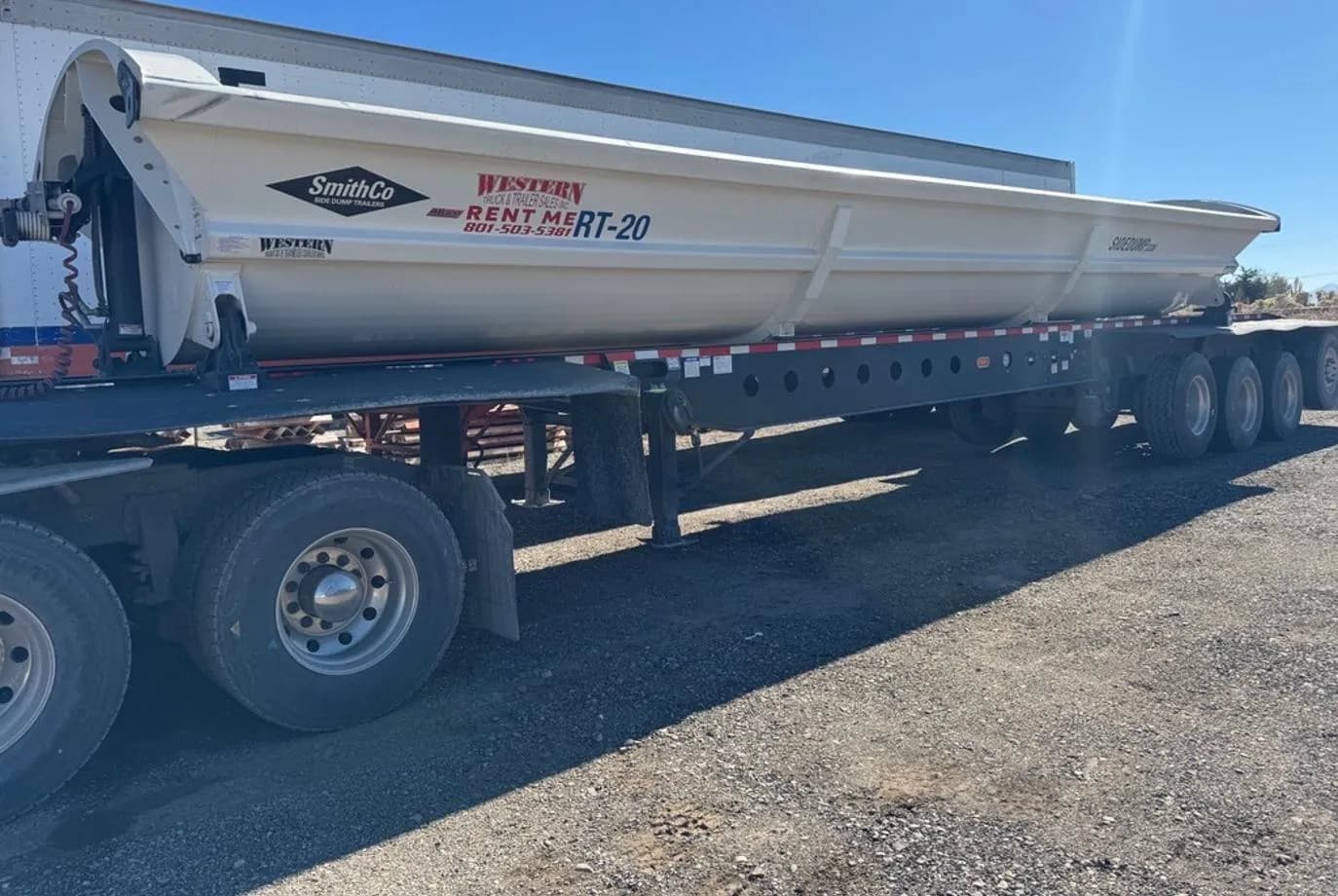

2024 SmithCo SX4-49-36 Side Dump — Unit RT-20

SmithCo SX4-49-36 – Side Dump, 23 cu yd / 32 cu yd

SmithCo SX4-49-36 side dump with tub 1/4" Thick, AR450 Steel (or equivalent); capacity 23 cu yd (water level) and 32 cu yd (heaped).

Key Specs

• Capacity (water level): 23 cu yd
• Capacity (Heaped): 32 cu yd
• Frame Length: 34'
• Width: 102'
• Height: 8' 3" at tub side, 9' 6" at Center

Tub Construction

• Material: 1/4" Thick, AR450 Steel (or equivalent)
• 3/16" Thick, AR450 Steel (or equivalent) is Optional
• Supports: External Column Supports, No Center Tub Divider

Frame Construction

• Frame: 80/100 KSI, Fabricated Steel I-Beam

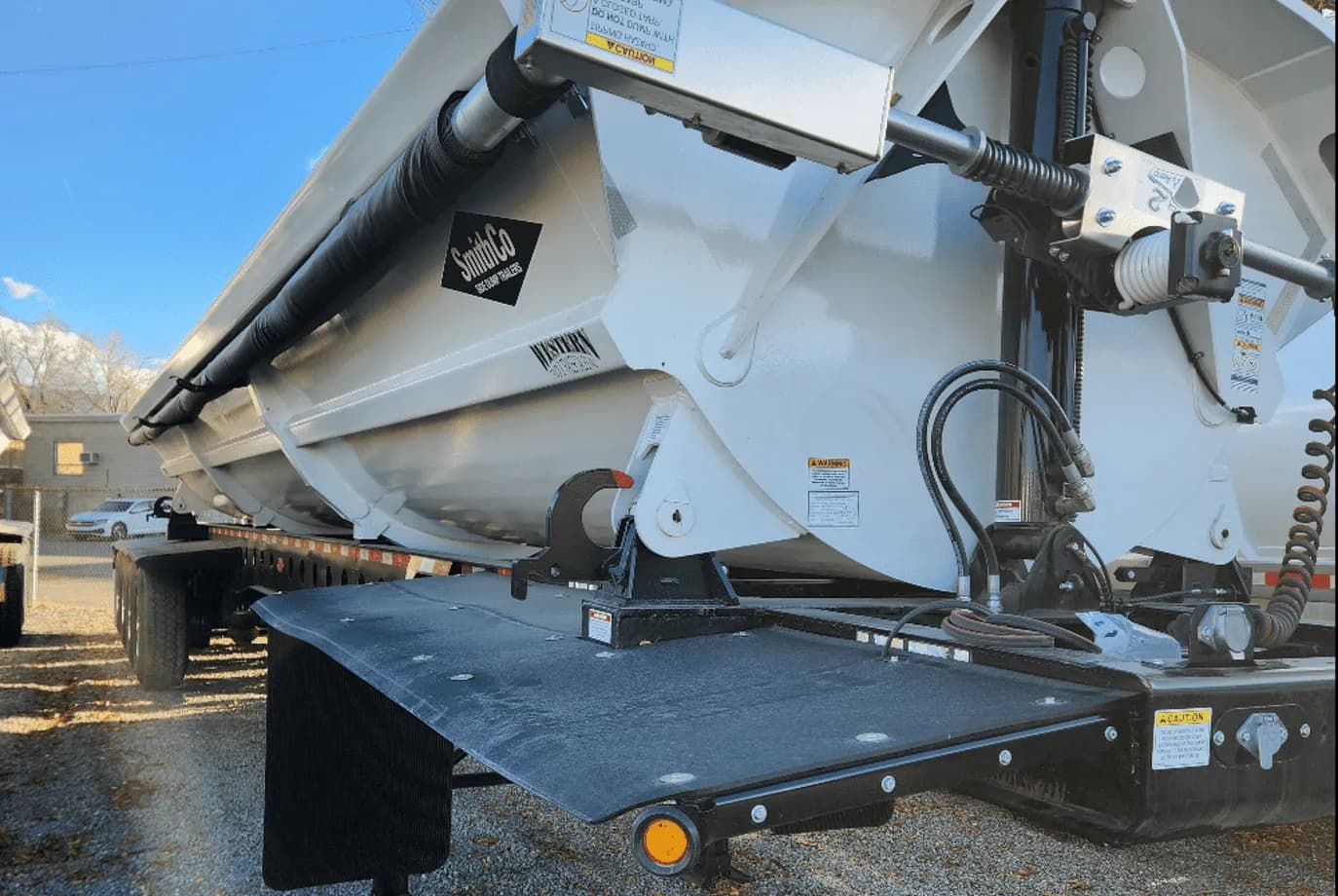

Hydraulics & Control

• 3500 PSI, 5" bore
• Minimum Tractor Hydraulic Requirements: 25-30 GPM 2,600 - 2,800 PSI 10 Gallon Reservoir

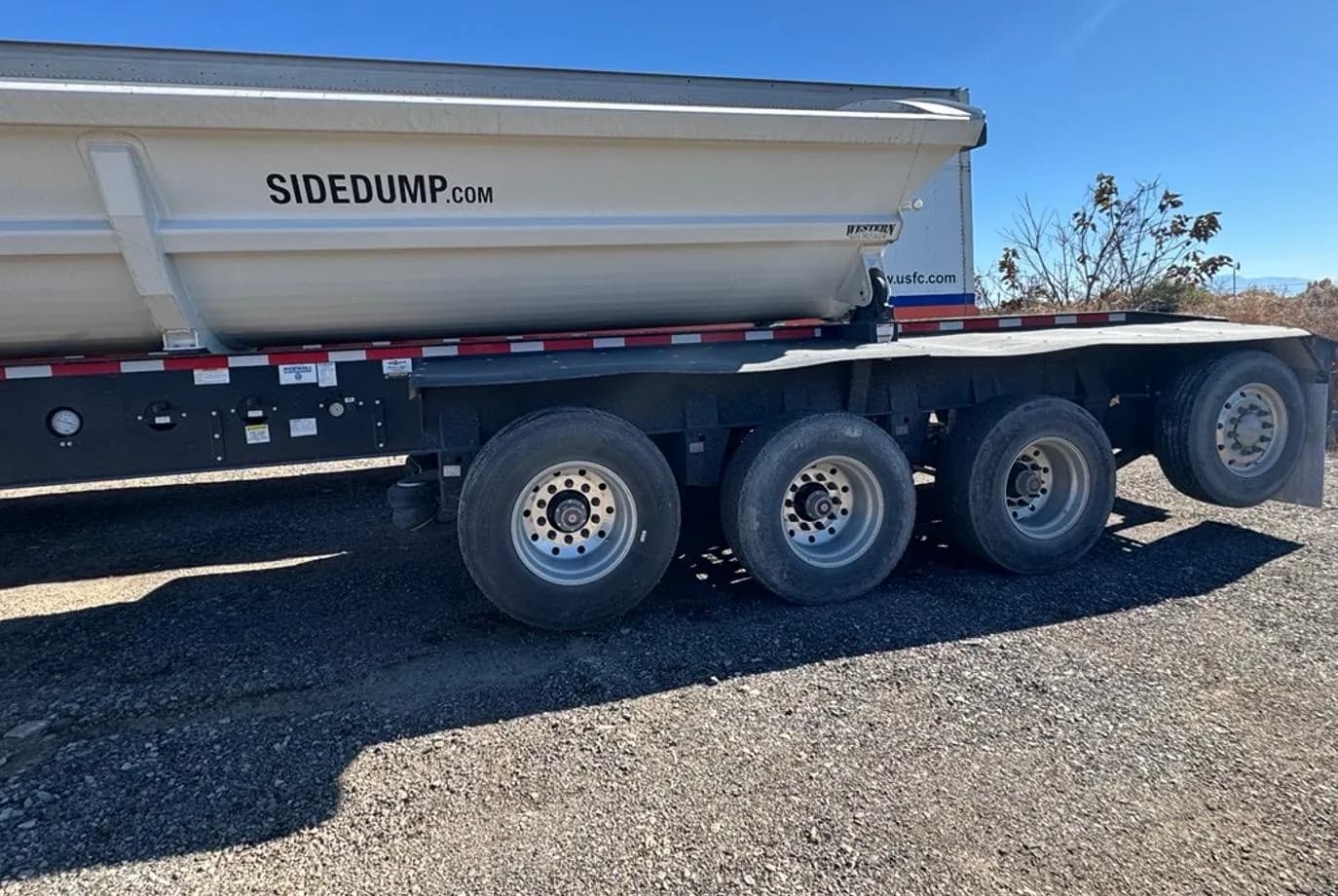

Axles & Suspension

• Suspension: Air Ride Suspension Standard Spring Ride Available
• Hubs: 10 Hole, Hub Piloted
• ABS: 2S1M Anti-Lock Brake System
• Drums: Outboard Mount, Cast Steel
• Brakes: 16 1/2" x 7"

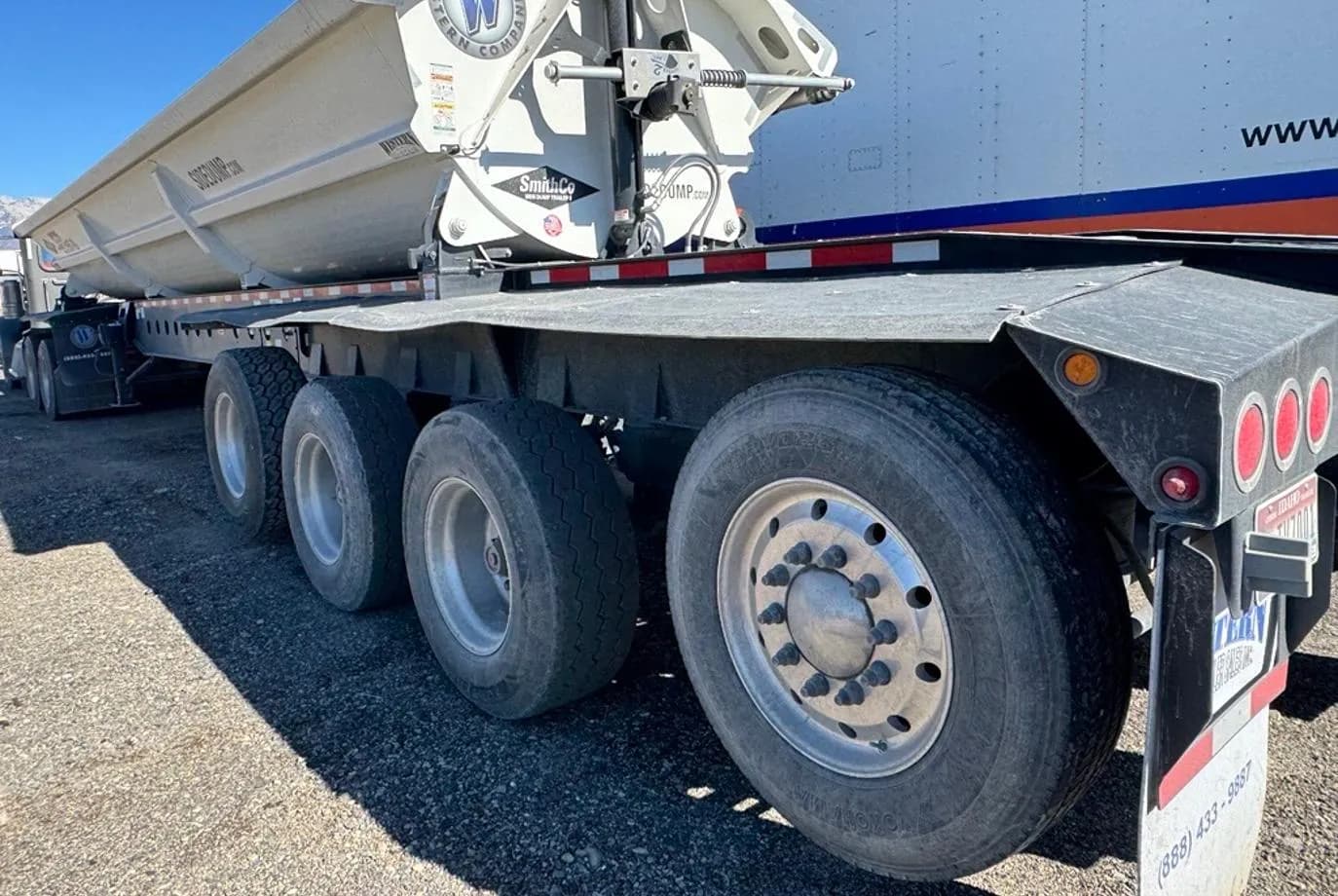

Wheels & Tires

• Wheels: Steel Disc, 8.25 x 22.5 (12)
• Tires: 11 R 22.5 G Radial Tires (12)

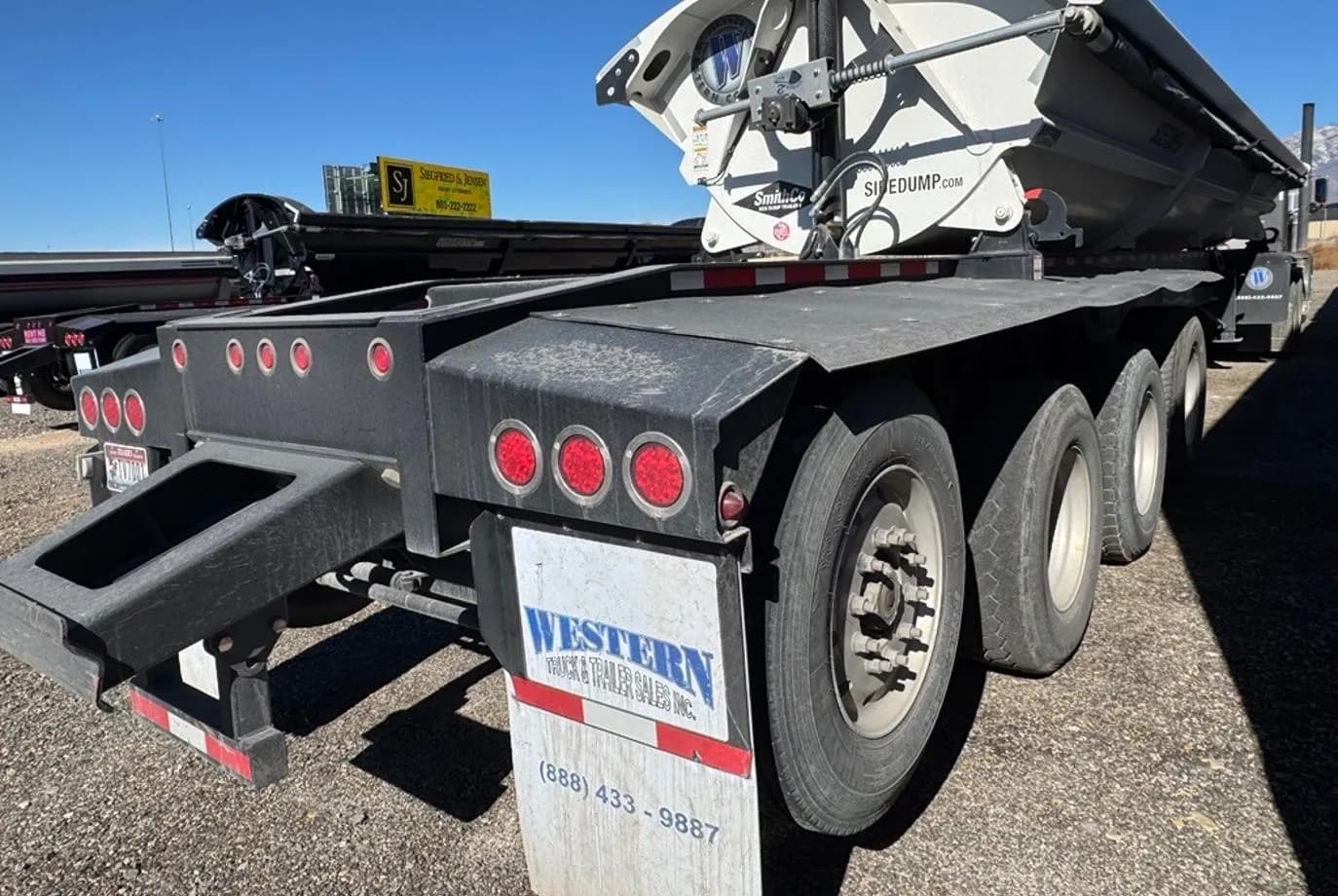

Lighting & Safety

• Lights: 12 Volt LED ICC w/Sealed Harness
• Fenders: Front & Rear, 1/4" Synthetic, 7 Degree Slope

Additional Features

• King Pin: 2" Kingpin, 18" Setting, Replaceable Type
• Landing Gear: Two Speed, Non-Load Bearing

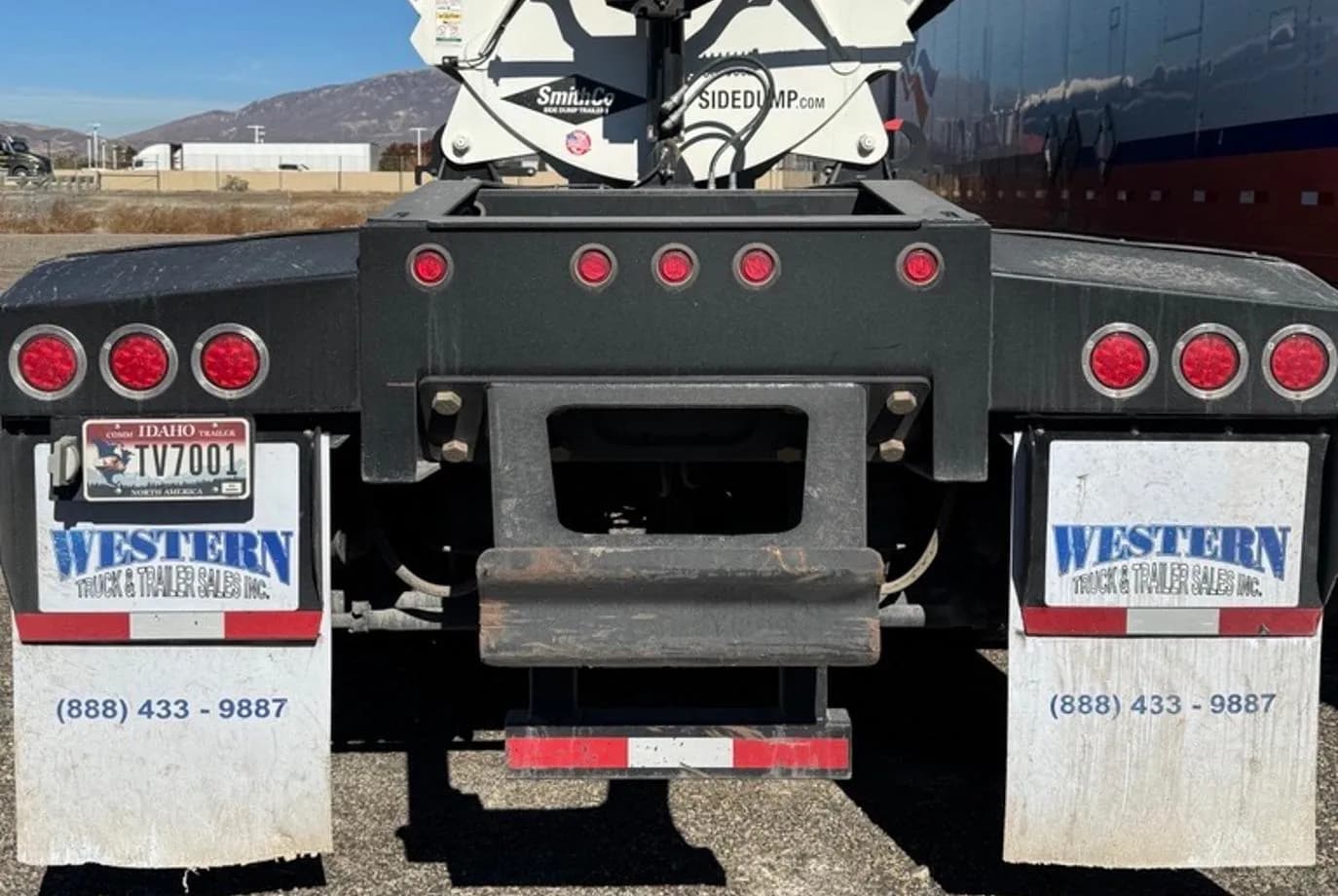

• Bumper: Push Bar Type, Bolt On
• Hinges: Self-Aligning, Spherical Bearing Type (Greaseable)
