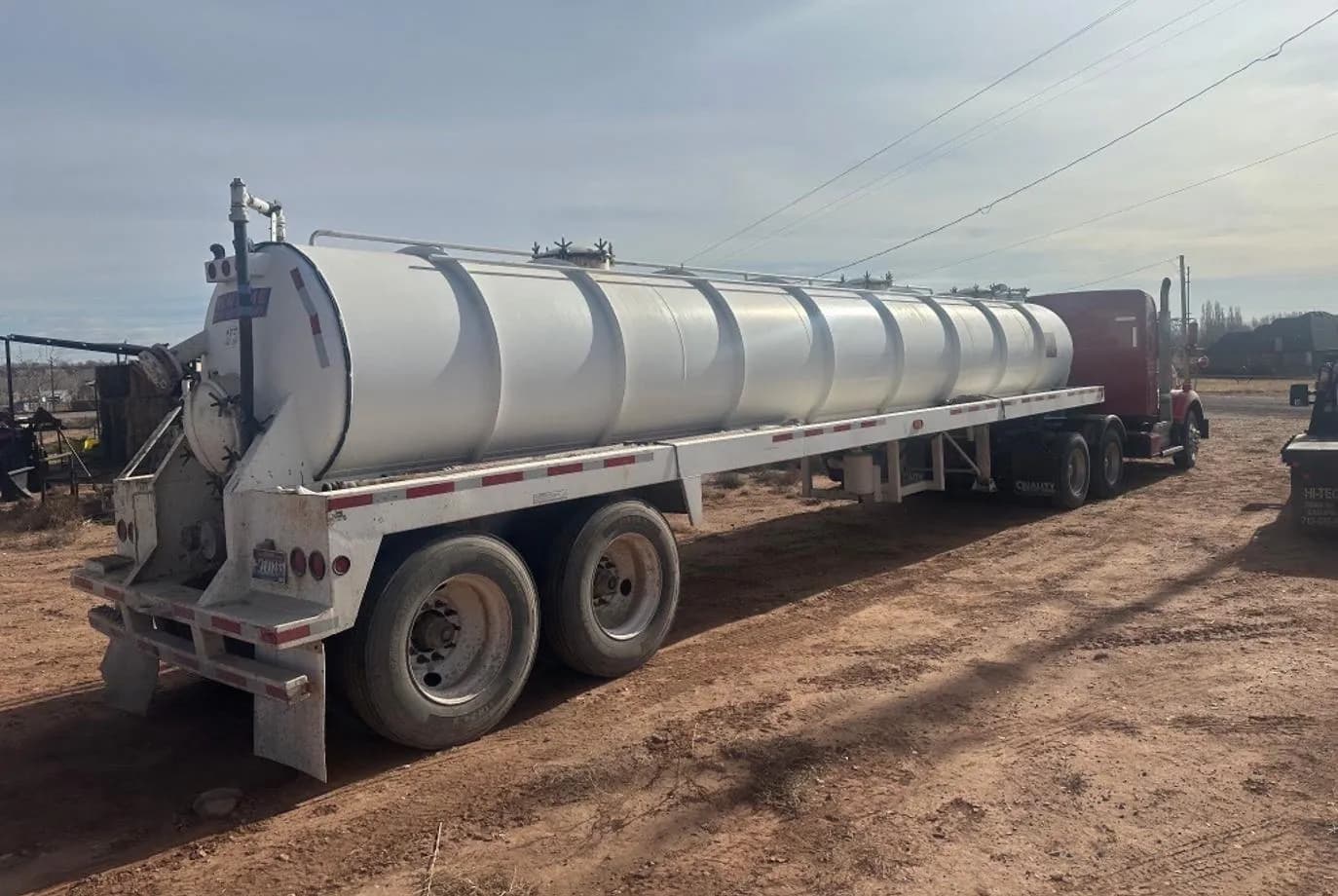

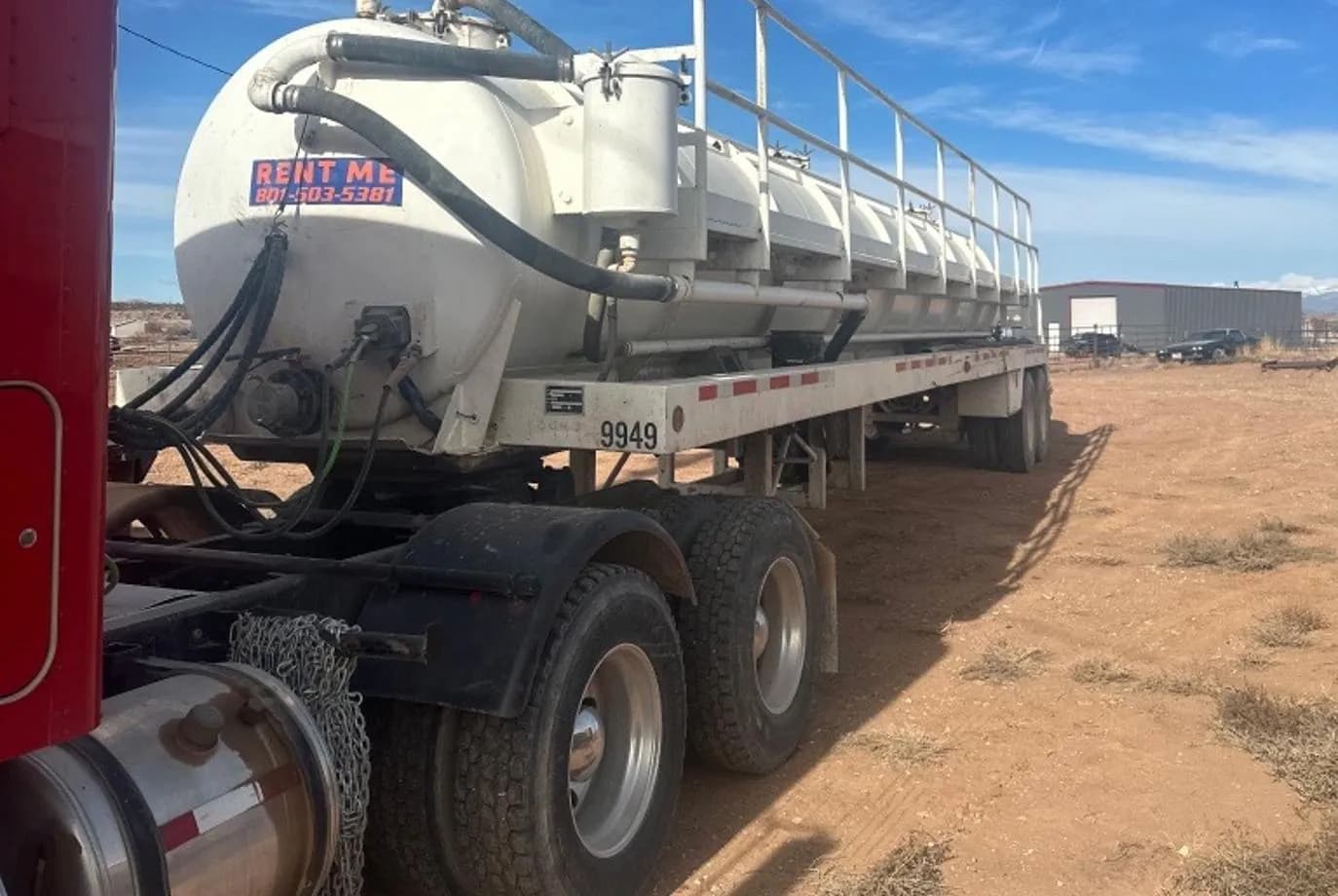

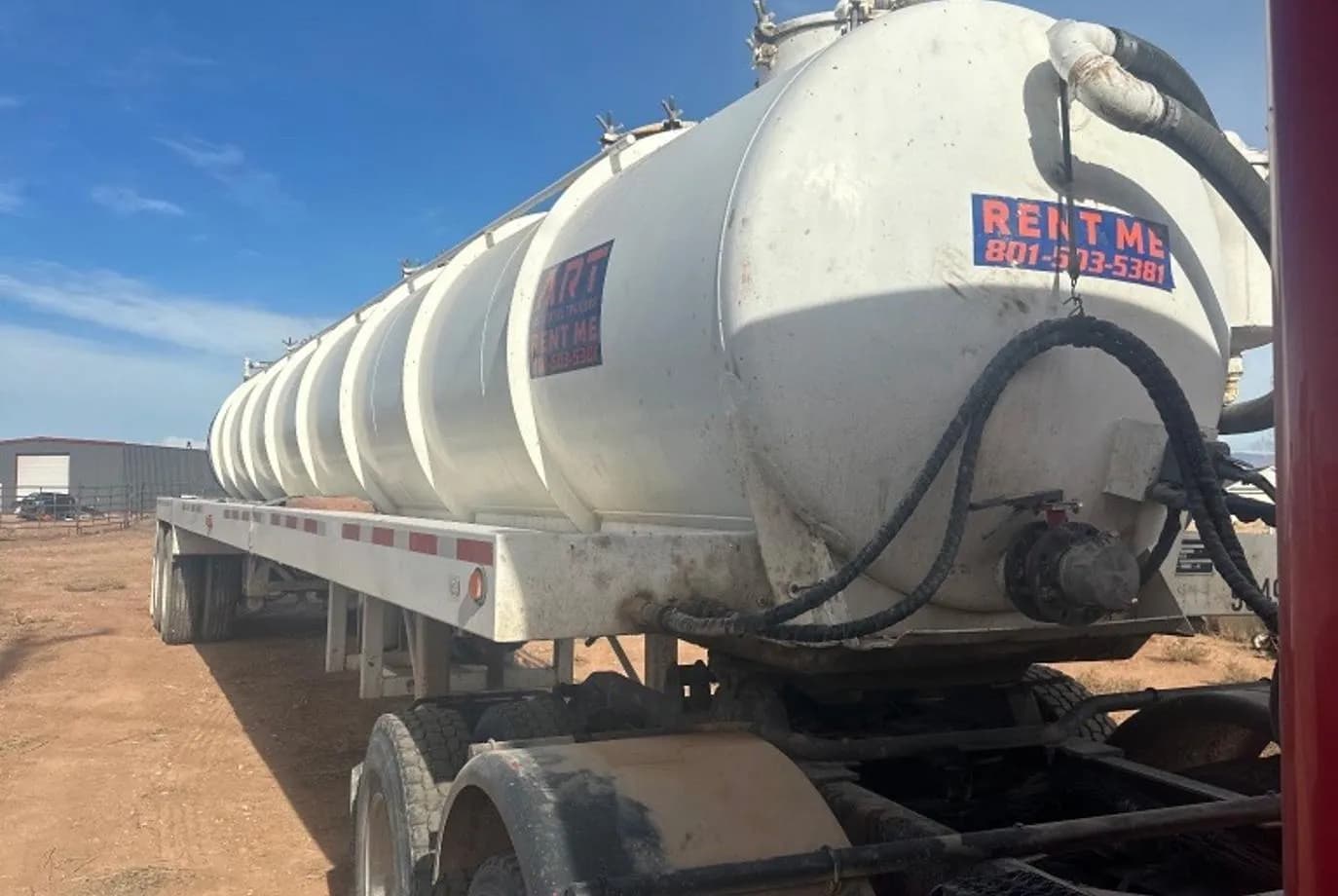

2024 Ranco 130 BBL Vac Trailer

Ranco 130 BBL – Vac Trailer, 5460 GALLONS, PLUS 2%

Ranco 130 BBL Vac Trailer, Tank & Pneumatic with capacity 5460 GALLONS, PLUS 2%.

Key Specs

• Manufacturer: Ranco
• Model: 130 BBL Vac
• Category: Tank & Pneumatic
• Capacity: 5460 GALLONS, PLUS 2%
• ICC MC: NONE
• Commodity: UNSPECIFIED OILFIELD FLUIDS
• Compartment: SINGLE
• Design Pressure: 15 PSI INTERNAL, 22 INHG EXTERNAL, 23 PSIG HYDROSTATIC TEST

Tub Construction

• Shell: ¼ PL x 60 IN O.D.
• Head: ¼ PL NON CODE ASME SHAPE
• Baffle: 2 – ¼ PL FLAT FLANGED AND DISHED EACH WITH INTERIOR SHELL REINFORCEMENT RING
• Stiffener: 3/8" x 2 ½ ROLLED RINGS (8) EXTERNAL
• Welds: INTERNAL ROOT, EXTERNAL SUBMERGED-ARC

Pressure & Relief

• Reliefs: 1 ½" VACUUM RELIEF, 2" PRESSURE RELIEF, BOTH LOCATED AT TOP FRONT OF BARREL, 2" BLOW DOWN LINE AT REAR

Manways & Valves

• Manways: FOUR LOACTED ON TOP, ONE ON REAR HEAD, ALL 21" DOMED STYLE WITH PLATED SWING BOLTS AND WING NUTS
• Outlet: TWO 4" BUTTERFLY VALVES AT REAR WITH A WEDGE SUMP
• Shut off: BALL TYPE PRIMARY IN FRONT MANWAY, BALL TYPE SECONDARY 12 GAL ON DRIVERS SIDE FRONT WITH DRAIN
• Sight glass: 2" SIGHT GLASS FITTINGS IN FRONT AND REAR HEAD. 1 ½" PLASTIC SIGHT GLASS TUBE INSTALLED IN REAR HEAD WITH CLEAN OUT TEES AND 2" BALL VALVES TOP AND BOTTOM

Axles & Suspension

• Suspension: STANDARD SPRING W/ 8 LEAF LOW ARCH SPRINGS
• Axles: 22,500 LB ROUND W/ OUTBOARD DRUMS (2)
• Landing legs: 2 SPEED, HEAVY DUTY, HIGH CAPACITY LIFT
• Bumper: 4 x 8 TUBE WITH TOW EYE
• Upper coupler: BOLT ON ADJUSTABLE

Wheels & Brakes

• Wheels: 10 HOLE STEEL DISC HUB PILOT
• Tires: 11.00 x 24.5 RADIAL
• Brakes: 16 ½ x 7 WITH SPRING PARKING, AUTO SLACKS, ABS BOTH AXLES
• Mud flaps: ANTI SAIL

Lighting & Safety

• Lights: FULL DOT LIGHTS, SEALED LIGHTS, HARNESS AND JUNCTION BOX WITH TERMINAL STRIP, TWO REAR WORK LIGHTS WITH INTEGRAL SWITCHES
• Walkway: FORMED SUPPORTS. DRIVERS SIDE SAFETY WALKWAY WITH HANDRAILS AND LADDER
• Fenders: FULL LENGTH FORMED HOSE PAN (10 GA) WITH ¼"

Coating & Finish

• Coating: ALL SURFACES WHITE METAL STEEL GRIT BLAST, 2.5 MIL PROFILE (SP-10), INTERIOR LINED WITH CHEMICAL RESISTANT 100% SOLIDS EPOXY LINER, 10-15 MIL DRY FILM THICKNESS. EXTERIOR COATED HIGH BUILD EPOXY PRIMER AND COLOR COATED WITH HIGH SOLIDS POLYURETHANE, 4-6 MIL DRY FILM THICKNESS
• Tool box: 18 x 18 x 36 ON DRIVERS SIDE WITH SEALED DOOR
