2023 Xl Specialized 110 HDGS. XL Spec. Lowboy Lowboy — Unit RT-50

Xl Specialized 110 HDGS. XL Spec. Lowboy – Lowboy, 53' x 102", 110,000LB

Xl Specialized 110 HDGS. XL Spec. Lowboy — 53' overall length, 102" overall width; 110,000LB distributed capacity.

Key Specs

• Overall Length: 53'
• Overall Width: 102"
• Deck Height: 108"
• Capacity: 110,000LB Distributed; 110,000 LB IN 12'Gooseneck
• Neck Style: Low-Profile Scraper
• Neck Length: 13'
• Kingpin Settings: 16" 42"
• Swing Clearance: 110"
• Wheel Height: 51" W/ 5 Variable Ride Height Positions

Tub Construction

• Main Deck Length: 26'
• Main Deck Loaded Height: 18" W/6" Ground Clearance
• Decking: 1 3/4" Apitong Decking, Raised - Center Open; Open Wheels Bolster Dropped 4" Down
• Crossmember: 8" & 4" Stubbed JR I-Beam 12" Alternating Centers
• Beams: (4) 12" FAB I-Beams
• D-Rings: (7) Bent D-Rings Per Side
• Outriggers: Swing Out Outriggers - 24" Centers - HD Flat Back Front
• Chain Drops: 24" Centers - Outside Beams

Hydraulics & Control

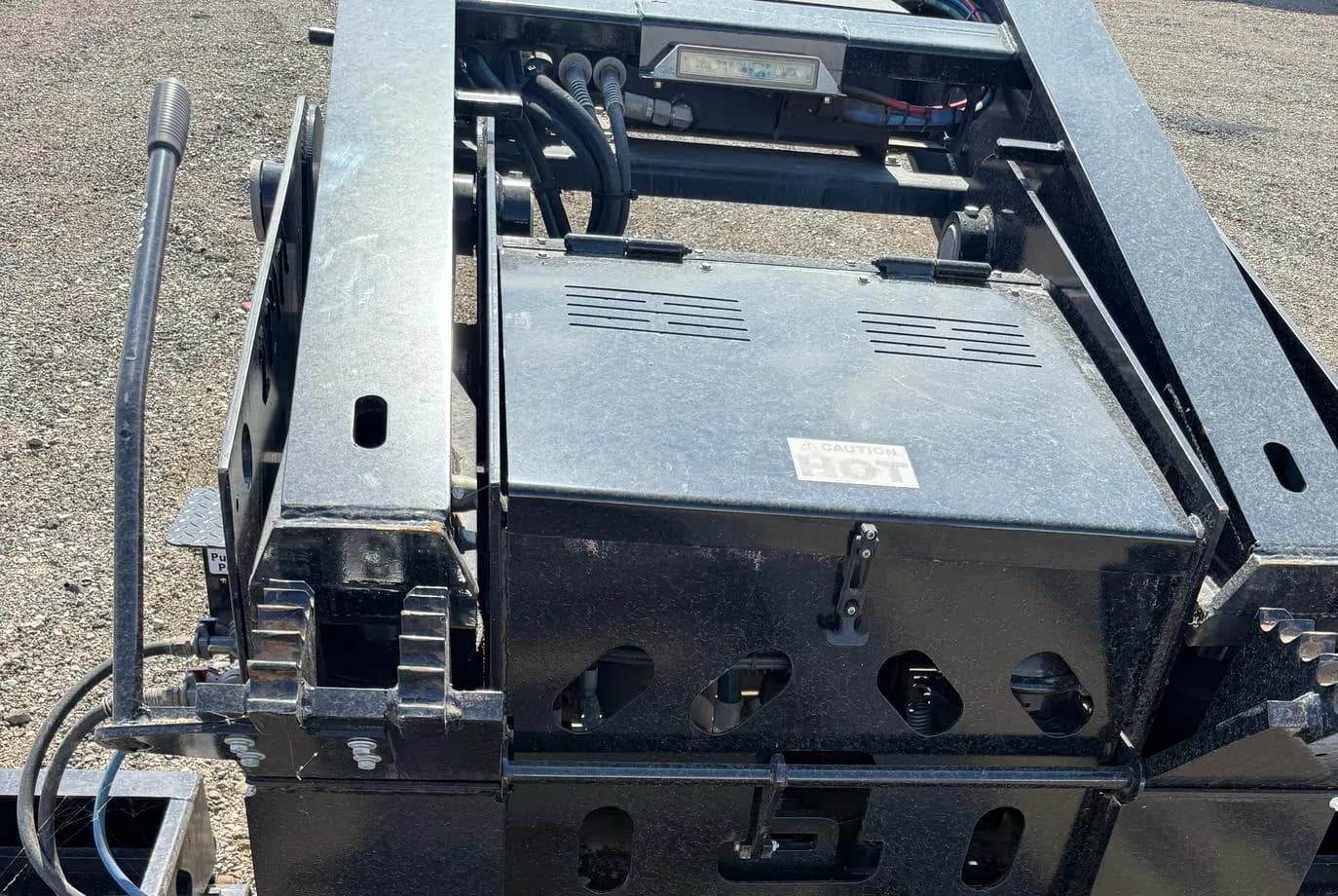

• Hydraulics: 13HP Honda SCU, Dual Hydrolics, W/ Steel Engine Cover
• Work Light on Neck
• Registration Holder
• Manual Ride Height Control
• Prep For Single Axle Booster
• Raise and Lower Valve

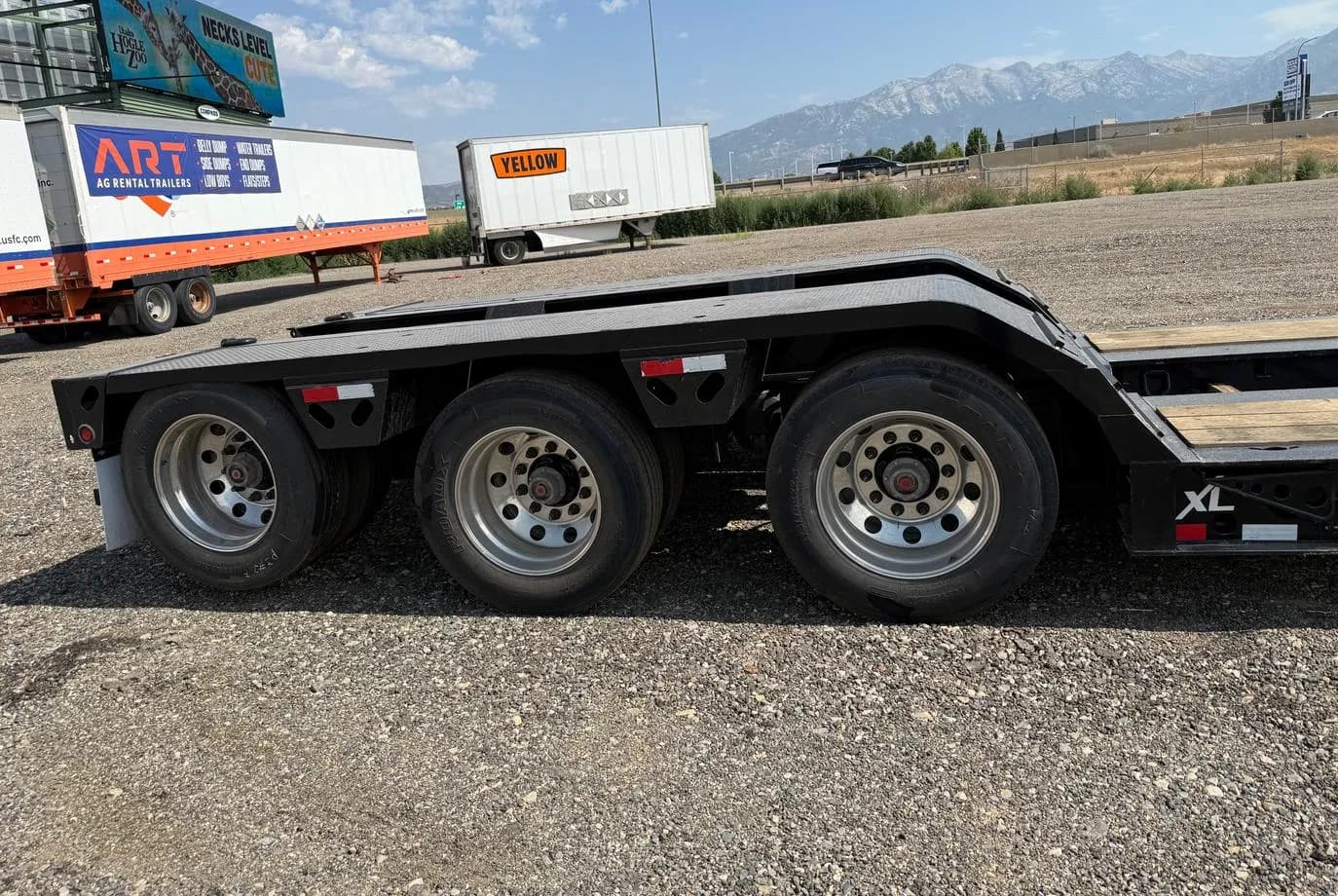

Axles & Suspension

• Axles: (3) 25,000 LBS. Nominal (5/8 Wall)
• Suspension: Hendrickson/25,000 Capacity/Air Ride
• Axle Spacing: 54 1/2"
• ABS: N/A Spring Brakes On (1) Axle

Wheels & Tires

• Tires: 275/70R/22.5 (J)
• Wheels: 8.25 x 22.5 10-Hole Pilot Mount, Polished Aluminum Outside, Steel Inside Disk
• Brakes: 16 1/2 X 7" Drum: Outboard

Lighting & Electrical

• Electrical: 12v Sealed Grote System W/ (3) Tail Light Aluminum Package
• Lighting: 4" Amber Strobe to be Used As 3rd Tail Light

Additional Features

• Rear Deck Length: 14' With 32" Rear Transition
• Rear Loaded Deck Height: 41"
• D-Rings (rear): (2) Flat D-Rings At Rear On Main Beams
• Chain Drops (bolster): (2) Chain Drops Per Bolster
• Stake Pockets: (2) Stake Pockets at Rear
• Bucket Well: Bucket Well At Rear If Main Deck With Plate On Bottom With (4) Flat D-Rings
• Flag Holders: (2) Pair of Flag Holders
• Front Ramp: Upper Flange Reinforcement
