2014 Fontaine Fontaine. Lowboy LX T40 Lowboy — Unit RT-25

Fontaine Fontaine. Lowboy LX T40 – Lowboy, 40 Tons, 47' 11"

Fontaine Fontaine. Lowboy LX T40 Lowboy with 40 Tons capacity and 47' 11" length.

Key Specs

• Model Year: 2014
• Capacity: 40 Tons in 16-foot length
• Overall Length: 47' 11"
• Width: 8'6"
• Load Base: 16-foot rigid 2-point load centered in deck

Tub Construction

• Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
• Deck Design: Flat level telescopic deck design
• Deck Length: 29 feet 0 Inches clear deck length (retracted) - 50 feet 0 inches (extended)
• Loaded Deck Height: 20 Inches with 6 Inches ground clearance

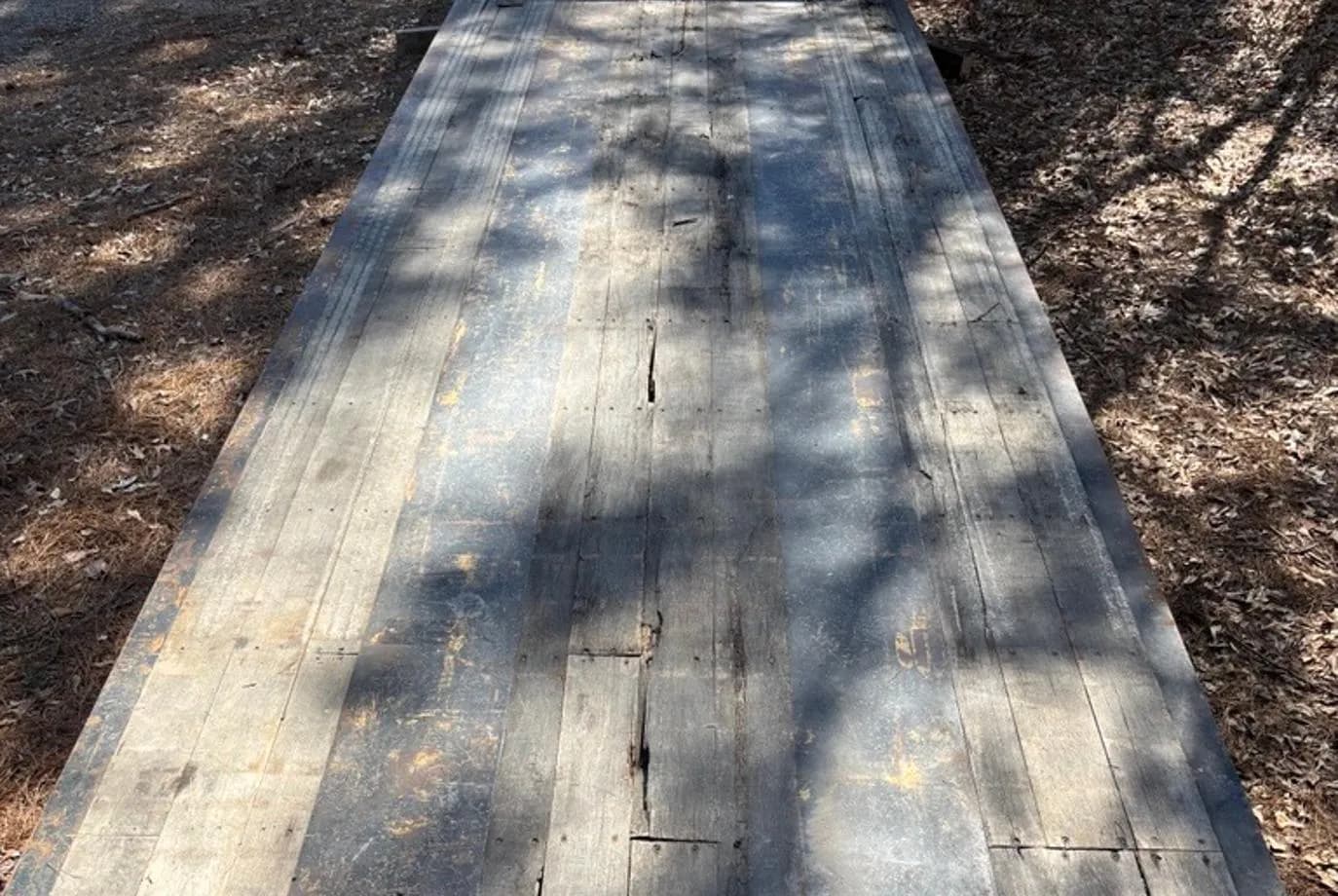

• Flooring: 1 3/8 inch nominal wood (full width)
• Cross Members: On 24" Centers
• Extension Brackets: Mounting brackets only
• Deck to Bogie Connection: Fixed
• Front Ramps: None, Front of deck sloped top down to assist in loading with traction cleats
• Front Bogie Ramp: Sloped steel bogie ramp (full width)

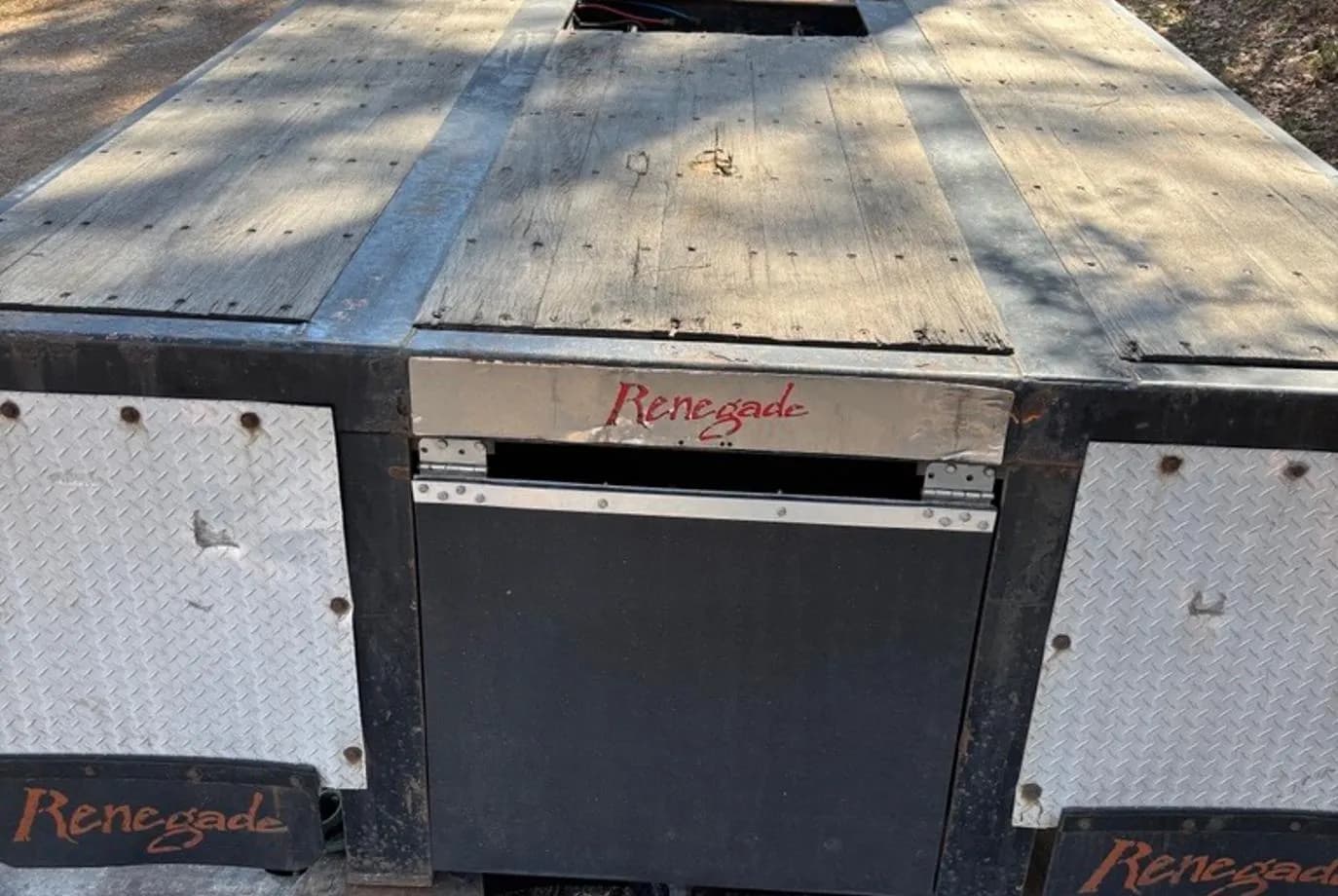

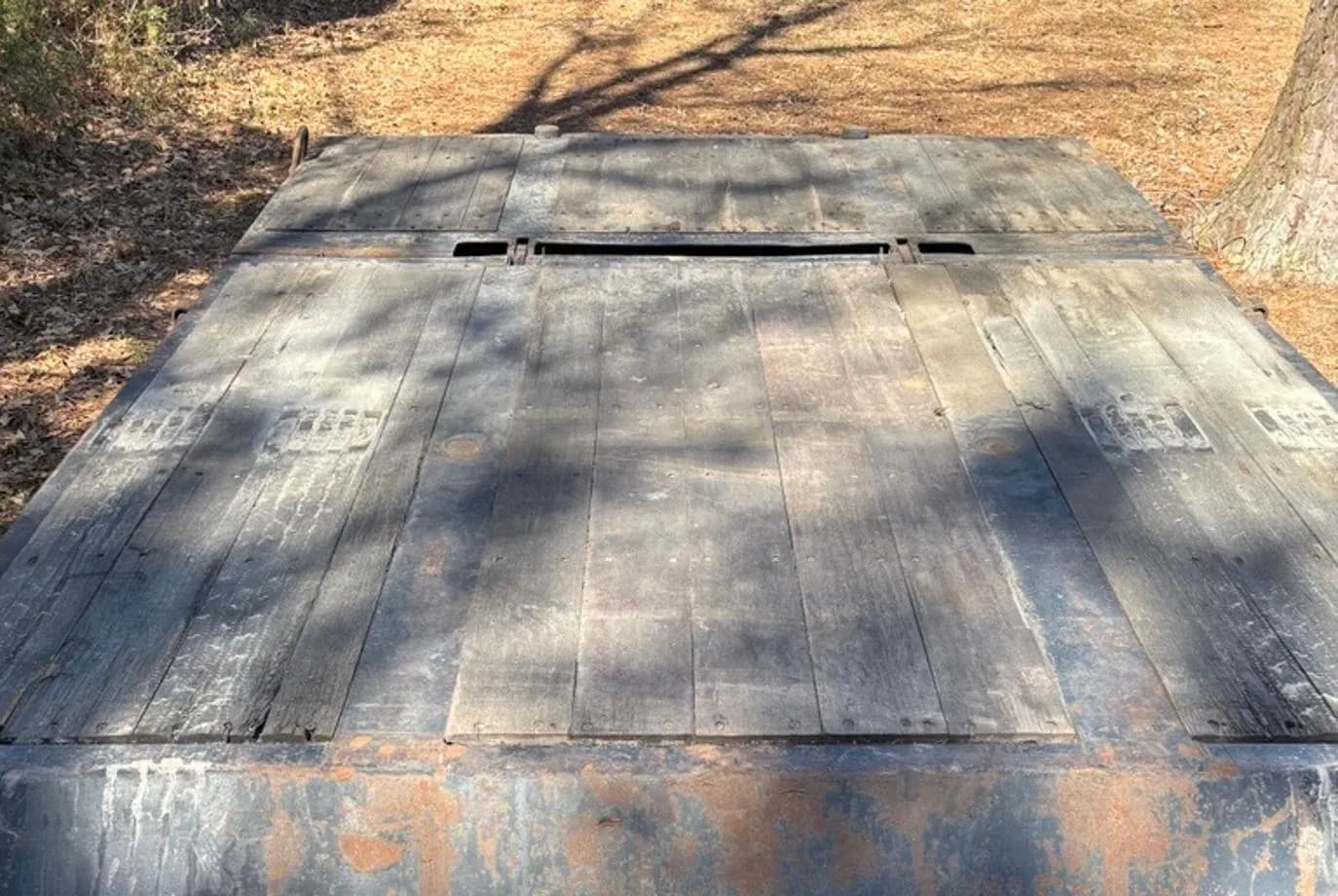

• Rear Bogie: Rear bogie platform with 1 1/8 inch wood floor
• Rear Bogie Height: 41 inches

Gooseneck & Fenders

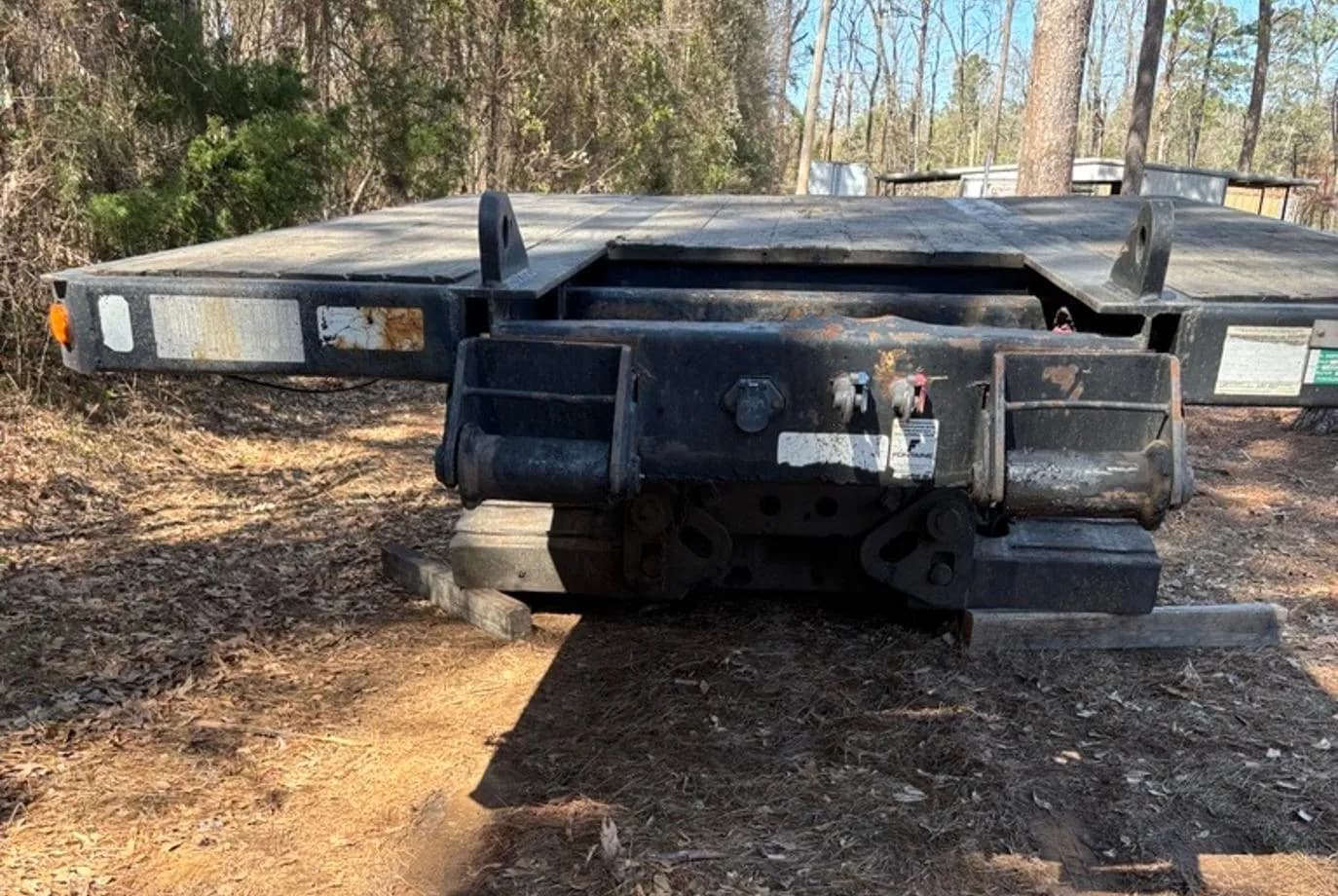

• Gooseneck Design: Mechanical removable with removable fifth wheel guide rollers; combination figure-8 plate which provides 50 inches and 52 inches loaded - Swing radius of 81 inches
• Flip Box: Non Standard
• Gooseneck Fenders: Aluminum fenders at rear of gooseneck
• Compatibility: Designed to accept optional flip neck extension and third flip axle

Axles & Suspension

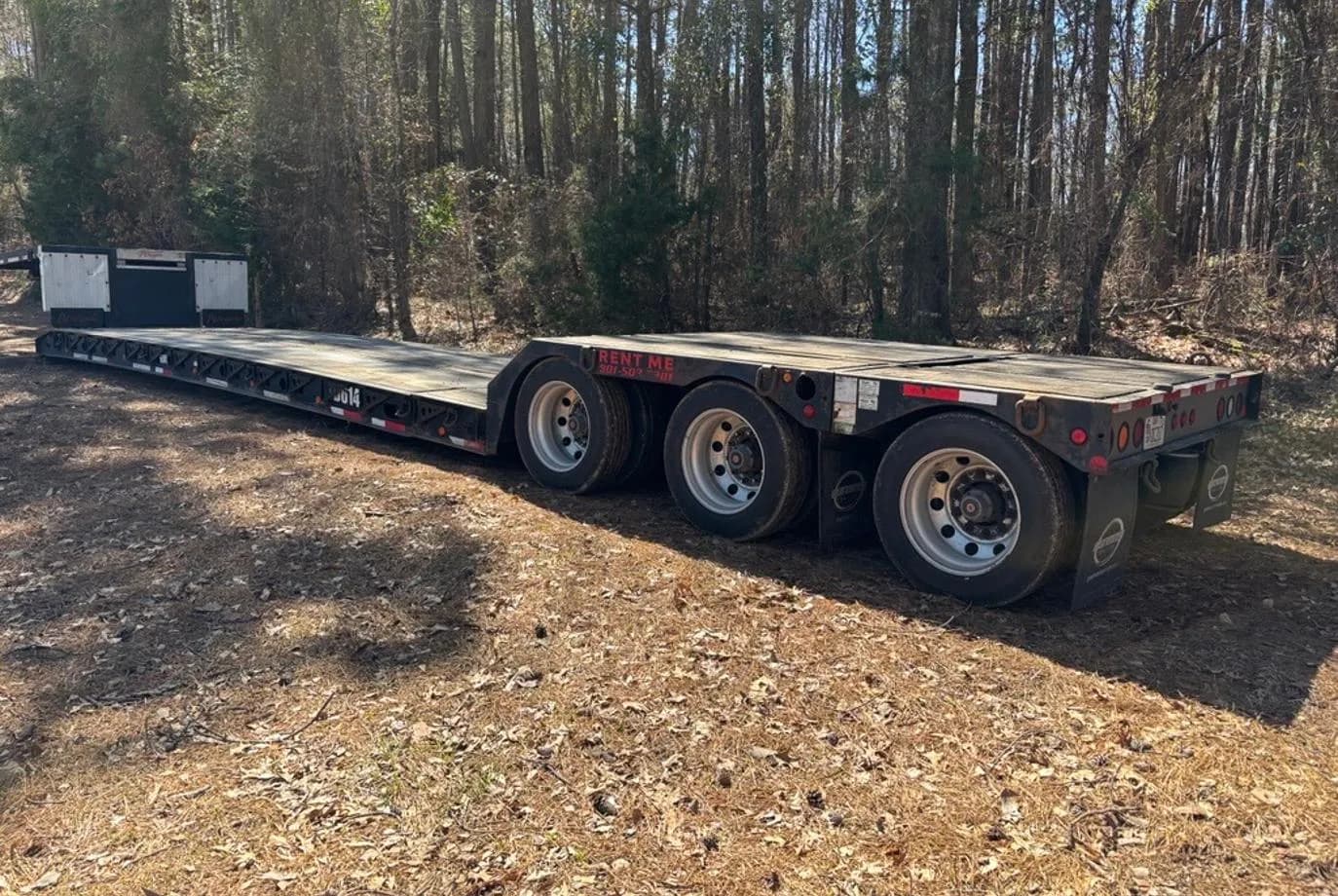

• Number of axles: (2) with Flip Axle (3)
• Axle Capacity: 2,500 LBS. Nominal Capacity Each
• Axle Spread: 54.5 inches spread (Between Axles)
• Suspension: Air Ride with automatic controls
• Spring Brakes: Spring brakes on 2 Axles
• Connections for future axle attachment: Air and electrical connections to go along with connection ears

Brakes & Wheels

• Brakes: 16.5 Inches x 7 inches with 5.5 inches auto slacks - heavy duty brake drums - outboard mount
• Dust Shields: None Standard
• Tires: 255/70R 22.5 H ply OEM Standard
• Wheels: 8.25 x 22.5 steel disc - hub-piloted

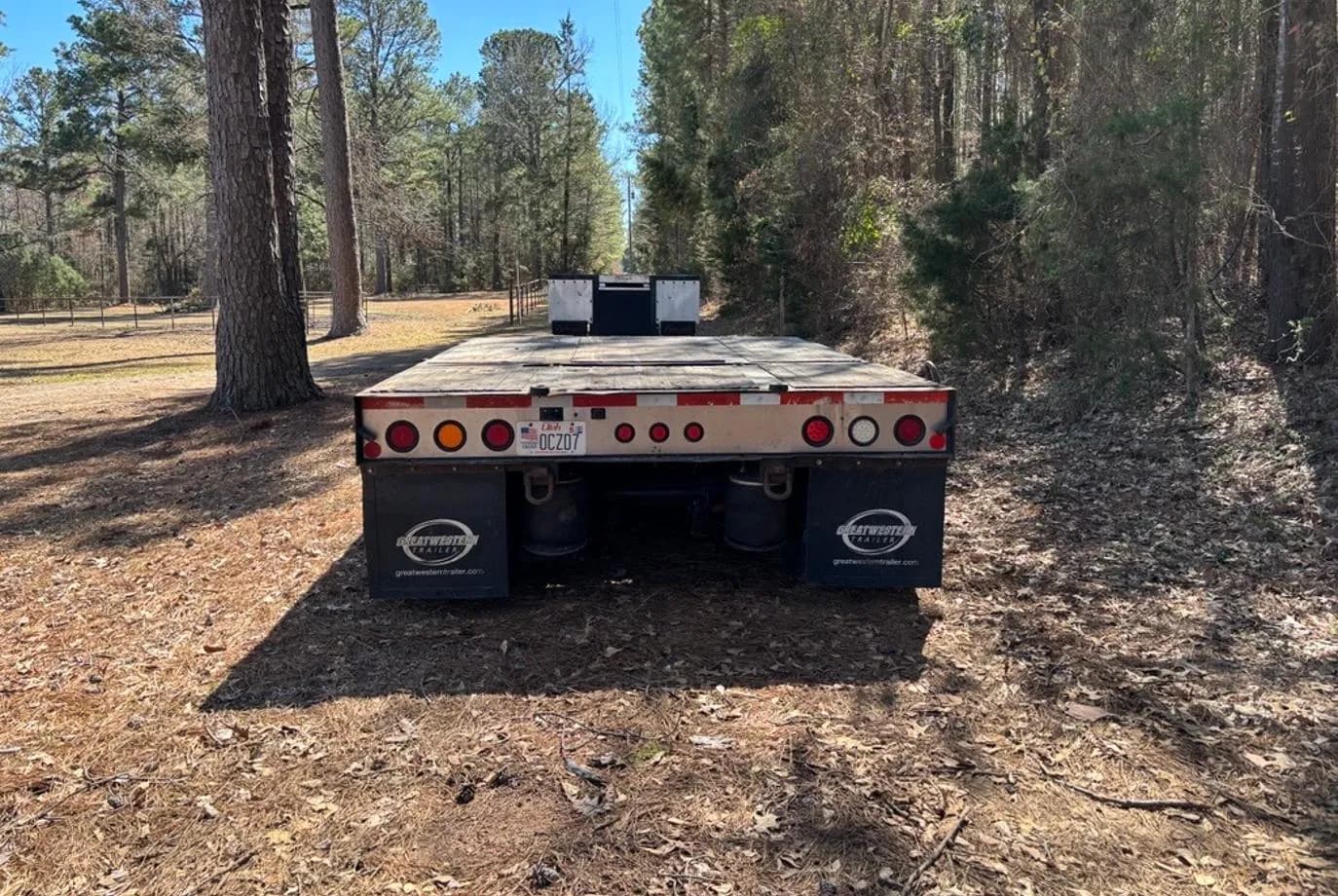

• Bumper: 3 tail light package

Electrical & Lighting

• Electrical Receptacle: J560 7 Pin Connector
• Electrical System: DOT sealed beam and harness with LED lights - standard
• Marker Lights: 8 marker lights per side including mid-turn
