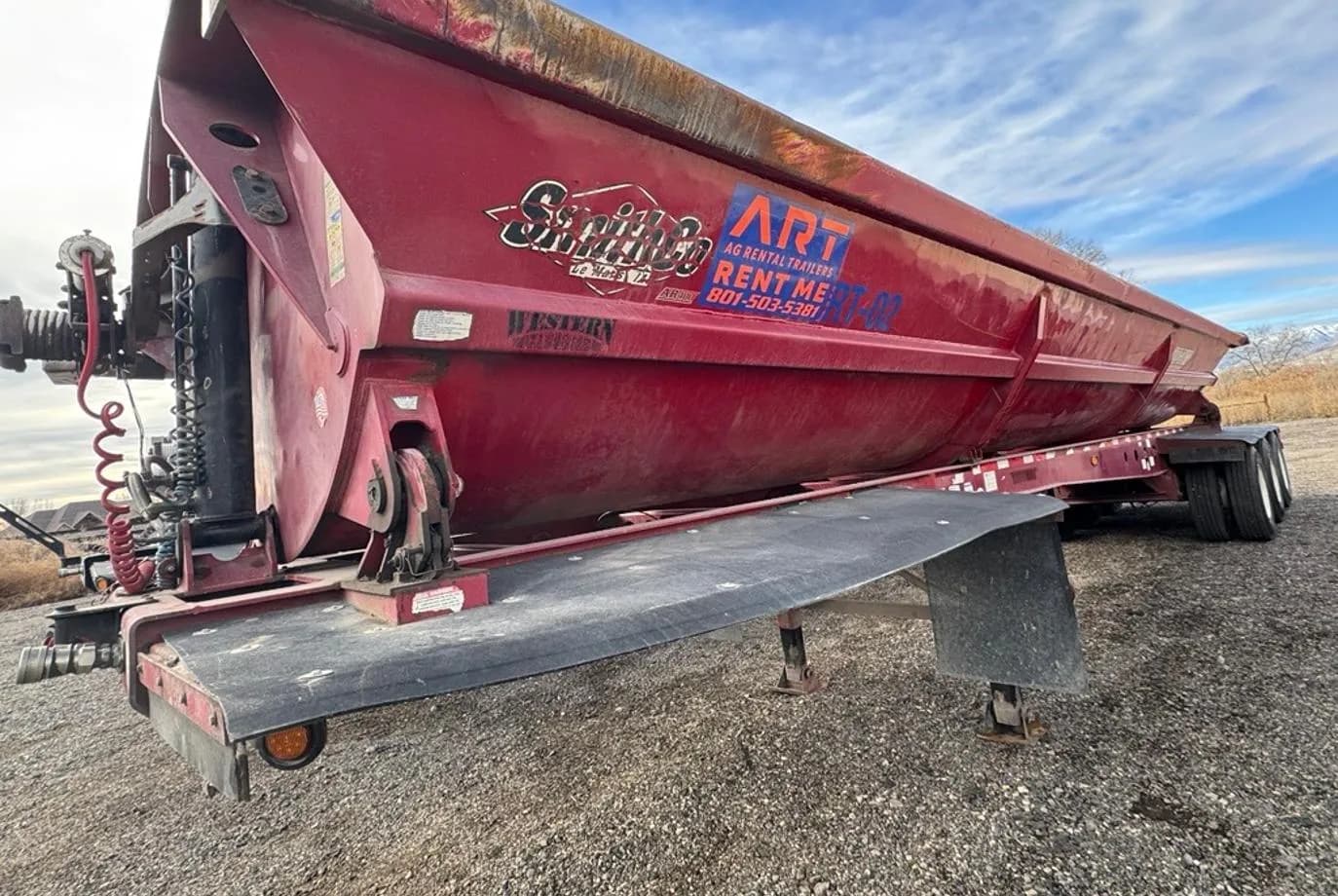

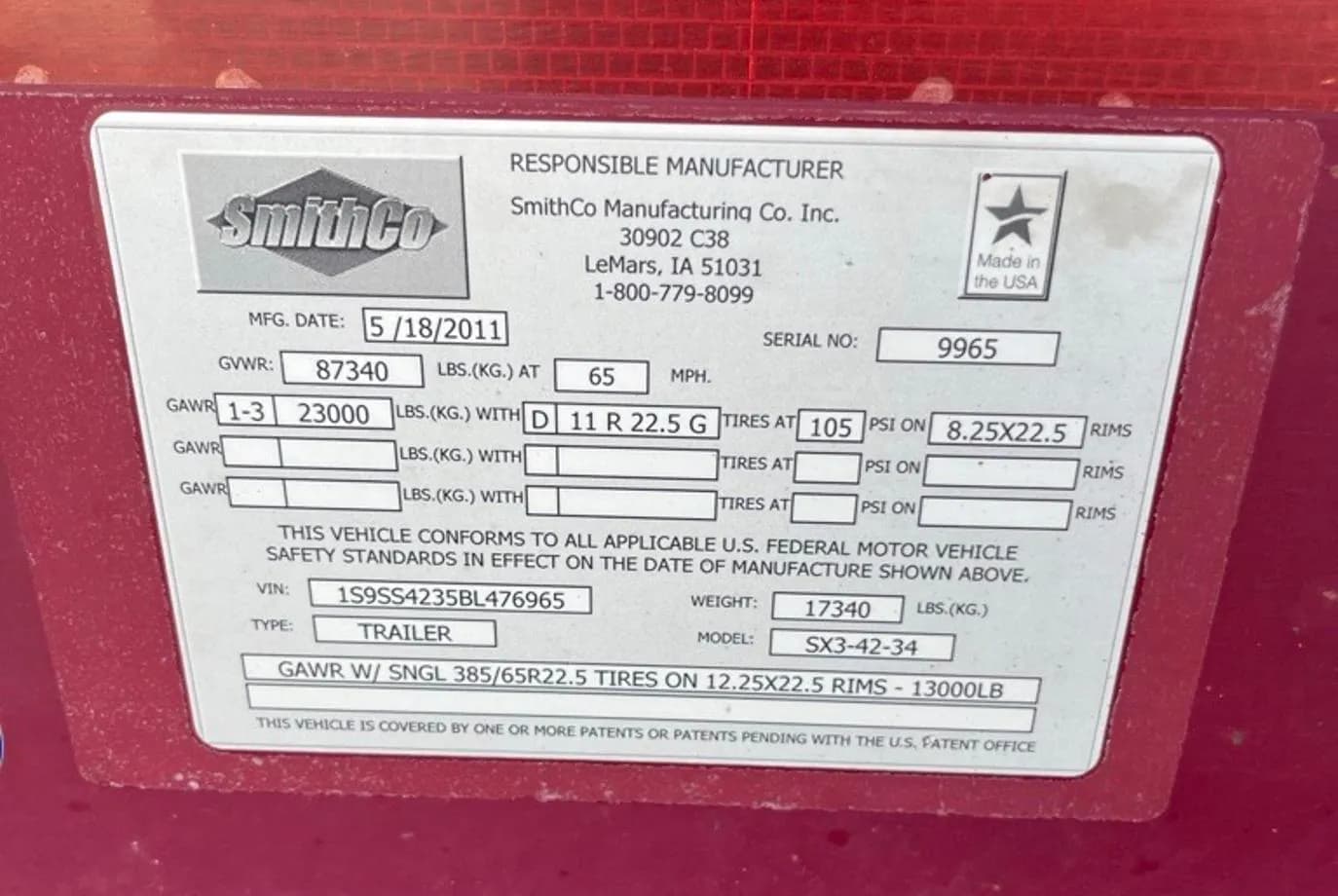

2011 SmithCo SX3-42-34 Side Dump · Unit RT-02

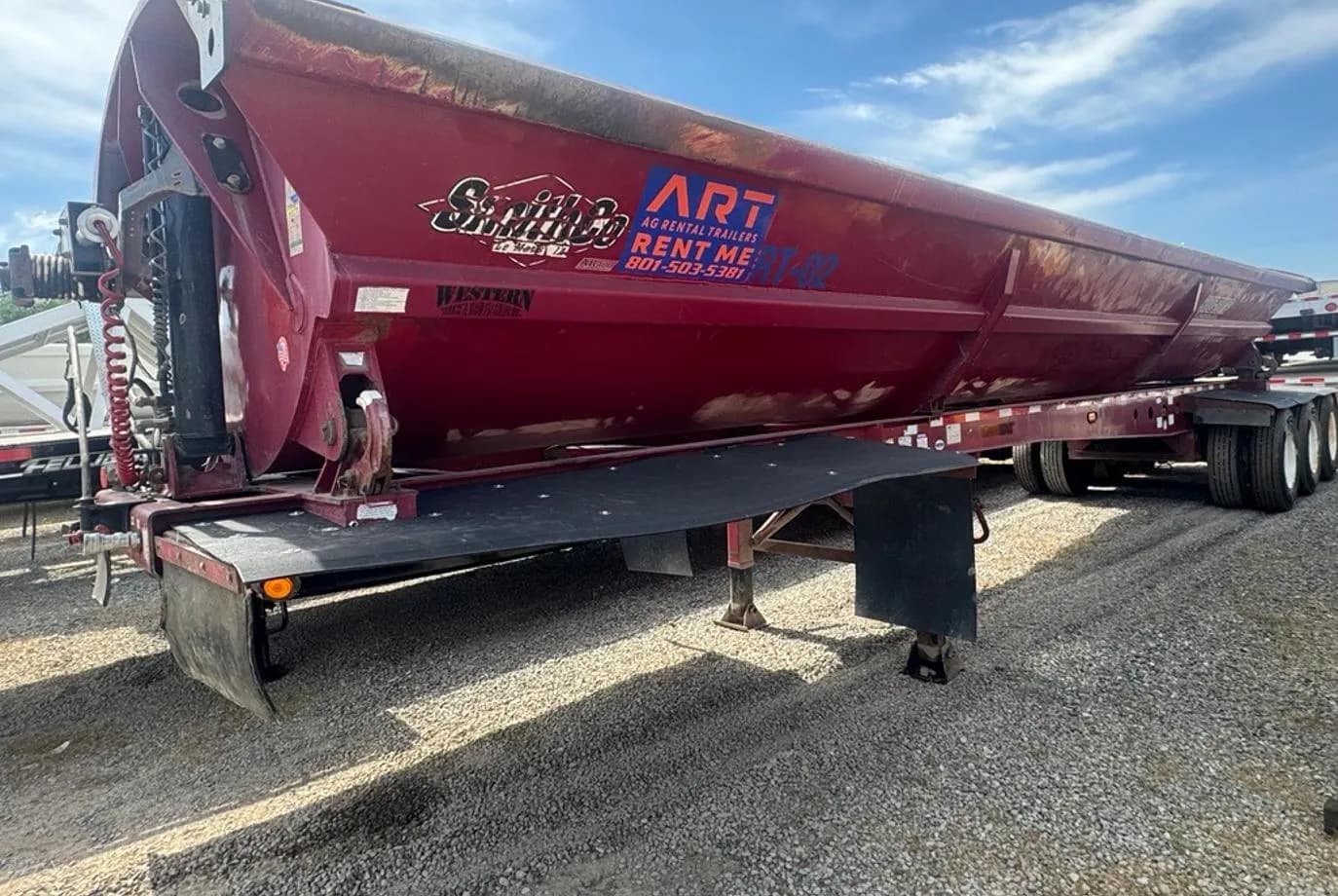

SmithCo SX3-42-34 – Side Dump, 34' x 102'

SmithCo SX3-42-34 side dump with 34' frame length and 102' width; Capacity (water level): 23 cu yd, Capacity (Heaped): 32 cu yd

Key Specs

• Year: 2011
• Capacity (water level): 23 cu yd
• Capacity (Heaped): 32 cu yd
• Frame Length: 34'
• Width: 102'
• Height: 8' 3" at tub side, 9' 6" at Center

Tub Construction

• Tub plate: 1/4" Thick, AR450 Steel (or equivalent)
• Optional tub plate: 3/16" Thick, AR450 Steel (or equivalent)
• Supports: External Column Supports
• Center divider: No Center Tub Divider

Frame & King Pin

• Frame: 80/100 KSI, Fabricated Steel I-Beam
• King Pin: 2" Kingpin, 18" Setting, Replaceable Type
• Landing Gear: Two Speed, Non-Load Bearing
• Bumper: Push Bar Type, Bolt On

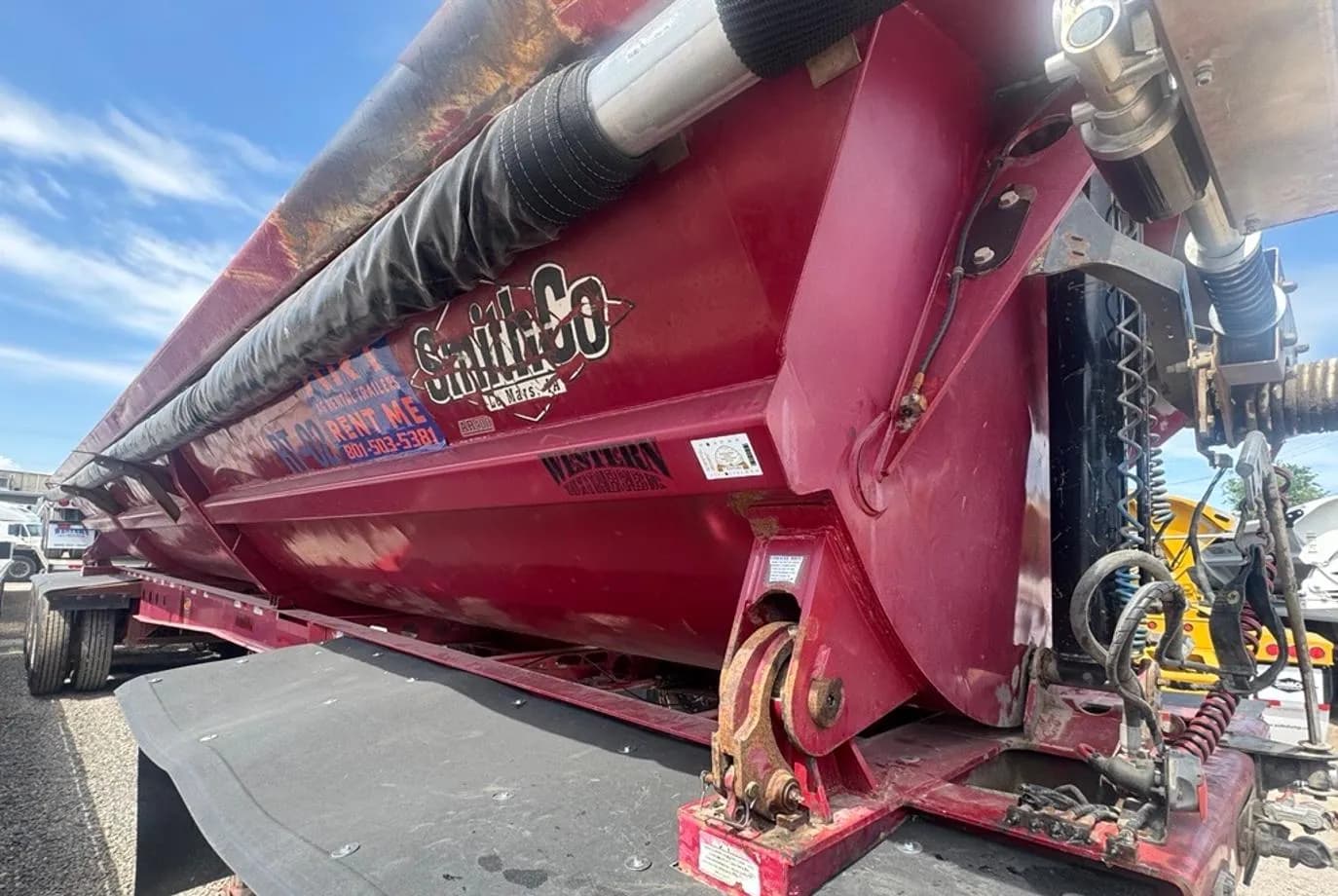

• Hinges: Self-Aligning, Spherical Bearing Type (Greaseable)

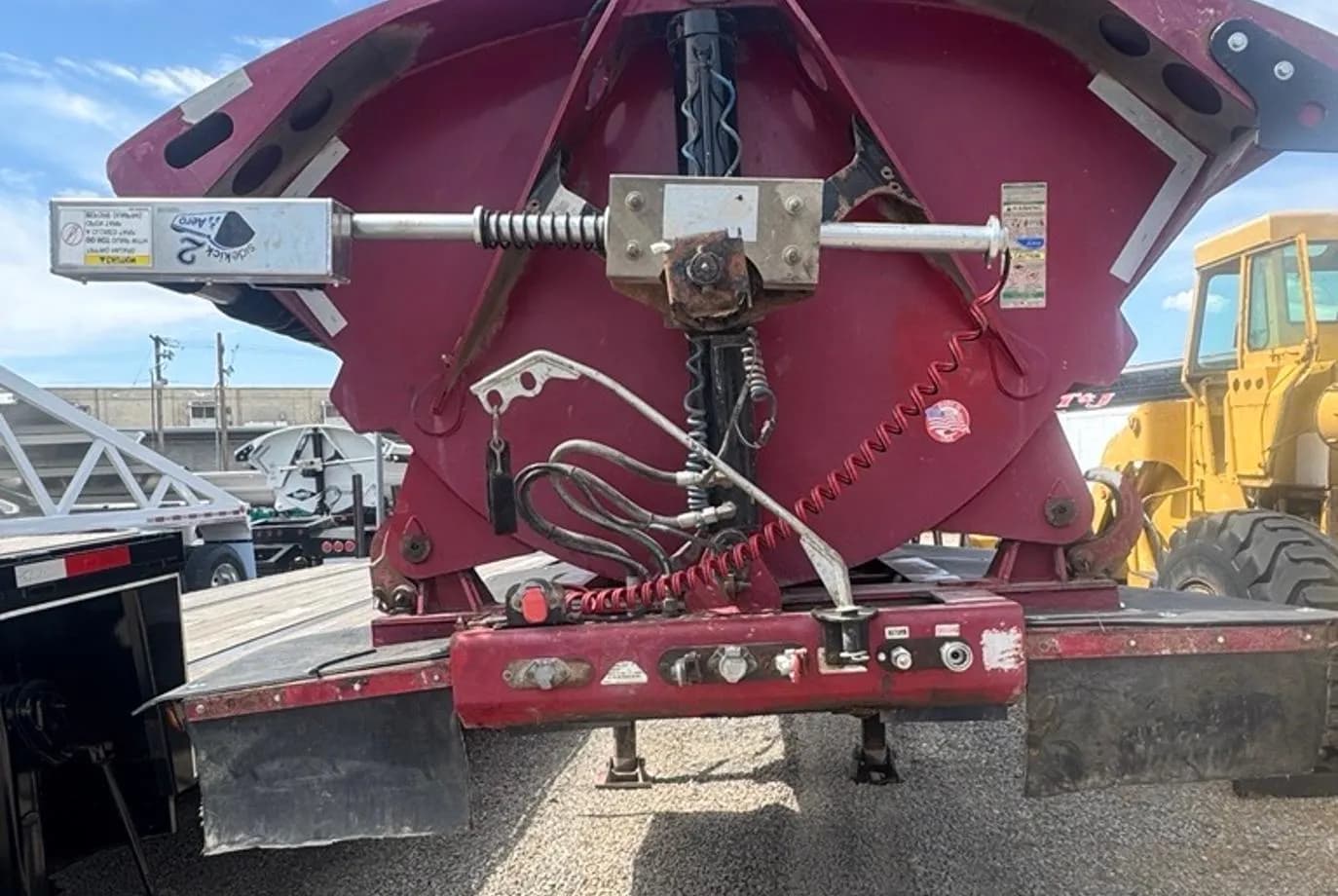

Hydraulics & Control

• Cylinder: 3500 PSI, 5" bore
• Minimum Tractor Hydraulic Requirements: 25-30 GPM, 2,600 - 2,800 PSI, 10 Gallon Reservoir

Axles & Suspension

• Suspension: Air Ride Suspension Standard, Spring Ride Available
• Hubs: 10 Hole, Hub Piloted
• ABS: 2S1M Anti-Lock Brake System
• Drums: Outboard Mount, Cast Steel

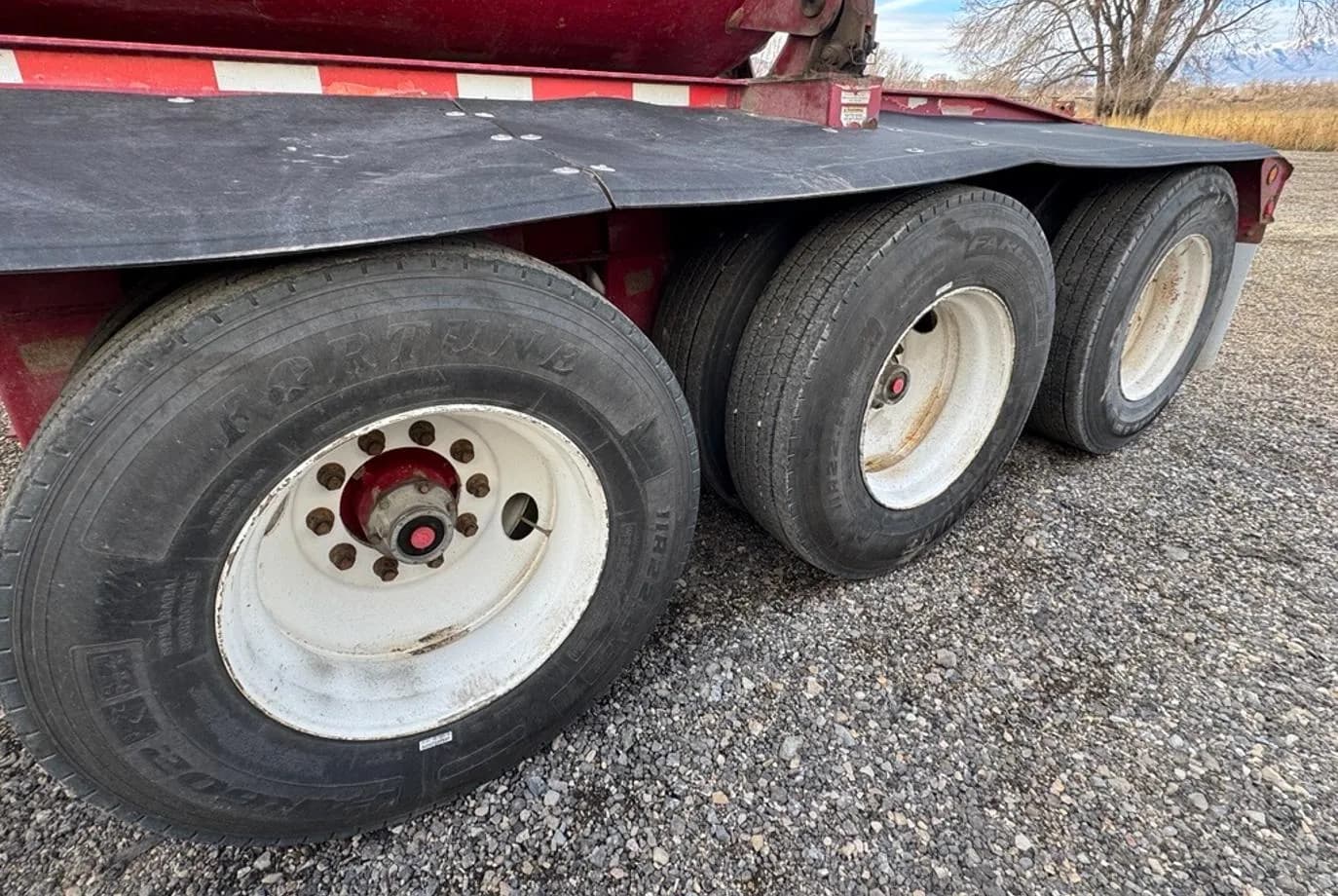

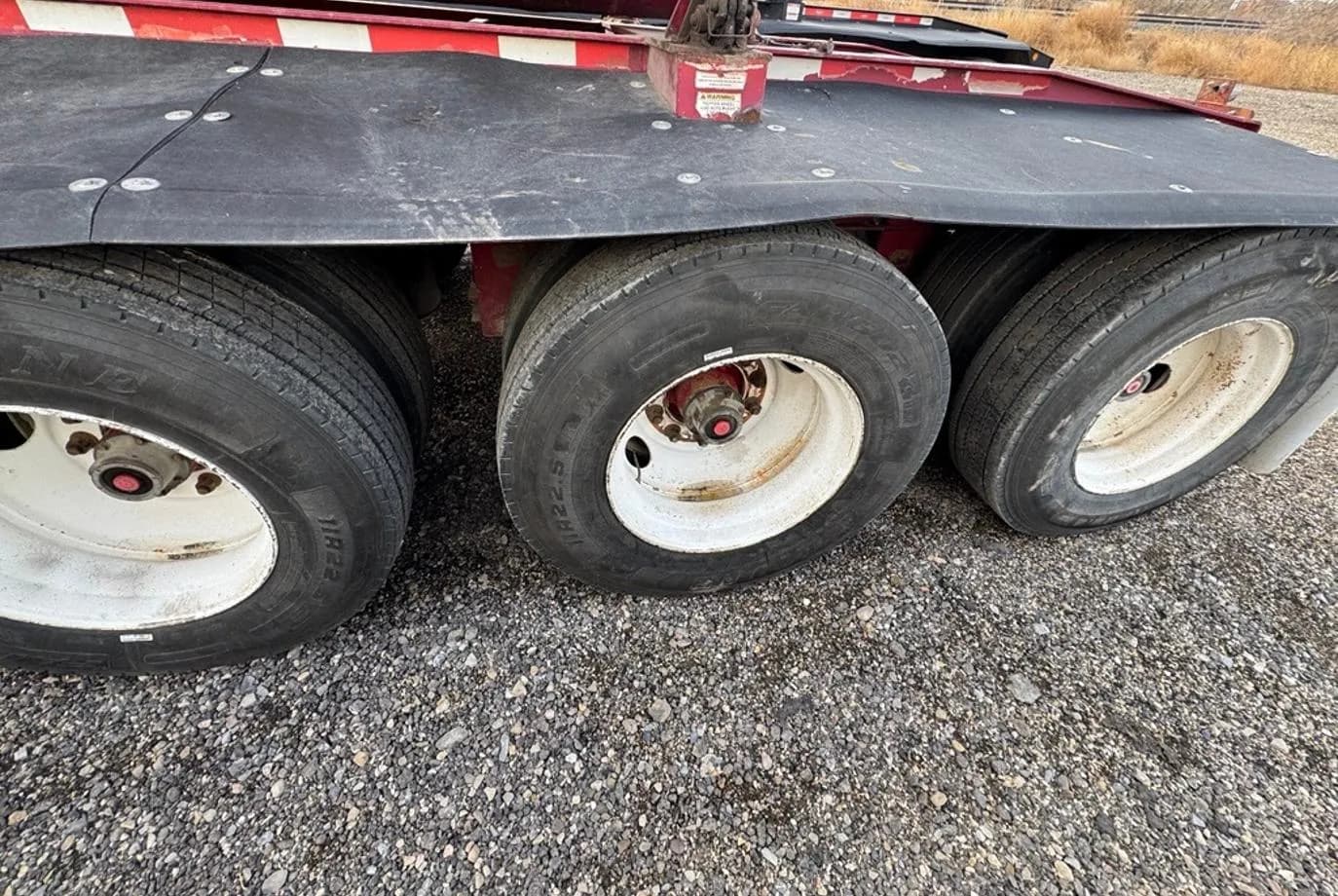

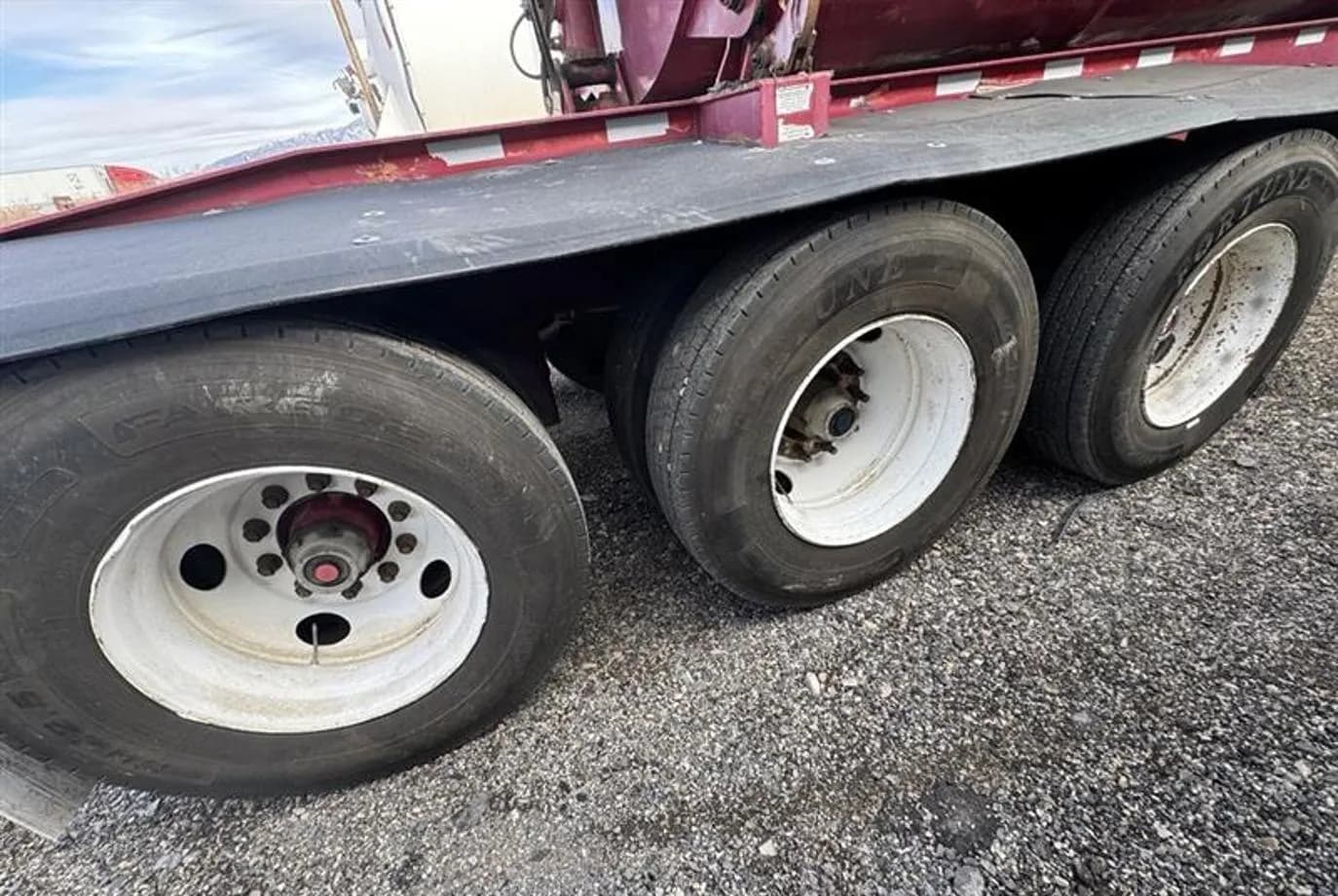

Wheels & Tires

• Wheels: Steel Disc, 8.25 x 22.5 (12)
• Tires: 11 R 22.5 G Radial Tires (12)
• Brakes: 16 1/2" x 7"

Lighting & Safety

• Lights: 12 Volt LED ICC w/Sealed Harness

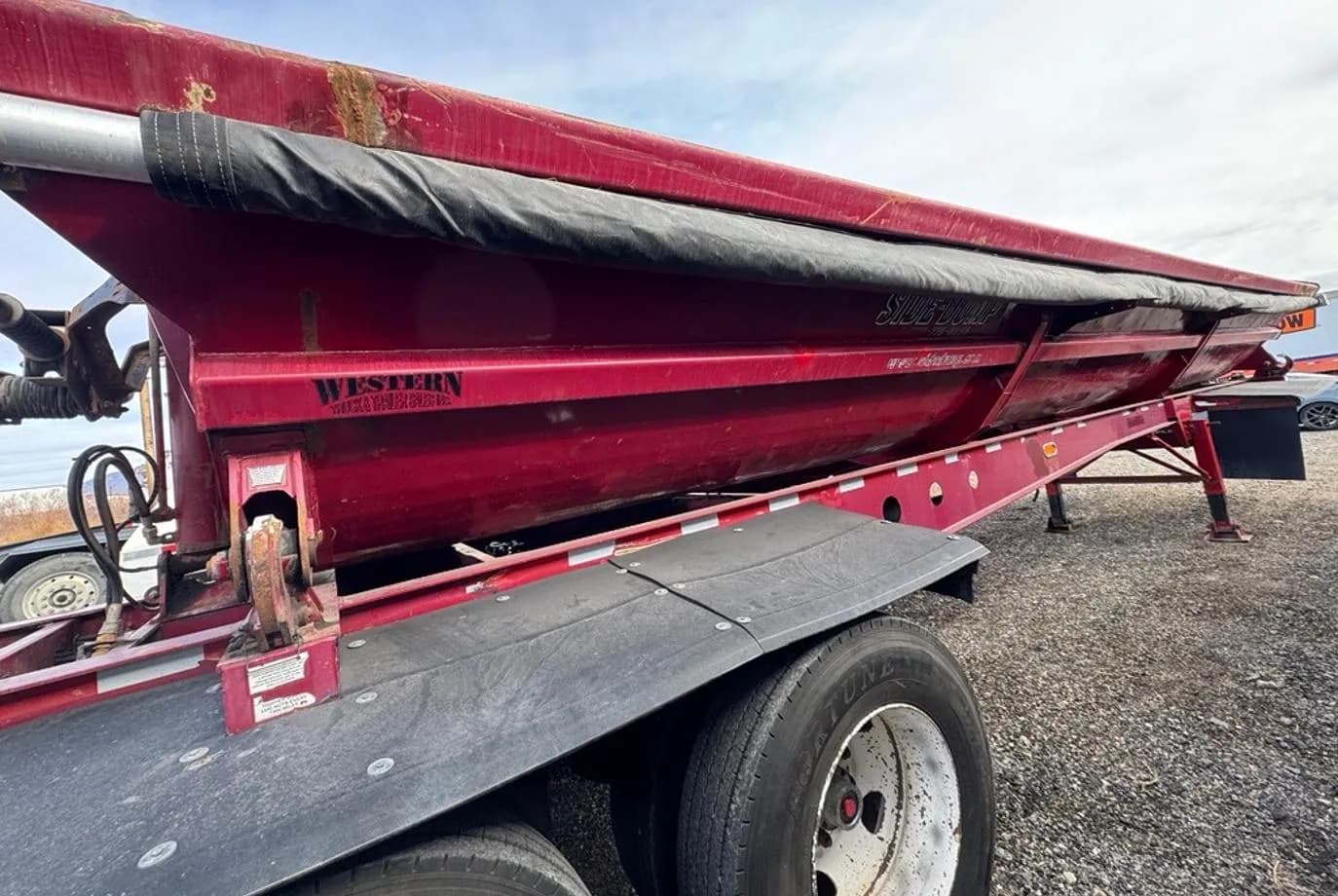

• Fenders: Front & Rear, 1/4" Synthetic, 7 Degree Slope
