Choice Hydraulic Folding Gooseneck Trailers
A folding gooseneck drops its own nose to the ground under hydraulic power, making a 6-degree front ramp — over-the-nose loading without ever detaching the neck from the truck.

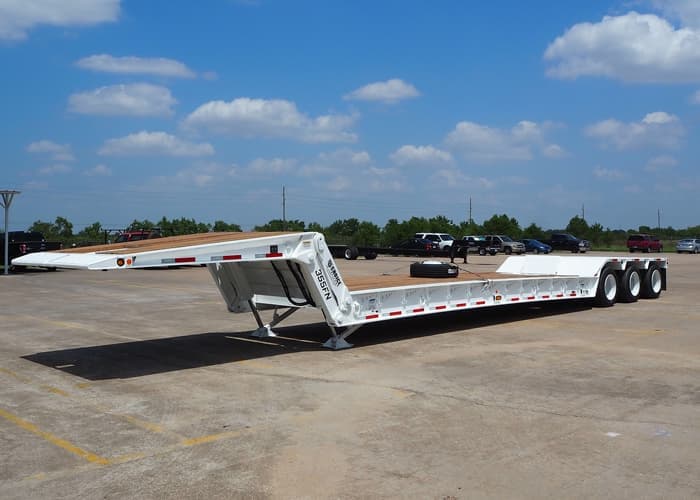

Choice builds the FG series on an 18" main-beam perimeter frame with 100,000 psi flanges and 10" I-beam crossmembers on 18" centers, rated 70,000 to 120,000 lb. The tapered nose carries a lift eye and upper-flange reinforcement on the neck ramp beams; thirteen swing-out outriggers per side handle wide tracks.

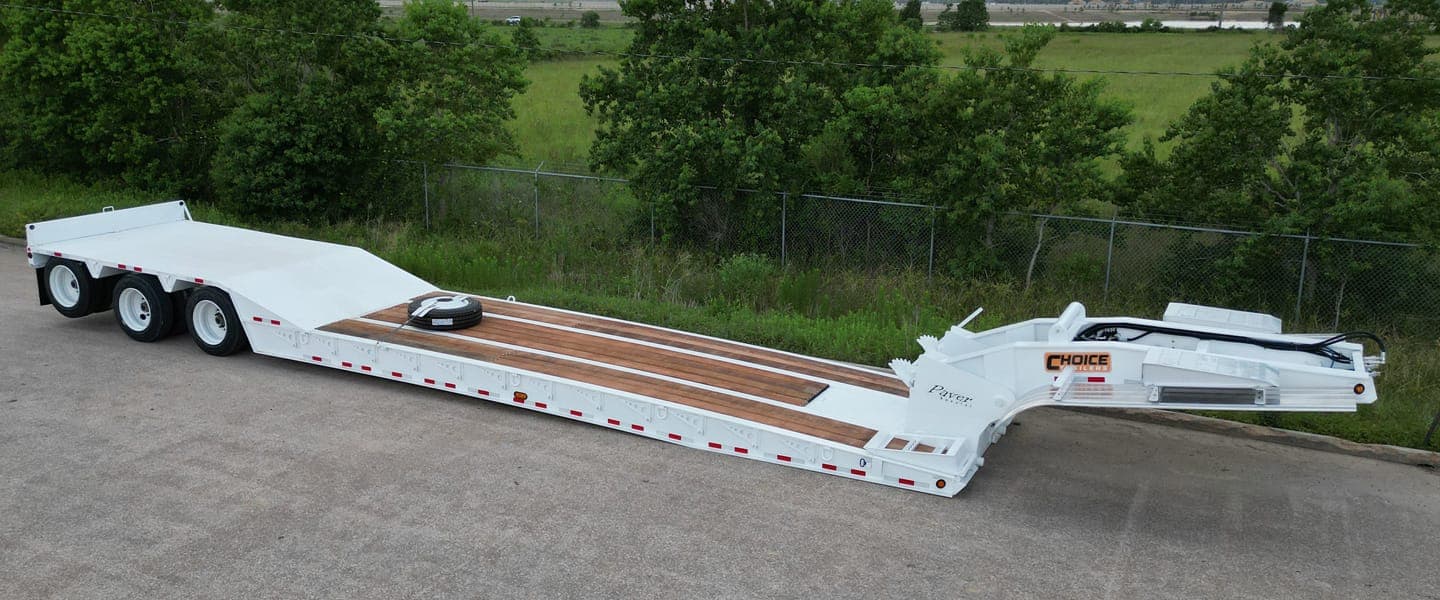

Crews that load and unload many times a day often prefer a folding neck over a detachable — nothing to uncouple, no neck to set down. If you're weighing the two, our sales team runs both configurations against your loads; see also Choice HDG lowboys.

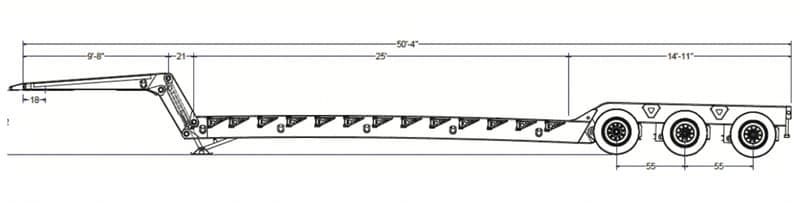

Specifications
Reference specifications — Choice builds every trailer to order, so dimensions and equipment can be configured to your load.
| Capacity | 70,000–120,000 lb |
|---|---|
| Deck | 25' |
| Rear deck | 14'-11" |
| Neck | 9'-8" |
| Width | 102" |
| Front load angle | 6° |
| Frame | 18" perimeter main beams, 100,000 psi flanges, 10" I-beams @ 18" |
| Kingpin | 2" drop-in |
| Outriggers | Swing-out 13/side; D-rings 5/side |
| Suspension/axles | 25,000 lb air ride + axles, 55" spacing |
Options
- 13hp Honda power
- flip axle
- lift axle
- load-bearing wheel covers
- dual kingpin
- removable outriggers
- tire inflation
- aluminum wheels
- disc brakes
- steering axles
Frequently asked questions
Folding is faster cycle-to-cycle and never leaves the truck; detachable gives a completely clear deck front and lower effective load angle for the biggest machines.
