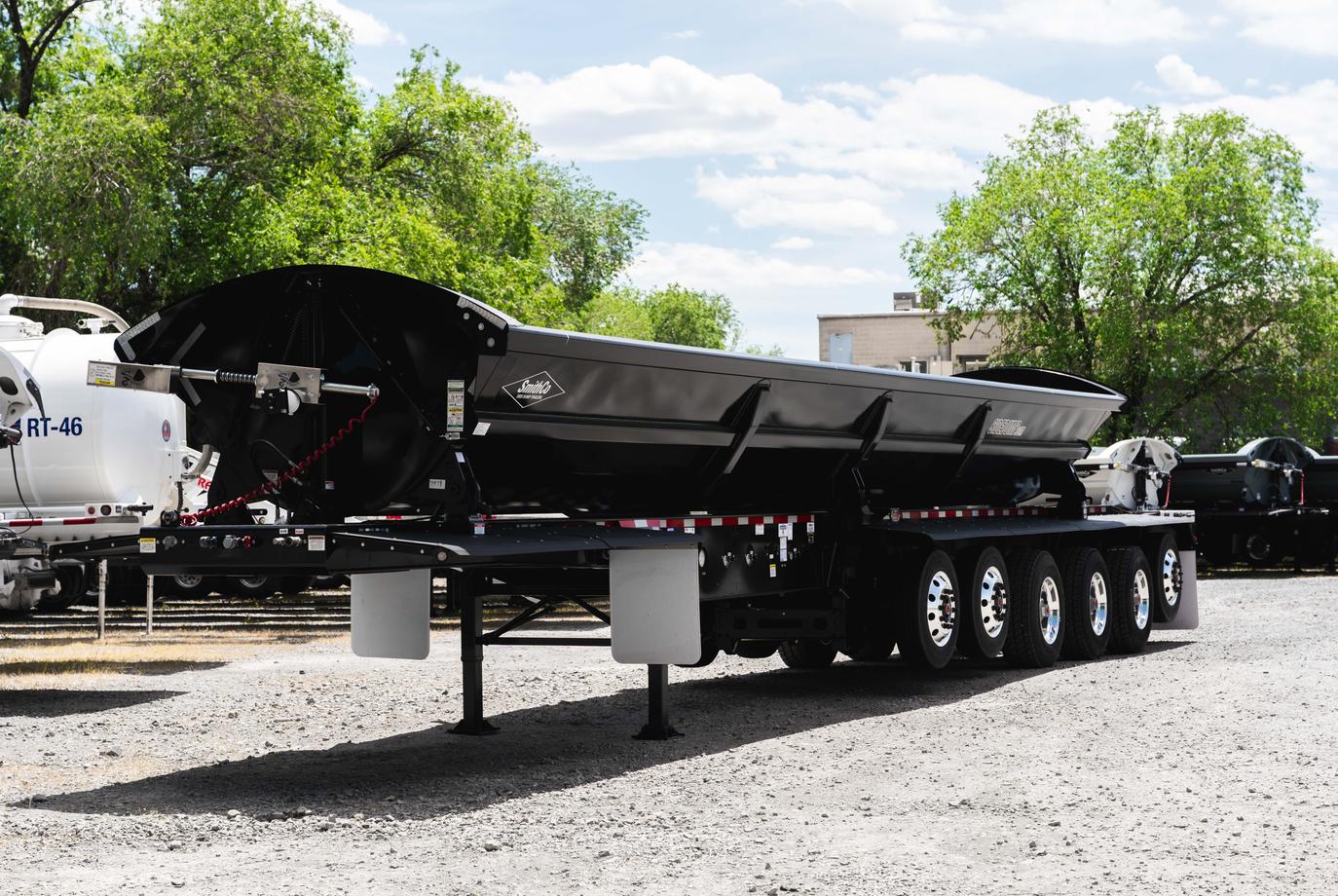

SmithCo SX6U-53-40 Trailer

SmithCo SX6U-53-40 – Side Dump, 102" wide, 40' tub

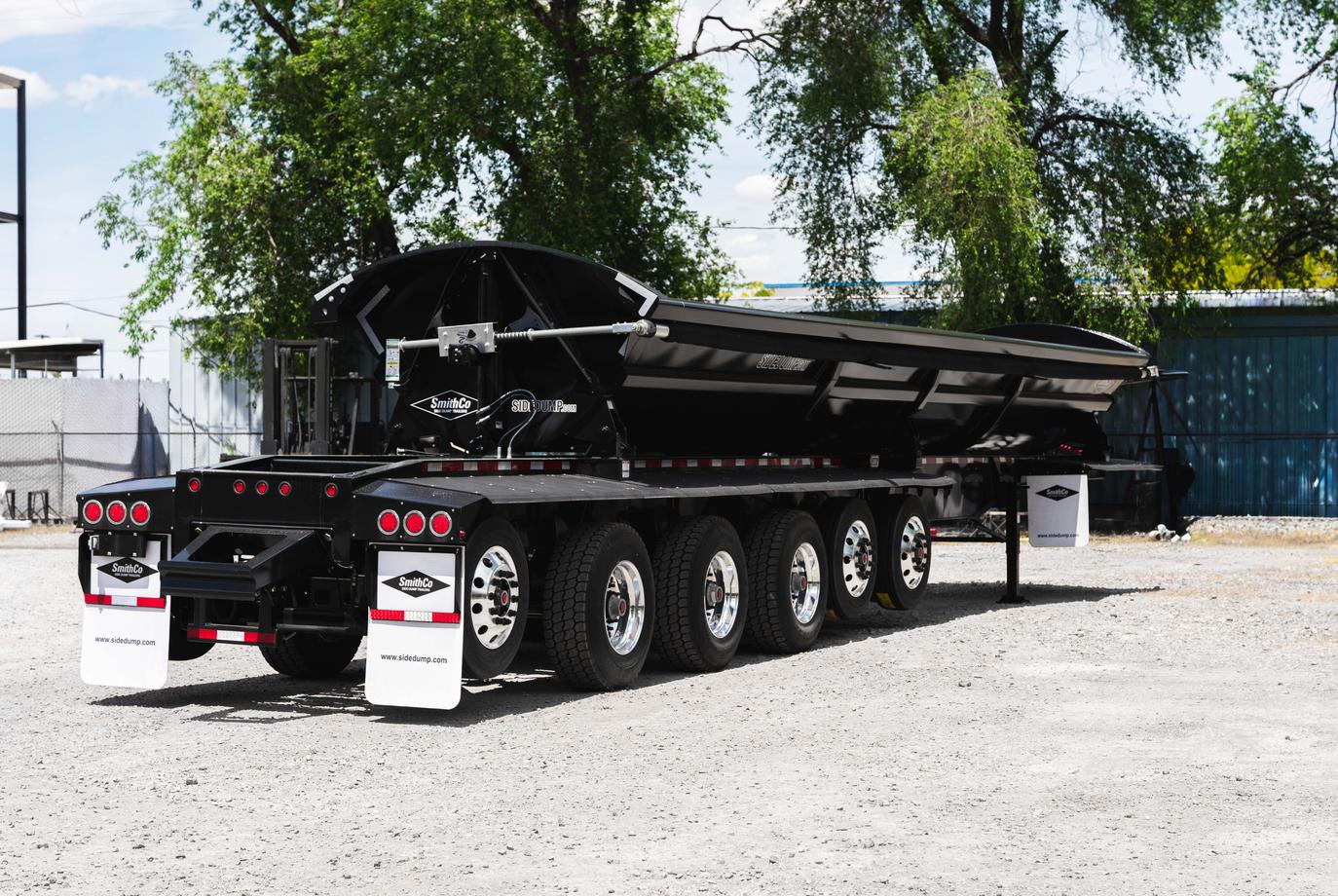

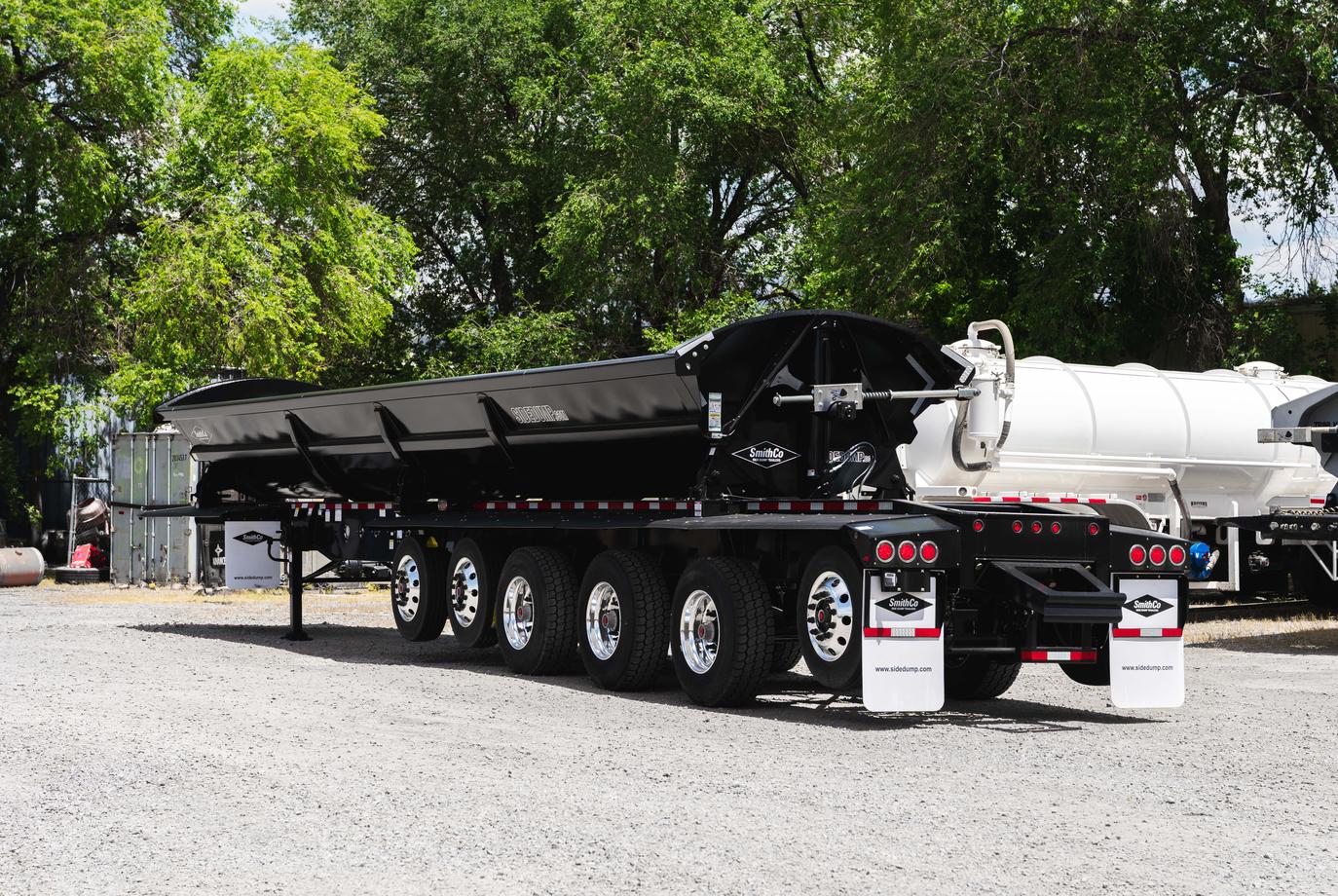

SmithCo SX6U-53-40 side dump with SX-ROUND BOTTOM tub and 3/16" AR450 sides.

Key Specs

• Manufacturer: SmithCo
• Model: SX6U-53-40
• Category: Side Dump
• Width: 102"
• Frame Length: 53'16" KINGPIN SETTING, 26" BULKHEAD SETBACK
• Tub Length: 40'3RD HINGE & CENTER COLUMN
• Tub Volume (water level): 40' SX - WATER LEVEL - 26.8 CUBIC YARDS
• Tub Volume (heaped): 40' SX - HEAPED - 35.6 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 3/16" AR450
• Tub Floor: 3/16" AR450
• Tub Dividers: 0
• Tub Paint #: DV-19040 (BLACK)

Hydraulics & Control

• Hydraulics: 6" CYLINDERS
• Valve on Trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Dolly Legs: BINKLEY

Axles & Suspension

• Suspension: RIDEWELL RW260AIR RIDE
• Axle Spacing: 52"-52"-62"-62"-64"
• Lift Axle: 1ST, 2ND & 6TH (13.2HD) LIFTABLE/STEERABLE
• ABS Axles: 25K 1
• Non-ABS Axles: 25K 5
• Axle Track: 83.5" ON DOWN AXLES 2-5
• Hubs: DURALITE-STD
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL SS 12.25x22.56 SUPER SINGLE ALUM ON 3-5, (6) 8.25x22.5 ALUM 1, 2 & 6
• Tires: DC RLB980 385/65R22.56 385's AXLE 3-5, (6) 275/70R22.5 AXLES 1,2&6
• Fenders: ALL PLASTIC

Additional Features

• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• Lock Out Switch: TARP LOCKOUT
• W Style Pushblock: W STYLE PUSHBLOCK - STD

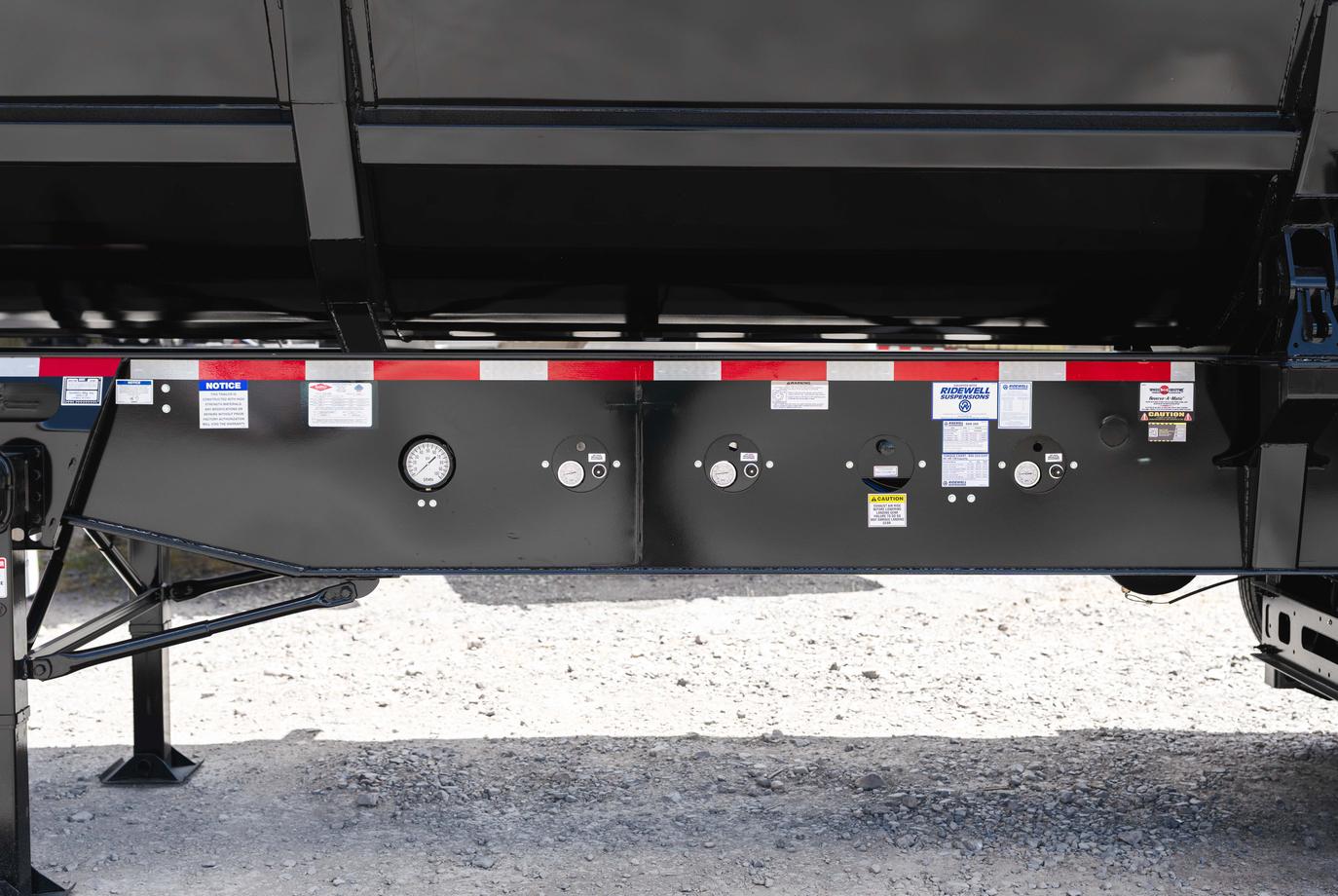

• Large Air Gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD
• Grease Bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Tail Lights: 3 TAILLIGHTS - RED
• ID Lights: 5 ID LIGHTS AT REAR
• Pull Cords: PULL CORDS FOR ALL AIR TANKS
• Frame Paint #: DV-19040-DTM (BLACK)
