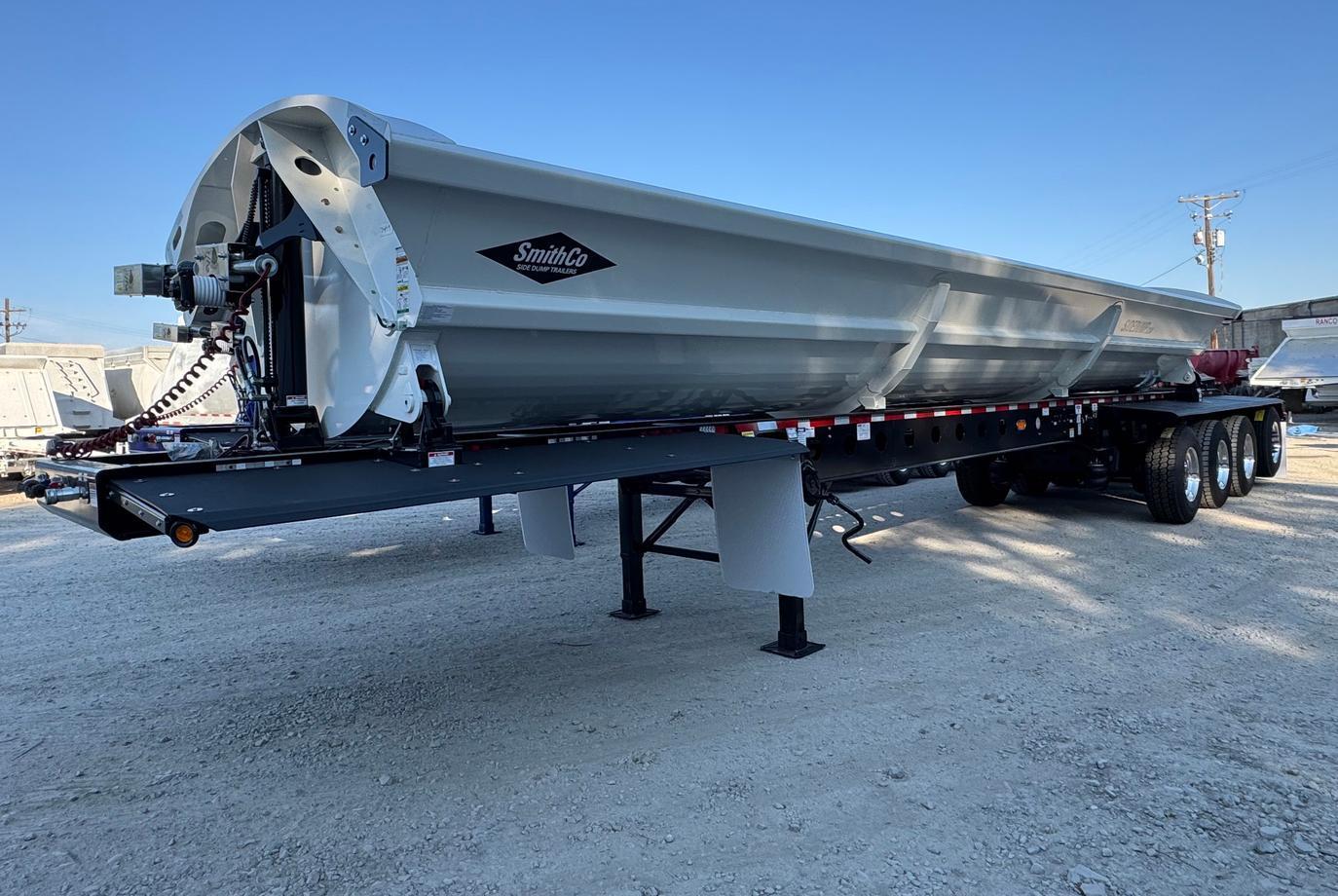

SmithCo SX4-49-36 Trailer

SmithCo SX4-49-36 – Side Dump, 102" W, 49'

SmithCo SX4-49-36 side dump with SX-ROUND BOTTOM tub and 1/4" AR450 sides and floor.

Key Specs

• Manufacturer: SmithCo
• Model: SX4-49-36
• Category: Side Dump
• Width: 102" WIDE
• Frame Length: 49'
• Tub Length: 36'
• Tub Volume (water level): 24.1 CUBIC YARDS
• Tub Volume (heaped): 32 CUBIC YARDS

Tub Construction

• Tub Style: SX-ROUND BOTTOM
• Tub Sides: 1/4" AR450
• Tub Floor: 1/4" AR450
• Tub Dividers: 0
• Tub Paint #: DV-19088 (WHITE)
• Frame Paint #: DV-19040-DTM (BLACK)

Hydraulics & Control

• Hydraulics: 5" CYLINDERS
• Valve on Trailer: HYDRAULIC CONTROL VALVE ON TRAILER (ELECTRIC/HYDRAULIC)
• Dolly Legs: BINKLEY
• Grease Bank: GREASE BANK FOR HYDRAULIC CYLINDERS FRONT AND REAR - STD
• Lock Out Switch: TARP LOCKOUT
• Air Gauge: LARGE LIQUID FILLED AIR GAUGE ON DRIVER'S SIDE - STD

Axles & Suspension

• Suspension: RIDEWELL RW260AIR RIDE
• Axle Spacing: 54"-54"-60"
• Lift Axle: 1ST STD. LIFT & 4TH-16.6K L/S
• 4th Axle: 4TH AXLE STEERABLE/LIFTABLE
• ABS Axles: 25K 1
• Non-ABS Axles: 25K 3
• Axle Track: 77.5"-STD
• Hubs: DURALITE-STD

Wheels & Tires

• Wheel Style: HUB-PILOTED U/M
• Wheel Type: AL 9.00x22.5 6 SUPER SINGLE ALUM ON 1-3, 9x22.5 ALUM ON 4TH
• Tires: DC RLB980 385/65R22.56 385'S 1-3, (2) 295/75R22.5 AXLE 4
• Brakes: 16-1/2" x 7"
• Drums: CAST STEEL

Additional Features

• Fenders: ALL PLASTIC
• Tarp Brand: AERO
• Tarp Type: MESH-NON SEALED
• W Style Pushblock: STD

Lighting & Safety

• Taillights: 3 TAILLIGHTS - RED
• ID Lights: 5 ID LIGHTS AT REAR
