2024 Manac 10248C000L Flatbed
$47,900.00
FET tax of 12% included in price
FlatbedsManac2024
In Stock · Qty: 1
Available at Salt Lake City
Pick a time that works and talk with a rep about this unit.
or
Send a message
Tell us what you need and we'll come back with pricing, specs, and availability.

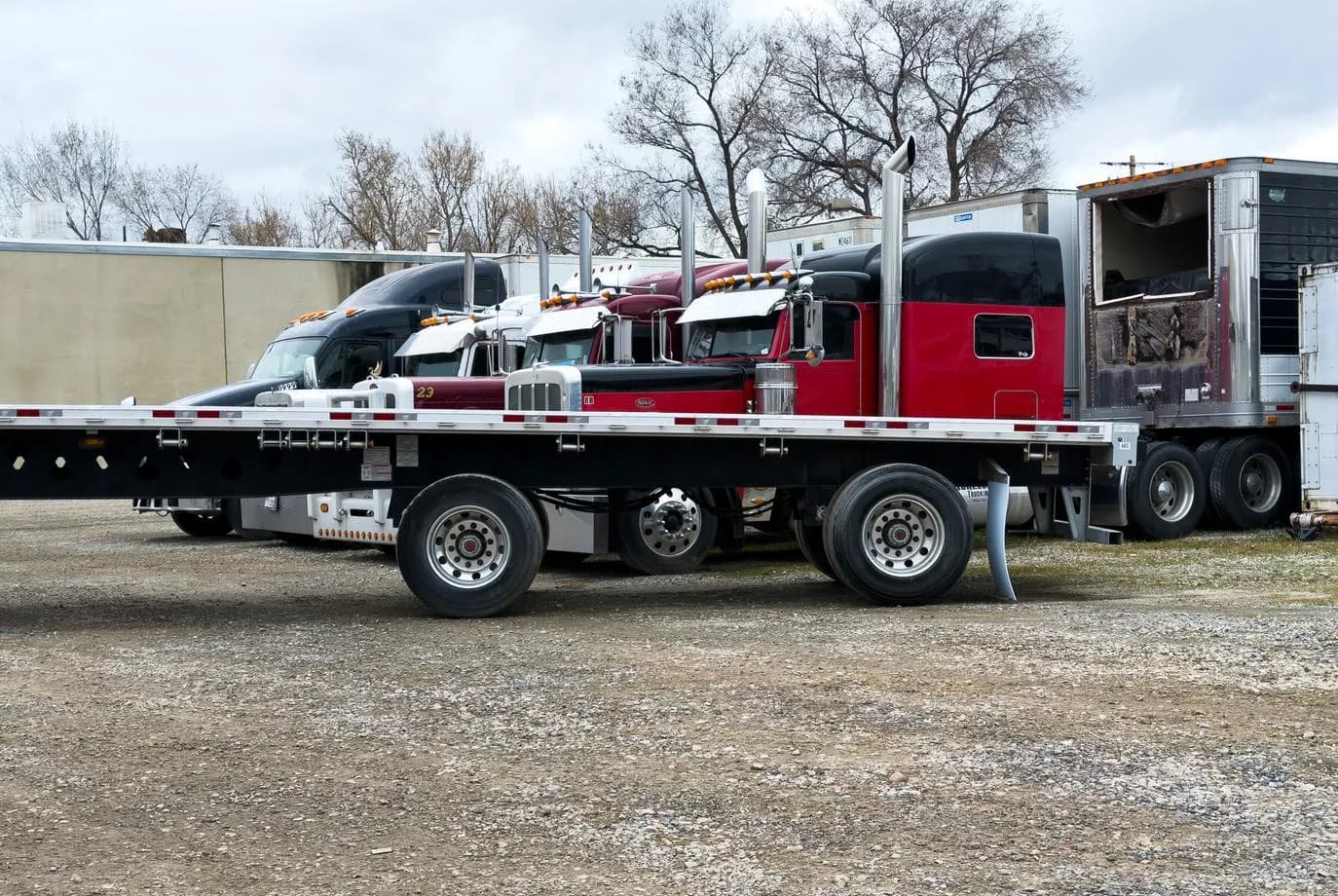

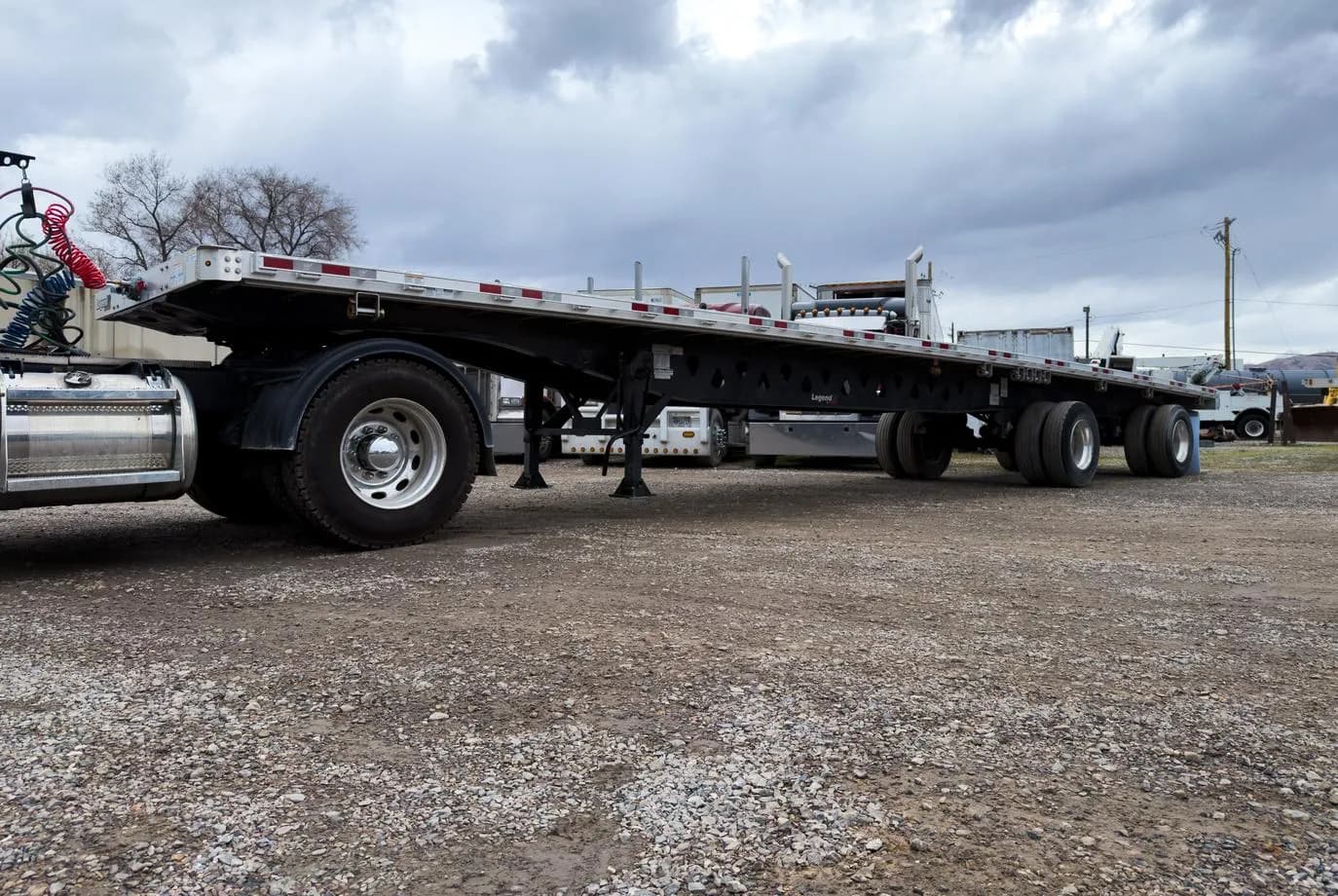

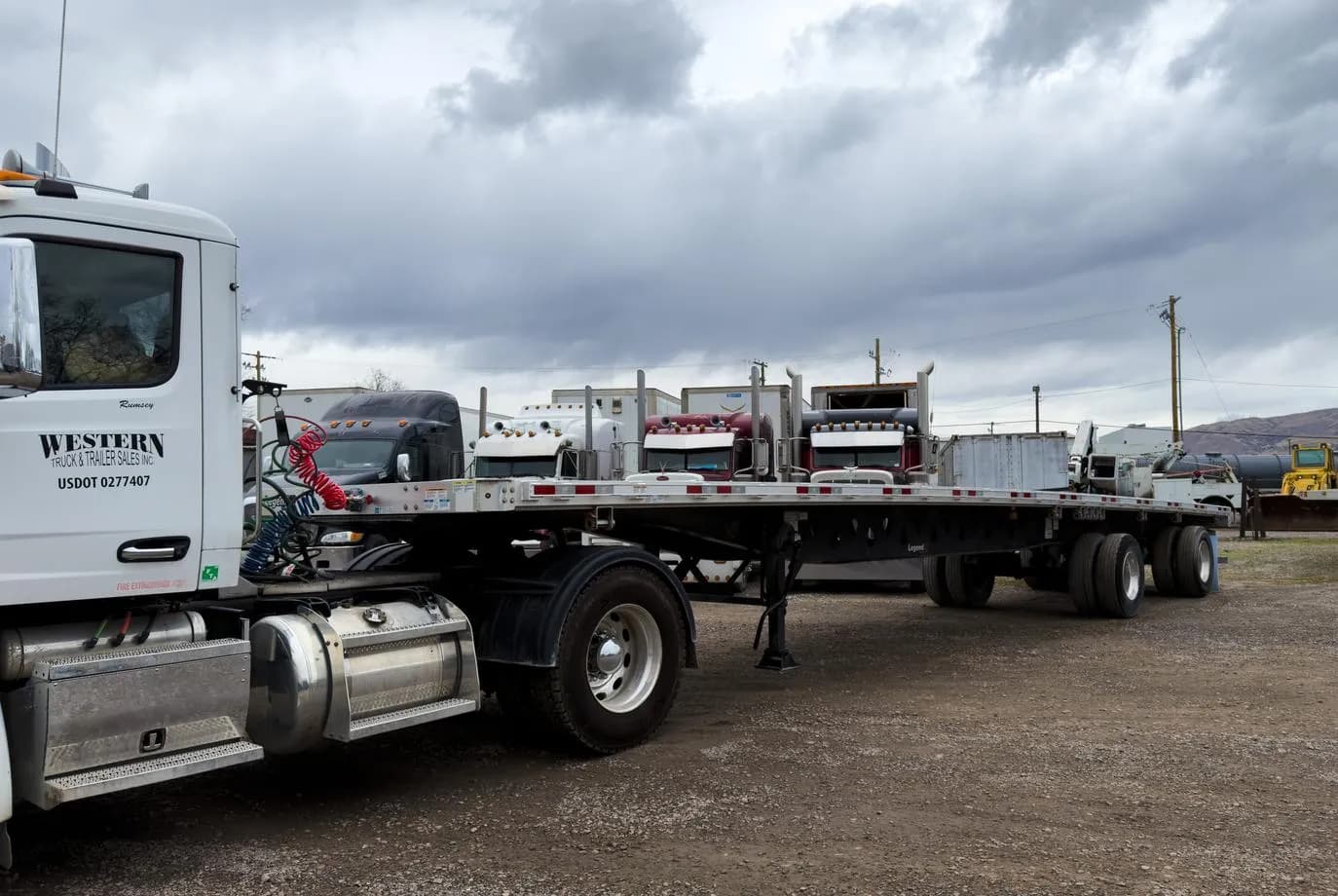

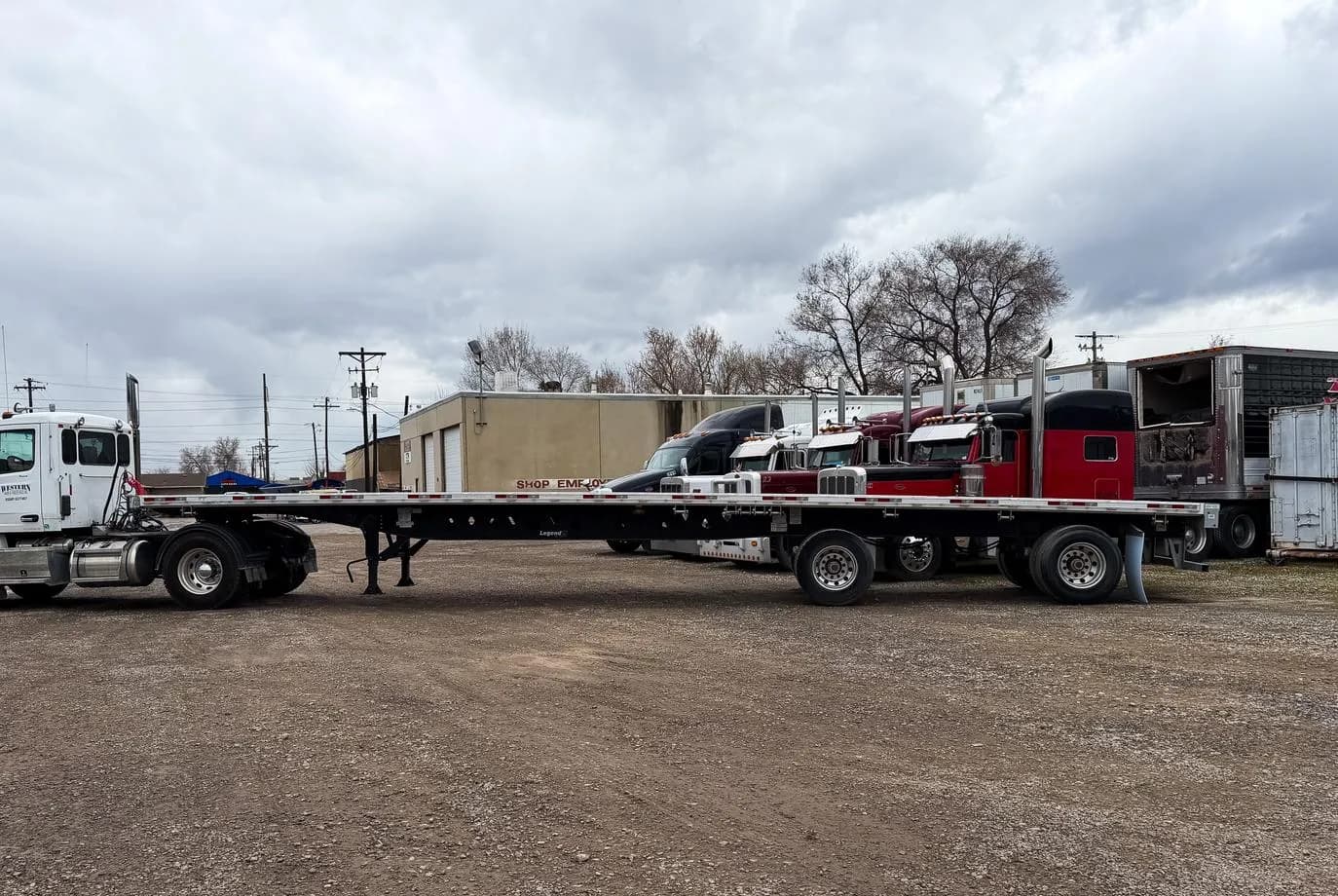

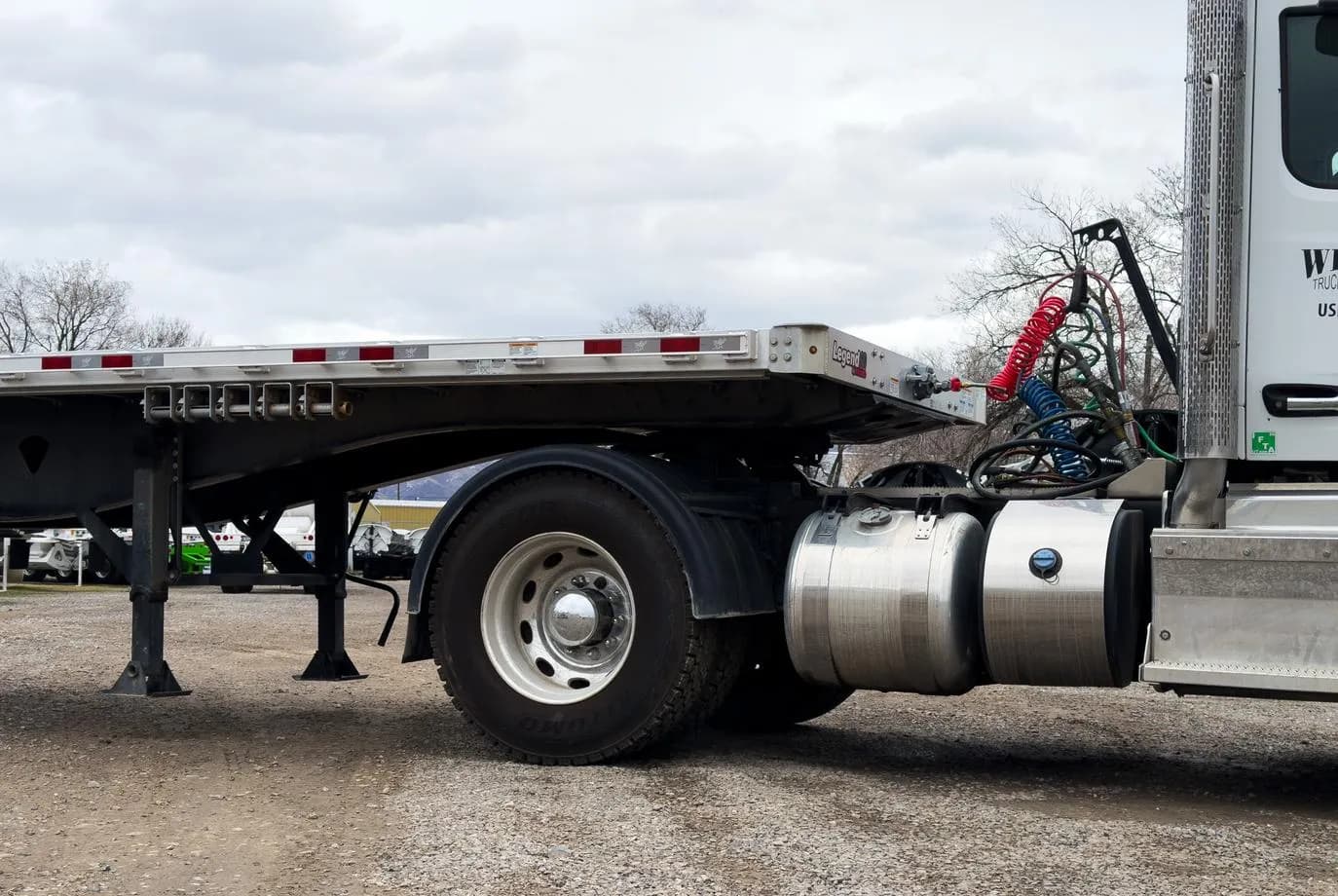

Manac 10248C000L – Flatbed, 48'-0" x 102"
Manac 10248C000L flatbed semi-trailer, 48'-0" length and 102" width.
Key Specs
- Length: 48'-0"
- Width: 102"
- Width between side rails: 97"
- Height (floor): APPROXIMATELY 59 1/2" HIGH AT FRONT AND 54" AT REAR
- Compliance: CA LEGAL
Coupling
- Coupler plate: 1/4", 80000 PSI STEEL, PLUG WELDED STRUCTURE
- King pin location: 30" FROM FRONT
- Coupler height: 48"
Structure
- Frame: 44" C/C FRAME WITH "CAMBER"
- Flanges: 3/8" x 5", HIGH TENSILE
- Web: 1/4" PLATE IN KING PIN AREA AND THE REMAINING IN 3/16", 80000 PSI STEEL. 27" HIGH AT THE PEAK WITH HOLES, PARACHUTE SHAPED, TO LIGHTEN TRAILER

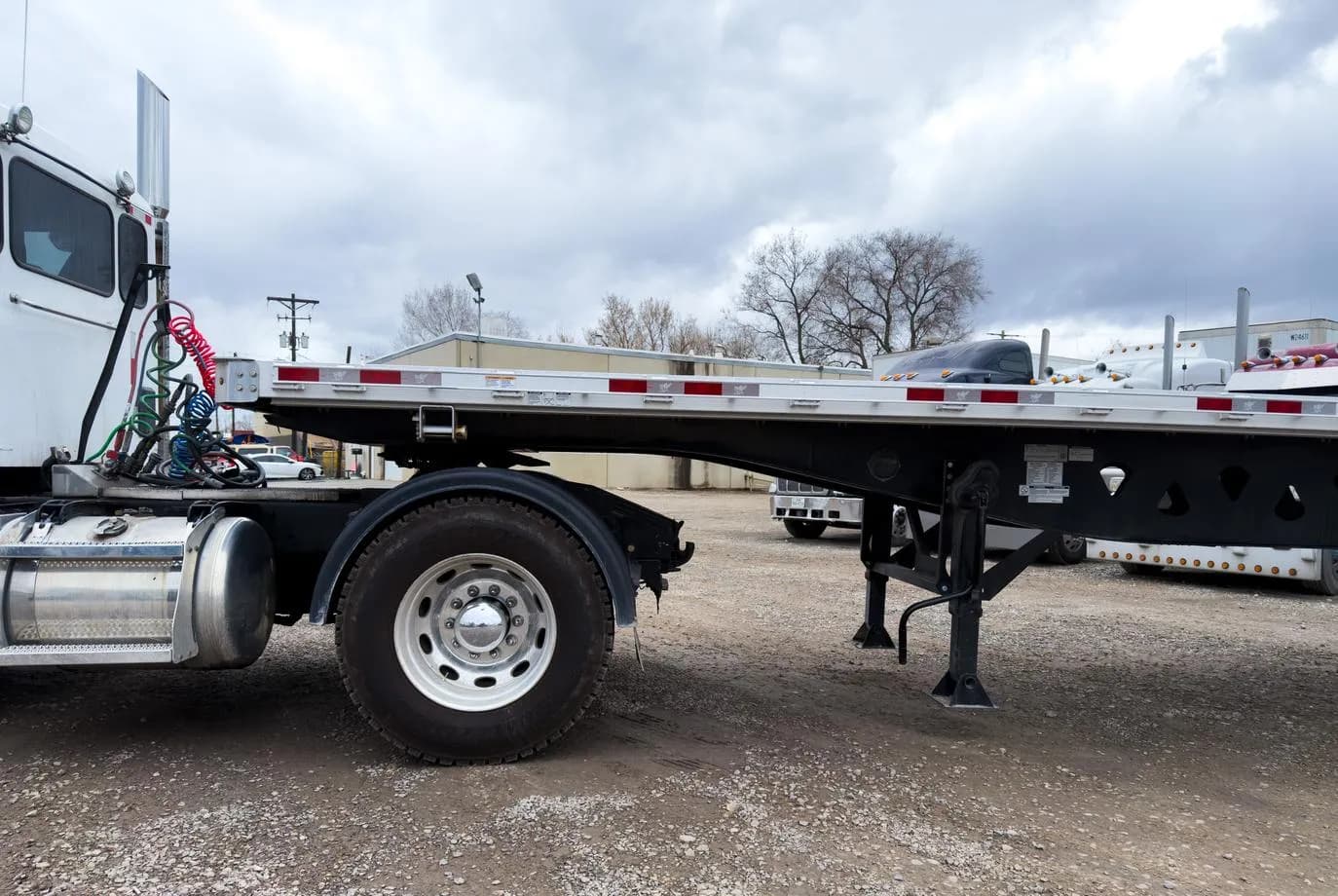

- Gooseneck: 11 1/4" HIGH, WITH INTEGRATED NOSE RAMP AND 48" STRAIGHT BEHIND KING PIN
- Crossmembers: I BEAMS, 4" @ 3.2 LBS/FT, 80000 PSI STEEL, GALVANIZED, 16" C/C
- Floor: STRUCTURAL ALUMINUM EXTRUSIONS, FLAT TYPE, INVERTED "T", 1 1/8" HIGH WITH 4 APITONG OR EQUIVALENT PLANKS
- Floor fastening: SCREWS
- Side rails: 4 3/8" x 5 11/16" HIGH, EXTRUDED ALUMINUM ("LEGEND" MODEL)
- Side boxes: 3 5/8" x 1 5/8" INSIDE, 4" HIGH, EXTRUDED ALUMINUM. CMVSS-905 WLL, 5500 LBS WLL APPROVED
- Rub rails: ALUMINUM EXTRUSIONS 3/8" x 2 3/4", SINGLE RUB RAIL SPACERS 1" x 1 3/4" AS ANCHOR
- Corners: BEVELLED
- X braces: BETWEEN MAIN BEAMS, FULL LENGTH
Ends
- Front rail: BOLTED ALUMINUM EXTRUSION, 7" HIGH, OVERLAPPED FLOOR TO ALLOW PLANK TO WALK UNDERNEATH

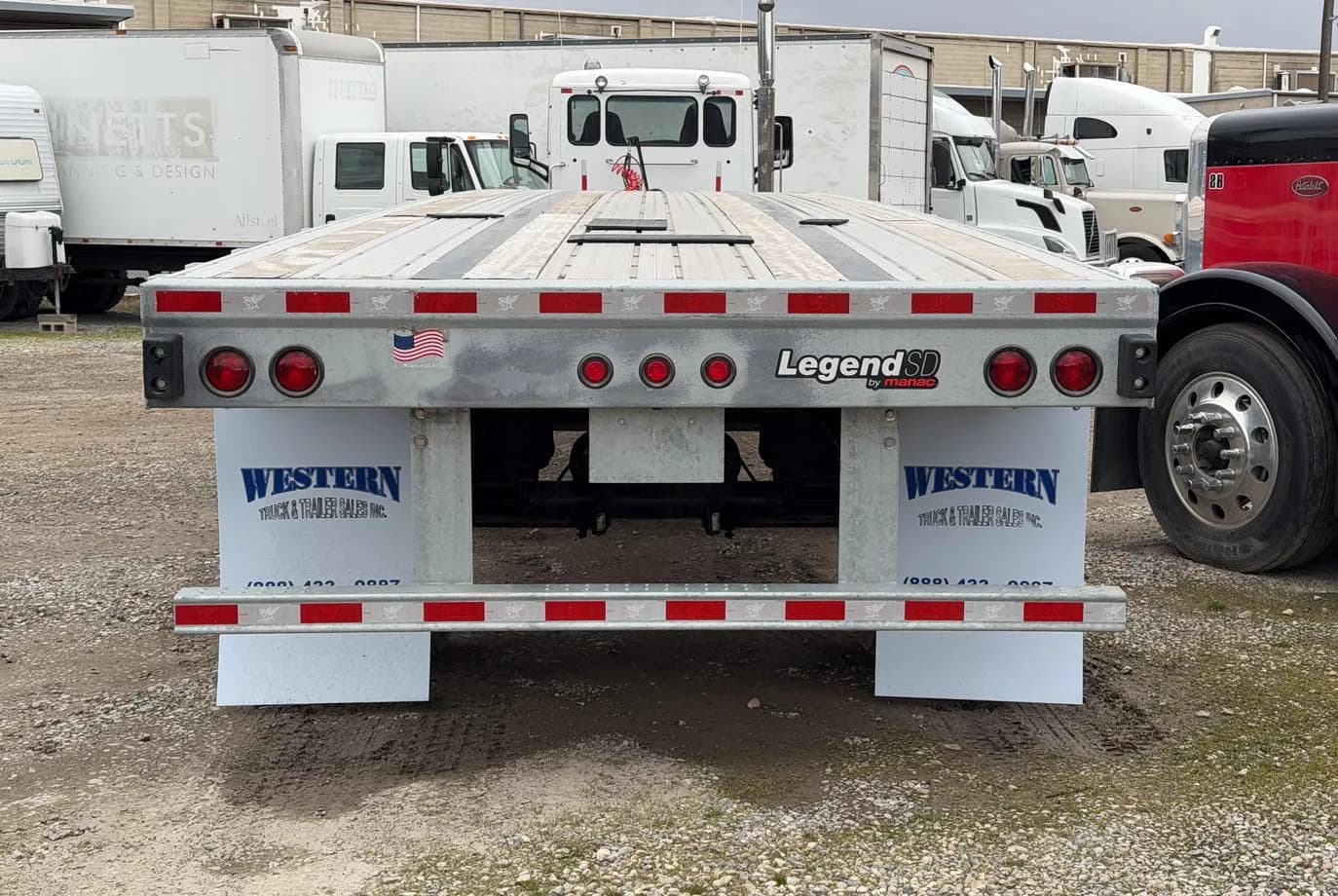

- Bumper: CMVSS 223-RIG APPROVED (IN ACCORDANCE WITH CANADA & USA REGULATION). GALVANIZED (G164) STEEL, BOLTED UPRIGHTS TO FRAMES, 4" x 4" CROSS BAR FORMED TUBING AT A MAXIMUM HEIGHT OF 22" FROM UNDER TUBING TO GROUND
- Rear bumper: 2 RUBBER DOCK, AT THE END OF REAR RAIL
- Rear rail: FORMED STEEL, GALVANIZED
Electrical
- Front connector: 7 WAY (SAE J560)
- Electrical system: SHOCK PROOF LIGHTS, POLYCARBONATE LENSES, IN COMPLIANCE W/ CMVSS 108
- Main system: GROTE ULTRA BLUE LED, SEALED BEAMS, TAIL LIGHTS, MARKERS LIGHTS "DOT", IDENTIFICATION LIGHTS (2 1/2" DIA.), LICENSE LIGHT
- Flashers: SEALED BEAMS LED, ONE LAMP INCLUDING SIDE MARKER AND FLASHER, EACH SIDE AT MIDDLE POINT, AMBER
Landing Gear
- Landing gear: AXN, (LG50DUN)
- Sand shoes: 10" x 10"
- Crank: ROAD SIDE

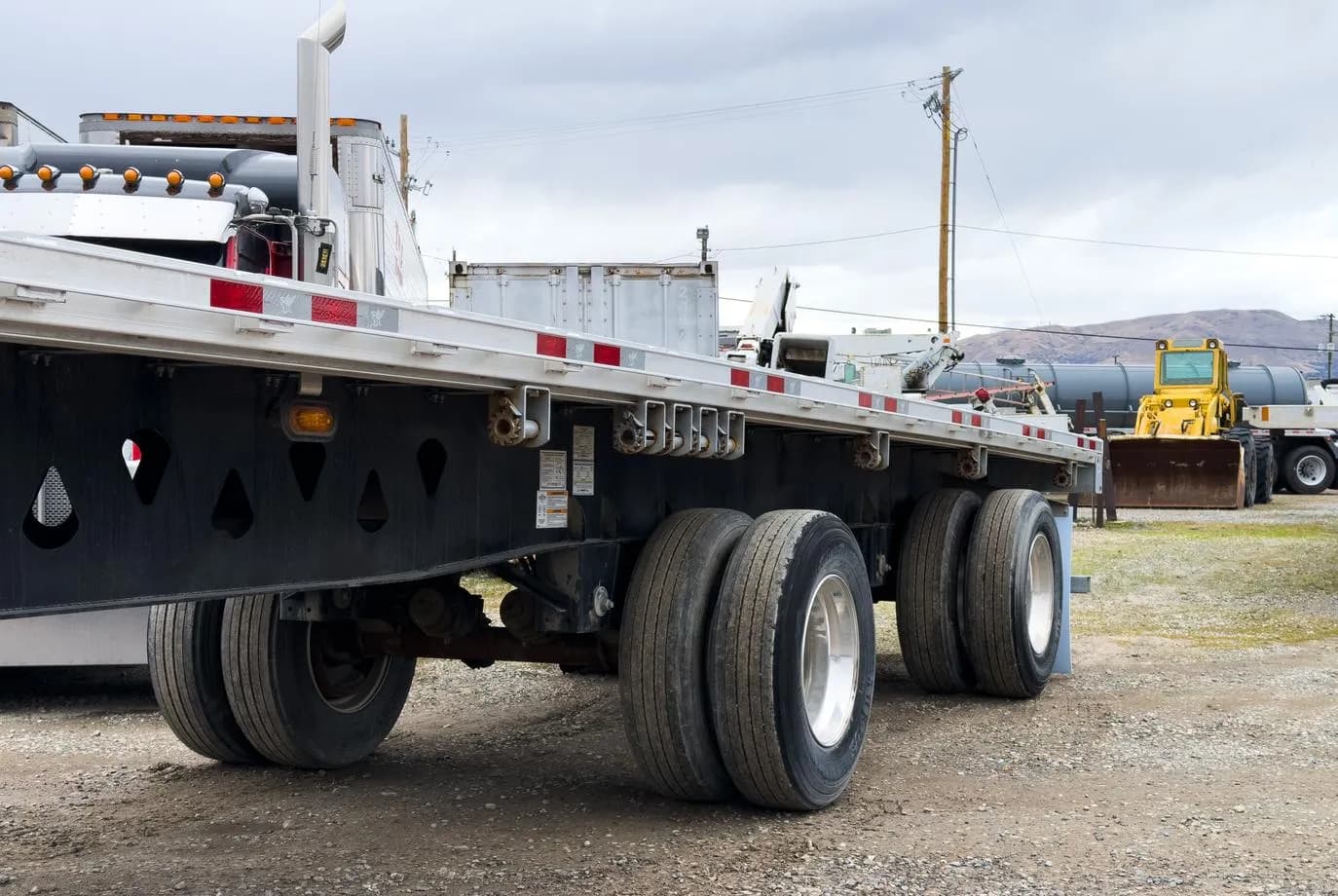

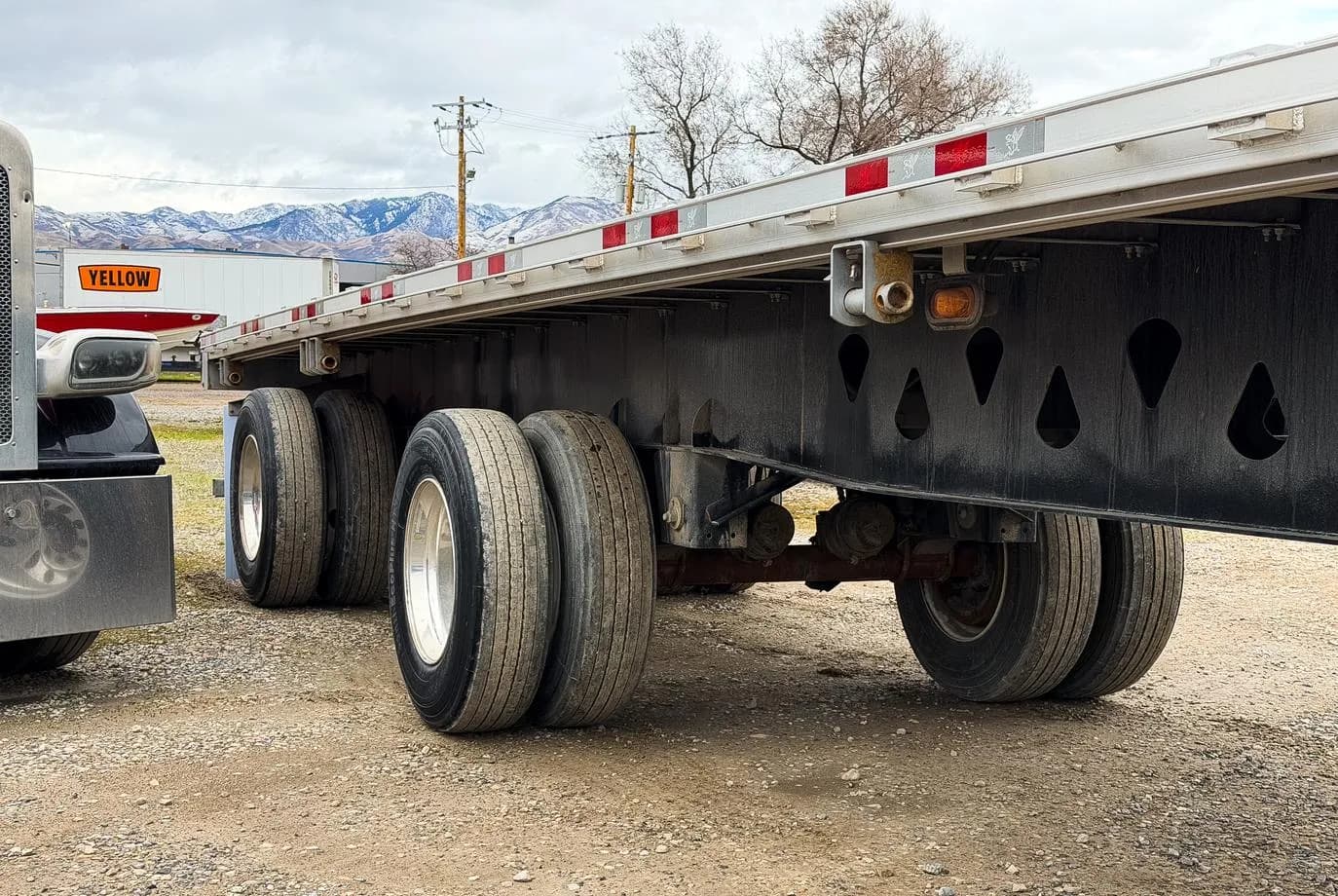

Bogie
- Bogie: FIXED, FOR TANDEM 122" SPREAD
- BASIC MECHANICAL
