Used
2019 Western EXPRESS BELT
$85,000.00
FET tax of 12% included in price
SpecialtyWestern2019
In Stock · Qty: 1
Available at Salt Lake City
Pick a time that works and talk with a rep about this unit.
or
Send a message
Tell us what you need and we'll come back with pricing, specs, and availability.

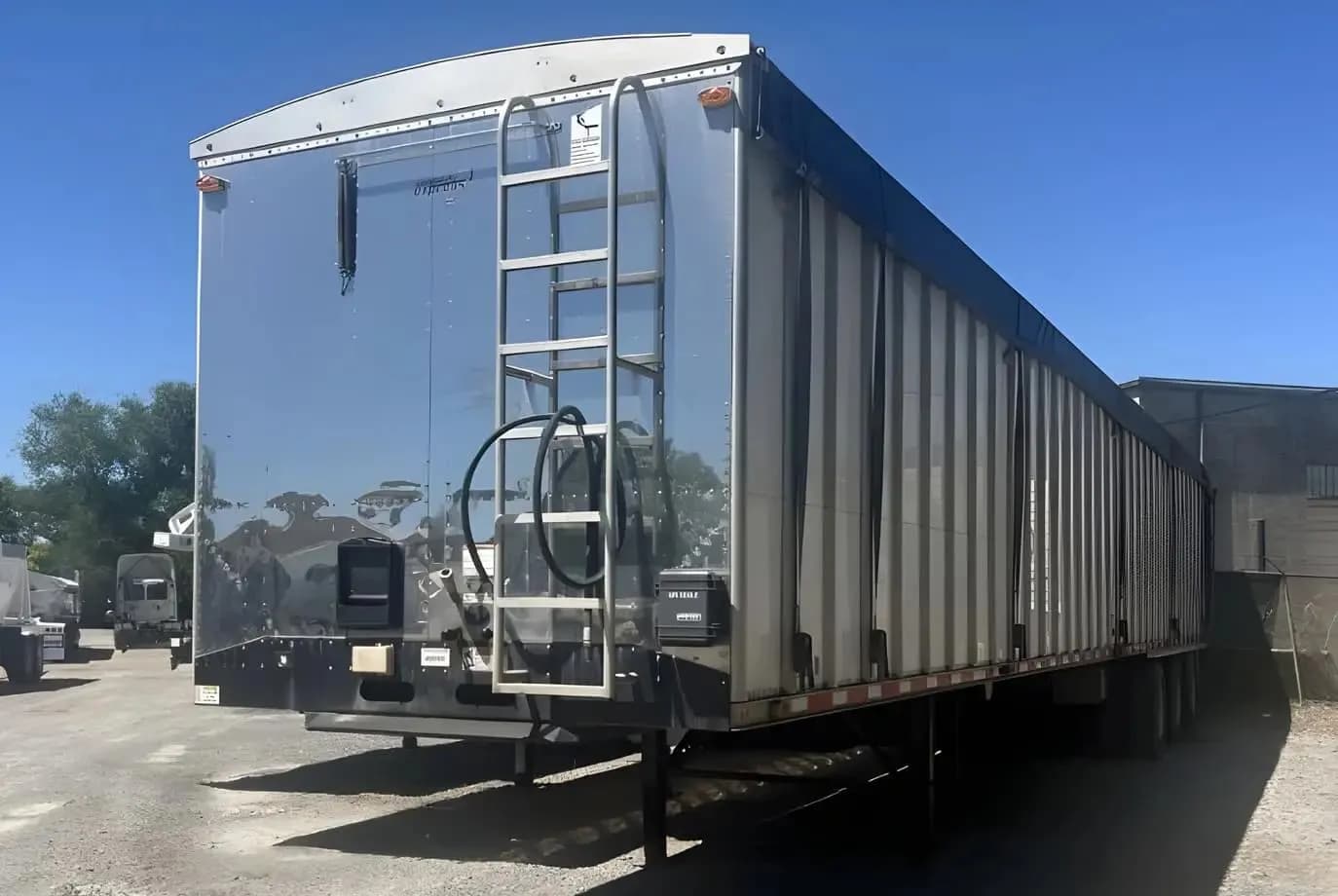

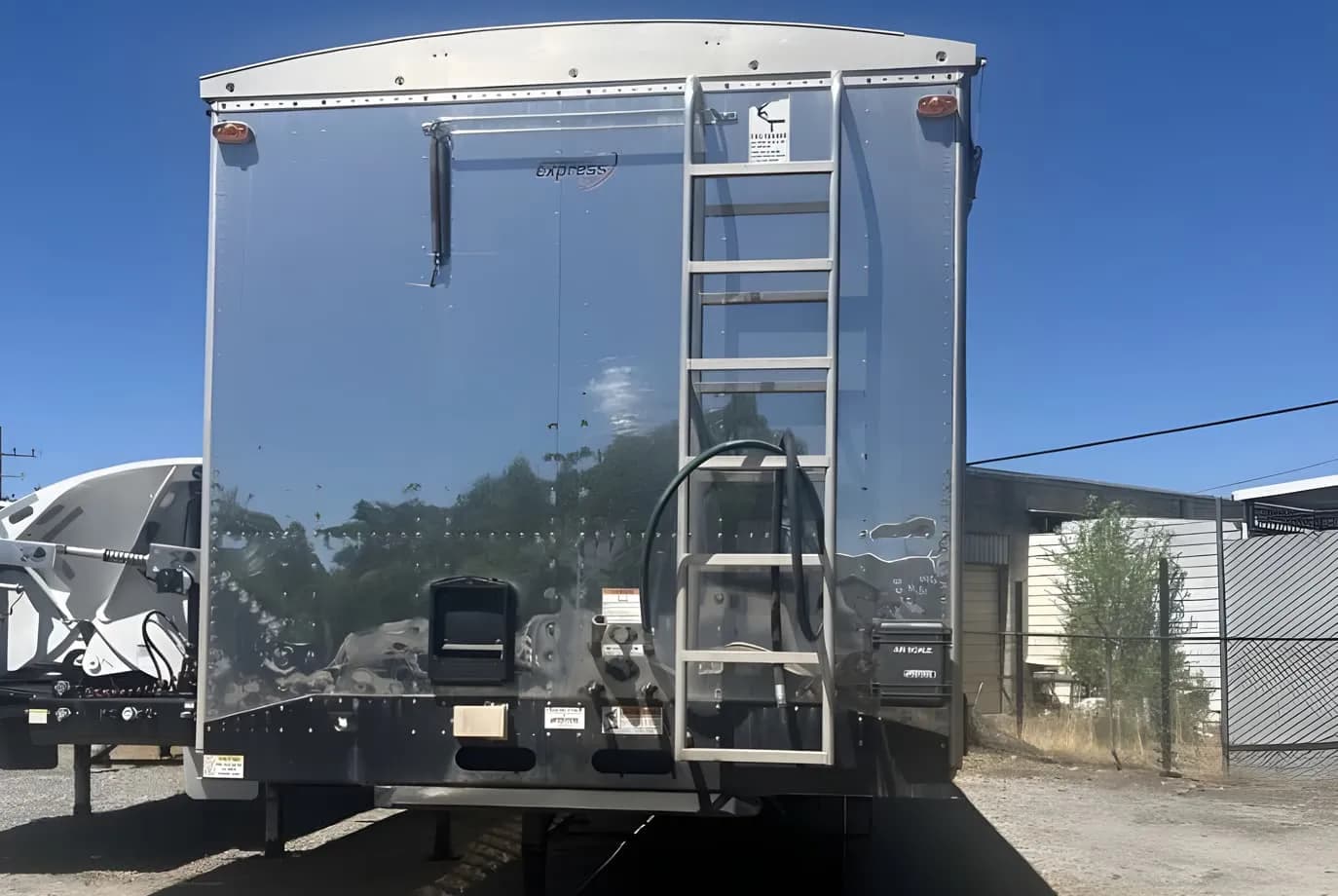

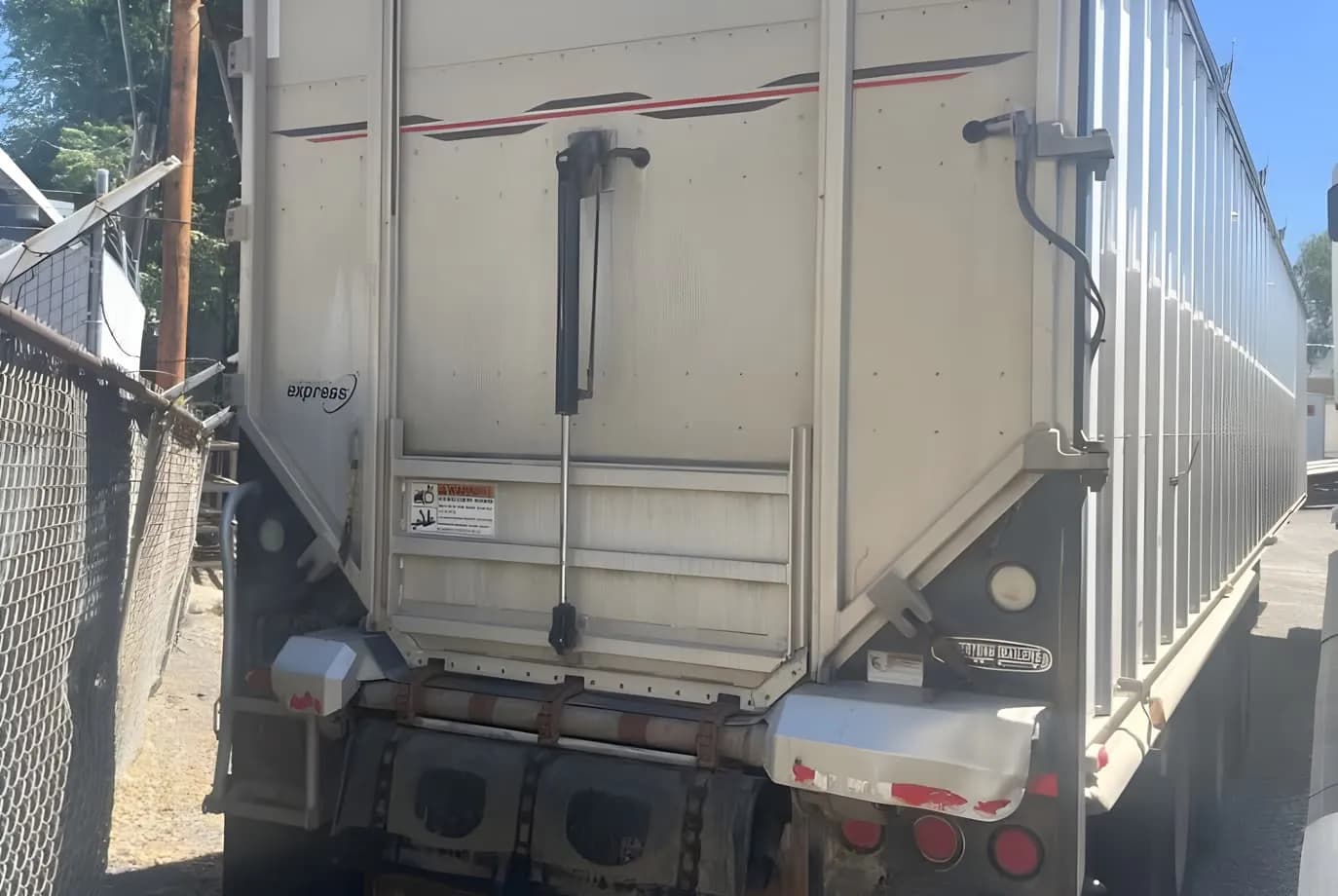

Western EXPRESS BELT – Specialty, 53'0" x 102"
Western EXPRESS BELT specialty self unloader, 53'0" length and 102" width.
Key Specs
- Year: 2018
- Model: 53' QUAD SEMI
- Type: EXPRESS COMMODITY SELF UNLOADER WIDE BELT
- Length: 53'0"
- Width: 102"
- Height: 12'0" WITH A 48" 5TH WHEEL (94" SIDE HEIGHT)
Axles & Suspension
- AXLE CONFIGURATION: QUAD LIFT & STEER #4 STEEL HUBS
- INTRAAX LIFT KIT: AXLE 1
- INTRAAX LIFT KIT TIRE & WHEEL QUANTITY: USING DUAL OR WIDEBASE TIRES
- HENDRICKSON TIREMAAX PRO AUTOMATIC TIRE INFLATION SYSTEM: TRI AXLE
- TIRE PRESSURE: 100
- LIFT CONTROL: 2-AXLES ON SEPARATE CONTROLS MANUAL & ELECTRIC ILO STD.
- AIR RIDE SCALES: WESTERN LIQUID FILLED GAUGE IN PELICAN BOX, FRONT WALL
Wheels & Tires
- TIRES FOR NON-LIFT AXLE(S): 295/75R22.5 TL01
- TIRES FOR LIFT AXLE(S): XTE-17706 MICHELIN 275/80R22.5 XTE
- WHEELS FOR LIFT AXLE(S): ACCURIDE 22.5 x 8.25 10-HOLE HUB PILOT MACHINED FINISH
- TIREMAAX SYSTEM CAN ACCEPT: DUAL 22.5 ALUMINUM WHEELS
- TIRE CHAIN HANGER: 3 HOOKS, BOTH SIDES (6 TOTAL)
Doors & Access
- EXPRESS DOOR TYPE: SIDE HINGE
- EXPRESS DOOR FINISH: ALUMINUM
- EXPRESS DOOR FRAME MATERIAL: CARBON STEEL
- CYLINDER DEFLECTOR: FOR SLIDING DOOR
- LADDER: AT REAR FOLD DOWN, 48" BELT
- NOSE CONE: YES
- NOSE CONE SPEC: 54H, WHITE WITH 5 PENNY LIGHTS
- TARP STRAP RETAINERS: RATCHET
- RECEPTICLE: 6 WIRE AT FRONT
Lighting & Safety
- LIGHTS ON FRONT WALL: 5 UPPER PENNY IN NOSE CONE
- SIDE MARKER LIGHTS: 2 ROWS 0F 5 SIDE MARKER LIGHTS INCLUDING MID-SHIP TURN
- LOAD SHEDDERS: 2 ARCHED
