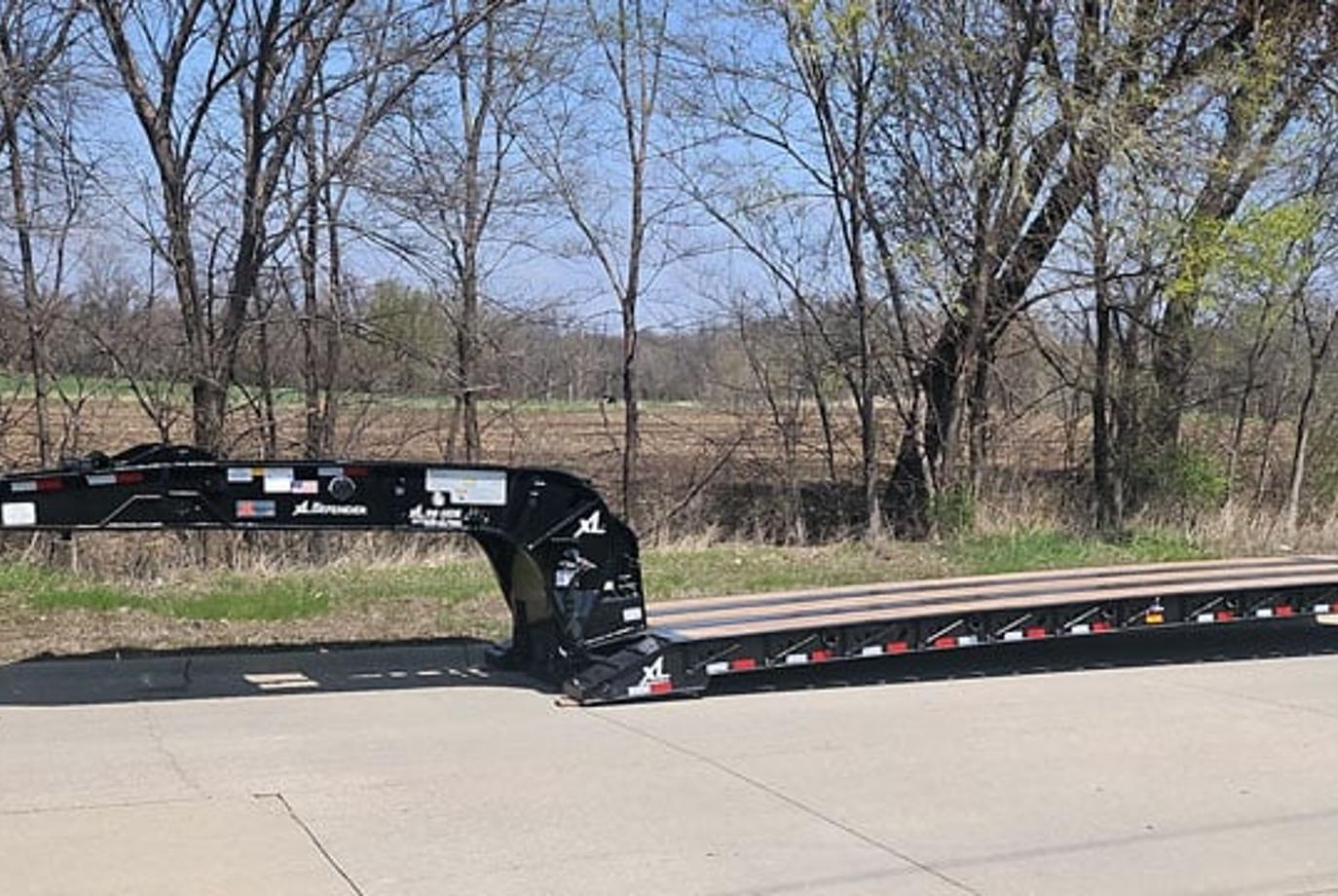

XL Specialized XL 90 HDE-D Trailer

XL Specialized XL 90 HDE-D – Lowboy, 48' STANDARD, 102"

XL Specialized XL 90 HDE-D Lowboy with 90,000 LB DISTRIBUTED FULLY CLOSED capacity and 48' STANDARD overall length.

Key Specs

• Model: XL 90 HDE-D
• Capacity: 90,000 LB DISTRIBUTED FULLY CLOSED
• Overall length: 48' STANDARD
• Overall width: 102"
• Weight (+/-3%): 24,751 LB

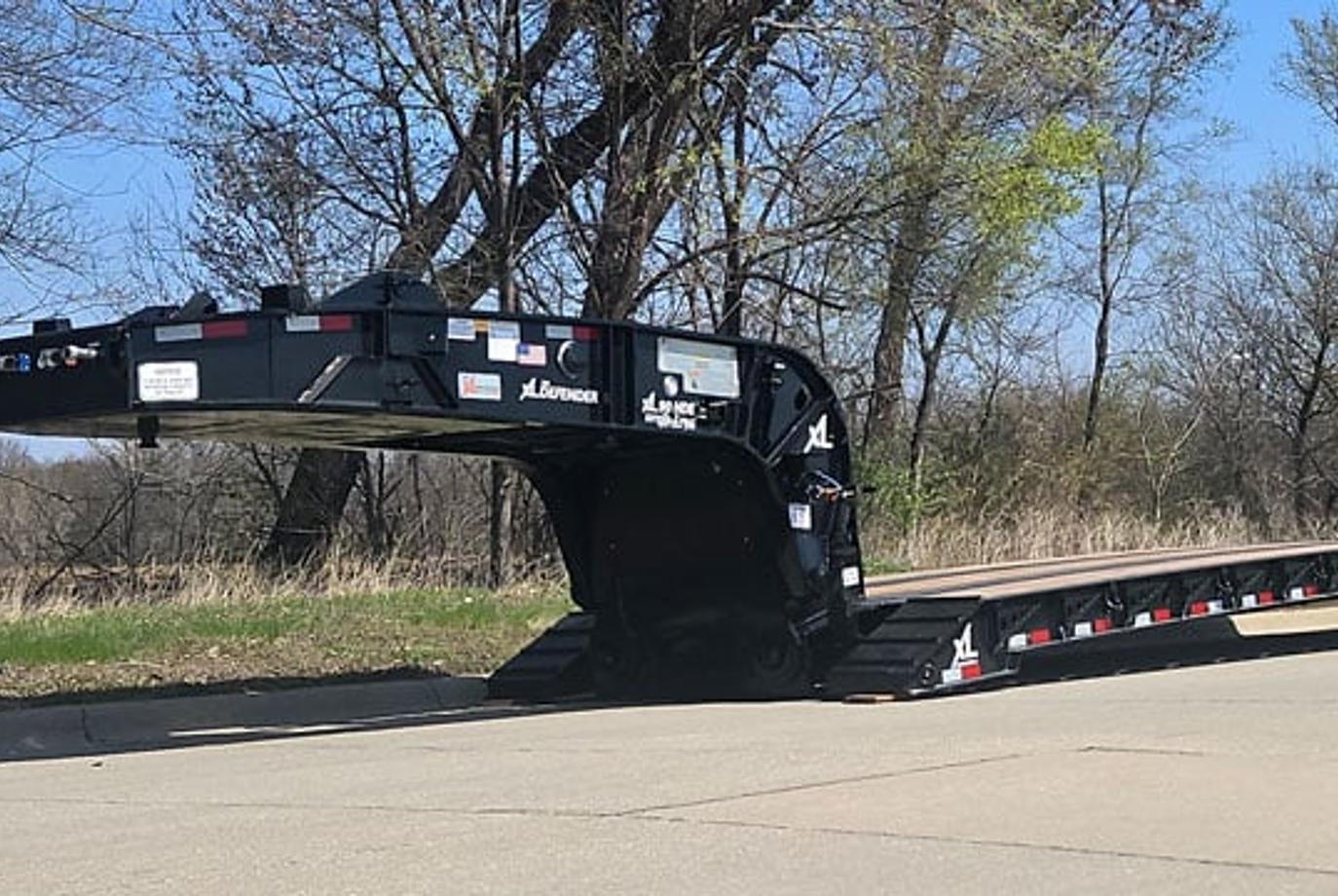

Gooseneck

• Neck style: CLASSIC
• Length: 10' 5"
• Kingpin setting: 16"
• Swing clearance: 84"
• 5th wheel height: 49" W/ 7 VARIABLE RIDE HEIGHT POSITIONS
• Hydraulics: 13 HP HONDA UNIT, BASE OF NECK, DUAL HYDRAULICS W/ ALUMINUM COVER
• Flip neck: PREP FOR 36-INCH FLIP NECK EXTENSION (STANDARD)
• REGISTRATION HOLDER

Main Deck

• Length: 28' 7" / OPENING TO 49' 11" -30" STATIONARY DECK
• Loaded deck height: 20" W/ 6" GROUND CLEARANCE
• Decking: 1 1/8" APITONG DECKING, FLUSH, CENTER COVERED
• Crossmember: 6" JR. I-BEAM AND KNEE BRACES ON 12" ALTERNATING CENTERS
• Beams: (4) FAB I-BEAMS
• D-rings: (8) BENT D-RINGS PER SIDE
• Outriggers: REMOVABLE SWING OUT OUTRIGGERS "BRACKETS ONLY" ON 24" CENTERS
• Chain drops: 24" CENTERS - OUTSIDE BEAMS
• Ramps: TAPERS TO 4"
• (4) ADDITIONAL PAIR OF 3/4" LED CLEARANCE LIGHTS
• Extension stops: ON 24" CENTERS

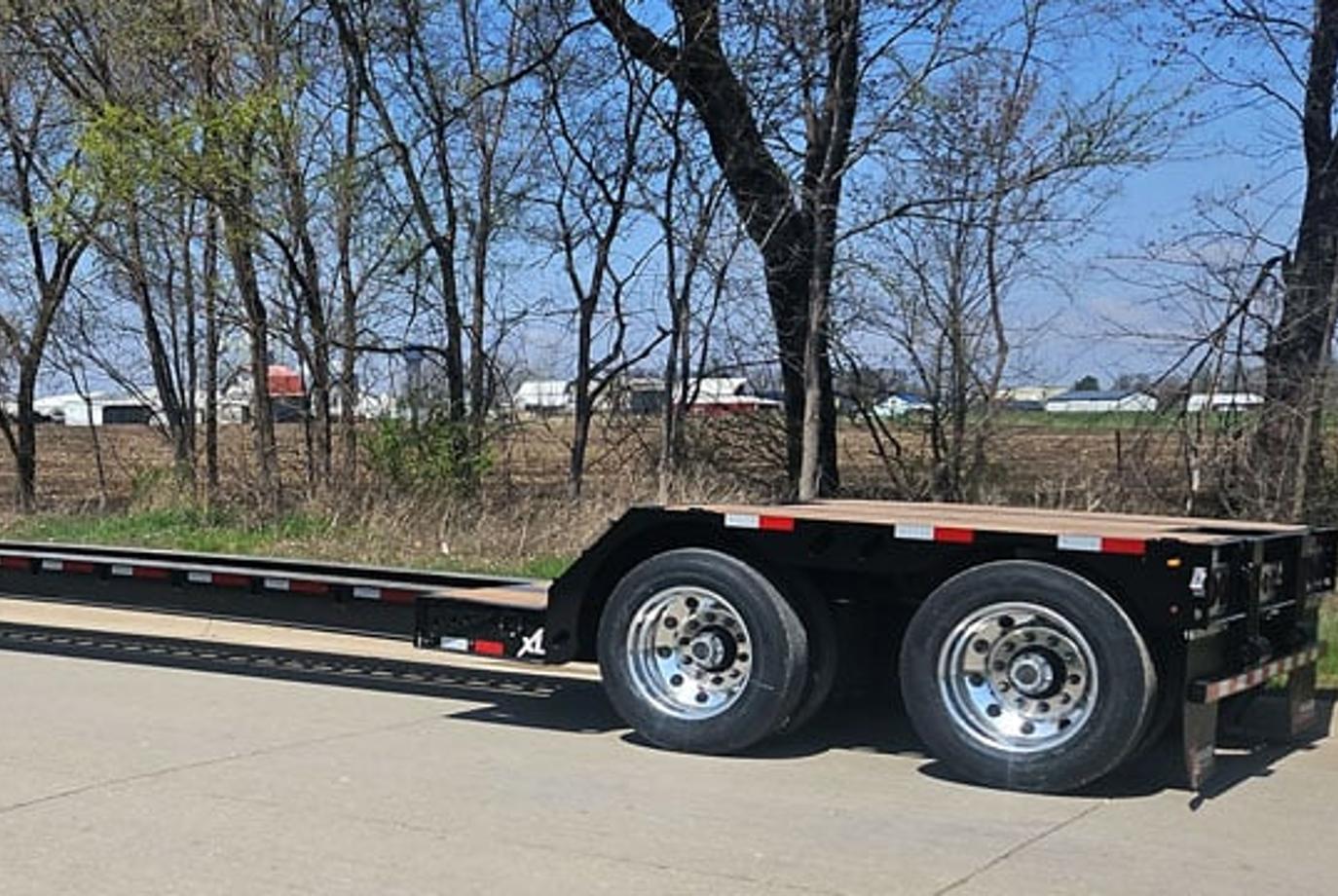

Rear Deck

• Length: 9'
• Loaded deck height: 40"
• Axles: (2) 25,000 LB NOMINAL (5/8" WALL)
• Suspension: HENDRICKSON / 25,000 CAPACITY / AIR RIDE
• Axle spacing: 54"
• ABS: 4S2M WITH SPRING BRAKES ON (2) AXLES
• Tires: 255 / 70R / 22.5 (H)
• Wheels inside: STEEL DISC
• Wheels outside: ALUMINUM POLISHED
• Brakes: 16 1/2" x 7"
• Drums: OUTBOARD
• Decking: 1 1/8" APITONG DECKING FLUSH, COVERED WHEELS; 2' x 2' CUT OUT IN TRANSITION AREA
• D-rings: (1) PAN STYLE D-RING IN EACH CORNER; (1) PAIR FLAT D-RINGS ON REAR TRANSITION; (2) BENT D-RINGS IN TAIL CHANNEL
• Bracket connection: TYPE C
• Rear connection: PREP FOR TWO AXLE BOOSTER

Electrical & Lighting

• Electrical: 12V SEALED GROTE SYSTEM WITH (3) TAIL LIGHT ALUMINUM PACKAGE
• 4" AMBER STROBE TO BE USED AS 3RD TAIL LIGHT
• (1) ADDITIONAL PAIR OF 3/4" LED CLEARANCE LIGHTS

Additional Features

• Paint: BLACK
• Air system: MANUAL RIDE HEIGHT CONTROL; COLAS+ RAISE AND LOWER VALVE; LIQUID FILLED AIR GAUGE
• (2) PAIR EZ MOUNT FLAG HOLDERS
• RUBBER GLAD HAND COVERS
• ALL CLEARANCE LIGHTS TO BE 3/4" LED
