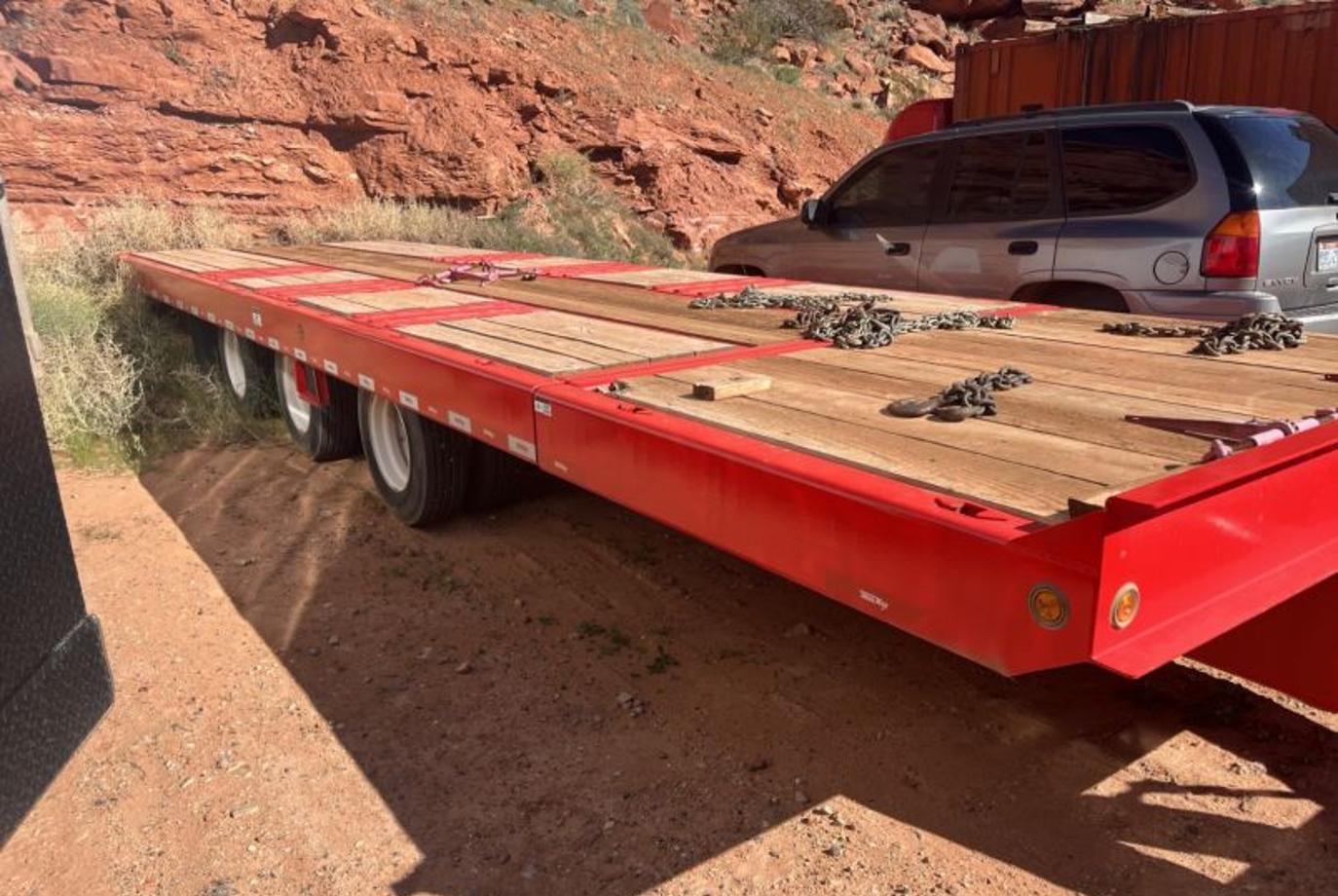

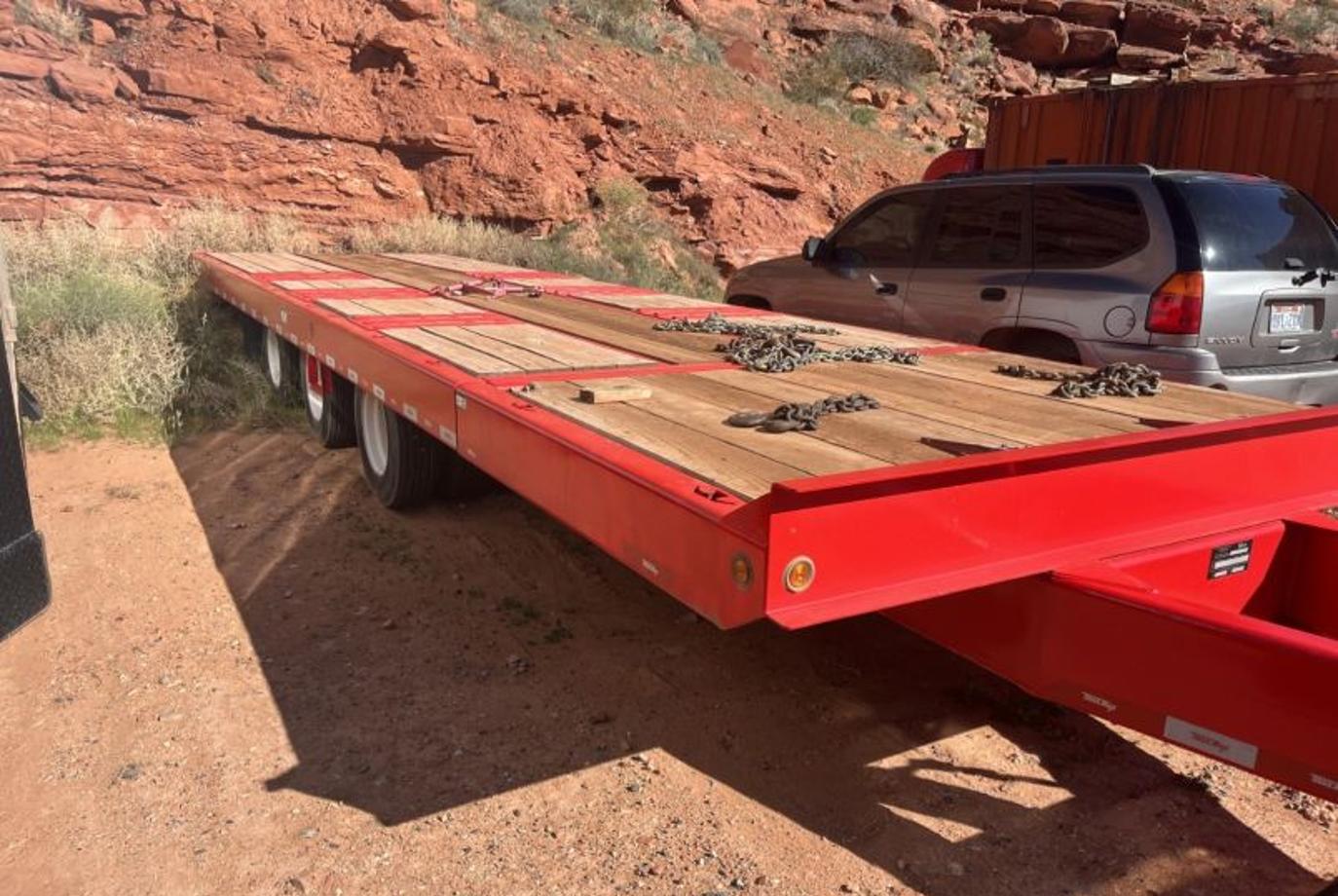

2022 Valor 60TS Trailer

Valor 60TS – Tilt & Tag, 102", 60,000 lbs

Valor 60TS Tilt & Tag with 102" decking width and Capacity (Distributed) 60,000 lbs.

Key Specs

• Model Year: 2022
• GVWR: 72,940 lbs
• Capacity (Distributed): 60,000 lbs
• Base Trailer Weight: 12,940 lbs
• Decking Width: 102"
• Axles: Qty 3 - 25,000 lb Capacity

Tub Construction

• Frame Construction: Tubular Subframe with High Tensile Perimeter Rails
• Crossmembers: 5" Tubular Crossmembers on 12" and 16" Centers
• Finished Preparation: Sandblast
• Finish Coating: 1 Stage Zinc Based Paint, VIPER RED

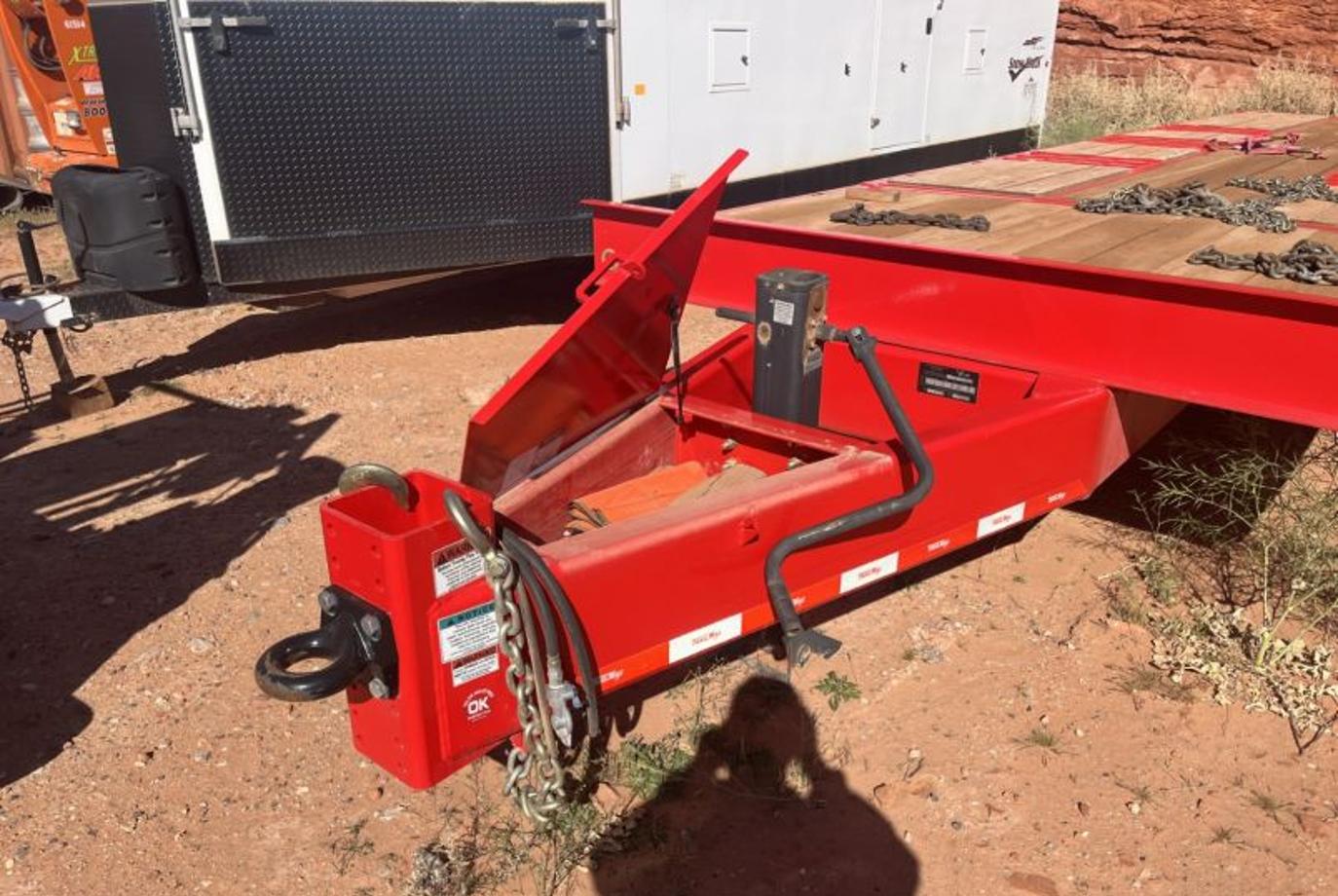

Hitch & Landing Gear

• Hitch: 3" ID Lunette eye, 90,000 lb Capacity, Adjustable Height
• Landing Gear: 35,000 lb Lift Capacity with Drop Foot

Hydraulics & Controls

• Cushion Cylinder: 4" x 16" with Internal Metered Flow to Cushion Loading and Unloading
• Deck Latch: Over-Center Slider Shaft with Tension Adjuster, Lever and Safety Pin on Driver Side

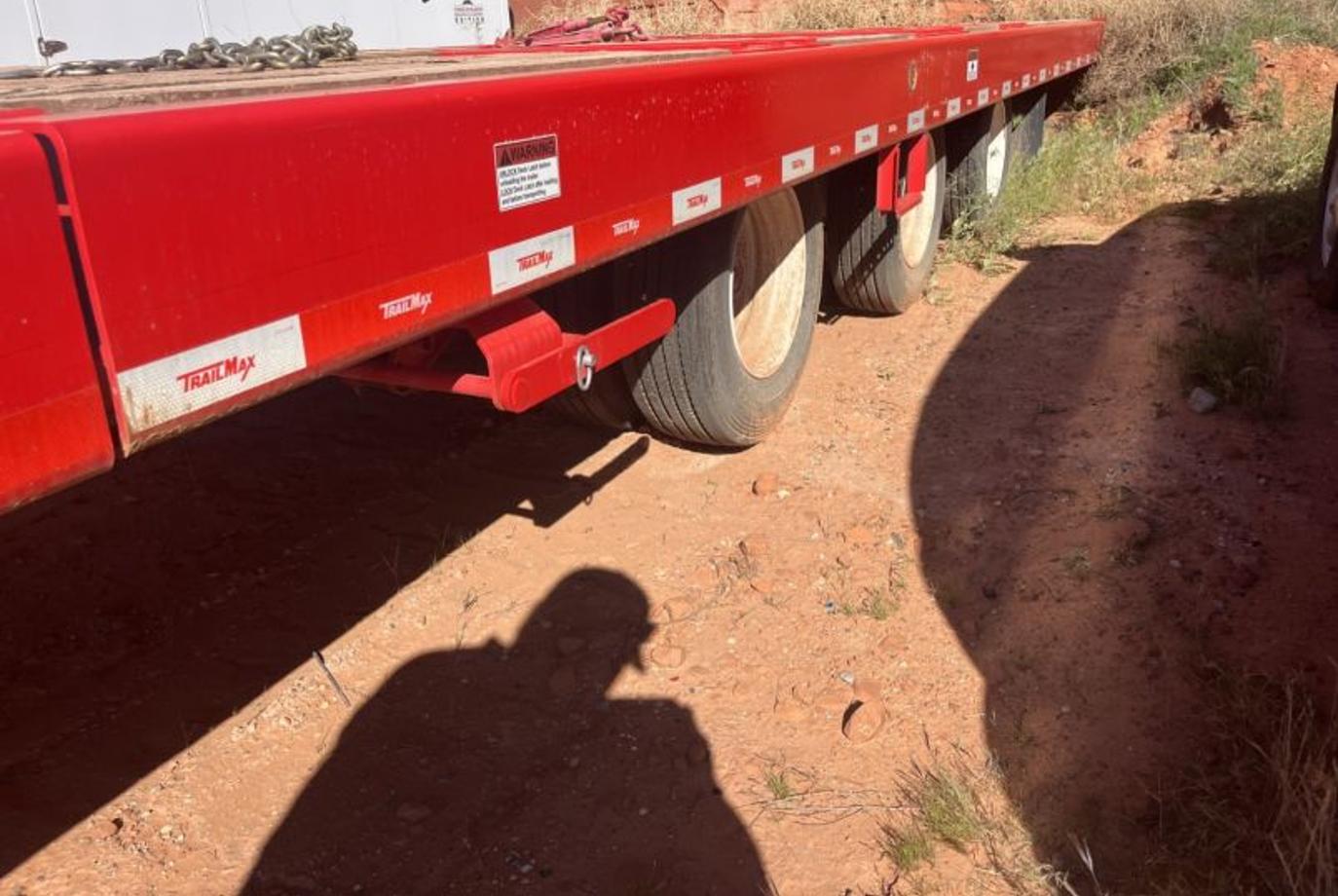

Axles & Suspension

• Axles: Qty 3 - 25,000 lb Capacity
• Hubs: 8 on 275mm Bolt Circle with M22 Lug Nuts
• Suspension: Hutch H-9700 Tri-Axle with Fabricated Hangers and Axle Alignment Capability

Brakes

• Brakes: 12-1/4" x 7-1/2" S-CAM Full Air Brakes with Maxi Spring Brakes on both Axles, Automatic Slack Adjusters, Equipped with 2S/2M ABS
• Drums: Steel Outboard Type

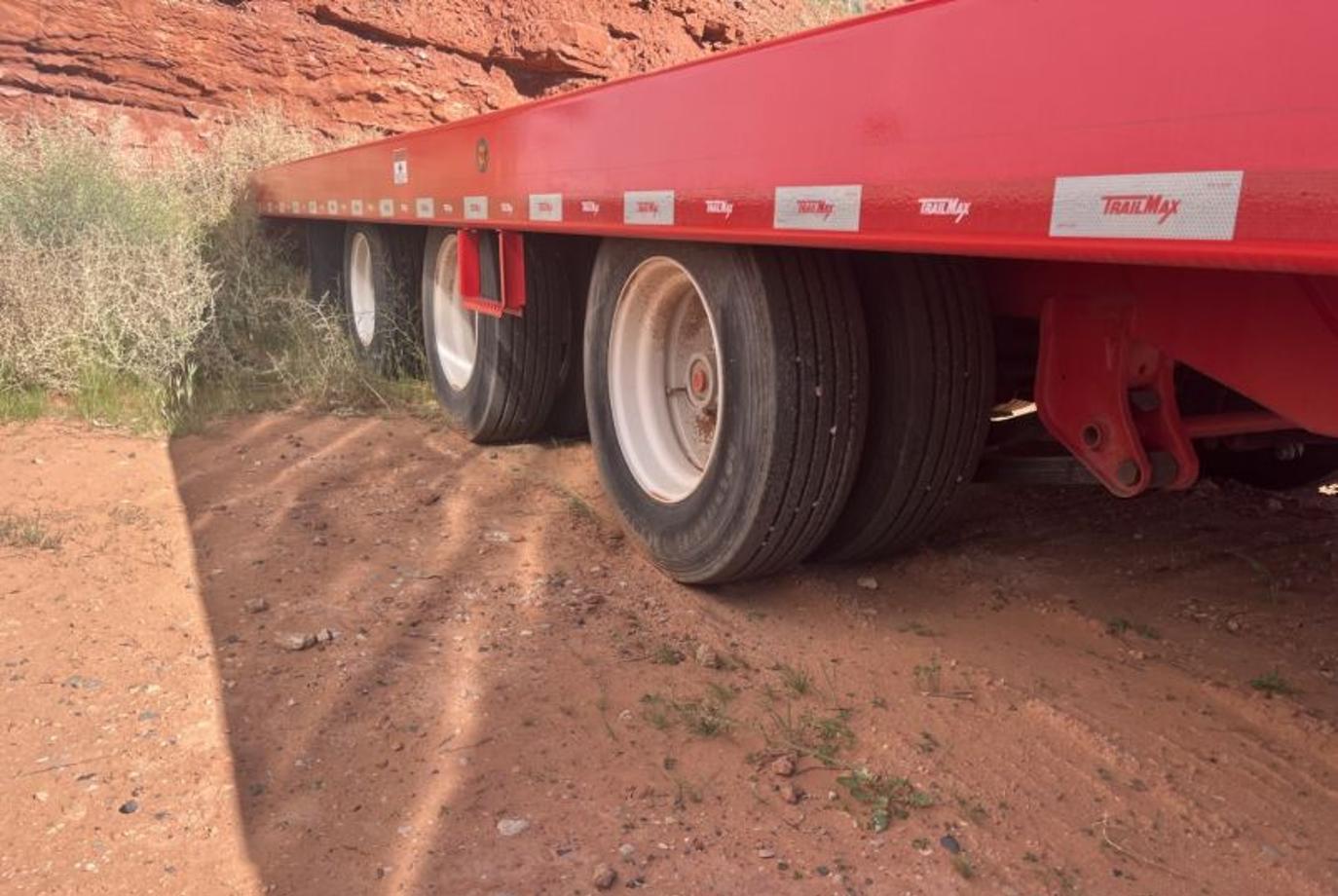

Wheels & Tires

• Wheels: Steel 17.5" x 6.75" Uni-Mount 8 on 275mm Bolt Pattern
• Tires: ST 235/75R 17.5 Radial Load Range J

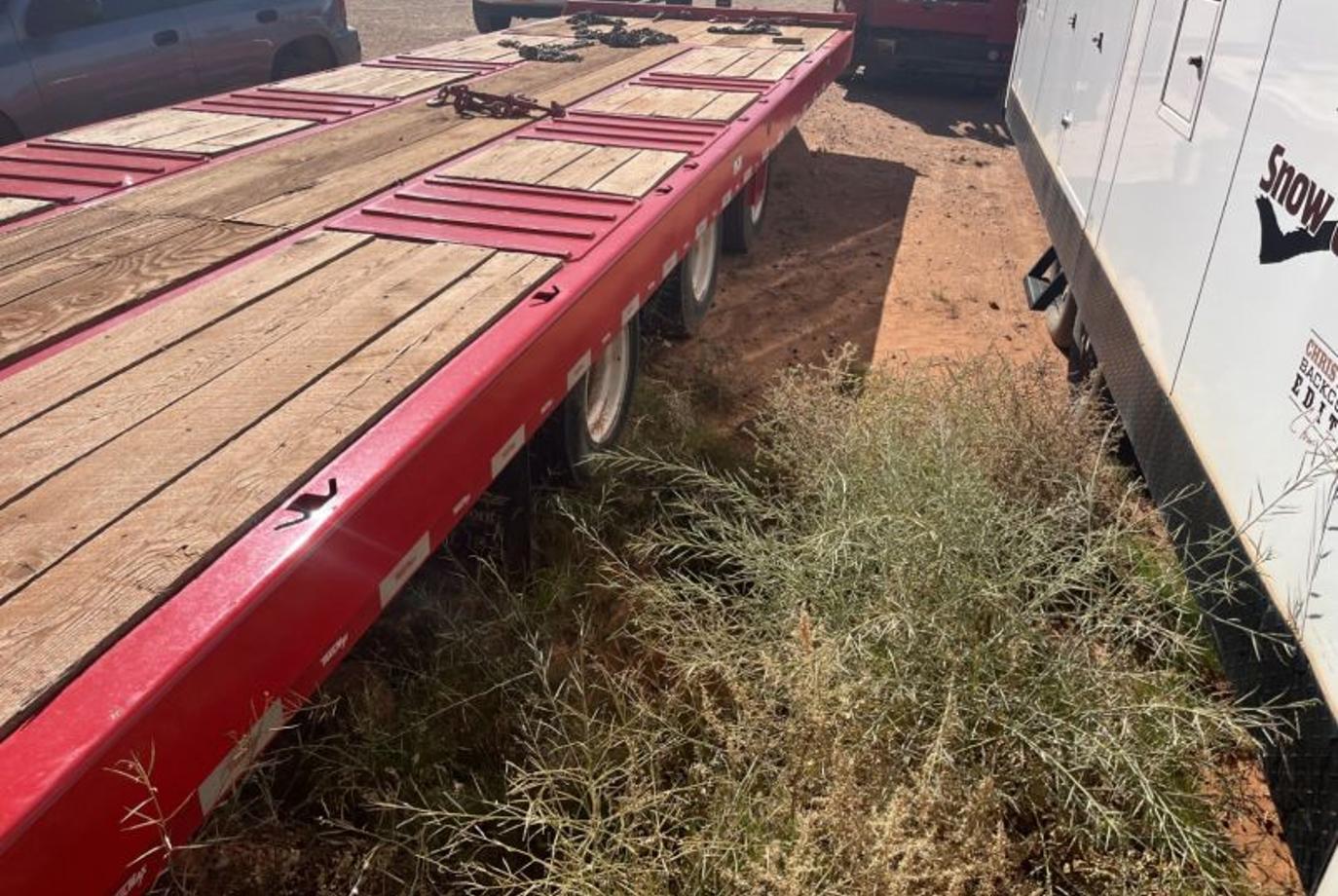

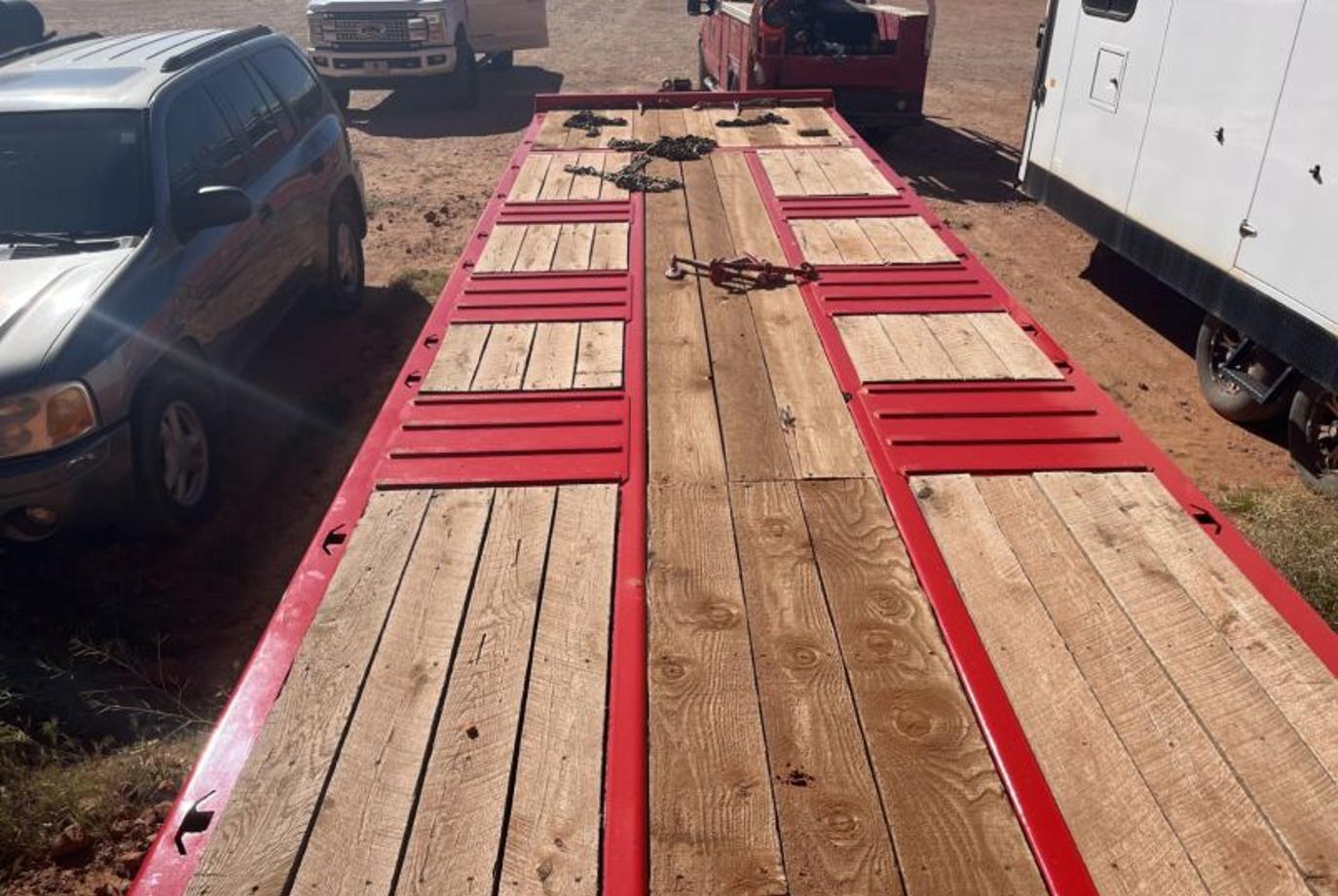

Decking & Load Securement

• Decking: 2" Oak on Outer Deack Areas Fastened at all Crossmembers, and 2" Rough Surface No.1 Grade Fir with Fasteners at every other Crossmember
• Load Securement: 18 Each (9 per side) 2-way Chain Slot/Stake Pocket System | 14 Each (7 per side) 1" Diameter D-Rings
• Tool Compartment: Combination Open Tool Tray and Lockable Toolbox
• Safety Chains: Qty 2 - 1/2" x 36" Grade 70 High Tensile Strength with Slip Hooks and Safety Latches

Electrical & Lighting

• Electrical: Phillips Sealed System with Rubber Isolated LED Lighting
